Product Type	Compact digital camera
Brand	SAMSUNG
Model	ES60 / ES63
Sensor	CCD 1/2.33-inch, 12.2 effective megapixels
Lens	Samsung f=6.3-18.9mm (35mm equivalent: 35-105mm), aperture F3.2 (W) - F5.8 (T)
Display	2.5-inch TFT LCD (6.4 cm), 230,000 pixels
Focus	Auto TTL (multi, center, face detection)
Shutter Speed	Auto: 1/8-1/1500s; Program: 1-1/1500s; Night: 8-1/1500s; Fireworks: 2s
Internal Storage	Approx. 11 MB
External Storage	SD card (up to 2 GB), SDHC (up to 8 GB), MMC Plus (up to 1 GB)
Battery	SLB-10A, 3.7V, 1050 mAh
Dimensions	90.4 x 59 x 21.4 mm (excluding protrusions)
Weight	120 g (without battery or card)
Connectivity	USB 2.0, Audio/Video output
Main Features	Photo capture, video recording, built-in flash, self-timer, digital zoom, face detection
Maintenance and Cleaning	Clean the memory card with a soft cloth; avoid contact with liquids, dust, and extreme temperatures
Safety	Do not use near flammable gases; keep out of reach of children; do not use flash within one meter of eyes
Spare Parts and Repairability	Battery, charger, and memory cards available as options; contact Samsung customer service for any repairs
Operating Temperature	0 to 40 °C
Operating Humidity	5 to 85 %

Frequently Asked Questions - ES60_ES63 SAMSUNG

How to insert the battery and memory card?

Open the battery compartment at the bottom of the camera. Insert the battery with the contacts facing down. For the memory card, push it into the slot until it clicks. The Samsung logo should face upward. To remove the card, gently press on it until it ejects.

How to charge the battery?

Use the supplied AC adapter and USB cable. Connect the cable to the camera and plug it into a power outlet. The indicator light turns on during charging. Make sure to fully charge the battery before first use.

How to turn on the camera?

Press the POWER button on the top of the camera. The screen turns on and displays the setup screen. If it's the first use, select the language and set the date and time.

How to take a photo?

Press the MENU button and select the (shooting) mode. Frame your subject on the screen. Press the shutter button halfway to focus (a green frame appears). Then press fully to take the photo.

How to record a video?

Press MENU and choose the (video) mode. Frame your subject. Press the shutter button to start recording. To pause or resume, press OK. Press the shutter button again to stop.

How to transfer photos to a Windows PC?

Insert the supplied installation CD into your computer and follow the instructions. Connect the camera to the PC with the USB cable. Turn on the camera. On the PC, open 'My Computer', then 'Removable Disk' > 'DCIM' > '100PHOTO'. Copy or move the files to your computer. To safely disconnect, use the 'Safely Remove Hardware' icon in the taskbar.

What basic settings to perform at first startup?

On first startup, the setup screen appears. Use the navigation buttons to select the language (Language), then set the date and time (Date & Time). Confirm each step with OK.

How to use the flash correctly?

The flash fires automatically in low-light conditions. To manually enable or disable it, press the Fn button in shooting mode and select the desired flash mode. Warning: do not use the flash within one meter of eyes to avoid injury.

What to do if the memory card is not recognized?

Check that the card is properly inserted (Samsung logo facing up). Ensure it is compatible: SD (up to 2 GB), SDHC (up to 8 GB), or MMC Plus (up to 1 GB). If dirty, clean it with a soft cloth. Format the card in the camera if necessary via the setup menu.

How to maintain and clean the camera?

Avoid contact with liquids, dust, or extreme temperatures (0-40°C). To clean the memory card, use a soft cloth. Do not insert foreign objects into the compartments. Store the camera in a dry, ventilated place. If problems arise, contact Samsung customer service.

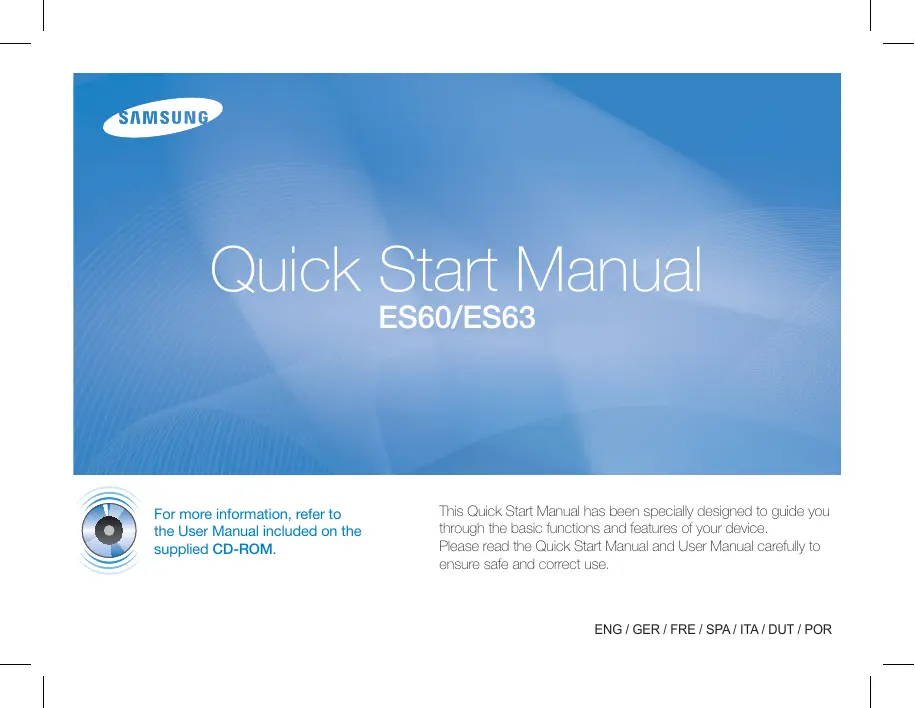

USER MANUAL ES60_ES63 SAMSUNG

For more information, refer to the User Manual included on the supplied CD-ROM.

This Quick Start Manual has been specially designed to guide you through the basic functions and features of your device.

Please read the Quick Start Manual and User Manual carefully to ensure safe and correct use.

Contents

Health and safety

information...... 2

Camera layout 4

Setting up your camera ..... 5

Unpacking 5

Inserting the battery and

memory card 6

Charging the battery 6

Turning on your camera....7

Selecting options 7

Capturing photos or videos ... 8

Playing files 9

Transferring files to a PC

(Windows) 10

Specifications 11

1

8

7

14

12

17

34

20

54

86

79

Health and safety information

Warnings

Do not use your camera near flammable or explosive gases and liquids

Do not use your camera near fuels, combustibles, or flammable chemicals. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the camera or its accessories.

Keep your camera away from small children and pets

Keep your camera and all accessories out of the reach of small children and animals. Small parts may cause choking or serious injury if swallowed. Moving parts and accessories may present physical dangers as well.

Prevent damage to subjects' eyesight

Do not use the flash in close proximity (closer than 1m/3 ft) to people or animals. Using the flash too close to your subject's eyes can cause temporary or permanent damage.

Handle and dispose of batteries and chargers with care

• Use only Samsung-approved batteries and chargers. Incompatible batteries and chargers can cause serious injuries or damage to your camera.
• Never place batteries or cameras on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.

Cautions

Handle and store your camera carefully and sensibly

• Do not allow your camera to get wet—liquids can cause serious damage. Do not handle your camera with wet hands. Water damage to your camera can void your manufacturer's warranty.

• Avoid using or storing your camera in dusty, dirty, humid, or poorly-ventilated areas to prevent damage to moving parts and internal components.

• Exercise caution when connecting cables or adapters and installing batteries and memory cards. Forcing the connectors, improperly connecting cables, or improperly installing batteries and memory cards can damage ports, connectors, and accessories.

• Do not insert foreign objects into any of your camera's compartments, slots, or access points. This type of damage may not be covered by your warranty.

Protect batteries, chargers, and memory cards from damage

• Avoid exposing batteries or memory cards to very cold or very hot temperatures (below 0^ C/ 32^ F or above 40^ C/ 104^ F). Extreme temperatures can reduce the charging capacity of your batteries and can cause memory cards to malfunction.
• Prevent memory cards from making contact with liquids, dirt, or foreign substances. If dirty, wipe the memory card clean with a soft cloth before inserting in your camera.

Camera layout

SAMSUNG

① Shutter button
② POWER button
③ AF-assist light/timer lamp
4 Lens / Lens cover
5 Speaker
6 Tripod mount
⑦ Battery chamber cover
8 : Flash
9 Microphone

SAMSUNG 10 11 12 13 14 15 16 17 18 19

10 Status lamp
11 Zoom Tele(T) button (Digital zoom)
12 Zoom Wide(W) button (Thumbnail)
13 USB and A/V port
14 Strap eyelet
15 MENU button
16 Navigation button/OK button
17 Fn / Delete button
18 | Playback button
19 LCD monitor

Setting up your camera

Unpacking

Please check that you have the correct contents before using this product. The contents can vary depending on the sales region. To buy the optional equipment, contact your nearest Samsung dealer or Samsung service centre.

Camera

Rechargeable Battery

AC adapter/ USB cable

Camera strap

Quick Start Manual

Software CD-ROM (User manual included)

Optional accessories

Memory cards

Camera case

A/V cable

Setting up your camera

Inserting the battery and memory card

1 2 With the gold- coloured contacts facing up 3 With the Samsung logo facing up 4

▼ Removing the battery

Diagram of a device internal structure with arrows indicating movement or force (no text or symbols)

▼ Removing the memroy card

Cross-sectional diagram of a mechanical device showing internal components and directional arrows (no text or symbols)

Push gently until the card disengages from the camera and then pull it out of the slot.

Charging the battery

Before using the camera for the first time, you must charge the battery.

Diagram showing a Samsung power adapter connected to an electrical outlet, with a warning symbol about the electrical outlet.

Indicator light

• Red: Charging
• Green: Fully charged

Turning on your camera

1 Press [POWER].

- The initial setup screen appears.

Display Language Date & Time MENU Exit ▶ Change

2 Press [💡] to select Language and press [💡].
3 Press [DISP] or [💡] to select a language and press [OK].
4 Press [DISP] or [💡] to select Date & Time and press [💡].
5 Press [⚡] or [💡] to select an item.
6 Press [DISP] or [💡] to change the number or select another date format and press [OK].

Selecting options

1 In Shooting mode, press [MENU].
2 Use the navigation buttons to scroll to an option or menu.

EV MENU Back Move

• To move left or right, press [⚡] or [💡].
• To move up or down, press [DISP] or [✿].

3 Press [OK] to confirm the highlighted option or menu.

- Press [MENU] again to go back to the previous menu.

Capturing photos or videos

Taking a photo

1 Press [MENU] to select (☐).

2 Align your subject in the frame.

3 Press [Shutter] halfway down to focus automatically.

- A green frame means the subject in focus.

F3.2 1/305 00001 F A I F

4 Press [Shutter] all the way down to take the photo.

Recording a video

1 Press [MENU] to select (☐).

2 Align your subject in the frame.

3 Press [Shutter].

- Press [OK] to pause or resume.

4 Press [Shutter] again to stop the recording.

Note

Number of photos by resolution (for 1 GB SD)

Resolution		Super fine	Fine	Normal
12^M	4000 x 3000	147	285	404
10^m	3984 x 2656	168	314	442
3^m	3968 x 2232	203	368	529
8^M	3264 x 2448	212	375	538
5^M	2592 x 1944	340	568	793
3^M	2048 x 1536	511	804	1,067
2^m	1920 x 1080	737	1,146	1,440
1^M	1024 x 768	1,290	1,673	1,876

These figures are measured under Samsung's standard conditions and may vary depending on shooting conditions and camera settings.

Playing files

Viewing photos

1 Press [▶].

2 Press [⚡] or [💡] to scroll through files.

- Press and hold to view files quickly.

Silhouette of a person holding a pointer, no text or symbols present

Viewing videos

1 Press [▶].
2 Press [OK].

100-0002 00:00:11 OK Play Capture

3 Use the following buttons to control playback.

[⚡]	Scan backward
[OK]	Pause or resume playback
[💡]	Scan forward

Transferring files to a PC (Windows)

1 Insert the installation CD in a CD-ROM drive and follow the onscreen instructions.
2 Connect the camera to the PC with the USB cable.

Diagram showing a digital camera connected to a computer monitor via cable (no text or symbols present)

Disconnecting safely (for Windows XP)

EN® 10:00 AM Click Safely remove USB Mass Storage Device - Drive(H): EN 10:00 AM Click

3 Turn on the camera.
4 On your PC, select My Computer → Removable Disk → DCIM → 100PHOTO.
5 Select the files you want and drag or save them to the PC.

Specifications

Image sensor	Type: 1/2.33" (approx. 7.81 mm) CCDEffective pixels: approx. 12.2 mega-pixelsTotal pixels: approx. 12.3 mega-pixels
Lens	Focal length: Samsung lens f = 6.3 - 18.9 mm (35 mm film equivalent: 35 - 105 mm)F-stop range: F3.2 (W) - F5.8 (T)
Display	2.5" (6.4 cm) 230 K, TFT LCD
Focusing	TTL auto focus (Multi AF, Center AF, Face Detection AF)
Shutter speed	Auto: 1/8 - 1/1,500 sec.Program: 1 - 1/1,500 sec.Night: 8 - 1/1,500 sec.Firework: 2 sec.
Storage	Internal memory: approx. 11 MBExternal memory (Optional): SD card (up to 2 GB guaranteed),SDHC card (up to 8 GB guaranteed), MMC Plus (up to 1 GB guaranteed)Internal memory capacity may not match these specifications.
DC power input connector	4.2 V
Rechargeable battery	SLB-10A, 3.7V (1050mAh)
Dimensions (W x H x D)	90.4 x 59 x 21.4mm (excluding protrusions)
Weight	120 g (without battery and memory card)
Operating temperature	0 - 40°C
Operating humidity	5 - 85 %

Inhalt

Diagram of a device internal structure with arrows indicating movement or force (no text or symbols)

Cross-sectional diagram of a mechanical component with internal arrows indicating flow or movement (no text or symbols)

Diagram showing a Samsung power adapter connected to an electrical outlet, with a cartoon illustration of a plug being replaced.

Anzeigelämpchen

F3.2 1/30s 00001 F F

Silhouette of a person holding a pointer, no text or symbols present

Videos anzeigen

Diagram showing a digital camera connected to a computer via cable (no text or symbols present)

Sicheres Abtrennen (unter Windows XP)

Anklicken Safely remove USB Mass Storage Device - Drive(H:) EN EN 10:00 AM 10:00 AM

Batterie rechargeable

Diagram of a device internal structure with arrows indicating movement or force (no text or symbols)

Cross-sectional diagram of a mechanical device showing internal components and directional arrows (no text or symbols)

Diagram showing a Samsung power adapter connected to an electrical socket, with a warning symbol indicating no protection.

Voyant lumineux

• Rouge: en charge
• Vert: rechargé

Display Language Date & Time MENU Exit ▶ Change

F3.2 1/30s 00001 F F

Silhouette of a person holding a pointer, no text or symbols present

Diagram showing a digital camera connected to a computer via cable (no text or symbols visible)

EN 10:00 AM Cliquez

Safely remove USB Mass Storage Device - Drive(H:)

Cliquez

Diagram of a device internal structure with arrows indicating movement or force (no text or symbols)

Cross-sectional diagram of a mechanical component with internal arrows indicating flow or movement (no text or symbols)

Diagram showing a cable connection to a digital camera, with an electrical socket and plug being inserted, accompanied by an instructional illustration.

Luz indicadora

Display Language Date & Time MENU Exit ▶ Change

F3.2 1/30s 00001 F F

Silhouette of a person holding a pointer, no text or symbols present

Ver vídeos

1 Pulse [▶].
2 Pulse [OK].

100-0002 00:00:11 OK Reproducir Captura

Diagram showing a digital camera connected to a computer via cable (no text or symbols present)

Desconectarse de manera segura (para Windows XP)

EN™ 10:00 AM Haga clic Safely remove USB Mass Storage Device - Drive(H:) EN 10:00 AM Haga clic

Diagram of a device internal structure with arrows indicating movement or force (no text or symbols)

IT-6

Cross-sectional diagram of a mechanical component with internal arrows indicating flow or movement (no text or symbols)

Diagram showing a Samsung power adapter connected to an electrical socket with a warning symbol and a cartoon illustration of a plug being charged.

Spia indicatrice

Display Language Date & Time MENU Exit ▶ Change

F3.2 1/30s 00001 F F

Silhouette of a person in casual attire raising one finger, no text or symbols present

Diagram showing a digital camera connected to a computer via cable (no text or symbols visible)

Specifications 11 79

Diagram of a device internal structure with arrows indicating movement or force (no text or symbols)

Cross-sectional diagram of a mechanical component with arrows indicating direction (no text or symbols)

Diagram showing a Samsung power adapter connected to an electrical socket with a warning symbol and a cartoon illustration of a plug being charged.

Indicatielampje

F3.2 1/30s 00001 F F

4 Druk [Ontspanknop] helemaal in om de foto te maken.

Een video opnemen

Silhouette of a person holding a pointer, no text or symbols present

Video's bekijken

Diagram showing a digital camera connected to a computer monitor via cable (no text or symbols present)

Diagram of a computer RAM module with an inserted slot and directional arrow (no text or symbols)

Cross-sectional diagram of a mechanical component with internal arrows indicating flow or movement (no text or symbols)

Diagram showing a Samsung power adapter connected to an electrical outlet with a plug, accompanied by a warning symbol about the socket.

Indicador luminoso

Display Language Date & Time MENU Exit ▶ Change

F3.2 1/30s 00001 F R

Silhouette of a person holding a pointer, no text or symbols present

Exibindo vídeos

1 Pressione [▶].
2 Pressione [OK].

100-0002 00:00:11 OK Reprod. ▼ Tir. foto

Diagram showing a digital camera connected to a computer via cable (no text or symbols present)

Please refer to the warranty that came with your product or visit our website http://www.samsungcamera.com/ for after-sales service or inquiries.

AD68-04293A (1.2)
