Product Type	Centrifugal Juicer
Brand	Panasonic
Model	MJ-CS100
Dimensions (W x D x H)	Approx. 30 x 20 x 40 cm
Weight	Approx. 4 kg
Power Consumption	800 W
Speed Settings	2 speeds (low/high)
Maximum Rotation Speed	Approx. 15,000 RPM
Juice Container Capacity	1.5 L
Pulp Container Capacity	1.0 L
Feeding Chute Diameter	68 mm
Pulp Ejection	Automatic, into separate container
Material	Stainless steel micro-mesh filter, BPA-free plastic body
Dishwasher Safe Parts	Yes (all removable parts)
Safety Features	Safety lock arm, non-slip feet, overheat protection
Spare Parts Availability	Filter, jug, pusher, lid available
Repairability Index	8/10 (easy to disassemble and replace parts)
Included Accessories	Juice jug, pulp container, cleaning brush, recipe booklet

Frequently Asked Questions - MJ-CS100 PANASONIC

How do I clean the Panasonic MJ-CS100 juicer?

All removable parts (jug, pulp container, filter, lid) are dishwasher safe. For immediate cleaning, rinse under running water and use the provided cleaning brush to remove pulp from the filter mesh. Dry thoroughly before reassembly.

Can I juice whole fruits without cutting them?

The feeding chute has a 68 mm diameter, so most whole apples, oranges, and carrots can be inserted without pre-cutting. However, for large or hard items, cut them into halves or quarters to avoid clogging.

What is the maximum continuous operating time?

The recommended maximum continuous operation is 10 minutes. After that, let the motor cool down for at least 2 minutes before resuming.

Does the MJ-CS100 produce a lot of foam?

Some foam is normal, especially with apples and other fruits. The juicer includes a foam separator in the jug design. You can also stir the juice to settle the foam.

Is the motor loud?

At 15,000 RPM, the motor operates at around 75-85 dB, which is typical for centrifugal juicers. Using the lower speed setting for softer fruits can reduce noise.

Can I juice leafy greens like spinach?

Yes, but for best results, roll the leaves into a tight bundle and feed them slowly through the chute. Add a firm fruit like apple or cucumber to help push the greens through.

How do I prevent clogging?

Feed ingredients at a moderate pace, avoid overfilling the chute, and alternate between hard and soft items. If the machine slows down, turn it off and clear any blockage.

What should I do if the juicer stops working during use?

Check if the safety lock arm is properly engaged. Also, the motor has an auto-shutoff if it overheats. Let it cool for 20 minutes before restarting. If the problem persists, consult the manual.

Can I wash the motor base with water?

No, never immerse the motor base in water or rinse it under the tap. Wipe it with a damp cloth only. The removable parts are dishwasher safe.

Where can I buy spare parts?

Spare parts like the filter, jug, and pusher are available on Panasonic's official website or authorized service centers. Use the model number MJ-CS100 for accurate parts.

USER MANUAL MJ-CS100 PANASONIC

Panasonic Manufacturing (Xiamen) Co., Ltd.

https://www.panasonic.com

©Panasonic Manufacturing (Xiamen) Co., Ltd. 2023

JZ50M168

MX0123W0

SK•SP

Printed in China

Panasonic®

Operating Instructions

使用说明书

Arahan Penggunaan

Juicer (Household Use)

榨汁机（家庭用）

Line drawing of a Panasonic coffee maker with handle and control knob (no text or symbols on the device itself)

Thank you for purchasing this Panasonic product.

Please read these instructions carefully to use the product correctly and safely.

Before using this product please give your special attention to "Safety Precautions" and "Important Information" (P. EN2 - EN4).

Please keep this Operating Instructions for future use.

Panasonic will not accept any liability if the appliance is subject to improper use, failure to comply with these instructions.

Contents

Safety Precautions....EN2

Important Information......EN4

Parts Names and Instructions....EN5

Safety Lock....EN5

Overload and Overheating Protection ....EN6

Before Use......EN6

How to Use......EN7

After Use......EN8

Troubleshooting......EN9

Specifications....EN9

Safety Precautions

Please make sure to follow these instructions.

In order to prevent accidents or injuries to the user, other people, and damage to property, please follow the instructions below.

■ The following signals indicate the degree of harm and damage when the product is misused.

WARNING: Indicates potential hazard that could result in serious injury or death.

CAUTION: Indicates potential hazard that could result in minor injury or property damage.

■ The symbols are classified and explained as follows.

This symbol indicates prohibition. The symbol indicates requirement that must be followed.

WARNING

To prevent electric shock, fire caused by short circuit, smoke, scald or injury.

● Do not allow infants and children to play with packaging material.

(It may cause suffocation.)

- Do not disassemble, repair or modify this appliance.

→ Contact Panasonic Service Centre for inspection or repair.

- Do not damage the power cord or power plug.

Following actions are strictly prohibited:

Modifying, touching on or placing near heating elements or hot surfaces, bending, twisting, pulling, hanging/pulling over sharp edges, putting heavy objects on top, bundling the power cord or carrying the appliance by the power cord.

● Do not plug or unplug the power plug with wet hands.

EN2

WARNING

- Do not use the appliance if the power cord or power plug is damaged or the power plug is loosely connected to the outlet.

→ If the power cord is damaged, it must be replaced by the manufacturer, its service centre or similarly qualified person in order to avoid a hazard.
→ Insert the power plug firmly.

• Do not immerse the motor housing, power cord or power plug in water, or splash it with water and / or any liquid.
• Do not use the appliance if the spinner (rotating sieve) or the container cover (protection cover) is damaged or has visible cracks.

● This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

• Keep the appliance and its power cord out of reach of children.
  ● Dust off the power plug regularly.

→ Unplug the power plug, and wipe with a dry cloth.

- Discontinue using the appliance immediately and unplug in the unlikely event that this appliance stops working properly.

e.g. for abnormal occurrences or breaking down

The power plug or the power cord become abnormally hot.
The appliance power fails.
The motor housing is deformed, has visible damage or is abnormally hot.
There is crack on the container and other parts.
There is an unpleasant smell.
There is abnormal turning noise while in use.
There is another abnormality or failure.

→ Contact Panasonic Service Centre for inspection or repair.

● Make sure the voltage indicated on the label of the appliance is the same as your local supply. Also avoid plugging other devices into the same outlet to prevent electric overheating. However, if you are connecting a number of power plugs, make sure the total wattage does not exceed the rated wattage of the outlet.

CAUTION

To prevent electric leakage, electric shock, fire caused by short circuit, scald, injury or property damage.

- Do not use the appliance on the following places.

• On uneven surfaces, on carpets or tablecloths etc.
  Place where it may be splashed with water or near a heat source.
  Near any open water such as bathtubs, sinks, or other containers.
  Near a wall or furniture.

→ Place the appliance on a firm, dry, clean flat worktop.

● Never use hot water (over 60 °C) for cleaning purpose or fire to dry the appliance.
- Do not open the lid and put your fingers or utensils such as spoon or fork into the feeding tube while the appliance is operating. (Use the food pusher or another piece of fruit or vegetable to push it down.)

Safety Precautions

Please make sure to follow these instructions.

CAUTION

• Do not assemble the spinner when there is food residue left around the container.
• Do not replace any parts of the appliance with non-genuine spare parts.
• Do not carry the appliance by holding the power cord, feeding tube or container. When carrying the appliance, be sure to hold the motor housing with both hands.
• Do not insert any object in the gaps of the appliance.
• Do not use prohibited ingredients as stated in this instructions. (P. EN6)

● Unplug the plug when the appliance is not in use.
● Make sure to hold the power plug when unplugging it. Never pull on the power cord.
● Beware not to trip over or get caught in the power cord while in use.
- In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
● Care shall be taken when handling the spinner and during cleaning. Do not clean the spinner by bare hand.
● Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling, moving or cleaning.
- Switch off the appliance and disconnect from supply before changing attachments or approaching parts that move in use.
- Ensure to operate and rest the appliance as stated on specification table. (P. EN9 "Specifications")
- Ensure to clean the appliance especially surfaces in contact with food after use. (P. EN8 "After Use")
● This product is intended for household use only.

Important Information

Do not use the appliance outdoors.
Do not use the appliance for commercial purpose.
Do not place the juicer jug on any heat sources or in a microwave.
Do not drop the appliance or attachments to avoid damaging it.
Do not wrap the power cord around the motor housing.
Make sure the parts or attachments are set firmly before use.
Do not operate the appliance without ingredients.

EN4

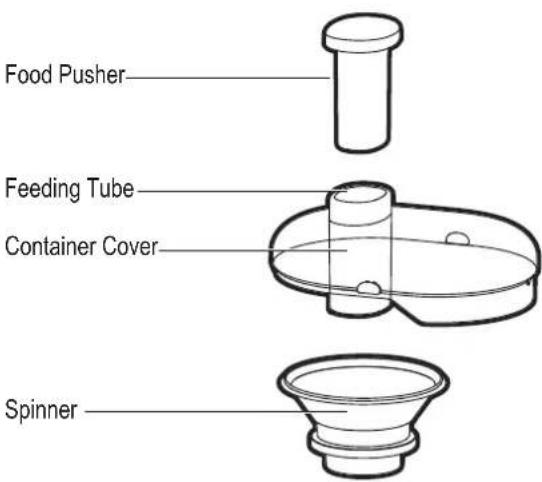

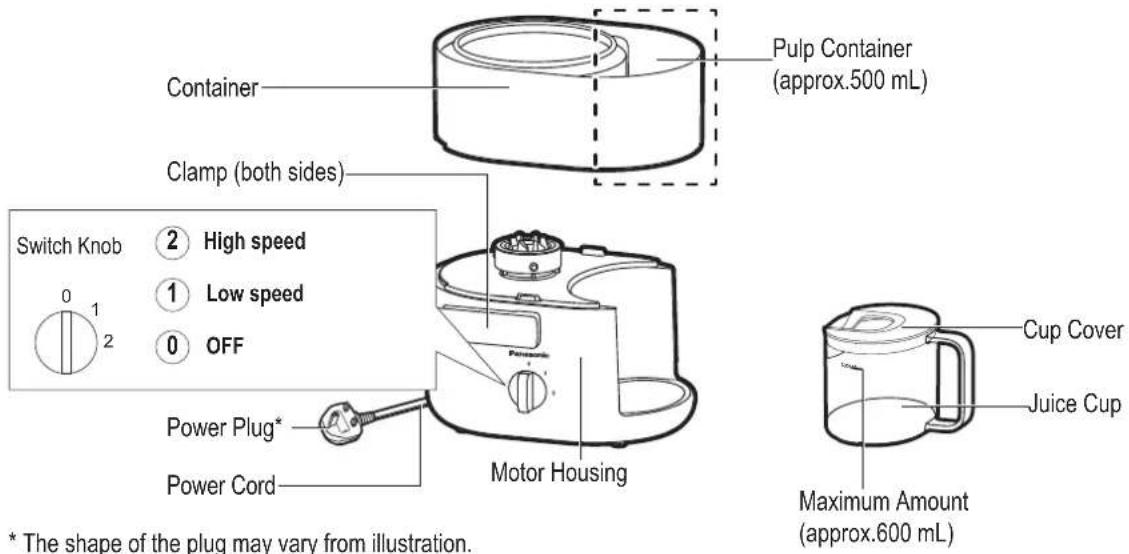

Parts Names and Instructions

Juicer

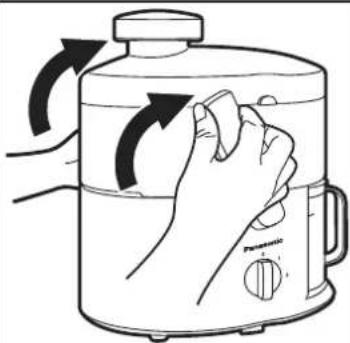

Safety Lock

Illustration of a hand pressing down on a water heater with arrows indicating rotation (no text or symbols)

The safety lock has been designed to prevent the juicer from switching on when the container unit is not properly in place.

This Juicer can operate only when the clamps are completely engaged.

EN5

Overload and Overheating Protection

In case of overload and overheating, the protection device is triggered to stop operation and it is not abnormal. After rotation stops, follow the below steps:

- Do not use the appliance repeatedly without any countermeasure.

1 Turn the switch knob to "0" position, unplug the appliance.

2 Remove attachment from motor housing. Remove accumulated food residue from the spinner/container cover.

Remove the prohibited ingredient if used.

3 Reset the attachment, then start again. (P. EN7)

If the appliance still does not operate after performing the above, overheating protection has been activated.

Turn the switch knob to "0" position, unplug and rest the appliance for about 15 minutes or more (until motor housing returns to a normal temperature) to release overheating protection before using again.

(If appliance still does not operate, contact Panasonic Service Centre for inspection or repair.)

Before Use

Clean all detachable parts before using the appliance for the first time or when you have not used it for a while, and then assemble them securely. (P. EN7 "How to Use" and P. EN8 "After Use")

Handling Precautions

Ingredients that are not recommended:

Soft fruits that produce puree and can clog the spinner – e.g. bananas, peaches, apricots etc.

Low juice ingredients which can block the product – e.g. fresh basil leaf etc.

Hard ingredients which can cause product malfunction - e.g. sugarcane, coconut etc.

Please remove hard seeds and stones from fruit before juicing such as guava etc. Hard seeds that are difficult to be removed such as pomegranate is prohibited for juicing.

During initial usage, the appliances might have some unpleasant smell (slight burn smell) but this condition is normal.

Some ingredients may produce a lot of pulps accumulate to the container cover that cause operation stop.(Overload and Overheating Protection: refer to page EN6)

Make sure all parts are correctly mounted before you switch on the appliance.

Some ingredients may accumulate at the container cover and spinner. If so, please power off the juicer and clear the accumulated ingredient before continuing for juicing to prevent leakage.

To disassemble

Illustration of a hand using a water heater to lift a lid, showing the process with arrows indicating rotation (no text or symbols)

Release the clamp (both sides) while pushing the container cover.

Line drawing of a hand operating a kitchen blender with directional arrows indicating motion (no text or symbols)

Lift up the container. Gently lift up the food pusher and the container cover.

Illustration of hands operating a mechanical device with a lid and base, showing motion arrows (no text or symbols)

the food pusher and the container cover.

① Lift up the spinner.

② Remove the spinner pad.

EN6

How to Use

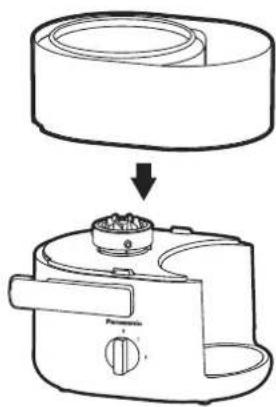

1 Place the container onto the motor housing.

Make sure the container sits properly on the motor housing.

Diagram showing a mechanical component with a cylindrical top and a base, no text or symbols present

2

① Place the spinner in the container and fix it into position.
② Place the container cover onto the container.

English

3 Swing the clamps (both sides) by using both hands to secure the container cover until a "click" sound is heard.

the clamps are not engaged correctly, the motor will not operate.

Simple line drawing of a mechanical device with arrows indicating motion or force (no text or symbols)

4 Attach the juice cup to the motor housing.

Set the juice cup properly, otherwise juice may flow-out from the juice cup.

Line drawing of a coffee maker with a side view showing its lid and handle (no text or symbols)

5 Insert the power plug into the outlet completely. Rotate the switch knob to the proper speed position.

6 Place the ingredients one by one into the feeding tube, then press the feeding pusher slowly.

Place the juice cup properly, otherwise, the juice may leak out of it. When pulp container/juice cup is filled with pulp/juice, pour them out. Rotate the switch knob to position "0" before disassembling the container and juice cup.
Depending on the ingredients type and amount, pieces of ingredients, seeds, and juice may spray out of the feeding tube.

Line drawing of a coffee maker with a downward arrow indicating compression or usage (no text or symbols)

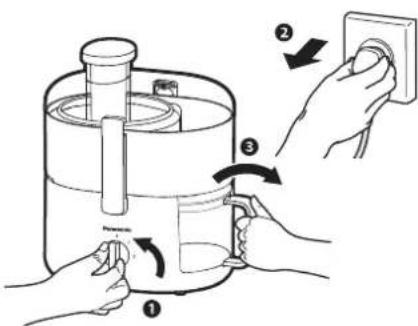

7 After use, turn the switch knob to "0" position and unplug.

Remove the juice cup.
Before release the clamps(both sides), make sure the spinner stops rotation completely.
Depending on different ingredient type and amount, some ingredients residue may remain in the container cover.

After Use

Before detaching parts, make sure the motor has stopped completely, then disconnect the plug from the outlet.
●Clean the parts thoroughly after every use. Keep all parts clean and dry always.
- Do not use benzine, thinner, bleach, alcohol, nylon face of sponge, metal brushes or polish powder etc.
Some discoloration of the plastic parts may occur upon usage. Even if the parts are washed with a sponge, the discoloration can not be completely removed, but it does not affect usage. If you clean the parts as soon as possible after usage, it can be removed relatively well.
When cleaning the parts in a dishwasher, do not put heavy objects on top of the parts.

Cleaning

	Food Pusher	Container Cover	Cup Cover	Juice Cup	Container Spinner Motor	Housing
Running Water	√√√	√√√×
Dishwasher	√√√	√√××
Well-wrungDamp Cloth	√√√	√√×√
Brush	×	××	×	×√×
ScouringPad	×	×	×	×	×	×	×
Soft Sponge	√√√	√√×√
Note	Wash each part in cold or lukewarm water with a soft sponge.Rinse and dry thoroughly before storing.				● Wash eachpart in coldor lukewarmwater with asoft sponge.Rinse and drythoroughlybefore storing.● When using adishwasher, donot set the pulpcontainer side ofthe part down inthe dishwasher.(It may causedeformation ofthe part.)	Washcarefullywith abrush underrunningwater.	Wipe off any dirtor stains with aclean damp cloth.

Storing

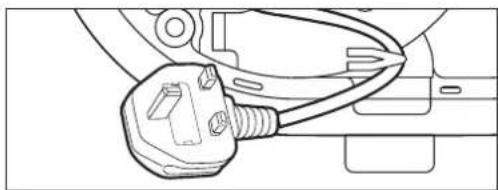

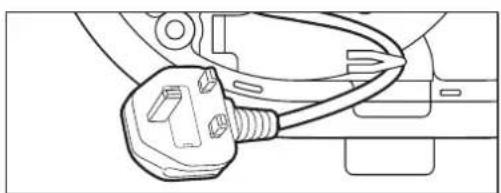

Power Plug and Power Cord

1) Turn over the motor housing and wind the power cord two turns as illustrated.

2) Insert the power cord into the power cord clamp to fit the cord in position.

Diagram of a mechanical or electrical component with rotating fan and motor (no text or symbols)

EN8

Line drawing of a plug inserted into a car compartment (no text or symbols)

Troubleshooting

Before calling for service, please check through this section.

Problem Cause

Action

The appliance does not turn on.

The container/spinner/container cover/clamp(both sides) is not set properly. Assemble it tightly. (P. EN7)

●The protection device of overload or overheating is activated. Refer to "Overload and Overheating Protection" for inspection. (P. EN6)

●The power plug is disconnected. Insert the power plug into outlet firmly.

Rotation stops abruptly.

The protection device of overload or overheating is activated. Refer to "Overload and Overheating Protection" for inspection. (P. EN6)

There is abnormal noise or vibration increases.

Too much ingredients. Reduce ingredient amount.

The container/spinner/container cover is not assembled tightly. Assemble it tightly. (P. EN7)

Specifications

Power supply	220 - 240 V ~50 - 60 Hz
Power consumption	230 - 260 W
Rated Time	Continuous (Repetition 2 min ON then, 2 min OFF)
Dimension (Approx.) (W x D x H)	272 x 201 x 283 (mm)
Mass (Approx.)	2.5 kg
Capacity (Approx.)	Pulp Container:500 mL ; Juice Cup:600 mL

Line drawing of a hand pressing down on a water heater with arrows indicating rotation (no text or symbols)

Line drawing of a hand operating a kitchen grater with arrows indicating motion (no text or symbols)

取出容器。

Illustration of hands operating a mechanical device with a lid and base, no text or symbols present

奉和容器盖。

①取出旋转篮。

②取出旋转篮纸垫。

使用方法

1 将容器安装在马达机座上。

- 确保容器完全安装到马达机座上。

2

中文（简体）

Line drawing of a portable coffee maker with a side view showing its lid and handle (no text or symbols)

5 将电源插头完全插入电源插座内。将开关旋钮旋转到合适的档位。

Hand holding a small electrical socket with an arrow indicating clockwise motion (no text or symbols)

使用后

Diagram of a mechanical device with rotating components and directional arrows indicating motion (no text or symbols)

2) 将电源线插入电源线夹以将电源线固定到位。

Line drawing of a plug inserted into a car compartment (no text or symbols)

故障诊断

Illustration of a hand cleaning a water heater with arrows indicating rotation (no text or symbols)

Line drawing of a hand operating a kitchen brush (no text or symbols)

Illustration of hands using a mechanical device to press or install a circular component (no text or symbols present)

Diagram showing a mechanical component being lifted by an arrow, with no visible text or symbols.

2

Simple line drawing of a mechanical device with arrows indicating motion or force (no text or symbols)

Line drawing of a coffee maker with a side view showing its lid and handle (no text or symbols)

Line drawing of a coffee maker with a handle and spout, showing no text or symbols

Melayu

ML7

Selepas Penggunaan

Diagram of a mechanical device with rotating components and directional arrows indicating motion (no text or symbols)

Line drawing of a car electrical plug inserted into a housing (no text or symbols)

ML8
