Brand	Panasonic
Model	MJ-H100
Product Type	Juicer (Household Use)
Power Supply	220-240 V ~ 50-60 Hz
Power Consumption	200-220 W
Switch	I (ON), O (OFF/RESET)
Operation Rating	Continuous (2 min ON / 2 min OFF repeated)
Dimensions (W x D x H)	210 mm x 294 mm x 293 mm
Mass (Approx.)	2.87 kg
Main Parts	Food Pusher, Feeding Tube, Container Cover, Spinner Pad, Spinner, Container Unit, Spout, Motor Housing, Clamps, Switch
Safety Features	Safety lock (prevents operation when Container Unit is not properly placed), Circuit breaker protection (auto stop on overload)
Non-Recommended Ingredients	Soft fruits (bananas, peaches, apricots), low-juice ingredients (fresh basil), hard ingredients (sugarcane, coconut), hard seeds (pomegranate, guava seeds removed)
Cleaning	Wash detachable parts immediately after use with cold or lukewarm water and soft sponge; do not use benzene, thinner, alcohol, bleach, metal brush, or dishwasher
Motor Housing Cleaning	Wipe with a damp cloth; do not immerse in water
Storage	Wind cord around Motor Housing, clamp; store Container Unit upside down
Disassembly	Release clamps, remove Container Cover, lift Container Unit, remove Spinner and Spinner Pad; Spout detachable for cleaning
Warranty / Service	Contact Panasonic service center for repairs; use genuine spare parts only
Country of Origin	Malaysia
Manual Languages	English, Arabic (based on notice)

Frequently Asked Questions - MJ-H100 PANASONIC

How do I assemble the juicer correctly?

Place the Container Unit onto the Motor Housing ensuring the Spout and clamps align. Insert the Spinner into the Container Unit, then place the Container Cover on top. Rotate the clamps until a locking sound is heard. Make sure the Switch is OFF before plugging in.

Why does the juicer stop suddenly during use?

This may be due to overloading. The circuit breaker automatically stops the motor. Switch OFF, remove accumulated pulp from the Spinner and Container Cover, cut ingredients into smaller pieces, reassemble, and resume operation. Do not reset repeatedly.

How should I clean the juicer after use?

Unplug and disassemble all removable parts. Wash both sides of the Spinner mesh with a sponge under running water. Use a brush if needed. Wash other parts with cold or lukewarm water and a soft sponge. Do not use harsh chemicals or a dishwasher. Wipe the Motor Housing with a damp cloth.

Can I juice soft fruits like bananas or peaches?

No, soft fruits that produce puree can clog the Spinner. Avoid bananas, peaches, apricots, and similar fruits. Also avoid low-juice ingredients (fresh basil) and hard ingredients (sugarcane, coconut). Remove hard seeds from fruits like guava before juicing.

What does the safety lock do?

The safety lock prevents the juicer from switching ON when the Container Unit is not properly in place. Do not force the safety pins with any object. Keep the safety pin area clean to ensure smooth operation.

How do I detach the spout for cleaning?

Turn the Container Unit upside down. Gently push the ribs inward and slowly pull the Spout out. To reattach, push the Spout in position until a 'click' is heard.

Is it normal for the juicer to have a slight smell when first used?

Yes, during initial usage a slight burn smell may occur. This is normal and will disappear after a few uses.

Can I use the juicer continuously for a long time?

No, it is recommended to rest the appliance for at least 2 minutes after every 2 minutes of operation to prevent overheating.

What should I do if the power cord is damaged?

Do not use the appliance. The cord must be replaced by the manufacturer, its service center, or a similarly qualified person to avoid hazard.

How should I store the juicer?

Unplug and clean all parts. Wind the cord around the Motor Housing and secure with the cord clamp. Place the Container Unit upside down to protect the Spout. Store in a dry place.

USER MANUAL MJ-H100 PANASONIC

Line drawing of a small rice cooker with lid and side ports (no text or symbols)

Thank you for purchasing this Panasonic product.

• This product is intended for household use only.
- Please read these instructions carefully in order to use this product correctly and safely.
- Before using this product please give your special attention to the section "SAFETY PRECAUTIONS" (Page 2-3).
- Please keep these Operating Instructions for future use.

Operating Instructions

تعليمات التشفيل

Juicer (Household Use)

SAFETY PRECAUTIONS 2-3

PART NAMES 4

DISASSEMBLY 5

CIRCUIT BREAKER PROTECTION .....6

SAFETY LOCK 6

HOW TO USE 7

AFTER USE 8

SPECIFICATION 9

المحتويات

SAFETY PRECAUTIONS (Make sure to follow these instructions)

In order to prevent accidents or injuries to the user, other people, and damage to property, please follow the instructions below.

■ The following indication indicate the degree of damage caused by incorrect operation.

WARNING

Indicates serious injury or death.

CAUTION

Indicates risk of injury or property damage.

■ The symbols are classified and explained as follows.

This symbol indicates prohibition.

This symbol indicates requirement that must be followed.

WARNING

- Do not damage the Cord or the Plug.

(It may cause electric shock, or fire caused by short circuit.)

- Do not use the appliance if the Cord or the Plug is damaged or the Plug is loosely connected to the outlet.

(It may cause electric shock, or fire caused by short circuit.)

If the Cord is damaged, it must be replaced by the manufacturer, its service center or similarly qualified person in order to avoid a hazard.

- Do not plug or unplug the Plug with wet hands.

(It may cause electric shock.)

- Do not operate the appliance when the Cord is in wound condition. (It may cause electric shock or fire.)

- Do not exceed outlet voltage or use an alternate current other than that specified on the appliance.

(It may cause electric shock or fire.)

- Make sure the voltage supplied to the appliance is the same as your local supply. - Plugging other devices into the same outlet may cause over-heating.

- Do not immerse the Motor Housing in water or splash it with water. (It may cause electric shock or fire caused by short circuit.)

- Do not dismantle, repair or modify the appliance. (It may cause fire, electric shock or injury.)

→ Please contact your service center for repairing.

- Do not insert any objects in the vent or the gap. (It may cause electric shock or malfunction.)

• Especially metal objects such as pins or wires.

- Do not replace any parts of appliance with non-genuine spare parts. (It may cause injury, electric shock or fire.)

- Do not use hot water (over 60°C) for cleaning purpose or fire to dry the appliance. (It may cause burning or malfunction.)

- Do not put your finger or utensils such as spoon, fork etc into the Feeding Tube during operation. If food becomes clogged in the Feeding Tube, use the Food Pusher or another piece of fruit or vegetable to push it down.

(It may cause injury.)

- Do not use the appliance if the Spinner or the Container Cover is damaged or has visible cracks.

(It may cause injury.)

WARNING

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

(It may cause burning, injury or electric shock.)

- Insert the Plug firmly.

(Otherwise it may cause electric shock and fire caused by the heat that may generate around the Plug.)

● Clean the Plug regularly.

(A soiled Plug may cause insufficient insulation due to moisture, and may cause fire.)

- When abnormal operation or breaking down occurs, discontinue the appliance operation immediately and unplug.

(It may cause smoke, fire or electric shock.)

e.g. for abnormal operation or breaking down.

• The Plug and the Cord becomes abnormally hot.

- The Cord is damaged or there has been a power failure.

• The Motor Housing is deformed or abnormally hot.

→ Please unplug the appliance immediately and contact the service centre for advice or a repair.

● Care should be taken when handling and cleaning the Spinner

(It may cause injury.)

● Make sure to hold the Plug when unplugging the Plug, ie. never pull on the Cord.

(Otherwise it may cause electric shock, or fire caused by short circuit.)

- Do not push the safety lock pins with any instruments, stick etc as the appliances might be on.

(It may cause injury.)

- Do not leave the appliance unattended when it is in operation.

(It may cause fire or burns.)

- When leaving the appliance unattended, turn the power off.

- Do not use the appliance in the following places.

- Any uneven surface, on non-heat resistant carpet or table cloth etc.

(It may cause fire or injury.)

• In a location where there is risk of the appliance being splashed with water, or near a heat source.

(It may cause electric shock or current leakage.)

- Do not assemble the Spinner when there is food residue left around the Container Unit.

(It may cause unpleasant odour and the Spinner to work improperly.)

● Do not continue operation for a long time. It is recommended to rest the appliance

for at least 2 minutes after 2 minutes operation.

(It may cause over-heating.)

● Unplug the Plug when the appliance is not in use.

(Otherwise it may cause electric shock, or fire caused by current leakage.)

- When carrying the appliance, be sure to hold the Motor Housing with both hands.

(It may cause injury.)

● Switch off the appliance and disconnect it from power supply before changing

accessories or approaching parts that are moving during operation.

(It may cause injury.)

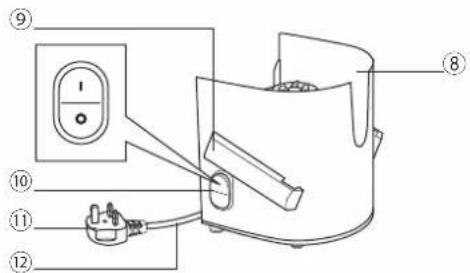

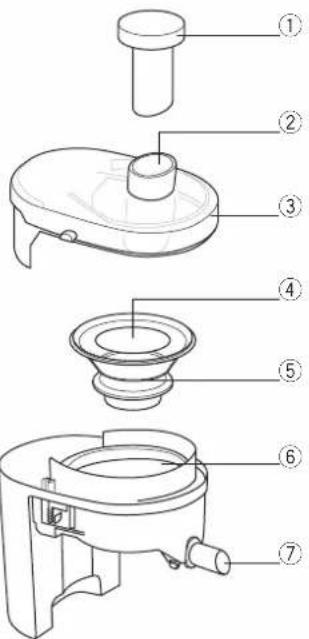

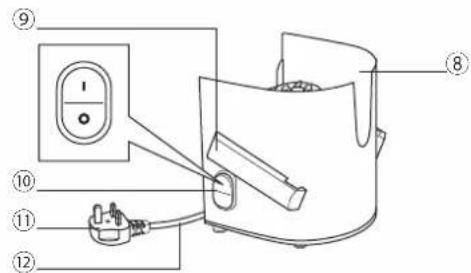

PART NAMES

① Food Pusher
② Feeding Tube
③ Container Cover
④ Spinner Pad
⑤ Spinner
⑥ Container Unit

⑦ Spout
⑧ Motor Housing
⑨ Clamp (both side)
⑩ Switch
⑪ * Plug
⑫ Cord

*The shape of the Plug may be different from illustration.

DISASSEMBLY

① Release the Clamp (both side) while pushing the Container Cover.

② Lift up the Container Cover and the Food Pusher.

③ Gently lift up the Container Unit. ④ Lift up the Spinner.

⑤ Remove the Spinner Pad.

Note: If difficult to wash the Spout, it can be detached for easier cleaning.

To detach Spout:

① Turn the Container Unit upside-down.

② Gently push the ribs inward.

③ Slowly pull up the Spout out.

To reattach Spout:

① Turn the Container Unit upside-down.

② Gently push the ribs inward.

③ Slowly push the Spout in position until a "click" sound is heard.

CIRCUIT BREAKER PROTECTION

When the Circuit Breaker automatically stops the motor due to overloading, follow the directions below. Do not continuously reset for many times. Switch OFF the appliance.

1. Remove accumulated food residue from the Spinner and the Container Cover. Then cut the ingredients into smaller pieces.
2. Attach parts again (refer to page 7) and resume operation. Push them gently into Feeding Tube using the Food Pusher.

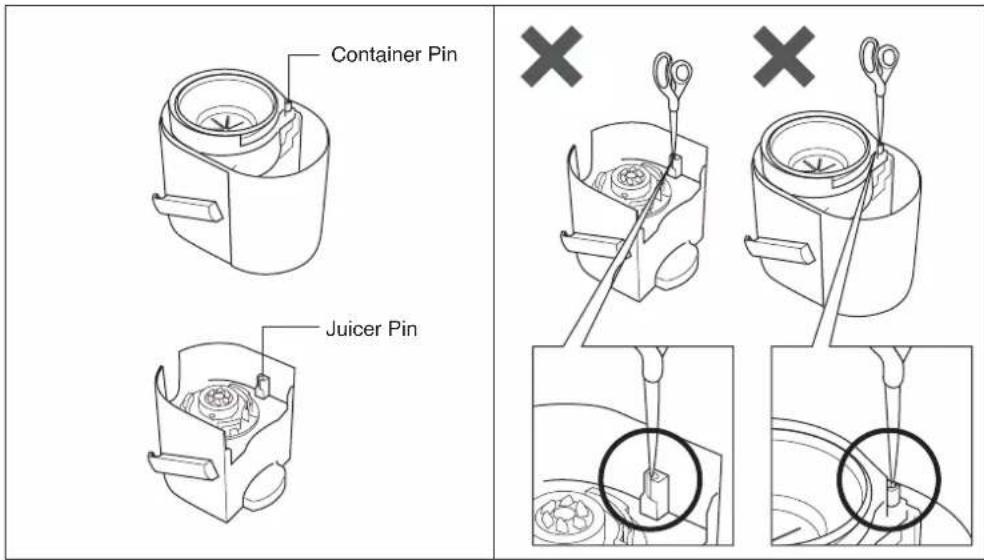

SAFETY LOCK

The safety lock has been designed to prevent the Juicer from switching ON when the Container Unit is not properly in place.

Note:

• Do not push the Safety Pin and Safety Lever with any instrument, stick etc.
• Do not pour liquids or ingredient at the Safety Pin area and switch area.
• Keep the Safety Pin area clean to avoid foreign particles accumulate on the area.

The above actions will ensure the Safety Lock movement to function smoothly otherwise it will damage the parts related to Safety Lock.

HOW TO USE

Wash all detachable parts and dry well before using the appliance for the first time, refer to page 8. Unplug when assembling the unit. Before plugging in, ensure Switch is switched OFF.

① Place the Container Unit onto the Motor Housing.
● Make sure the Spout and the Clamp (both side) positioned same direction as illustrated.
● Make sure the Container Unit sits properly on the Motor Housing.

Diagram of a mechanical device with a downward arrow indicating a process or transformation (no text or symbols present)

② Place the Spinner in the Container Unit and fix it into position.
③ Place the Container Cover onto the Container Unit.

④ Rotate the Clamp (both side) as shown while pushing the Container Cover until a locking sound is heard.

- It is normal for the Container Cover to float a little causing a small gap between Container Cover and Container.

● Make sure hand or fingers are not in the way during the clamping process to avoid injury.

⑤ Place the juicer as shown.

● Make sure the Spout is in the downward position when juicing.
- It is recommended to use a similar mug as shown to promote ease of use.

⑥ Plug in and switch ON.

⑦ Insert the ingredients one by one and push them slowly into the Feeding Tube using the Food Pusher.

⑧ After use, switch OFF and unplug

- Ensure the Spinner is fully stopped before pushing the Spout up to prevent juice from dripping when removing the cup from the Juicer.

● Ensure the Spinner is fully stopped before releasing the Clamp (both side).

● Some pulp might reside on the Container Cover depending on the ingredients and amount.

Note:

• Ingredients that are not recommended:
  Soft fruits that produce puree and can clog the Spinner – e.g. bananas, peaches, apricots etc. Low juice ingredients which can block the product – e.g. fresh basil leaf etc. Hard ingredients which can cause product malfunction - e.g. sugarcane, coconut etc.
• Please remove hard seeds and stones from fruit before juicing such as guava etc. Hard seeds that are difficult to be removed such as pomegranate is prohibited for juicing.
• During initial usage, the appliances might have some unpleasant smell (slight burn smell) but this condition is normal.
• Some ingredients may produce a lot of pulps that will accumulate to the Container Cover which will cause operation to stop. (CIRCUIT BREAKER PROTECTION: refer to page 6)
  • Make sure all parts are correctly mounted before you switch ON the appliance.
• Some ingredients may accumulate at the Container Cover and Spinner. If so, please switch OFF the juicer and clear the accumulated ingredient before continuing to juice to prevent leakage.

AFTER USE

Before detaching parts, make sure the motor has stopped completely, then disconnect the Plug from the outlet. (DISASSEMBLY: refer to page 5)

Note:

• Do not use benzene, thinner, alcohol, bleach, polishing powder or metal brush; otherwise the surface will be damaged.
• Do not put in the dishwasher.
  • Some discolouration of the Spinner, the Container Cover, or the interior of the Container Unit may
  occur upon usage.
• Handle the Spinner and the Spout carefully during cleaning. This may cause injury.
  * Brush and long handled sponges are not provided.

CLEANING

All parts must be cleaned immediately after use. Left-over food particles may cause unpleasant odours, stains or malfunction of the appliance.

JUICER

1. Wash both sides of the spinner filter mesh with a sponge under running water. Use brush if necessary.
2. Wash each part in cold or lukewarm water with a soft sponge. Rinse and dry thoroughly before storing.

MOTOR HOUSING

Wipe Motor Housing with a damp cloth.

STORING

Plug and Cord

1) Turn over the Motor Housing and wind the Cord three turns as illustrated.

2) Insert the Cord into the cord clamp to fix the Cord in position.

3) When in use or after use, make sure to position the Cord as shown to prevent damage of the Cord.

Line drawing of a portable electric cooker with a side view showing cable connection (no text or symbols)

Container

It is recommended to place the Container Unit upside down to prevent damage on the Spout.

Illustration of a toilet and a magnifying glass with a warning symbol (no text or labels)

SPECIFICATION

Line drawing of a simple cooking pot with lid and side handle (no text or symbols)

Power Supply	220-240 V ~ 50-60 Hz
Power Supply (For Qatar only)	240 V ~ 50 Hz
Power Consumption	200-220 W
Power Consumption (For Qatar only)	220 W
Switch	I (ON), O (OFF/RESET)
Operation Rating	Continuous (Repetition 2 min ON then,2 min OFF)
Dimension (Approx.) (W x D x H)	210 mm x 294 mm x 293 mm
Mass (Approx.)	2.87 kg

⑦ مخرج العصر

① دافع الطعام

⑧ حاوية المحرك

فتحة الملقم ②

Diagram showing two mechanical components with scissors inserted, no text or symbols present

Simple line drawing of a hand holding a tool over a box, with a magnified inset showing the same object (no text or symbols)

Diagram of a medical procedure with a magnified circular detail (no text or labels)

ملاحظة:

Diagram of a mechanical device with a downward arrow indicating a process or transformation (no text or symbols present)

Line drawing of a portable coffee maker with a lid and side arm, shown in two views (no text or symbols)

الوعاء

Line drawing of a rice cooker with lid and side ports (no text or symbols)

Diagram showing two mechanical components with scissors inserted, no text or symbols present

Simple line drawing of a mechanical device with a magnified inset showing a component (no text or symbols)

Diagram of a medical procedure with a magnified circular detail (no text or symbols)

توجه:

Technical line drawing of a mechanical device with an arrow indicating assembly or transformation (no text or symbols present)

Line drawing of a portable coffee maker with lid and side panel view (no text or symbols)

Line drawing of a portable coffee maker with lid and side panel view (no text or symbols)

ظرف

Line drawing of a simple cooking pot with lid and side handle (no text or symbols)

No. 3, Jalan Sesiku 15/2, Section 15, Shah Alam Industrial Site, 40200 Shah Alam, Selangor Darul Ehsan, Malaysia.

Website: http://www.panasonic.com

Printed in Malaysia

© Panasonic Corporation 2016

JZ50J158

1234567890
