MJ-J176 - Juicer PANASONIC - Free user manual and instructions

Product Type	Juicer
Brand	Panasonic
Model	MJ-J176
Power Consumption	800 W
Voltage	220-240 V, 50/60 Hz
Dimensions (W x D x H)	250 x 200 x 300 mm
Weight	2.2 kg
Cord Length	1.0 m
Juice Container Capacity	1.0 L
Pulp Container Capacity	1.5 L
Feeding Tube Diameter	45 mm
Main Material	Plastic housing, stainless steel blade
Safety Lock	Yes, prevents operation if not properly assembled
Non-Slip Feet	Yes
Pulp Ejection	Automatic into pulp container
Speed Control	2 speeds (low/high)
Overload Protection	Yes, automatic shut-off
Dishwasher Safe Parts	Yes, except motor base
Included Accessories	Cleaning brush, recipe book
Repairability	Spare parts available, eco-design

Frequently Asked Questions - MJ-J176 PANASONIC

How do I assemble the Panasonic MJ-J176 juicer?

First, place the motor base on a flat surface. Attach the pulp container to the back of the base. Insert the filter basket into the juicer body and lock it into place. Then, place the juicer cover over the filter and secure it with the clamp. Finally, position the juice jug under the spout. Ensure all parts are correctly locked before use.

Can I juice whole fruits without cutting them?

It is recommended to cut fruits and vegetables into small pieces that fit easily into the feeding tube. The feeding tube diameter is 45 mm, so large items like whole apples should be quartered. Avoid forcing food into the tube.

How do I clean the juicer after use?

Unplug the appliance and disassemble all removable parts. Rinse them immediately under running water to prevent pulp from drying. Most parts are dishwasher safe (top rack recommended). Use the supplied cleaning brush to remove residue from the filter basket. Wipe the motor base with a damp cloth only.

What is the difference between the two speed settings?

Low speed (speed 1) is suitable for soft fruits like berries and tomatoes. High speed (speed 2) is for harder produce such as apples, carrots, and beets. Using the correct speed maximizes juice yield and prevents clogging.

Why does my juicer stop working during operation?

The juicer has an overload protection feature. If it stops automatically, it may be due to too much food being processed at once or a blockage. Turn off and unplug the appliance, let it cool for a few minutes, and remove any jammed food before restarting.

Can I juice leafy greens like spinach or kale?

Yes, but it is best to roll the leaves into a ball or wrap them around a stalk before feeding. Alternatively, juice them alternating with firmer vegetables like cucumber or celery to push them through.

Is the juice container and pulp container BPA-free?

Yes, the containers are made from BPA-free plastic, ensuring safe food contact.

How do I prevent foam in the juice?

Foam is natural and harmless. To reduce foam, juice at lower speed for soft fruits. You can also use the included foam separator if available, or simply stir the juice before drinking.

What should I do if the juicer vibrates excessively?

Ensure the appliance is on a stable, flat surface. Check that the filter basket is properly seated and balanced. Also, make sure not to overload the feeding tube. If vibration persists, stop use and inspect for damage.

Where can I find replacement parts for the MJ-J176?

Replacement parts such as the filter basket, juice jug, and pulp container can be ordered from Panasonic's official website or authorized service centers. Use the model number MJ-J176 to find compatible parts.

USER MANUAL MJ-J176 PANASONIC

Operating Instructions

使用說明書

دستورالعمل طرز كار

تعليمات التشفيل

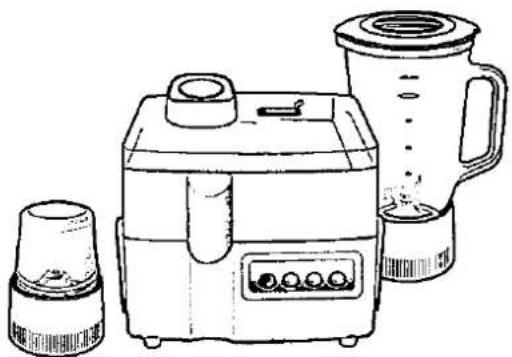

Line drawing of a kitchen blender with a blender handle and a small blender nearby (no text or symbols)

Juicer/Blender (Household Use)

榨汁/攪拌機(家庭用)

Parts Names and Handling Instructions....6-7

How to Use Juicer 8

How to Use Blender....9

How to Use Dry Mill 10

Circuit Breaker Protection....11

Safety Lock 11

How to Clean 12-13

Specifications 14-15

Thank you for purchasing Panasonic product.

• This product is intended for household use only.

- Please read these instructions carefully and follow safety precautions when using this product.

- Before using this product please give your special attention to "Precautions" (Page 2).

- Please make sure the date and name of store of purchase on the Warranty and keep it with this Operating Instructions.

目錄

重要安全注意事项……3

零件名稱及處理說明……6-7

榨汁機的使用法……8

攪拌機的使用法……9

乾式碾磨機的使用法……10

電路自動斷路器 11

保護開關 11

清潔方法……12-13

規格 14-15

1. Before using this appliance, make sure voltage and frequency indicated on the bottom surface are as per your local supply.
2. To protect against risk of electrical shock do not put motor housing, supply cord or plug in water or other liquids.
3. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
4. Unplug this product from wall outlet when not in use, before putting on or taking off parts, and before cleaning.
5. Do not operate this appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.
6. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
7. Do not put your fingers or utensils such as spoons into feeder opening or blender container during operation. If food becomes lodged in feeder opening, use food pusher or another piece of fruit or vegetable to push it down.
8. Always operate blender with cover unit in place.
9. Never place container base on motor housing without container attached.
10. Cutting blades are sharp. Handle carefully when emptying the container and during cleaning.
11. Do not assemble when there is food residue left around the base of spinner or in containers.
12. Do not place hot ingredients (over 60°C) in blender container.
13. Do not use appliance for any purpose other than its intended use.
14. Do not use the appliance if the spinner or the container cover is damaged or has visible cracks.
15. Discontinue using the appliance immediately and unplug when abnormal or malfunction occur.
16. Be careful if hot liquid is poured into the blender container as it can be ejected out of the appliance due to a sudden steaming.
17. Switch off the appliance and disconnect from supply before changing attachment or approaching parts that move in use.

1 重要安全注意事項

2 Parts Names and Handling Instructions

零件名稱及處理

Push cover unit up to open.

向上推按，可將蓋子單元打開。

Maximum amount approx.1,000ml

最大容量

約1,000毫升

One scale approx,200ml 1刻度約200毫升

English	中文	فأ رسي	عربي
1 Cleaning brush2 Opening for brush3 Food pusher4 Feeder opening5 Container cover6 Spinner7 Juicer container8 Spout cover9 Cap10 Cover11 Cover unit12 Blender container13 Gasket14 Blender cutting blades15 Blender container base16 Motor housing17 Clamp18 Switch panel19 Cord20 Plug21 Mill container22 Mill cutting blades23 Mill container base*The shape of plug may differ from illustration.	1清潔刷2刷子用開口3壓料具4給料口5容器蓋6旋轉籃7榨汁機容器8出口蓋9罩子10蓋子11蓋子單元12攪拌機容器13繡墊14攪拌機切削刀15攪拌機容器底座16馬達機座17夾鉗18開關面板19電源線20插頭21碾磨機容器22碾磨機切削刀23碾磨機容器底座*插頭形狀可能會與圖示有所不同。	# برس ش曙光## ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ####### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ### ##	# فرشاة التنظيف# فتحة الفرشاة# دانemaAlgorithm# فتحة الفندي# غطاء Ethereum# مقصا العصر الدراسة# وعاء العصارة# غطاء مخرج العصر# قلنسوة# غطاء# وحدة الغطاء# وعاء الخライト# حش—one منج التسب# شفرات ت Connectivity LinkedIn# قاعدة وعاء الخлат# حجرة الحرك# مشيك# ل warehouse المفتاح# سلك تزويد Plasma# قابس# وعاء Programs# شفرات ت Connectivity LinkedIn# قاعدة وعاء Programs# يمكن أن يcult megشال قابس عن الرسم

NOTE: When containers are not clamped or locked properly, motor does not operate.

Illustration of two hand-cranked containers with arrows indicating motion, no text or symbols present

2

Illustration of hands performing a mechanical press or stamping operation on a container (no text or symbols present)

3

1 Release clamps. Lift up the juicer container.

鬆開夾鉗，將榨汁機容器向上拿起。

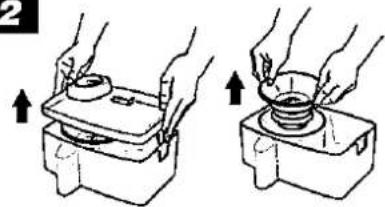

2 Remove container cover. Remove spinner.

取下容器蓋。拆下旋轉籃。

3 Remove spout cover.

- Spout cover cannot be taken off when container cover is on. 取下出口盖。

- 當容器蓋蓋住時，將無法取下出口蓋。

Diagram of a piston-cylinder joint with an inset showing the piston and cylinder (no text or labels)

CAUTION:

• Be sure to attach container to corresponding container base.
• Be sure to attach gasket when assembling blender container.
• Do not attach or remove the container after container base is placed on the motor housing, motor does not operate.

注意：

Illustration of a pepper and its cross-section showing layered structure (no text or symbols)

2

Line drawing of a small kitchen appliance with a cup and side bowl (no text or symbols)

3

4

Line drawing of a hand pressing down on a portable device with a cup nearby (no text or symbols)

5

1 Wash and cut ingredients to fit in feeder opening.

將材料洗淨、切塊後，放入給料口。

2 Make sure the clamps are locked in position.

Place glass or bowl under spout.

- If juicer container is not clamped correctly, motor does not operate.

Button "1" is not suitable for juicer usage.

If button "1" is pressed, the juicer will vibrate during the initial operation.

備註：

按鈕“1”不適合於榨汁機的使用。

4 Push ingredients into feeder opening by using food pusher.

用壓料具，將材料按入給料口。

5 After using, press button "0" (off). Unplug.

4 How to Use Blender

攪拌機的使用法

2

3

4

5

1 Attach the container and container base first and place it on motor housing. Twist container clockwise to lock.

2 Place ingredients in container. Cover.

3 Plug in. Select one of two speed buttons as required. Use "PULSE" button for precision blending.

插入插頭。選擇需要的兩個速度鈕之一。

4 When adding ingredients or seasonings, remove cap as shown left. Be sure to attach cap again.

After blending, press button "0"(off). Unplug.

- When unplugging, grip plug and pull from wall outlet.

Never pull on cord.

● Maximum capacity: 1,000ml
● Prohibited ingredients: meat, fish, solid food, sticky foods, ingredients with low water content, or ice cubes alone
- Do not operate with container empty.
- Dice foods first (1\~2cm), then blend with liquid.
- Do not operate blender longer than 3 minutes at a time. Stop for 1 minute, then resume.
- Reduce ingredients when appliance makes abnormal sound or vibrates during operation.

5 How to Use Dry Mill

乾式碾磨機的使用法

2

4

Illustration of a hand operating a power supply unit with a lid and control panel (no text or symbols)

5

1 Place ingredients in mill container, then attach mill container base.

2 Place container on motor housing. Twist container clockwise to lock.

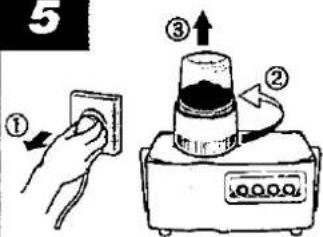

4 When grinding is completed, press button "0" (off).

- Be sure to support container until motor stops completely.

碾磨結束時，請按“0”鈕（關閉）。

When circuit breaker automatically stops motor due to overloading, press "0" button and follow directions below.

Remove food residue in container. AND / OR Cut ingredients smaller size and push them into feeder gently. Resume operation.

The safety lock has been designed to prevent the blender or dry mill from switching on when container is not properly in place. Do not push the safety lock pin with any implement, stick etc. When the slide ring on the back of the each container base is pushed during assembling, motor does not operate.

■ Attach the container to the container base properly. ● After setting, make sure the backside of the container base is as shown in the O illustration.

None of the three pins sticks out. 三個插件中任何一個都不能突起。

• Before cleaning, unplug.
- Cutting blades are sharp. Handle carefully when emptying the container and during cleaning.
- Use cold water or lukewarm water.
- Do not use cleansers, steel wool pads, or other abrasive materials.
- Do not use benzene, thinner, alcohol, etc.
• These parts are not dishwasher safe.
- Some discolouration of spinner, cover or the interior of the container may occur with use.

注意：

Simple line drawing of a cup with a spoon and liquid, no text or symbols present

Wash carefully with a brush under running water.

在流水中用刷子仔細洗刷。

Cross-sectional diagram of a blender with lid and base (no text or symbols)

Wash each part in cold or lukewarm water with a soft sponge. Rinse and dry thoroughly.

Remove food residue with a brush. Do not use water.

用刷子清除残留的食物。

請勿用水。

Wash in cold or lukewarm water with a soft sponge. Rinse and dry thoroughly.

Wipe off with a damp cloth.

用瀑布擦拭。

Remove food residue from spinner

清除旋轉籃上殘留的食物。

1 Fill the bottle with water. Attach brush unit.

- Do not use the cleaning brush without water filled in the bottle.

將瓶子裝滿水。安裝刷子單元。

2 Place a glass or bowl under spout. Plug in. Press button "2".

3 Insert brush in cover opening, then move it back and forth while squirting water from the bottle.

4 After removing the brush, press button "0"(off). Unplug.

Take spinner out and rinse it. Clean the brush unit.

Simple line drawing of a steaming lamp with a pan and spoon (no text or symbols)

Wash carefully with a brush under running water.

在流水中用刷子仔細洗刷。

Wash each part in cold or lukewarm water, wipe off and let it dry before storing.

	Using Juicer	Using Blender	Using Dry mill
Power supply	220 - 240 V~ 50 - 60 Hz
	240 V~ 50 Hz*
Power consumption	210 - 230 W
	230 W*
Operation rating	Continuous(Repetition 2 min, ON, 2 min, OFF)	Continuous(Repetition 3 min, ON, 1 min, OFF)	Continuous(60 seconds at a time)
Container capacity	—	Maximum 1,000 ml	Maximum 50 g
Dimensions (H x W x D)	approx. 32.3 x 28.8 x 21.2 cm	approx. 38.2 x 28.8 x 17.1cm	approx. 26.4 x 28.8 x 17.1 cm
Weight	approx. 3.2 kg	approx. 3.5 kg	approx. 2.7 kg
Attachment	Cleaning brush

* Only available in Qatar.

You can identify the date of manufacturing by production number which is marked on back side of the unit. Production number X XX xxx Second and third digits: month (in number) 01-January, 02-February, ...12-December First digit: year (last digit of the year in number) 0-2010, 1-2011, 2-2012

This operating instructions shall be kept as they contain important information.

In case of failure or damage

Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.
