USER MANUAL MX-KM5070 PANASONIC

Operating Instructions

Blender (Household Use)

Line drawing of a Panasonic blender with three kitchen utensils and a power shaver (no text or symbols)

TABLE OF CONTENTS

Safety Precautions ...... EN2

Parts Identification EN4

Before Use EN5

Guide of Menus and Functions ...... EN6

How to Use Blender....EN7

How to Use Dry Mill ...... EN10

After Use ...... EN11

Circuit Breaker Protection ...... EN12

Troubleshooting EN12

Specifications EN13

مندرجات

PE2...... نکات ايمنی

Thank you for purchasing this Panasonic product.

• Please read this Operating Instructions carefully in order to use this product correctly and safely.
• Before using this product, please give your special attention to the Safety Precautions.
• Please keep this Operating Instructions for future use.

- Panasonic will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.

Safety Precautions

Make sure to follow these instructions

In order to prevent accidents or injuries to the user, other people, and damage to property, please follow the instructions below.

■ The following indications indicate the degree of damage caused by incorrect operation.

WARNING

Indicates serious injury or death.

CAUTION

Indicates risk of injury or property damage.

■ The symbols are classified and explained as follows.

This symbol indicates prohibition.

This symbol indicates requirement that must be followed.

WARNING

To prevent electric shock, fi re caused by a short circuit, burning, injury or smoke.

● Do not damage the Cord or the Plug.

- Do not use the appliance if the Cord or the Plug is damaged or the Plug is loosely connected to the outlet.

- If the Cord is damaged, it must be replaced by the manufacturer, its Service Centre or similarly qualified persons in order to avoid a hazard.

- Do not plug or unplug with wet hands.

- Do not operate the appliance when the Cord is wound.

- Do not immerse the Motor Housing in water or splash water on it.

- Do not disassemble, repair or modify the appliance.

- Please contact your Service Centre for repairing.

- Do not insert any objects in the vent or the gap.

- Especially metal objects such as pins or wires.

- Do not try to remove the Blender Lid when the appliance is still operating.

- Do not use hot water (over 60 °C) to clean or place near a fire to dry the appliance.

- Do not place hot ingredients (over 60 °C) in the Blender Jug or the Mill Container.

- Do not operate without the Blender Jug Base and the Blender Jug in place correctly.

- Do not operate without the Mill Container Base and the Mill Container in place correctly.

- Do not insert fingers or utensils such as spoon or fork into the Blender Jug while the appliance is operating.

- Do not remove the Blender Jug when the motor is still rotating.

- Do not push the Safety Lock Pin and any Safety Levers with any instrument such as stick as the appliance may be switched ON.

- Do not use the Mill Container if it is damaged or has visible cracks.

● Make sure the voltage indicated on the label of the appliance is the same as your local supply.

- Also avoid plugging other devices into the same outlet to prevent electric overheating. However, if you are connecting a number of Plugs, make sure the total wattage does not exceed the rated wattage of the outlet.

● This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

WARNING

• Insert the Plug firmly.
• Otherwise it may cause electric shock and fire caused by the heat that may generate around the Plug.
  ● Clean the Plug regularly.
• A soiled Plug may cause insufficient insulation due to the moisture, and may cause fire.

● Discontinue using the appliance immediately and unplug in the unlikely event that this appliance stops working properly.

e.g. for abnormal occurrences or breaking down:

• The Plug or the Cord becomes abnormally hot.
• The Cord is damaged or there has been a power failure.
• The Motor Housing is deformed, has visible damage or is abnormally hot.
  → Please unplug the appliance immediately and contact the Service Centre for advice or a repair.

- Be careful if hot liquid is poured into the Blender Jug as it can be ejected out of the appliance due to a sudden steaming.

CAUTION

To prevent electric shock, fi re caused by a short circuit, burning, injury or smoke.

- Do not replace any parts of the appliance with non-genuine spare parts.

• Do not leave the appliance unattended when it is in operation.
• When leaving the appliance unattended, turn the power Off.
  ● Do not use the appliance on following places:
• Any uneven surface, on non-heat resistant carpet, table cloth, etc.

• The place where it may be splashed with water or near a heat source.

• Do not blend more than 1.5 L working capacity marked on the Blender Jug.

• Do not place more than the maximum working capacity allowed for the Mill Container. Follow the recommended ingredient amount for processing.
• Do not operate without the Blender Lid and the Inner Lid in place correctly for the Blender Jug.

● Make sure to hold the Plug when unplugging. Never pull on the Cord.
● Ensure to operate and rest the appliance based on the table below:

Function	Operating Time (minutes)	Rest Time (minutes)
Blender 2 2
Dry Mill 1 2

● Unplug the appliance when not in use.

• When carrying the appliance, be sure to hold the Motor Housing with both hands.
• Switch off the appliance and disconnect from the power supply before changing accessories or approaching parts that move in use.
  ● Care shall be taken when handling the sharp Cutting Blades, emptying the Blender Jug or the Mill Container and during cleaning.

● Operate the appliance on a clean, fl at, hard and dry surface.

- If the Blender Cutting Blade gets stuck, switch off immediately and unplug. Do not insert finger into the Blender Jug. Use the Scraper to remove the ingredients that are blocking the Blender Cutting Blade.

● This product is intended for household use only.

● Ensure to clean the surfaces in contact with food after use. (See Page EN11 "After Use".)

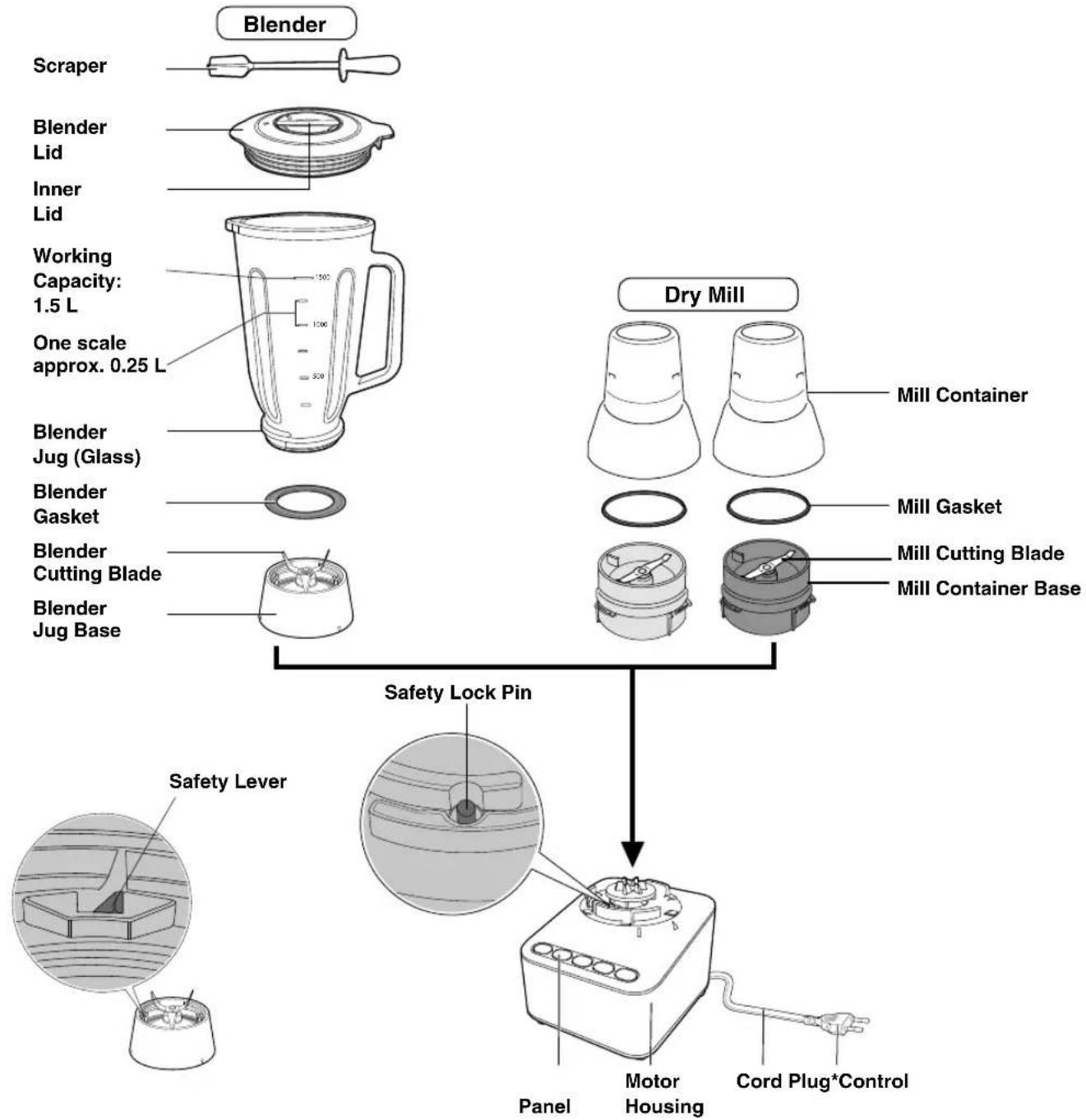

Parts Identifi cation

* The shape of the Plug may vary according to regions or countries.
The Safety Lock mechanism has been designed to prevent the appliance from switching ON when the appliance is not properly in place.

Note:

• Do not push the Safety Lock Pin and any Safety Levers with any instrument such as stick.
• Do not pour liquids or ingredients at the Safety Lock Pin and Control Panel area.
• Keep the Safety Lock Pin and Safety Lever area clean to avoid foreign particles accumulating in the area.

Control Panel

* Use this function for intermittent operation until the required blending texture is obtained.

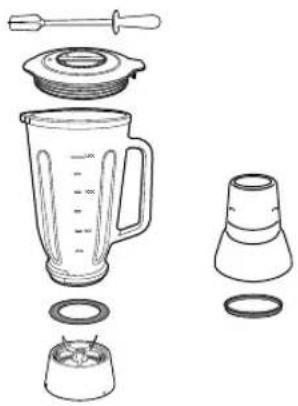

Wash each part except the Mill Container Base before using the appliance for the first time.

Note:

- Place your thumb on the Rib when assembling or disassembling the Blender Jug to its Base for easier turning.

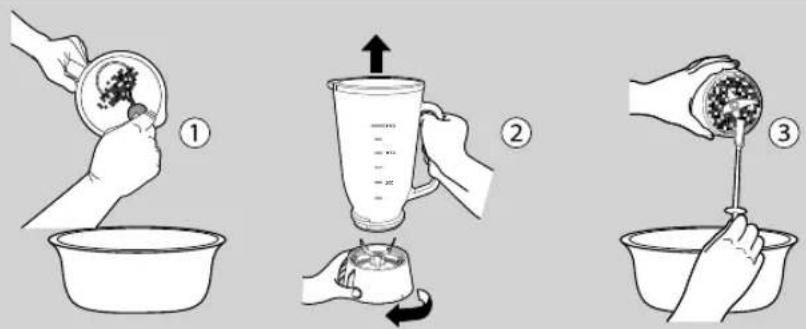

To Disassemble

Blender

① Turn the Blender Jug Base clockwise to disassemble.

- Be careful with the Blender Cutting Blade.

② Pull up the Blender Jug to release from the Blender Jug Base.

Dry Mill

① Turn the Mill Container upside down and turn the Mill Container Base anticlockwise to disassemble.

- Be careful with the Mill Cutting Blade.

② Pull up the Mill Container Base to release it from the Mill Container.

To Assemble

Blender

① Place the Blender Gasket to the Blender Jug Base.

- If the Blender Gasket is not placed, it will cause leakage.

② Follow the assembly sequence in the direction of arrow as illustrated. Attach the Blender Jug to the Blender Jug Base and tighten the Blender Jug Base anticlockwise to assemble.

- Ensure that the Blender Gasket is set properly and the Blender Jug is tightened securely. Otherwise, it may cause leakage.

- Do not attach or remove the Blender Jug after the Blender Jug Base is placed on the Motor Housing. The liquid will leak or the motor will not operate.

Dry Mill

① Place the Mill Gasket to the Mill Container Base.

- If the Mill Gasket is not placed, it will cause leakage.

② Turn the Mill Container upside down.

③ Attach the Mill Container Base to the Mill Container and turn the Mill Container Base clockwise until a "click" sound is heard.

• Make sure that the Mill Gasket is fitted properly on the Mill Container Base. Otherwise, it may cause leakage.

Note:

Blender

• When placing viscous or low water ingredients (such as boiled beans or garlic), do not exceed 1/3 of the Blender Jug capacity and do not operate using Speed 1.
• Add soft ingredients (fruits, vegetables) into the Blender Jug before adding in other ingredients.

Cut them into small pieces (2-3 cm cubes).

• For Juice/Smoothie, follow the sequence of ingredients to be put into the Blender Jug: (i) Liquid (ii) Soft ingredients (iii) Hard ingredients (iv) Ice cubes.
• Before blending hard ingredients (such as carrot), cut it into small pieces (1-2 cm long).
• Do not blend food of 60^ or higher.
• Do not operate exceeding the rated operation time (2 min ON, 2 min OFF).

Dry Mill

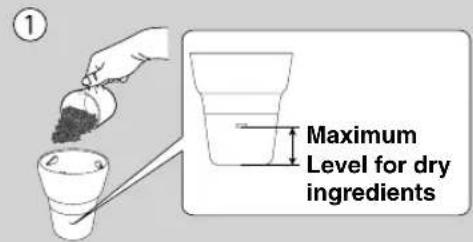

• When placing hard spices, do not exceed 1/3 of the Dry Mill capacity.
• Do not operate exceeding the rated operation time (1 min ON, 2 min OFF).

Function	Menu Speed Quantity		Quantity		Operating Time (approx.)	Remarks
(Blender)	Pudding		1	350 - 1 000 mL Max 10 sec		Remove the fl oating bubbles if necessary.
	Baby Food	Porridge	1	300 - 600 g 30 - 60 sec		For porridge:- Recommended ratio of rice:water is 1:10.For boiled spinach:- Recommended ratio of boiled spinach:water is 2:1.- Boil the spinach more than 5 minutes to soften it.For boiled carrot:- Place the same amount of water as the ingredients and blend.For all menus:- After blending the baby food, transfer it to another container and sterilise by heating.
		Boiled Spinach + water	1	300 - 400 g 60 - 120 sec
		Boiled Carrot + water	1	250 - 800 g 30 - 90 sec
	Ice Crush		1	Max 220 g(For a piece of ice cube size greater than 10 g and less than 20 g)	Blend until there is no sound.	- Only use 20 g ice cube or less which are made from a household refrigerator. Do not use commercial ice cubes.- If the crushed ice stick to the wall of the Blender Jug, turn off the appliance and remove the Blender Lid. Insert the Scraper to circulate.
				Max 250 g(For a piece of ice cube size approximately 8-10 g)
	Soup		2	250 - 1 000 mL Max 2 min		-
	Juice/Smoothie		2	250 - 1 500 mL Max 2 min		For Smoothie:- Only use approximately 20 g ice cubes or less which are made from a household refrigerator. Do not use commercial ice cubes and ensure to add liquid.
	Cookie Crush P1			Max 150 g	Blend until a desired texture is obtained(1 sec ON, 1 sec OFF)	- If the cookie is 5 cm or more, break it before inserting into the Blender Jug.- If the cookie stick to the wall of the Blender Jug, turn off the appliance and remove the Blender Lid. Insert the Scraper to circulate.
	Cleaning		P2	750 mL	3 - 10 times(1 sec ON, 1 sec OFF)	Operate with water only.
(Dry Mill)	Coffee Beans		2	Max 50 g 15 - 30 sec		-
	Pepper		2	Max 20 g	Max 60 sec
	Dried Chilli		2	Max 12 g	Max 30 sec	Remove the seeds.

How to Use Blender

Note:

• Working capacity: 1.5 L
- Do not operate with an empty Blender Jug.
- This Blender cannot be operated if the Blender Jug is not in place correctly.
- If the Blender Cutting Blade gets stuck, switch off immediately and unplug. Do not insert fingers into the Blender Jug. Use the Scraper to remove the ingredients that are blocking the Blender Cutting Blade.
- When removing the ingredients, be careful with the Blender Cutting Blade.
- Do not drop the appliance to avoid damaging it.
- Do not store liquid in the Blender Jug.
- It is prohibited to place the following kinds of ingredients in the Blender Jug: Meat, fish, hard ingredients (example: turmeric, dried soya beans, frozen ingredients, Cassia cinnamon), very sticky ingredients (example: peanut butter), ingredients with low water content (example: mashed potato) or commercial ice cubes.

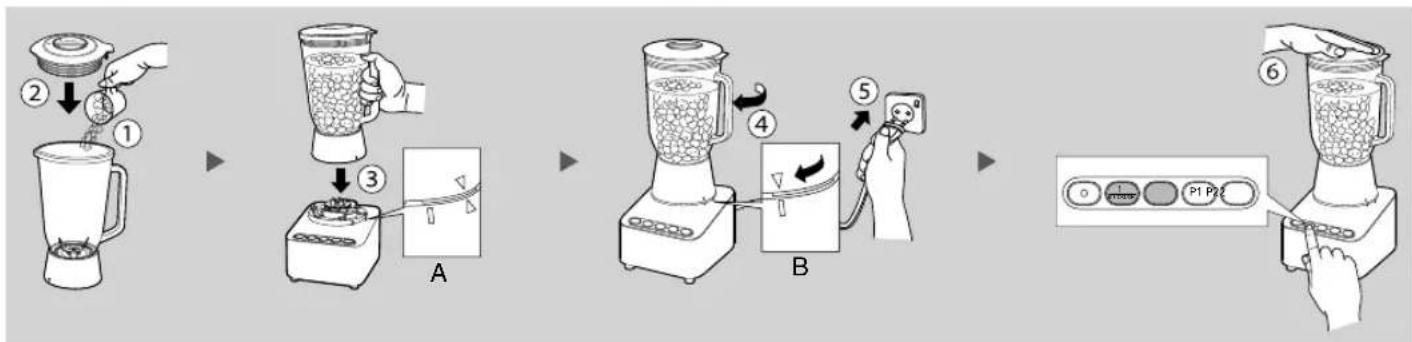

① Place the ingredients in the Blender Jug.
② Close the Blender Lid.
• Make sure the Inner Lid is attached.
③ Make sure the switch is off. Place the Blender Jug according to the triangle marks on the Blender Jug Base and Motor Housing as A. Rotate the Blender Jug (left and right) a few times when it does not fit properly to the Motor Housing.
④ Turn the Blender Jug Unit clockwise until a "click" sound is heard and make sure the marks are aligned as B.
⑤ Plug into the rated power supply.
⑥ Turn on the Blender by pressing the required speed.
- Support the Blender Lid while in use to ensure that it is tightly closed.


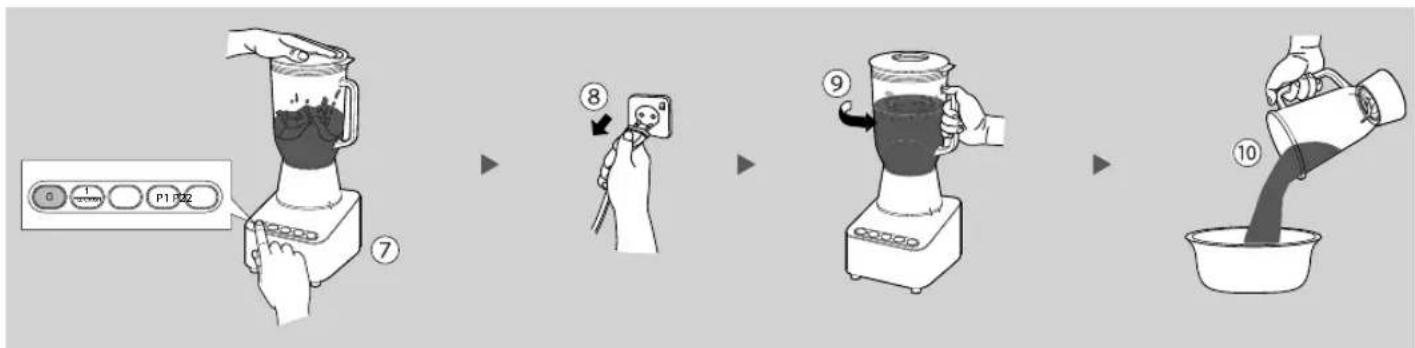

⑦ After blending, switch off by pressing the button.
⑧ Unplug.
⑨ Turn the Blender Jug anticlockwise to remove it from the Motor Housing.
⑩ Remove the ingredients. Be careful when pouring the mixture from the Blender Jug as it may spill.
- Avoid getting soiled with the ingredients.

How to Use Blender (Continued)

How to Use Scraper

■ Use the Scraper when:

• The ingredients are hard to blend due to too little liquid. (For example: chilli, curry dishes)
• The ingredients stick to the side of the Blender Jug. (For example: garlic, leaves, crushed ice)
• The ingredients stick to the bottom of the Blender Cutting Blade. (For example: crushed ice)

Note:

• Use the Scraper during blending only through the Blender Lid opening.
• Do not use the Scraper from other models for this product.
• Make sure the Inner Lid is attached when the Scraper is not used.

① Turn off the appliance and remove the Inner Lid carefully.
② Slowly slide the Scraper through the Blender Lid opening to perform operation. The Scraper can be inserted through the Blender Lid opening while blending without interfering with the Blender Cutting Blade.

Crushed ice removal

① Remove the crushed ice inside the Blender Jug.
② Disassemble the Blender Jug Base (page EN5).
③ Use the Scraper to remove any crushed ice beneath the Blender Cutting Blade.
*Be careful with the Blender Cutting Blade.

Recipes

Smoothie

Menu Ingredients		Quantity(Serving for 4)	Method
Strawberry Smoothie Orange juice	Strawberry	200 g	1. Place the ingredients according to the order.
		200 g	2. Blend for 30 sec-1 min at Speed 2.
	Banana	200 g
	Ice	200 g
Mango Smoothie Milk	Mango	300 g	1. Place the ingredients according to the order.
		300 g	2. Blend for 20-30 sec at Speed 2.
	Banana	100 g
	Ice	100 g
Banana Smoothie Milk	Banana	300 g	1. Place the ingredients according to the order.
		300 g	2. Blend for approximately 30 sec at Speed 2.
	Ice	200 g
Pineapple Smoothie Pineapple	Ice	500 g	1. Place the ingredients according to the order.
		300 g	2. Blend for 50 sec-1 min and 30 sec at Speed 2.
			- Use the Scraper if the mixture is uneven.

Sweets

Menu Ingredients	Quantity Method
Brownie(21 × 21 cm size for 1 mold)	MilkMelted ButterEggsSugarFlourBaking powderCocoa powder		60 mL100 g2180 g100 g1/2 teaspoon(1.5 g)60 g	1. Place the ingredients according to the order.2. Blend for 30 sec-1 min and 30 sec at Speed 2. Use the Scraper while blending.3. Pour into a mold and bake for 40-45 min in a preheated oven at 170 °C.
Cheesecake(21 cm diameter for 1 mold)	A	Fresh creamEggsLemon juiceSugarCream cheeseFlour	300 mL345 mL120 g300 g40 g	1. Place the cookie in the Blender Jug and blend for 1 sec ON and 1 sec OFF at Speed P1 for 10 times.2. Transfer the crushed cookies to another container. Mix the melted butter and spread it on the bottom of a mold.3. Place the ingredients A in the Blender Jug according to the order. Blend for 30 sec-1 min and 10 sec at Speed 2. Use the Scraper while blending.4. Pour into a mold and bake in a preheated oven at 170 °C for 50-70 min.
	CookiesMelted Butter		150 g25 g

- Abbreviation used in this instructions: sec = second(s); min = minute(s).

- Follow the quantity of liquid listed in the Recipes. It would make it hard to get your desired result especially if the quantity is reduced from the Recipes.

How to Use Dry Mill

This Dry Mill is designed for grinding dry ingredients such as coffee beans, dried pepper and spices.

Note:

• Working capacity: 50 g (coffee beans).
- Do not operate with an empty Dry Mill.
- Do not put liquid into the Mill Container.
- When removing the ingredients, be careful with the Mill Cutting Blade.
- Do not remove the Dry Mill from the Motor Housing until the rotation stops completely.
- Ensure that the Mill Cutting Blade stops completely before proceeding to the next P1 or P2 operation.
- Do not drop the appliance to avoid damaging it.
- It is prohibited to place following kinds of ingredients in the Mill Container: Meat, fish, hard ingredients (example: turmeric, dried soya beans, frozen ingredients, Cassia cinnamon), very sticky ingredients (example: peanut butter), oily ingredients (example: peanuts, walnuts), wet ingredients or any ice cubes.
- Remove the ingredients from the Mill Container and clean it immediately after blending.

① Turn the Mill Container upside down and fill in the ingredients.
② Place the Mill Container Base onto the Mill Container and turn it clockwise until a "click" sound is heard.
③ Place the Dry Mill onto the Motor Housing.
④ Turn the Dry Mill clockwise until a “click” sound is heard.
⑤ Plug into the rated power supply.

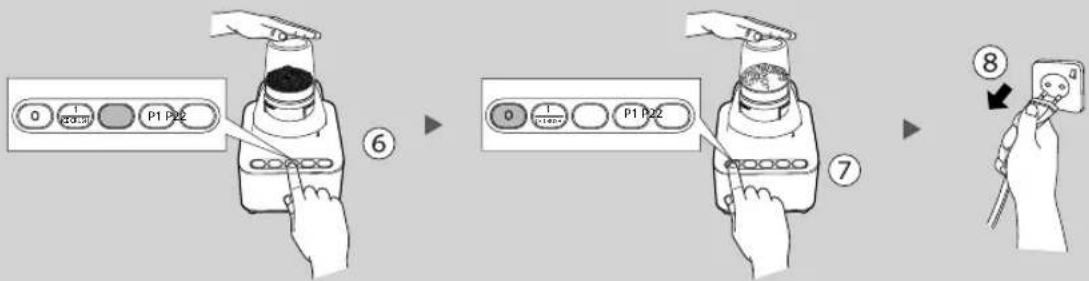

⑥ Turn on the Dry Mill by pressing the required speed.
- Support the Mill Container while in use to ensure that it is stable.
⑦ After blending, switch off the power supply.
⑧ Unplug.


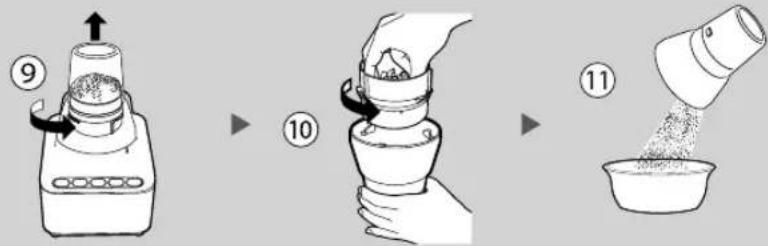

⑨ Turn the Dry Mill anticlockwise and remove it from the Motor Housing.
⑩ Turn the Dry Mill upside down and turn the Mill Container Base anticlockwise to remove it from the Mill Container.
⑪ Remove the ingredients.

Cleaning

Note:

• During prewash, do not fill in the normal water more than the amount indicated. It may cause high vibration.
• After prewash, unplug the appliance before cleaning. Handle the Cutting Blades and glass parts carefully during cleaning.
• Do not use benzene, thinner, alcohol, bleach, polishing powder or metal brush to clean the appliance. The surface may be damaged.
• Do not place the appliance in the dishwasher or the dish dryer for cleaning.
• Some discolouration of the plastic parts may occur upon usage but it does not affect usage.
• Make sure to clean the appliance after every use.
• Do not use water or hand to clean the Mill Cutting Blade.

Prewash

- For Blender, fi II in 750 mL of normal water. Press P2 while holding the Blender Jug by hand and operate for 3 to 10 times for cleaning.

Wash

• Before cleaning, make sure to take out the Blender Gasket and the Mill Gasket.
• Wash with diluted dish soap (neutral) and a soft sponge. After washing, be sure to rinse and wipe dry thoroughly.

Cleaning with a brush

• Clean the Mill Container Base and the Mill Cutting Blade with a brush. Do not use water or hand to clean the Cutting Blades.
  * Brush is not provided.

Wiping

- Wipe the Motor Housing with a damp cloth.

Exploded view diagram of a blender with labeled parts including handle, lid, and base (no text or symbols)

Storing

Note:

• Do not wrap the Cord around the Motor Housing.
• Mount the Blender Jug onto the Blender Jug Base and store it.
• Mount the Mill Container onto the Mill Container Base and store it.

Circuit Breaker Protection

When the Circuit Breaker automatically stops the motor due to overloading, follow the below steps:

1 Switch off to reset the Circuit Breaker.
2 Reduce the ingredients to less than 1/2 of the working capacity and/or remove hard ingredients.
3 Resume blending. If the Circuit Breaker still activates, repeat step 1 - 2. Do not repeatedly reset the Circuit Breaker.

Note:

- Circuit Breaker may not reset over 40 °C room temperature. In that case please move appliance to the room temperature under 35 °C and wait until it is cooled down.

Troubleshooting

Ensure to turn off the appliance and the power supply before taking the actions in the table below

Problems Causes Actions

The appliance does not turn on. The Plug is not inserted into an outlet. Insert the Plug into an outlet.
Even though the power is on, the appliance does not start blending.	The Blender Jug or the Mill Container is not placed correctly.	Place the Blender Jug or the Mill Container correctly.
	Overloaded with ingredients or prohibited ingredients are used.	Do not exceed the working capacity of the ingredients and ensure that prohibited ingredients are not used.
	The Safety Lever is stuck. Disassemble the Blender Jug Base and follow the assembly sequence (page EN5).
The appliance stops during blending. The Circuit Breaker Protection is activated. • Too many ingredients or hard ingredients are used.		See "Circuit Breaker Protection".
The mixture in the Blender Jug is leaking.	The Blender Jug Base is attached loosely.	Tighten the Blender Jug Base firmly onto the Blender Jug.
	The Blender Gasket is not installed correctly.	Install the Blender Gasket correctly.
	The Blender Gasket is not installed.	Install the Blender Gasket.
	The Safety Lever is stuck. Disassemble the Blender Jug Base and follow the assembly sequence (page EN5).
There is abnormal noise or vibration.	Too many ingredients in the Blender Jug.	Turn off the appliance and reduce the ingredients.
	The Blender Jug Base is attached loosely.	Tighten the Blender Jug Base firmly onto the Blender Jug.
The Cutting Blades is spinning freely without cutting.	Ingredients are stuck to the wall of the Blender Jug.	Turn off the appliance and insert the Scraper to circulate.
	Quantity of the liquid is low.	Add liquid.

• A "kiiiin" sound may be heard during operation. This is normal.

Specifications

Function	Blender Dry Mill
Power Supply	220 - 240 V ~ 50 - 60 Hz
Power Consumption	430 - 490 W
Switch	○ (OFF), 1, 2, P1, P2
Operation Rating	2 minutes ON2 minutes OFF	1 minute ON2 minutes OFF
Dimension (Approx.)W × L × H (mm)	188 × 210 × 415 170 × 210 × 262
Mass (Approx.) (kg)	3.6 2.1
Working Capacity(Approx.)	1.5 L 50 g (Coffee Beans)
Cutting Blades	4 stainless steel blades 2 stainless steel blades

أسیاب

مخلوط کن

آسیاب

مخلوط کن

خارج کردن يخ خردشده

دستور العمل تهيه

اسموتى

Line drawing of a hand pressing down on a mechanical device with a knob (no text or symbols)

Simple line drawing of a container pouring granular material into a bowl (no text or symbols)

تميز کردن دستگاه

توجه:

Exploded view diagram of a blender with labeled parts including handle, lid, and base (no text or symbols)

حین شستن

المطحنة

الخلاط

Diagram showing a mechanical assembly with rotating components and a close-up view of a curved component (no text or symbols)

المطحنة

الخلاط

ملاحظة:

الخلاط

إزالة expiration Projمروش

الغسيل

No. 3, Jalan Sesiku 15/2, Section 15, Shah Alam Industrial Site,

40200 Shah Alam, Selangor Darul Ehsan, Malaysia.

http://www.panasonic.com
