PHVP64FALK - Range hood HOTPOINT - Free user manual and instructions

Product Type	Range Hood
Brand	Hotpoint
Model	PHVP64FALK
Mounting Type	Built-in / Under Cabinet
Width	60 cm
Depth	50 cm
Height (min-max)	60 - 110 cm
Net Weight	12 kg
Power Supply	220-240 V ~ 50 Hz
Total Connected Load	200 W
Motor Power	150 W
Lighting Power	2 x 3 W LED
Airflow (Max)	650 m³/h
Noise Level (Max)	65 dB(A)
Number of Speeds	3 + Boost
Type of Controls	Electronic Push Button
Grease Filter Type	Aluminium Mesh (x2)
Charcoal Filter Option	Yes (sold separately)
Ducted / Recirculation	Ducted (optional recirculation with charcoal filter)
Duct Diameter	150 mm
Energy Class	A+
Annual Energy Consumption	50 kWh/year
Grease Filter Cleaning	Dishwasher safe or hand wash monthly
Charcoal Filter Replacement	Every 3-6 months
Warranty	2 years

Frequently Asked Questions - PHVP64FALK HOTPOINT

How do I install the Hotpoint PHVP64FALK range hood?

Installation should be performed by a qualified technician. Ensure the hood is mounted at a minimum height of 65 cm above electric hobs and 75 cm above gas hobs. Follow the included installation template and secure all brackets. For ducted mode, connect the exhaust duct (150 mm diameter) to the outside. For recirculation mode, install charcoal filters (sold separately).

How do I clean the grease filters?

The aluminium mesh filters can be removed by pressing the spring clips. Wash them by hand with warm soapy water or place them in the dishwasher. Allow them to dry completely before reinstalling. Clean the filters at least every month to maintain performance.

How often should I replace the charcoal filter?

If using the hood in recirculation mode, replace the charcoal filter every 3 to 6 months, or more frequently if cooking heavily. The exact interval depends on usage. A saturated charcoal filter will reduce odor removal efficiency.

The hood is noisy. What can I do?

Check if the hood is installed securely and not vibrating against cabinets. Ensure the ductwork is not blocked and is straight and short as possible. Loose parts or debris in the fan can also cause noise. If the problem persists, contact customer service.

Why is the hood not extracting properly?

First, ensure the grease filters are clean. Check if the duct is blocked or kinked. Make sure the room is not too airtight; slightly open a window for air intake. If using recirculation, verify the charcoal filter is not saturated. Also, check that the speed setting is appropriate.

Can I use the hood without a charcoal filter?

Yes, if you are using the hood in ducted mode (exhaust to outside), you do not need a charcoal filter. The charcoal filter is only required for recirculation mode where the air is cleaned and returned to the kitchen.

How do I replace the LED lights?

The LED lights are integrated and not user-replaceable. If they fail, contact a qualified service technician or Hotpoint customer support for replacement. Do not attempt to replace them yourself.

What is the maximum duct length for optimal performance?

For best performance, keep the duct length as short as possible, ideally under 3 meters with minimal bends. Each bend reduces efficiency. Use smooth, rigid ducting rather than flexible ductwork to minimize airflow resistance.

How do I reset the filter alarm?

After cleaning or replacing the filters, press and hold the 'Filter Clean' button (if available) for about 3 seconds until the indicator light turns off. Refer to the user manual for the exact procedure for your model.

What does 'Boost' speed do?

The Boost function provides maximum extraction power for a limited time (usually 5-10 minutes) to quickly remove strong odors or steam. It automatically returns to the previous speed after the boost cycle ends. Use it only when needed to save energy.

USER MANUAL PHVP64FALK HOTPOINT

Line drawing of a kitchen appliance with a spoon and lid, no text or symbols present

PL

⚠ OGÓLNE BEZPIECZEŃSTWO

Illustration of a hand holding a mechanical clamp or bracket (no text or symbols visible)

Diagram showing three stages of a solar panel installation with grid lines and arrows indicating assembly (no text or symbols)

Wymiana żarówek

PHVP 6.4F AL K

Illustration of a hand holding a small blue object, with a magnifying glass and circular components nearby (no text or symbols)

PHVP 6.6F LM K - PHVP 8.7F LT K

Illustration of a hand holding a mechanical clamp or bracket (no text or symbols visible)

Diagram of a solar panel assembly showing three stages: top, middle, and bottom with no visible text or symbols.

lzzók cseréje

PHVP 6.4F AL K

Illustration of a hand holding a magnifying glass with a pointer and a small blue object, no text or symbols present.

PHVP 6.6F LM K - PHVP 8.7F LT K

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram of solar panel installation showing layered structure and connection points (no text or symbols)

Výměna svítidel

PHVP 6.4F AL K

Illustration of a hand holding a small blue object, with a magnifying glass and circular components nearby (no text or symbols)

PHVP 6.6F LM K - PHVP 8.7F LT K

Illustration of a hand holding a mechanical clamp or bracket (no text or symbols visible)

Diagram of solar panel installation showing three stages: top, middle, and bottom with internal grid lines (no text or symbols)

Výmena žiaroviek

PHVP 6.4F AL K

Illustration of a hand holding a magnifying glass with a pointer and a small blue object inside (no text or symbols)

PHVP 6.6F LM K - PHVP 8.7F LT K

Odsávač pary je vybavený systémom osvetlenia založenom na technoloógii LED.

⚠ SIGURANTĂ GENERALĂ

Use the correct length for the screws which are identified in the Installation Guide.

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram of a solar panel assembly showing three stages: top, middle, and bottom with internal grid lines (no text or symbols)

Illustration of a hand holding a magnifying glass with a screwdriver, and another hand holding a small blue object (no text or symbols present)

PHVP 6.6F LM K - PHVP 8.7F LT K

Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

Always wear work gloves for all installation and maintenance operations.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not be allowed to tamper with the controls or play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with the maintenance instructions provided in this manual. Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires.

The flaming of foods beneath the hood itself is severely prohibited.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.

For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.

WARNING! Do not connect the appliance to the mains until the installation is fully complete.

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels.

Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

Never use the hood without effectively mounted grids.

The hood must NEVER be used as a support surface unless specifically indicated.

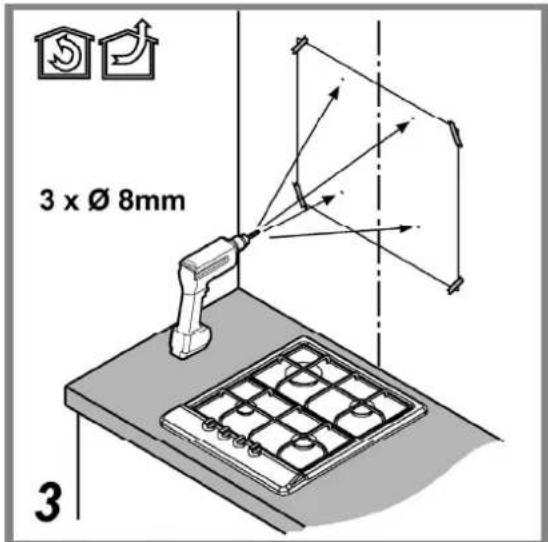

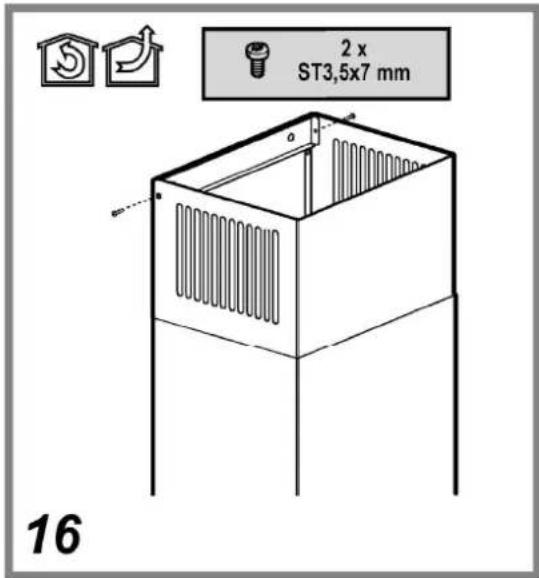

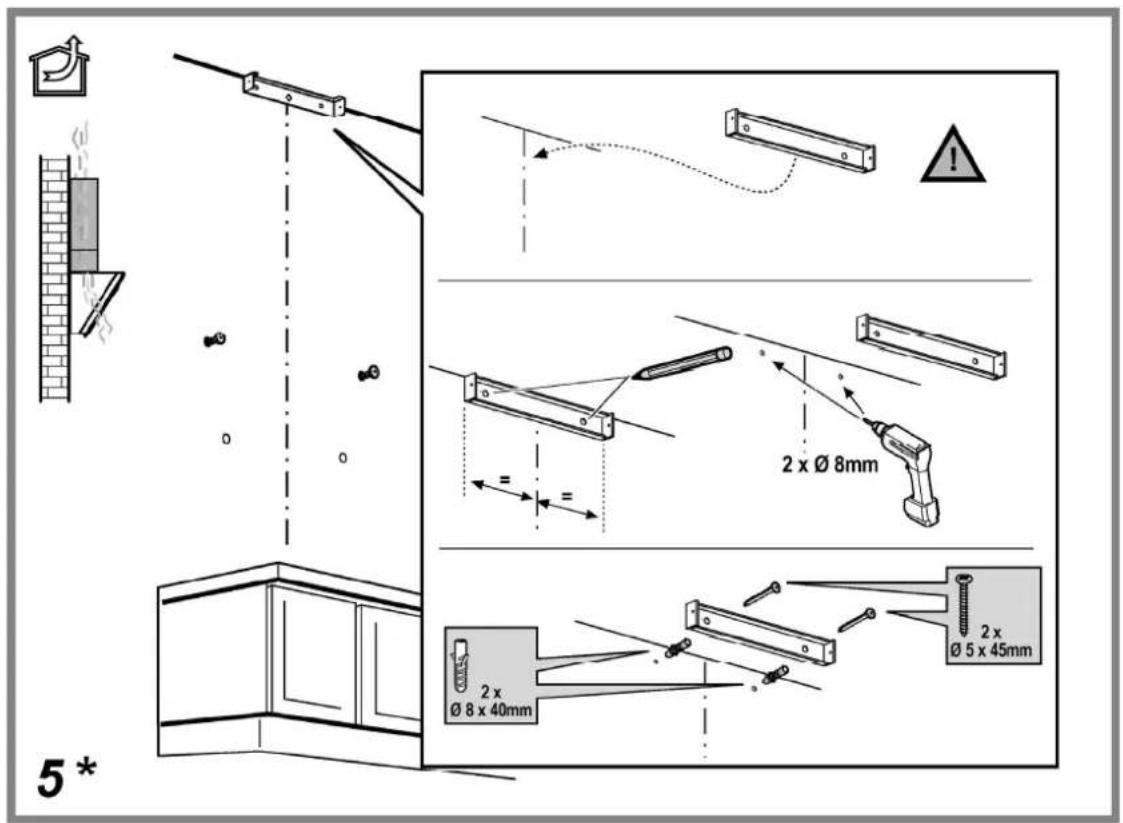

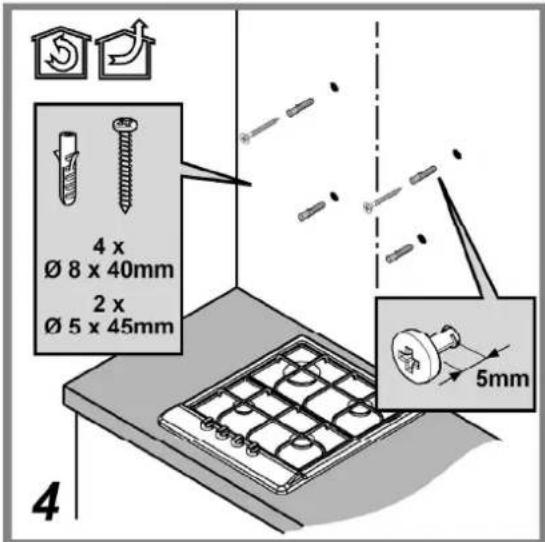

Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.

Use the correct length for the screws which are identified in the Installation Guide.

In case of doubt, consult an authorised service assistance centre or similar qualified person.

WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same.

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. The hood is conceived for the suction of cooking fumes and steam and is destined only for domestic use.

! It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.

! Read the instructions carefully: there is important information about installation, use and safety.

! Do not carry out electrical or mechanical variations on the product or on the discharge conduits.

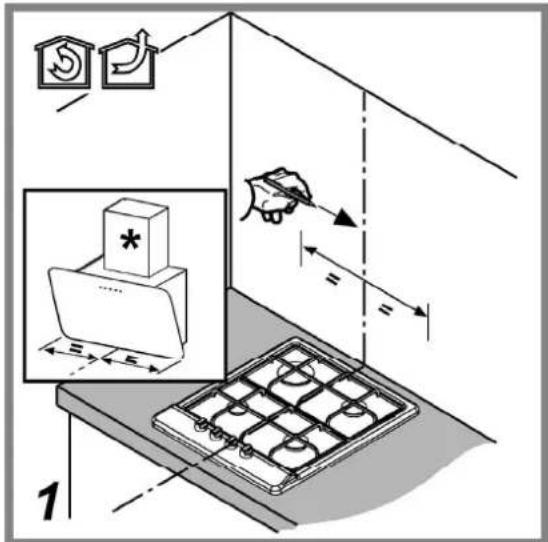

! Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation.

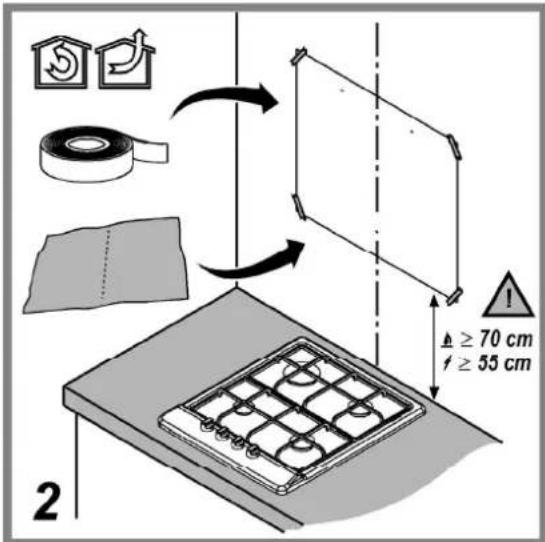

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 55cm from electric cookers and 70cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

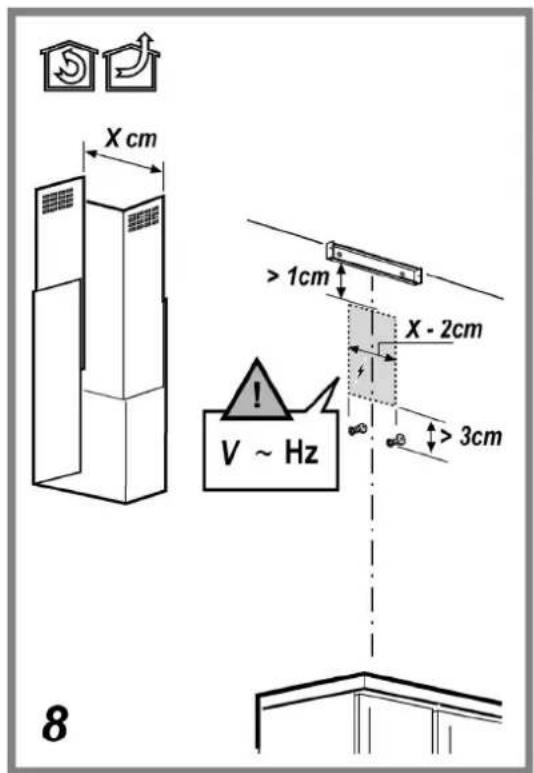

ELECTRICAL CONNECTION

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

Replacing the power cable

The hood is provided with a special power cable; if the cable is damaged, request a new one from Technical Service.

AIR VENT

(for the suction versions)

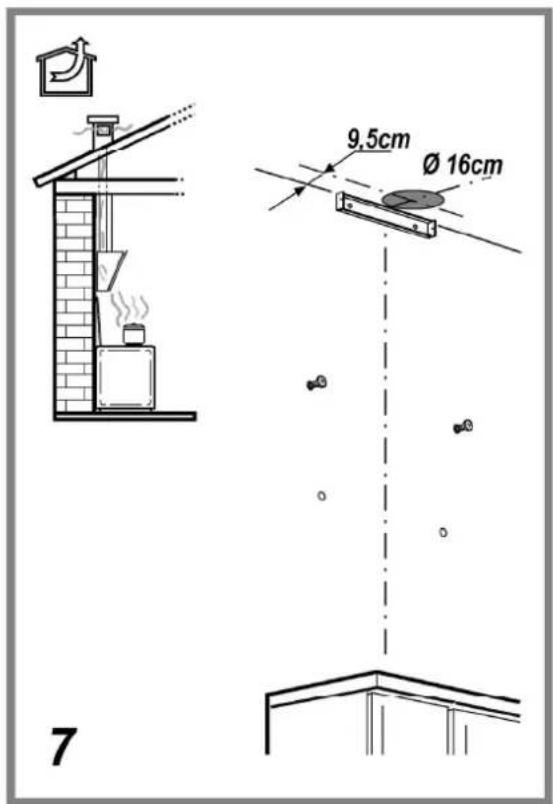

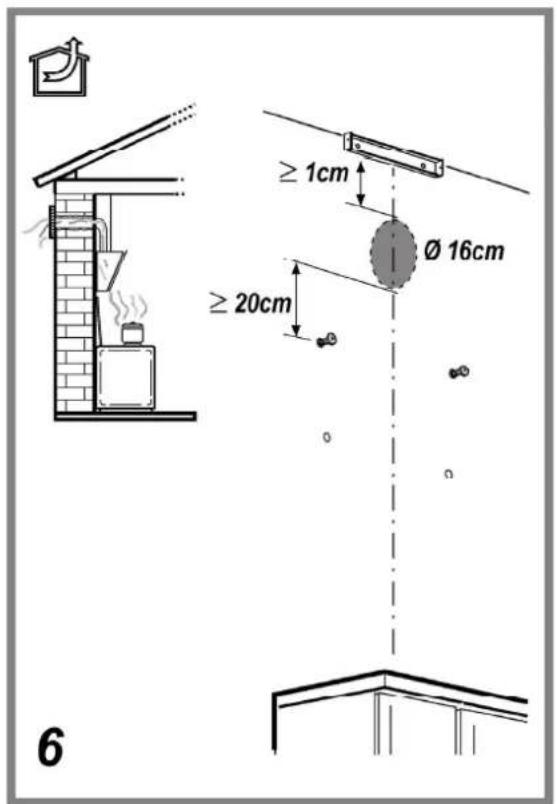

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).

Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

! Use a duct of the minimum indispensable length.

! Use a duct with as few elbows as possible (maximum elbow angle: 90°).

! Avoid drastic changes in the duct cross-section.

! The company declines any responsibility whenever these regulations are not respected.

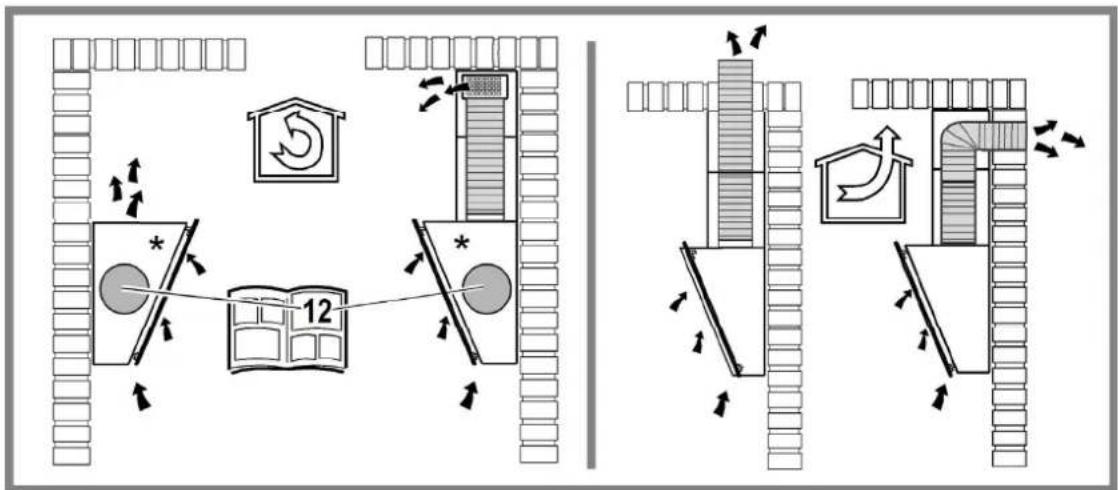

FILTERING OR DUCTING ?

! Your cooker hood is ready to be used in suction version.

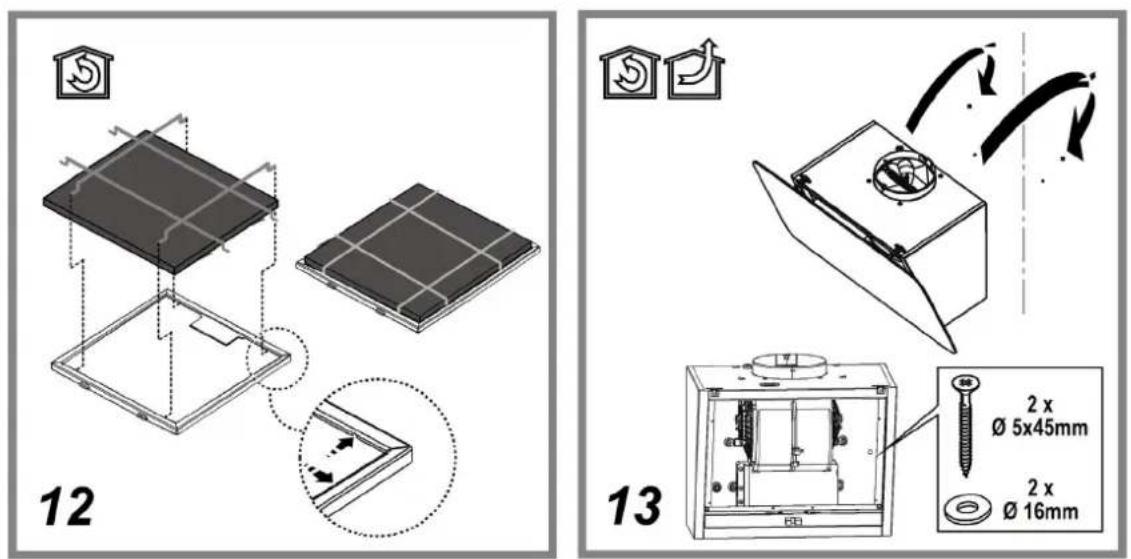

To use the hood in filtering version the special ACCESSORY KIT must be installed.

Check on the first pages of this manual if the ACCESSORY KIT is furnished or must be bought separately.

Note: If furnished, in certain cases, the additional activated carbon filtering system may be installed on the hood.

Information about the conversion of the hood from suction version to filtering version is present in this manual.

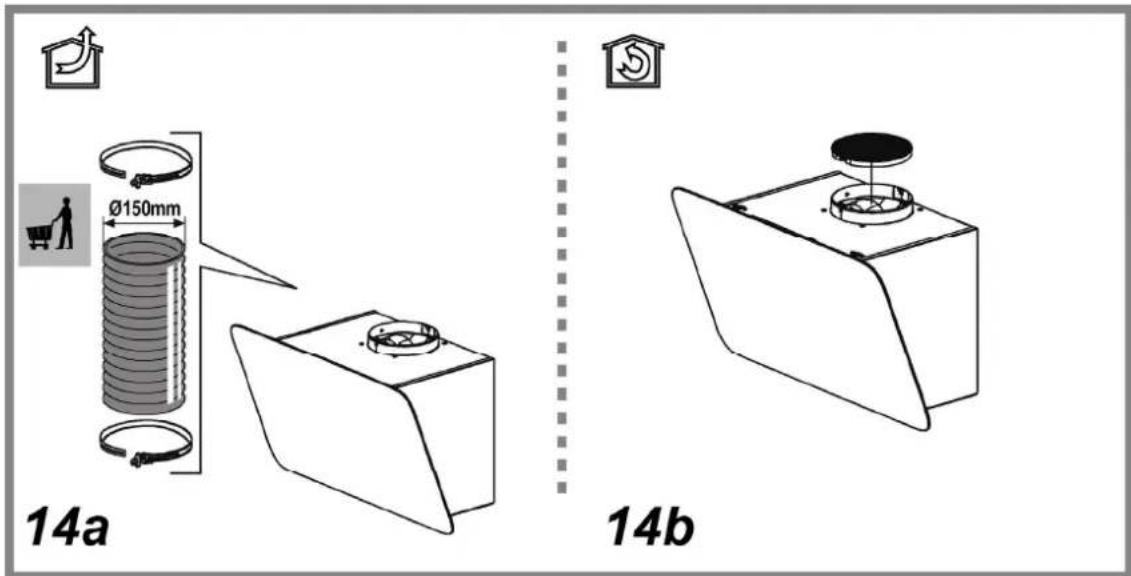

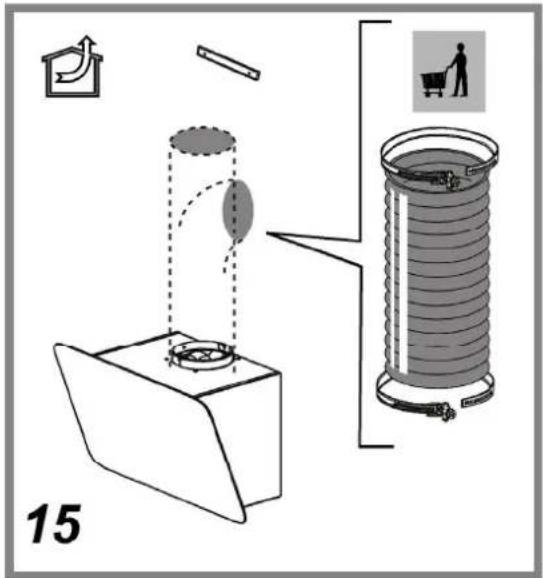

Ducting version

In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood.

Attention! The exhausting pipe is not supplied and must be purchased apart.

Diameter of the exhausting pipe must be equal to that of the connection ring.

Attention! If the hood is supplied with active charcoal filter, then it must be removed.

Filter version

The aspirated air will be degreased and deodorised before being fed back into the room.

In order to use the hood in this version, you have to install a system of additional filtering based on activated charcoal.

CONTROLS

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights.

Models with mechanical control panel

PHVP 6.6F LM K

T1. ON/OFF light switch
T2. Speed 1/OFF switch
T3. 2-speed selection
T4. 3-speed selection

Model with SOFT-TOUCH control panel

PHVP 8.7F LT K

To select the functions of the hood, simply touch the commands:

a. Button to increase suction speed (power):
b. Button to decrease suction speed (power).
c. Button ON/OFF hood
d. Button ON/OFF lighting
e. Button ON/OFF programmed switching off:

it programs switching off of the active suction speed (power) after approximately 3 minutes.

Models with Soft Button panel + LCD Display

PHVP 6.4F AL K

1. OFF / Extraction speed (power) decrease button
2. ON / Extraction speed (power) increase button

Note: The intensive extraction speed (power) is timed and lasts for 5 minutes (indicator c flashes); the hood then reverts to extraction speed (power) 2.

1. ON/OFF Timer button: delays the deactivation of the selected extraction speed (power) by 5 minutes.
   Note: the button is also used for the "Filter saturation signal reset" function
2. Light ON/OFF button
3. Display, shows:

a. Extraction speed (power): the indicator rotates according to the selected extraction speed (power).

Safety operation: the indicator flashes.

b. Grease filter saturation: comes on when filter maintenance is required.

c. Timer

d. Active carbon filter saturation: comes on when filter maintenance is required.

Note: this function is normally disabled and should only be activated if the hood is used as a filter version (with carbon filter fitted).

To do so, proceed as follows:

- switch off the hood

- press and hold buttons 1 and 3 at the same time, until the indicator stops flashing (indicator disabled) and is lit steadily (indicator enabled).

- release the buttons.

To deactivate it, repeat the procedure: the indicator will no longer be lit steadily (indicator enabled) and will flash instead (indicator disabled).

e. Lighting

Safety operation

The hood has a sensor which, in the event of a sudden increase in temperature, activates the appliance until the temperature drops significantly.

Filter saturation signal reset

After carrying out filter maintenance, press and hold button 3 until indicator.

MAINTENANCE

Cleaning

Clean using ONLY the cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL!

Perimeter aspiration panel

Clean the perimeter aspiration panel with the same frequency as the ant-fats filter, using a cloth and not too concentrated liquid detergent. Do not use abrasive substances.

Maintenance of the anti-grease filters

Traps cooking grease particles.

This must be cleaned once a month (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity) using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle.

When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

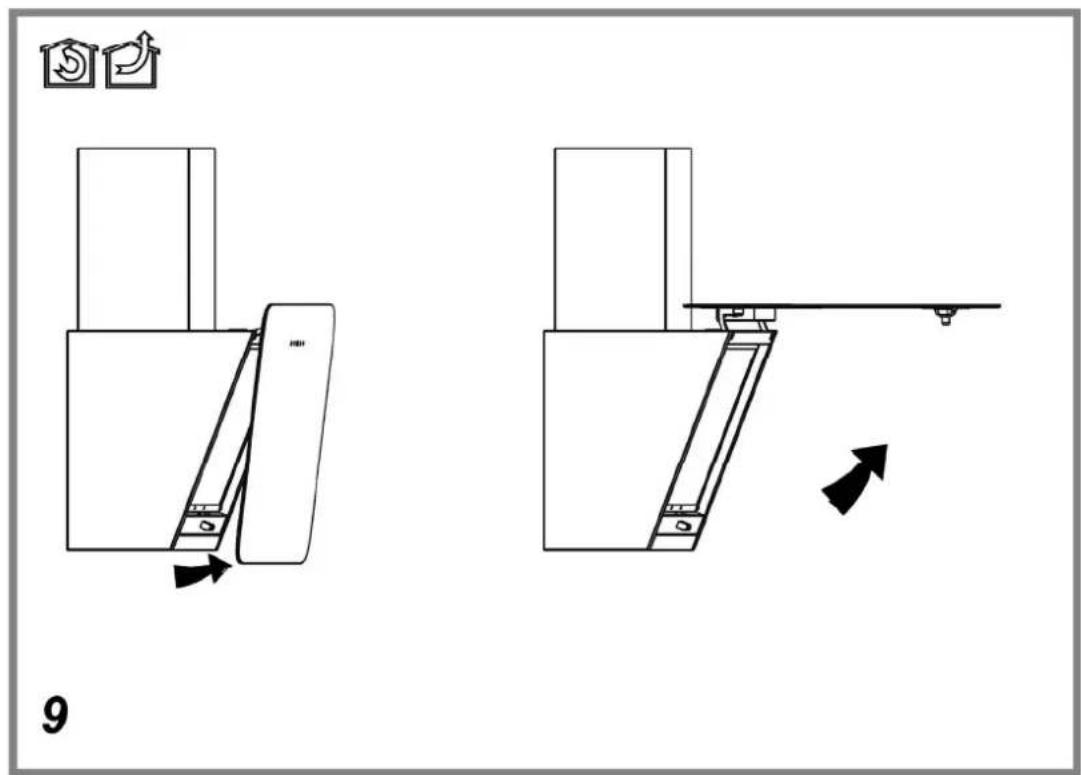

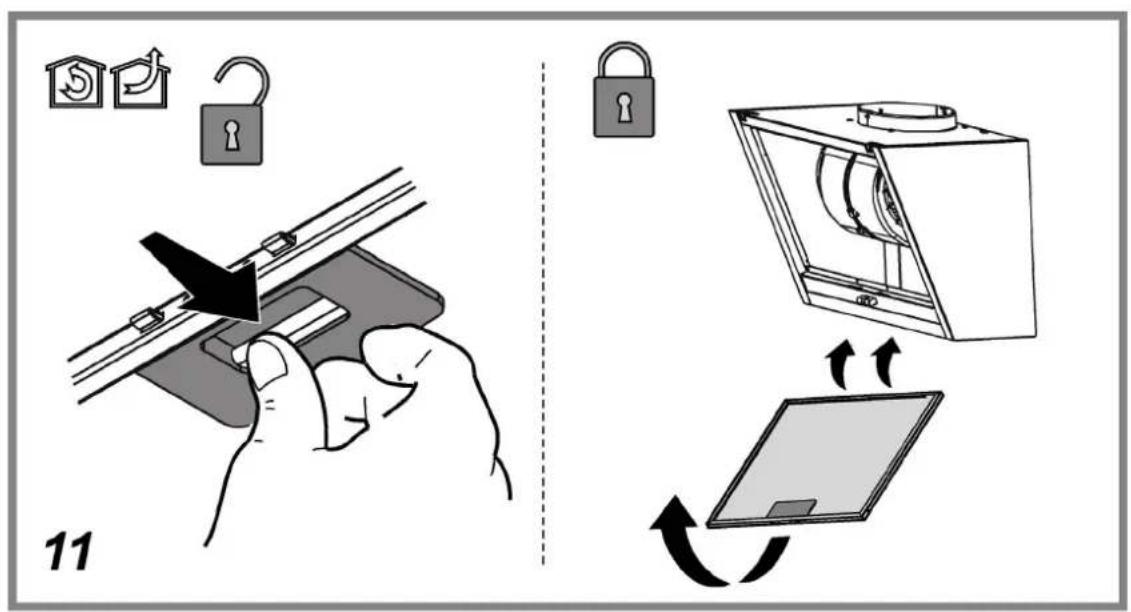

To remove the grease filter, pull the spring release handle.

Illustration of a hand holding a metal tool with a bracket (no text or symbols visible)

Maintenance of the charcoal filter

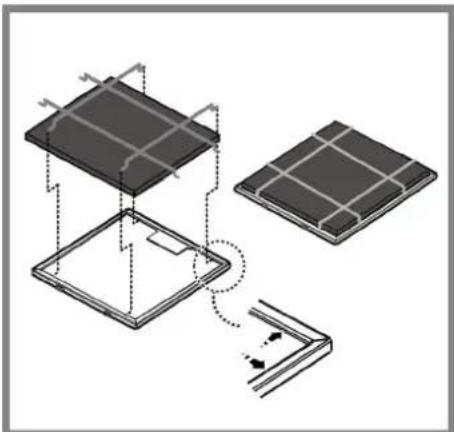

It absorbs unpleasant odours caused by cooking.

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least every four mounths (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity). The charcoal filter may NOT be washed or regenerated.

Diagram of a solar panel assembly showing layered structure and mounting mechanism (no text or symbols)

Replacing lamps

PHVP 6.4F AL K

Disconnect the appliance from the electricity.

Warning! Prior to touching the light bulbs ensure they are cooled down.

Replace the old light bulb with the one of the same type as specified in the feature label or near the light lamp on the hood.

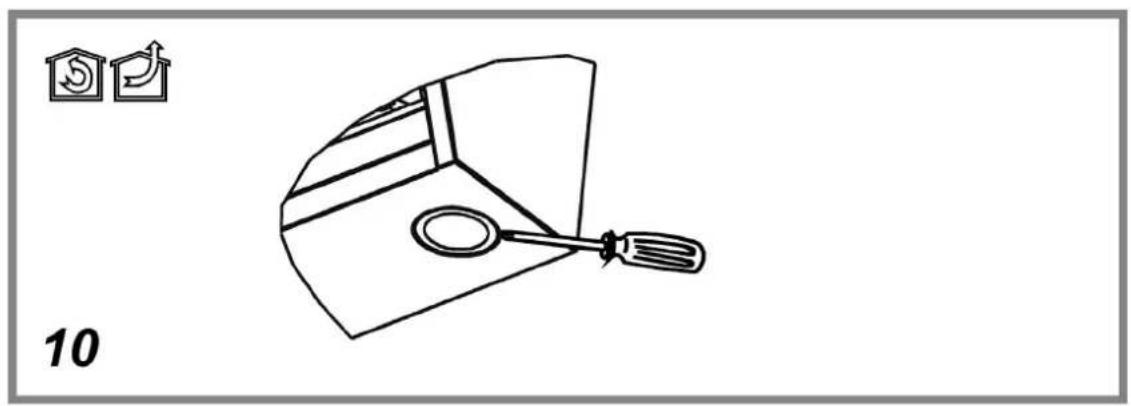

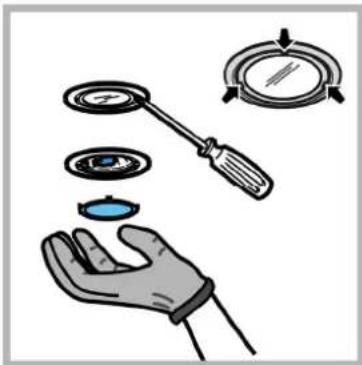

1. Using a flat head screwdriver or equivalent tool, carefully pry loose the light cover.
2. Remove the damaged light and replace with a new 12 Volt, 20 Watt (Maximum) halogen light made for a G-4 base SUITABLE FOR USE IN OPEN LUMINAIRES. Follow package directions and do not touch new light with bare hands.
3. Reinstall the light cover. (it will snap shut).

Illustration of a hand holding a magnifying glass with a blue lens, alongside another hand holding a circular object (no text or symbols present)

PHVP 6.6F LM K - PHVP 8.7F LT K

The hood is equipped with a lighting system based on LED technology. The LEDs guarantee an optimum lighting, a duration up to 10 times as long as the traditional lamps and allow to save 90% electrical energy.

For replacement, contact the technical service.

DISPOSAL

This appliance is marked according to the European directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.
• Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301.
- EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapour and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odour reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

MALFUNCTIONS

If something appears not to be working properly, do the following simple checks before calling Technical Service:

- If the hood is not working: Check that:

- The power has not been disconnected.

- A speed has been selected.

- If the hood performs inefficiently: Check that:

- The motor speed selected is sufficient for the amount of smoke and vapours released.

- The kitchen is sufficiently ventilated to allow air intake.

- The charcoal filter is not worn (hood in filtering version).

- If the hood has turned off during normal functioning: Check that:

- The power has not been disconnected.

- the omnipolar disconnection device has not tripped.

If the hood fails to operate correctly, briefly disconnect it from the mains power supply for almost 5 sec. by pulling out the plug. Then plug it in again and try once more before contacting the Technical Assistance Service.

TECHNICAL DATA

Model	Height (cm)	Width (cm)	depth (cm)	∅ of exhaust tube(cm)
PHVP 6.4F AL K 69	-104 59,5 15	15
PHVP 6.6F LM K 69	-104 60 18,9	15
PHVP 8.7F LT K 69	-104 80 18,8	15

Please check the plate in order to verify the total absorption and the light absorption.

PHVP 6.4F AL K

	Power (W)	Voltage (V)	Cap	Dimensions (mm)
Halogen	2 x 20W 12	G4 33x∅	0

PHVP 6.6F LM K - PHVP 8.7F LT K

The hood is equipped with a lighting system based on LED technology. For replacement, contact the technical service.

Components not provided with the product

⚠️ ОБЩА БЕЗОПАСНОСТ

Illustration of a hand holding a tool with a bracket and a small object, no text or symbols present.

Exploded view diagram of a solar panel assembly showing internal structure and mounting points (no text or labels)

Подмяна на лампите

PHVP 6.4F AL K

Illustration of a hand holding a magnifying glass with a screwdriver and a small blue object, no text or symbols present.

PHVP 6.6F LM K - PHVP 8.7F LT K

- Waste Electrical and Electronic Equipment (WEEE).
