Product Type	Range Hood
Brand	Hotpoint
Model	HSLMO 65F LS K
Width	60 cm
Depth	Approx. 50 cm
Height (min-max)	60 - 110 cm
Weight	Approx. 12 kg
Power Supply	220-240 V ~ 50 Hz
Motor Power	200 W
Lighting	2 x 3 W LED
Suction Power (max)	650 m³/h
Number of Speeds	3 + Boost
Control Type	Electronic push buttons
Extraction Type	Ducted or recirculating
Filter Type	Aluminum grease filter + optional carbon filter
Noise Level (max)	65 dB(A)
Energy Efficiency Class	A
Grease Filter Cleaning	Dishwasher safe, clean monthly
Carbon Filter Replacement	Every 3-6 months
Safety Features	Motor thermal protection
Spare Parts Availability	Filters, bulbs, motor via authorized service
Installation	Wall-mounted, under cabinet

Frequently Asked Questions - HSLMO 65F LS K HOTPOINT

How do I install the Hotpoint HSLMO 65F LS K range hood?

Installation must be carried out by a qualified electrician. Ensure the hood is mounted at least 65 cm above the hob for electric cooktops and 75 cm for gas. Follow the template provided in the manual for drilling holes and secure the hood with the supplied screws.

How often should I clean the grease filter?

The aluminum grease filter should be cleaned every month under normal use. You can wash it in a dishwasher or by hand with mild detergent. A dirty filter reduces suction efficiency.

When should I replace the carbon filter?

If using recirculation mode, replace the carbon filter every 3 to 6 months, depending on usage. The filter cannot be washed; it must be replaced.

How do I change the LED bulbs?

Switch off the power. Locate the LED module under the hood. It may be a snap-fit or screw type. Refer to the manual for exact replacement instructions. Use only specified 3W LED bulbs.

What is the maximum extraction rate?

The maximum extraction rate is 650 m³/h in boost mode. Normal speeds range from 200 to 450 m³/h.

Can the hood be used in recirculation mode?

Yes, the HSLMO 65F LS K can be used both ducted and recirculating. For recirculation, you need to install an additional carbon filter (sold separately).

What should I do if the hood is not working?

Check the power supply and fuse. Ensure the hood is connected correctly. If the motor thermal protection has tripped, wait 60 minutes for it to reset. If problem persists, contact Hotpoint service.

How loud is the hood during operation?

The noise level varies by speed: low speed approx. 45 dB, medium 55 dB, high 65 dB. Boost mode is louder.

Where can I find spare parts?

Official spare parts like filters, light bulbs, and motor components can be ordered through Hotpoint authorized service centers or online parts retailers. Use the model number HSLMO 65F LS K.

How do I reset the filter saturation indicator?

After cleaning or replacing filters, press and hold the light button for 3 seconds until the indicator turns off. Refer to the manual for exact procedure.

USER MANUAL HSLMO 65F LS K HOTPOINT

EN Instruction for use

EL Οδηγίες χρήσης

Illustration of a coiled cable or wire component with a 1x label, no text or symbols present.

Diagram showing airflow patterns between two kitchen appliances, one emitting heat from a chimney and the other with cooling air (no text or symbols)

Diagram showing airflow from a chimney to a TV, with no text or symbols present

1.1

1.2a

Pure mechanical diagram showing a bracket with a central pin and a cross-shaped component below (no text or symbols)

Simple line drawing of a kitchen with a brick wall, a hanging container, and a bowl on a table (no text or symbols)

1.2b

Simple geometric shape with rounded corners and four small circles at the top (no text or symbols)

Simple line drawing of a kitchen interior with brick wall, shelf, and cooking pot (no text or symbols)

Diagram of a kitchen interior showing a chimney, oven, and kitchenware (no text or symbols)

2

Diagram showing airflow around a window with a fan-shaped structure and a kitchen appliance (no text or symbols)

3

6b

	V / W	ILCOS D (IEC 61231)
	220-240V / 3W	DRBB/C-3-220-240-E14-35/102

EN

GENERAL SAFETY

- Do not make electrical or mechanical changes on the product or on the exhaust pipes. • Before doing any cleaning or maintenance work, disconnect the product from the mains power supply by removing the plug or turning off the mains switch. • For all installation and maintenance operations, always wear work gloves. • The product can be used by children over the age of 8 and by people with reduced physical, sensory or mental capabilities or without experience or the necessary knowledge, as long as they are properly supervised or have been instructed on how to safely use the device and understand the inherent dangers. • Children must be supervised to make sure that they do not play with the product. • Cleaning and maintenance must never be performed by children unless they are properly supervised. • The room must have sufficient ventilation when the product is used at the same time as other appliances burning gas or other fuels. • The product must be cleaned frequently both inside and out (AT LEAST ONCE A MONTH); always follow the instructions given in the maintenance manual. • Failure to comply with the rules indicated for cleaning the product and replacing/cleaning the filters may result in the risk of fire. • It is strictly forbidden to cook food on the flame under the product. • WARNING: • When the hob is on, the accessible parts of the product may become hot. • Do not connect the product to the electrical power supply until the installation is complete. • The regulations laid down by local authorities must be strictly followed with regard to the technical and safety measures to adopt for fume extraction. • The extracted air must not be conveyed through the same ducts used to extract the fumes generated by gas combustion or other types of combustion products. • Do not use or leave the product without appropriately installed lamps, as this may result in the risk of electric shock. • The product must NEVER be used without the grille correctly fitted. • The product must NEVER be used as a support surface unless expressly indicated.

• Range hoods and other cooking fume extractors may adversely affect the safe operation of appliances burning gas or other fuels (including those in other rooms) due to back flow of combustion gases. These gases can potentially result in carbon monoxide poisoning. After installation of a range hood or other cooking fume extractor, the operation of flued gas appliances should be tested by a competent person to ensure that back flow of combustion gases does not occur.

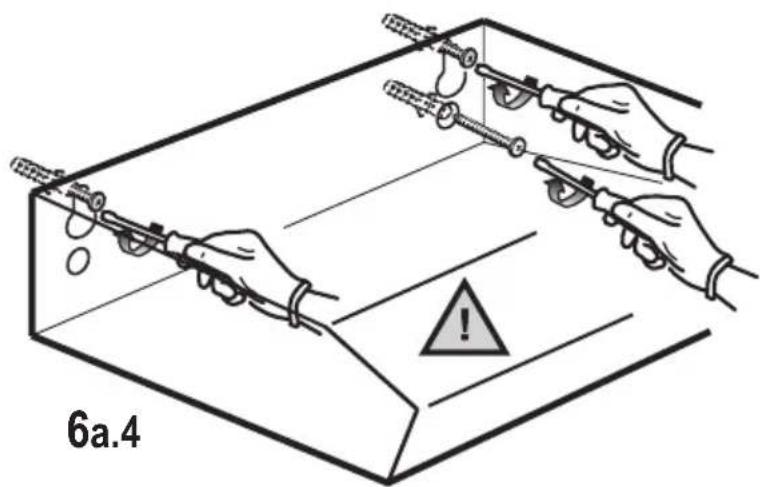

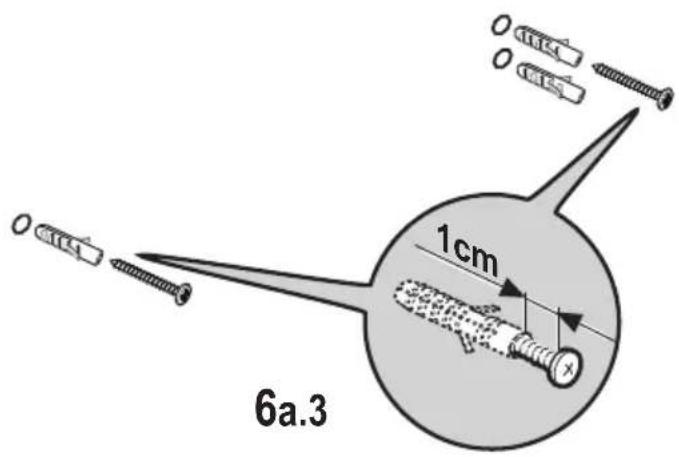

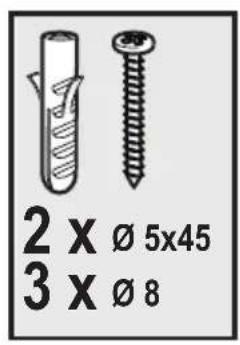

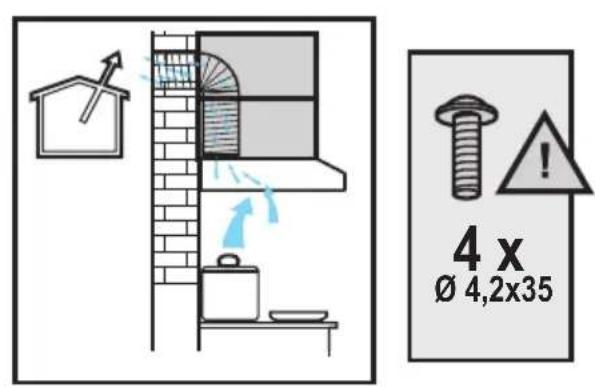

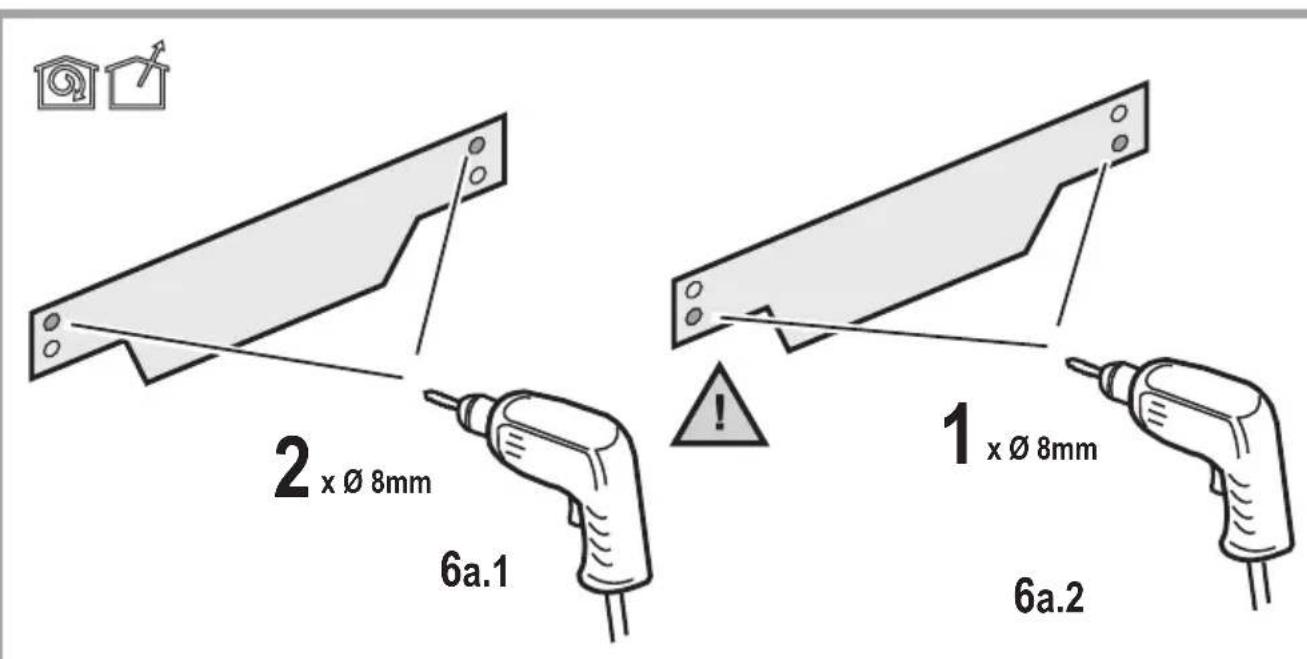

• Use only the fastening screws supplied with the product for its installation, or if not supplied, purchase the correct type of screws. Use screws of the right length, as indicated in the installation guide.
• Please note! Failure to install screws and fasteners in accordance with these instructions may result in electrical hazards.
• To replace the lamp, only use the lamp indicated in the maintenance/lighting system section of this manual. • Using a naked flame may damage the filters and cause a fire hazard, and must therefore be avoided under all circumstances. •

Extra care must be taken when frying to prevent the oil from overheating and catching fire. • In case of doubt, contact the authorised service centre or similar qualified personnel.

Please note! Do not use with a programmer, timer, separate remote control or any other device that activates automatically.

- The minimum distance between the container support surface on the cooker and the lower part of the hood must be at least equal to 60 cm (not less than 75 cm only for Australia and New Zealand) in case of electric cookers and to 75 cm in case of gas or mixed cookers.

If the installation instructions of the gas cooker specify a greater distance, take it into account.

Keep children under the age of 3 away from the appliance. Without the constant supervision of an adult, keep the appliance out of the reach of children under the age of 8.

⚠️ ATTENTION: the appliance is not designed to be operated using an external device or a separate remote control system.

This appliance is not intended for professional use. Do not use the appliance outdoors.

⚠️ To avoid the risk of personal injury, the appliance must be handled and installed by two or more people.

⚠️ Installation operations, including any water supply connections (if any) and the electrical connections, and repairs must be carried out by qualified personnel. When installation is complete, keep the packaging material (plastic parts, polystyrene, etc.) out of the reach of children to avoid the risk of suffocation. Do not use the appliance when barefoot or wet.

Never use steam cleaning appliances - risk of electric shock.

The packaging material is 100% recyclable and is marked by the recycling symbol

The device may have different aesthetic features with respect to the illustrations in this handbook, however the operating, maintenance and installation instructions remain the same.

Strictly observe the instructions in this manual. All liability is declined for any problems, damage or fires caused by failure to comply with the instructions in this manual. The device is intended for domestic use only, to cook food and extract the fumes generated by cooking. No other use is allowed (e.g. heating rooms). The manufacturer declines any liability for inappropriate use or incorrect control settings.

- Read the instructions carefully: they contain important information on installation, operation and safety.

- Do not make electrical changes to the device.

- Before installing the device, make sure that none of the components are damaged. Otherwise, contact the dealer and do not continue with the installation.

- It is important to keep all the manuals accompanying the product so that they can be consulted at all times. If sold, transferred or moved, make sure it remains with the product.

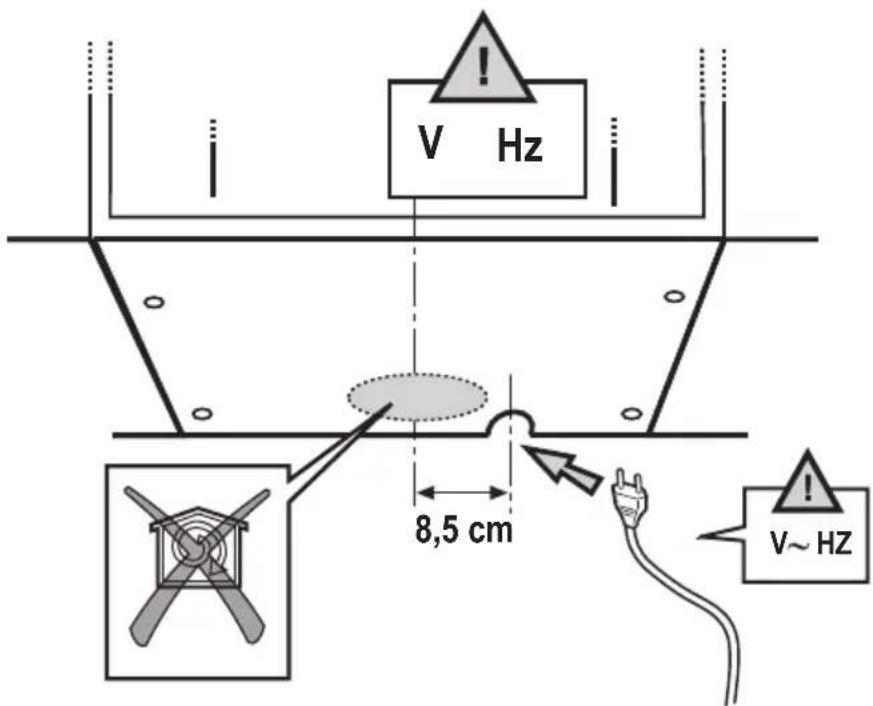

ELECTRICAL CONNECTION

The mains voltage must correspond to the voltage indicated on the rating plate located inside the hood. If equipped with a plug, connect the hood to a wall socket that complies with current standards located in an area that can be accessed even after installation. If it does not feature a plug (direct connection to the mains) or the plug is not located in an accessible area, even after installation, apply a standard double pole switch that ensures complete disconnection from the mains in category III overvoltage conditions, in accordance with the installation rules.

- Please note! Before reconnecting the circuit to the mains power supply and making sure that it is working correctly, always check that the power cable is correctly installed.

Do not use extension cords, power strips or adapters.

Mains voltage and frequency

Refer to the value indicated on the rating plate inside the hood.

Wire connection

↓: yellow/green

N: blue

L: brown

Replacing the power cable

The hood features a special power cable; if the cable is damaged, contact the Service Centre for a replacement.

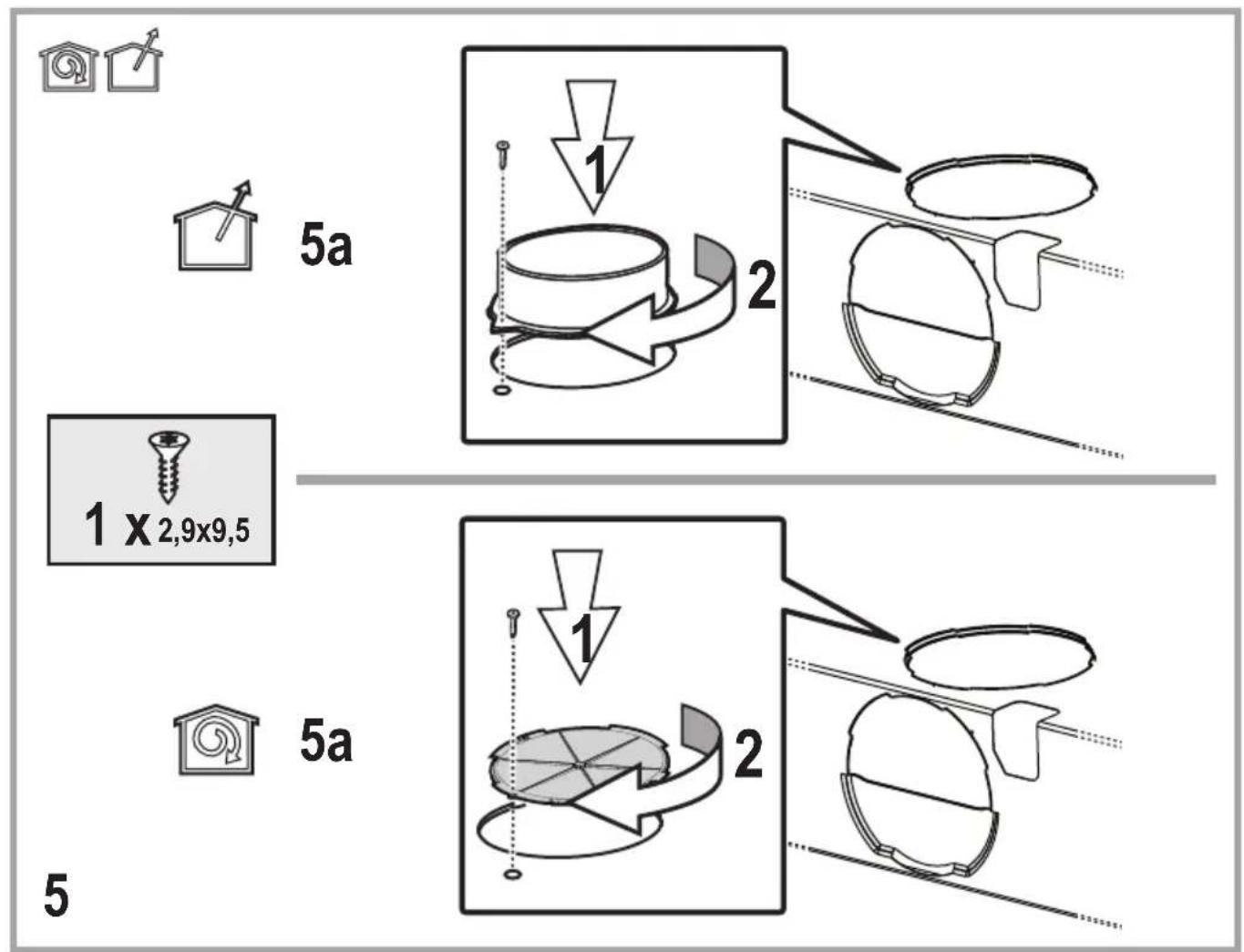

AIR OUTLET

(for suction versions)

Connect the hood to wall-mounted exhaust pipes and holes with a diameter equivalent to the air outlet (connecting flange).

The use of pipes and outlet holes in the wall with a smaller diameter will reduce the extraction performance and drastically increase the noise level.

All responsibility in this regard is therefore denied.

! Use a ducting pipe with the shortest length necessary.

! Use a ducting pipe with the least number of bends possible (maximum bend angle: 90°).

! Avoid drastic changes in the ducting pipe diameter.

! The company shall not be held responsible if these regulations are not complied with.

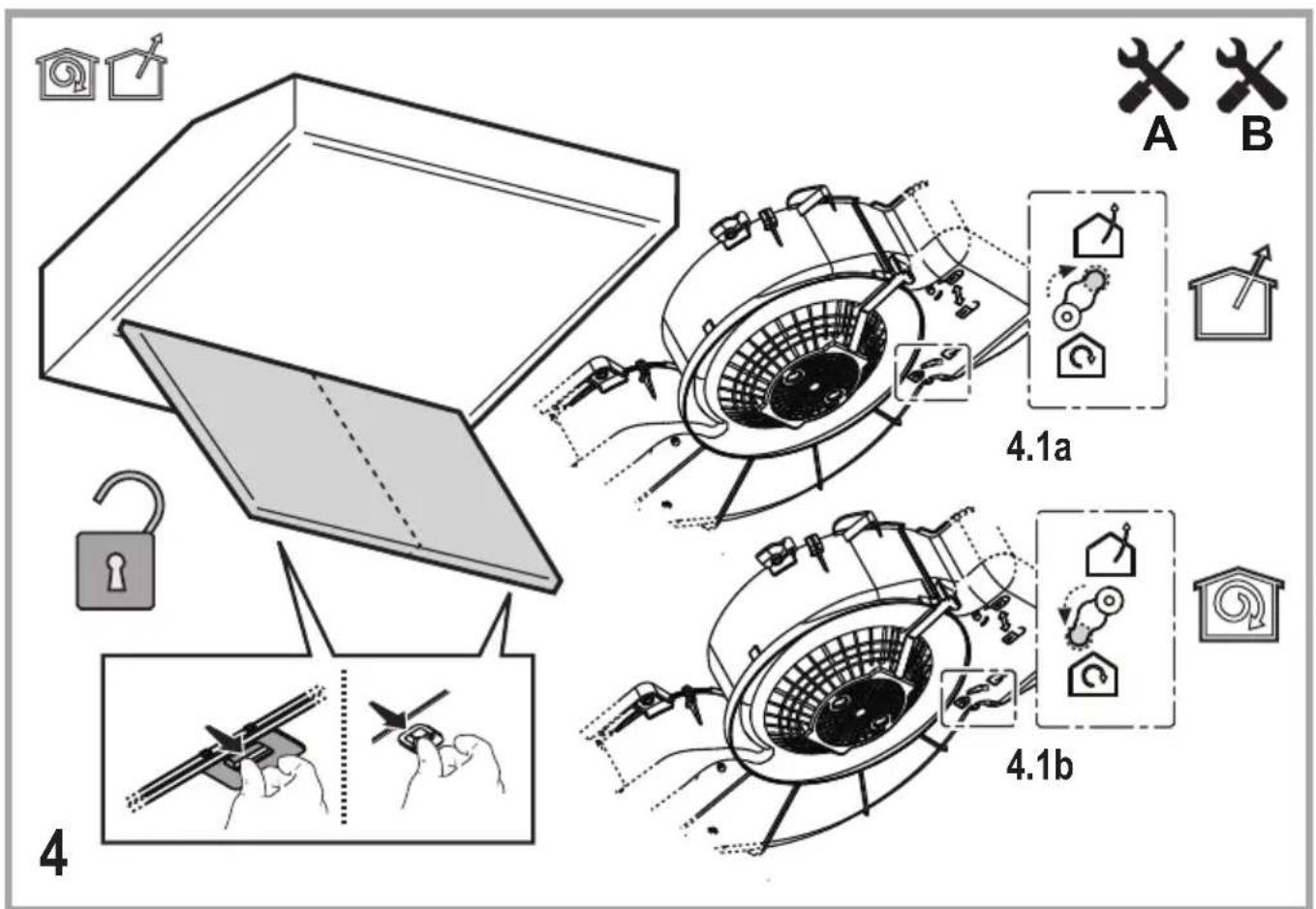

FILTRATION OR SUCTION?

! Your hood is read to be used in the suction version.

To use the hood in the filtration version, the special ACCESSORY KIT must be installed.

Check, on the first pages of this manual, whether the ACCESSORY KIT is already supplied or needs to be purchased separately.

Note: If supplied, in some cases, the additional activated carbon filtering system may already be installed on the hood.

Information on how to convert the hood from the suction version to the filtration version is already contained in this manual.

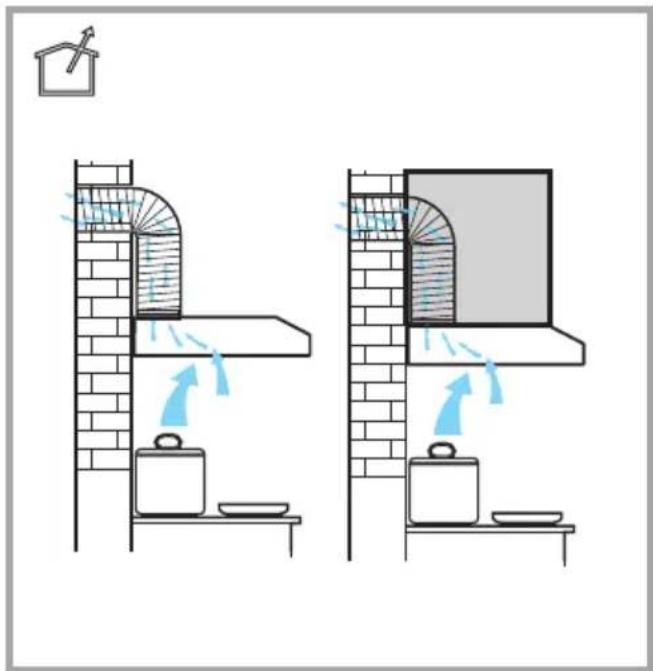

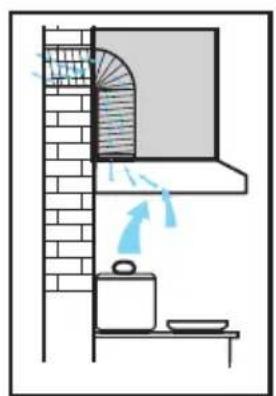

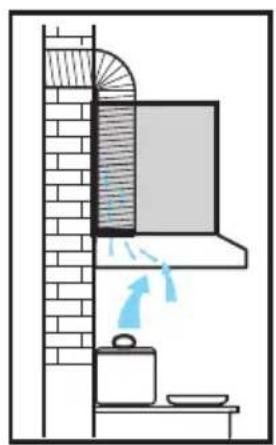

Extraction version

Vapours are evacuated outside through an exhaust pipe attached to the connecting flange.

ATTENTION

The evacuation pipe is not supplied and must be purchased.

The diameter of the exhaust pipe must be equivalent to the diameter of the connecting ring.

If the hood features one or more carbon filters, they must be removed.

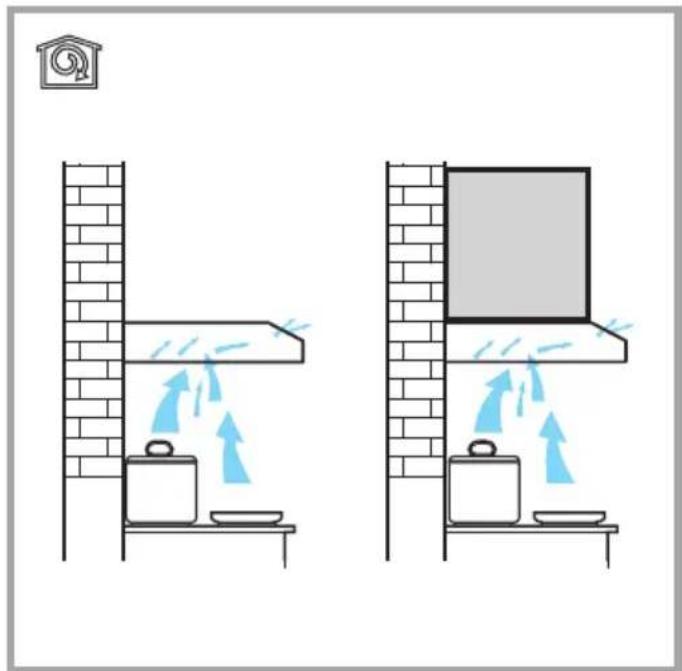

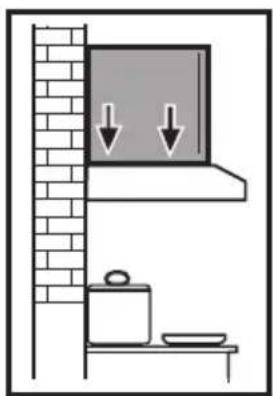

Filtration version

The suctioned air will be degreased and deodorised before it is sent back into the room. To use the hood in this version, it is necessary to install an additional activated carbon filter system.

CONTROLS

The hood is equipped with a control panel with a suction speed control and a light control to light up the hob.

T1. Light ON/OFF
T2. Motor OFF(a), Minimum (b), medium (c), maximum (d) suction power

MAINTENANCE

- Cleaning: For cleaning, simply use a cloth moistened with neutral liquid detergents. Do not use cleaning tools or instruments.

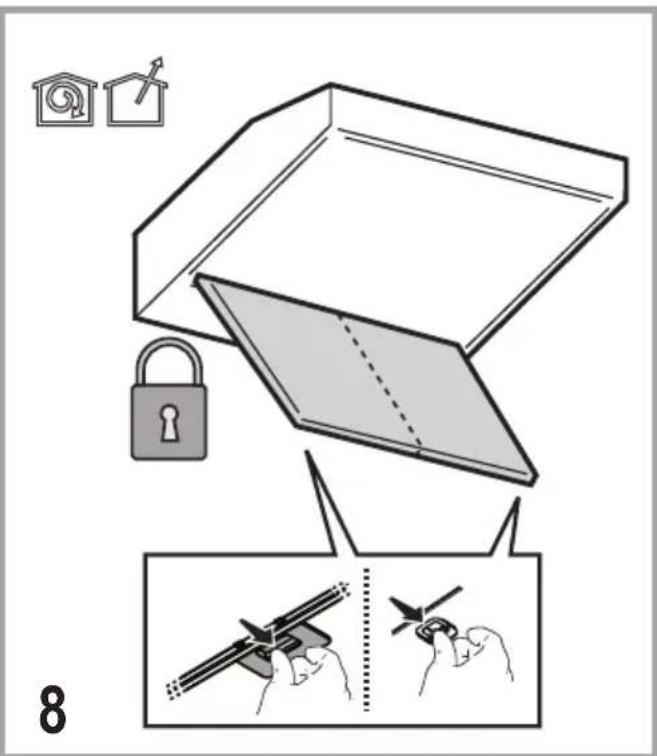

• Anti-Grease Filter: It must be cleaned once a month (or when the filter saturation indication system - if any - indicates the need for it), with non-aggressive detergents, either by hand or in a dishwasher at a low temperature and on a short cycle.

When cleaned in the dishwasher, the metal grease filter may discolour, but its filtering characteristics remain unchanged.

- The Anti-Grease Filter traps the grease particles produced during cooking. When cleaned in the dishwasher, the metal grease filter may discolour, but its filtering characteristics remain unchanged.

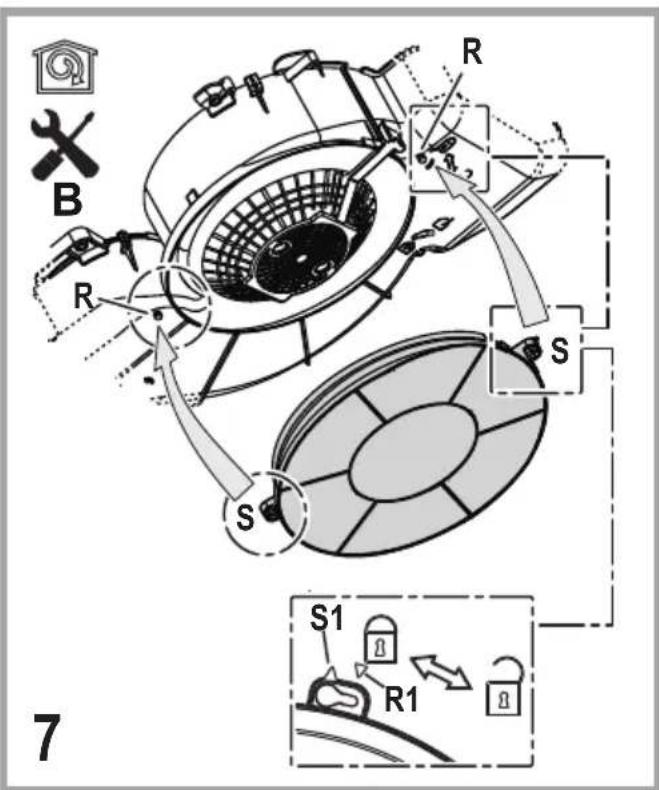

• XB Carbon filter (for filter version only): The cartridge must be replaced at least every four months. It CANNOT be washed or regenerated. As indicated in the drawings section: remove the anti-grease filters, fit a carbon filter on the motor and attach it to the product. Put the anti-grease filters back in place.

Illumination

- Lamp Replacement : Disconnect the product from the electrical power supply. Please note! Before touching the lamps, make sure they have cooled. For the type of lamp to use, see the indications in the drawings section.

END-OF-LIFE DISPOSAL

This device is marked in compliance with the European Directive 2012/19/EC - UK SI 2013 No.3113, Waste Electrical and Electronic Equipment (WEEE).

Make sure that this product is disposed of correctly. The user helps prevent potential negative consequences for the environment and for health. The symbol on the product or accompanying documentation indicates that this product should not be treated as household waste but should be handed over at a suitable collection point for the recycling of electrical and electronic equipment. Dispose of it in accordance with local regulations for waste disposal. For further information about the treatment, recovery and recycling of this product, please contact your local authority, the collection service for household waste or the shop from where the product was purchased.

The packaging material is 100% recyclable and is marked by the recycling symbol

REGULATIONS

Equipment designed, tested and manufactured in compliance with safety regulations: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233. Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301. EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3.

OPERATING ERRORS

If something does not seem to be working, perform the following simple checks before contacting the Service Centre:

• If the hood is not working:

Check that:

-There is no power failure

-A speed has been selected

• If the hood has poor performance:

Check that:

-The selected motor speed is sufficient for the amount of fumes and steam released.

-The kitchen is sufficiently ventilated to allow an air intake.

-The carbon filter is not worn out (hood in filtration version).

- If the hood has switched off during normal operation:

Check that:

-There is no power failure.

-The safety cut-off device has not tripped.

In the event of any malfunctions, disconnect the appliance from the electrical power supply for at least 5 seconds by unplugging it and then reconnect it, before contacting the Service Centre. If the malfunction persists, contact the Service Centre.

TECHNICAL SPECIFICATIONS

Height (cm) Width (cm) Depth	(cm) ∅ of the exhaust pipe (cm)
13.3 49.9-59.9-89	9 51.3 12.5

Silhouette of a person pushing a shopping cart (no text or symbols)

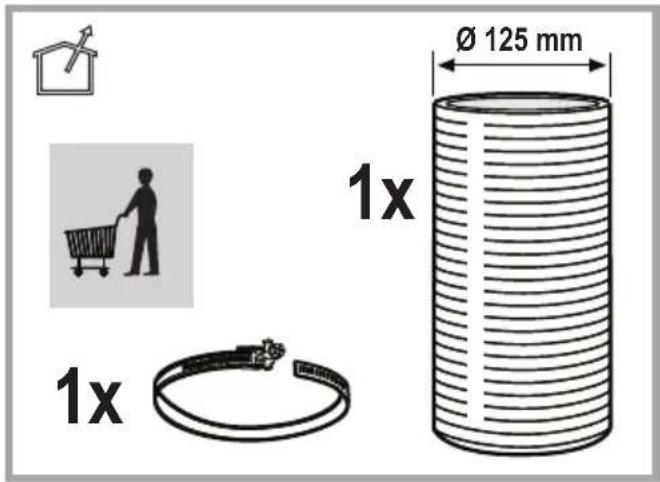

Components not supplied with product

To download the safety instructions, user manual, technical data sheet and energy data:

• Visit the website docs. Hopoint.eu
• Use the QR code
  • Alternatively, contact Customer Service (using the phone number indicated on the warranty booklet). When contacting Customer Service, communicate the codes on the product rating plate.
