Product Type	Portable Radio
Brand	Nevir
Model	NVR-483 UB
Color	Black / Silver
Dimensions (approx.)	180 x 110 x 70 mm
Weight (approx.)	450 g
Power Supply	4 x AA batteries (not included) or AC adapter (5V, 1A)
Battery Life (approx.)	Up to 30 hours on moderate volume
Radio Bands	FM (87.5-108 MHz), AM (530-1710 kHz)
Tuning Type	Digital tuner with presets
Preset Stations	20 (10 FM, 10 AM)
Speaker	Built-in, 3W output
Headphone Jack	3.5 mm stereo
Display	LCD with backlight
Additional Functions	Alarm clock, sleep timer, snooze
Antenna	FM telescopic antenna
Cleaning	Wipe with soft dry cloth; avoid liquids
Safety	Keep away from water and excessive heat
Spare Parts Availability	Contact Nevir support for spare parts
Manual Languages	EN, ES, PT (other languages upon request)

Frequently Asked Questions - NVR-483 UB NEVIR

How do I set the time on the Nevir NVR-483 UB radio?

Press and hold the Clock button until the hour digits flash. Use the Tuning knob or Up/Down buttons to adjust the hour, then press Clock again to set minutes. Repeat step for minutes. Press Clock to confirm.

How can I store a radio station as a preset?

Tune to the desired station. Press and hold one of the numeric preset buttons (1-10) until you hear a beep. The station is now saved under that number.

The radio is not turning on. What should I check?

Ensure batteries are inserted correctly or the AC adapter is connected. If using batteries, replace them with new ones. Also check the power switch is set to ON.

How do I use the alarm function?

Press the Alarm button. Use the tuning knob to set the hour, press Alarm again to set minutes. Then choose the alarm source (Buzzer or Radio). Press Alarm to confirm and enable.

Can I use headphones with this radio?

Yes, plug your headphones into the 3.5mm headphone jack on the side. The built-in speaker will automatically mute.

How do I improve FM reception?

Fully extend the telescopic antenna and adjust its angle. For best results, place the radio near a window or away from large metal objects.

What type of batteries does the radio use?

It uses 4 AA batteries (not included). Alkaline or rechargeable batteries are recommended.

How do I reset the radio to factory settings?

With the radio off, press and hold the Clock button for 5 seconds. The display will show 'RESET' and then default settings are restored.

The display is dim. Can I adjust the backlight?

Press the Light button to toggle between high, low, and off backlight settings.

How do I clean the radio?

Use a soft, dry cloth to wipe the exterior. Do not use any liquids or abrasive cleaners. Keep the radio away from moisture.

USER MANUAL NVR-483 UB NEVIR

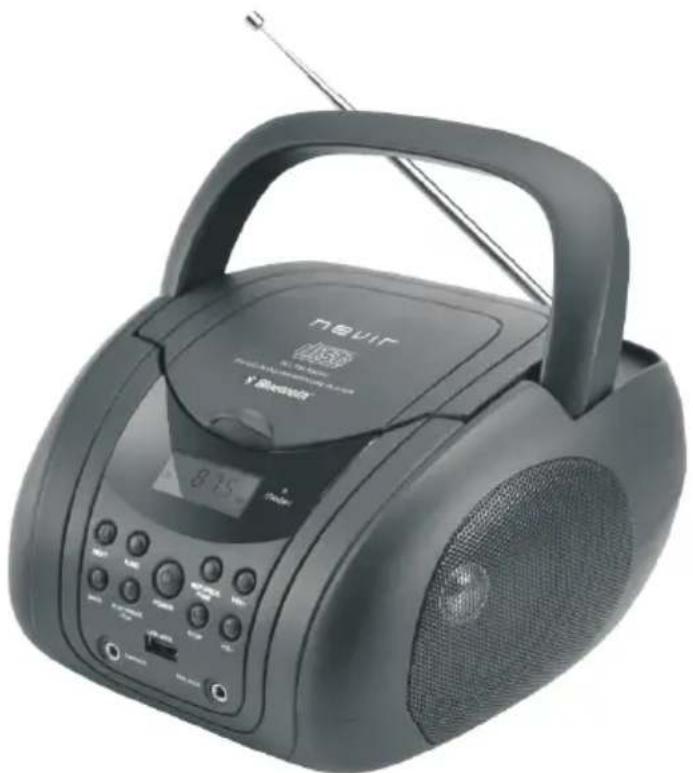

Black NEVIR portable radio with digital display and antenna (no visible text or symbols on device body)

Antes de conectar, utilizar o ajustar este producto,

Black triangular warning symbol with a white lightning bolt inside, indicating electrical hazard (no text)

Black triangular warning symbol with exclamation mark (no text or numbers)

Normal -> Repeat 1 -> Repeat All-> Repeat album

Illustration showing a hand holding a circular object with a pointer and a magnified view of the object inside (no text or symbols)

MANUAL DE INSTRUÇÕES

NVR-483 UB

Black NEVIR portable radio with digital display and antenna (no visible text or symbols on device body)

Boas vindas

Manuseio do CD player e dos CDs

Illustration showing a hand holding a circular object with a downward arrow, and another hand holding a small object with an 'X' mark (no text or symbols present)

Black NEVIR portable radio with digital display and antenna (no visible text or symbols on device body)

Welcome

Thank you for purchasing the Micro system Player NVR-483UB. In order to fully benefit from this product, please follow the instructions in this user manual very carefully. Store this user manual in a safe place for future reference. We are sure your new Micro system will satisfy your needs.

PREPARATION FOR USE

Unpacking and Setup

* Carefully remove the unit from the display carton and remove all packing material from the unit itself.
* Remove any descriptive labels that may be found on either the front or top cabinet of the unit. Do not remove any labels located on either the back or button cabinet of the unit.
* Press the CD door OPEN Button to open the CD compartment door. There is a white card in the CD compartment which is intended to prevent the CD pickup from moving during shipment of the product.

Remove this card from the CD compartment before use.

POWER SUPPLY

Using AC Power

1. Check if the power voltage, as shown on the type plate located on the bottom of the set, corresponds to your local AC power supply. If it does not, consult your dealer or service center.
2. Connect the power cord to the AC socket inlet and the wall outlet, the power supply is now connected and ready for use.
3. To switch off completely, unplug the power cord from the wall outlet.
4. Unplug the power cord from the wall outlet to protect your set during heavy thunderstorms.

Batteries (not included)

Open the battery compartment and insert sixbatteries, type LR14, UM-2 or C-cells, (Preferably Alkaline) with the correct polarity as indicated by the “+” and “-” symbols inside the compartment

Batteries contain chemical substances, so they should be disposed of properly.

Incorrect use of batteries can cause electronic leakage and will corrode the compartment or cause the batteries to burst. Therefore:

• Do not mix battery types: e.g. alkaline with carbon Zinc. Only use batteries of the same type for the set.
• When inserting new batteries, do not try to mix old batteries with new ones. Remove the batteries if the set is not be used for a long time.

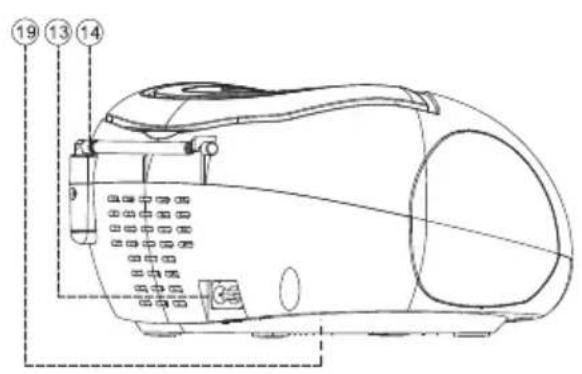

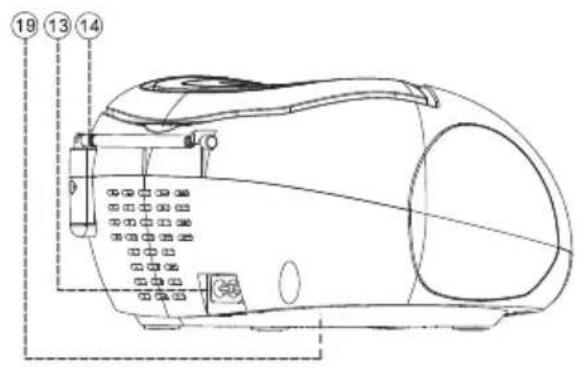

OVERVIEW OF THE PLAYER

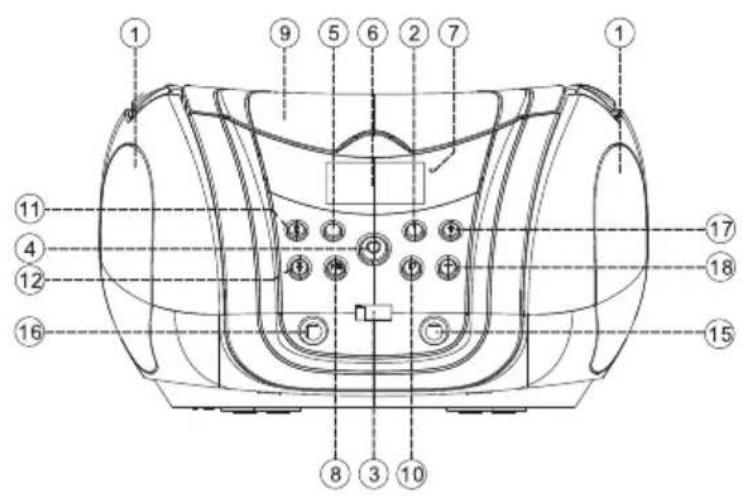

LOCATION OF CONTROLS

• Repeat a track CD/MP3/USB program.
• Repeat mode : normal->repeat 1-> repeat all->repeat album ->normal.
• In standby mode, to setup the time of the unit.
• Program and review programmed track numbers.
• In working status, press down this button can on CD/MP3/USB/RADIO for programming.

3. USB SOCKET

-To listen to your USB flash memory with MP3 music files.

4. POWER BUTTON

- Press to turn unit power on/off.

5. FUNCTION SELECT

-select source of sound CD/USB/(AUX) /RADIO/ BT.

6. LCD DISPLAY

• Show the FM dial frequency.
• Show the number of tracks.

7. STANDBY INDICATOR

8. PLAY/PAUSE/TU+ BUTTON

• start or pause MP3/CD/USB/BT play.
• In radio mode, press and hold this button enter the automatic channel surfing mode; Press to select next program channel.

9. CD DOOR

10. STOP BUTTON

- Cancel preset program

11. NEXT BUTTON

• To setup the time standby state NEXT track selection.
• Press and hold more than 1.5 sec forward search intra track.
• In the radio mode, press NEXT will enter the high-end manual channel scan mode.

12.BACK/NEXT KNOB

• To setup the time standby state NEXT track selection.
• Press and hold more than 1.5 sec BACK search intra track.
• In the radio mode, press BACK will enter the low end of the manual channel scan mode.

13. AC SOCKET

- Inlet for power cord.

14. FM ANTENNA

- To improve FM reception.

15. AUX JACK

-Press FUNC button, select AUX station. Play MP3、DISCMAN、WALKMAN AUX insert. Insert when no disc.

16. PHONES JACK

- 3.5 mm stereo headphone jack.

17. VOLUME+ BUTTON

18. VOLUME-BUTTON

19. BATTERY DOOR

- To open battery compartment.

CLOCK ADJUSTMENT

To setup the time of the unit

1. Connect the AC power cord (The following operation must be done in standby mode).
2. Press the REPEAT/TIME/PROGRAM button to enter into time setting mode. The time will flash on the LCD display.
3. Press the BACK or NEXT buttons to select the time format 12h or 24h to adjust the time.
4. After setting the time, press the REPEAT/TIME/PROGRAM button to confirm.
5. Then you can set the hour and the minute with the same method of steps 3-4.
6. After setup the unit time, long press REPEAT/TIME/PROGRAM button to set the time to working automatically, with the same method of steps 3-4.

RADIO FUNCTION

Radio reception

1. Press FUNCTION button select RADIO mode.
2. Tune to required station by press BACK/TUNE DN or NEXT/TUNE UP
   Manual Tuning: Rotate BACK or NEXT and then release within 1 sec.
   Auto Tuning: Press the play/pause button enter the automatic channel scan mode, and to be put automatically sets.

Preset Channel:(FM 30 Preset memories)

(1) Press BACK or NEXT Select desired station.
(2) Press play/pause button once, the MEMORY number indicator begins steady in the display.
(3) Push play/pause button repeatedly to select the desired number.
(4) Press PROGRAM button to save that station.
(5) Repeat steps (1) to (4) procedures for other stations.

1. After storing the stations, press TU+ to play the selected frequency.
2. Press [VOL-] or [VOL +] to adjust the volume level.
3. Extend the telescopic antenna to its full length while listening in FM mode and for better reception.
4. Turn off the radio by pressing the FUNCTION button. Select any other mode or press the power button to off the unit.
5. The preset memories will be stored even though the unit is switched off and on.

USING THE BLUETOOTH FUNCTION

Press the FUNCTION button to select to Bluetooth mode.

Search for the Bluetooth device "NVR-483UB" on your mobile device. Select the device from your handset in order to establish a connection. If a password has been asked for, please enter "0000"

1. Press PLAY/PAUSE button to play or pause playback.
2. Press [VOL-] or [VOL+] to adjust the volume.
3. Press BACK or NEXT to select tracks.

NOTE: The Bluetooth effective receiving distance is of about 10 Metres.

Different Bluetooth devices may vary. Please read the instructions carefully before using any Bluetooth device (PHONE, IPAD, MOBILE PHONE, ETC.)

PROGRAM TRACKS IN CD/MP3

(1) Press the PROGRAM key while in STOP mode.
The PRG icon and P01 will start to blink. This prompts the user to enter the first track in the program play list.
(2)Select the desired tracks by using [NEXT] or [BACK] keys.
Once done, the display will indicate the selected track.
(3) After selecting the desired track, press the [PROGRAM] key once again to store it in memory. For MP3 discs you can program up to a maximum of 99 tracks while in CD disc a maximum of 20 tracks can be programmed.
Repeat steps (2) to (3) for the rest of the tracks.
(4) If the [STOP] key is pressed during the program mode, the selected tracks will be stored in the memory and the unit will return to STOP mode (Continuous Play mode)
(5) If the [PLAY] key is pressed during the program mode, the unit will start the program PLAY mode. Playback will start from P01 track.

Erasing a Program

Follow the below steps to delete a Program:

• While playing, press the STOP button twice.
• Open the CD door
• Select any other mode.

AUX IN

The NVR-483UB includes an Aux in jack which enables connection to any external audio device such as MP3, Discman or Walkman.

1. Connect your external audio device to the AUX in of the micro system.
2. Select the function to AUX. Play the music from your audio device to hear it through the speakers. Adjust the volume level to your desire.
   Note: The Micro system buttons cannot control the external device.
   All functions must be operated from the external audio device.

CD/MP3 PLAYER

The NVR-483UB Micro system can playback the following formats:

Audio Discs, MP3, CD-R.

Do not attempt to play CD-ROM, CDI, VCD, DVD or computer Cd's.

1. Press the function button to select CD mode.
2. To open the CD door, press the CD open button.
3. Insert anMP3/CD or CD-R, with the printed side facing up and press the CD door gently to close.
4. Press Play/Pause button on the unit to start playback.
5. Press the pause button to pause at any time.

Press the play button once again to resume playback.

1. Press STOP, to end CD playback.

Note: CD/MP3 playback will also stop when:

• You open the CD compartment;
• You select the Radio source;
• The CD/MP3 has reached to the end.

Selecting a different track.

During playback you can use the back or next Buttons to select a particular track.

If you have selected a track number while in stop or pause position, press play to start playback.

Press next once briefly for the next track, or press repeatedly until the desired track number appears on the display.

Press back once briefly to return to the beginning of the current track.

Press back twice to access to the previous track.

Finding a passage within a track

1. Press and hold down the back or next button. The CD will move at higher speed.
2. When you recognize the passage you want Simply, release the back or next button.

Play back modes: normal

Normal: Plays the track in normal order.

Repeat 1: Plays the current track continuously.

Repeat all: Plays the entire media continuously.

Repeat album: Plays the tracks in the same folder continuously.

Playing a USB

USB Audio functions

1. Select the USB function to enter USB mode.
2. Press NEXT or BACK to advance or go back.
3. Program up to 99 tracks in MP3 mode.

4.Play Modes: there are 4 different play modes: Normal->Repeat 1->Repeat all ->Repeat album->

5.A maximum of 99 folders can be read from the USB.

1. Maximum files supported in 1 folder: 999

2. Maximum capacity supported: 32GB

Note: The unit does not support any external HDD.

USE POWER(ERP2 function)

When the unit idle on CD/USB/AUX mode over 10 min. Then the unit will switch into standby mode automatically.

Precautions & General Maintenance

- Place the set on a hard and flat surface so that the system does on tilt.

- Do not expose the set, batteries or CDs to humidity, rain, sand or excessive heat caused by heating equipment or direct sunlight.

- Do not cover the set. Adequate ventilation with a minimum gap of 6 inches between the ventilation holes and surrounding surfaces is necessary to prevent heat build-up.

- The mechanical parts of the set contain self-lubricating bearings and must not be oiled or lubricated.

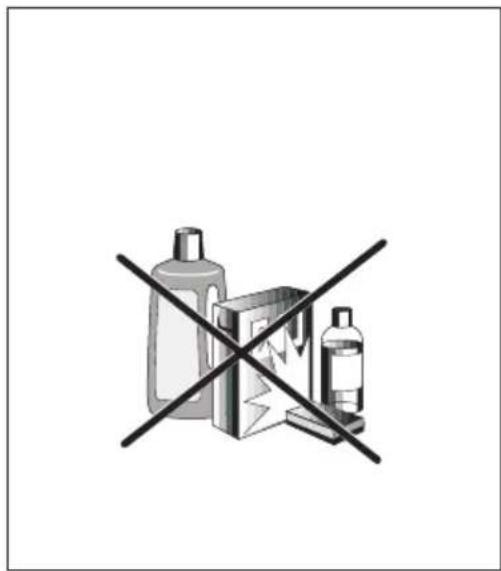

• To clean the set, use a soft dry cloth. Do not use any cleaning agents containing alcohol, ammonia, benzene or abrasives as these may harm the housing.

CD player and CD handling

• The lens of the CD player should never be touched!

- Sudden changes in the surrounding temperature can cause condensation to form and the lens of your CD player to cloud over. Playing a CD is then not possible. Do not attempt to clean the lens but leave the set in a warm environment until the moisture evaporates.

• Always close the CD door to keep the CD compartment dust-free. To clean, dust the compartment with a soft dry cloth.

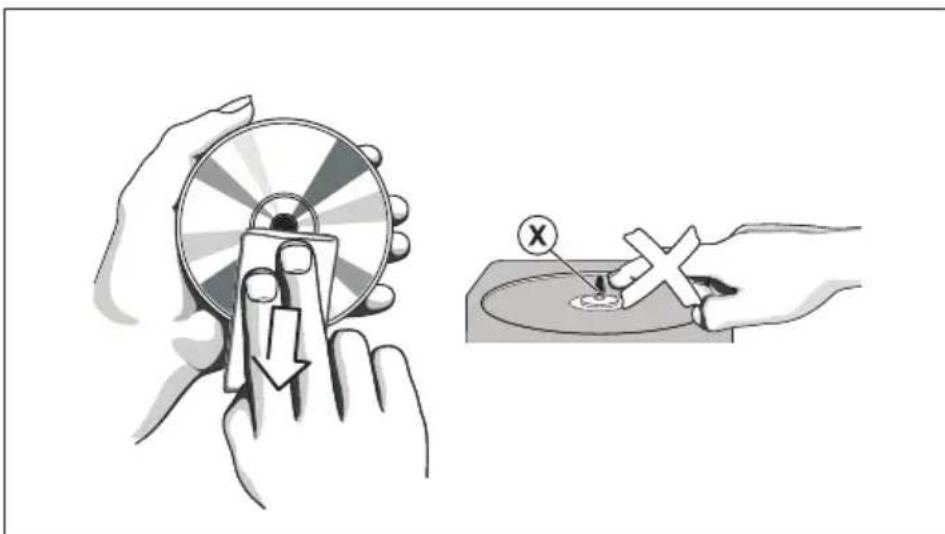

- To clean the CD, wipe in a straight line from the center towards the edge using a soft, lint-free cloth. Do not use cleaning agents as they may damage the disc.

- Never write on a CD or attach any stickers to it.

Illustration showing a hand holding a circular object with a downward arrow, and another hand holding a rectangular object with an 'X' mark (no text or symbols present)

TROUBLESHOOTING

Trouble shooting

If a fault occurs, first check the points listed below before taking the set for repair.

Do not open the unit as there is a risk of electric shock.

If you are unable to remedy a problem by following these hints.

Consult your dealer or service center.

WARNING:

Under no circumstances should you try to repair the set yourself.

As this will invalidate the warranty.

- Problem

- Solution

No Sound / Power

- Volume not adjusted

Adjust the VOLUME

- Power cord not securely connected

Connect the AC power cord properly

- Batteries dead/ incorrectly inserted

Insert new batteries correctly

Display does not function properly.

No reaction to operation of any of the controls

- Electrostatic discharge

Switch off and unplug the unit. Connect it after a few seconds

No disc indication

-No CD inserted

Insert a CD, MP3, CD-R.

-CD badly scratched or dirty

Replace/clean CD. See Maintenance.

-CD-Risblankorthediscisnotfinalized

UseafinalizedCD-R.

CD/MP3/USB playback does not work

-CD/MP3/USB badly scratched/dirty

Replace/clean CD/MP3/USB (see maintenance)

-Laser lens steamed up

Wait until lens has adjusted to room temperature.

The CD/MP3 skips tracks

-CD/MP3 damaged or dirty

Replace or clean CD/MP3

-Program is active

Quit Program mode(s)

TECHNICAL SPECIFICATIONS

GENERAL

Power Requirement AC:110V\~240V

Power consumption ....AC 13.5 Watts

Dimensions....Approx204mm(L)x200mm(W) x 120mm(H)

Operation temperature....+5 ℃ - +35℃

RECEIVER SECTION

Receiving Bands.....FM

Tuning Range.....FM:87.5-108MHz

COMPACT DISC SECTION

Optical Pickup....3-Beam Laser

Frequency Response....100Hz - 16KH z

AUDIO SECTION

Power output ......Maximum 2 Watt x 2

Headphone Impedance ....4 \~ 32 Ohm

ACCESSORIES

Instruction Booklet....1

Ac line cord....1

The European Directive 2002/96 /EC on Waste Electrical and Electronic Equipment (WEEE) required that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the material they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product remind you of your obligations that when you dispose of the appliance, it must be separately collected.

Besides that, waste batteries and/or accumulator must be removed prior to delivery of WEEE, thought the separated collection channels provided for this purpose (distributors and/or facilities from Local Authorities)
