USER MANUAL T517 NAD

T517 DVD / CD / MP Player Owner's Manual

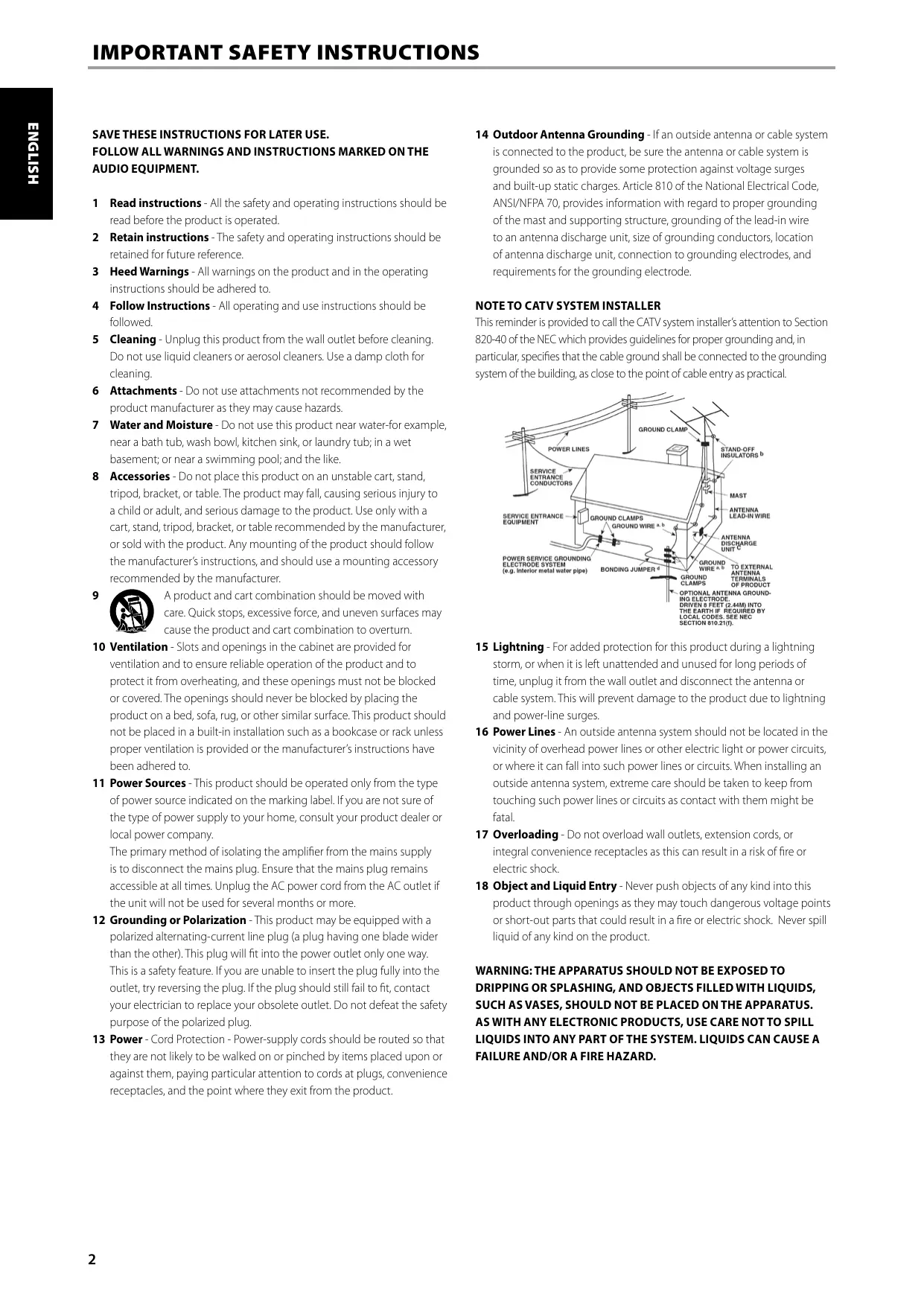

SAVE THESE INSTRUCTIONS FOR LATER USE. FOLLOW ALL WARNINGS AND INSTRUCTIONS MARKED ON THE AUDIO EQUIPMENT. 1 Readinstructions - All the safety and operating instructions should be read before the product is operated. 2 Retaininstructions - The safety and operating instructions should be retained for future reference. 3 HeedWarnings - Al wamings on the product and in the operating instructions should be adhered to. 4 Follow Instructions - All operating and use instructions should be followed.

5. Cleaning- Unplug this product from the wall outlet before cleaning

Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 6 Attachments - Do not use attachments not recommended by the product manufacture as they may cause hazards

7. Water and Moisture - Do not use this product near water-for example,

near à bath tub, wash bowl, kitchen sink, or laundry tub: in à wet basement: or near a swimming pool and the like. Accessories - Do not place this product on an unstable cart, stand, tripod, bracket, or table: The product may fall causing serious injury to à child or aduft, and serious damage to the product. Use only with à cart, stand, tripod, bracket, or table recommended by the manufacture, or sold with the product. Any mounting ofthe product should follow the manufacturers instructions, and should use a mounting accessory recommended by the manufacturer. 9 A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overtur: 10 Ventilation - Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation ofthe product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a buï-in installation such as à bookcase or rack unless proper ventilation is provided or the manufacturers instructions have been adhered to 11 Power Sources - This product should be operated only from the type of power source indicated on the marking label. IFyou are not sure of the type of power supply to your home, consul your product dealer or local power company. The primary method of isolating the amplifier from the mains supply is to disconnect the mains plug. Ensure that the mains plug remains accessible at all times. Unplug the AC power cord from the AC outlet if the unit will not be used for several months or more. 12 Grounding or Polarization - This product may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fi into the power outlet only one way. This is a safety feature. Ifyou are unable to insert the plug full into the outlet, try reversing the plug. IFthe plug should still fai to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. 13 Power- Cord Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product 14 Outdoor Antenna Grounding - fan outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding ofthe mast and supporting structure, grounding ofthe lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

NOTE TO CATV SYSTEM INSTALLER

This reminder is provided to call the CATV system installer$ attention to Section 820-40 ofthe NEC which provides guidelines for proper grounding and, in particular, species that the cable ground shall be connected to the grounding system ofthe building, as close to the point of cable entry as practical

POWER service aRoUNONG——— RS Een pe) sono Pers DFE ÉSDbiEn 15 Lightning - For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges. 16 Power Lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal 17 Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. 18 Object and Liquid Entry - Never push objects of any Kind into this product through apenings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product

19 Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a) When the power-supply cord or plug is damaged b ffliquid has been spilled, or objects have fallen into the product. d Ifthe product has been exposed to rain or water. d} Ifthe product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by à qualified technician to restore the product to its normal operation. e)_ Ifthe product has been dropped or damaged in any way. f)_ when the product exhibits a distinct change in performance-this indicates a need for service. 20 Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. 21 Safety Check - Upon completion of any service or repairs to this product askthe service technician to perform safety checks to determine that the product is in proper operating condition. 22 Wall or Ceiling Mounting - The product should be mounted to a wall or ceiling only as recommended by the manufacturer. 23 Heat- The product should be situated away from heat sources such as radiators, heat registers, stoves or other products (including amplifiers) that produce heat. WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. CAUTION TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. CAUTION TheT 517 employs a Laser System. To ensure proper use of this product, please read this owners manual carefully and retain for future reference. Should the unit require maintenance, contact an authorized service location, Use of controls, adjustments or the performance of procedures other than those specified may result in exposure to laser radiation. To prevent direct exposure to laser beam, do not try to apen the enclosure. Visible laser radiation when the enclosure is opened DO NOT STARE INTO BEAM. FCC NOTICE This equipment has been tested and found to comply with the limits for à Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if notinstalled and used in accordance with the instructions, may cause harmful interference to radio communications. However there is no guarantee that interference wil not occur in a particular installation. this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more ofthe following measures + Reorient or relocate the recelving antenna: + Increase the separation between the equipment and receiver. + Connect the equipment into an outlet on a circuit different from that to which the receiver is connected + Consult the dealer or an experienced radio/TV technician for help. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the users authority to aperate the equipment.

QUALIFIED SERVICE PERSONNEL. CAUTION Changes or modifications to this equipment not expressly approved by NAD Electronics for compliance could void the users authority to operate this equipment.

CAUTION REGARDING PLACEMENT

To maintain proper ventilation, be sure to leave a space around the unit (from the largest outer dimensions including projections) that is equal to or greater than shown below. Left and Right Panels: 10 cm Rear Panel: 10 cm Top Panel: 50 em

DO NOT cut off the mains plug from this equipment. Ifthe plug fitted is not suitable for the power points in your home or the cable is too short to reach à power point, then obtain an appropriate safety approved extension lead or consult your dealer. If nonetheless, the mains plug is cut off, REMOVE THE FUSE and dispose of the PLUG immediately, to avoid possible shock hazard by inadvertent connection to the mains supply. IFthis product is not provided with a mains plug, or one has to be fitted, then follow the instructions given below IMPORTANT DO NOT make any connection to the larger terminal which is marked with the letter'E'or by the safety earth symbol or colored GREEN or GREEN AND YELLOW. The wires in the mains lead on this product are colored in accordance with the following code

As these colors may not correspond with the colared markings identif/ing the terminal in your plug, proceed as follows: The BLUE wire must be connected to the terminal marked with the letter'N'or colored BLACK The BROWN wire must be connected to the terminal marked with the letter L'or colored RED. When replacing the fuse, only a correctly rated and approved type should be used, and be sure to re-fi the fuse cover. IF IN DOUBT CONSULT À COMPETENT ELECTRICIAN. NADisa Copyright

NOTES ON ENVIRONMENTAL PROTECTION

Atthe end of its useful fe, this product must not be disposed ofwith regular household waste but must be returned to à collection point for the recycling of electrical and electronic equipment. The symbol on the product, users manual and RS ck:oino, point this out. The materials can be reused in accordance with their markings. Through re-use, recycling of raw materials or other forms of recycling of old products, you are making an important contribution to the protection of our environment. Your local administrative office can advise you ofthe responsible waste disposal point NOTE: THET 517 1S NOT AN AUTO VOLTAGE DVD PLAYER. CONNECT ONLY TO THE PRESCRIBED AC OUTLET, L.E., 120V 60HZ OR 230V 50HZ. RECORD YOUR MODEL NUMBER (NOW, WHILE YOU CAN SEE IT) The model and serial number of your new T 517 are located on the back of the cabinet. For our future convenience, we suggest that you record these numbers here Model no. Serial no. # NAD Electronics Intemational a dision of Lenbrock Industries Limited LAD Electranes Intematianal a division of Lenbrook Industries Limited

ABOUT THE ON-SCREEN DISPLAY (OSD). 10

NAVIGATING THE SETUP MENU OSD AND MAKING CHANGES. 10

ABOUT THE © SYMBOL DISPLAY 10

THANK YOU FOR CHOOSING NAD. TheT 517 DVD/CD/MP Player is a technologically advanced and highly capable product — yet we have invested great effort in making it simple and easy to use. We have been careful to ensure that the T 517 is as musically transparent, faithful to every video detail and spatially accurate as possible, incorporating much of what weve learned from à quarter-centurÿs experience designing audio, video and home-theater components As with all our products, NADS "Music First’ design philosophy guided the 15175 design in such a way that it can confidentiy promise you state-of- the-art visual fidelity and audiophile-quality music listening for years to come

SPECIFICATIONS We encourage you to take a few minutes now to read right through this manual. Investing a little time here at the outset might save you a good deal of time later, and is by far the best way to ensure that you make the most of your investment in the T 517, and get the most from this powerful and flexible component One more thing:We urge you to register your T 517 ownership on the NAD Worldwide Web site: http://NADelectronics.com/warranty For warranty information contact your local distributor.

Packed with yourT 517 you will find + An audio/video cable connector + The DVD8 remote control with 2 (wo) AAA batteries + This owners manual

Please save the box and all ofthe packaging in which yourT 517 arived Should you move or othersise need to transport yourT 517, this is by far the safest container in which to do so.Weve seen too many otherwise perfect components damaged in transit for lack of a proper shipping carton, so please: Save that box!

Choose a location that is well ventilated (with at least several inches to both sides and behind), and that will provide à clear line of sight, within 23 feet/7 meters, between the T 5175 front panel and your primary listening/viewing position - this will ensure reliable infrared remote control communications. TheT 517 generates a modest amount of heat, but nothing that should trouble adjacent components. I is perfectiy possible to stack the T 517 on top of other components. QUICK START In case you simply cannot wait to experience the performance of your new NADT 517, we provide the following "Quick Start'instructions to get your underway. Please make all the connections to yourT 517 with the unit unplugged. Itis also advisable to power-down or unplug al associated components while making or breaking any signal or AC power connections.

PLAY À CD OR DVD MOVIE

1 Using the supplied audio/video cable connector, connect the 15175 composite UDEO OUT to your TV/monitors corresponding input, Connect likewise the T 5175 AUDIO OUT to your TV/monitors applicable AUDIO input. Plug the AC mains plug into the AC outlet. Press the STANDBY button to switch ON the T 517. To start playback ofthe T 517; press the [OPEN/CLOSE] button Insert the media and press [à PLAY] button to start playback. You should hear audio and see an image on the TV/monitor (Ifone or the other fails to appear, check your TV/monitor input settings or the T 517 audiohideo connections). usewn Enjoy the movie or muse, but be sure to set aside time to read this manual thoroughly to set up and configure your T 517 according to your preference ABOUT THET 517 Though the T 517 is among the most technically sophisticated DVD/CD/MP players, we worked hard to make it one ofthe most musically transparent components available as well this is what we mean by NADS "Music First” design philosophy. Here are just a few examples + TheT 517 includes the High Definition Digital Interface (HDMI with HDCP encryption, allowing high definition audio and video signals to be transferred among applicable components, processors and TV Displays in a purely digital format + HDMI digital video output with upscaling up to 720p, 10801 and 1080p depending upon your TV5 compatibility. + Using the high quality 12-bit 148-MHz video DAC, theT 517 ensures highly accurate playback of delicate, lou-level video signals as well as produce vivid picture that is faithful in every detail. On the other hand, the audiophile quality 24-bit, 192-kHz audio D/A converters make the T 517 well protected from noise caused by even minute fluctuations in current from the power supply. This high performance audio D/A converter ensures that all the sound you hear is as clear and noise free as possible thereby maintaining the delivery of dynamic, smooth and expansive audio sound. + TheT 517 has exceptional playability. it has support for DVD video, DVD4R, DVD+RW, VCD/SVCD with playback control (PBC), Audio CD and CD-R/CD-RW that contains audio titles, DivX, MP3, WMA and JPEG files,

FRONT PANEL STANDBY: Press this button to switch ON the T 517. The display window will illuminate. Ifthere is disc loaded, the display window will show the playback time status of the disc. If there is no disc inside, the display window will show‘NOdSC" (No Disc) Pressing the [OPEN/CLOSE] button of the DVD 8 will switch ON the T 517 from standby mode and at the same time open the disc tray.The T 517 can also be switched ON by pressing the [ON] or [PLAY] buttons ofthe remote control. Pressing the standby switch again turns the unit back to standby mode. Unplug the AC power cord from the AC wall socket to completely shut down theT 517. DISC TRAY: With the DISC TRAY open, insert a DVD, VCD, CD or other compatible media disc face down onto the tray. “Disc Error‘ appears at the On-Screen Display (OSD) ('Err'at the display window) ifthe disc is placed upside down (and it is a single sided disc). DISPLAY WINDOW: f there is disc loaded, the display window will show the playback time status of the disc. If there is no disc inside, the display window will show‘NOdSC" (No Disc) REMOTE SENSOR: Point the DVD 8 at the remote sensor and press the buttons. Do not expose the remate sensor ofthe DVD 8 to a strong light source such as direct sunlight or illumination. you do so, you may not be able to operate T 517 with the remote control Distance: About 23 ft (7 m) from the front of the remote sensor Angle: About 30° in each direction of the front of the remote sensor USB PORT: Connect an external USB device into this input. Refer also to the*USB MODE" section ofUSINGTHET 517 - FEATURES" under the “OPERATION” main heading. OPEN/CLOSE: Press this button to open and close the disc tray. ER "==:] 7 PLAY: Press this button to start playback. IFthe disc tray is open, press this button to automatically close the tray and start playback ia disc is loaded. Use also this button for USB file playback 8 PAUSE: Toggle [PAUSE] button to switch between PLAY and PAUSE mode if a disc is loaded or if a USB file is at playback mode. 9 STOP: During disc playback, press this button to STOP and at the same time PAUSE disc playback. Press [PLAY] button to resume play from the spot it was stopped. IF [STOP] button is pressed consecutively during playback, disc or file playback will fully stop. 10 SKIP [HE@/p»1]}: Press [1] to skip forward or [4] to skip backward a track, fe or chapter. SCANL 44/2 1: Press and hold these buttons to scan at fast-fonward or fast-reverse during playback Each time the button is pressed, the speed increases until the maximum level is reached. The scanning speeding is shown in the OSD and may vary by disc type. The speed will be retained even after the button is released, but normal playback will resume once the next track, file or chapter is reached. To return to normal playback, press [PLAY] NOTE Not all media support maximum speeds for scanning.

ATTENTION! Please make sure that the T 517 is powered off or unplugged before making any connections. is also advisable to power-down or unplug all associated components while making or breaking any signal or AC power connections. 1 ACLINE CORD: Plug the AC power cord into a live AC wall socket Make sure all connections have been made before connecting to mains. 2 HDMI OUT: Using a HDMI cable (not supplied), connect the HDIMI OUT jack to the corresponding HDMI input jack of a compatible equipment like a HDTV, a projector or an AW Receiver. WARNING Before connecting and disconnecting any HDMI cables, both the T 517 and the ancillary source must be powered OFF and unplugged from the AC outlet. Failure to observe this practice may cause permanent damage to all equipment connected via HDMI sockets. IMPORTANT NOTICE Ifyour HDMI equipped TV is not capable of decoding DTS or Dolby Digital Bitstream, setthe T 5175 Dolby Digital or DTS setting at the “Audio Setup Menu” to “PCM" There may be a rushing noise heard if your TV is not capable of decoding the DTS (or Dolby Digital) itstream: most TV do not have this capability. 3 S-VIDEO OUT (120V version only): In general, the S-Video connection is superior to composite video and should be used if your TV/monitor provides the corresponding input. Connect to the corresponding S-Video input of à compatible monitor/television, projector, M receiver or processor using quality S-Video cable designed for video signal. 4 COMPONENT VIDEO OUT: Connect to the corresponding component video input of a compatible equipment like a monitor/television, projector, AW receiver or processor. Be sure to observe consistency in connecting the appropriate Y, Cb/Pb, Cr/Prjacks to the corresponding sources/inputs. Do not rely purely on the color coding of the jacks, which may not always be consistent among brands. NOTES + Only non-copy protected discs can be played back at 720p, 1080i and 1080p resolution. fthe disc is copy protected, it will be only displayed at 480/576i or 480p/576p resolution. For 230V version only: Make sure to set the ‘TV Output Select" to “YPbPr" for component video output to be available. 5 DIGITAL OUT (OPTICAL}: Connect to the corresponding optical digital input of a compatible device such as CD recorders, receivers, computer soundeard or other digital processors. 6 IRIN: This input is connected to the output of an IR (infrared) repeater (Xantech or similar) or the IR output of another component to allow control of the T 517 from a remote location. Most NAD products with IR OUT are fully compatible with the T 517. 7 SCART/RGB OUT (230V version only): Using a SCART connector not supplied), connect to the corresponding SCART/RGB video input ofa compatible video monitor/TV. Be sure to observe the correct orientation ofthe SCART/RGB plug, 8 VIDEO OUT: Connect to the corresponding composite video input of à compatible moniter/television, projector, A receiver or processor using quality dual-RCA cable designed for video signals 9 AUDIO OUT: This analog audio output can be connected to the corresponding analog audio input of a compatible equipment Ike an amplifier receiver TV or stereo system 10 DIGITAL OUT (COAXIAL): Connect to the corresponding coaxial digital input of a compatible device such as CD recorders, receivers, computer soundeard or other digital processors.

SETUP USING THET 517 You may operate the T 517 from its front panel or via the DVD 8 remote control. Since the remote will be the primary controller for most cases, we wil focus on remote-controlled operations. Be sure also to read the section, “IDENTIFICATION OF CONTROLS - FRONT PANEL:

REGION MANAGEMENT INFORMATION

TheT 517 is designed and manufactured to respond to the Region Management Information that is recorded on a DVD disc. lfthe Region number described on the DVD disc does not correspond to the Region number shown on the back oftheT 517, the T517 cannot play that disc. The OSD wil display*Check Regional Code" ‘Erin the display window) when an incompatible region disc is loaded PLAYABLE DISCS TheT 517 has exceptional playability. it has support for DVD video, DVD4R, DVD4RW, VCD/SVCD with playback control (PBC), Audio CD and CD-R/CD- RW that contains audio titles, DivX, MP3, WMA and JPEG files. NOTE You cannot playback discs other than those listed above. To do so may renderthe T 517 permanently inoperable.

DISC LOADING AND PLAYBACK

There are two different disc sizes. Place the disc in the correct guide on the disc tray. IFthe disc is out of the guide, it may damage the disc and cause theT 517 to malfunction. “Disc Error appears at the On-Screen Display (OSD) C'Err'at the display window), ifthe disc is placed upside down (and it is a single sided disc) The following are important tips when loading a disc + Do not push the disc tray while it is moving. Doing so may cause the T 517 to malfunction. + Do not push up the disc tray or put any objects other than discs on the disc tray. Doing so may cause the T 517 to malfunction. + Keep your fingers well clear ofthe disc tray as it is closing. Be especially careful with children fngers around the closing disc traÿ, as there is à risk of personal injury. Press [PLAY], the disc tray is automatically closed. Playback of the first track starts if a CD is loaded.. For DVD, USB or other disc media, playback operation is accessible through their menu screen. NOTE Do not move the T 517 during playback. Doing so may damage the disc andtheT 517. ABOUT THE ON-SCREEN DISPLAY (OSD) TheT 517 employs a self-explanatory on-screen display“menu"that will appear on the connected video monitor/TV. These are required during the setup process (and are useful in day-to-day operation), so be sure to connect the monitor/TV before proceeding with the setup.

DISPLAY THET 517 SETUP MENU

Press the DVD 85 [SETUP] button for the Setup Menu OSD to appear. With the use of the DVD 85 navigation buttons, you may select various menus. f the Setup Menu does not appear, check your applicable video connections.

NAVIGATING THE SETUP MENU OSD AND MAKING CHANGES To navigate through the Setup Menu OSD options, please do the following using the DVD 8 remote control 1 Use [A/V] keys to move up or down the menu selections. 2 Press [R] to select a menu item. 3 Use {[A/W] keys to select through the options of a particular menu item. 4 Press [ENTER] to select a desired setting/selection. 5 Press [SETUP] or [PLAY] to exit the Setup menu To exit from a menu option, press repeatedly DVD 85 [4] key as applicable.

You can display the general disc playback status on the TV screen. Some items can be changed using the menu. To use the on-screen display: 1 Press the DVD 85 [DISP] during playback. 2 Press{A/W] to select an item. The selected item is highlighted.

3. Key-in the desired the number button, press [ 4/à ] or [ENTER] as

applicable. NOTES + Thedisplay feature may not be available for all dise media and is media dependent. Display disc OSD does not apply to audio only dises like CD and MP3/ WMA/JPEG files as they are already presented in their respective menu screens. Ifno button is pressed for about 10 seconds, the on-screen display disappears.

ABOUT THE © SYMBOL DISPLAY

*&" may appear on your TV display during operation, This indicates that the function you entered or try to execute is not available on that specific disc or file

FACTORY DEFAULT SETTINGS

The procedure below will restore the T 517 to its factory default settings. 1 TheT 517 must be in a*No Disc'status. Press [SETUP] key ofthe DVD 8 and the Setup Menu OSD will appear. 2 Use {A/Y to highlight DISPLAY setup menu. Press [à ] to go to"TV Aspect"option. 3 Press [| again to highlight 169" Using the number buttons ofthe DVD 8 input in quick succession the following numbers - 1397139, then [ENTER] 4 The*SYSTEM INFORMATION" OSD will be shown. Press [ENTER] 5 Switch OFF theT 517. TheT 517 is now restored to its factory default settings. When you turn back ON the T 517, the"Menu Language" OSD will appear. Use [AZ ]to select your preferred language. Press [ENTER] You will again be prompted to press [ENTER] to confirm your selection:

The Setup Menu allows one to customize the operation ofthe T 517. Ifthe factory defaults do not suit your taste, you will need to use the setup menu to configure the T 517 yourself. To access and navigate through the Setup Menu selections, please refer to and follow the directions stated in the above section about"NAVIGATING THE SETUP MENU OSD AND MAKING CHANGES

Select the language you prefer for the audio track (disc audio), subtitles and the disc menu, Depending on the DVD media, only those Disc Audio, Disc Subtitle and Disc Menu languages recorded on the DVD media are available. When a language is chosen, it wi become the default setting unless the DVD media overrides the settings. al: Refers to the original language in which the disc was recorded Other: Select“Other”ifthe desired language is not on the list. Use [ A/V ] to highlight "Others and then input the 4-digit language code using the number keys of the remate control. Press [ENTER]. IF you enter the wrong language code, press [CLEARI. See‘ LANGUAGE CODE LIST” under the main heading'REFERENCE" for a list of applicable language codes. Off: If you choose for the disc subtitle not to come up, select*Off”.

DISPLAY MODE Display Mode setting works only when the TV Aspect mode is set t0 43 Letterbox: Displays a wide picture with bands on the upper and lower portions of the screen: Panscan: Automatically displays the wide picture on the entire screen and cuts offthe portions that do not ft. TV OUTPUT SELECT (230V VERSION ONLY) Setthe players TV Output Select options according to the TV connection type. RGB: Select when you connect the SCART OUT port with the use ofa SCART connector (not supplied) to the corresponding SCART input of a compatible TV. There is no component video output when ‘TV Output Select'is set to"RGB" YPbPr: Select this option for component video output to be available.

‘AUDIO Dolby Digital ps Bitstream MPEG PCM Sample Freq. ABKHz DRœ on Bitstream £ Move pSelect Each DVD disc has a variety of audio output options. Set the T 5175 AUDIO options according to the type of audio system you use.

DOLBY DIGITAL/DTS/MPEG

Set the type of digital audio signal Bitstream: Select'Bitstream'if you connect the T 5175 digital OUT jack 0 an amplifier or other equipment with a Dolby Digital, DTS or MPEG decoder. PCM: Select when connected to a two-channel digital stereo amplifier DVDs encoded in Dolby Digital or MPEG will be automatically downmixed to two-channel PCM audio. Off (for DTS only): Select"Off" when you connect the digital audio out jack to an equipment that has no DTS decoder. SAMPLE FREQ. (FREQUENCY) Setthe sampling frequency ofthe audio signal 48KHz: f your receiver or amplifier is not capable of handling 96 kHz signals, select 48 kHz. When this choice is made, this unit automatically convert any 96 kHz signals to 48 kHz so your system can decode them: 96KHz: f your receiver or amplifier is capable of handling 96 kHz signals, select 96 kHz. When this choice is made, this unit passes each type of signal through without any further processing, Checkthe documentation of your amplifier to verify its capabilities. DRC (DYNAMIC RANGE CONTROL) You can select the effective dynamic range (subjective range from soft to loud) for playback of Dolby Digital soundtracks. _Itis useful when you watch your favorite action movie without disturbing others at night On: The‘On' setting is for late-night sessions or other times when you wish to retain maximum dialog intellgibility while minimizing overall volume levels. This is applicable only for Dolby Digital soundtracks. Off: To maintain full dynamic range, set to“Off”

Area Code # Move » Select Some movies contain scenes that may not be suitable for children to view Many ofthese discs contain parental control information that applies to the complete disc or to certain scenes on the disc. Movies and scenes are rated from Level 1 to 8, depending on the country. Some discs offer more suitable scenes as an alternative. When you access Lock Setup Menu for the first time, you wil iniially be directed to the “Area Code” menu. This allows you to setup your own Parental Control Password from the onset. Continue on with the procedure below (applicable only for first time use or when the T 517 is restored to its factory settings). 1 While at'Area Code”line menu, press LD ]

2. Input your desired 4-digit password code. Press [ENTER]

3. Enter it again and press [ENTER to verify. You have now setup your

Parental Rating password. If you make a mistake before pressing LENTER] press [CLEAR] 4 You can now setup your Area Code as described below (from step number 3). NOTE Given that this is your frst time accessing the Lock setup menu, after setting up the Area Code, you will be redirected to the “Rating” menu for you to set up your parental rating. Follow the “Rating' setup procedure below. AREA CODE Enter the code of the country/area whose standards were used to rate the DVD video disc. See‘AREA CODE LIST” under the main heading'REFERENCE" for a list of applicable area codes. 1 While at'Area Code” line menu, press [D] Input the password you have setup. Press (ENTERI Select the first character using [ AY ] buttons. Press ENTER. Select the second character using [ A/W ] buttons. BwN 5 Press ENTER to confirm your area code selection. RATING (120V VERSION ONLY) The parental rating feature allows you to block access to scenes greater than the rating you set up, thereby preventing your children from being able to view material you believe is unsuitable. To activate“Rating' please be guided by the following

1. While at'Rating'line menu, press [De]. Press [ENTER]

2 Inputthe password you have setup.

3. Upon entering the password, you can now set the parental rating level

you prefer. Use [ AW] to step through the rating levels. 4 Press [ENTER] to confirm your rating selection RATING 1-8 Rating one (1) has the most restrictions and Rating *8" is the least restrictive. UNLOCK I you select unlock, parental lock is not active and the disc plays in full NOTE If you set a rating level for the player, all disc scenes with the same rating level or lower are played. Higher rated scenes are not played unless an alternate scene is available on the disc. The alternative must have a lower rating. If no suitable alternative is found, playback stops. You must enter the 4-digit password in order to play the disc. Should you forget your password, restore the T 517 to its factory default settings. Refer to the ‘Factory Default Settings” section under the main heading "Setup — Using theT 517* PASSWORD You can change the password for parental control. Enter your four-digit password when prompted on the screen. 1 Scroll to [Password], Press [B] to select“Change” Press [ENTER] 2 Enter your old four-digit password using the numeric buttons (0-9), Press [ENTER] 3 You will be prompted to enter your new password. Enter the new four- digit password using the numeric buttons (0-9). Press [ENTER] 4 You will be prompted to verify your new password. Enter the newr four- digit password again. Press [ENTER]. The new four-digit password is now valid

OTHERS: PBC B.LE. DivX(R) VOD $Move pSoloot PBC Set Playback Control (PBC) to On or Off. This function is available only on Video CD and SVCD with playback control (PBC) feature On: Video CDs with PBC are played according to the PBC. Off: Video CDs with PBC are played the same way as Audio CDs. B.L.E. - BLACK LEVEL EXPANSION (120V VERSION ONLY) Black level determines the amount oflight a picture display emits for the darkest areas of an image. On : Select to enhance the black level. Off: Select for the standard black level setting, NOTE Black level is only available for CVBS (composite video) and S-video output. For component video output, black level is only applicable ata 480 resolution setting. DIVX * VOD (DIVX REGISTRATION) DivX is the name of a revolutionary new video codec which is based on the new MPEG-4 compression standard for video. You will be able to play DivX discs using the T 517. The Registration code details necessary for VOD (Video-On- Demand) service can be shown by pressing [ENTER] while at“Select'menu option DivX{R) Video On Domand Your registration code is : XXXXXMXX To learn more visit www.divx.com/vod {Done}

USB MODE TheT 517 can play back MP3/WMA/JPEG/DivX iles stored in external USB (Universal Serial bus) devices. The following are the T 517 capabilities with respect to USB device playability. + Support USB 1.1 full speed (12Mbps) + When more than 650 files are recorded in the USB device, theT 517 may not be able to play the files correct. + Digital camera & mobile phone are not supported. USB PLAYBACK

1. Connect the external USB device to the front panels USB input.

2. AtSTOP mode, press [RTN] button of the DVD 8 to switch from DISC

mode to USB mode and vice-versa Program

3. For details of operations on applicable file type, refer to the relevant

sections about MP3/WMA/JPEG/DivX playback. ABOUT HDMI HDMI (High Definition Multimedia Interface) supports both video and audio on a single digital connection for use with DVD Players, Set-Top Boxes and other AV devices HDMI was developed to provide the technologies of HDCP (High Definition Contents Protection). HDCP is used to protect digital content transmitted and received. HDMI has the capability to support standard, enhanced or high-definition video plus standard to multi-channel surround-sound audio, HDMI features include uncompressed digital video, a bandwidth of up to 5 gigabytes per second, one connector (instead of several cables and connectors), and communication between the AV source and AV devices such as DTVS. HDMI CONNECTION I you have a HDMI TV or monitor, you can connect it to this player using à HDMI cable (not supplied) 1 Connect the HDMI OUT jack on the player to the HDMI jack on à HDMI compatible TV/monitor. Set the TV source to HDMI (refer to your TV/monitors Owners manual)

ren you use HDMI connection, you can change the resolution (480i/576i 480p/576p, 720p, 1080, 1080p) for the HDMI output by pressing RESOLUTION. You can only change the resolution within your TV/Monitors resolution capabilities. NOTE No image will be displayed if your 1080p-capable TV doesn't accept images in 60Hz.

IMPORTANT NOTICE lfyour HDMI equipped TV is not capable of decoding DTS or Dolby Digital Bitstream, set the T 5175 Dolby Digital or DTS setting at the “Audio Setup Menu” to “PCM" There maybe a rushing noise heard if your TVis not capable of decoding such formats. PROGRAMMING The program function enables you to store your favorite tracks from any disc in the player memory. À program can contain 30 tracks. To program the sequence Program TRACKON TRACKO3, TRACKOS, TRACK 07) TRAGK OS, TRACKA1 TRAOKON TRACKOZ TRAKOS TRACKOA TRADKOS TRADKOG Edit Insert a disc. Audio CD or MP3/WMA discs: Audio CD or MP3/WMA menu screen appears. 2 Press DVD 85 [PROGRAM] button. An ‘icon will appear to the right of the word'Program' on the right side of the menu screen. 3 Use [A/Y to select a track/fle that will be included on the "Program" list. Press [ENTER]. Repeat to place additional tracks/fles on the list 4 Press [Program] again to finish or exit program mode: PROGRAM PLAYBACK 1 Select the track/flle you want to start playing from the “Program'list {right side of the menu screen

2. To begin playback press LB J or [ENTER]. Playback follows the order in

which you programmed the tracks/fles. Playback stops after all ofthe tracks/files on the“Program'list have been played once. 3 Toresume normal playback from programmed playback, select a track/ file on the left side ofthe menu screen and then press [PLAY]

ERASING À TRACK FROM PROGRAM LIST

1 Press LB ] to move to the*Program'list 2 Use [A/Y] to select the track/file that you wish to erase from the Program list.

3. Press [CLEAR] button of DVD 8. Repeat to erase additional tracks on the

1 Press [Be ] to move to the“Program'list 2 Use[W] to select"Clear Al then, press ENTER. NOTE The programs are also cleared when the disc is removed.

TheT 517 can play MP3/WMA formatted recordings on CD-R, or CD-RW discs as well as view discs with JPEG files. You may mix any ofthe file types on the disc. Program Edit INAD MP3 test file 1.mp3 Info KES Photo 1 Load the applicable disc. The OSD will display the folders or files as a list Use the DVD 85 [ A7 ] keys to navigate through the folders or fils. 2 Press [A/Y ] to select à folder, and press ENTER to see the folder contents. Press [A/Y ] to select a file. 4 Press [ENTER] or [PLAY] to start playback Toggle [DISP] to show information about the current music file if any - Title, Artist, Album, Year, Comment. IFthere is no information “No ID3 Tag' will be instead shown:

NOTES + Hfyou arein afile list and want to return to the previous Folder list, use the [AI Y ] buttons on the remote to highlight “and press [ENTER]. Press [MENU] button of the DVD 8 to scroll up and down the fe list one page or at least 8 files at a time. On a disc with MP3/WMA and JPEG you can switch between MUSCI and PHOTO menu. Press TITLE and MUSIC or PHOTO word on top ofthe menu is highlighted. The total number of files on the disc should be less than 650. IMPORTANT NOTICE Customers should note that permission is required in order to download MP3/WMA files and music from the Internet. NAD ELECTRONICS INTERNATIONAL has no right to grant such permission. Permission should always be sought from the copyright owner.

Using the T 517, you can view discs with JPEG files = PHOTO | F un F3 proview [En

['NAD Test Pioture 1 | AD Test Pioture 2 [NAD rest Picture 3 | NAD Test Pioture 4

INAD Test Pioture 5.jpg 1 insert a disc and close the tray. The PHOTO menu appears on the TV screen. 2 Press {A/V] to select a folder. 3 Press ENTER A list offlles in the folder appears. Press [ A/Y ] to select a file. 4 Press ENTER or PLAY to start playback. While viewing a file, you can press STOP to return to the previous menu (PHOTO menu) NOTES + fyou arein afile list and want to return to the previous Folder list, use the [ A/Y ] buttons on the remote to highlight "©" and press [ENTER]. Press [MENU button ofthe DVD 8 to scroll up and down the fie list one page or at least 8 files at a time. On a disc with MP3/WMA and JPEG you can switch between MUSIC and PHOTO menu. Press TITLE and MUSIC or PHOTO word on top ofthe menu is highlighted. To hide/unhide the navigation options below the photo being displayed, press [DISP] or [RTN] button ofthe DVD 8. The total number offiles on the disc should be less than 650. SLIDE SHOW Highlight XD and use [4 ] to setup the speed of the slide show. Use [A ]to highlight EM‘ or‘ REZ and then press [ENTER] to start slide show

LISTENING TO MUSIC DURING SLIDE SHOW

Ifthe disc contain music and photo files together, you can listen to music during slide show by selecting“HEZR" Use [A /V] to highiight"REZR" and then press [ENTER] to start slide show STILL PICTURE Press [PAUSE/STEP] during slide show. The player will now go into PAUSE mode. To return to the slide show, press PLAY or press [PAUSE/STEP] again.

MOVING TO ANOTHER FILE

Press [4/21] once while viewing a picture to advance to the next or previous file.

DIVX PLAYBACK Using the T 517, you can play DivX discs. LLISESSIONO2 1 Insert a disc and close the disc tray. The MOVIE menu appears on the TV screen. 2 Press [A/Y] to select a folder. Press [ENTER]. A list offiles in the folder appears. 3 Press [A/V] to select a file. If you are in a file list and want to return to the previous Folder list, use the [ A/W] buttons on the remote to highlight" En'and press [ENTER] 4 Press ENTER or PLAY to start playback 5 Press [STOP] to exit NOTES Playable DivXiles-.avi..mpg,.mpeg The total number of les on the disc should be less than 650.

This player memorizes the last scene from the last disc that is viewed. The last scene remains in memory even if you remove the disc from the player or switch off the player If you load a disc that has the scene memorized, the scene is automatically recalled NOTE This player does not memorize the scene of a disc if you switch offthe player before commencing to play the dis. SCREENSAVER The screensaver appears when you leave the T 517 in Stop mode for about five minutes. IFthe Screensaver is displayed for fve minutes, theT 517 automatically turns itself off. SYSTEM SELECT (230V VERSION ONLY) You can select either Auto, PAL or NTSC to force the output oftheT 517 to the desired format. For example one can load a PAL media and display it in the NTSC format. Similarly one can load an NTSC media and display it in the PAL format. The Auto setting will detect automatically the media being played and display it. Depending on the type ofTV set you own, select the signal mode you wish to watch your disc. Press the [OPEN/CLOSE] button. To toggle through the system selection, press and hold [PAUSE/STEP] key of the remote control for more than 5 seconds to select a system - Auto, PAL or NTSC

Depending on the media, the following basic function controls ofthe T 517 can be accessed directly using the DVD 8 AUDIO SUBTITLE ANGLE REPEAT 0 Q

The AUDIO button will allow one to switch the audio language or format of the DVD media only ifthe DVD media supports the AUDIO button feature. Press [AUDIO] repeatedly to select desired audio language or format. SUBTITLE ANGLE AUDIO SUBTITLE from Itis possible to change the subritle language to a different languag the one selected at the initial settings. This operation works only with discs on which multiple subtitle languages are recorded 1 Press ISUBTITLE during playback. When no subtities are recorded, "OFF will be displayed

2. Press (SUBTITLE] repeatedy until the desired language is selected

When the desired language is not selected even after pressing the button several times, it means that the language is not available on the disc To eliminate the On Screen Subtities, press [SUBTITLE] repeatedly to select “OFF: ANGLE AUDIO SUBTITLE ANGLE

Some DVDs may contain scenes that have been shot simultaneously from à number of different angles. For these discs, the same scene can be viewed from each ofthese different angles using the [ANGLE] button. This function only works for discs having scenes recorded at different angles 1 Press [ANGLE] during playback. Angle number wi be displayed

2. Press [ANGLE] repeatedly until the desired angle is selected.

USING THET 517 - FUNCTION CONTROL

REPEAT To repeat the playback of a particular track or chapter, press the T 5175 REPEAT] key once. Pressing the same [REPEAT] key a second time will repeat all the tracks or title. Turn off repeat mode by pressing [REPEAT] button a third time. NOTE REPEAT feature does not apply to JPEG files. RPT A-B

To repeat a sequence, implement the following procedures 1 Press [RPT A-BJ at your chosen starting point -‘A' appears on the TV screen.

2. Press [RPT A-B] again at your chosen end point -"A -Bappears on the

TV screen. The repeat sequence begins 3 Press [RPT A-B] again to cancel the sequence. NOTE REPEAT A-B feature does not apply to MP3/WMA/JPEG files. RANDOM

OO0O Press DVD 85 [RANDOM] key during playback. Random Playback begins immediately and'RANDOM' appears on the menu screen. Press [4/21] for random playback of audio tracks. Press [RANDOM] again to return to normal playback.

Use [ZOOM] to enlarge the video image. Press (ZOOMI during playback or still playback to activate the Zoom function Depending on the media, each press ofthe ZOOM button changes the TV screen in the following sequence: 100%, 200%, 300% and 400%. Use the DVD 85 [A/W/4/» ] keys to move through the zoomed picture. To resume normal playback, press [ZOOM] repeatediy until*100% NOTE Zoom may not work on some DVDs. MARKER, SEARCH LY KL KL

MARKER— SEARCH RESOLUTION

O © © Storing a MARKER in the 15175 memoryis similar to marking your page in à book. It allows you to quickly return to any point on the disc. Press [MARKER] during play at the starting point to be viewed again. Up to 9 markers can be stored in the memory.

RECALLING/CLEARING À MARKER

1 Press SEARCH during playback. 2 Use the [ 4/2] buttons to select the marker to be recalled/cleared 3 Press [ENTER] to recall a marker. Or press [CLEAR] to clear a marker.

4. Play resumes from the point corresponding to the selected marker, or

the selected marker is cleared NOTES + These operations work only with discs for which the elapsed playing time appears in the DVD display window during playback or stop mode. Some subtitles recorded around the marker may fail to appear (DVD). Allthe markers are cleared when the power is turned off or the disc is removed. A marker is not stored when the DVD or title menu is displayed on the TV screen. RESOLUTION LY KL KL

MARKER— SEARCH RESOLUTION

O © © TheT 517 has the excellent ability to up-convert standard video definition contents to high definition video signal. The best possible video resolution is ensured by the sophisticated video processor of the T 517. Toggle [RESOLUTION] button to step through the possible resolution can only change the resolution within your TV/Monitors olution capabilities. NOTE Component Video output - Only non-copy protected discs can be played back at 720p, 1080i and 1080p resolution. lfthe disc is copy protected, it will be only displayed at 480i/576i or 480p/576p resolution. SLOW Re) Slow forward playback. Repeatedly press [SLOW/Be to select the desired speed. To exit Slow Motion mode, press [PLAY]

RAA The [TITLE] and [MENU] buttons are used to display via OSD, the title headings and menus ofthe DVD and other applicable media. Some movie discs may contain two or more titles. IFthe disc has a title menu recorded on it, the [TITLE] button can be used to select the movie title. (The details of operation differ depending on the disc used) Press [TITLE] and a list of the titles on the disc are displayed. Depending on the disc, pressing [TITLE] again will resume play from the scene when [TITLE] was first pressed. Press [ENTER], [PLAY] or the numeric button(s) to select desired title. The selected title now starts playing, Some DVDs have unique menu structures called DVD menus. For example, DVDs programmed with complex contents provide guide menus, and those recorded with various languages provide menus for audio and subtitle language. Press [MENU] during play; the DVD menu available on the disc is nowr displayed. Pressing [MENU] again resumes play from the scene when MENU was fist pressed OPERATION

REFERENCE TROUBLESHOOTING CONDITION No power. The power is on, but the T 517 does not work. No picture. No sound. TheT 517 does not start playback. The remote control does not work properly. POSSIBLE CAUSES + The power cord is disconnected! + No disc is inserted. + The TV is not set to receive DVD signal output. + The video cable is not connected securely. + Unit output setting and TV resolution capabilties mismatch + The equipment connected with the audio cable is not set to receive DVD signal output. + The power ofthe equipment connected with the audio cable is turned off. + The AUDIO output settings are incorrect. + An unplayable disc is inserted. = The rating level is set. + The remote control is not pointed at the remote sensor on the T 517. + The remote control is too far from the T 517. + The remote control batteries are dead. POSSIBLE SOLUTIONS + Plug the power cord into the wall outlet securely. + Insert a disc. + Select the appropriate video input mode on the TV. + Connect the video cable secure + Check TV capability. + Check mode of connections (eg. S-Video, Component etc + Check unit Resolution setting according to TV capability. + Select the correct input mode ofthe audio recelver so you can listen to the sound from theT 517. + Turn on the equipment connected with the audio cable. + Check audio output settings as configured in the Audio Setup menu + Insert a playable disc. (Check the disc type, color system and area code) + Cancel the rating function or change the rating level + Point the remote control at the remote sensor oftheT 517. + Operate the remote control closer to the T517 + Replace the remote control batteries.

HANDLING DISCS Do not touch the playback side ofthe disc. Hold the disc by the edges so that fingerprints do not get on the surface. Never stick paper or tape on the disc. STORING DISCS CLEANING DISCS from the center out.

After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in à parked car exposed to direct sunlight.

Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth, Wipe the disc:

Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.

REFERENCE SYSTEM Signal system Laser Frequency response Signal-to-noise ratio (audio) Signal-to-noise ratio (video) Dynamic range (audio) Total Harmonic Distortion OUTPUT Video out S-Video (Y signal) S-Video (C signal) Component (Y signal) Component (Cb/Cr signal) SCART (RGB signal) SCART (CVBS signal) Audio output level HDMI version Digital out (coaxial) Digital out (optical) GENERAL Power requirements Unit Dimension (W x H x D) Net weight Shipping weight *- Gross dimensions include feet, extended buttons and rear panel terminals. SPECIFICATIONS NTSC (120 V version only) Auto/PAL/NTSC (230V version only) Semiconductor laser 4268 (Ref. 0d8 20Hz - 20kHz CD, DVD) >95d8 (A-WTD, CD) >65dB (A-WTD, DVD) >60d8 (A-WTD, DVD) >95d8 (A-WTD, CD) >95d8 (A-WTD, DVD) <0.02% (CD, DVD) 1Vp-p/75 ohms 1Vp-p/75 ohms 03Vp-p/75 ohms 1Vp-p/75 ohms O7Vp-p/75 ohms O7Vp-p/75 ohms (230V version only) 1Vp-p/75 ohms _ (230V version only)

2.0 Vrms (Ref. 1 kHz, O dB)

05Vp-p 3vpp AC 120 V, 60 Hz NTSC Region 1 AC 230 V, 50 Hz PAL Region 2 435 x 35 x 200 mm (Net) 435 x45 x 210 mm (Gross)* 15kg 29kg Manufactured under license under US$. Patent #: 5,451,942 & other US. and worldwide patents issued & pending. DTS and DTS Digital Out are registered trademarks and the DTS logos and Symbol are trademarks of DTS, Inc. © 1996-2007 DTS, Inc. All Rights Reserved. Manufactured under License from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. Official Divx® Certified product Plays all versions of DivX? video (including DivX 6) with standard playback of DivX® media files. DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. This product incorporates copyright protection technology that is protected by method claims of certain US. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited Specifications are subject to change without notice. For updated documentation and features, please log onto www.NADelectronics.com for the latest information about T 517.
