Product Type	Electric Meat Grinder
Model	MG1800SJW
Brand	Gorenje
Power	800 W
Voltage	220-240 V, 50/60 Hz
Dimensions (W x D x H)	20 cm x 30 cm x 40 cm
Weight	4.5 kg
Material	Stainless steel blade and grinding plate, plastic housing
Capacity	Up to 1.5 kg/min
Functions	Grinding, mincing, sausage filling (with attachments)
Speed Settings	Single speed with reverse function
Accessories Included	2 grinding plates (coarse & fine), sausage filler, pusher
Safety Features	Overload protection, safety lock when disassembled
Cleaning	Detachable parts dishwasher safe
Noise Level	≤ 85 dB
Warranty	2 years
Country of Origin	Slovenia
Spare Parts Availability	Replacement blades and plates available

Frequently Asked Questions - MG1800SJW GORENJE

How do I assemble the mincer?

Align the grinding head with the main unit, twist to lock. Insert the blade and grinding plate, then screw on the ring nut. Attach the tray and pusher.

Can I grind bones with this mincer?

No, this mincer is designed for boneless meat only. Grinding bones can damage the blade and motor.

How do I clean the mincer?

Disassemble all parts (grinding head, blade, plates, tray). Wash with warm soapy water or place in dishwasher. Dry thoroughly before storage.

What is the reverse function for?

The reverse function helps clear blockages if meat gets stuck. Press the reverse button briefly to reverse the auger direction.

How often should I replace the blade?

Replace the blade when it becomes dull, typically after 50-100 uses depending on frequency and type of meat.

Can I use it to make sausages?

Yes, attach the sausage filler accessory and use the fine grinding plate. Then fill the casings using the pusher.

Why is the mincer not working?

Check that all parts are properly assembled and locked. Ensure the unit is plugged in. If it still doesn't work, overload protection may have tripped; let it cool for 15 minutes before retrying.

What types of meat can I grind?

Beef, pork, chicken, lamb, and fish (deboned). Cut meat into strips before grinding for best results.

Is the mincer dishwasher safe?

Yes, all detachable parts (tray, pusher, grinding plates, blade, ring nut) are dishwasher safe. Do not put the motor unit in water.

Where can I find replacement parts?

Replacement blades, grinding plates, and other accessories are available through the Gorenje website or authorized service centers.

USER MANUAL MG1800SJW GORENJE

Exterior view of a modern kitchen electric shaver with a white handle and gray body (no text or symbols visible)

MG 1800 SJW

Diagram of a rectangular electronic component with internal circuitry and mounting holes (no text or symbols)

Če se vas termostat aktivira pogosto, potem pokličite servisno enoto Gorenje.

Mletje mesa - napotki in opozorila

Exploded view diagram of a mechanical assembly showing components like gears, bolts, and a pipe fitting (no text or labels)

Illustration of a kitchen tool and a portable appliance (no text or symbols)

Illustration of a kitchen grater with a downward arrow indicating compression (no text or symbols)

Illustration of a kitchen grater with a downward arrow indicating compression (no text or symbols)

Priprava klobas - napotki in opozorila

Najprej vedno zmeljite meso.

Mechanical assembly diagram showing a bolt, nut, gears, and pipe fitting (no text or labels)

Illustration of a manual electric shaver and its base device (no text or symbols visible)

Mechanical tool with a lever and handle, labeled '3.' (no text or symbols on the device itself)

Mechanical device with a lever and cylindrical top, labeled '4.' (no text or symbols on the device itself)

Exploded view diagram of a mechanical component with arrows indicating direction (no text or symbols)

Illustration of a hand tool interacting with a device, showing motion and assembly (no text or symbols)

Mechanical food processor with a downward arrow indicating compression (no text or symbols visible)

Nasveti:

3D diagram of a rectangular electronic component with internal structure and mounting holes (no text or symbols)

Ako je Vaš termostat uključen često, onda nazvati službu jedinica Gorenje.

Mljevenje mesa - savjeti i upozorenja

Exploded view diagram of a mechanical assembly showing components like gears, bolts, and a pipe fitting (no text or labels)

Illustration of a kitchen appliance with a tool and a side view showing a cutting tool (no text or symbols)

Illustration of a kitchen grater with a downward arrow indicating compression (no text or symbols)

Mechanical device with a lever and handle, shown in grayscale without any text or symbols

Exploded view diagram of a mechanical assembly showing parts like a bolt, nut, and T-shaped component (no text or labels)

Illustration of a manual electric shaver and its base device (no text or symbols visible)

Mechanical tool with a lever and handle, labeled '3.' (no text or symbols on the device itself)

Mechanical device with a lever and handle, labeled '4.' (no text or symbols on the device itself)

Exploded view diagram of a mechanical component with no visible text or symbols

Illustration of a hairdryer with a brush and mechanical component, no text or symbols present

Illustration of a kitchen electrician with a downward arrow indicating compression (no text or symbols)

Savjeti:

Koristite svježe voće i povrće jer ono sadrži više soka. Ananas, cikla, celer, jabuke, krastavci, mrkva, špinat, dinje, rajčice, šipak, naranče i grožđe posebno su pogodni za cijedenje u sokovniku.

Nije potrebno guliti tanku kožu ili koru. Ogulite samo debelu koru, npr. naranče, ananasa i sirove cikle. Također uklonite bijelu kožicu s citrusa jer ima gorak okus.

1. Jedinica motora
2. Dugme za uključivanje
3. Povratak
4. Dugme za otvaranje
5. Kućište rezača
6. Podložak
7. Cev za klobasice
8. Plošča za mletje
9. Separator

a. Kućište rezača B
b. Pužna osovina B
c. Konus B
d. nastavak za oblik B
e. Navojni obruč B

Važno

Pre upotrebe pažljivo pročitajte ovo uputstvo i sačuvajte ga za buduće potrebe.

• Jačina buke: Lc < 85 dB (A)
- Deca mlađa od 8 godina moraju se udaljiti, osim ako su pod stalnim nadzorom.
- Ovaj uređaj mogu koristiti deca koja su napunila najmanje 8 godina i osobe sa smanjenim fizickim, culnim ili mentalnim sposobnostima, kao i osobe koje nemaju dovoljno iskustva i znanja ukoliko su pod nadzorom ili su dobili uputstva koja se odnose na upotrebu ovog uređaja na bezbedan nacin i razumeju povezane opasnosti.
- Deca se moraju nadgledati da biste bili sigurni da se ne igraju uređajem.

• Čiščenje I korisničko održavanje ne smeju obavljati deca koja nisu napunila najmanje 8 godina i koja nisu pod nadzorom.
• Pre uključivanja aparata proverite da li napon naznačen na aparatu odgovara naponu lokalne mreže.
• Da biste izbegli opasnu situaciju, ovaj aparat nikad ne sme biti priključen na prekidač kontrolisan tajmerom.
• Aparat ne upotrebljavajte ako su kabl, utikač ili drugi delovi oštećeni.
• Da bi se izbegao rizik, glavni kabl u slučaju oštećenja treba da zameni kompanija Gorenje, tj. servisni centar ovlašćen od strane kompanije Gorenje ili osoba sa odgovarajućim kvalifikacijama.
• Aparat čuvajte van domašaja dece.
• Aparat nikada ne ostavljajte da radi bez nadzora.
• Aparat za bilo koju namenu nikada ne upotrebljavajte duže od 10 minuta.
• Aparat uvek isključite pritiskom na dugme za uključivanje/isključivanje.
• Pre skidanja dodatnog pribora obavezno isključite aparat i isključite ga iz napajanja.
• Ne uranjajte jedinicu motora u vodu ili neku drugu tečnost, ne ispirajte je pod slavinom.
• Kada je aparat uključen, ne upotrebljavajte predmete (npr. lopaticu) ili prste da biste namirnice ubacili u cev za punjenje. Za ovu namenu upotrebljavajte isključivo potiskivač.
• Budite izuzetno pažljivi prilikom rukovanja jedinicom rezača, osobito kada je vadite iz pužne vodilice i prilikom čišćenja. Ivice rezača su veoma oštre!
• Nikada ne upotrebljavajte dodatke ili delove drugih proizvođača koji nisu preporučeni od strane kompanije Gorenje. U slučaju upotrebe takvih delova, garancija prestaje da vredi.
• Pre prve upotrebe temeljito očistite delove koji dolaze u kontakt sa namirnicama.
• Metalne delove ne perite u mašini za pranje sudova jer ti delovi mogu da potamne ili oksidiraju od deterdženata za mašinsko pranje. Upute o čišćenju različitih delova potražite u poglavlju Čišćenje.
• Da se ne biste izlagali opasnosti, aparat nikada ne priključujte na spoljni prekidač kontrolisan tajmerom niti na sistem sa daljinskom kontrolom.
• Aparat je namenjen isključivo upotrebi u domaćinstvu.

Bezbednosni sistem

3D diagram of a rectangular electronic component with internal structure and mounting holes (no text or symbols)

Ako je Vaš termostat uključen često, onda nazvati službu jedinica Gorenje.

Mlevenje mesa - saveti i upozorenja

• Proverite da li su oštrice rezača okrenute prema spolja.
• Proverite da li žleb diska za mlevenje ulazi u istureni deo na kućištu rezača.
• Nikada ne koristite zamrznuto meso!
• Aparat prilikom upotrebe nemojte preopteretiti tako da u kućište rezača stavite previše mesa.
• Isecite meso na trake duge 10 cm i široke 2 cm.
• Uklonite što više kosti, hrskavica i tetiva.
• Pripremljeno meso stavite na podložak.
• Aparat uključite pritiskom na dugme za uključivanje/isključivanje. Potiskivačem lagano potisnite meso u kućište rezača.
• Za tartar biftek dva puta izmeljite meso pomoću srednje finog diska za mlevenje.

Exploded view diagram of a mechanical assembly showing components like gears, bolts, and a pipe fitting (no text or labels)

Product photo showing a kitchen tool and a portable toaster (no text or symbols visible)

Mechanical kitchen tool with a downward arrow indicating compression or disassembly (no text or symbols visible)

Mechanical device with a lever and handle, shown in grayscale without any text or symbols

Exploded view diagram of a mechanical assembly showing components like bolts, gears, and a T-junction (no text or labels)

Illustration of a manual electric shaver and its base device (no text or symbols visible)

Mechanical tool with a lever and handle, labeled '3.' (no text or symbols on the device itself)

Mechanical device with a lever and cylindrical head, labeled '4.' (no text or symbols on the device itself)

Exploded view diagram of a mechanical component with no visible text or symbols

Product photo of a handheld device with a lever and base, showing no visible text or symbols

Illustration of a kitchen grater with a downward arrow indicating compression (no text or symbols)

Saveti:

Diagram of a device rear panel with ventilation grilles and mounting holes (no text or symbols)

Exploded view diagram of a mechanical assembly showing components like gears, shafts, and housing (no text or labels)

Illustration of a kitchen appliance with a handle and a base, showing a step to press or rotate (no text or symbols present)

Illustration of a kitchen grater with a downward arrow indicating compression (no text or symbols)

Illustration of a kitchen grater with a downward arrow indicating compression (no text or symbols)

Exploded view diagram of a mechanical assembly showing components like bolts, gears, and a T-junction (no text or labels)

3D rendering of a mechanical device with a lever and base, showing no text or symbols

Illustration of a kitchen grater with a downward arrow indicating compression (no text or symbols)

Mechanical device with a lever and cylindrical top, showing a downward arrow indicator (no text or symbols present)

Припрема за овошје и зеленчук

Exploded view diagram of a mechanical component with no text or symbols

Illustration of a portable air conditioner unit with a handle and control panel, no text or symbols present

Mechanical device with a downward arrow indicating a process or operation (no visible text or symbols)

Совети:

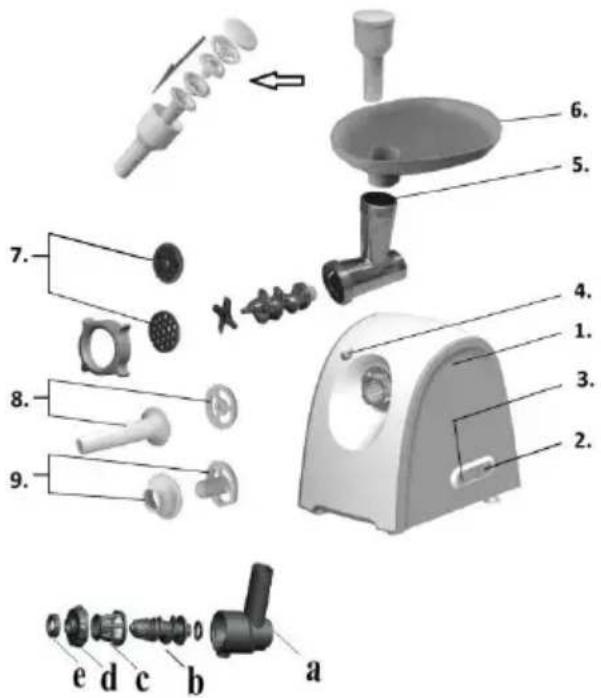

1. Motor unit
2. On button
3. Reverse
   4 Release button
4. Cutter housing
5. Feeding tray
6. Sausage horn
7. Grinding disc
8. Separator

a. Cutter housing B
b. Worm shaft B
c. Cone B
d. Shaper B
e. Screw ring B

Important

Read these instructions for use carefully before using the appliance and save them for future reference.

• Noise level: Lc <85 dB(A)
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.

• Cleaning and maintenance shall not be made by children unless they are older than 8 and supervised.

• Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.

• In order to avoid a hazardous situation, this appliance must never be connected to a timer switch.
• Do not use the appliance if the mains cord, the plug or other parts are damaged.
• If the mains cord is damaged, it must be replaced by Gorenje, a service centre authorized by Gorenje or similarly qualified persons in order to avoid a hazard.
• Keep the appliance out of the reach of children.
• Never let the appliance run unattended.
• Never exceed the maximum operating time of 10 minutes at all applications.
  • Always switch the appliance off by pressing the on/off button.
• Switch the appliance off and unplug it before detaching any accessory.
• Never immerse the motor unit in water or any other liquid, nor rinse it under the tap.
• Never use your fingers or an object (e.g. a spatula) to push ingredients into the cutter housing while the appliance is running. Only the pusher is to be used for this purpose.
• Be very careful when handling the cutter unit, especially when removing it from the worm shaft and during cleaning. The cutting edges are very sharp!
• Never use any accessories or parts from other manufacturers or that have not been specifically advised by Gorenje, d.d.. Your guarantee will become invalid if such accessories or parts have been used.
• Thoroughly clean the parts that will come into contact with food before you use the appliance for the first time.
• Do not clean the metal parts in the dishwasher, as dishwasher detergents will cause these parts to darken or oxidize. See the Cleaning section for instructions on how to clean the various parts.
• This appliance is meant for household use only.
• Never connect this appliance to an external timer switch or remote control system in order to avoid a hazardous situation.

This appliance is marked according to the European directive 2012/19/EUon Waste Electrical and Electronic Equipment (WEEE).

This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

Safety system

This appliance is equipped with a non-resettable, current-sensitive glass fuse that cuts off the power supply in case of motor failure to prevent overheating of the appliance.

This system will automatically cut off the power supply to the appliance in case of overheating. If your appliance suddenly stops running:

1. Pull the mains plug out of the socket.
2. Let the appliance cool down for 60 minutes
3. Put the mains plug in the socket.
4. Press the switch button to turn off the appliance.
5. Press the circuit breaker button (Z) at the bottom of the appliance to turn on the appliance.

Technical diagram of a mechanical component with labeled part 'Z' (no readable text or symbols beyond label)

Please contact you dealer of an authorized service center if the thermostat system is activated too often.

Mincing meat - tips and warnings

• Make sure the cutting edges of the cutter unit are pointing outwards.
• Make sure the notch of the grinding disc fits onto the projection of the cutter housing.
  • Never use frozen meat!
• Do not overload the appliance during use by pushing too much meat into the cutter housing.
• Cut the meat into 10cm-long, 2cm-thick strips.
• Remove bones, gristles and sinews as much as possible.
• Put the prepared meat on the feeding tray.
• Press the on/off button to switch the appliance on.
• Use the pusher to gently push the meat into the cutter housing.
• For steak tartare, mince the meat with the medium grinding disc twice.

Exploded view diagram of a mechanical assembly showing components like gears, bolts, and a pipe fitting (no text or labels)

Illustration of a kitchen appliance with a handle and a side view showing a cutting tool (no text or symbols)

3D rendering of a kitchen grater with a downward arrow indicating compression (no text or symbols)

Mechanical device with a downward arrow indicating compression or disassembly (no text or symbols visible)

Making sausages - tips and warnings

Always mince the meat first.

• Let the sausage skin soak in lukewarm water for 10 minutes. Then slide the wet skin onto the sausage horn. Do not block the air outlet grooves of the horn.
• Put the minced meat of the feeding tray. Press ON/ OFF button to switch the appliance on.
• If the skin gets stuck on the sausage horn, wet it with some later.

Exploded view diagram of a mechanical assembly showing components like bolts, gears, and a T-junction (no text or labels)

Illustration of a manual electric shaver and motor device (no text or symbols visible)

Mechanical tool with a lever and handle, labeled '3.' (no text or symbols on the device itself)

Mechanical device with a lever and cylindrical head, labeled '4.' (no text or symbols on the device itself)

Making fruit and vegetables juice

1. Insert the worm shaft into the cutter housing, the plastic end first. Place the cone in the cutter housing. Place the former on the cutter housing and screw the ring on the cutter housing.
2. Attach the cutter housing to the motor unit.
3. Place the tray on the upright part of the cutter housing.
4. Now the appliance is ready for making tomato mush.

Exploded view diagram of a mechanical component with no text or symbols

Illustration of a mechanical device with a lever and base, showing motion direction (no text or symbols)

Mechanical device with a lever and handle, labeled '3.' (no text or symbols on the device itself)

Note:

Use fresh fruit and vegetables, as they contain more juice. Pineapples, beetroots, celery stalks, apples, cucumbers, carrots, spinach, melons, tomatoes, pomegranates, oranges and grapes are particularly suitable for processing in the juicer.

You do not have to remove thin peels or skins. Only remove thick peels, e.g. those of oranges, pineapples and uncooked beetroots. Also remove the white pith of citrus fruits because it has a bitter taste.

When you prepare apple juice, remember that the thickness of the apple juice depends on the kind of apple you use. The juicier the apple, the thinner the juice. Choose a kind of apple that produces the type of juice you prefer.

Apple juice turns brown very quickly. To slow down this process, add a few drops of lemon juice.

Fruits that contain starch, such as bananas, papayas, avocados, figs and mangoes are not suitable for processing in the juicer. Use a food processor, blender or bar blender to process these fruits.

Please note: when using large quantities of tomato, disassemble the tomato juice accessory, clean it and then continue with further use.

Cleaning - tips and warnings

• Remove any meat left in the cutter housing by passing pieces of bread through it.
• Always switch off and unplug the appliance before removing accessories or cleaning the motor unit.
• Remove the pusher and the feeding tray.
• Unscrew the screw ring and remove the grinding disc, the cutter unit and the worm shaft.
• Remove the cutter housing by pressing the release button and by turning the cutter housing to the right (see the Disassembly section,
• The cutter unit and grinding discs should be lightly brushed with fat or oil to prevent rusting.
• Do not clean the metal parts in the dishwasher, as dishwasher detergents will cause these parts to darken or oxidize.

Environment

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Guarantee & service

If you need information or if you have a problem, please contact the Gorenje Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Gorenje dealer or contact the Service department of Gorenje domestic appliances.

For personal use only!

GORENJE WISHES YOU A LOT OF PLEASURE WHEN USING YOUR APPLIANCE

We reserve the right to any modifications!

Diagram of a device casing with internal structure and labeled point 'Z' (no text or symbols beyond label)

Exploded view diagram of a mechanical assembly showing components like gears, bolts, and a pipe fitting (no text or labels)

Illustration of a kitchen appliance with a tool and a base, showing no text or symbols.

Illustration of a kitchen grater with a downward arrow indicating compression (no text or symbols)

Illustration of a kitchen grater with a downward arrow indicating compression (no text or symbols)

Exploded view diagram of a mechanical assembly showing components like bolts, gears, and a T-junction (no text or labels)

Illustration of a manual electric shaver and its base device (no text or symbols visible)

Mechanical tool with a lever and handle, labeled '3.' (no text or symbols on the device itself)

Mechanical device with a lever and handle, no visible text or symbols

Przygotowanie soku

Exploded view diagram of a mechanical component showing sequential parts and an arrow indicating direction (no text or symbols)

Product photo of a hairdryer with a lever and base device (no visible text or symbols)

3D rendering of a kitchen grater with a downward arrow indicating compression (no text or symbols)

Wskazówki:

Diagram of a rectangular device with internal structure and labeled point 'Z' (no text or symbols beyond label)

Exploded view diagram of a mechanical assembly showing components like gears, bolts, and a pipe fitting (no text or labels)

Illustration of a kitchen tool and a food processor (no text or symbols)

Illustration of a kitchen grater with a downward arrow indicating compression (no text or symbols)

Illustration of a kitchen grater with a downward arrow indicating compression (no text or symbols)

Exploded view diagram of a mechanical assembly showing components like bolts, gears, and a T-joint (no text or labels)

3D rendered image of a mechanical device with a lever and base (no text or symbols visible)

Mechanical device with a lever and handle, labeled '3.' (no text or symbols on the device itself)

Mechanical device with a lever and cylindrical top, labeled '4.' (no text or symbols on the device itself)

Exploded view diagram of a mechanical component with no text or symbols

Illustration of a mechanical device with a lever and base, showing motion direction (no text or symbols)

Illustration of a kitchen electrician with a downward arrow indicating compression (no text or symbols)

Sugestii:

1. Jednotka motora
2. Tlačidlo zapnutia
3. Spätný chod
4. Telo mlynčeka
5. Podávacia miska
6. Nástavec na klobásy
7. Disky na mletie
8. Oddel'ovač
9. Oddel'ovač

Diagram of a device casing with ventilation grilles and mounting holes (no text or symbols)

Exploded view diagram of a mechanical assembly showing components like gears, bolts, and a pipe fitting (no text or labels)

Illustration of a kitchen appliance with a tool and a side view showing a cutting tool (no text or symbols)

Mechanical kitchen tool with a downward arrow indicating compression or disassembly (no text or symbols visible)

Mechanical device with a lever and handle, shown in grayscale without any text or symbols

Exploded view diagram of a mechanical assembly showing components like bolts, gears, and a T-junction (no text or labels)

Illustration of a manual electric shaver and its base device (no text or symbols visible)

Mechanical tool with a lever and handle, labeled '3.' (no text or symbols on the device itself)

Mechanical device with a lever and cylindrical top, labeled '4.' (no text or symbols on the device itself)

Exploded view diagram of a mechanical component with no text or symbols

Illustration of a hairdryer with a brush and mechanical component, no text or symbols present

Illustration of a kitchen grater with a downward arrow indicating compression (no text or symbols)

Tipy:

3D diagram of an electronic component with a grid-like structure and labeled point 'Z' (no text or symbols beyond label)

Exploded view diagram of a mechanical assembly showing components like gears, flanges, and a pipe fitting (no text or labels)

Illustration of a kitchen appliance with a tool and a base, showing no text or symbols.

Illustration of a kitchen grater with a downward arrow indicating compression (no text or symbols)

Illustration of a kitchen grater with a downward arrow indicating compression (no text or symbols)

Exploded view diagram of a mechanical assembly showing parts like bolts, gears, and a T-joint (no text or labels)

Illustration of a manual electric shaver and power supply device (no text or symbols visible)

Mechanical tool with a lever and handle, shown in grayscale (no text or symbols visible)

Mechanical device with a lever and cylindrical head, labeled '4.' (no text or symbols on the device itself)

Exploded view diagram of a mechanical component with no text or symbols

Product photo of a handheld electric shaver with a mechanical component and arrow indicating motion (no text or symbols)

Mechanical device with a downward arrow indicating motion (no text or symbols visible)

Tippek:

3D diagram of a rectangular electronic component with internal structure and mounting holes (no text or symbols)

Exploded view diagram of a mechanical assembly showing components like gears, bolts, and a pipe fitting (no text or labels)

Illustration of a kitchen tool and a portable oven with a handle, showing no text or symbols.

Mechanical food processor with a downward arrow indicating compression or disassembly (no text or symbols visible)

Mechanical device with a lever and handle, shown in grayscale without any text or symbols

Exploded view diagram of a mechanical assembly showing components like bolts, gears, and a T-joint (no text or labels)

Illustration of a manual electric shaver and its base device (no text or symbols visible)

Mechanical tool with a lever and handle, no visible text or symbols

Mechanical device with a lever and cylindrical top, showing a downward arrow (no text or symbols)

Exploded view diagram of a mechanical component with no text or symbols

Illustration of a manual hand tool interacting with a device, showing motion and assembly (no text or symbols)

Illustration of a kitchen electrician with a downward arrow indicating compression (no text or symbols)

Съвети:

3D diagram of a rectangular electronic component with internal structure and mounting holes (no text or symbols)

Exploded view diagram of a mechanical assembly showing components like gears, bolts, and a pipe fitting (no text or labels)

Illustration of a kitchen appliance with a handle and base, showing a mechanical component (no text or symbols)

Illustration of a kitchen grater with a downward arrow indicating compression (no text or symbols)

Illustration of a kitchen grater with a downward arrow indicating compression (no text or symbols)

Exploded view diagram of a mechanical assembly showing components like bolts, gears, and a T-joint (no text or labels)

Illustration of a manual tool and a device with a handle, no text or symbols present

Illustration of a kitchen grater with a downward arrow indicating compression (no text or symbols)

Mechanical device with a lever and cylindrical top, showing a downward arrow (no text or symbols)

Exploded view diagram of a mechanical component with no visible text or symbols

Illustration of a hand tool interacting with a device, showing motion and assembly (no text or symbols)

Illustration of a kitchen grater with a downward arrow indicating compression (no text or symbols)

Поради

3D diagram of a rectangular electronic component with internal structure and mounting holes (no text or symbols)

Exploded view diagram of a mechanical assembly showing components like gears, bolts, and a pipe fitting (no text or labels)

Illustration of a manual washing machine with a cylindrical component and a separate device (no text or symbols visible)

Mechanical food processor with a downward arrow indicating compression or disassembly (no text or symbols visible)

Mechanical device with a downward arrow indicating compression or disassembly (no text or symbols visible)

Exploded view diagram of a mechanical assembly showing components like bolts, gears, and a valve (no text or labels)

3D rendering of a mechanical device with a lever and base, showing no text or symbols

Mechanical tool with a lever and handle, labeled '3.' (no text or symbols on the device itself)

Mechanical device with a lever and cylindrical top, showing a downward arrow (no text or symbols)

Exploded view diagram of a mechanical component with no visible text or symbols

Product photo of a handheld electric shaver with a power tool and control panel (no visible text or symbols)

Illustration of a kitchen grater with a downward arrow indicating compression (no text or symbols)

Примечание.

Exploded view diagram of a mechanical assembly showing components like gears, bolts, and a pipe fitting (no text or labels)

Two 3D-rendered objects: a cylindrical tool and a rectangular device with a handle, shown without any text or symbols.

Mechanical food processor with a downward arrow indicating compression or disassembly (no text or symbols visible)

Illustration of a kitchen grater with a downward arrow indicating compression (no text or symbols)

Exploded view diagram of a mechanical assembly showing parts like bolts, gears, and a T-junction (no text or labels)

Illustration of a manual electric shaver and its base device (no text or symbols visible)

Mechanical device with a lever and handle, labeled '3.' (no text or symbols on the device itself)

Mechanical device with a lever and cylindrical top, showing a downward arrow (no text or symbols)

Exploded view diagram of a mechanical component with no text or symbols

Product photo of a handheld device with a brush and control panel, no visible text or symbols

Illustration of a kitchen electrician with a downward arrow indicating compression (no text or symbols)

Poznámka:
