Product Type	Canister Vacuum Cleaner
Brand	Khind
Model	VC9679
Dimensions (L x W x H)	43 x 28 x 33 cm
Weight	5.2 kg
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	1200 W
Dust Capacity	1.5 L
Filtration System	HEPA 13 Filter
Cord Length	5 m
Noise Level	≤ 78 dB(A)
Main Functions	Dry vacuuming for carpets and hard floors
Attachments Included	Crevice tool, upholstery brush, floor nozzle
Adjustable Suction	Yes, electronic control
Dust Bag Type	Reusable cloth bag
Maintenance	Clean filters regularly; empty dust container after each use
Safety Features	Thermal overload protection; auto shut-off when overheated
Spare Parts Available	Filters, dust bags, brushes
Repairability	Modular design; spare parts available online
Warranty	2 years
Certifications	CE, RoHS

Frequently Asked Questions - VC9679 Khind

How do I assemble the Khind VC9679 vacuum cleaner?

Attach the hose to the main unit, then connect the wand and desired nozzle. Refer to the manual for detailed steps.

How often should I clean the filter?

Clean the HEPA filter every 3 months or when suction drops. Rinse with water and let it dry completely before reuse.

What is the correct way to empty the dust container?

Press the release button to remove the dust container, hold it over a trash bin, and press the bottom latch to empty. Close firmly before reattaching.

Why is the suction power reduced?

Common causes: full dust container, clogged filter or hose, or blockage in the nozzle. Check and clean accordingly.

Can the Khind VC9679 be used on hardwood floors?

Yes, it comes with a floor nozzle suitable for hard floors. Use the appropriate setting if available.

How do I replace the dust bag?

Open the bag compartment, remove the full bag, insert a new bag ensuring the cardboard collar fits securely, then close the compartment.

What does the thermal overload protection do?

If the motor overheats, the vacuum automatically shuts off. Unplug it, let it cool for 30 minutes, then restart.

Where can I purchase spare parts for the VC9679?

Spare parts are available from authorized Khind service centers and online retailers. Common parts include filters, dust bags, and brushes.

How do I clean the crevice tool?

Remove any debris with a stick or brush. If washable, rinse with water and dry thoroughly before storage.

Is the Khind VC9679 suitable for pet hair?

Yes, the upholstery brush and strong suction help remove pet hair from furniture and carpets. Regular filter cleaning is recommended.

USER MANUAL VC9679 Khind

Abstract grayscale graphic with white silhouettes of Earth, globe, and a sphere (no text or symbols)

••• Cordless Vacuum Cleaner / 吸尘机 / Pembersih Vakum

Instruction Manual / 说明指示书 / Buku Panduan

Please read this manual carefully before operating this product. Keep this manual handy for further reference. 请在使用此产品前,详读此说明书。并将之收薄以作日后参考。

1. Read the instruction manual carefully and follow the instruction closely.
2. Use only the attached parts which are supplied by the manufacturer.
3. This appliance is intended for household use only, commercial use will void warranty.
4. If the adaptor is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
6. Insert the adaptor to the AC mains securely. Do not operate the adaptor or wall charging base with wet hands.
7. Keep appliance away from ovens and stoves etc.
8. This appliance is not suitable for outdoors use or on wet surfaces. Use only on dry, indoor surfaces.
9. Do not use the appliance if any parts appear to be faulty, missing or damaged.
10. Ensure all parts are securely assembled before using the appliance.
11. Check to ensure your electricity supply matches that the voltage shown on the rating plate. The appliance must only be used as rated voltage.
12. Do not run the Cordless Stick Vacuum during charging.
13. Do not unplug the adaptor by pulling on the cable. To unplug, grasp the adaptor, not the cable.

(B) RISK OF PERSONAL INJURY

1. Charge the appliance for 4.5 hours before initial use.
2. Never use the appliance without the HEPA Filter or Dust Tank in place.
3. Do not use the appliance in areas where flammable or combustible liquids may be present.
4. When using the Cordless Stick Vacuum for the first time, a smell or vapour may be given off. This will dissipate after few uses.
5. Keep hair, loose clothes, fingers and all parts of the body away from openings and moving parts.
6. Do not insert any objects into openings or cover the appliance.

7. Take extra care when cleaning and vacuuming at the staircase area

8. In order to prevent damage to the product and reduce risk of fire and/or personal injury, the following objects are strictly prohibited from being sucked up:

- Any large or broken objects such as glass.

- Anything that is burning or smoking such as cigarettes, matches or hot ashes.

- Liquid spills

- Reactive liquids (solvents, corrosives, detergents).

- Flammable or explosive substances such as alcohol, thinners etc.

1. Store the appliance upright, in a safe place after use to prevent any accidents.

2. Discontinue usage if the battery runtime changes abruptly or the battery has been damaged.

3. Use only the charger supplied by KHIND. If other chargers are used, this can cause damage to the battery, product or personal property.

4. Store the appliance indoors, in a cool, and dry place.

Safety Precaution Information

(C) SAFETY CONCERN WITH LI-ION BATTERIES

1. When working performance decrease due to low battery capacity, please purchase new battery unit from the nearby Khind-Mistral (M) Sdn Bhd Service Center to replace it.
2. Do not litter the battery unit and it should be safely recycled.
3. The battery unit is applicable for this vacuum cleaner model only, please do not use for other models. The battery unit must be charged with the adaptor provided inside the packaging. Do not disassemble the battery unit to avoid damage or short circuit. Do not place the battery unit close to high temperature objects or fire. Do not break or insert sharp objects into the battery unit to avoid electric shock.

Attention
It is advisable to turn off the main power supply whenever the appliance is fully charged. (Refer page 6)

Cleaning & Maintenance

WARNING! Do not immerse any part of the VACUUM into the water or other liquids.

(A) Removing and cleaning the dust tank and filter.

1. To ensure the Cordless Vacuum maintains optimum performance, it is recommended to empty the DUST TANK after each use and frequently clean the WASHABLE HEPA FILTER.

2. Detach the DUST TANK and empty the contents.

3. Remove the WASHABLE HEPA FILTER from the centre and wash under warm water. CAUTION: Thoroughly dry the WASHABLE HEPA FILTER before reassembling the appliance.

4. If necessary, rinse the DUST TANK under warm water to remove any excess dust. Dry completely before reassembled the VACUUM.

Safety Precaution Information

Cleaning & Maintenance

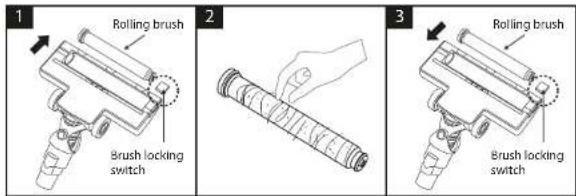

(B) Removing and cleaning the rolling brush

1. Unlock the BRUSH LOCKING SWITCH to remove the rolling brush from main brush nozzle.
2. Carefully clear/remove/pull out any tangled hair or dirt.

3. Ensure the rolling brush is correctly placed back into the main brush. Ensure the switch is locked.

4. Attention

5. DO NOT rinse the ROLLING BRUSH under water to clean.
   NOTE: Ensure the ROLLING BRUSH is correctly placed back into the appliance.

6. Do not clean the appliance's surface with metal sourcing pads as it may scratch the surface. Use only a damp soft cloth to clean it.
7. Do not use abrasive chemicals, cleaning solvents like petrol, thinner or benzene to clean the appliance and main brush.

Tips: An obstruction in the rolling brush will make brush movement or flow difficult. It is advisable to clean the rolling brush on regular basic. (subject to individual usage)

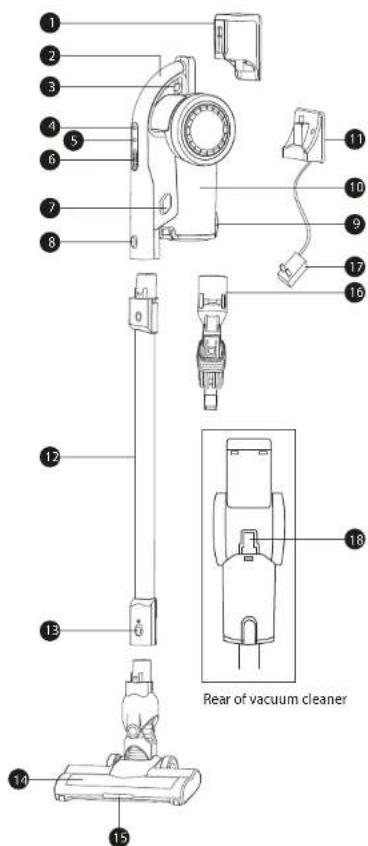

Parts identification

1. Battery Pack
2. Handle
3. Battery Pack Release Button
4. ON/OFF Power Button
5. Speed Control Button
6. Battery Level/Charging Indicator
7. Dust Tank Release Button
8. Main Body Release Button
9. Dusk Tank Bottom Cover Release Clip
10. Dust Tank
11. Wall Charger Base
12. Metal Tube
13. Main Brush Release Button
14. Main Brush Nozzle
15. LED Light Indicator
16. 2 in 1 Nozzle
    (Crevice Nozzle with Small Brush)
17. Adaptor
18. Charging Slot

Specifications

Model	VC9679
Working Voltage	22.2Vd.c.
Power	120W
Adaptor Input Voltage	AC100-240V-50/60Hz
Adaptor Output Voltage	27Vd.c.
Battery Type	Li-Ion Battery Pack
Filtration Type	HEPA
Dust Tank Capacity	0.5Litre
Suction Power	High Speed: 8kPaLow Speed: 4-5kPa
Operating Time	High Speed: 20-23minLow Speed: 45-50min
Charging Time	4.5 hours
Net Weight	2.1 kg
Product Dimension (LxWxH)	278 x 245 x 1092mm

*Specifications are subject to change without prior notice.

How to use

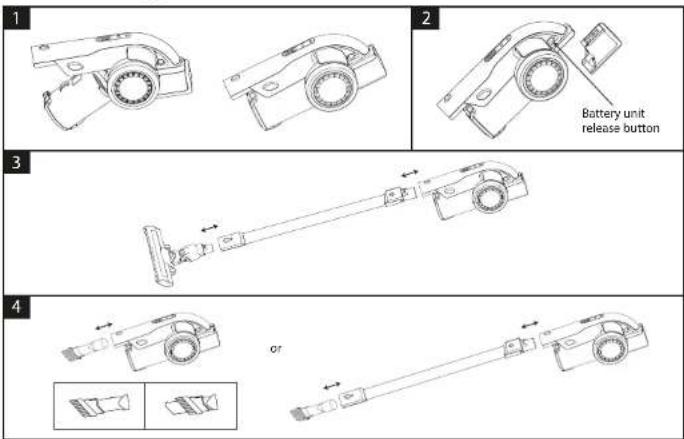

(C) Main unit assembly guide

1. Assemble dust tank with motor unit
- Put the dust tank to pins on motor unit lower part.
- Push the dust tank till "Click" sound is heard.

How to use

1. Assemble main unit with battery unit
2. Press the battery unit into the main unit battery compartment till a "click" sound is heard.
3. Assemble main brush, tube and main body
4. Insert upper end of main brush into lower end of the tube, till a "click" sound is heard.
5. Insert the upper end of the tube into the lower end of main unit a "click" sound is heard.
6. a) Assemble the accessory to main unit
7. Insert the 2 in 1 nozzle firmly into the main unit hole.
   b) Assemble the accessory to the tube
8. Insert the 2 in 1 nozzle into the lower end of the tube, till a "click" sound is heard.
9. ON/OFF Power Button & Speed Control Button
10. Press the ON/OFF Power Button to start or stop the vacuum cleaner operation. Press the Speed Control Button to adjust the vacuum cleaner to high/low speed.
11. Charging
    a) Before charging, ensure use only the adaptor provided together with the set.
    b) Put the vacuum onto the wall mount bracket. Connect the adaptor to the main. Once fully charged, all Battery Level Indicator light will be illuminated.
    c) Connect the charger plug to power.
    d) Charge the product indoors and keep the indoor temperature between 4°C and 35°C.
    e) The white charging indicator will turn on and keep flashing during charging to indicate that the machine is being charged. Upon completion of the charging, the three bars of the charging indicator will all turn white and stop flashing.
    f) It takes 4-5 hours to complete the charging. Do not overcharge the battery.
    g) After the completion of the charging, take the charger off the charging base. Do not use the product while it is being charged.
    h) You may hang the machine on the charging base when not using it, but make sure the charger is removed.
    I) When the battery is going to be depleted, please recharge with adaptor.
12. Wall charging base
13. Fix the wall charging base near to the socket.
14. Put the main unit onto the wall charging base.

Technical line drawing of two vertical industrial equipment units with mounting base (no text or symbols)

Troubleshooting

PROBLEM	SOLUTION
NO POWER	Ensure the VACUUM CLEANER is assembled properly.Check the appliance is fully charged before use.
REDUCE IN SUCTION EFFICIENCY	Check openings for any blockages. Unplug and remove the adaptor if necessary.Ensure the HEPA Filter is installed properly in place.Empty DUST TANK and clean the HEPA FILTER.Contact KHIND Customer Services if the HEPA FILTER has become damaged.Recharge for several hours.
MAIN BRUSH NOT ROTATING	Remove the ROLLING BRUSH from the MAIN BRUSH NOZZLE and check for any obstructions such as tangled hair or clogged dirt.Ensure the ROLLING BRUSH has been correctly inserted into the MAIN BRUSH NOZZLE and locked into position using the BRUSH LOCKING SWITCH.The appliance may need recharging. Connect to the WALL CHARGING BASE with ADAPTOR and charge the appliance fully until all INDICATOR LIGHTS are illuminated.
