VC8008 - Vacuum Cleaner Khind - Free user manual and instructions

Product Type	Vacuum Cleaner
Model	VC8008
Brand	Khind
Voltage	220-240V ~ 50/60Hz
Power	800W
Suction Power	100W; 18kPa
Cable Length	4.5 meters
Noise Level	80dB
Air Flow	1.1 m³/min
Dust Container Capacity	2 liters
Filtration Type	HEPA
Net Weight	3.4 kg
Product Dimensions (LxWxH)	330 x 238 x 285 mm
Power Cord Rewind	Yes, with button
Accessories	Hose connector, hose, plastic tube, floor brush, crevice nozzle
Maintenance	Regular cleaning of dust container and HEPA filter; wash with warm/cold water, dry completely before reuse
Safety Features	Auto shut-off when not in use? Not specified; safety precautions: do not vacuum flammable liquids, keep dry, unplug before cleaning

Frequently Asked Questions - VC8008 Khind

What is the power consumption of the Khind VC8008?

The Khind VC8008 operates at 800W power consumption.

What is the suction power of the VC8008?

The suction power is 100W with a maximum pressure of 18kPa.

How long is the power cord?

The power cord is 4.5 meters long.

What type of filter does the VC8008 use?

It uses a HEPA filter for high-efficiency filtration.

How do I clean the dust container and filter?

Switch off and unplug. Remove the dust container, empty it, then remove the HEPA filter by turning anticlockwise. Tap the filter gently and clean with a soft brush. If needed, wash both with warm or cold water (no detergents). Ensure they are completely dry before reinstalling.

Can the Khind VC8008 be used for commercial purposes?

No, this vacuum cleaner is intended for household use only. Commercial use will void the warranty.

What should I not vacuum with this appliance?

Do not vacuum corrosive or inflammable liquids, lighted cigarette butts, ash, matches, sharp objects, or objects that could block the hose.

How do I rewind the power cord?

Unplug from the power supply, then press the cord rewinder button while holding the plug to prevent whipping.

What is the weight of the VC8008?

The net weight is 3.4 kg.

How do I carry the vacuum cleaner?

Carry it by the dust container handle on the body. Do not press the dust container release button while carrying, as the container may detach and fall.

USER MANUAL VC8008 Khind

Abstract grayscale graphic with white silhouettes of Earth and a globe, no text or symbols present

••• Vacuum Cleaner / 吸尘机 / Pembersih Vakum

Instruction Manual / 说明指示书 / Buku Panduan

KHIND®

Enjoy hassle-free customer service

1 Scan E-Warranty QR code or go to http://www.khind.com.my/e-warranty.html
2 Fill-up your details, product information & proof of purchase
HOTLINE [phone]

khind.com.my

Please read this manual carefully before operating this product. Keep this manual handy for further reference. 请在使用此产品前，详读此说明书，并将之收藏以作日后参考。

This manual is also available online.

P/N: 40-51521-00

Safety Precaution Information

Safety & Warning Information

1. This appliance is not attended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
2. Read the instruction manual carefully and follow the instruction closely.
3. Use only the attached parts which are supplied by the manufacturer
4. This appliance is intended for household use only. Commercial use will void warranty.
5. Do not leave the appliance unantended while it is connected to the main power outlet.
6. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid any hazards.
7. Do not pull, lift or carry the appliance by its supply cord. In order to avoid damages to the cord, do not pull the cord around sharp corners and edged.
8. Always switch off the power before unplugging the unit from the socket. Do not unplug by pulling and jerking the cord with force.
9. Do not handle the plug or the appliance with wet hands.
10. Do not vacuum the following corrosive or inflammable liquids, lighted cigarette butts, ash or matches sharp objects or objects which could block and get stuck in the hose.
11. Do be more cautions when you want to clean and vacuum the staircase.
12. Make sure the household voltage is the same as that indicated on the rating label of the unit.
13. Do not use appliance without the filters.
14. Hold the plug when rewinding onto the cord reel. Do not allow the plug to whip when rewinding.
15. Do not wrest, tramp and haul the hose.
16. Keep the appliance away from the ovens and stoves etc.
17. Kept the appliance dry to protect agains electric shock.

Cleaning & Maintenance

1. Always unplug the power cord before performing any cleaning.
2. It is recommended to regularly clean the dust container and HEPA filter.
3. Do not clean the appliance's surface with metal sourcing pads as it may scratch the surface or cause electrical shock. Use only a damp soft cloth to clean it.
4. Do not immerse the appliance into the water or other liquids when cleaning.
5. Do not use abrasive chemicals, cleaning solvents like petrol, thinner or benzene to clean the appliance.

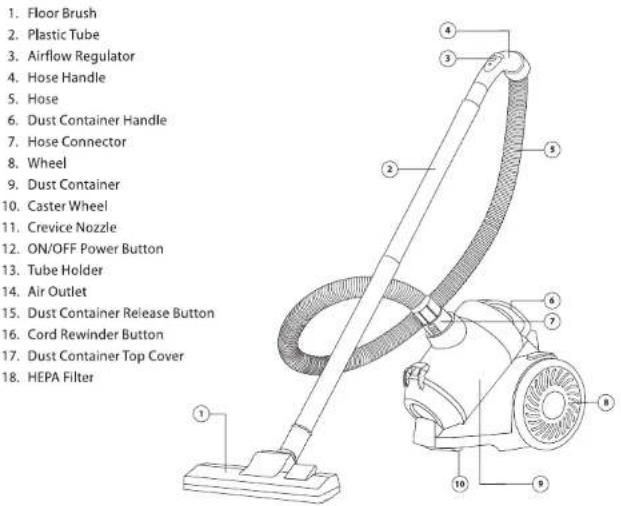

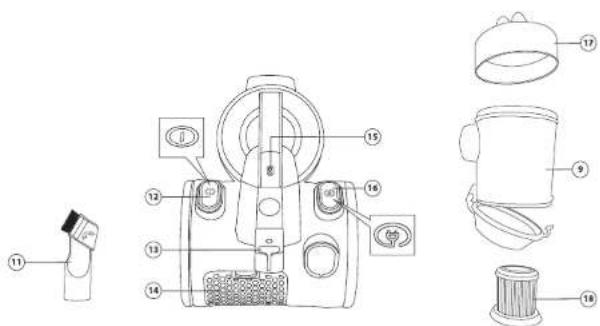

Parts Identification

* Pictures are for illustration purpose only.

Specifications

Model	VC8008
Voltage	220-240V ~ 50/60Hz
Power	800W
Suction Power	100W; 18kPa
Cable Length	4.5 meter
Noise Level	80dB
Air Flow	1.1m^3/min
Dust Container Capacity	2L
Filtration Type	HEPA
Net Weight	3.4kg
Product Dimension (LxWxH)mm	330 x 238 x 285mm

* Specifications are subject to change without prior notice.

How to Use

A ASSEMBLE THE UNITS

1. Remove and assemble the hose connector, hose, plastic tube, floor brush or crevice nozzle from the box.

a. Connect the hose handle to the floor brush or crevice nozzle together with plastic tube.

b. Insert the hose connector to the vacuum body.

1. Pull out the power cord to its full length and plug it into the power supply.
2. Switch on the power supply and press the On/Off power button to start operating the vacuum cleaner.
3. Before rewinding the power cord, unplug from the power supply and press the cord rewinder button.

Always hold the plug before pressing the cord rewinder button as the cord will retract very quickly.

NOTE: In case of long operation time, it is recommended that after every 30 minutes of usage, a short interval rest is taken.

B CLEAN THE DUST CONTAINER & FILTER

1. The dust container should be emptied regularly to obtain consistent best results.
2. Switch off and unplug before disengage the dust container by pressing the dust container release button on the handle.
3. Press the button and lift the container away from vacuum body.
4. Clear the dust from the container before cleaning the HEPA filter.
5. Remove the HEPA filter from the dust container by turning it anti clockwise.
6. Tap the HEPA filter against the side of a dustbin softly and clean it with a soft brush to remove excess dust.
7. Wash the dust container and HEPA filter with warm or cold water if necessary.
8. Do not use detergents to clean the dust container and HEPA filter.
9. Make sure the dust container and HEPA filter is completely dry before install back to main body.
10. Do not expose the HEPA filter under the sun to avoid any damage.

C CARRYING THE APPLIANCE

1. Carry the appliance by the dust container handle on the body.
2. Do not press the dust container release button or shake the appliance when carrying, otherwise the dust container could disengage, fall off and cause injuries.

△安全预防措施

安全和警告信息

* 图片仅供参考。

规格

型号

电压

功率

吸刀 电源

电源线长噪音水平

风量

集尘桶容量

过滤类型

净重

产品尺寸（长×宽×高）mm

VC8008

220-240V \~ 50/60Hz

800W

100W; 18kPa

4.5 meter

80dB

1.1m³/min

2L

HEPA

3.4kg

* 规格如有更改，恕不另行通知。

如何使用

A组装单位
