Product Type	Vacuum Cleaner
Model	VC3699S
Brand	Khind
Vacuum Type	Upright / Canister (assumed upright)
Dimensions (H x W x D)	Approx. 30 cm x 25 cm x 40 cm
Weight	Approx. 4.5 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	1200 W
Dust Capacity	1.5 L (bagless)
Filtration System	HEPA filter (washable)
Suction Power	Adjustable, max 250 air watts
Cord Length	5 m
Noise Level	Approx. 75 dB
Attachments	Crevice tool, brush nozzle, upholstery tool
Main Functions	Dry vacuuming on hard floors and carpets
Maintenance	Empty dust container after each use, clean filter monthly
Safety Features	Overheat protection, automatic cord rewind
Spare Parts Availability	Filters, dust containers, and attachments available
Repairability	Replaceable filters and detachable parts, user serviceable
General Information	Suitable for household use only

Frequently Asked Questions - VC3699S Khind

How do I assemble the Khind VC3699S vacuum cleaner?

The vacuum cleaner comes pre-assembled. Simply attach the desired nozzle to the wand or hose. Refer to the manual for detailed steps.

How often should I clean the filter?

Clean the HEPA filter at least once a month. If used frequently, clean it every two weeks. Ensure the filter is completely dry before reinserting.

Can I use the vacuum cleaner on carpets?

Yes, the VC3699S is suitable for both hard floors and low to medium pile carpets. Adjust the suction power for optimal performance.

What is the capacity of the dust container?

The dust container has a capacity of 1.5 liters. Empty it after each use to maintain suction power.

How long is the power cord?

The power cord is 5 meters long, allowing a cleaning radius of up to 10 meters.

Does the vacuum cleaner have a HEPA filter?

Yes, it features a washable HEPA filter that traps 99.97% of dust and allergens.

Is the vacuum cleaner noisy?

The noise level is approximately 75 dB, which is comparable to a normal conversation.

What attachments are included?

The package includes a crevice tool, brush nozzle, and upholstery tool for versatile cleaning.

How do I maintain the suction power?

Regularly empty the dust container, clean the filter, and check for blockages in the hose or nozzles. This ensures consistent suction performance.

What should I do if the vacuum overheats?

The overheat protection will automatically shut off the vacuum. Allow it to cool for at least 30 minutes before restarting. Check for blockages if it happens frequently.

USER MANUAL VC3699S Khind

Line drawing of a vacuum cleaner with coiled hose and wheels (no text or symbols)

KHIND CARE

Mobile App

Download to register for E-Warranty & enjoy hassle-free after-sales services.

1-800-88-0032

khind.com.my

IMPORTANT

Please read this manual carefully before operating this product. Keep this manual handy for further reference.

P/N: 40-51600-00

Safety Precaution Information

Safety & Warning Information

1. Read the instruction manual carefully and follow the instruction closely.
2. Make sure the household voltage is the same as that indicated on the rating label of the unit.
3. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
4. Always switch off, unplug from the socket after use or before cleaning the appliance or any maintenance task.
5. Do not unplug by pulling and jerking the cord with force.
6. Do not handle the plug or the appliance with wet hands.
7. Use only the attached parts which are supplied by the manufacturer.
8. This appliance is intended for household use only. Commercial use will void warranty.
9. Do not leave the appliance unattended while it is connected to the main power outlet.

10. Do not overturn the vacuum cleaner, causing damage to the motor.

11. Keep the appliance away from strong sunlight and high temperature place in case plastic distorting.

12. The hose cannot be overly bent and forced to elongate, otherwise the hose will be deformed or damaged.

13. Do not allow the lid part to penetrate into the water or rinse with water to prevent water from entering the electronic parts. Leakage, proper operation: gently wipe the surface with a rag.

14. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid any hazard

15. Do not step on or wrap the cord around arms or legs when using the appliance.

16. Do not pull, lift or carry the appliance by its supply cord. In order to avoid damages to the cord, do not pull the cord around sharp corners and edges.

17. Keep appliance away from the ovens and stoves etc.

18. Do not position the appliance above you when cleaning the stairs.

19. Do not use the appliance in a damp room.

20. Do not inhale hot dust ashes or sharp objects.

21. Do not touch bystander directly when blowing.

22. Do not inhale flammable, toxic liquids, such as gasoline, oil, acids or other volatile substances, to avoid dangerous hazards. Do not immerse the appliance into the water or other liquids.

23. Kept the appliance dry to protect against electric shock.

24. Do not use the air outlet directly against people or animals when using this product.

25. Liquid or steam must not be directed towards equipment containing electrical components, such as ovens.

Cleaning & Maintenance

1. After cleaning the Dust Container, filters and related accessories, check if it leaks. After each use, clean the filter and make sure you use the correct filter for dry and wet vacuum.
2. Check the plug if damaged.
3. Clean the Suction Port to make sure there is no blockage.
4. Handle the vacuum with care and do not drop or hit any solid object.
5. Keep the vacuum dry.
6. Clean the filter with warm water if needed, and if necessary, you may also use neutral detergent cleaning. Do not use corrosive objects to clean it. Do not put the entire filter into the water.
7. Do not let the vacuum work for a long time, each working time is best within 1 hour, otherwise will reduce the vacuum lifespan.
8. Dust and debris on the filter will weaken the suction. Clean the filter more frequent to maintain best performance.
9. If there is any abnormal vibration or noise or smell, you must stop the operation immediately, and proceed with maintenance.

Dust Container Cleaning

1. Unfasten the Dust Container Clip and lift the Top Cover (Fig 1).
2. Take off the filter, clean the dust away from the Dust Container.
3. Install the filter back to the Dust Container and place the Top Cover.

Diagram showing three different types of industrial machines with a magnified view of the final component (no text or symbols present)

(Fig 1)

Filter Cleaning

1. Periodically check the filter to maintain performance.
2. If the suction performs on very tiny dust, the filter may need more frequent cleaning.
3. Wash the filter with warm water without the use of detergent.
4. Keep the cleaned parts in a wide area to dry. Advise to dry it for at least 24 hours.
5. Do not put the filter in a dishwasher, washing machine, roller dryer, oven, microwave oven or open flame.

3

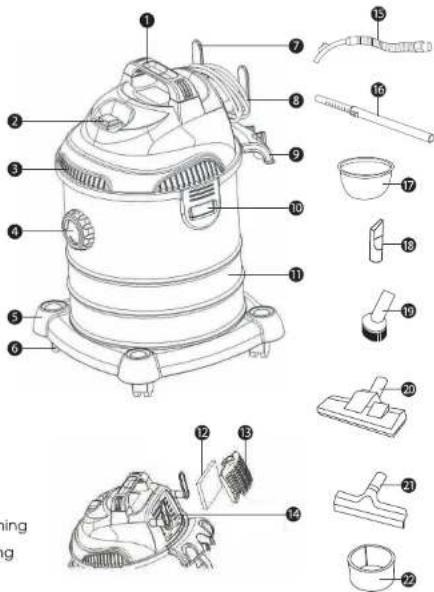

Parts Identification

1. Handle

2. On "☐" / Off "○" Switch

3. Top Cover

4. Suction Port

5. Pedestal

6. Wheel

7. Cord Hook

8. Power Cord

9. Accessories Holder

10. Dust Container Clip

11. Dust Container

12. Sponge Filter

13. Air Outlet Shutter

14. Blower Port

15. Hose

16. Metal Tube

17. Fabric Filter

18. Crevice Nozzle

19. Dust Brush

20. Carpet Nozzle for Dry Vacuuming

21. Floor Nozzle for Wet Vacuuming

22. Sponge Filter

* Pictures are for illustration purpose only.

Specifications

Model	VC3699S
Voltage	220-240V - 50/60Hz
Power	1400W
Dust Container Capacity	30L
Filtration Type	Fabric Filter
Power Cord Length	4.5m
Noise Level	86dB
Vacuum Pressure	17kPa
Net Weight	6.4kg
Product Dimension (L x W x H)	350 x 340 x 660mm

* Specifications are subject to change without prior notice.

How to Use

[A] OPERATION

Accessories Connection

CAUTION: Make sure that the power cord plug and socket are de-energized when assembling the vacuum cleaner.

1. Make sure the power cord is disconnected from the socket.
2. Insert the Hose connector into the air inlet (Fig 1) and make sure the connector is tightly fastened by revolving to left (Fig 2).

(Fig 1)

(Fig 2)

1. Connect the Aluminium Tube to Hose and nozzle or brush at the end of the tube. (Fig 3).
2. Connect the power cord to power supply socket.
3. Press the "On" switch and the vacuum is ready for operation.

Line drawing of a vacuum cleaner with attached tubing and control panel (no text or symbols)

(Fig 3)

WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION, ENTITLED 'SAFETY PRECAUTION INFORMATION'. DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO; LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASE PAINTS, GASOLINE, ALCOHOL OR AEROSOL SPRAYS, EXPLOSIVE DUSTS INCLUDE BUT ARE NOT LIMITED TO; COAL, MAGNESIUM, GRAIN OR GUN POWDER. TO REDUCE THE RISK OF HEALTH HAZARDS FROM VAPORS OR DUST, DO NOT VACUUM TOXIC MATERIALS.

4

5

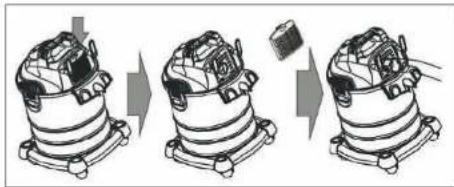

Blow Function

1. Open the shutter and remove Sponge Filter.
2. Insert the Hose and revolve till it is tight with air outlet as per below.

Three-step diagram showing a mechanical device with internal components and a close-up view of the next step (no text or symbols)

[B] HANDLING
Top Cover

1 Pull the Dust Container Clip and lift the Top Cover as per below.

Line drawing of a vacuum cleaner connected to a mounted device, showing mechanical components and airflow direction (no text or symbols)

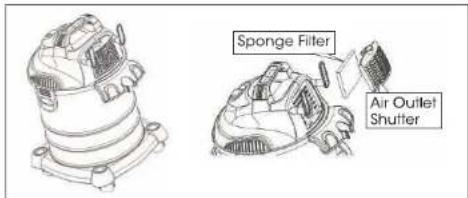

Air Outlet Sponge

Eject the Shutter and remove the Sponge Filter as per below. It is necessary to clean the Sponge Filter to prevent air pollution,

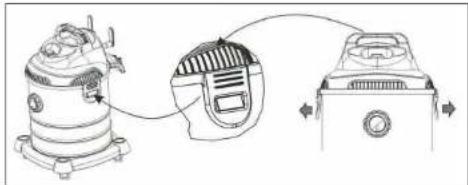

Power Cord

Organise and store the power cord easier by changing the Hook direction as per below.

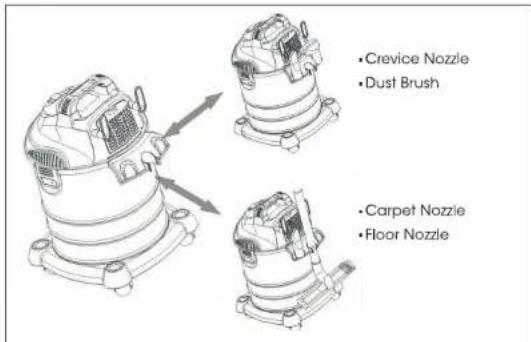

Accessories

1. Put the Crevice Nozzle and Dust Brush into the Accessories Holder as per below.
2. Put the Carpet Nozzle and Floor Nozzle into the middle compartment of Accessories Holder as per below.

6

安全注意事项

安全和警告信息

Diagram showing two identical views of a washing machine before and after assembly, with a separate close-up view of the final component (no text or symbols present)

(图 1)

过滤器清洁

使用方法

[A] 操作

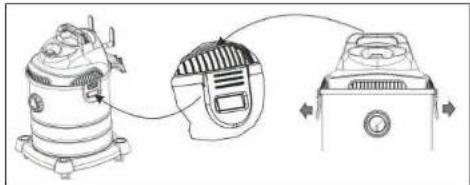

配件连接

Line drawing of a vacuum cleaner with attached tubing and control knobs (no text or symbols)

(图3)

Three-step diagram showing a mechanical device with rotating components, no text or symbols present

[B] 处理
顶盖

1. 如下图所示拉动集尘盒夹并提起顶盖。

Line drawing of a vacuum cleaner connected to a digital device via a switch (no text or symbols)

出风口海绵

Diagram showing three different types of industrial machines with no visible text or symbols

(Rajah 1)

Pembersihan Penapis

Diagram showing two mechanical states of a tire rolling down, with no text or symbols present.

(Rajah 1)
(Rajah 2)

1. Sambungkan Tiub Aluminium ke Hos dan muncung atau berus di hujung tiub. (Rajah 3)
2. Sambungkan talikod kuasa ke soket bekalan kuasa.
3. Tekan suis "Hidup" dan vakum sedia untuk beroperasi.

Line drawing of a vacuum cleaner with attached tubing and control components (no text or symbols)

(Rajah 3)

AMARAN: PASTIKAN MEMBACA, MEMAHAMI, DAN MENGUNAKAN MAKLUMAT, BERTAJUK 'MAKLUMAT LANGKAH LANGKAH KESELAMATAN'. JANGAN VAKUM DITEMPAT YANG ADA GAS MUDAH TERBAKAR, WAP ATAU HABUK LETUPAN DI UDARA. GAS ATAU WAP MUDAH TERBAKAR TERMASUK TETAPI TIDAK TERHAD KEPADA; BENDALIR LEBIH RINGAN, PENCUCI JENIS PELARUT, CAT ASAS MINYAK, PENSOL, ALKOHOL ATAU SEMBURAN AEROSOL. HABUK LETUPAN TERMASUK TETAPI TIDAK TERHAD KEPADA; BARU BARANG, MAGNESIUM, BIJIRAN ATAU SERBUK SENJATA. UNTUK MENGURANGKAN RISIKO BAHAYA KESIHATAN DARIPADA WAP ATAU DEBU, JANGAN VAKUM BAHAN TOKSIK.

Fungsi Tiupan

Three sequential illustrations of a vacuum cleaner with mechanical components, showing motion and assembly (no text or symbols)

[B] PENGENDALIAN Penutup Atas

Line drawing of a three-wheeled vacuum cleaner connected to a control panel (no text or symbols)

Span Saluran Udara
