USER MANUAL ROUNDABOUT 55 BRITAX

Child Seat Features14 Child Seat Functions 16 Harness Height Adjustment16 Adjusting Buckle Position 18 Fastening the Buckle 20 Releasing the Buckle 20 Using the Chest Clip 20 Using the Lock-Offs 21 Infant Body Pillow 21 Recline Positions 22 Using he Lower Universal Anchorage System (LUAS)24 Using the Lower Connectors 25 Using the Versa-Tether® 26

Rear-Facing Installation 30 LUAS Installation 30 Lap-Shoulder Belt Installation34 Lap Belt Installation 38

Forward-Facing Installation42 LUAS Installation 42 Lap-Shoulder Belt Installation46 Lap Belt Installation 50

Aircraft Installation 54 Securing Your Child 55 Care and Maintenance58 Tips and Troubleshooting65 Warranty 66 ©2010 Britax Child Safety, Inc. All rights reserved. Printed in USA P417400_R2:09.10 This product and its components are subject to change without notice.

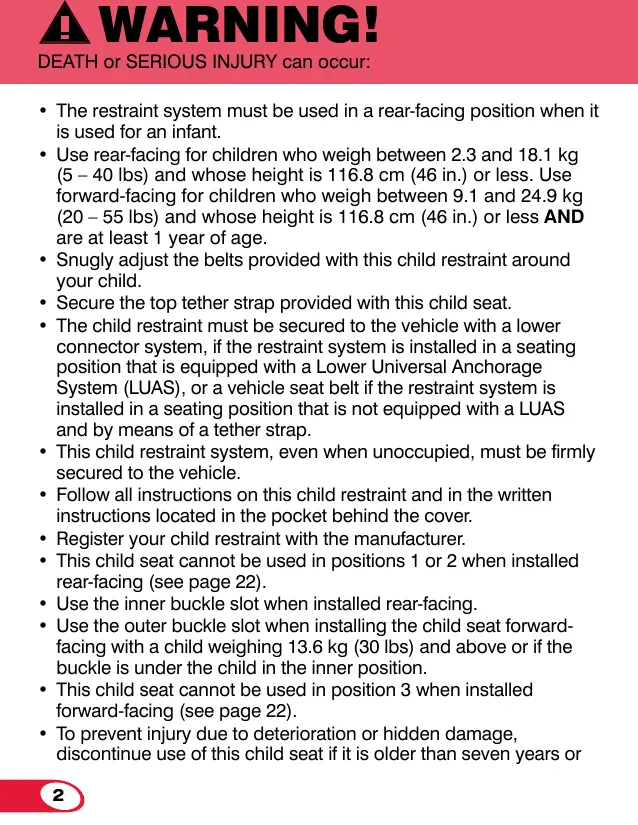

Section Title DEATH or SERIOUS INJURY can occur:

• The restraint system must be used in a rear-facing position when it is used for an infant. • Use rear-facing for children who weigh between 2.3 and 18.1 kg (5 – 40 lbs) and whose height is 116.8 cm (46 in.) or less. Use forward-facing for children who weigh between 9.1 and 24.9 kg (20 – 55 lbs) and whose height is 116.8 cm (46 in.) or less AND are at least 1 year of age. • Snugly adjust the belts provided with this child restraint around your child. • Secure the top tether strap provided with this child seat. • The child restraint must be secured to the vehicle with a lower connector system, if the restraint system is installed in a seating position that is equipped with a Lower Universal Anchorage System (LUAS), or a vehicle seat belt if the restraint system is installed in a seating position that is not equipped with a LUAS and by means of a tether strap. • This child restraint system, even when unoccupied, must be firmly secured to the vehicle. • Follow all instructions on this child restraint and in the written instructions located in the pocket behind the cover. • Register your child restraint with the manufacturer. • This child seat cannot be used in positions 1 or 2 when installed rear-facing (see page 22). • Use the inner buckle slot when installed rear-facing. • Use the outer buckle slot when installing the child seat forwardfacing with a child weighing 13.6 kg (30 lbs) and above or if the buckle is under the child in the inner position. • This child seat cannot be used in position 3 when installed forward-facing (see page 22). • To prevent injury due to deterioration or hidden damage, discontinue use of this child seat if it is older than seven years or 2

has been in a moderate or severe crash (see page 4). See Serial Number and Manufactured Date Label on child seat (page 15). This child seat can only be used in the following classes of vehicles: multi-purpose passenger vehicles, passenger cars or trucks. Based on crash statistics, Britax recommends that parents select the back seat as the safest location for a properly installed child seat. Please study Vehicle Seating Positions on page 13 to ensure your child’s safety and consult your vehicle owner’s manual. When using in a vehicle with air bags, refer to your vehicle owner’s manual for child seat installation instructions and precautions. Never use the harness adjuster strap to lift or carry this child seat. Doing so could cause damage to harness adjuster and webbing. Always carry this child seat by its shell or tether straps. The primary protection for occupants of a vehicle in a collision is the body of the vehicle itself; a child seat will not protect a child when a vehicle is seriously impacted. However, correctly installed, a child seat will substantially improve chances for survival in most crashes. Make sure all users fully understand the correct ways to use this child seat in a vehicle. Refer to your vehicle owner’s manual or contact the vehicle manufacturer for the maximum weight rating for their LUAS. Use vehicle seat belt (not LUAS) for installations with children who weigh more than the vehicle LUAS limit. Unless specified otherwise by the vehicle manufacturer, assume a 18.1 kg (40 lb) child is the vehicle LUAS limit. The use of non-Britax Child Safety, Inc., covers, inserts, toys, accessories, or tightening devices is not approved by Britax. Their use could cause this child seat not perform as intended in a crash.

Safety Information Important Notes

• Verify that the child seat is securely installed and the harness is properly adjusted around the child each time the child seat is used. • Discontinue use of this child seat if it has been in a moderate or severe crash. It is not necessary to replace a car seat after a minor crash defined by the U.S. National Highway Traffic Safety Administration as (NHTSA): * The vehicle is driveable from the crash site. * The vehicle door nearest the child seat was not damaged. * No vehicle occupants were injured. * There is no visible damage to the child seat. * The airbags (if present) did not deploy. • Adjust the harness to fit the clothes the child is wearing. Remove bulky coats and/or jackets before putting the child in child seat. • Cover the child seat when the vehicle is parked in direct sunlight. Metal parts of child seat could become hot enough to burn a child. • Store the child seat in a safe place when it is not being used. Avoid placing heavy objects on top of it. • Do not leave children alone in a vehicle, even for a short time. • Do not, except as described in this booklet, attempt to disassemble any part of the child seat or change the way the harness or vehicle’s seat belts are used. • Do not leave loose objects, e.g. books, bags, etc., in the back of a vehicle. In the event of a sudden stop, loose objects will keep moving, potentially causing serious injuries. • Do not leave folding vehicle seats unsecured or unlatched. In the event of a sudden stop, a loose seat back could cause the child seat not to perform as intended. • Do not allow children to play with this child seat. • Do not use anything to raise the child seat off vehicle seat except as described in these instructions. In a crash, this could cause the child seat not to perform as intended. 4

Safety Information Certification This child seat system conforms to all applicable Canadian Motor Vehicle Safety Standards (CMVSS 213 and 213.1). This Restraint is Certified For Use in Motor Vehicles and Aircraft. Registration Child restraints could be recalled for safety reasons. You must register this restraint to be reached in a recall. Send your name, address, e-mail address if available and the restraint’s model number and manufacturing date to Britax Child Safety, Ltd., P.O Box 7289, RPO Brunswick Square, Saint John NB E2L 4S6, or call 1-888-427-4829, or register online at www.Britax.ca/registration. For your convenience, record all the information about your child seat below. Refer to the Serial Number & Manufactured Date Label for all information, see page 15. Model Name and Number:_____________________________________________ Serial Number:_______________________________________________________ Batch Number:_______________________________________________________ Date of Manufacture:__________________________________________________

Safety Information Important Child Seat Usage Information All infants must ride rear-facing at least until they have reached 1 year of age and weigh 9.1 kg (20 lbs). Infant positioning insert may be necessary for small infants to achieve a snug fit of the harness around your child. Infant positioning insert sold separately. Britax advises that parents strongly consider the following when using this child seat. • Children should be secured with a harness system until they exceed the weight or height limits specified. • Britax recommends that children ride rear-facing to the highest weight or height specified.

WARNING! REAR-FACING use of this child seat is ONLY for children who meet ALL of the requirements below. If the child cannot be secured within these requirements because they are too small, use of the infant positioning insert or selection of a different child seat (such as an infant car seat) may be required. If the child cannot be secured within these requirements because the child is too large, review the forward-facing guidelines on page 7. Rear-Facing: 2.3 – 18.1 kg (5 – 40 lbs) Use rear-facing with children: • who weigh between 2.3 and 18.1 kg (5 – 40 lbs) and • when the top of the child’s head is at least 2.5 cm (1 in.) below the top of the child seat shell (Fig. A) and • when the harness straps are at or slightly below the child’s shoulders (Fig. A).

IMPORTANT: See Harness Height Adjustment on page 16. 6

Safety Information Forward-Facing: 9.1 – 24.9 kg (20 – 55 lbs) and at least 1 year of age WARNING! FORWARD-FACING use of this child seat is ONLY for children who meet ALL of the requirements below. If the child cannot be secured within these requirements because they are too large, another type of child seat (such as a booster) may be required. If the child cannot be secured within these requirements because the child is too small, review the rear-facing information on page 6. Use forward-facing only with children: • who are at least one year of age and • who weigh between 9.1 and 24.9 kg (20 – 55 lbs) and • who are 116.8 cm (46 in.) or less in height and • when the harness straps are at or above the child’s shoulders, parallel to level ground (Fig. B). IMPORTANT: When using position 2, it may be necessary to adjust the harness to a higher position than when the seat is in position 1. See Harness Height Adjustment on page 16. Above Shoulder Level Below Shoulder Level

Forward-Facing Harness Height 7

Vehicle Compatibility Compatible Vehicle Seat Belts NOTE: The information in this section only applies to installation with vehicle seat belts. Vehicle seats and seat belts differ from vehicle to vehicle. Refer to your vehicle owner’s manual for specific information about your vehicle seat belts and their use with child seats. Lap-Shoulder (3-Point) Belt 1. ALR (Automatic Locking Retractor) with Sliding Latch Plate a Has a latch plate that freely slides along the vehicle seat belt webbing. Latch plate

Has a retractor that stops the belt from being pulled out again once the belt webbing has been pulled out at least 61 cm (24 in.).

Tightens by feeding the belt webbing back into the retractor.

Vehicle Compatibility 2. ELR (Emergency Locking Retractor) with Locking Latch Plate a Has a latch plate that locks the vehicle belt. * This type of latch plate locks the vehicle belt when the vehicle belt and latch plate lie flat. When using this type of vehicle belt with a child seat, ensure the latch plat and vehicle belt lie flat against the child seat or the vehicle belt may remain unlocked.

Has a retractor that locks only in an emergency situation such as sudden stop or crash.

3. Switchable Retractor in ALR Mode with Sliding Latch Plate a Has a latch plate that freely slides along the vehicle seat belt webbing. Latch plate b Has a retractor that can be switched to function as an ALR. Pull the belt all the way out of the retractor to set the automatic locking function. * To use a child seat with this type of vehicle seat belt, you will need to switch to the ALR mode or use child seat lock-offs.

Vehicle Compatibility 4. ELR (Emergency Locking Retractor) with a Sliding Latch Plate a

Has a latch plate that freely slides along the vehicle seat belt webbing. Has a retractor that locks only in an emergency situation such as sudden stop or crash.

IMPORTANT: This belt type requires the use of the lock-offs built into the seat for rear- and forward-facing installations. See page 21 for information on using the lock-offs.

Lap Belt 5. ALR (Automatic Locking Retractor) a

Has a latch plate that is sewn into the webbing. Latch plate

Has a retractor that stops the belt from being pulled out again once the belt webbing has been pulled out at least 61 cm (24 in. ).

Vehicle Compatibility c

Tightens by feeding the belt webbing back into the retractor.

6. Locking Latch Plate a

Has a latch plate that prevents the webbing from becoming loose.

Tightens by pulling on the belt webbing.

Vehicle Compatibility Incompatible Vehicle Seat Belts WARNING! The following types of vehicle seat belts are NOT compatible with this child seat. If any of the belt types listed below are in the chosen seating position, choose another vehicle seating position or check your vehicle owner’s manual for information on installing a car seat in your vehicle.

with top or bottom anchor points on the vehicle door.

automatic vehicle seat belts.

of the vehicle seat bight.

belts that have a separate retractor each for the lap section and shoulder section.

sewn-in latch plate that have a retractor that locks only in case of a sudden stop.

Vehicle Compatibility Vehicle Seating Positions WARNING!

DO NOT place child seat rear-facing in the front seat of a vehicle with a passenger air bag unless deactivated. DEATH or SERIOUS INJURY can occur. See your vehicle owner’s manual for child seat installation instructions. The back seat is the safest place for children 12 and under.

Some vehicles have no seating positions which are compatible with this child seat. If in doubt, contact the vehicle manufacturer for assistance. This child restraint system must be used only in a forwardfacing seating position equipped with a vehicle seat belt or a lower universal anchorage system. Side-facing or rear-facing seats CANNOT be used. See the diagram below.

Cover Harness Slots Comfort Pads Infant Body Pillow Harness Holder Lower Connector Bar Lower Connector Strap (LUAS component) Lower Connector Adjuster Release Button (LUAS component)

Lower Connector Adjuster (LUAS component) 10 Lower Connector Release Button (LUAS component) 11 Lower Connector (LUAS component) 12

User Guide Storage (in pocket behind cover) 13 Harness Straps 14 Chest Clip

Child Seat Features 1 28

20 21 22 2 23 24 25 26 6 27 15 Harness Buckle 16 Belly Pad 17 Harness Adjuster Lever (under cover) 18 Harness Adjuster Strap 19 Recline Adjustment Handle 20 Shell 21 Serial Number & Manufactured Date Label 22 National Safety Mark 23 Forward-Facing Belt Slot

24 Forward-Facing Lock-Offs (Red – under cover on front of shell) 25 Rear-Facing Lock-Offs (Blue – under cover on front of shell) 26 Rear-Facing Belt Slot 27 Base 28 Versa-Tether® (Top Tether Strap) 29 Harness Yoke 30 Lower Connector Storage 31 Versa-Tether® Carry Clip 15

Child Seat Functions Harness Height Adjustment NOTE: In rear-facing mode, always position the harness straps at or below your child’s shoulders. See page 6. In forward-facing mode, always position the harness straps at or above your child’s shoulders. See page 7. 1 Loosen the harness. a Lift harness adjuster lever b Pull both harness straps forward

Unhook both harness straps from the yoke.

Pull one harness strap through the shell and cover to the front of the child seat.

Child Seat Functions 4

Feed the harness strap through the desired harness slot in the cover and shell to the back of the child seat. Repeat steps 3 and 4 for second harness strap.

Nest the harness straps by inserting the right strap loop into the left strap loop.

Before reattaching the harness straps to the yoke, hold the harness yoke as shown, and ensure that the adjuster strap attached to the yoke is not twisted.

Slide nested harness straps completely onto the harness yoke.

Child Seat Functions Adjusting Buckle Position IMPORTANT: • ALWAYS position the buckle in the inner slot for rear-facing use. • The vehicle belt must pass in front of the buckle strap for rear-facing use.

• NEVER leave the buckle in the adjustment slot. • Use the outer buckle slot when installing the child seat forward-facing with a child weighing 13.6 kg (30 lbs) and above or if the buckle is under the child in the inner position.

Child Seat Functions To adjust the buckle: 1

Unbuckle the harness. Remove the belly pad and push the buckle through the cover.

Turn the buckle webbing and slide it between buckle positions.

Slide the buckle retainer into the buckle slot, and ensure the red release button faces out.

Child Seat Functions Fastening the Buckle

Releasing the Buckle

Insert one tongue at a time into the buckle.

Press the release button and pull the tongues from the buckle.

NOTE: Proper connection is confirmed with an audible click after inserting each buckle tongue.

NOTE: Periodically clean the buckle to ensure proper operation. See Page 63.

Using the Chest Clip

Open the chest clip. a Press tabs b Pull apart

Push together to fasten. 2 NOTE: Always position the chest clip at armpit level.

Child Seat Functions Using the Lock-Offs IMPORTANT: Both parts of the lock-off must be opened to secure a vehicle belt. To Open:

LOCKING TAB To Close: 1

1 Push the clamp up 2 Push the middle of the locking tab down until locked

Infant Body Pillow The infant body pillow is designed to provide better fit and comfort for infants using this child seat. NOTE: Remove the infant body pillow after child can sit comfortably in the child seat without additional support.

Child Seat Functions Recline Positions This child seat has 3 positions. To adjust, pull the recline handle then rotate the child seat shell into the desired position. Release the recline handle, then verify the child seat has locked into position. NOTE: Set the recline position BEFORE installing.

Child Seat Functions Rear-Facing When installed in the rear-facing position, the child seat should be reclined at least 30˚from vertical for children and up to 45˚ from vertical for infants unable to maintain head and neck control (not to exceed 45˚) when the car is parked on a level surface. When installing the seat in rear-facing mode, recline the seat to position 3 and use the guide line on the child seat to help achieve an acceptable recline angle for rear-facing installations. Forward-Facing IMPORTANT: In forward-facing installations, it is important that the base of the child seat rests completely flat on the vehicle seat. As illustrated below, it is permissible to allow up to 20% or 7.6 cm (3 inches) of the base to hang over the edge of the vehicle seat. Some vehicle seats do not allow enough of the child seat base to contact the vehicle seat. If this is the case, adjust the recline angle to a more upright position. Not doing so could cause the child seat not to perform as intended.

UP TO 3 INCHES OF OVERHANG ACCEPTABLE Acceptable overhang

OVER 3 INCHES OF OVERHANG NOT ACCEPTABLE Unacceptable overhang 23

Child Seat Functions Using the Lower Universal Anchorage System (LUAS) The Lower Universal Anchorage System or LUAS, is a system available on this child seat that offers an alternative to vehicle seat belt installation methods. See pages 14 and 15 for LUAS components on this child seat.

The figure above shows typical locations for lower anchors and tether anchors in a vehicle. Check your vehicle owner’s manual to learn if it is equipped with the LUAS, the maximum weight rating for the lower anchors, and for information on the lower anchor locations and seating positions available for use with this child seat. Standard vehicle seat spacing between LUAS anchors is 27.9 cm (11 inches). This child seat can be used in a seating position with up to 50.8 cm (20 inches) of space between LUAS anchors if the vehicle manufacturer allows. 24

Child Seat Functions Using the Lower Connectors Where to find the Lower Connectors The lower connectors are located in the back of the base of the child seat. Store the connectors in the slots when not in use. To remove the lower connector from the storage slot or lower anchor: 1 Press and hold the red release button.

Pull the lower connector from the storage slot or lower anchor.

To attach the lower connector to the storage slot or lower anchor: Firmly push the lower connector into the slot or lower anchor until a click is heard.

NOTE: The lower connectors store top down in the slots. 25

Child Seat Functions Using the Versa-Tether® WARNING: Failure to follow the guidelines below may cause the child seat not to perform as intended: • You MUST always use the Versa-Tether when using the child seat forward-facing. Using the tether will improve the stability of your child seat and reduce the risk of injury. • Attach the Versa-Tether only to tether anchors identified by your vehicle manufacturer as tether anchorage points. Only use the designated tether anchor for each seating position. • If your vehicle does not currently have a tether anchor attachment, refer to your vehicle owner’s manual or contact your vehicle manufacturer for assistance. DO NOT modify your vehicle without advice from your vehicle manufacturer. • Store the Versa-Tether in the pouch on the back of the child seat when not in use. DO NOT install the child seat with the Versa-Tether attached to the carry clip.

Tether anchor locations vary from vehicle to vehicle. Check your vehicle owner’s manual and look for the tether anchor symbol shown in the diagram to help identify where the top tether anchor points are located in your vehicle. Britax recommends that the tether be used at all times when installing the child seat. Using the tether will improve the stability of your child seat and reduce the risk of injury. See the diagrams on page 27 for possible rear- and forward-facing VersaTether installation configurations. 26

Child Seat Functions

Rear-Facing Tether Connector Strap Because every vehicle model is different, a location to anchor the tether for rear-facing installations may vary. Use the rear-facing tether connector strap to assist in creating an anchor point. 1

Find a fixed location in the vehicle that is bolted to the floor. * If you cannot find a location to create an anchor point, contact the vehicle manufacturer to identify a tether connection point.

Route the strap through the anchor point.

Thread the metal D-ring through the loop on the end of the strap.

Pull the metal D-ring through until the strap is tight.

Use the D-ring as an attachment point for the tether.

NOTE: Store the tether connector strap in the tether pouch when not in use.

Child Seat Functions IMPORTANT: The Versa-Tether® carry clip is only for

use when you wish to carry the child seat between locations. Do not install the child seat with the VersaTether attached to the carry clip. Secure the excess Versa-Tether webbing in the elastic strap during use. Store the Versa-Tether in the storage pouch when not in use. Always ensure any excess webbing is contained within your vehicle.

To attach the Versa-Tether to the carry clip or tether anchor:

Pull the loose end of the webbing to remove slack from the Versa-Tether.

NOTE: When using as a carry strap, tighten until the strap is comfortable to carry.

To remove the Versa-Tether from the carry clip: a b

Remove the Versa-Tether® hook from the carry clip.

Child Seat Functions The Versa-Tether can indicate when the child seat has been in a moderate or severe crash (see page 4) and replacement of the child seat is necessary. Figure 1 shows a tether acceptable for continued use (provided the child seat has not been involved in a crash). The colored stitching will be intact but not visible from the back of the seat. Figures 2 and 3 show examples of when the tether has been damaged and is unacceptable for continued use. If one or both of the loops have pulled through the back of the shell and/or any of the colored stitching has ripped, the child seat is no longer acceptable for use. IMPORTANT: Discontinue use of child seat if it has been involved in a moderate or severe crash, regardless of whether the loops have pulled through the back side of the shell and the colored stitching has been ripped.

Rear-Facing Installation LUAS Installation Before You Begin: • Check that your vehicle has lower anchors. * Refer to your vehicle owner’s manual or contact the vehicle manufacturer for the maximum weight rating for their lower anchors. Use vehicle belt (not lower connectors) for installations with children who weigh more than the vehicle lower anchor limit. Unless specified otherwise by the vehicle manufacturer, assume a 18.1 kg (40 pound) child is the vehicle lower anchor limit. • Remove the lower connectors from the storage slots in the base. Press the adjuster release button and pull the strap to full length. Repeat for the second strap. • This child seat must be reclined to position 3 when installed rear-facing. * When properly installed in the rear-facing position, the back angle of the child seat should be at least 30˚ for children and up to 45˚ from vertical for infants unable to maintain head and neck control (not to exceed 45˚) when the car is parked on a level surface. Use the blue line as a guide to achieve the proper recline angle for rear-facing installations. The blue line will be parallel to the ground when the child seat angle is at the center of the angle range (30 – 45˚). If necessary, the proper recline angle can be achieved by placing a rolled towel or pool noodle in the vehicle seat bight. • Britax recommends that the Versa-Tether is used at all times. Using the tether will improve the stability of the child seat and reduce the risk of injury. Check your vehicle owner’s manual for tether anchor locations. See page 27 for possible rear-facing tether configurations.

Rear-Facing Installation

Install with LUAS as shown above.

Rear-Facing Installation Place the child seat on the vehicle seat. Firmly press the lower connectors onto the adjacent lower anchors.

• A click confirms attachment. • Verify that the lower connector strap is not twisted.

TIP: You may need to turn the front of the child seat toward you for easier access to the lower anchors.

NOTE: If a click is not heard when connecting either lower connector, the lower connector strap may be twisted, or there may be debris in the lower connector. Correct either situation before continuing with the installation process. 3

Push the child seat into the vehicle seat while pulling each lower connector strap to tighten. Rear-facing installations can be improved by the use of the Versa-Tether (see pages 26 – 29).

Rear-Facing Installation

Check that the child seat is reclined to position 3

Check that there is LESS than 2.5 cm (1 in.) of movement (front to back or side to side) at the belt path

Check lower connector attachments

Checklist 9 Check that all connections are secure. 9 Check that the lower connector straps are not twisted. 9 Check that the child seat cannot be moved front to back or side to side more than 2.5 cm (1 in.) at the belt path. If the child seat is not secure, repeat installation or use a different seating location. 9 Check that the back angle of the child seat is 30º – 45º from vertical (not to exceed 45º) when the car is parked on a level surface. * If necessary, the proper recline angle can be achieved by placing a rolled towel or pool noodle in the vehicle seat bight.

Rear-Facing Installation Lap-Shoulder Belt Installation Before You Begin: • Check that your vehicle belt is compatible for use with child seats. See pages 8 – 13 for more information. * If your vehicle seat belt system includes a locking feature, use of the lock-offs is not required as long as the vehicle seat belt system is locked. Check your vehicle owner’s manual to determine how to lock your vehicle seat belt system when installing a child restraint.

• This child seat must be reclined to position 3 when installed rear-facing. * When properly installed in the rear-facing position, the back angle of the child seat should be at least 30˚ for children and up to 45˚ from vertical for infants unable to maintain head and neck control (not to exceed 45˚) when the car is parked on a level surface. Use the blue line as a guide to achieve the proper recline angle for rearfacing installations. The blue line will be parallel to the ground when the child seat angle is at the center of the angle range (30 – 45˚). If necessary, the proper recline angle can be achieved by placing a rolled towel or pool noodle in the vehicle seat bight.

• Britax recommends that the Versa-Tether is used at all times. Using the tether will improve the stability of the child seat and reduce the risk of injury. Check your vehicle owner’s manual for tether anchor locations. See page 27 for possible rear-facing tether configurations.

Rear-Facing Installation

Install with lap-shoulder belt as shown above.

IMPORTANT: The harness buckle strap should lie toward the back of the child seat during installation.

Rear-Facing Installation 1

a Lift harness adjuster lever b Pull both harness straps forward

Remove the body pillow, unbuckle the harness, and remove the belly pad. Lift back cover, then pull seat cover forward while pulling the buckle through to access the rearfacing belt path. Open the blue lock-off closest to where the vehicle belt will be buckled.

a Pull the locking tab up b Pull the clamp down

Route the vehicle belt through the rear-facing belt slots, then buckle.

LOCKING TAB CLAMP TIP: Ensure the vehicle belt is not twisted. Remove excess slack from the bottom (lap) part of the vehicle belt before closing the lock-offs.

Ensure that both parts of the vehicle belt are routed through the lock-off, then close the lock-off.

a Push the clamp up b Push the middle of the locking tab down until locked

Push the child seat into the vehicle seat while pulling the top (shoulder) part of the belt between the belt slots (pull away from the buckle) to remove slack.

TIP: The shoulder part of the vehicle belt must be on top when removing slack.

Rear-Facing Installation 8

Pull slack through the lock-off toward the vehicle belt retractor.

Rear-facing installations can be improved by the use of the VersaTether (see page 26 – 29).

10 Replace the cover and belly pad.

Check that the child seat is reclined to position 3

Check that there is LESS than 2.5 cm (1 in.) of movement (front to back or side to side) at the belt path Check buckle connection

Checklist 9 Check that the vehicle belt is securely fastened.

9 Check that the child seat cannot be moved front to back or side to side more than 2.5 cm (1 in.) at the belt path. If the child seat is not secure, repeat installation or use a different seating location. 9 Check that the back angle of the child seat is 30º – 45º from vertical (not to exceed 45º) when the car is parked on a level surface. * If necessary, the proper recline angle can be achieved by placing a rolled towel or pool noodle in the vehicle seat bight.

Rear-Facing Installation Lap Belt Installation Before You Begin: • Check that your vehicle belt is compatible for use with child seats. See pages 8 – 13 for more information. • This child seat must be reclined to position 3 when installed rear-facing. * When properly installed in the rear-facing position, the back angle of the child seat should be at least 30˚ for children and up to 45˚ from vertical for infants unable to maintain head and neck control (not to exceed 45˚) when the car is parked on a level surface. Use the blue line as a guide to achieve the proper recline angle for rearfacing installations. The blue line will be parallel to the ground when the child seat angle is at the center of the angle range (30 – 45˚). If necessary, the proper recline angle can be achieved by placing a rolled towel or pool noodle in the vehicle seat bight.

• Britax recommends that the Versa-Tether is used at all times. Using the tether will improve the stability of the child seat and reduce the risk of injury. Check your vehicle owner’s manual for tether anchor locations. See page 27 for possible rear-facing tether configurations.

Rear-Facing Installation

Install with lap belt as shown above.

IMPORTANT: The harness buckle strap should lie toward the back of the child seat during installation.

Rear-Facing Installation 1

a Lift harness adjuster lever b Pull both harness straps forward

Remove the body pillow, unbuckle the harness, and remove the belly pad.

Lift back cover, then pull seat cover forward while pulling the buckle through to access the rearfacing belt path.

Route the vehicle seat belt through the rear-facing belt slots, then buckle. TIP: Ensure the vehicle belt is not twisted. 4

Push the child seat into the vehicle seat while removing slack (see pages 8 – 11).

Rear-facing installations can be improved by the use of the VersaTether (see page 26 – 29).

Replace the cover and belly pad.

Rear-Facing Installation

Check that the child seat is reclined to position 3

Check that there is LESS than 2.5 cm (1 in.) of movement (front to back or side to side) at the belt path Check buckle connection

Checklist 9 Check that the vehicle belt is securely fastened. 9 Check that the child seat cannot be moved front to back or side to side more than 2.5 cm (1 in.) at the belt path. If the child seat is not secure, repeat installation or use a different seating location. 9 Check that the back angle of the child seat is 30º – 45º from vertical (not to exceed 45º) when the car is parked on a level surface. * If necessary, the proper recline angle can be achieved by placing a rolled towel or pool noodle in the vehicle seat bight.

Forward-Facing Installation LUAS Installation

Before You Begin: • Check that your vehicle has lower anchors.

* Refer to your vehicle owner’s manual or contact the vehicle manufacturer for the maximum weight rating for their lower anchors. Use vehicle belt (not lower connectors) for installations with children who weigh more than the vehicle lower anchor limit. Unless specified otherwise by the vehicle manufacturer, assume a 18.1 kg (40 pound) child is the vehicle lower anchor limit.

• Remove the lower connectors from the storage slots in the base. Press the adjuster release button and pull the lower connector strap to full length. Repeat for the second strap. • Remove the Versa-Tether from the pouch and place it up and over the child seat back.

* The Versa-Tether must be used at all times. Using the tether will improve the stability of the child seat and reduce the risk of injury. Check your vehicle owner’s manual for tether anchor locations. Only attach the Versa-Tether to anchor points designated to the chosen seating position as indicated by your vehicle owner’s manual.

• Select position 1 or 2 and place the child seat forwardfacing on the vehicle seat.

* Ensure that no more than 20% or 7.6 cm (3 inches) of the base hangs over the edge of the vehicle seat. See pages 22 – 23 for more information.

Forward-Facing Installation

Install with LUAS as shown above.

• Your child seat may not perform as intended if the base of the child seat is not flat on the vehicle seat. • This child seat must not be used forward-facing for children less than one year of age OR who weigh less than 9.1 kg (20 lbs). 43

Forward-Facing Installation 1 2

Place the child seat on the vehicle seat. Firmly press the lower connectors onto the adjacent lower anchors.

• A click confirms attachment. • Verify that the lower connector strap is not twisted. TIP: You may need to turn the back of the child seat toward you for easier access to the vehicle lower anchors. NOTE: If a click is not heard when connecting either lower connector, the lower connector strap may be twisted, or there may be debris in the lower connector. Correct either situation before continuing with the installation process. 3 Push the child seat into the

vehicle seat while pulling each lower connector strap to tighten.

Attach the Versa-Tether to a designated anchor (see vehicle owner’s manual) and remove slack. Store excess webbing in the elastic strap.

Forward-Facing Installation

Check Versa-Tether® (Top Tether) attachment

Check that no more than 20% or 7.6 cm (3 inches) of the base hangs over the edge of the vehicle seat

Check that there is LESS than 2.5 cm (1 in.) of movement (front to back or side to side) at the belt path

Check that Versa-Tether® (Top Tether) webbing is stored in the elastic strap

Check lower connector attachments

Checklist 9 Check that all connections are secure. 9 Check that the lower connector straps are not twisted. 9 Check that no more than 20% or 7.6 cm (3 inches) of the base hangs over the edge of the vehicle seat. 9 Check that the child seat cannot be moved front to back or side to side more than 2.5 cm (1 in.) at the belt path. If the child seat is not secure, repeat installation or use a different seating location. 9 Check that any excess Versa-Tether® webbing is contained within your vehicle and secured in the elastic strap. 45

Forward-Facing Installation Lap-Shoulder Belt Installation Before You Begin: • Check that your vehicle belt is compatible for use with child seats. See pages 8 – 13 for more information. * If your vehicle seat belt system includes a locking feature, use of the lock-offs is not required as long as the vehicle seat belt system is locked. Check your vehicle owner’s manual to determine how to lock your vehicle seat belt system when installing a child restraint.

• Remove the Versa-Tether from the pouch and place it up and over the child seat back.

* The Versa-Tether must be used at all times. Using the tether will improve the stability of the child seat and reduce the risk of injury. Check your vehicle owner’s manual for tether anchor locations. Only attach the Versa-Tether to anchor points designated to the chosen seating position as indicated by your vehicle owner’s manual.

• Select position 1 or 2 and place the child seat forwardfacing on the vehicle seat.

* Ensure that no more than 20% or 7.6 cm (3 inches) of the base hangs over the edge of the vehicle seat. See pages 22 – 23 for more information.

Forward-Facing Installation

Install with lap-shoulder belt as shown above.

• Your child seat may not perform as intended if the base of the child seat is not flat on the vehicle seat. • This child seat must not be used forward-facing for children less than one year of age OR who weigh less than 9.1 kg (20 lbs). 47

Forward-Facing Installation 1

a Lift harness adjuster lever b Pull both harness straps forward

Remove the body pillow and unbuckle the harness.

Lift back cover, then pull seat cover forward to access the forward-facing belt path. Open the red lock-off closest to where the vehicle belt will be buckled.

a Pull the locking tab up b Pull the clamp down

Route the vehicle belt through the forward-facing belt slots, then buckle.

TIP: Ensure the vehicle belt is not twisted. Remove excess slack from the bottom (lap) part of the vehicle belt before closing the lock-offs.

Ensure that both parts of the vehicle belt are routed through the lock-off, then close the lock-off.

a Push the clamp up b Push the middle of the locking tab down until locked

Push the child seat into the vehicle seat while pulling the top (shoulder) part of the belt between the belt slots (pull away from the buckle) to remove slack.

TIP: The shoulder part of the vehicle belt must be on top when removing slack.

Forward-Facing Installation Pull slack through the belt slot toward the vehicle belt retractor. 9 Attach the Versa-Tether to a designated anchor (see vehicle owner’s manual) and remove slack. 10 Store excess webbing in the elastic strap. 11 Replace the cover. 8

Check Versa-Tether® (Top Tether) attachment

Check that no more than 20% or 7.6 cm (3 inches) of the base hangs over the edge of the vehicle seat

Check that there is LESS than 2.5 cm (1 in.) of movement (front to back or side to side) at the belt path

Check that Versa-Tether® (Top Tether) webbing is stored in the elastic strap

Check buckle connection

Checklist 9 Check that the vehicle belt is securely fastened. 9 Check that no more than 20% or 7.6 cm (3 inches) of the base hangs over the edge of the vehicle seat 9 Check that the child seat cannot be moved front to back or side to side more than 2.5 cm (1 in.) at the belt path. If the child seat is not secure, repeat installation or use a different seating location. 9 Check that any excess Versa-Tether® webbing is contained within your vehicle and secured in the elastic strap. 49

Forward-Facing Installation Lap Belt Installation Before You Begin: • Check that your vehicle belt is compatible for use with child seats. See pages 8 – 13 for more information. • Remove the Versa-Tether from the pouch and place it up and over the child seat back. * The Versa-Tether must be used at all times. Using the tether will improve the stability of the child seat and reduce the risk of injury. Check your vehicle owner’s manual for tether anchor locations. Only attach the Versa-Tether to anchor points designated to the chosen seating position as indicated by your vehicle owner’s manual.

• Select position 1 or 2 and place the child seat forwardfacing on the vehicle seat.

* Ensure that no more than 20% or 7.6 cm (3 inches) of the base hangs over the edge of the vehicle seat. See pages 22 – 23 for more information.

Forward-Facing Installation

Install with lap belt as shown above.

• Your child seat may not perform as intended if the base of the child seat is not flat on the vehicle seat. • This child seat must not be used forward-facing for children less than one year of age OR who weigh less than 9.1 kg (20 lbs). 51

Forward-Facing Installation 1

a Lift harness adjuster lever b Pull both harness straps forward

Remove the body pillow and unbuckle the harness.

Lift back cover, then pull seat cover forward to access the forward-facing belt path.

Route the vehicle seat belt through the forward-facing belt slots, then buckle.

TIP: Ensure the vehicle belt is not twisted.

Push the child seat into the vehicle seat while removing slack (see pages 8 – 11). Attach the Versa-Tether to a designated anchor (see vehicle owner’s manual) and remove slack. Store excess webbing in the elastic strap. Replace the cover.

Forward-Facing Installation

Check Versa-Tether® (Top Tether) attachment

Check that no more than 20% or 7.6 cm (3 inches) of the base hangs over the edge of the vehicle seat

Check that there is LESS than 2.5 cm (1 in.) of movement (front to back or side to side) at the belt path

Check that Versa-Tether® (Top Tether) webbing is stored in the elastic strap

Check buckle connection

Checklist 9 Check that the vehicle belt is securely fastened. 9 Check that no more than 20% or 7.6 cm (3 inches) of the base hangs over the edge of the vehicle seat 9 Check that the child seat cannot be moved front to back or side to side more than 2.5 cm (1 in.) at the belt path. If the child seat is not secure, repeat installation or use a different seating location. 9 Check that any excess Versa-Tether® webbing is contained within your vehicle and secured in the elastic strap.

Aircraft Installation This child seat is certified for aircraft use. Most airlines in Canada and the U.S. will allow the use of a child seat as long as it is labeled as an approved child seat for use in aircraft and fits properly on the aircraft seat. Contact the airline about their policy prior to traveling. The FAA recommends that a child weighing up to 18.1 kg (40 lbs) use a certified, harnessed child seat while traveling on an aircraft. Install your child seat in a window seat to avoid blocking the aisle. Rear-Facing Installation For rear-facing aircraft installation (Fig. A), follow Rear-Facing Lap Belt Installation instructions on pages 38 – 41. Forward-Facing Installation For forward-facing aircraft installation (Fig. B), follow Forward-Facing Lap Belt Installation instructions on pages 50 – 53.

A If the aircraft lap belt is too short, ask a flight attendant for a belt extender. NOTE: Your child may experience discomfort if the buckle is located in the seating area of the child seat after installation.

WARNING! • Adjust the belts provided with this child seat so they fit snugly around your child. A snug strap should not allow any slack. It lies in a relatively straight line without sagging. It does not press on the child’s flesh or push the child’s body into an unnatural position. • Adjust the harness to fit the clothes the child is wearing. Remove bulky coats and/or jackets before putting the child in the child seat. • Verify that the child seat is secure and the harness is properly adjusted around the child each time the child seat is used.

Before You Begin: • Follow the instructions on pages 16 – 19 to make the proper adjustments to the harness and buckle.

* Rear-facing 2.3 and 18.1 kg (5 – 40 lbs) position 3 only. * Forward-facing 9.1 and 24.9 kg (20 – 55 lbs) AND 1 year of age. Position 1 or position 2 may be used.

Securing Your Child Loosen the harness.

a Lift harness adjuster lever b Pull both harness straps forward

Open the chest clip.

a Press tabs b Pull apart

Release the buckle and attach the harness straps to the harness holders.

Place the child in the child seat. * Ensure the child is positioned upright in the child seat and not slouching. Their bottom must touch the child seat, and their back must rest flat against the back of the child seat.

Position the harness straps around the child. Fasten the harness buckle.

* Proper connection is confirmed with an audible click after inserting each buckle tongue.

Check for proper harness height, and remove all slack from the lap part of harness before tightening. Pull the harness adjuster strap to tighten the harness. * The harness should have a comfortable but snug fit around the child. A snug strap should not allow any slack. It lies in a relatively straight line without sagging. It does not press on the child’s flesh or push the child’s body into an unnatural position. You should not be able to pinch excess.

Pull the harness adjuster away from the child seat (parallel to the ground) to tighten. Do not pull sideways.

Fasten the chest clip. * The correct height for the chest clip is at the middle of the chest at armpit level.

Checklist Before traveling, verify that the: 9 Harness straps are not twisted. 9 Harness is snug. 9 Buckle is fastened. 9 Chest clip is at the child’s armpit level. 57

Care and Maintenance Cover Removal

WARNING! Never remove the buckle tongues from the harness. They cannot be reattached after removal. If reassembled incorrectly, the child seat may not perform as intended.

a Lift release lever b Pull both harness straps forward 1a

Open the chest clip.

a Press tabs b Pull apart

Unbuckle the harness.

Remove the infant body pillow if necessary. Remove the belly pad from the harness buckle.

a Pull the buckle through the belly pad b Remove the elastic strap from around the buckle 58

Care and Maintenance 6

Unhook both harness straps from the yoke.

Pull the harness straps through the shell and cover to the front of the child seat.

Detach the plastic hooks from the bottom edge of the child seat.

Pull the buckle through the slot in the cover.

Care and Maintenance 10 Remove the cover from the

Cleaning the Cover • HAND WASH the cover using cold water and mild soap. • LINE DRY to prevent the cover from shrinking. • DO NOT: * * * *

Cleaning the Shell • SPONGE CLEAN the shell using warm water and mild soap. • TOWEL DRY • DO NOT use abrasive cleaners 60

Care and Maintenance Cover Replacement 1

Fit the child seat cover around the child seat shell. 1

Attach the plastic hooks to the bottom edge of the child seat.

Pull the buckle through the slot in the cover. * Ensure that the buckle is through the correct cover slot for the buckle position.

Feed each harness strap through the desired harness slots in the cover and shell to the back of the child seat.

Care and Maintenance 5

Nest the harness straps by inserting the right strap loop into the left strap loop.

Before reattaching the harness straps to the yoke, hold the harness yoke as shown, and ensure that the adjuster strap attached to the yoke is not twisted.

Slide nested harness straps completely onto the harness yoke.

Replace the belly pad.

a Pull the elastic strap around the buckle b Push the buckle through the belly pad a

Care and Maintenance Cleaning the Buckle If your child eats and drinks while in the child seat, you will need to check the buckle periodically and rinse out any accumulated debris. Remove the Buckle

Unbuckle the harness. Remove the belly pad and pull the buckle through the cover.

Guide the buckle retainer up through the slot in the child seat shell to remove.

Turn the buckle webbing and slide it between buckle positions.

To Clean: • THOROUGHLY RINSE the buckle using warm water. • TEST THE BUCKLE by fastening and unfastening until a click is heard after inserting each buckle tongue. If clicks are not heard, repeat the cleaning procedure. • TOWEL DRY • DO NOT: * * * *

Soak Lubricate Use solvents Use soap or household detergents

Care and Maintenance Re-thread the Buckle IMPORTANT:

• ALWAYS position the buckle in the ADJUSTMENT inner slot for rear-facing use. SLOT • The vehicle belt must pass in front of the buckle strap for rear-facing use. • NEVER leave the buckle in the adjustment slot. • Use the outer buckle slot when installing the child seat forwardfacing with a child weighing 13.6 kg (30 lbs) and above or if the buckle is under the child in the inner position.

Guide the buckle retainer down through the slot in the child seat shell.

Select the appropriate slot for the size of your child and turn the buckle webbing and slide it into the chosen slot. Ensure that the buckle strap is not twisted and that the button faces out.

Slide the buckle webbing into the slot between buckle positions.

Tips and Troubleshooting Troubleshooting Problem: The harness is hard to adjust. Possible Solution: The yoke may be caught on the Versa-Tether® webbing or other component of the child seat. Remove the obstruction and try adjusting the harness again. Always store the Versa-Tether in the pouch provided when not in use. When the Versa-Tether is in use, always secure excess webbing in the elastic strap. See pages 26 – 29. Problem: The adjuster strap is fraying at the sides. Possible Solution: Pull the harness adjuster strap away from the child seat (parallel to the ground) to tighten. Do not pull sideways. Doing so may cause the harness adjuster strap to fray at the sides. See page 57. Problem: The buckle will not fasten with a click after each tongue is inserted. Possible solution: There may be debris in the buckle mechanism. Clean the buckle as shown on page 63 and try fastening the buckle again. Please contact Consumer Services at 1.888.427.4829 if you have an issue not listed here.

Warranty This child seat was manufactured by Britax Child Safety, Inc. Britax® warrants this product to the original retail purchaser as follows:

LIMITED ONE-YEAR WARRANTY This product is warranted against defective materials or workmanship for one year from the date of original purchase. Proof of purchase is required. Your exclusive remedy for this warranty is that Britax will, at its option, provide repair or replacement components for this product. Britax reserves the right to discontinue or change fabrics, parts, models or products, or to make substitutions. To make a claim under this warranty, you must contact Britax Consumer Services at 1-888-427-4829 or write to us using the address on the back cover of this booklet.

PLEASE COMPLETE AND MAIL THE OWNER REGISTRATION CARD WITHIN (30) DAYS OF PURCHASE You may also register online at www.Britax.ca/registration.

WARRANTY LIMITATIONS This warranty does not include damages which arise from negligence, misuse or use not in accordance with the product instruction. The use of non-Britax Child Safety, Inc. covers, inserts, toys, accessories, or tightening devices is not approved by Britax. Their use could cause this child seat to fail Federal Motor Vehicle Safety Standards or not perform as intended in a crash. Their use automatically voids the Britax warranty.

LIMITATION OF DAMAGES The warranty and remedies as set forth above are exclusive and in lieu of all others, oral or written, express or implied. In no event will Britax, or the retailer selling this product, be liable to you for any damages, including incidental or consequential damages, arising out of the use or inability to use this product.

LIMITATIONS OF WARRANTIES AND OTHER WARRANTY TERMS AND PROVINCIAL LAWS Any implied warranties, including implied warranties of merchantability and fitness for a particular purpose, shall be limited to the duration and terms of the express written warranty. Some provinces do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you may have other rights, which vary from province to province. Neither Britax, nor the retailer selling this product, authorizes any person to create for it any other warranty, obligation, or liability in connection with this product.

reclined to position 3
