Product Type	Steam Iron
Brand	BRAUN
Model	TEXSTYLE 760
Power Supply	220-240 V, 50/60 Hz
Temperature Control	Yes, with selector and indicator light
Steam Control	Continuous from 0 to 6
Precision Shot Function	Yes, powerful steam burst for thick fabrics and vertical ironing
Spray Function	Yes, to dampen fabrics
Textile Protector	Yes, included accessory to protect delicate fabrics
Dry Ironing	Yes, by setting the steam control to 0
Anti-Calc System	Removable anti-calc stick, clean with vinegar or lemon juice
Auto-off	No (available on models 770 and 780)
Vertical Ironing	Yes, with the Precision Shot function
Warranty	2 years
Maintenance	Cleaning the anti-calc stick and descaling the vaporization chamber
Included Accessories	Textile Protector
Safety	Unplug before filling, do not immerse, use on a stable surface
Spare parts and repairability	Braun Authorized Service Center, repairs by qualified personnel

Frequently Asked Questions - TEXSTYLE 760 BRAUN

How to use the Precision Shot function?

Before use, press the Precision Shot button 3 to 4 times to activate it. Then press with intervals of at least 5 seconds to obtain a powerful steam burst. The temperature selector must be in the full red zone. This function can also be used in the vertical position to de-wrinkle hanging garments.

What to do if steam is weak or not present?

Check the water level in the tank and clean the anti-calc stick if necessary. If the problem persists, descale the vaporization chamber.

How to clean the anti-calc stick?

Turn the steam control clockwise to position 6, then continue turning firmly to lift it. Remove the stick vertically and immerse it in vinegar (not concentrated vinegar) or lemon juice for at least 30 minutes. Scrub off residues, rinse with water, and reinstall by orienting the control to ●.

Can I use distilled water alone?

No, never use distilled water alone. If your water is very hard, mix 50% tap water and 50% distilled water. Do not add other chemicals.

Does the iron have an auto-off?

No, the TEXSTYLE 760 model is not equipped with the auto-off function. This is only available on models 770 and 780.

How to use the Textile Protector?

Attach the Textile Protector accessory to the soleplate and wait about 1 minute 30 before starting to iron. Set the temperature to the full red zone to use all steam functions. Avoid ironing over zippers, metal buttons, or rivets to avoid damaging the coating.

What to do if water droplets come out of the soleplate?

Turn the steam control counterclockwise to reduce steam flow or stop steam. Use the Precision Shot function at longer intervals and select a higher temperature.

How to descale the vaporization chamber?

Follow the instructions in diagram I of the manual. Turn the control past 6 to release hot water and steam. Let the soleplate cool, clean it, then fill the tank with water, heat the iron, and press the Precision Shot button 4 times to rinse.

Can I iron hanging garments?

Yes, use the Precision Shot function in vertical position. Hold the iron vertically and press the Precision Shot button to send a powerful steam burst onto hanging garments.

What is the warranty of this iron?

Braun offers a 2-year warranty from the date of purchase, covering manufacturing defects. For any claim, return the device with the warranty certificate to your retailer or to a Braun Authorized Service Center.

USER MANUAL TEXSTYLE 760 BRAUN

HK 852-25249377 (Audio Supplies Company Ltd.)

Internet:

www.braun.com

www.service.braun.com

Braun GmbH

E Textile Protectors ⑪/⑫

F

G

H
Cleaning the anti-calc valve

|
Anticalc system

Deutsch

Our products are engineered to meet the highest standards of quality, functionality and design. We hope you enjoy your new Braun steam iron.

Important Safeguards

• Before using the iron, read the use instructions completely. Keep the use instructions during the entire life of the appliance.
• Make sure your voltage corresponds to the voltage printed on the iron.
• Caution: Due to the high power of this steam iron please make sure that your mains supply is sufficient. Please contact your local electric power company to make sure that the so called mains impedance is not higher than 0.31 Ohm.
  • Always unplug the iron before filling with water. Always pull the plug, not the cord.
• The cord should never come in contact with hot objects or the sole plate.
• Never immerse the iron in water or other liquids.
• The iron must be used and rested on a stable surface.
• During ironing pauses, always place the iron upright on its heel rest and ensure that the heel rest is placed on a stable surface.
• The iron must not be left unattended while it is connected to the mains supply.
• This appliance is not intended for use by children or persons with reduced physical, sensory or mental capabilities, unless they are given supervision by a person responsible for their safety.
• Keep the iron away from children, especially when using the precision shot function. Electric irons combine high temperatures and hot steam that could lead to burns.
• Never iron or dampen clothes while wearing them.
• The iron is not to be used if it has dropped, if there are visible signs of damage or if it is leaking. Regularly check the cord for damage.
• If the appliance (including cord) shows any defect, stop using it and take it to a Braun Service Centre for repair. Faulty or unqualified repair work may cause accidents or injury to the user. Braun electric appliances meet applicable safety standards.

A Description

1 Preconditioning nozzles
2 Spray nozzle
3 Water tank opening
4 Precision shot button
5 Spray button
6 Steam regulator

7 Temperature selector
8 Temperature pilot light
9 «auto-off» light (only with 780 and 770 models)
10 Heel rest
11 Textile Protector (only with 780, 770 and 760 models)
12 Soft Textile Protector (only with 780 model)

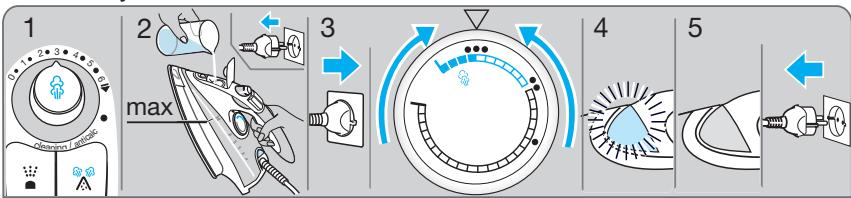

B Before starting off

This iron is designed for tap water. If you have extremely hard water, we recommend that you use a mixture of 50 % tap water and 50 % distilled water. Fill the water tank to «max» marking. Never use distilled water exclusively. Do not add any additives (e.g. starch). Do not use condensation water from a tumble dryer.

• Before filling with water, turn off the steam regulator (6) («0» = steam off).
• Holding the iron slightly inclined (as shown in B), fill the water tank up to the «max» marking.
• Place the iron upright on its heel rest and connect it to the mains.
  Select the temperature according to the ironing guide on the heel rest of the iron or on the label in your garments.
  The pilot light (8) goes off when the desired temperature is reached (after approx. 1 1/2 min.).

C Ironing

Vario steam

You can select the steam quantity by turning the steam regulator (6) in a range from «0» to «6». The temperature selector (7) has to be set within the red range.

We recommend a medium steam setting for all normal ironing. Only when ironing linen, thick cotton or similar fabrics we recommend the maximum steam setting.

Notice: While ironing, do not turn the steam regulator beyond setting «6».

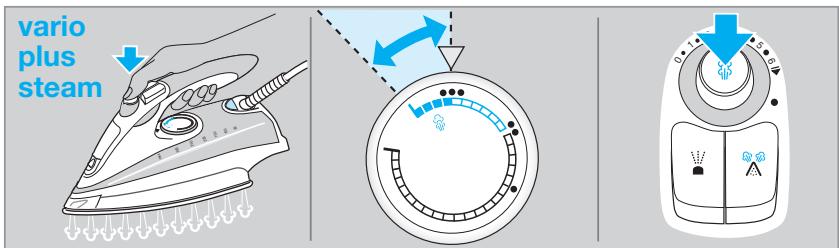

Vario plus steam

For extra steam, press the steam regulator (6) for max. 30 seconds.

The temperature selector (7) has to be set within the solid red range.

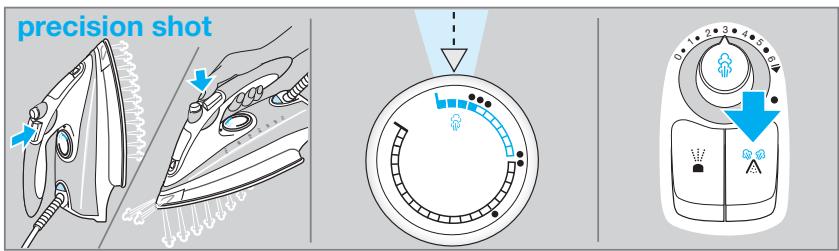

Precision shot

Prior to use, press the precision shot button (4) 3 to 4 times to activate it. Press the precision shot button in intervals of at least 5 seconds for a powerful steam shot with preconditioning steam. Precision shot can be activated when dry ironing. However, the temperature selector has to be within the solid red range.

The precision shot function can also be used in the vertical position for steaming hanging clothes.

Caution: Hot steam comes out from the preconditioning nozzles.

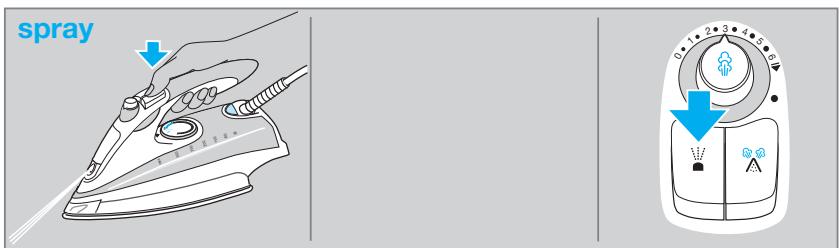

Spray function

Press the spray button (5).

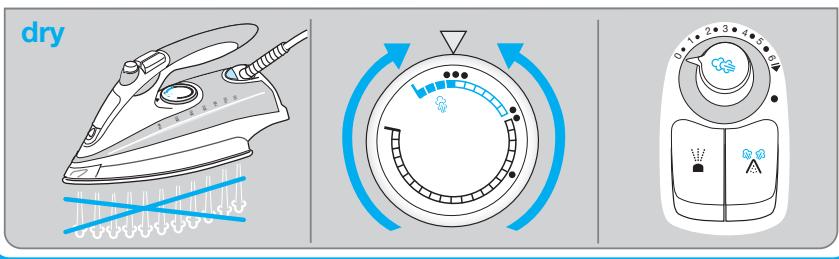

Dry ironing

Set the steam regulator (6) on position «0» (= steam off).

D Automatic shut-off

(780 and 770 models only)

The «auto-off» mechanism causes a slight rattling noise during ironing. This is normal and in no case indicates a fault of the iron. The red «auto-off» light (9) will flash when the automatic shut-off is activated.

This happens when the iron has rested

- horizontally on its sole plate for about 30 seconds or

- vertically on its heel rest for about 8 minutes.

To turn on the iron again, just move it. When the «auto-off» pilot light stops flashing, the electrical power is on again. The automatic shut-off will be activated approximately 2 minutes after the iron is plugged into a socket.

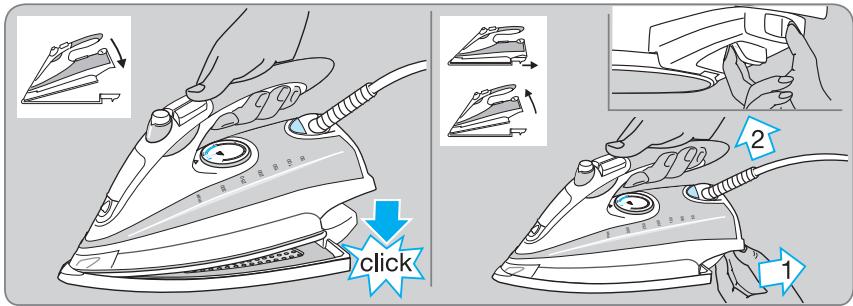

E Textile Protectors

Textile Protector (11) (only with 780, 770 and 760 models)

The Textile Protector protects delicate fabrics from heat damage so that you can iron most fabrics without an intermediate cloth. A special coating avoids shiny patches.

With the Textile Protector, you are able to iron delicate fabrics with the temperature setting within the solid red range so that you can use all steam functions your iron offers.

To check the reaction of your fabrics before you start ironing, we recommend that you iron a small section of material on the reverse side. However, in order not to damage the coating, avoid ironing over e.g. zippers, metal buttons/rivets or strass with the Textile Protector attached.

After having attached the Textile Protector, wait about 1 1/2 minutes before you start ironing.

Soft Textile Protector (12) (only with 780 model)

The Soft Textile Protector ensures an increased heat protection and utmost care for most delicate fabrics thanks to its specially designed SoftTouch cushion. Even most delicate, ironable* fabrics are protected against heat damage and shiny patches are avoided.

With the Soft Textile Protector attached, you can iron all ironable fabrics without an intermediate cloth. The Soft Textile Protector is perfectly suited for touching up e.g. creases of delicate business suits without having to use an ironing cloth.

With the Soft Textile Protector, you are able to iron delicate fabrics with the temperature setting within the solid red range so that you can use all steam functions your iron offers.

However, in order not to damage the SoftTouch cushion, avoid ironing over e.g. zippers, metal buttons/rivets or strass with the Soft Textile Protector attached.

(* in order to know whether a piece of garment is ironable, please refer to its care label.)

F After ironing

Unplug the iron and turn the steam regulator to position «0». To prolong the life of the iron, empty the water tank. Store the cool iron in a dry place always standing on its heel rest.

G Maintenance and cleaning

To clean the sole plate, use steel wool. Never use a scouring pad, vinegar or other chemicals. To clean the soft material on the handle, use soapy water.

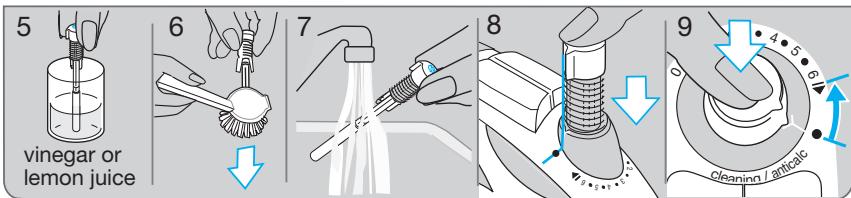

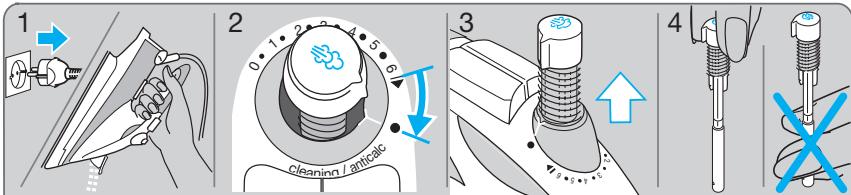

H Cleaning the anticalc valve

The anticalc valve located on the lower end of the steam regulator has to be decalcified regularly (e.g. whenever steam development is insufficient). For this, the water tank has to be empty.

Removing the steam regulator with the anticalc valve

Turn the steam regulator clockwise towards the steam setting «6». Keep on turning firmly beyond the resistance until the steam regulator is lifted. When positioned at ●, pull it out vertically. Do not touch the anticalc valve at its lower end. Immerse the anticalc valve in vinegar (not vinegar essence) or lemon juice for a minimum of 30 minutes. Brush off remaining residues and rinse under running water (fig. H, 1-7).

Re-inserting the steam regulator When re-inserting the steam regulator, make sure the steam regulator base still points on setting ● (fig. H, 8). Firmly push down the steam regulator until it turns back to setting «6» (fig. H) where it catches.

Notice: The iron must never be used without steam regulator.

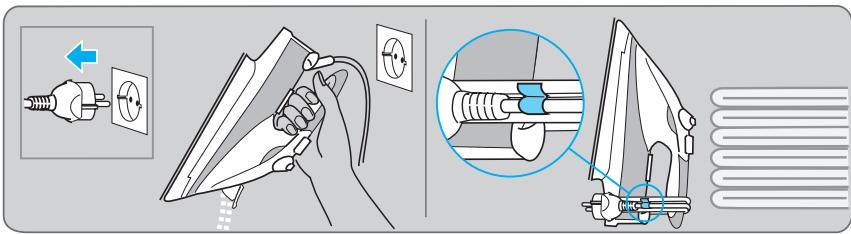

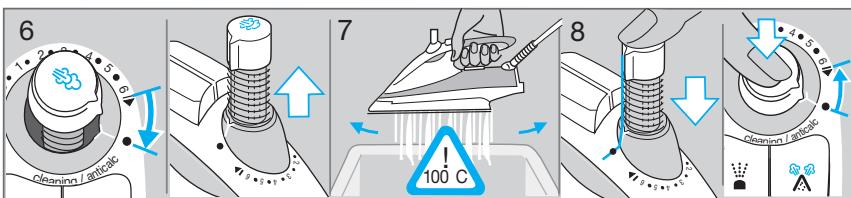

I Decalcifying/anticalc system

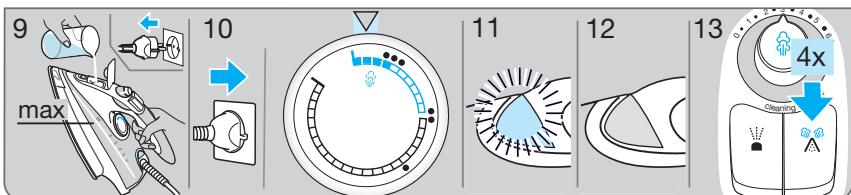

In order to clean the steam chamber from residues, decalcify it as shown in picture section I, 1-8.

Caution: Hot water and steam will come out from the sole plate when the steam regulator is turned clockwise beyond setting «6».

Wait for the sole plate to cool down, then clean it as described above. Then refill the tank with water, heat up the iron and press the precision shot button 4 times to rinse the iron before ironing (fig. I, 9-13).

Do not use commercial decalcifiers, they may damage the iron.

Trouble-shooting guide

Problem	Remedy
Drops coming out of the steam vents.	Turn the steam regulator anti-clock-wise to reduce the steam or turn it off.Take longer intervals when pressing the precision shot button.Select a higher temperature setting.
Less steam develops or no steam at all.	Check water level.Clean the anticalc valve.
Calcium particles coming through the steam vents.	Decalcify the steam chamber.

Subject to change without notice.

This product conforms to the European Directives EMC 2004/108/EC and Low Voltage 2006/95/EC.

Please do not dispose of the product in the household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country.

Guarantee

We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance.

The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre.

For UK only:

This guarantee in no way affects your rights under statutory law.

Français

[e-mail]

Ελληνικά

Country of origin: Hungary

Year of manufacture

To determine the year of manufacture, refer to the 3-digit production code located near the type plate. The first digit of the production code refers to the last digit of the year of manufacture. The next two digits refer to the calendar week in the year of the manufacture.

Example: “538” – The product was manufactured in week 38 of 2005.
