004-951 - Screwdriver Meec Tools - Free user manual and instructions

Product Type	Cordless Screwdriver
Model	004-951
Brand	Meec Tools
Power Source	Li-ion Battery, 3.6 V
Battery Capacity	1.5 Ah
Charging Time	Approx. 3-5 hours
No-Load Speed	0-200 rpm
Max Torque	4.5 Nm
Chuck Size	6.35 mm (1/4 inch) hex
Dimensions (L x W x H)	Approx. 200 x 45 x 50 mm
Weight	Approx. 300 g (with battery)
Material	Plastic housing with rubberized grip
Forward/Reverse Rotation	Yes, with slider switch
LED Work Light	Yes, integrated
Bit Holder	Integrated magnetic bit holder
Accessories Included	Charger, 10 screwdriver bits, storage case
Safety Features	Overload protection, soft grip for control
Maintenance	Keep clean, store in dry place, charge regularly
Repairability	Spare battery and charger available; no user-serviceable parts
Warranty	2 years

Frequently Asked Questions - 004-951 Meec Tools

How do I charge the screwdriver?

Connect the charger to the battery pack and plug into a standard outlet. The LED indicator will show red while charging and green when fully charged. Charging time is approximately 3-5 hours.

What type of bits does this screwdriver use?

It uses 1/4 inch (6.35 mm) hex shank bits. A set of 10 bits is included in the package.

How do I change the rotation direction?

Use the forward/reverse slider switch located near the trigger. Slide it to the left for clockwise (screwing) and to the right for counterclockwise (unscrewing).

What should I do if the screwdriver stops working?

Check if the battery is charged. If the battery is fully charged but the tool does not run, it may be overheated. Allow it to cool for 15 minutes. If the problem persists, contact customer support.

Can I use this screwdriver for drilling?

No, this is a dedicated screwdriver and not intended for drilling. It has a low torque and speed suitable only for driving screws.

How do I clean and maintain the screwdriver?

Wipe the exterior with a dry cloth. Do not use water or cleaning solvents. Store in a dry place. For the battery, charge it at least every 3 months to prolong life.

Is the battery replaceable?

Yes, the battery pack is removable and can be replaced with a compatible Meec Tools battery (same voltage and connector). Contact customer service for spare parts.

What safety precautions should I take?

Always wear safety glasses. Keep hands away from moving parts. Disconnect battery when changing bits. Do not use the tool in wet conditions. Read the full manual for detailed safety instructions.

Does the screwdriver have a work light?

Yes, it features an integrated LED work light above the chuck. The light turns on automatically when the trigger is pressed.

Where can I download the user manual?

The full user manual is available for free download on notice-facile.com. Simply search for 'Meec Tools 004-951' and select your language.

USER MANUAL 004-951 Meec Tools

004951

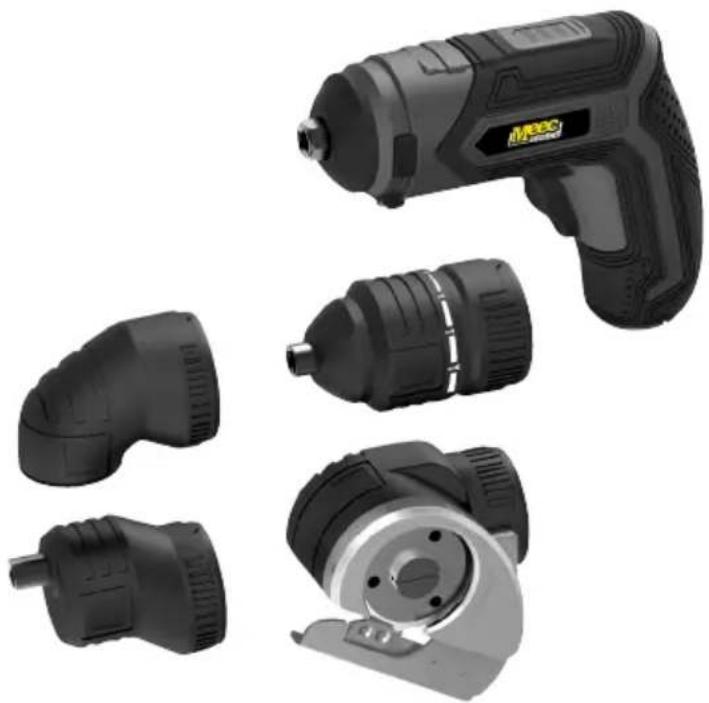

Product photo of a Mecc-branded electric drill with multiple disassembled components (no visible text or symbols)

SE MINISKRUVDRAGARE

Operating instructions (Translation of the original instructions) Important! Read the user instructions carefully before use. Save them for future reference.

Värna om miljön!

Care for the environment!

Must not be discarded with household waste! This product contains electrical or electronic components that should be recycled. Leave the product for recycling at the designated station e.g. the local authority's recycling station.

Jula reserves the right to make changes. In the event of problems, please contact our service department.

www.jula.com

Tillverkare/ Produsent/ Producenci/ Manufacturer

Jula AB, Box 363, 532 24 SKARA

Distributör/ Distributør/ Dystrybutor/ Distributor

Jula Poland Sp. z o.o., ul.

EC DECLARATION OF CONFORMITY

EG FÖRSÄKRAN OM ÖVERENSSTÄMMELSE

EF SAMSVARSERKLÆRING

DEKLARACJA ZGODNOŚCI WE

Jula AB, Box 363, SE-532 24 SKARA, SWEDEN

Machinery Directive 2006/42/EC

EN 60745-1:2009+A11, EN 60745-2-2:2010

Electromagnetic Compatibility Directive 2014/30/EU

EN 55014-1:2006+A1+A2, EN 55014-2:2015

RoHS Directive 2011/65/EU

EN 50581:2012

This product was CE marked in year -17

Name and address of the person authorised to compile the technical file:

Technical line drawing of a mechanical assembly with a component inserted (no text or symbols)

Technical line drawing of a mechanical component with two arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly showing a disassembled component with a circular housing and a motor-like housing (no text or symbols)

Technical line drawing of two mechanical components with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with a magnified circular detail (no text or symbols)

SÄKERHETSANVISNINGAR

WARNING!

Montering/demontering

BRUK OG VEDLIKEHOLD AV EL- VERKT∅Y

Montering/demontering

Read all warnings, safety instructions and other instructions. Failure to follow all the instructions and safety instructions can result in the risk of electric shock, fire and/or serious personal injury. Save these instructions and safety instructions for future reference. The term power tool in the warnings below refers to your mains-powered (corded) or battery-powered (cordless) power tool.

WORK AREA

• Keep the work area clean and well lit. Dark and cluttered work areas increase the risk of accidents and injuries.
• Do not use power tools in explosive environments, such as in the vicinity of flammable liquids, gases or dust. Power tools produce sparks that can ignite dust and fumes.
• Keep children and onlookers at a safe distance when using power tools.
• You can easily lose control of the tool if you are distracted.

ELECTRICAL SAFETY

• The plug on the power tool must match the power point. Never modify the plug in any way. Never use an adapter with earthed power tools. Unmodified plugs and matching outlets reduce the risk of electric shock.
• Avoid body contact with earthed surfaces such as pipes, radiators, cookers and refrigerators. There is an increased risk of electric shock if your body is earthed.

• Do not expose power tools to rain or moisture. There is a greater risk of electric shock if water gets into a power tool.

• Be careful with the power cord. Never use the power cord to carry or pull the power tool, or to pull out the plug from the mains. Keep the power cord away from heat, oil, sharp edges and moving parts. Damaged or tangled power cords increase the risk of electric shock.

• If the tool is used outdoors, only use an extension cord approved for outdoor use. Cords intended for outdoor use reduce the risk of electric shock.
• If it is absolutely necessary to use power tools in damp conditions, use a power point protected by a residual current device RDC. Using an RCD reduces the risk of electric shock.

PERSONAL SAFETY

• Stay alert. Pay attention to what you are doing, and use your common sense when working with power tools. Never use power tools if you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when using a power tool can result in serious personal injury.
• Use personal safety equipment. Always wear safety glasses. Depending on the type of tool and how it is used, safety equipment such as dust masks, non-slip safety shoes, safety helmets and ear protection reduce the risk of personal injury.
• Avoid accidental starting. Check that the power switch is in the OFF position before plugging in the power cord and/or the battery, or lifting/carrying the tool. Carrying a power tool with your finger on the switch, or connecting a tool to the mains supply when the switch is in the ON position, increases the risk of accidents and injuries.

• Remove Allen keys/spanners etc. before starting the power tool. Allen keys, or the like, left in a rotating part of a power tool can cause personal injury.

• Do not overreach. Always maintain a firm footing and good balance. This will ensure you have better control over the tool in unexpected situations.

• Wear suitable clothing. Do not wear loose-fitting clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose-fitting clothing, jewellery and long hair can get caught in moving parts.
• If dust extraction and dust collection equipment is available, this should be connected and used correctly. The use of such devices can reduce the risk of dust-related problems.

USING AND LOOKING AFTER POWER TOOLS

• Do not force the power tool. Use the correct power tool for the planned work. The tool does the job better and safer when used at the rate for which it was designed.
• Do not use the tool if it cannot be switched on and off with the power switch. Power tools that cannot be controlled with the power switch are dangerous and must be repaired.
• Pull out the plug and/or remove the battery before making any adjustments, changing accessories or putting the power tool away. These safety precautions reduce the risk of accidentally starting the power tool.
• Store power tools out of the reach of children when not in use. Never allow children, or anyone who is unfamiliar with the power tool and these instructions, to use the tool. Power tools are dangerous if used by inexperienced persons.
• Keep the power tool properly maintained. Check that moving parts are properly adjusted and do not jam, and that no parts are incorrectly fitted or damaged. Check for other factors that could affect functionality. If the power tool is damaged,

it must be repaired before being used again. Many accidents are caused by poorly maintained power tools.

• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.
• Use the power tool, accessories and bits etc., in accordance with these instructions, taking into account the actual working conditions and the work that is to be done. It can be dangerous to use power tools for purposes other than those they are intended to be used for.

USING AND MAINTAINING BATTERY- POWERED TOOLS

• The battery must only be charged with the charger recommended by the manufacturer. A charger intended for one type of battery can result in a fire risk if used with another type of battery.
• Only use power tools with the specified batteries. The use of other batteries can cause accidents or a fire.
• When the battery is not in use keep it away from metal objects such as paperclips, coins, keys, nails, screws and other small metal objects that can short circuit the terminals. Short circuiting the battery terminals can cause burns or a fire.
• Failure to handle the battery carefully can cause fluid to leak from the battery. Avoid contact with battery fluid. Rinse well with plenty of water if you come into contact with battery fluid. Seek medical attention if you get battery fluid in your eyes. Fluid leaking from the battery can cause irritation or burns.

SERVICE

The power tool must only be serviced by qualified personnel using identical spare parts. This will ensure that the power tool remains safe to use.

SPECIAL SAFETY INSTRUCTIONS FOR SCREW DRIVING AND PERCUSSION DRILLING

Hold the power tool by the insulated grips when working in areas where it may come into contact with concealed electrical cables or its own power cord. Contact with a live cable will cause the metal parts on the tool to also become live and give the user an electric shock.

Symbols

The following symbols provide guidance for how to use your power tool. Make sure you understand the symbols and their significance.

	This product has a safety class II rating. This means it is fitted with extra or double insulation.
	Approved in accordance with the relevant EU directives.
	Read the instructions.
	Recycle as electrical waste.

TECHNICAL DATA

Rated voltage of charger 230 V ~ 50 Hz

Rated current of charger 0.3 A

Battery charging voltage 5.5 V

Battery charging current 1750 mA

Battery capacity 1500 mAh

Rated voltage, battery 4 V DC

Battery type* Li-Ion

Charging time 1 h

Speed no load 200 rpm

Max torque 4 Nm

Rotation selector

Chuck 6.35 mm (1/4")

Weight 0.380 kg

Sound pressure level, LpA 66.2 dB(A), K=3dB(A)

Sound power level, LwA 77.2 dB(A), K=3dB(A)

Vibration ≤2.5 m/s2

*Integrated, non-replaceable.

Always wear ear protection.

The declared value for vibration and noise, which has been measured by a standardised test method, can be used to compare different tools with each other and for a preliminary assessment of exposure. The measurement values have been determined in accordance with EN 60745-2-2:2010.

The declared vibration value, which has been measured by a standardised test method, can be used to compare different tools with each other and for a preliminary assessment of exposure.

WARNING!

The actual vibration and noise level when using power tools may differ from the specified maximum value, depending on how the tool is used and the material. It is therefore necessary to determine which

safety precautions are required to protect the user, based on an estimate of exposure in actual operating conditions (taking into account all stages of the work cycle, e.g. the time when the tool is switched off and when it is idling, in addition to the start-up time).

DESCRIPTION

Versatile battery-powered mini-driver with right and left drive, LED light, battery indicator, four replaceable heads, bit holder with 28 bits, tool bag with carry handle and 230 V charger.

1. Rotation selector/safety lock for power switch
2. Indicator for right drive
3. Battery charge status
4. Indicator for left drive
5. Charger connection (tool)
6. Power switch
7. LEDs
8. Bit holder
9. Charger
10. Chuck attachment
11. Lock button
12. Excentre attachment
13. Right angle attachment
14. Cutter attachment
15. Bits and bit extension

FIG. 1

USE

IMPORTANT:

The tool is intended for screw driving in wood, plastic and metal. The cutter attachment is only intended for cutting soft material, such as paper etc. with a thickness of up to 6 mm. The tool must only be used for its intended purpose and in accordance with these instructions. The tool is only intended for household use. All other use is considered to be unsuitable. Incorrect use, inadequate maintenance and/or illicit use of the tool can result in serious personal injury and/or material damage. The manufacturer cannot accept liability for personal injury or material damage resulting from improper use.

CHARGING

WARNING!

Only charge the battery with the charger recommended by the manufacturer.

NOTE:

• The battery is only partially charged on delivery. Charge the battery for at least 1 hour before using it for the first time.
• Lithium-ion batteries can be charged at any time without affecting their lifespan. Interrupting the charging will not damage the battery.
• If the battery charging indicator goes red during use then the battery has a charge of less than 30% left. Charge the battery as soon as possible.
• Charging temperature: 10 to 40^ .

• Check the battery charge status regularly if the tool is not going to be used for a long time. The optimum charge is 50 to 80%.

• Connect the charging cable to the driver socket.

FIG. 2

1. Connect the charger to a power point.
2. The battery is fully charged when the charge indicator goes from red to green.

BITS

WARNING!

To avoid accidental starting, always check that the rotation selector is in the middle position before changing attachments or doing something else to the tool.

Fitting/removing

1. Put the bit in the chuck and press in place.
2. Pull on the bit a little to check that it is properly inserted and does not come loose.
3. Remove the bit by pulling it hard so that it comes loose from the chuck.

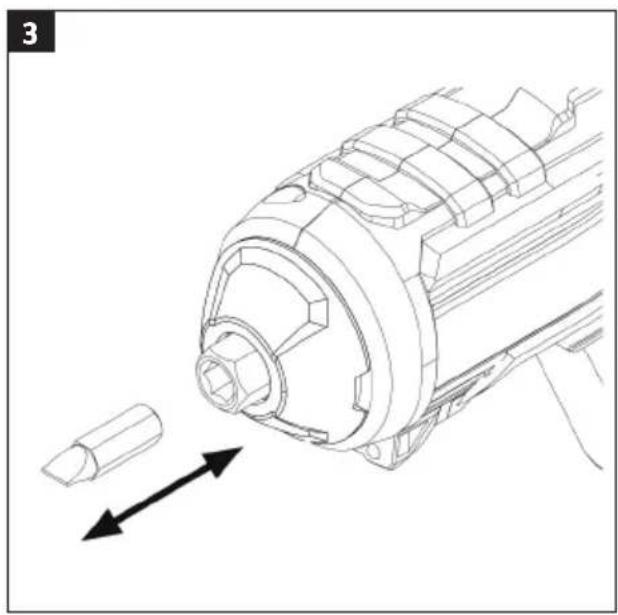

FIG. 3

SCREW DRIVING

1. Fit suitable bits according to the instructions.
2. Hold the driver in a firm grip and put the bit on the screw.
3. Start the driver by pressing the power switch. Press the top part of the switch for clockwise rotation and the bottom part for anticlockwise rotation.
4. Release the switch to stop the driver.

NOTE:

• Do not force the driver and never attempt to enlarge a hole by pushing sideways. Allow the driver to do the job.
• Use bits that suit the shape and size of the screws. Otherwise the bits and screw heads can be damaged.

ATTACHMENTS

WARNING!

To avoid accidental starting, always check that the rotation selector is in the middle position before changing attachments or doing something else to the tool.

Four different attachments are supplied with the driver. Remove the rubber cap from the chuck and press the attachment in place where the rubber cap was. Release the attachment by pressing in both lock buttons on the driver and replacing the rubber cap.

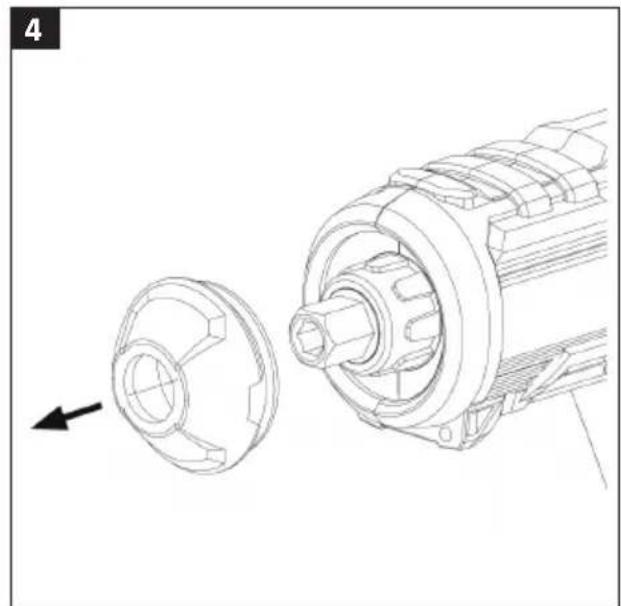

FIG. 4

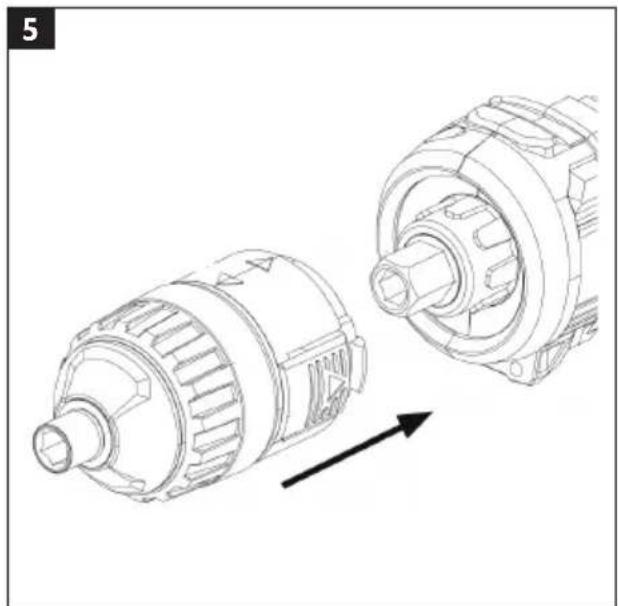

FIG. 5

Chuck attachment

The chuck attachment is used to tighten screws to the set torque (10 positions).

Excentre attachment

The excentre attachment is used to drive in screws near walls or other obstacles.

Right angle attachment

The right angle attachment is used for driving in screws at right angles.

Cutter attachment

The cutter attachment is used for cutting soft material, such as paper etc. with a thickness of up to 6 mm.

REPLACING THE CUTTING DISC

WARNING!

• To avoid accidental starting, always check that the rotation selector is in the middle position before changing attachments or doing something else to the tool.
• Be careful when the disc is rotating - risk of cut injuries.

IMPORTANT:

An arrow on the guard shows the recommended direction of rotation for the disc.

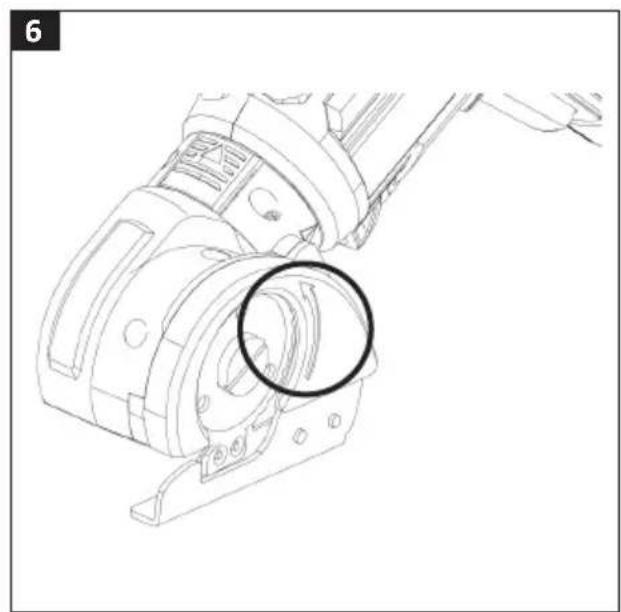

FIG. 6

1. Fit the cutter attachment on the tool. This locks the motor spindle so that the screw can be undone.

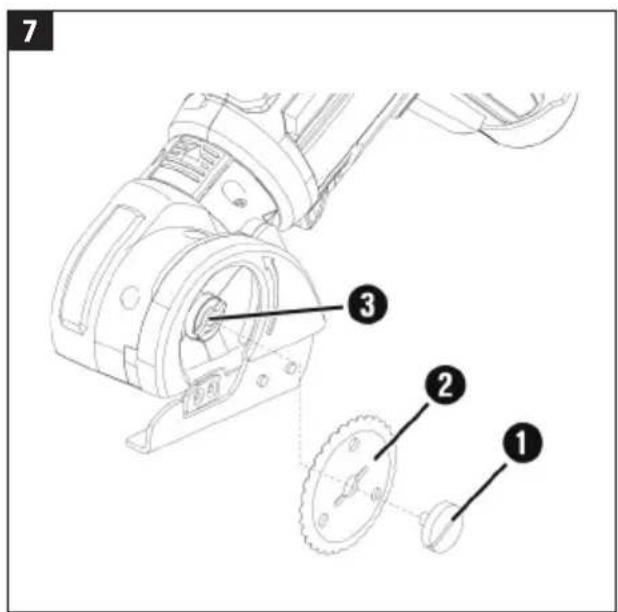

FIG. 7

1. Undo the screw (1).
2. Remove the disc (2) by pulling it down.
3. Press a new disc (2) in place from underneath. Check that the round edge of the disc is turned away from the tool.
4. Turn the disc (2) so that it fits in the holder (3).
5. Tighten the screw (1).
6. The attachment is now ready to use.

MAINTENANCE

NOTE:

The manufacturer cannot accept liability for personal injury or material damage if the driver is repaired by unauthorised personnel or used incorrectly.

- When not in use, store the driver in a dry, frost-free place out of the reach of children.

• Wipe clean the driver when necessary with a soft, damp cloth. Do not use solvents.
• Store the tool in a dry place at a temperature of 0 to 50°C.
