Product Type	Cordless Screwdriver
Brand	Meec Tools
Model	000-709
Battery Voltage	3.6 V
Battery Type	Lithium-ion
Charging Time	3-5 hours
Dimensions (L x W x H)	200 x 50 x 180 mm
Weight	0.4 kg
Max Torque	5 Nm
Speed (No Load)	0-600 rpm
Chuck Type	1/4 inch hex
Direction	Reversible (forward/reverse)
LED Work Light	Yes
Overcharge Protection	Yes
Safety Lock	Yes
Maintenance	Clean with a dry cloth; store in a dry place
Spare Parts Availability	Contact Meec Tools customer service

Frequently Asked Questions - 000-709 Meec Tools

What is the battery voltage?

The battery voltage is 3.6 V (lithium-ion).

How long does it take to fully charge the screwdriver?

Charging takes approximately 3-5 hours.

Can I adjust the torque?

This model has a fixed max torque of 5 Nm; no adjustable clutch.

What type of bits does it use?

It uses 1/4 inch hex bits (standard for power screwdrivers).

Does it have a reverse function?

Yes, it has a forward/reverse switch to drive and remove screws.

Is there a light for working in dark areas?

Yes, it includes an LED work light that activates when the trigger is pressed.

How do I change the bits?

Pull the chuck collar forward, insert the bit, and release the collar to lock it in place.

How should I clean and maintain the screwdriver?

Wipe the exterior with a dry cloth. Do not use water or solvents. Store in a dry place.

What safety features does it have?

It has overcharge protection and a safety lock to prevent accidental start.

Where can I find spare parts or service?

Contact Meec Tools customer service or visit their website for spare parts and repair information.

USER MANUAL 000-709 Meec Tools

Red and black Megg drill put tool with black handle and metallic base (no visible text or symbols)

EN - Operating instructions (Translation of the original instructions)

Jula reserves the right to make changes. In the event of problems, please contact our service

department

www.jula.com

Tillverkare/ Produsent / Produenci/ Manufacturer

Jula AB, Box 563, 532 24 SKARA

Importör/ Importör/ Importer/ Importer

Care for the environment!

Must not be discarded with household waste! This product contains electrical or electronic components that should be recycled. Leave the product for recycling at the designated station e.g. the local authority's recycling station.

SVENSKA....5

SÄKERHETSANVISNINGAR....5

TEKNISKA DATA....8

BESKRIVNING 9

HANDHAVANDE 9

UNDERHÅLL 10

NORSK 11

SIKKERHETSANVISNINGER 11

TEKNISKE DATA 14

BESKRIVELSE....15

BRUK....15

VEDLIKEHOLD 16

POLSKI 17

ZASADY BEZPIECZEŃSTWA 17

DANE TECHNICZNE 20

OPIS 21

OBSŁUGA 21

KONSERWACJA 22

ENGLISH 24

SAFETY INSTRUCTIONS....24

TECHNICAL DATA....27

DESCRIPTION 28

USE 28

MAINTENANCE 29

SÄKERHETSANVISNINGAR

WARNING: Read all safety regulations and all instructions. Failure to follow safety regulations and instructions can lead to electrocution, fire and/or serious personal injury. Save all the safety regulations and instructions for future reference. The term "power tool" in the safety instructions refers to your mains-powered (corded) or battery-powered (cordless) power tool.

Work area

• Keep the work area clean and well lit. Dark and cluttered work areas increase the risk of accidents and injuries.
• Do not use power tools in explosive environments, such as in the vicinity of flammable liquids, gases or dust. Power tools produce sparks that can ignite dust and fumes.
• Keep children and onlookers at a safe distance when using power tools. You can easily lose control of the tool if you are distracted.

Electrical safety

• The mains plug on the power tool must match the mains outlet. Never modify the plug in any way. Never use an adapter with earthed power tools. Unmodified plugs and matching outlets reduce the risk of electric shock.
• Avoid body contact with earthed surfaces such as pipes, radiators, cookers and refrigerators. There is an increased risk of electric shock if your body is earthed.
• Do not expose power tools to rain or moisture. There is a greater risk of electric shock if water gets into a power tool.
• Never use the power cord to carry or pull the tool, or to pull out the plug from the mains socket. Keep the power cord away from heat, sharp edges and moving parts. Damaged or tangled power cords increase the risk of electric shock.
• If using the tool outdoors, only use an extension cord approved for outdoor use. Cords intended for outdoor use reduce the risk of electric shock.

EN

the influence of drugs, alcohol or medication. A moment of inattention when using a power tool can result in serious personal injury.

• Use personal safety equipment. Wear safety glasses.
• Depending on the type of power tool and how it is used, safety equipment such as dust masks, non-slip safety shoes, safety helmets and ear protection reduce the risk of personal injury.
• Avoid accidental starting. Make sure the power tool is in the OFF position before plugging in the cord and/or battery or lifting/carrying the tool. Carrying a power tool with your finger on the switch, or connecting a tool to the mains when the switch is in the ON position, increases the risk of accidents and injuries.
• Remove adjuster keys/spanners and other assembling tools before starting the power tool. Allen keys, or the like, left in a rotating part of a power tool can cause personal injury.
• Do not overreach. Always maintain a firm footing and good balance. This will ensure you have better control over the tool in unexpected situations.
• Wear suitable clothing. Do not wear loose-fitting clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose-fitting clothing, jewellery and long hair can get caught in moving parts.
• If dust extraction and dust collection equipment is available, this should be connected and used correctly. The use of such devices can reduce the risk of dust-related problems.

Use and care

• Do not force the power tool. Use the correct power tool for the planned work. The tool does the job better and safer when used at the rate for which it was designed.
• Do not use the tool if it cannot be switched on and off with the power switch. Power tools that cannot be controlled with the power switch are dangerous and must be repaired.
• Unplug the power cord and/or remove the battery before making any adjustments, changing accessories or putting the power tool away. These safely precautions reduce the risk of accidentally starting the tool.

Check for other factors that could affect functionality. If the power tool is damaged, it must be repaired before being used again. Many accidents are caused by poorly maintained power tools.

• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.
• Use power tools, accessories, and bits etc. in accordance with these instructions, with due consideration to the actual working conditions and the work that is to be done. It can be dangerous to use power tools for purposes other than those they are intended to be used for.

Additional safety instructions

• Hold the power tool by the insulated grip surfaces when working with parts of the bolted joint or the tool may come into contact with concealed electrical cables or its own power cord. Contact with a live cable will cause the metal parts on the tool to also become live – risk of electric shock.
• Secure the work piece with a clamp, clips or vice. This makes work safer and makes it possible to hold it with both hands.

WARNING: Be aware of the risk that you may become inattentive or careless when you start to get used to the tool. A moment of inattention when using a power tool can result in serious personal injury.

Service

The power tool must only be serviced by qualified service personnel using identical spare parts. This will ensure that the power tool remains safe to use.

Symbols

Read the operating instructions before use.

TECHNICAL DATA

Rated voltage 18 VDC

Speed (no load) 0-2200 rpm

Stroke rate 0-3300 rpm

Torque 150 Nm

Chuck size 1/4"

Sound pressure level, LoA 84.13 dB(A), K=3 dB

Sound power level, IwA 95 dB(A), K=3 dB

Wibration 3.045 m/s2, K=1.5 m/s2

Weight T158 g

Always wear ear protection!

The declared vibration value, which has been measured by a standardised test method, can be used to compare different tools with each other and for a preliminary assessment of exposure.

WARNING: The actual vibration level when using power tools may differ from the specified maximum value, depending on how the tool is used. It is therefore necessary to determine which safety precautions are required to protect the user, based on an estimate of exposure in actual operating conditions (taking into account all stages of the work cycle, e.g. the time when the tool is switched off and when it is idling, in addition to the start-up time).

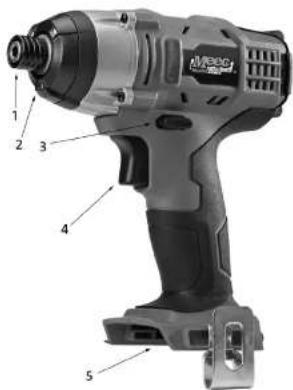

DESCRIPTION

1. Chuck 1/4"
2. LED light

3. Right/left drive selector

4. Power switch

5. Battery compartment

USE

Charging the battery

• The battery must be fully charged before using it for the first time. Otherwise, the battery will not reach its full capacity.
• Make sure the battery is turned the right way when you insert it into the charger. Do not press too hard when inserting the battery.
• Remove the battery from the charger after 1 hour, Disconnect the charger from the mains supply

EN

1. Remove the battery by pressing the clips and pulling the battery out.

Switching On/Off

1. Use the power switch to start the power tool and hold it to keep the power tool running.
2. Press the power switch to increase the speed. The more the power switch is pressed, the greater the speed.
3. Stop the machine by releasing the power switch.

Right/left drive

NOTE: The machine must be stopped before the switch for right/left drive can be used. Otherwise, the

machine may be damaged.

Use the switch to toggle between the clockwise rotation and counter-clockwise rotation. When the switch is in the middle position, the power switch is blocked and cannot be pressed. You should always set the switch in the middle position before putting down the machine, so that the machine cannot be started accidentally.

MAINTENANCE

General

• The power tool is built for a long service life and a minimum of maintenance.
- However, regular care and cleaning is required to give lasting functionality. Wipe the power tool with a damp cloth and brush it off with a soft brush or dry cloth.
- Keep the ventilation openings clean and free! Check regularly that the ventilation openings are clean and not blocked by dirt or foreign objects. Blow clean if necessary, using clean compressed air (max. 3 bar).

Do not use detergents that contain solvent or abrasive agents. Only use clean, mild detergent to remove dust and dirt and carbon dust from the motor's electric brushes.

WARNING:

• Brake fluid, petrol, mineral oil and petroleum products must not come into contact with the plastic parts of the power tool. This type of product can damage or deform the plastic.
• WARNING: Always wear safely goggles that seal against the face and also protect from the side when using compressed air to blow clean the power tool. When performing very dusty work, a dust mask should also be worn.

EC DECLARATION OF CONFORMITY EG FÖRSÄKRAN OM ÖVERENSSTÄMMELSE EF SAMSVARSERKLÆRING DEKLARACJA ZGODNOŚCI WE

Jula AB, Box 363, SE-532 24 SKARA, SWEDEN

RoHS Directive 2011/65/EU EN 62321:2009

This product was CE marked in year -15
