USER MANUAL DP26640 SANYO

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THIS UNIT.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO

RAIN OR MOISTURE. Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit fully into your outlet, consult an electrician for replacement of the obsolete outlet. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. Only use attachments/accessories specified by the manufacturer. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Unplug this apparatus during lightning storms or when unused for long periods of time. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Need help? www.sanyoctv.com

15. If an outside antenna is connected to the television

equipment, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. In the U.S. Selection 810-21 of the National Electrical Code provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrodes.

16. An outside antenna system should not be located in the

vicinity of overhead power lines or other electrical light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

EXAMPLE OF ANTENNA GROUNDING ACCORDING

TO NATIONAL ELECTRICAL CODE, ANSI/NFPA 70

“Note to CATV system installer: This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.”

17. Wall or Ceiling Mounting—The product should be

mounted to a wall or ceiling only as recommended by the manufacturer.

18. Apparatus shall not be exposed to dripping or splashing

and no objects filled with liquids, such as vases, shall be placed on the apparatus.

19. When the MAINS plug is used as the disconnect device,

the disconnect device shall remain readily operable. 1-800-877-5032 FCC INFORMATION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. CAUTION: FCC Regulations state that improper modifications or unauthorized changes to this unit may void the user’s authority to operate the unit.

PC RESOLUTION CHART

TRADEMARKS Manufactured under license from Dolby Laboratories. “Dolby” is a trademark of Dolby Laboratories. HDMI, the HDMI Logo and HighDefinition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. As an Energy Star ® Partner, Sanyo Manufacturing Corporation has determined that this product meets the Energy Star® guidelines for energy efficiency. This symbol on the nameplate means the product is Listed by Underwriter’s Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards against risk of fire, casualty and electrical hazards. CONTAINS MERCURY LAMPS,

DISPOSE OF PROPERLY

This Class B digital apparatus complies with Canadian ICES-003. Manufactured under license from Audyssey Laboratories. U.S. and foreign patents pending. Audyssey Dynamic VolumeTM is a trademark of Audyssey Laboratories. Need help? www.sanyoctv.com 1-800-877-5032

CONTENTS SPECIFICATIONS Power Requirement: Source: AC 120V, 60Hz AC Power Consumption: 95 watts Weight: 19 lbs. Dimensions: MODEL WIDTH HEIGHT DEPTH DP26640

w/o stand NOTE: Dimensions are in inches Please read before operating your HDTV!

PROTECTING THE LCD SCREEN

CAUTION: The screen can be damaged if it is not maintained properly.

Do not use hard objects such as hard cloth or paper to clean the screen.

Do not use excessive pressure when cleaning the screen; excessive pressure can cause permanent discoloration or dark spots.

NEVER spray liquids on the screen. HANDLING PRECAUTIONS

Handle by the cabinet only. Never touch the screen when handling. Handling damage is not covered under warranty. “The Amercian Academy of Pediatrics discourages television viewing for children younger than two years of age”

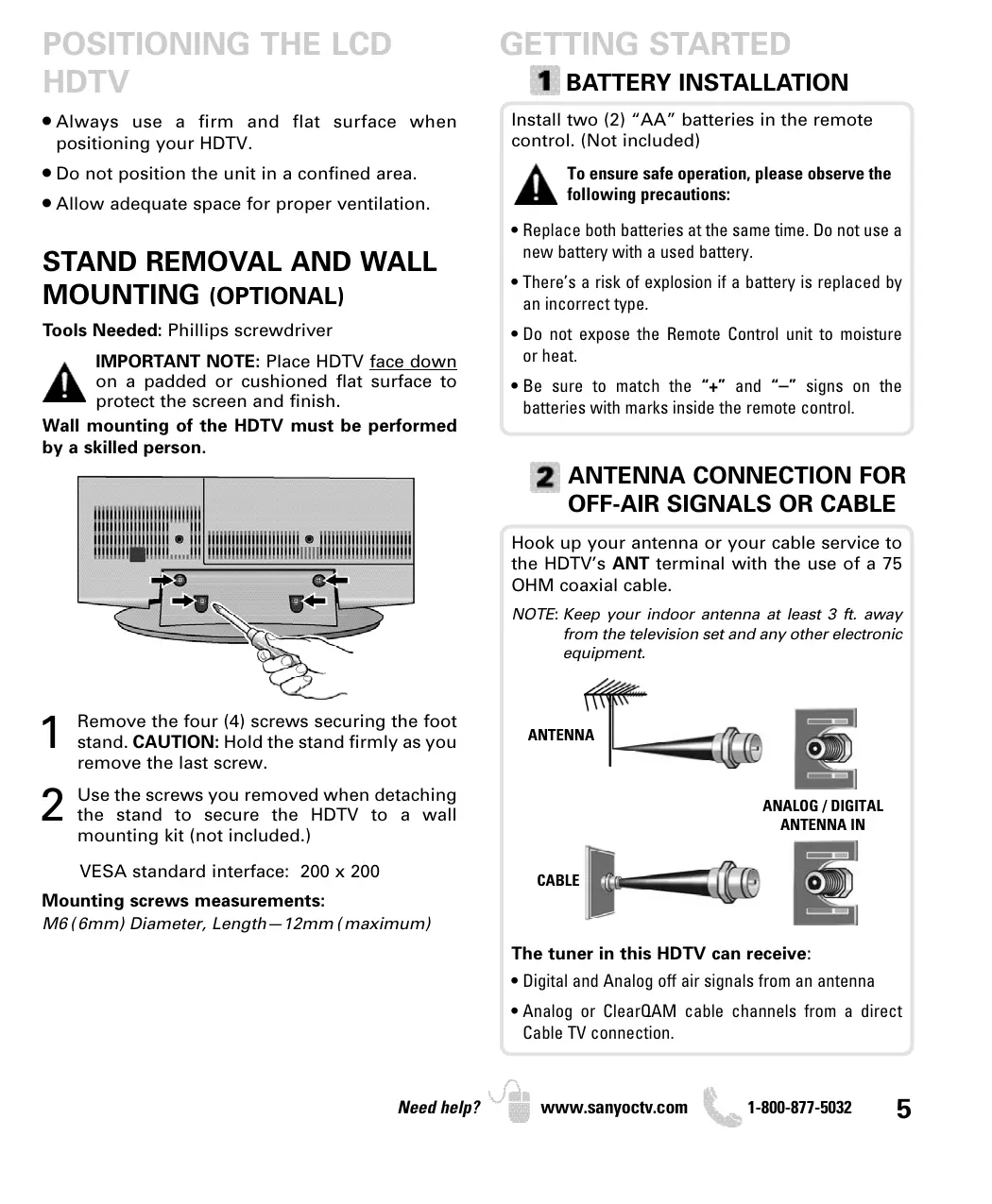

Need help? www.sanyoctv.com 1-800-877-5032 use a firm and flat surface when positioning your HDTV.

• Do not position the unit in a confined area.
• Allow adequate space for proper ventilation.

STAND REMOVAL AND WALL

MOUNTING (OPTIONAL) Tools Needed: Phillips screwdriver IMPORTANT NOTE: Place HDTV face down on a padded or cushioned flat surface to protect the screen and finish. Wall mounting of the HDTV must be performed by a skilled person. Install two (2) “AA” batteries in the remote control. (Not included) To ensure safe operation, please observe the following precautions:

• Replace both batteries at the same time. Do not use a new battery with a used battery.
• There’s a risk of explosion if a battery is replaced by an incorrect type.
• Do not expose the Remote Control unit to moisture or heat.
• Be sure to match the “+” and “–” signs on the batteries with marks inside the remote control.

ANTENNA CONNECTION FOR

OFF-AIR SIGNALS OR CABLE

Hook up your antenna or your cable service to the HDTV’s ANT terminal with the use of a 75 OHM coaxial cable. NOTE: Keep your indoor antenna at least 3 ft. away from the television set and any other electronic equipment.

Remove the four (4) screws securing the foot stand. CAUTION: Hold the stand firmly as you remove the last screw.

Use the screws you removed when detaching the stand to secure the HDTV to a wall mounting kit (not included.) VESA standard interface: 200 x 200 ANTENNA ANALOG / DIGITAL ANTENNA IN CABLE Mounting screws measurements: M6 (6mm) Diameter, Length—12mm (maximum) The tuner in this HDTV can receive:

• Digital and Analog off air signals from an antenna
• Analog or ClearQAM cable channels from a direct Cable TV connection. Need help? www.sanyoctv.com 1-800-877-5032

HDTV INPUT/OUTPUT REFERENCE

1 Digital Audio Output (Coaxial)

Input (VIDEO2 Green (Y), blue (Pb), and red (Pr) Video inputs plus the white and red Audio inputs. NOTE: A composite connection is possible via VIDEO INPUT2 using the Y (VIDEO) jack and the L/R audio jacks. (See Video 2 Setting on page 11.)

3 PC Input and Stereo Audio (Mini)

NOTE: An S-Video connection will replace and override a connection to the Video1 (yellow) input jack. Yellow (Video), plus white and red (Audio) input jacks. 8 HDMI (INPUT1 or INPUT2) An all digital AV interface that can accept uncompressed video signals for the very best picture possible.

NOTE: A DVI conection is possible via the HDMI (DVI) INPUT1 using an appropriate adapter and connecting the audio to the VIDEO3 Audio jacks. 9 USB Input View pictures stored in a USB flash drive. Standard Definition High Definition Optimum High Definition Component (or DVI to HDMI cable/adapter) Composite HDMI S-Video NOTE: Composite, S-Video, Component, and DVI video connections need their appropriate white and red audio connections. High Definition image available from HD signals and HD equipment.

Need help? www.sanyoctv.com 1-800-877-5032 GETTING STARTED

AUDIO / VIDEO CONNECTIONS

Digital Audio Output is used to hookup a multichannel receiver with the use of a phonotype digital audio cable. COMPOSITE connections are used to hookup your analog equipment such as a VCR or an older DVD player. COMPONENT connections will accept SDTV, EDTV and HDTV video signals. Use them for great image quality from digital devices such as a DVD player or Video Game system. NOTE: Always match the color of your device’s output jack, the connector and the HDTV’s input jack. S-Video connection can replace the yellow Video connection for enhanced video. MULTICHANNEL RECEIVER VCR (or analog device) DVD PLAYER (or similar device) STEREO AMPLIFIER DVD PLAYER (or similar device) Audio Output L/R are used to hookup an external stereo Amplifier. (Do not connect external speakers directly to the HDTV.) PC INPUT is used to hook up your PC or Laptop and use your HDTV as a computer monitor. See page 16 for details. DVI HDMI INPUT1 & 2 are used to hookup HD digital devices such as a Blu-ray player, HD Cable Box, HD Satellite Receiver or Videogame System. SATELLITE RECEIVER (or similar device) USB input jack is used to connect a USB mass storage device to watch digital images (JPEG only.) HDMI (DVI) INPUT1 can be used to hookup a DVI device with the use of an appropriate DVI to HDMI cable or adapter. NOTE: VIDEO3 Audio L/R jacks need to be hooked up to the DVI device as well. USB FLASH DRIVE NOTE: Audio/Video cables are not supplied Need help? www.sanyoctv.com 1-800-877-5032

INITIAL CHANNEL SEARCH

Before proceeding, please make sure to hook up your antenna or cable connection and all AV equipment correctly to your HDTV. TURN ON TV (PRESS POWER BUTTON) Wait for on-screen instructions to set an Initial Energy Saving Mode, and perform an Initial Channel/Signal Search. TV SET LOCATION SELECTION: Select “Home Mode” by pressing the CH key to set the HDTV’s backlight to an Energy Star qualified level, or select “Store Mode” by pressing CH to set the backlight to a retail display level. CHANNEL AND AV SIGNAL SEARCH: Press the CH key to perform a channel search from an Antenna or a direct Cable connection, and a signal search from devices hooked up to the HDTV’s AV input jacks. ON SCREEN HELP (OPTIONAL) Press the CH key if you wish to access an on screen trouble shooting guide. NOTE: On screen help is also accesible via the main menu.

CHANNEL AND SIGNAL SETUP SCREEN

The final setup screen displays analog and digital channels found as well as AV inputs detected. Pressing the CH key finalizes the setup process.

CHANNEL SEARCH PROGRESS SCREEN

NOTE: To repeat the initial setup process press VOL

AV INPUT SELECTION

Press the INPUT key to select the correct AV input for the video source you wish to watch.

CHANNEL/SIGNAL LIST SCREEN

Need help? www.sanyoctv.com 1-800-877-5032

• MUTE Key—Mute or restore the sound.

• INPUT Key—Selects the video source to view. Holding down the key displays the Input List.

• INFO Key—Displays the Channel Information banner.
• PIX SHAPE Key—Cycles through the available aspect ratios. The different settings either stretch, zoom, or fit the image on your screen. Bars may appear on top and bottom of your screen (or on left and right sides) depending on the broadcasted signal or program.

• Cursor (UP) (DOWN) keys—Move the onscreen cursor up and down.
• Cursor < (LEFT) > (RIGHT) keys—Move the onscreen cursor left and right.
• ENTER Key—Set or select the highlighted option on the screen.
• EXIT Key—Exits the on-screen menu. NOTE: Pix6-7 are setup as Pix1-2 in PC mode. Use of Pix6-7 in TV mode is not recommended.

• AUDIO Key—Selects the desired Audio mode. Stereo, Mono, or SAP (when available.)
• RESET Key—Pressing it twice restores your HDTV to its factory settings. All user customized settings will be cleared.
• CAPTION Key—Cycles through the available Caption modes.
• SLEEP Key—Displays the “Off” Timer. While Off Timer is on-screen, press the “0” key to Set the amount of time (in 30 minute increments) at which the HDTV will turn off.
• NUMERICAL Keys—Select channels directly. NOTE: For channels 100 and up, press and hold the first number, then enter the remaining two numbers.

• Channel keys—Scan through the channels in the memory database.
• Volume + – keys—Increases or decreases the audio level.
• RECALL Key—Switch between current channel and last selected channel.

– (sub ch) key —Allows for the direct selection of digital chanels and subchannels. For example: to select channel 39.1 press the 3 and 9 keys followed by the dash –, and 1 keys. Need help? www.sanyoctv.com 1-800-877-5032

ON-SCREEN MENU OPERATION

CHANNEL SETTING ___________ Display the On Screen menu and use the CURSOR keys to select Channel Setting. Press ENTER. Channel Search Auto – Searches the detected mode, Cable or Air. Cable – Searches for analog and unscrambled (ClearQAM) digital cable channels. Air (Antenna) – Searches for analog and digital off-air channels. Digital Add-On – Searches digital off-air channels adding newly found digital channels to the channel map database. NOTE: Digital Add-On option is not available when the current mode is Cable. Channel Scan Memory Channel Scan Memory lists all Analog and Digital channels found. It also lists Analog channels that were not found, which can be added.

CHANNEL SETTING SCREEN

Use the CURSOR keys to move the channel select bar throuh all enabled and disabled channels, or use the CH keys to skip all disabled channels. Press ENTER to enable or disable the selected channel. NOTE: For information on local digital channels, visit www.antennaweb.org IMPORTANT FACT: This HDTV maintains only one database of digital channels. Therefore, when you search for cable channels, the database of antenna digital channels will be deleted. You will only be able to receive those ClearQAM channels your cable company provides. Input Setting Input Setting feature allows the removal of unused inputs from the AV input loop. Use the CURSOR keys to select an AV input. Press ENTER to disable (uncheck) or enable (check) the highlighted input. NOTE: At least one input must and will remain checked. :Skip is for reference only.

Need help? www.sanyoctv.com 1-800-877-5032

INPUT SETTING SCREEN

ON-SCREEN MENU OPERATION

Video2 Setting Use this feature to establish either a Component or Composite connection to the VIDEO INPUT 2 jacks on your HDTV. Use the CURSOR keys to select the type of connection you’ll use in VIDEO INPUT 2. Press ENTER, a blue mark will appear next to the selected option.

VIDEO2 SETTING SCREEN

SETUP ________________________ Display the On Screen menu and use the CURSOR keys to select Setup. Press ENTER. Menu Language Choose between English, Spanish and French for your On Screen menu’s display language. Press ENTER on the desired language. Digital Caption Captioning is textual information transmitted along with the picture and sound. Turning Captioning ON (by pressing the CAPTION key during normal TV viewing) causes the HDTV to open these captions (digital or analog) and superimpose them on the screen. NOTE: Local broadcasters decide which caption signals to transmit. Use the CURSOR and < > keys to modify Font, Background, and Foreground of digital caption text. Energy Saver Energy Saver settings control the LCD backlight brightness to reduce power consumption.

• Level 1: Energy Saver feature is off.
• Level 2: Low power consumption.
• Level 3: Lowest power consumption. Press ENTER on the desired level.

ENERGY SAVER SCREEN

Need help? www.sanyoctv.com 1-800-877-5032

ON-SCREEN MENU OPERATION

SETUP__________________________ Clock timer This feature allows you to set a Current Time for your HDTV and enable a Switch On Time for the HDTV to turn on at a specific time of day. When On Timer Function is set to ON, the TV will automatically turn on at the previously set Switch on Time.

CLOCK TIMER SCREEN

Light sensor This feature detects ambient room light brightness and uses that reading to control the panel brightness level and picture parameters to reduce the HDTV’s power consumption. NOTE: When room lighting is dark, the panel brightness and/or the picture setting parameters such as brightness and cotrast are lowered. When room lighting is bright, parameters are affected opposite.

LIGHT SENSOR SCREEN

Need help? www.sanyoctv.com 1-800-877-5032 Use this feature to automatically block programs with content you deem as inappropriate for viewing by your children. NOTE: This feature is designed to comply with the United States of America’s FCC V-Chip regulations. Therefore, it may not function with broadcasts that originate in other countries.

ADJUSTING THE V-CHIP RATINGS

Select ON and press ENTER. Select Adjust (Standard) and press ENTER. Use the CURSOR and < > keys to navigate and the ENTER key to Block or Unblock a selected rating. A lock symbol will appear beside the selected rating option indicating that it is blocked. NOTE: Blocking a rating will automatically block all higher ratings. Unblocking a rating automatically unblocks all lower ratings. ADVANCED V-CHIP SYSTEM (RRT5) RRT5 (V-Chip Regional Ratings 5) is an advanced V-Chip ratings system for digital channels that are received with an antenna. When the HDTV detects compatible RRT5 data, it’s downloaded & stored in memory, and the Setup V-Chip screen is then modified to show the Adjust (Advanced) option. Use the CURSOR and < > keys to highlight the different options, and use the ENTER key to block or unblock the selected rating.

V-CHIP SETUP SCREEN WITH ADJUST

(ADVANCED) OPTION NOTE:There may be more ratings than can be displayed on one screen. When vertical scroll bars appear, press CURSOR to gain access to the additional ratings. MORE INFORMATION Additional information about MPAA (Motion Picture Association of America) and V-Chip rating can be found at: www.mpaa.org and www.v-chip.org, respectively.

ADJUST (ADVANCED) SCREEN

Need help? www.sanyoctv.com 1-800-877-5032

ON-SCREEN MENU OPERATION

PICTURE ____________________ Display the On Screen menu and use the CURSOR keys to select Picture. Press ENTER. You may choose between Vivid, Mild, , and Standard, which have predetermined fixed picture parameter values, or choose the Manual option for customized personal settings. NOTE: Each AV input can have its own picture mode (predetermined or manual.) Current input’s selected option is indicated by a blue marker.

MANUAL PICTURE SETTINGS

Manual parameters to adjust include:

• Dynamic Contrast The Detailed Setting option allows for the adjustment of 7 additional parameters such as:
• Noise Reduction PICTURE SCREEN (MANUAL)

• H-Size NOTE: Default Picture option returns all picture parameters to their original factory settings.

ADJUSTING A PICTURE SETTING

Use the CURSOR keys to highlight the picture parameter you wish to adjust. Press the ENTER key to enter the value adjustment screen. Modify the selected parameter’s value by pressing the CURSOR < > keys. NOTE: CURSOR keys select the next/previous parameter without returning to the previous menu screen. Once adjustments are complete, press the EXIT key to return to normal TV viewing.

ON-SCREEN MENU OPERATION

SOUND _____________________ Display the On Screen menu and use the CURSOR keys to select Sound. Press ENTER. Choose an option for your sound settings: Auto – Sound settings are linked to the current Picture option and parameters are adjusted accordingly. Dynamic, Mild, Standard – Predetermined sound parameters not linked with any Picture option.

MANUAL SOUND SETTINGS

The Manual option provides different parameters that can be personally adjusted:

• Audyssey Dynamic Volume 1
• Detailed Setting – Lip-Sync Adjustment: Adjust the audio delay. – 4-Band Equalizer: Personalize audio highs and lows. NOTE: Default Sound option returns all sound parameters to their original factory settings.

ADJUSTING A SOUND SETTING

Use the CURSOR keys to highlight the sound parameter you wish to adjust. Press the ENTER key to enter the value adjustment screen. Modify the selected parameter’s value by pressing the CURSOR < > keys. NOTE: CURSOR keys select the next/previous parameter without returning to the previous menu screen. Once adjustments are complete, press the EXIT key to return to normal TV viewing.

DETAILED SETTING SCREEN

1 Audyssey Dynamic Volume solves the problem of large variations in volume level between television programs, commercials, and between the soft and loud passages of movies. Audyssey Dynamic EQ is integrated into Dynamic Volume so that as the playback volume is adjusted automatically, the perceived bass response, tonal balance, surround impression and dialog clarity remain the same. Need help? PC INPUT Use your HDTV as a computer monitor by hooking up your PC or Laptop to the TV with the use of an appropriate monitor cable (not included.) Before connecting any cables, disconnect the AC power cords of both the HDTV and PC from the AC outlets. Power on the HDTV and any other peripheral equipment before powering on the computer. To avoid an “Out of Range” condition please set your PC’s output resolution to one compatible with your HDTV. See PC Resolution chart on page 3. Auto Adjustment – Automatically adjusts display position, dot clock and phase. Dot Clock – Adjust the Dot frequency to match your computer’s Dot frequency. Phase – Adjust this parameter when the picture appears to flicker or is blurred. H-Position – Move the image horizontally V-Position – Move the image vertically Power Saving – Enable the HDTV to turn to Standby Mode when computer is not in use. NOTE: If computer has only DVI Output, a DVI to RGB adapter will be required, or, a DVI to HDMI cable and RCA audio cables (see HDMI (DVI) INPUT1 on page 7.) HDTV BACK PC Setting

PC SETTING SCREEN

PC OR LAPTOP

RGB Monitor cable PC Picture and Sound Sanyo recommends using a monitor cable that includes a Ferrite Core. Laptop Display Standard – Sets predetermined values to the Picture or Sound parameters. Manual – Adjust Contrast, Brightness, and Color Temperature screen settings, and the Bass and Treble audio settings. When using your Sanyo HDTV to display a Laptop’s screen display, holding down the Fn (or FN) key while pressing the appropriate function key (F5, F7, F8, etc) should cycle through different display modes between the laptop and the HDTV. Modes may include displaying only on the laptop screen, on both the laptop and the HDTV, or displaying only on the HDTV. Hold down and press

PC PICTURE AND SOUND SCREENS

NOTE: Fn key and function key symbols on the laptop’s keyboard may vary from one brand to another.

Need help? www.sanyoctv.com NOTE: These settings do not affect normal TV viewing. 1-800-877-5032 USB INPUT PHOTO VIEWER View pictures on your HDTV with the use of a USB mass storage device (not included.) USB FLASH DRIVE

HDTV BACK PANEL

NOTE: The HDTV switches to USB Input when a USB flash drive is detected.

THUMBNAIL VIEW SCREEN

NOTE: A thumbnail hide icon will appear if a picture cannot be decoded or if no thumbnail data is available.

USING THE PHOTO VIEWER

Press ENTER on a thumbnail photo to enable the Rotate, Full View and Start Slideshow functions. Once in Full View mode: Use the CURSOR < > keys to change picture. Press ENTER to show the full view options menu. SLIDE SHOW In the Slideshow Setup menu you may turn the Shuffle and Quick Change options ON or OFF. FULL VIEW OPTIONS MENU Press ENTER on Start Slideshow from the Thumbnail View Screen or from the full view options menu to start the slideshow from the current picture.

JPEG VIEWER USB MENU

Press MENU when in Full View or Slideshow mode to display the USB On screen menu. Picture Setting – Adjust Color, Tint, Contrast, Brightness, Sharpness and Dynamic Contrast. NOTE: Picture Settings are separate configurations from the settings in TV and AV inputs.

USB MAIN MENU SCREEN

Need help? www.sanyoctv.com 1-800-877-5032

ONE-YEAR LIMITED PARTS AND LABOR WARRANTY

THIS LIMITED PARTS AND LABOR WARRANTY IS VALID ONLY ON SANYO TELEVISIONS PURCHASED AND USED IN THE UNITED STATES OF AMERICA, CANADA, AND PUERTO RICO, EXCLUDING ALL OTHER U.S. TERRITORIES AND PROTECTORATES. THIS LIMITED WARRANTY APPLIES ONLY TO THE ORIGINAL RETAIL PURCHASER, AND DOES NOT APPLY TO PRODUCTS USED FOR INDUSTRIAL OR COMMERCIAL PURPOSES. WARRANTY APPLICATION FOR ONE YEAR from the date of original retail purchase Sanyo Manufacturing Corporation (SMC) warrants this TV to be free from manufacturing defects in materials and workmanship under normal use and conditions for parts and labor. For the FIRST 90 DAYS from the date of original retail purchase, Sanyo Manufacturing Corporation will replace any defective TV via exchange at the retailer. To ensure proper warranty application, keep the original-dated-sales receipt for evidence of purchase. Return the defective TV to the retailer along with the receipt and the included accessories, such as the remote control. The defective TV will be exchanged for the same model, or a replacement model of equal value, if necessary. Replacement model will be contingent on availability and at the sole discretion of Sanyo Manufacturing Corporation. THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. OBLIGATIONS For one year from the date of purchase, Sanyo Manufacturing Corporation warrants this product to be free from defects in material and workmanship under normal use and conditions. During the first 90 days under this warranty for any manufacturing defect or malfunction Sanyo Manufacturing Corporation will provide a new TV via exchange at the retailer. HOW TO MAKE A CLAIM UNDER THIS WARRANTY Please call 1-800-877-5032. Please be prepared to give us the television’s model number and serial number when you call. The model number and serial number are printed on a label attached to the back of the unit. For customer assistance, call toll free 1-800-877-5032. This warranty expresses specific contractual rights; retail purchasers may have additional statutory rights which vary from state to state. (EFFECTIVE: March 1, 2007) Your Sanyo HDTV is registered at the time of purchase, please keep sales receipt for future reference. For your protection in the event of theft or loss of this product, please fill in the information requested below and KEEP IN A SAFE PLACE FOR YOUR OWN PERSONAL RECORDS. Model No.______________________________ Date of Purchase _________________________ Serial No.______________________________ Purchase Price ___________________________ (Located on back of unit) Where Purchased_________________________ Sanyo Manufacturing Corp. 3333 Sanyo Road, Forrest City, AR 72335

Need help? www.sanyoctv.com 1-800-877-5032 SALIDA DIGITAL DVI Sanyo Manufacturing Corp. 3333 Sanyo Road, Forrest City, AR 72335 ¿Necesita ayuda? www.sanyoctv.com 1-800-877-5032

RÉSOLUTIONS DE PC

CONTIENT DES LAMPES AU

MERCURE, À JETER DE

FAÇON APPROPRIÉE

Besoin d’aide? www.sanyoctv.com

PLACER LA TVHD ACL

ÉCRAN DE IMAGE (MANUEL)

ÉCRAN PARAMÈTRES MANUELS

ÉCRAN PARAMÈTRES MANUELS AVANCÉS

ÉCRAN VU MINIATURE

PC OU LAPTOP

Câble RGB Sanyo Manufacturing Corp. 3333 Sanyo Road, Forrest City, AR 72335 Besoin d’aide? www.sanyoctv.com 1-800-877-5032
