USER MANUAL DS25390 SANYO

1. Do not place your appliance on an unstable cart, stand, shelf or table.

Serious injury to an individual, and damage to the appliance, may result if it should fall. Your salesperson can recommend approved carts and stands or shelf and wall mounting instructions. An appli- ance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

2. Slots and openings in the cabinet and in the back or bottom are

provided for ventilation. To ensure reliable operation of the appliance and to protect it from overheating, these openings must not be blocked or covered. The openings should never be covered with a cloth or other material, and the bottom openings should not be blocked by placing the unit on a bed, sofa, rug, or other similar surface. This appliance should never be placed near or over a radiator or heat register. This appliance should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.

3. Do not expose the appliance to rain or use near water . . . for example,

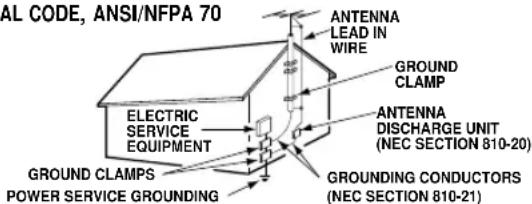

near a bathtub, swimming pool, kitchen sink, in a wet basement, etc. Hooking Up Outdoor Antenna LIGHTNING PROTECTION FOR YOUR ANTENNA AND SET AS PER NATIONAL ELECTRICAL CODE INSTRUCTIONS.

4. If an outside antenna is connected to the receiver, be sure the antenna

system is grounded so as to provide some protection against voltage surges and built up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. An outside antenna system should not be located in the vicinity of over- head power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal. Plug in the power cord

5. This product should be operated only from the type of power source indi-

cated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. This product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obso- lete outlet. Do not defeat the safety purpose of this polarized plug. Do not overload wall outlets, extension cords, or integral convenience recepta- cles as this can result in a risk of fire or electric shock.

6. Power-supply cords should be routed so that they are not likely to be

walked on or pinched by items placed upon or against them, paying par- ticular attention to cords at plugs, convenience receptacles, and the point where they exit from the product. Cleaning

7. Before cleaning, unplug the unit from the wall outlet. Do not apply liquid clean-

ers or aerosol cleaners directly to the unit. Use a damp cloth for cleaning. Service & Repair

8. Unplug the appliance from the wall outlet and refer servicing to

qualified service personnel under the following conditions: A. If the power cord or plug is damaged or frayed. B. If liquid has been spilled into the appliance. C. If the appliance has been exposed to rain or water. D. If the appliance has been dropped or the cabinet has been damaged. E. If the appliance exhibits a distinct change in performance. F. If the appliance does not operate normally by following the operating instructions, adjust only those controls that are covered in the oper- ating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified tech- nician to restore the appliance to normal operation.

9. Upon completion of any service or repair, request the service techni-

cian’s assurance that only Factory Authorized Replacement Parts that have the same characteristics as the original parts were used, and that routine safety checks have been performed to determine that the appli- ance is in safe operating condition. Unauthorized substitutions may result in fire, electrical shock, or other hazards.

10. Never add accessories that have not been specifically designed for use

with this appliance as they may cause hazards.

11. For added protection during a lightning storm, or when the set is left

unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the set due to lightning or power line surges.

12. Never push objects of any kind into this product through openings as

they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. EXAMPLE OF ANTENNA GROUNDING ACCORDING TO NATIONAL

APPLIANCE TO RAIN OR MOISTURE.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION: PLEASE ADHERE TO ALL WARNINGS ON THE PRODUCT AND IN THE OPERATING INSTRUCTIONS. BEFORE OPERATING THE PRODUCT, PLEASE READ ALL OF THE SAFETY AND OPERATING INSTRUCTIONS. RETAIN THIS LITERATURE FOR REFERENCE. Follow all instructions... “Note to CATV system installer:This reminder is provided to call the CATV system installer’s attention to Article 820-40of the NEC that provides guidelines for proper grounding and, in particular, specifies thatthe cable ground shall be connected to the grounding system of the building, as close tothe point of cable entry as practical.” NEC

Please waitTV is searchingfor your channels MENU

Do not position the TV in a confined area. Allow normal air circulation for electronic parts.

Front panel keys work like the remote control keys.

The TV will automat- ically select the correct Antenna mode for the type of signal you connect. Need help? Visit our website at www.sanyoctv.com

OUT FROM ANT.OUT TO TV.

OUT IN OUT FROM ANT.OUT TO TV.

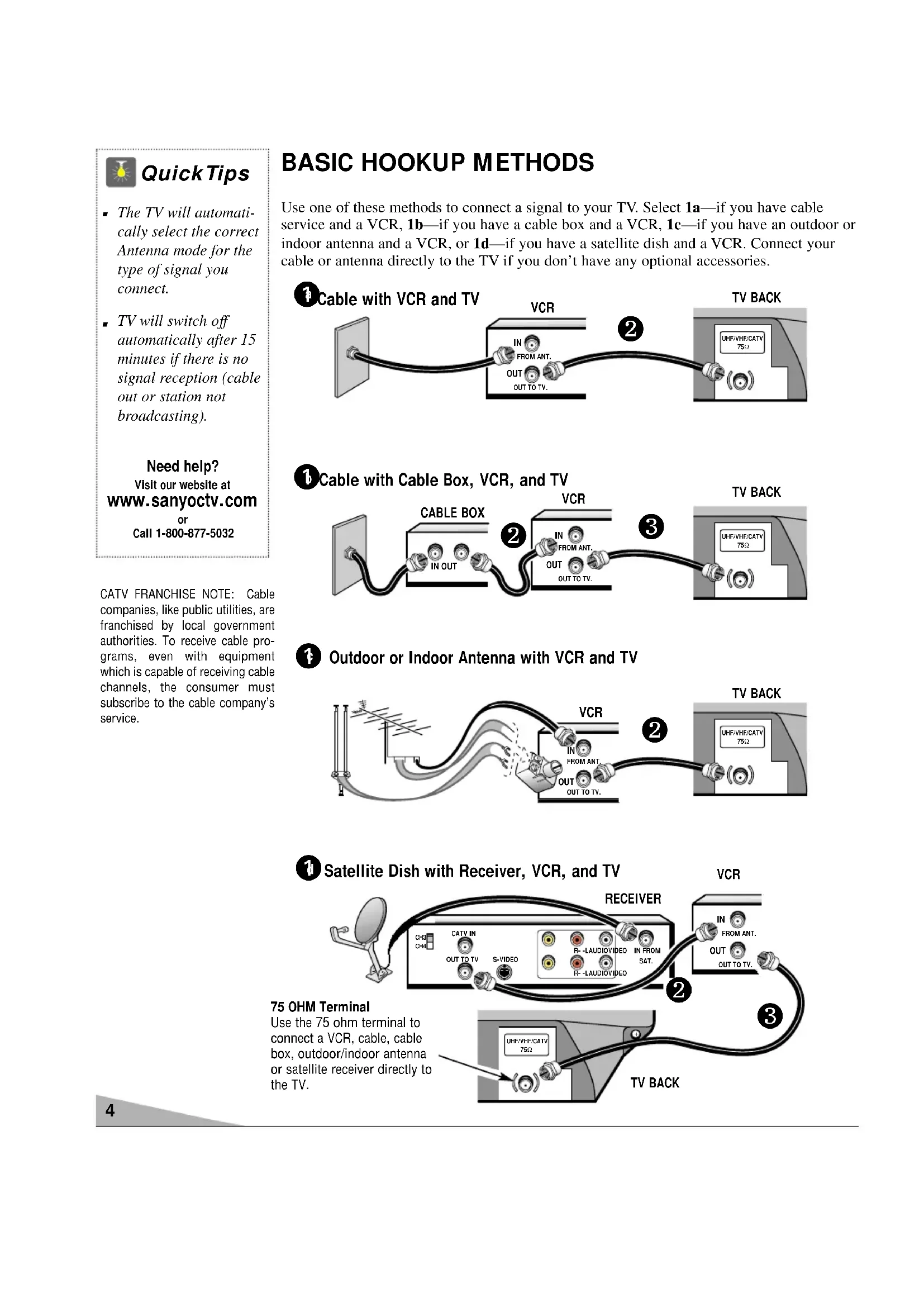

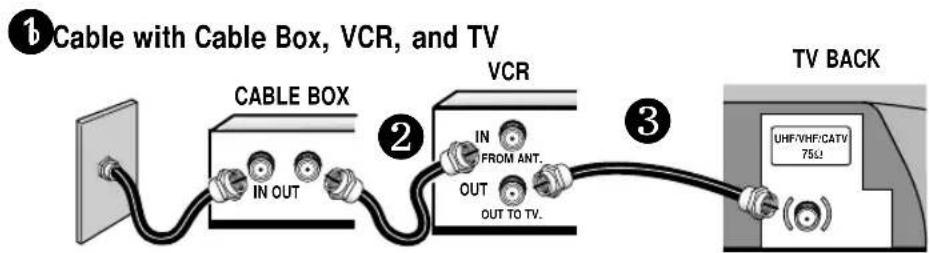

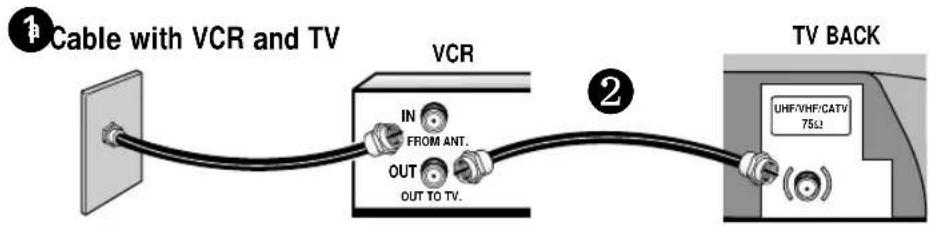

Use one of these methods to connect a signal to your TV. Select 1a—if you have cable service and a VCR, 1b—if you have a cable box and a VCR, 1c—if you have an outdoor or indoor antenna and a VCR, or 1d—if you have a satellite dish and a VCR. Connect your cable or antenna directly to the TV if you don’t have any optional accessories. CATV FRANCHISE NOTE: Cable companies, like public utilities, are franchised by local government authorities. To receive cable pro- grams, even with equipment which is capable of receiving cable channels, the consumer must subscribe to the cable company’s service.

The TV will automati- cally select the correct Antenna mode for the type of signal you connect.

TV will switch off automatically after 15 minutes if there is no signal reception (cable out or station not broadcasting). Need help? Visit our website at www.sanyoctv.com

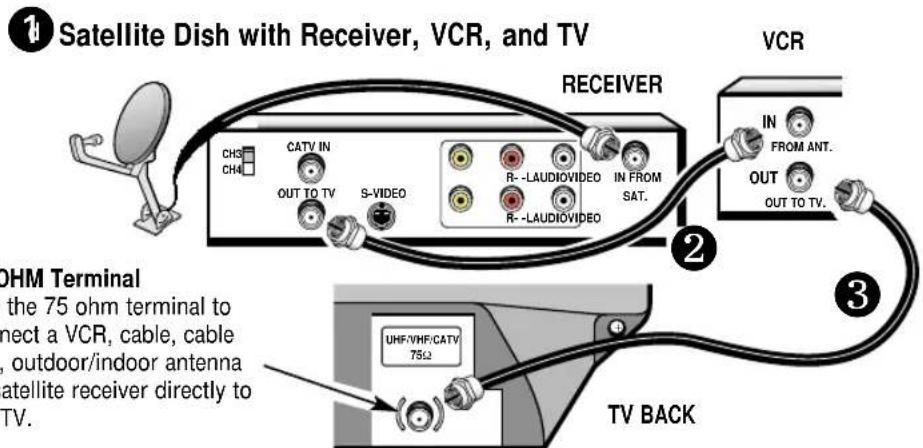

75 OHM Terminal Use the 75 ohm terminal to connect a VCR, cable, cable box, outdoor/indoor antenna or satellite receiver directly to the TV. Cable with VCR and TV Cable with Cable Box, VCR, and TV Satellite Dish with Receiver, VCR, and TV

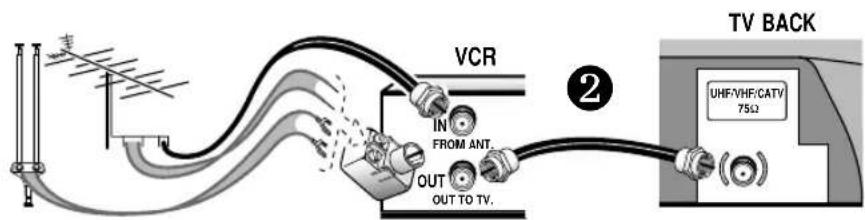

Outdoor or Indoor Antenna with VCR and TV

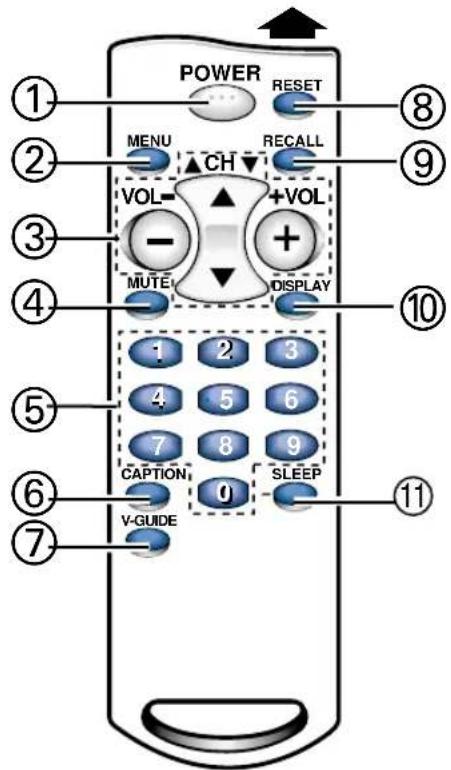

Power Key Press to turn TV on or off.

Menu Key Use this key with the / and / keys to navigate and adjust features of the on-screen menu system (see pages 6 and 7).

Channel (CH /) and Volume (VOL / ) Keys Press to scan through the channels in memory or to adjust the volume.

Mute Key Press once to minimize the volume. Press again to restore.

Number Keys Two keys must be pressed to select a channel. Example: Press 0 then 6 to select channel 6. For cable channels 100 through 125, press and hold the 1 key until C1–– appears. Then press the other two numbers.

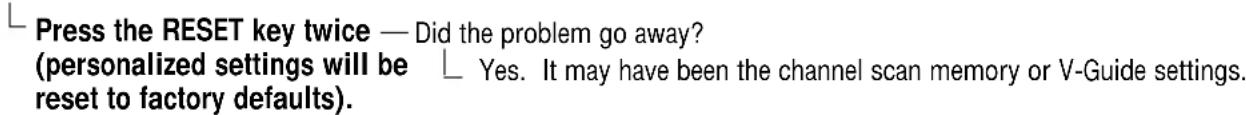

Reset Key Press this key twice to restore factory set- tings. The TV will automatically start Channel Search and clear all customized settings. (See page 9.)

Recall Key Select a channel then select another using the number keys. Press Recall to switch between the channels.

Display Key Press once to display the Channel number. Press twice to display the channel number continuously. Press again to remove the display. Sleep Key Use this key with the “0” key to set the Sleep Timer (see page 9).

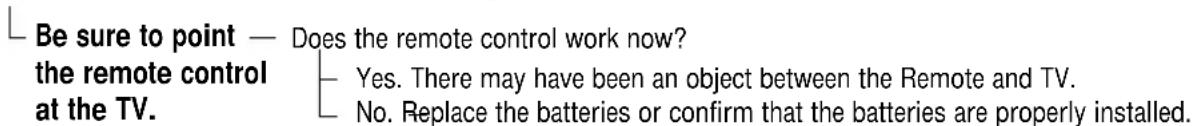

Point the remote control toward the TV. Objects between the remote control and the TV may cause mis- operation of remote control function.

Front panel keys work like remote control keys.

Be sure batteries are installed correctly.

This remote control has glow-in-the-dark Power, Channel and Volume keys.

Cannot select channel with number keys. Press “0” in front of numbers 1 ~ 9. Example: Channel 05.

The “C” in front of the number on your screen indicates a cable channel.

Adjusting the volume level: Right flashing arrow indicates volume is increasing and left flashing arrow indicates volume is decreasing.

Channel number will not display continuously when captioning is on.

Using V-Guide TV Parental Guide- lines settings can be changed only by using the Remote Control. (See pages 8 and 9.) Need help? Visit our website at www.sanyoctv.com

REMOTE CONTROL INSTALLING BATTERIES (2 AAA not included)

1. Remove the battery cover by pressing the tab and tilting the

cover upward. Insert batteries. Make sure you match / signs on the batteries with marks inside the remote control.

2. Replace battery cover. The remote control is ready!

Notes: – Do not mix old batteries with new ones or mix different types of batteries together. – Remove the batteries if the remote control will not be used for a month or more. Weak batteries may leak and cause damage. (Normal battery life is roughly six months.)

IMPORTANT NOTE: Spent or dis- charged batteries must be recycled or disposed of properly in compliance with all applicable laws. For detailed information, contact your local County Solid Waste Authority.

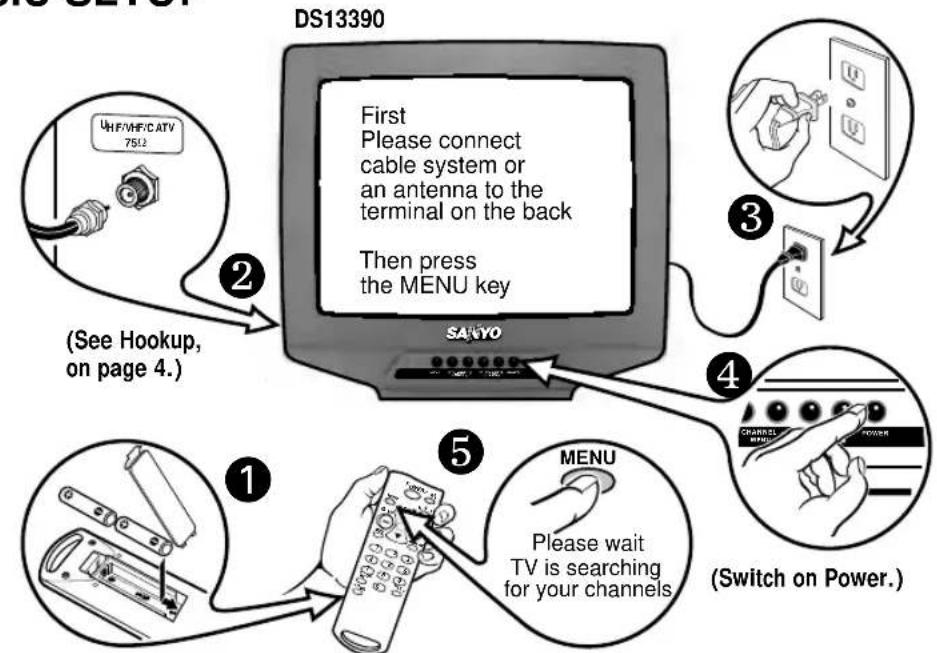

➧TV ADJUSTMENT AND SETUP

The on-screen menu provides the viewer with easy access to adjustments and settings. Justuse the keys on the remote control and follow the instructions.

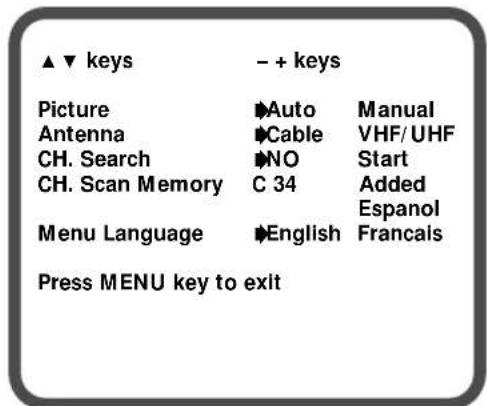

HOW TO MAKE ADJUSTMENTS

1. Press MENU key. 2. Use the / keys to highlightthe desired feature. 3. Use the / keys to choose desired option (

indicates selected item).Items with submenus requires additional steps. ADJUSTING PICTURE For automatic picture adjustment:Choose Audio from the Picture options.To manually adjust the picture:

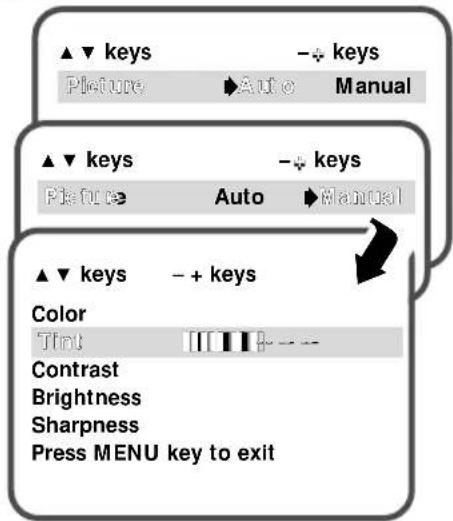

1. Choose Manual from the Picture options.

2. Press the MENU key to open the picture

settings submenu.3. Use the / key to highlight the picturesetting you want to change.4. Use the / keys to adjust settings.

5. Press the MENU key to exit.

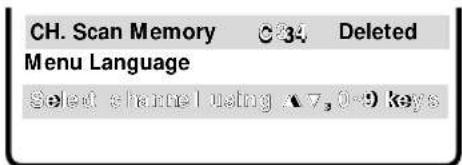

ADDING OR DELETING CHANNELS

2. Use the / keys to highlight CH. Scan Memory.

3. Press the key to highlight the channel number entry area.4. Enter the channel number you want to add or delete (example): C34. For cable channels above 99, press and hold the 1 key until C1– – appears. Then enter the other two numbers.5. Press the key to change the presentsetting. Example: Added will change toDeleted.

6. Press the MENU key to exit.

Always follow on-screen instructions. The menu will displayon the screen forapproximately 20seconds. Press MENU again to redisplay. All TV adjustments arecontrolled through themenu. Press the RESET keytwice to clear all set-tings. The TV willautomatically startChannel Search andclear all customized settings. Use the CHANNEL/ key and theVOLUME / keysto navigate throughthe menus and to makeselections from themenus. Channels deleted fromscan memory can beselected with theNumber keys. The channel numberarea mustbe high-lighted before pressingthe key to add ordelete a channel.Need help? Visit our website at www.sanyoctv.com

RESETTING THE ANTENNA/CABLE MODE AND CHANNEL SEARCH Resetting the Antenna/Cable Mode or CH. (Channel) Search is required only if additional channels become available, such as, moving to another city or having a cable service installed.

from the Menu Language options.

2. Press the MENU key to exit.

V-GUIDE INFORMATION NOTE: THIS FEATURE IS DESIGNED TO COMPLY WITH THE UNITED STATES OF AMERICA’S FCC V-CHIP REGULATIONS. THEREFORE, IT MAY NOT FUNCTION WITH BROADCASTS THAT ORIGINATE IN OTHER COUNTRIES. With the introduction of “V-Chip” technology, it is now possible for Sanyo televisions to interpret MPAA and TV Parental Guidelines rating codes. When these codes are detected, the TV will automatically display or block the program, depending upon choices you make when setting up the V-Guide system.

ABOUT MPAA AND TV PARENTAL GUIDELINES

MPAA and TV Parental Guidelines are rating systems that provide advance cautionary information to parents about the content of movie and television programming. MPAA is a voluntary rating system used by the movie industry. TV Parental Guidelines are modeled after the MPAA ratings and were designed to be simple to use, easy to understand, and easy to find. TV Parental Guidelines contain both age-based and content-based information. This gives parents discretionary ways of choosing appropriate material for their children to view. Content ratings are represented by the initials D (Suggestive Dialog), L (Adult Language), S (Sexual Situations), V (Violence), and FV (Fantasy Violence). When programming contains any or all of these conditions, these letters become part of the icon that is displayed on the TV screen. A rating icon will generally appear in the upper left hand corner of the TV screen for about fifteen seconds at the beginning of a program and should be repeated at the beginning of the second hour of a long program. It may also appear when returning from commercials. There may be other instances when these icons will be displayed as well. Parents are encouraged to become familiar with these icons and their meanings. WHERE CAN I FIND ADVANCE NOTICE OF PROGRAM RATING Publishers of programming guides have been asked to include these ratings along with other information they publish. You can expect to find this information in newspapers, magazines, and on-screen listings and guides.

TYPES OF PROGRAMS TO RECEIVE RATING

The TV Parental Guidelines will apply to various types of TV programming, including: specials, mini-series, and movies. Sports and news shows do not currently carry guidelines. MENU MUTE

Use the CHANNEL / key and the VOLUME / keys to navigate through the menus and to make selections from the menus.

V-Guide feature is accessible only from the remote control.

The TV guidelines rating icon will generally appear in the upper left hand corner of your TV screen.

The V-Guide display remains on screen for approximately 20 seconds. If it disappears, press the V-GUIDE key. Need help? Visit our website at www.sanyoctv.com

hh FrancaisV-GUIDE OPERATION Use this feature to supervise television viewing for young children. This television can be setup to automatically block programs with content you deem as inappropriate for your children to view, including: suggestive dialog, adult language, sexual situations, violence, and fantasy violence. The ability of the television to block the reception of specific programming content depends upon several conditions: 1) The program must be rated, 2) Networks must broad- cast the rating code data, 3) Cable companies must transmit the rating code signal, and

4) The TV must be properly setup to decode the signal.

The TV guidelines rating icon will generally appear at the upper left hand corner of your TV screen.

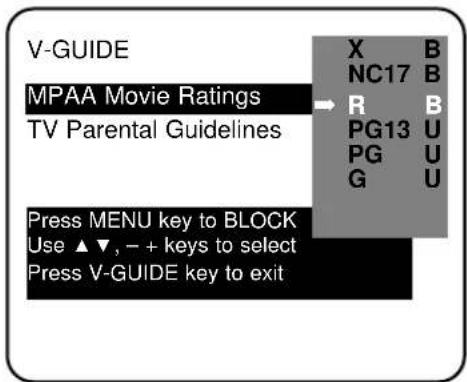

SETTING MPAA MOVIE RATING

1. Press the V-GUIDE key on the remote

3. Press the key again. Then use the

/ key to highlight rating.

4. Press the MENU key to Block (B) or

Unblock (U) selected rating. (➡ Arrow indicates selection.)

5. Press the key to return to the V-Guide

key to highlight rating.

8. Press the MENU key to Block (B) or

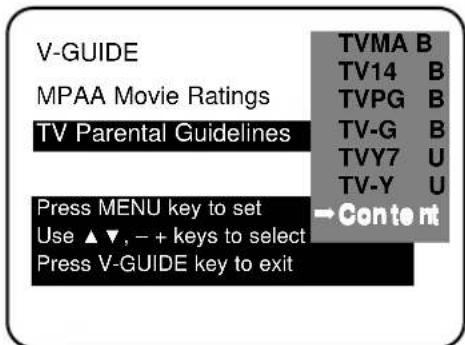

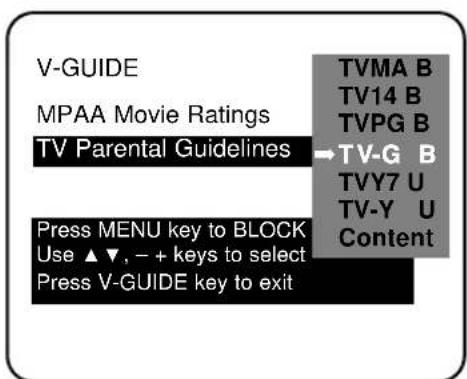

Unblock (U) selected rating. (➡ Arrow indicates selection.) SETTING CONTENT-BASED GUIDELINES

9. Follow steps 6 and 7. Use the /

keys to highlight Content.

The TV will automati- cally block (B) ratings above or unblock (U) ratings below selec- tion. For example, if you block rating R, NC17 and X will be blocked as well.

Blocking TVY7 does not block higher ratings.

You can block a content rating such as TVPG-V and still be able to watch TVPG programs with ratings of S-L-D provided TVPG is unblocked (U).

To view Blocked (B) programs, set V-GUIDE to OFF, or press the RESET key twice to clear all Blocked (B) ratings and customized settings.

When in the V-Guide menu system, the / keys allows you to navigate between the ratings and the options menu. Need help? Visit our website at www.sanyoctv.com

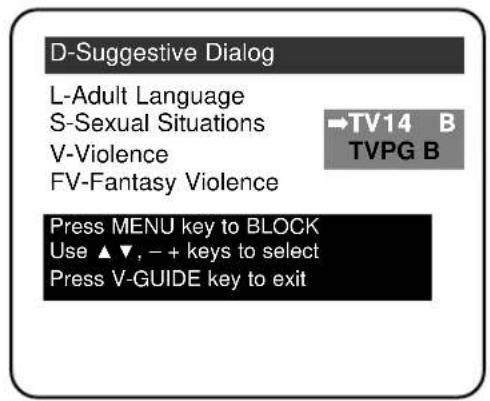

category (D-Suggestive Dialog, L-Adult Language, S-Sexual Situation, V-Violence, FV-Fantasy Violence).

12. Press the key. Then use the / key to highlight a rating.

13. Press the MENU key to Block (B) or Unblock (U) selected rating.

(➡ Arrow indicates selection.)

15. Repeat steps 11 through 13 to Block (B) or Unblock (U)

additional content ratings, if desired.

2. Use the / keys to select OFF.

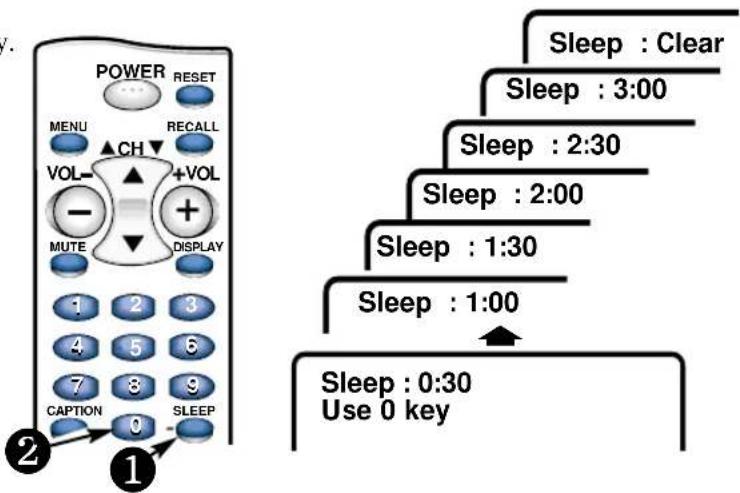

The Sleep Timer will switch off the TV automatically.

1. Press the SLEEP key.

2. Use the 0 key to select the desired time (from 30

minutes up to 3 hours). Note: The Sleep Timer cancels when the TV is turned off or if a power failure occurs.

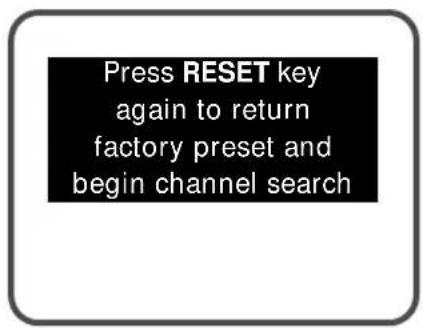

Press the RESET key to automatically reset the television to factory settings. These features will automatically reset:

Picture Adjustment: Color, Tint, Contrast, Brightness, and Sharpness

Sleep : Clear Press RESET key again to return factory preset and begin channel search

Note: Networks and local stations may or may not include the content ratings portion of the TV Parental Guidelines.10 CLOSED-CAPTIONING Captioning is textual information transmitted along with the picture and sound so it can be displayed on the TV screen. Because different types of captions can be transmitted with the TV signal, separate captioning modes are provided. The captioning modes recognized by this model are: Caption1, Caption2, Text1, and Text2. Local broadcasters decide which captions signals to transmit. They may not choose to provide captions or may provide captions in one or all of the available modes. Caption1: This is the main mode used for program caption- ing (words match the program you are watching). Almost all broadcasters will use Caption1 to transmit program captions. These captions are generally one or two lines. Caption2: This is an alternative mode for program captioning. Caption2 may be used by the broadcaster to provide captions in another language, such as, Spanish or French. Text1: This mode is used to display large amounts of text. This text will appear within a black box that may be nearly as large as the TV screen. Text displayed in this manner does not generally relate to the program. These captions may be used by broadcasters to provide weather reports, community bulletins, stock quotes, etc. Text2: This is an alternative mode used to display large amounts of text. The same types of information displayed in Text1 can be displayed in Text2. Quikcap: Quikcap allows captions to toggle on and off with the Mute function. For example, the phone rings; you press the MUTE key on the remote control to block the TV sound; the captions display automatically. When you finish your conversation and press the MUTE key again to restore the sound, the captions will disappear. Quikcap displays program captions in the Caption1 mode. SETTING CAPTIONS

1. Press the CAPTION key on the remote control.

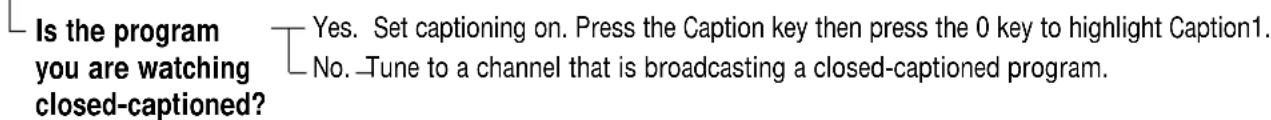

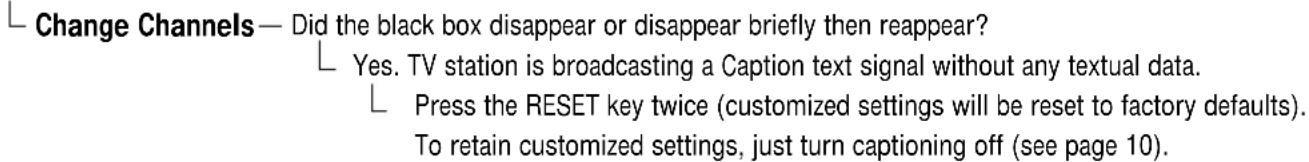

If Caption Text mode is selected and no captioned text is broadcasted, a black box may appear and remain on the TV screen. To remove this black box, set captioning to any mode other than Text1 or Text2 or press the RESET key to cancel captioning and customized settings.

When captioning is turned on, the channel display will not stay on the screen. For these displays to stay on the screen you must set Captioning to OFF. Need help? Visit our website at www.sanyoctv.com

Call 1-800-877-5032TWO OUTS AND TWO STRIKES Caption1/2 Text1/2 TONIGHT: BECOMING MOSTLYCLOUDY WITH A 40 PERCENTCHANCE OF RAIN. COLD WITHA LOW IN THE UPPER 30's WESTWIND AROUND 20 MPH, SHIFT-ING TO NORTHWEST AROUNDMIDNIGHT. FRIDAY: MOSTLYCLOUDY AND COLDER WITHA 50 PERCENT CHANCE OFRAIN. HIGH IN THE MID 50's.

The surface of the cabinet can be damaged if not properly maintained. Many common household aerosol sprays, cleaning agents, solvents and polishes will cause permanent damage to the fine surface.

1. Unplug the power cord before cleaning the television.

2. Use a damp cloth for cleaning.

Note: Never spray liquids on the screen because they can run down and drip onto the chassis. This may cause component failure not covered under Warranty.11 (Continued on page 12.) No Picture or Poor Picture Is picture ok? Yes. Problem is with signal (station, cable, or satellite reception). No. Turn off household/shop appliances such as, vacuum, blender, drill, etc. Did picture improve? Yes. Problem was interference from an appliance. No. Adjust antenna direction/alignment. / Press the RESET key twice (personalized settings will be reset to factory defaults). Change Channels. Is color better? Yes. Problem is with program or signal (station, cable, or satellite reception). No. Adjust antenna direction/alignment. Did color improve? Yes. Antenna was not adjusted properly for the channel you’re watching. No. Press the RESET key twice (personalized settings will be reset to factory defaults). Was the connector loose or disconnected? Yes. Problem could be auto shutdown due to loss of signal. (See page 4.) No. Press the POWER key. Did the TV come on? Yes. Sleep Timer may have been set. No. Unplug the TV for a few seconds. Reconnect and press POWER. TV Turns off by itself Check antenna connection. TROUBLESHOOTING Before calling for assistance, please look for the condition that most closely resembles your problem in the following charts, then follow the instructions for that condition. Visit our web site at www.sanyoctv.com or call toll free 1-800-877-5032. Poor color or no color Change Channels. Do you recognize the menu words now? Yes. A language other than English was selected. I don’t recognize words in the on-screen menu Press the RESET key twice (personalized settings will be reset to factory defaults).Did the problem go away? Yes. It may have been the channel scan memory or V-Guide settings.

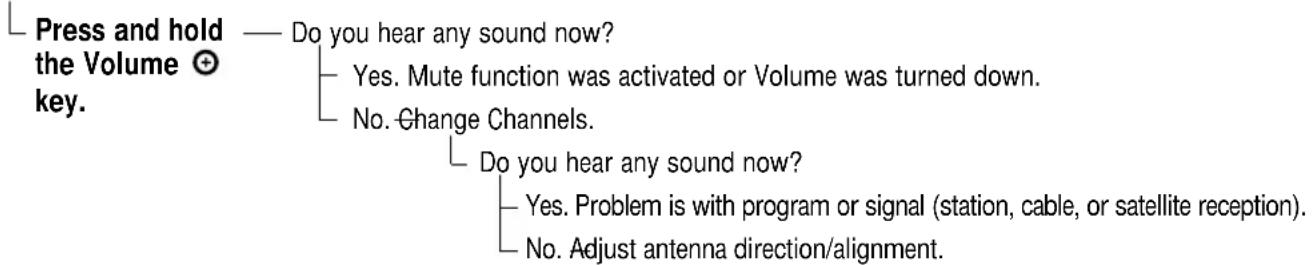

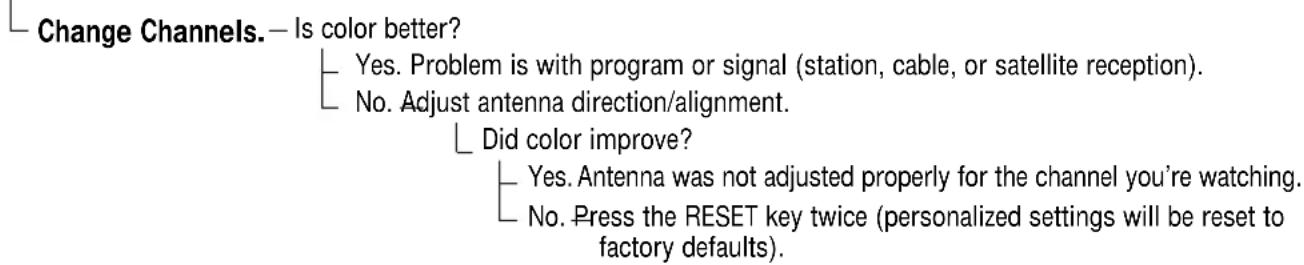

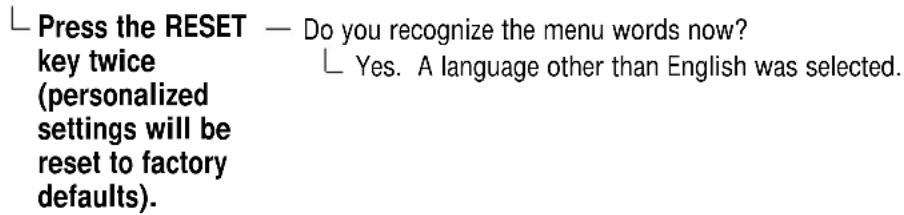

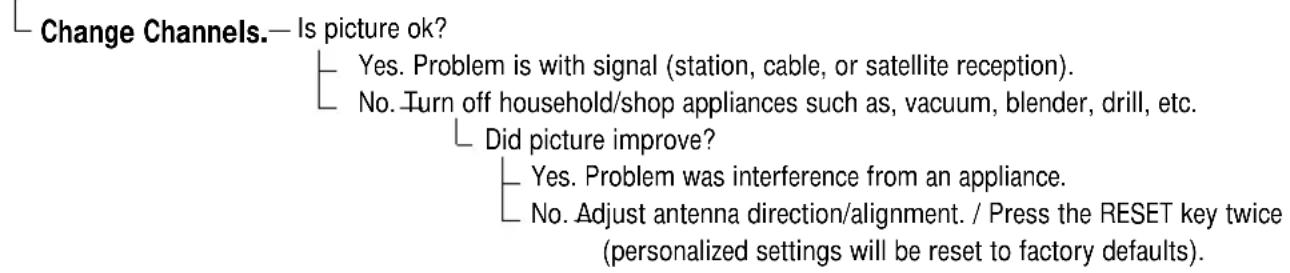

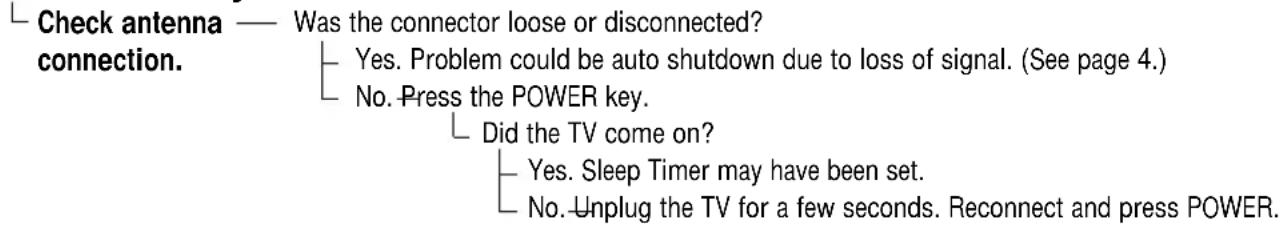

Do you hear any sound now? Yes. Mute function was activated or Volume was turned down. No. Change Channels. Do you hear any sound now? Yes. Problem is with program or signal (station, cable, or satellite reception). No. Adjust antenna direction/alignment. No sound Press and hold the Volume key. TROUBLESHOOTING (Continued) The cabinet makes a popping sound This is a normal condition during the warm-up and cool down of the plastic cabinet parts. Does the remote control work now? Yes. There may have been an object between the Remote and TV. No. Replace the batteries or confirm that the batteries are properly installed. My remote control will not operate my Television Be sure to point the remote control at the TV. Cannot select or scan some channels Press the RESET key twice (personalized settings will be reset to factory defaults). Did the black box disappear or disappear briefly then reappear? Yes. TV station is broadcasting a Caption text signal without any textual data. Press the RESET key twice (customized settings will be reset to factory defaults). To retain customized settings, just turn captioning off (see page 10). A Black box appears on the screen Change Channels Yes. Set captioning on. Press the Caption key then press the 0 key to highlight Caption1. No. Tune to a channel that is broadcasting a closed-captioned program. No Captioning Is the program you are watching closed-captioned?13 MEXICO GUARANTEE
