Titan - Car seat Lorelli - Free user manual and instructions

Product Type	Car Seat
Brand	Lorelli
Model	Titan
Group / Weight Range	Group 0+/1 (0–18 kg / approx. birth to 4 years)
Dimensions (H x W x D)	67 x 45 x 42 cm
Weight	5.2 kg
Installation Method	Vehicle seat belt (3-point) – ISOFIX not included
Facing Direction	Rearward (0–9 kg) / Forward (9–18 kg)
Recline Positions	3 positions (incl. sleeping position)
Harness Type	5-point harness with adjustable shoulder height
Safety Standards	ECE R44/04
Cover Maintenance	Removable and machine washable at 30°C
Expiration / Lifespan	6 years from date of manufacture
Accessories Included	Infant insert (newborn pad), head support
Cleaning	Wipe plastic parts with damp cloth; no abrasive cleaners
Storage Temperature	-20°C to 50°C

Frequently Asked Questions - Titan Lorelli

What is the weight and age range for the Lorelli Titan car seat?

The Titan is suitable for children from birth up to approximately 4 years, with a weight range of 0–18 kg. It can be used rear-facing for infants up to 9 kg and forward-facing for toddlers from 9 to 18 kg.

How do I install the Lorelli Titan car seat?

The seat is installed using the vehicle's 3-point seat belt. For rear-facing, route the belt through the designated slots behind the seat. For forward-facing, route through the slots at the back. Ensure the belt is tight and the seat does not move more than 2.5 cm at the belt path.

Can I use the Titan with ISOFIX connectors?

No, the Lorelli Titan is designed for seat belt installation only and does not come with ISOFIX connectors.

How do I clean the seat cover?

The cover is removable. Machine wash it at 30°C on a gentle cycle. Do not use bleach or fabric softener. Air dry only. Plastic parts can be wiped with a damp cloth.

How do I adjust the harness height?

The harness has adjustable shoulder height positions. For rear-facing, the shoulder straps should be at or below the child's shoulders. For forward-facing, at or above. Release the harness, move the strap retainers to the desired slot, and rethread.

Does the Titan have a reclining feature?

Yes, the seat offers 3 recline positions. Adjust by pulling the recline lever at the front while supporting the seat. Use a more reclined position for young infants.

What safety standards does the Lorelli Titan meet?

The Titan complies with the European safety standard ECE R44/04. This ensures it has passed dynamic crash testing and meets strict safety requirements.

When does the car seat expire?

Car seats generally have a lifespan of about 6 years from the date of manufacture. Check the production date stamped on the seat. Do not use after the expiration date.

Can I use the Titan on an airplane?

The Titan has not been FAA certified, but it may be used on aircraft if it fits and the airline allows. Rear-facing installation is typically required for infants. Check with the airline beforehand.

Where can I find spare parts or the instruction manual?

For spare parts (e.g., harness, buckles, cover) and the downloadable manual in PDF, visit the official Lorelli website or contact their customer service. The manual is also available on notice-facile.com.

USER MANUAL Titan Lorelli

IMPORTANT! KEEP FOR FURTHER REFERENCES. READ CAREFULLY!

NOTICE

1. This is an "universally" securing device for children. It is approved in accordance with Rule No 44 for general use in vehicles and is suitable for most but not all seats in cars.
2. Placing is correct if the vehicle manufacturer has declared in the Manual for the use of the vehicle that in the vehicle may be placed "Universal" Safety devices for children of this age group.
3. This securing device for children is classified as "universal" under more stringent conditions than those applied in previous structures, which don't have this remark.
4. If you have doubt, consult the manufacturer of safety equipment for children or the seller.

Only suitable if the approved vehicles are fitted with

3-points static or 3-point retractor safety-belts.

Approved to UN/ECER Regulation No. 16 or other equivalent standards.

Important safety instructions!

WARNING! It is appropriate only if approved vehicles are equipped with a 3-point holding device of safety belt, approved in accordance with Rule No 16 of the ECE at the UN or other equivalent standards.

WARNING! The hard components or plastic parts of safety device for children should be deployed and installed in way that during everyday use of the vehicle not be jammed by the movable seats or doors.

WARNING! All belts fastening car chair must be tight, belts restrain the child, must be adjusted to his body and not twisted.

WARNING! The device must be replaced if it has undergone significant load of an accident.

WARNING! Waist belt has to be adjusted low so that child's pelvis is restrained tight!

WARNING! It is dangerous to make changes or to supplement safety device without approval of the competent authority!

WARNING! Follow closely the instructions for installation. Failure can result in injury to the child!

WARNING! Do not leave the child unattended in the safety device!

WARNING! Any luggage or other items that can cause injury if a collision should be properly secured!

WARNING! Safety device for children should not be used without case!

WARNING! Cases of seat should not be replaced with another, unless recommended by the manufacturer, because it is an integral part of the system for securing children!

WARNING! Your child seat can only be fitted into the passengers seat of a car with a lap and diagonal seat belt. Do not use any load bearing contact points other than those described in the instructions and marked on the child restraint. Ensure the vehicle seat buckle is not positioned in or in front of the specified (labelled) belt guide of the child restraint system.

WASHING INSTRUCTIONS

1. The car seat can be cleaned using lukewarm water and soap. Do not use aggressive cleaners like abrasives or thinner.
2. The cover should be washed by hand at a maximum temperature of 30^ C. Do not put in the dryer, just airing it.
3. The plastic parts can be cleaned by using a wettish drapery. Please, do not use any solvate.

Installation for group I(9-18kg)

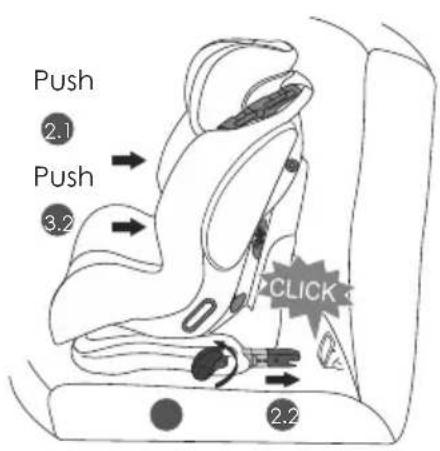

a) Place the car seat on the vehicle's seat
b) Rotate the adjuster button in anti-clock wise direction(1.1), and pull the isofix anchors outwards as far as it goes, wake sure it can't be push back (1.2)
c) Push the car seat towards the back of vehicle's seat(2.1)
d) Match the isofix anchors to the vehicle's anchoring point until hear a "click"(2.2)
e) Rotate the adjuster button in anti-clock wise direction(3.1), and push the car seat to the back of vehicle's seat as much as possible(3.2)
f) Hook the top tether up and pull as tight as possible(4)

Line drawing of a car seat assembly with no text or symbols

Diagram of a mechanical component with a numbered arrow indicating a step, enclosed in a circle (no text or symbols present)

Circular diagram showing a mechanical device with directional arrows indicating movement or force (no text or symbols)

Installation for group II / III

This installation method is for a child within Group II(15-25kg) and Group III(22-36kg).

Note: the car seat must be used Isofix anchors plus top tether at the same time with 3-point automatic seat belt for group II/III all the time.

a) Remove the harness system, including the belt pads, central buckle and crotch strap.
b) Adjust the headrest by pulling the lifting handle at your required position according to your child's height.
c) Place your child into the car seat.
d) Thread the vehicle's shoulder belt from the Group II belt guide slot (F14-a), or Group III belt guide slot (F14-b), and thread the lap belt into the belt guide hole (F14-c). So the installation is completed (F14-d).
e) Joint the belts and buckle up.

The car seat must be fitted as a forward-facing position in the rear seats of vehicle Four positions of the car seat

The “Titan” car seat can be used in four different positions. (see pic F2): Pull the positioning handle under the front of the seat forwards or backwards (feel the spring underneath), then release the handle.

THE TYPE OF APPROVED SEAT BELT YOU MUST HAVE

Your child seat can only be installed forward facing using a lap and diagonal seat belt in the front or rear passenger seat of the car. (FIG. A)

BG

Line drawing of a car seat assembly with no text or symbols

Diagram of a mechanical component with a numbered arrow indicating a step, enclosed in a circle (no text or symbols present)

Circular diagram showing a mechanical device with directional arrows indicating movement or force (no text or symbols)
