DLPM911 - DVD player Sunstech - Free user manual and instructions

Type	Portable DVD player with DVB-T
Disc Support	DVD, VCD, CD, MP3, WMA, JPEG
TV System	PAL / NTSC
Video Output	1 Vp-p (75 Ω)
Audio Output	1.2 Vrms (1 kHz, 0 dB)
Frequency Response	20 Hz – 20 kHz (±1 dB)
Signal-to-Noise Ratio	> 80 dB (analog out)
Dynamic Range	> 85 dB (DVD/CD)
Power Supply	AC 100-240 V, 50/60 Hz; DC 9-12 V (car adapter)
Power Consumption	< 12 W
Battery Type	Lithium-ion, 7.4 V
Battery Charge Time	3–4 hours
Laser Wavelength	650 nm (semiconductor)
Operating Humidity	5% – 90%
Storage Temperature	-20°C to +45°C (6 months), -20°C to +65°C (1 week)
Working Temperature	0°C to +45°C (charging), -20°C to +65°C (discharging)
Connectors	AV out, USB, earphone, DC in
Additional Features	DVB-T receiver, built-in speaker, car headrest bracket, remote control
Security	Parental control (rating), password (default 0000)
Warranty	2 years

Frequently Asked Questions - DLPM911 Sunstech

How do I switch between DVD and DVB-T mode?

Press the DVD/DVB button on the remote control to toggle between DVD playback and digital TV (DVB-T) mode.

How can I set up parental controls?

Go to SETUP > System Setup > Password, enter the default password 0000, then set Rating from 1 (Kid Safe) to 8 (Adult).

How do I change the OSD language?

Press SETUP, navigate to Language Setup, then select OSD Language and choose from English, German, Spanish, French, Portuguese, Italian, or other available languages.

How can I play files from a USB drive?

Insert a USB flash drive into the USB port on the unit, press SOURCE and select USB mode. Use the remote to navigate and play supported files (MP3, WMA, JPEG, etc.).

What is the correct way to mount the player in a car?

Use the supplied car bracket: fix Part 1 and Part 2 around the headrest, then attach Part 3 (screws) into the holes. Mount Part 5 onto the back of the unit with Part 4, and adjust the angle using Part 6.

How do I repeat a specific segment of a disc?

During playback, press A-B on the remote once at the start point and again at the end point. The player will repeatedly play that segment. Press A-B again to cancel.

Can I adjust the TV aspect ratio?

Yes. Press SETUP, go to Video Setup or System Setup, find TV Type and select 4:3 PS (pan & scan), 4:3 LB (letterbox), or 16:9 (widescreen).

How do I charge the internal battery?

Connect the supplied AC adapter to the DC IN 9-12V port and plug into a wall outlet. The battery charges fully in about 3–4 hours. Do not charge in poorly ventilated areas.

What should I do if the remote control stops working?

Check that the remote has fresh batteries and is aimed at the sensor. If the problem persists, try resetting the unit by turning it off and on again, or replace the remote batteries.

How do I perform a factory reset?

Press SETUP, navigate to System Setup, select Default or Restore, then confirm. This resets all settings to factory defaults.

USER MANUAL DLPM911 Sunstech

Line drawing of a desktop computer with front panel, rear panel, and control buttons (no text or symbols)

MANUAL DE USUARIO DLPM911

Digital Viano Broadcasting

Line drawing of a desktop computer front panel with monitor, keyboard, and control buttons (no text or symbols)

USER'S MANUAL DLPM911

DOLBY

DIGITAL

VIDEO

Digital Video Broadcasting

Before connecting, operating or adjusting this product, please read this user's manual carefully and completely.

Car bracket fix

Fix car bracket:

1. Fix Part 1 and Part 2 around the headrest

2. Fix Part 3(4pcs of screws) into the holes with a driver

3.Fix Part 5 into the back of unit with Part 4

the angle could be changed by adjusting Part 6

4.Fix Part A and Part B

Table of Contents

Table of Contents P1

Important Safety Instructions P2

Safety Precautions P3

Identification of Controls P4-P6

SETUP Menu Setting P7-P8

SETUP Menu Introduction P9

Parameters and specifications P10

Battery Parameters P10

Important Safety Instructions

Warning: To reduce the risk of electric shock, do not remove the cover or back. There are no user-serviceable parts inside. Refer servicing to qualified personnel.

Warning: To prevent fire or electric shock hazard, do not expose the unit to rain or moisture.

Do not expose the Adaptor and portable to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the unit.
- Keep the portable away from direct sunlight and heat source such as radiators or stoves.
Do not block the ventilation openings. Slots and openings on the unit are provided for ventilation. The openings should never be blocked by placing your portable on a cushion, sofa or other similar surface.
Do not place the portable on unstable cart, stand, tripod, bracket or table. The unit may fall, resulting in possible damage or injury.
Never place heavy or sharp objects on the LCD panel or frame.
Only use the AC adapter included with portable. Using any other adapter will void your warranty.
The plug of AC adaptor is used as the disconnect device, the disconnect device shall remain readily operable.
Unplug the power from the outlet when the unit is not in use.
- Attention should be drawn to the environmental aspects of battery disposal.

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

WARNING: The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like.

WARNING: Excessive sound pressure from earphones or headphones can cause hearing loss.

WARNING: Only use attachments/accessories specified provided by the manufacturer, the portable is supplied by AC adapter, the AC adapter is used as disconnect device, the disconnect device shall remain readily operable.

Caution: Danger of explosion if battery is incorrectly replaced, replaced only with the same or equivalent type (Lithium battery)

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Safety Precautions

WARNING

RISK OF ELECTRIC SHOCK DO NOT OPEN

Warning: This digital video disc player employs a laser system. Use of controls, adjustments, or the performance of procedures other than those specified herein may result in hazardous radiation Exposure.

Warning: To prevent direct exposure to laser beam, do not open the enclosure. Visible laser radiation when open.

Warning: Never stare directly into the laser beam.

Caution: Do not install this product in a confined space such as a book case or similar unit.

Warning: when the unit using by child, parents must make sure to let the child understand all contents in Instruction book how battery using to guarantee using battery correctly all the time.

Warning: when find battery overheat, swell or dour, please stop using battery and contact service centre for getting replacement.

Warning: do not charging battery on the place of insufficient ventilation such as: mattress, sofa, cushion, soft mat.....

Warning: we will not take any responsibility if user incorrectly use battery, not following our warning instruction label on the battery case.

Warning: more than 250mm USB extension cord is prohibited to use for USB port

Notes on Copyrights:

It is forbidden by law to copy, broadcast, show,broadcast via cable, play in public, or rent copyrighted material without permission.

This product features the copy protection function developed by Macrovision.Copy protection signals are recorded on some discs. When recording and playing the pictures of these discs picture noise will appear.This product incorporates copyright protection technology that is protected by method claims of certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation and other rights owners.Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by macrovision Corporation. Reverse engineering or disassembly is prohibited.

SERIAL NUMBER:

You can find the serial number on the back of the unit. This number is unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase.

Model No.

Serial No.

Date of Purchase

Identification of Controls

Main Unit

1. DVD/DVB-T

2. SOURCE

3. DISPLAY

4. RETURN

5. right

left

▲up

down

short press is up/right/down/left

1. ▶ PLAY/ PAUSE

2. ■ STOP

3. SETUP

4. USB

10.VOL+/-

1. Earphone Socket

2. AV OUT

3. ON/OFF

4. DC IN 9-12V

Insert the battery

1.Open the battery door.

1. Insert battery.

NOTES:

Remove battery during storage or when you are not using the DVD player for a long time.

Identification of Controls

Remote control unit

1.PLAY/PAUSE

Press PLAY/PAUSE once to pause playback, pressing PLAY/PAUSE second time will resume the playback.

2.STOP

When this button is pressed once, the unit records the stopped point, from where playback will resume if ENTER is pressed after wards. But if STOP button is pressed again instead of ENTER button, there will be no resume function.

3. Reverse Skip

DVD : Go to previous chapter/ track to the beginning.
DVB : Red key in Teletext.

4. Forward Skip

DVD : Go to next chapter/ track.
DVB : Green key in Teletext.

5.VOL-

Adjust VOLUME.

6.REPEAT

Press REPEAT during playback to select a desired repeat mode.

DVD : you can play a chapter/title/all on a disc.

VCD CD : you can play a track/all on a disc.

Mp3 WMA : you can select Repeat one/Repeat folder

play mode on a disc.

7.A B

To repeat a segment: press AB once to set the starting point for repeat segment, press it again to set an end point, and the player will repeat the segment from the start to the end point.

8.PROGRAM

DVD VCD CD Mp3 :The program function enables you to store your favourite tracks from the disc. Press PROGRAM button, then PROGRAM MENU will appear on screen, now you can use the number key to direct input the titles,chapters or tracks number and select PLAY option. TO resume normal playback, press PROGRAM and select CLEAR option on the program menu.

TTX :Teletext function DVB

JPEG :You can press PROGRAM repeatedly to select the slide show mode, the are 16 types slide show.

Identification of Controls

Remote control unit

9. SOURCE

DISC/CARD/USB.

10.TITLE

DVD : Return to DVD title menu.

DVB : Switch to TV or Radio program.

11.DVD/DVB

Switch to DVD or DVB mode.

12.0-9 NUMBER BUTTON

Selects numbered items in a menu.

13. ENTER

Confirms menu selection.

14. VOL +

Adjust VOLUME.

15.DISPLAY

To display the playtime and status information.

16.AUDIO

DVD DVB Press AUDIO repeatedly during playback to hear a different audio language or audio track, if available.

VCDC Press AUDIO repeatedly during playback to hear a different audio channel (Stereo, Left, or Right).

17.SUBTITLE

Press SUBTITLE repeatedly during playback to hear a different subtitle languages.

18.ANGLE/EPG

Press ANGLE will change the view angle, on DVDs that support this feature.

DVB show EPG information.

19.SETUP

Accesses or removes setup menu.

20.10+ BUTTON

In order to select a track 10 or greater, first press 10+, For example; select track 12, first press 10+, and then press number 2 button.

21.RETURN

Return to upper menu or close menu.

22. ◀ BUTTON

DVD Press ◀ BUTTON allow skipping back at 5-level speed (X2->X4->X8->X20), press ENTER button return to normal playback.

DVB YELLOW Key in Teletext.

23. ➤ BUTTON

DVD Press ➤ BUTTON allow skipping ahead at 5-level speed (X2->X4->X8->X20), press ENTER button return to normal playback.

DVB BLUE key in Teletext.

24. SLOW

Slow play.

25.MENU

Accesses menu on a DVD disc.

26.SEARCH

Goto time point, title or chapter you want in DVD Mode.

27. MUTE

Disable Audio output.

SETUP Menu Setting

System Setup Page

Press SETUP button to get the setup menu. Use direction buttons

▲▼◀▶ to select the preferred item. After finishing settings, press SETUP again to normal display.

System Setup

TV System

Selecting the color system that corresponds to your TV when AV output. This DVD Player is compatible with both NTSC and PAL. PAL - Select this if the connected TV is PAL system. It will change the video signal of a NTSC disc and output in PAL format. NTSC - Select this if the connected TV is NTSC system. It will change the video signal of a PAL disc and output in NTSC format.

Screen Saver

This function is used to turn the screen saver on or off.

TV Type

Selects the aspect ratio of the playback picture.

4:3 PS: if you have a normal TV and want both sides of the picture to be trimmed or formatted to fit your TV screen.

4:3 LB: if you have a normal TV. In this case, a wide picture with black bands on the upper and lower portions of the TV screen will be displayed.

16:9: wide screen display.

Password

Input user password. Default password is 0000.

Rating

After input correct password, you can change parental level.

Default

Restore the factory setting of setup menu.

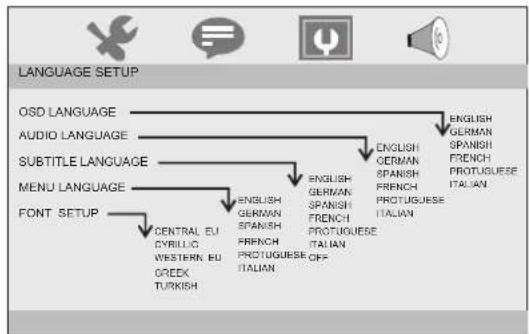

Language Setup Page

Language setup

You can select OSD language, and select audio/subtitle/menu language of DVD discs if available. Also you can select font type for mpeg4 subtitle.

SETUP Menu Setting

Video Setup Page

You can change the video setting: brightness, contrast, hue, saturation.

Speaker Setup

Downmix:

LT/RT: When playing a 5.1ch DVD disc, the LS/RS/Center channel audio will output through both L and R channel. STEREO: When playing a 5.1ch DVD disc, the LS channel audio will output only through L channel, RS channel audio will output only through R channel, Center channel audio will output through both L and R channel.

Channel Guide

TV Channels: Enter TV channels list.

In TV channels list, press DISPLAY key can sort programs.

Radio Channels: Enter radio channels list.

In radio channels list, press DISPLAY key can sort programs.

Channels Class: Set channels class: Favor, Movie, News, Show.

EDIT CHANNEL:

With this option you will be able to sort the channels as you wish.

• Select the channel you want to move
• Put the cursor on the MOVE rectangle and press the key ENTER
• Move the channel to the whished position and press ENTER
• Press the key SETUP to exit the settings menu.

SETUP Menu Introduction

DVB SETUP MENU

System Config

TV Setting: Selects TV system and TV type.

Video Setting: Change the video setting: brightness, contrast, hue, saturation.

Language: Selects OSD language.

Parent Control: Change password and set channel lock. Default password is 0000.

Time Setting: Set time zone.

System Info: Informations about the update data, tuner, F/W version and model version.

Installation

Auto Scan: Auto search all available channels.

Manual Scan: Manual search channels.

Default Setup: Reset DVB factory setting.

Digital Teletext

EPG (Electronic Program Guide)

The DVB-T player provides you an Electronic Program Guide to take a fast preview of live broadcasts from each TV channel in advance of watching it in full screen.

1 Press EPG.

An Electronic Program Guide Menu appears on the screen, with a TV channel menu to the left and corresponding live broadcast of the selected program to the right.

2 Press “ ” button to more digital teletext provided by the selected channel.

Press " " button to return to program list.

3 Press " √" button/ " √" button to toggle through each TV channel and to see its live broadcast.

*To exit from this page

--Press "EPG" button.

If the program you are watching broadcasts digital teletext, the DVB-T player can display teletext. The content of digital teletext varies according to the program provider. It could be pictures and sound for the program, pages of information on the programs, the weather, the news or other options.

Press TTX button, the teletext window appear on the screen.

Press ↑↓button, turn over the teletext information.

*To exit from teletext

--Press TTX button to exit from teletext.

Parameters and specifications

Battery Parameters

Battery Specifications:

Output: 7.4V

Charge / Discharge Time:

Standard charge time: 3h \~ 4h

Storage and work circumstances:

1. Storage circumstances Temperature Humidity

6 months -20°C \~ +45°C 65±20%

1 week -20°C \~ +65°C 65±20%

1. Work circumstances Temperature Humidity

Standard charge 0℃\~+45℃ 65±20%

Standard discharge -20℃ \~ +65℃ 65±20%

Electronical parameters

Item		Standard requirement
Power requirements		: AC 100-240 V, 50/60 Hz
Power consumption		:<12W
Operating humidity		: 5 % to 90 %
Output	VIDEO OUT	: 1 Vp-p (75 Ω)
	AUDIO OUT	:1.2 Vrms (1 KHz, 0 dB)

System

Laser	:Semiconductor laser, wavelength 650 nm
Signal system	:NTSC / PAL
Frequency response	:20Hz to 20 kHz(1dB)
Signal-to-noise ratio	:More than 80 dB (ANALOG OUT connectors only)
Dynamic range	:More than 85 dB (DVD/CD)

Note: Design and specifications are subject to change prior notice.

Warranty conditions

- The warranty of this product is for 2 years since the purchase date.

- The warranty will exclude breakdowns caused by bad use of the product, wrong installation or installation in not desirable places for a proper maintenance of the product, rips, updates of the products that are not the supplied by the brand, pieces wore away for its use or for not domestic or inappropriate use. Also are excluded breakdowns caused for manipulations of the products by people or companies alien to our company.

- For any request regarding the warranty terms, the purchase receipt must be attached.

Correct disposal of this Product

(Waste Electrical & Electronic Equipment(WEEE)

Your product is designed and manufactured with high quality materials and components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-of-life should be disposed of separately from your household waste.

Please dispose of this equipment at your local community waste collection/recycling centre.

In the European Union there are separate collection systems for used electrical and electronic products. Please help us to conserve the environment we live in!
