USER MANUAL MP-F59 MPMAN

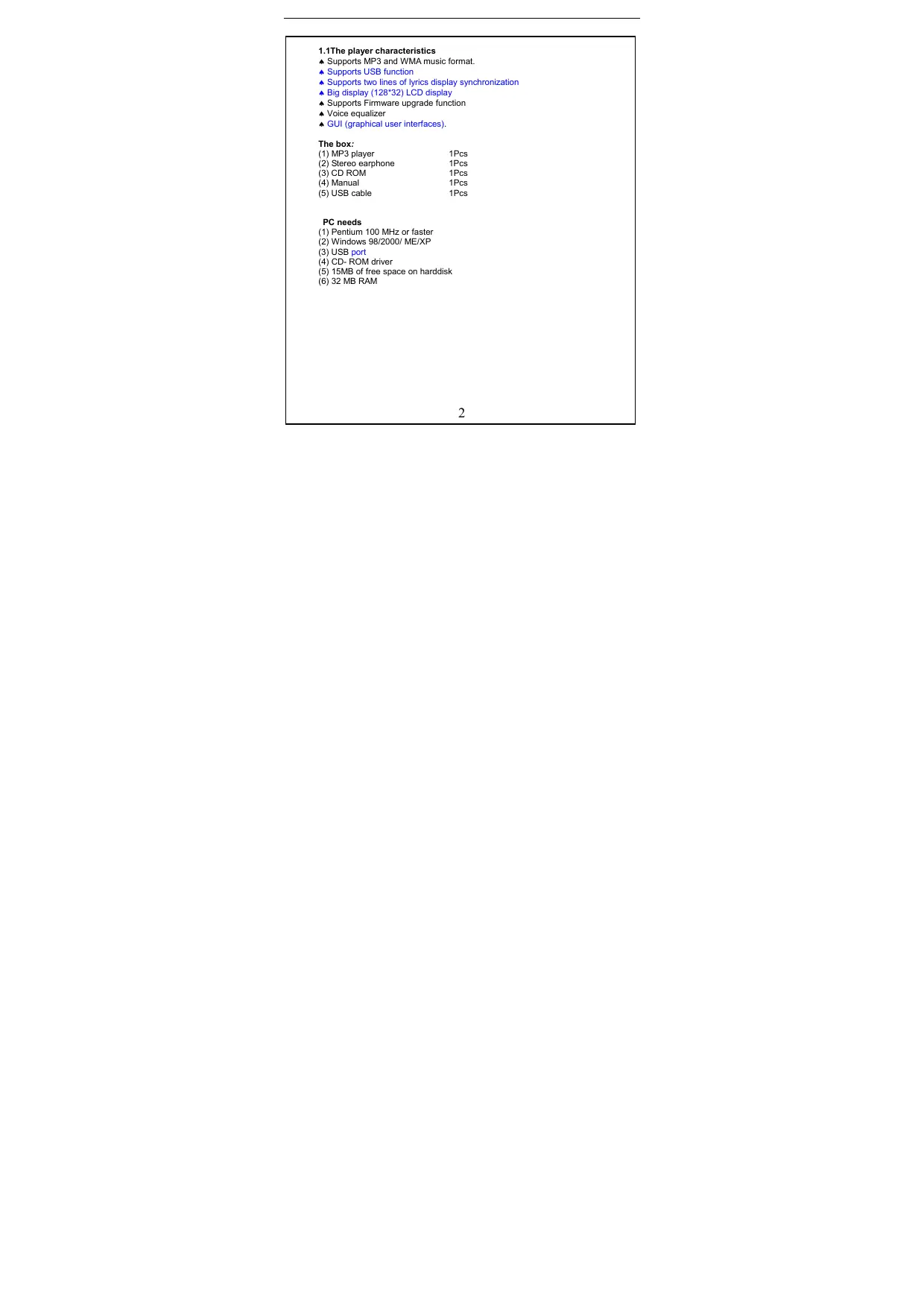

‘1.1The player characteristics 4 Supports MP3 and WMA music format. 4 Supports USB function 4 Support two lines of lyrics display synchronization

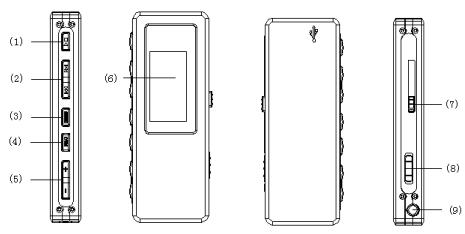

1.2 The player appearance interface

‘This player adopts big LCD of 128*32 latice unter of songe Fees nude ms ete tome rase Battery rooser Al" ERIC Wenencoute you = Andy

The screen shows a battery indicator wilh nine levels. The batery is fu when the battery voltage is 1.5V. The battery indicator wil| be empty when the battery is used up. At hat time, he player Shouïd be charged with an extemal charger(optional or with the USB connection on yaur PC

Z Operating instruction

2. Tuming onoffthe MP3 player

Side sutch (8) t he right. The LCD display wi ight up. Side switch (8) t te et. The MPS player vil shut of. 22 Main menu Press the “Menu” button for several seconds, from any point in the menu, and the player returns automatically back to he main menu. (Mie # = 1) MUSIC

You can switch between options by press the “FFWD” or “F.REV” button “»" or “4”. Then press shortiy on the “Menu” button ubmenu or confirm à function.

Press "Menu" button once lo enter the stop submenu. Four options: Local Folder = Delete fle = Delete al 2 Et 2.3:1.1 Local folder

Local folder [Er Files can be stored in different folders. Create new folders in Windows explarer when MP3 is connected Open “external drive”. Create new folder - Press “Menu” button to open Local folder Press *F.FWD' or "REV" bution to select the catalog - Press “Menu” button to confirm

During playback, press "Menu "button to enter “Play submenu Six options: - Repeat = Equalzer -_ Tempo Rate = Replay = Replay times = Replay gap + Et

AT SONGS are played once Normal Repeais he current son Repeat One Pr C7] Folder Pays ailihe music of a specifie folder Repeais he music of a specific Folder Repeat Folder P P Repeais allie music. Repeat All Pays muse at rando Random d pen FSTID seconds of each song 5 ayed

The music can be played faster or slower (oniy with MP3 files) Change the rate by Press *FFWD' or “F.REV" button

AB replay Ven replay mode selected. he AB icon va] Sa D dpt À eng) y press AND ÉctEn Sc an ont ne pese ED utor Fe KB socio be mpand onu Pres Weng lon oreu o roma ya Dany Den ca ca Le charge VOL: ar VOL va a or crton Bin Pau a Ban press "API buton The microphone icon =] appears and your voice is recorded. Press "Menu" bution again lo stop the recording The A-B section + the Voice recording will be repeated

Here you are able to choose how many times (1-10) the AB section vil be repeated.

Choose the time( 1-10 sec) between each A-B section.

‘This MP3 player supports”. rc “Lyric files Lyrics can be dounloaded from the interet. Make sure that rc-fle has the same name For exampl If the song name is “Vesterday.mp3 *, the Irc ile should be named “Yesterday.rc" MP3 and LRC file must be stored in the same foldert the corresponding song. No Lyrie Li included Attention: À yric can nat be larger then 500 words.

Select "Record mode "in he main menu. The unit can store 99 recordings in each folder. Ds 5 re REC10 2004/01/01] - Press "PLAY" bution to start recording - Press “PLAY” button again to pause the recording (Time flashes)| - Press “PLAY” again to continue recording - Press and hold the *PLAY" button to stop recording

cr23411 GE FES REC10 2004/01/01 Long REC: lower quality recording, act format, uses less space Fine VOR“: wav format Long VOR*: act format Wen using “VOR recording", the player enters into the state of “pause recording" if no sound is detected by the microphone. Recording starts again when sound is detected.

in this mode you can listen ta the recordings created in "Record mode” Select in the main menu “Voice mode "

2.5:1.3 Delete all (Stop submenu) Deletes all fes of the eurent catalog

2.5.2 Voice play submenu

During playback, press “Menu button 10 enter the Voice play submenu. 4 options: -Repeat - Tempo rate = Replay 2 Ext ‘Those oplions are similar ta the music play submenu

In ‘FM mode * press "Mode* button to enter the FM submenu options: = Save Delete 2 Delete all = Normal band - Japan band Fine rec = Long rec 2 Exit Freq Mode Move mode button once left or right to change frequency with 0.1Hz. Move mode button left or right and hald for a few seconds. Release the button when the frequency changes. The tuner will search automatically for the next available station. Search Station Move Mode button lef or right to select a (stored) radio stations Auto search The tuner will search for available radio stations and automatically store them.

2.611 Save (radio station)

When searching a radio station manual}, it can be stored th this function. Maximum 20 frequencies can be stored

2.6.1.2 Delete broadcaster

With his function, stored stations can be removed.

2.6.1.3 Delete al broadcaster

With his function, al stored stations can be removed.

With this function music from a radio station can be recorded. Press "Mode" bution to start recording Press Mode button again to stoplsave the recording Exquisite recording which is {he wav format and good voice quality

With this function music from a radio station can be recorded. Press "Mode" bution to start recording Press Mode button again to stoplsave the recording Long recarding which is the act format and normal voice quality

Select “System” in the main menu + Record Time = Backight + Language = Power off = Replay mode 2 Contrast + Online Mode = Memory info 2 Animation 2 Fimware version 2 Ext 2.7. Record Time Enter here the correct date and time. Press VOL+ button and the year- number wil star flashing. Change the year number by Press *F.FWD” or “F.REV" button Press again VOL+ button and the months wi start flashing flashing.

When date and time are correct, press menu button to confim.

Ajust the backight intensity between 0 and 30. by pressing ‘FFWD or “F.REV" button Press Menu Button to confrm

Change the language by pressing "FFWD* or "REV" button Press Menu bution to confirm.

ZTA Power of Of time With {his function the device vil automatically shut doun after a preset time.(0-60sec), when no bution is touched and music is not playing. Ifime is set at 0 seconds, the function is cancelled. - Sleeping mode With this function the device vil always shut down after a preset time (0-120 min) If time is set at D, the function is cancelled. When the device is powered off, sleeping mode is set at 0.

= Mu drive = Normal (1 drive) + Encrypted drive

Gives a percentage of he used memory compared to the total memory size 2.7. Animation Choose between several ‘start up" animations.

Choose beeen different logo's

2.111 Firmware version

Info about software version

The unit functions as a standard USB disk with most operating systems. + Windows98 (driver needed) + above Windows 2000 (no need to instal driver) When connected with PC(battery not needed) {he device can be in 3 diflrent modes wait mode "download data" mode send data mode æ 4° Attention: Removing the device from the PC during data transfer can cause severe damage to the devicel

128% 32 lattices Teolor display English, French, Italian, German Spanish, Swedish, Dutch, Czech. 3.8v Rechargeable Lithium battery Road 1033K Byte/S Write 955K Byte/S WAV (32K bps), ACT (BK bps) 20Hz-20KHz

B0mm x 31mm x 12mm (L x W x D) If for any reason your player is blocked, you can reset the fimware You just have to switch it off and back on, Reset is automatic at startup. FOR MORE INFORMATION DO NOT HESITATE TO VISIT OUR WEBSITE www. maneurope.com
