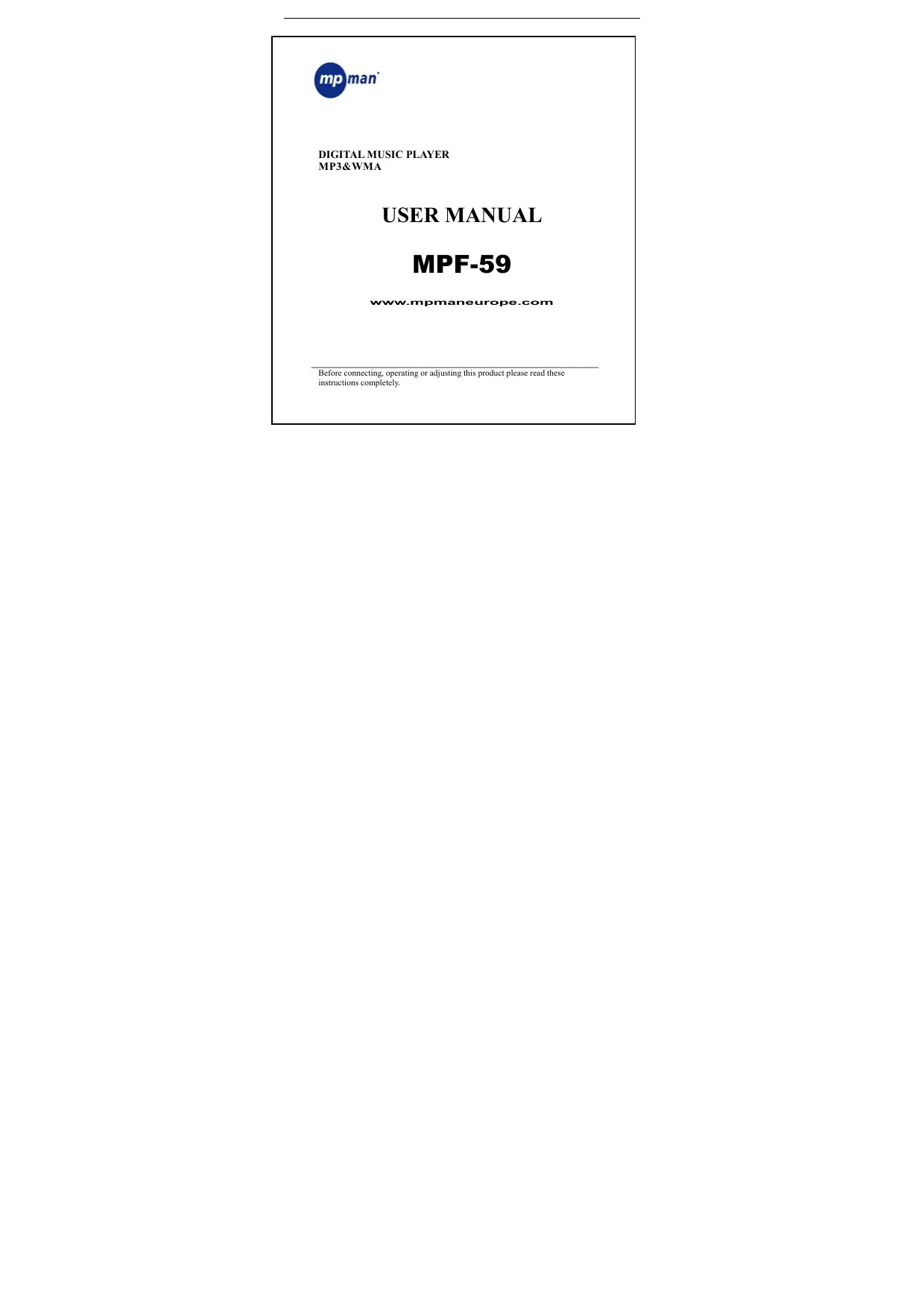

MODE D'EMPLOI MP-F59 MPMAN

DIGITAL MUSIC PLAYER MP3&WMA

USER MANUAL

MPF-59

www.mpmaneurope.com

Before connecting, operating or adjusting this product please read these instructions completely.

UP TILL 99 SONGS IN ONE DIRECTORY

YOUR MP-F59 ACCEPTS

UPTILL 99 SONGS IN ONE DIRECTORY

IF YOU WANT MORE THEN 99 SONGS.

STORE THEM IN A NEW DIRECTORY
IN PLAY MODE, YOU CAN CHANGE THE DIRECTORY
IN THE MENU.

DON'T FORGET: MAXIMUM 99 SONGS IN EACH DIRECTORY

1.1The player characteristics

Supports MP3 and WMA music format.
Supports USB function
Supports two lines of lyrics display synchronization
Big display (128*32) LCD display
Supports Firmware upgrade function
Voice equalizer
GUI (graphical user interfaces).

The box:

(1) MP3 player 1Pcs
(2) Stereo earphone 1Pcs
(3)CD ROM 1Pcs
(4) Manual 1Pcs
(5) USB cable 1Pcs

PC needs

(1) Pentium 100 MHz or faster
(2) Windows 98/2000/ ME/XP
(3) USB port
(4) CD-ROM driver
(5) 15MB of free space on harddisk
(6) 32 MB RAM

1.2 The player appearance interface

1.3 Figure & Keys

2) F.FWD/F.REV, Previous/Next
3) Menu,
4)REC,
5) Vol+/-.
6) LCD,
7) Push button of USB Port,
8) Power ON/OFF
9) Earphone,
10) USB Port.
11) Cord Hole,
12) Mic

1.4 Display

This player adopts big LCD of 128*32 lattice

1.5 Battery

The screen shows a battery indicator with nine levels.
The battery is full when the battery voltage is 1.5V
The battery indicator will be empty when the battery is used up. At that time,
the player should be charged with an external charger(optional) or with
the USB connection on your PC

2 Operating instruction

2.1 Turning on/off the MP3 player

Slide switch (8) to the right. The LCD display will light up.
Slide switch (8) to the left. The MP3 player will shut off.

2.2 Main menu

Press the "Menu" button for several seconds, from any point in the menu, and the player returns automatically back to the main menu.

Five options:

-1) MUSIC
-2)RECORD
-3)VOICE
-4)FM
-5)SYSTEM

	Music
	Record
	Voice
	FM
	System
	Exit

2.3 "Music" mode

Select "Music" mode in the main menu.

2.3.1 Stop submenu

Press "Menu" button once to enter the stop submenu.

Four options:

Local Folder

-Delete file
-Delete all
-Exit

2.3.1.1 Local folder

Local folder

Files can be stored in different folders.

Create new folders in Windows explorer when MP3 is connected.

Open "external drive"

Create new folder
- Press "Menu" button to open Local folder
- Press "F.FWD" or "F.REV" button to select the catalog
- Press "Menu" button to confirm

2.3.1.2 Delete file

2.3.1.3 Delete all

Deletes all files of the current catalog

2.3.2 Play submenu

During playback, press "Menu" button to enter "Play submenu":

Six options:

Repeat
- Equalizer
- Tempo Rate
Replay
Replay times
Replay gaps

2.3.2.1 Repeat

Normal	All songs are played once
Repeat One	Repeats the current song
Folder	Plays all the music of a specific folder
Repeat Folder	Repeats the music of a specific folder
Repeat All	Repeats all the music.
Random	Plays music at random.
Intro	First 10 seconds of each song is played.

2.3.2.2 Equalizer

Seven options:

• Rock

• Poc

Classic

Soft

1

• Jazz

DBB

2.3.2.3 Tempo Rate

The music can be played faster or slower (only with MP3 files)

Change the rate by Press "F.FWD" or "F.REV" button

2.3.2.4 Replay mode

A-B replay

When replay mode is selected, the A-B icon is visible Select the start point A (flashing) by press "F.FWD" button. Select the end point B(flashing) by press "F.FWD" button . The A-B section will be repeated continuously Press "Menu" button to return to normal playback

-During replay, the play-rate can be changed with VOL+ or VOL-.

• Adding your voice to the A-B section During playback of the A-B section, by press "F.FWD" button

The microphone icon appears and your voice is recorded.

Press "Menu" button again to stop the recording.

The A-B section + the voice recording will be repeated

2.3.2.5 Replay times

Here you are able to choose how many times (1-10) the A-B section will be repeated.

2.3.2.6 Replay gap

Choose the time (1-10 sec) between each A-B section.

2.3.3Lyrics

This MP3 player supports **.Irc "Lyric files

Lyrics can be downloaded from the internet.

Make sure that Irc-file has the same name as the corresponding song.

For example:

If the song name is "Yesterday.mp3", the lyric file should be

named "Yesterday.lrc"

MP3 and LRC file must be stored in the same folder!

Lyric included

Attention: A lyric can not be larger then 500 words.

2.4 Record mode

-Select "Record mode" in the main menu

The unit can store 99 recordings i

REC10

2004/01

• Press "PLAY" button to start recording.
• Press "PLAY" button again to pause the recording (Time flashes).
• Press "PLAY" again to continue recording
• Press and hold the "PLAY" button to stop recording

2.4.1 Record submenu

In the Record mode, press menu button once

3 options:

• Local folder
  -REC type
  -Exit

2.4.1.1 Local folder

cfr 2.3.1.1

2.4.1.2 REC type

Four options:

• "Fine REC": high quality recording, wav format, good quality.
• "Long REC": lower quality recording, act format, uses less space
• "Fine VOR": wav format
• "Long VOR": act format

When using "VOR recording", the player enters into the state of "pause recording" if no sound is detected by the microphone. Recording starts again when sound is detected.

2.5 Voice mode
In this mode you can listen to the recordings created in "Record mode"
Select in the main menu "Voice mode".

2.5.1 Voice stop submenu

When playback is stopped, press "Menu" button to enter the Voice submenu.

2.5.1.1 Local folder (Stop submenu)

cfr 2.3.1.1

2.5.1.2 Delete file (Stop submenu)

2.5.1.3 Delete all (Stop submenu)

Deletes all files of the current catalog

2.5.2 Voice play submenu

During playback, press "Menu" button to enter the Voice play submenu.

4 options: -Repeat

• Tempo rate

• Replay

-Exit

Those options are similar to the music play submenu

2.6 FM mode

Choose in main menu "FM mode". Press "Mode" button to enter

2.6.1 FM mode submenu

In "FM mode" press "Mode" button to enter the FM submenu

7 options:

• Save
  -Delete
  -Delete all
• Normal band
  Japan band
• Fine rec
• Long rec
  -Exit

Freq Mode

Move mode button once left or right to change frequency with 0.1Hz

Move mode button left or right and hold for a few seconds.
Release the button when the frequency changes.
The tuner will search automatically for the next available station.

Search Station

Move Mode button left or right to select a (stored) radio stations

Auto search

The tuner will search for available radio stations and automatically store them

2.6.1.1 Save (radio station)

When searching a radio station manually, it can be stored with this function. Maximum 20 frequencies can be stored.

2.6.1.2 Delete broadcaster

With this function, stored stations can be removed.

2.6.1.3 Delete all broadcaster

With this function, all stored stations can be removed.

2.6.1.4 Normal band

87MHz-108MHz

2.6.1.5 Japan band

76MHz-96MHz

2.6.1.6 Fine REC type

With this function music from a radio station can be recorded.

Press "Mode" button to start recording

Press Mode button again to stop/save the recording

Exquisite recording which is the wav format and good voice quality

2.6.1.7 Long REC type

With this function music from a radio station can be recorded.

Press "Mode" button to start recording.

Press Mode button again to stop save the recording.

Long recording which is the act format and normal voice quality

2.7 Systems set up

Select "System" in the main menu

Record Time
-Backlight
Language
Language Power off
Power mode
Reprint No. Contract
- Contrast
- Online Model
Memory Info
- Animation
-Logo
Firmware version
-Exit

2.7.1 Record Time

Enter here the correct date and time.

Press VOL+ button and the year- number will start flashing.

Change the year number by Press "F.FWD" or "F.REV" button

Press again VOL+ button and the months will start flashing flashing....

When date and time are correct, press menu button to confirm.

2.7.2 Backlight

Adjust the backlight intensity between 0 and 30,

by pressing "F.FWD" or "F.REV" button

Press Menu Button to confirm

2.7.3 Language

Change the language by pressing "F.FWD" or "F.REV" button

Press Menu button to confirm.

2.7.4 Power off

• Off time
  With this function the device will automatically shut down after a preset time.(0-60sec), when no button is touched and music is not playing.
  If time is set at 0 seconds, the function is cancelled.
• Sleeping mode
  With this function the device will always shut down after a preset time (t). If time is set at 0, the function is cancelled.
  When the device is powered off, sleeping mode is set at 0.

2.7.5 Replay

Manual replay or auto replay

2.7.6 Contrast

Change contrast by pressing "F.FWD" or "F.REV" button

Press Menu button to confirm.

2.7.7 Online mode

Multi drive
- Normal (1 drive)
- Encrypted drive

2.7.8 Memory info

Gives a percentage of the used memory compared to the total memory size

2.7.9 Animation

Choose between several "start up" animations.

2.7.10 Logo

Choose between different logo's

2.7.11 Firmware version

Info about software version

2.8 USB disk use

The unit functions as a standard USB disk with most operating systems.
-Windows98 (driver needed)
- above Windows 2000 ( no need to install driver)

When connected with PC(battery not needed), the device can be in 3 different modes

-waitmode

• "download data" mode

• "send data" mode

Attention: Removing the device from the PC during data transfer can cause severe damage to the device!

2.9 Specification

(1) FLASH Memory
(2) music format
(3) liquid crystal display monitor
(4) Display Color
(5) Languages

(6) Power supply
(7) USB2.0
(8) recording
(9) frequency response
(10) distortion
(11) baud rate
(12) weight
(13) size

128MB, 256MB, 512MB, 1GB

MP3, WMA, WAI

128 × 32 lattices

7color display

English, French, Italian, German

Spanish, Swedish, Dutch, Czech.

3.8v Rechargeable Lithium battery

Read 1033K Byte/S

Write 955K Byte/S

WAV (32K bps), ACT (8K bps)

20Hz~20KHz

< 0.1%

4Mbps

35g

80mm× 31mm× 12mm(L× W× D)

2.10 Troubleshooting

If for any reason your player is blocked, you can reset the firmware

You just have to switch it off and back on. Reset is automatic at startup.

FOR MORE INFORMATION DO NOT HESITATE TO VISIT OUR WEBSITE

www.mpmaneurope.com
