USER MANUAL MPFUB34 MPMAN

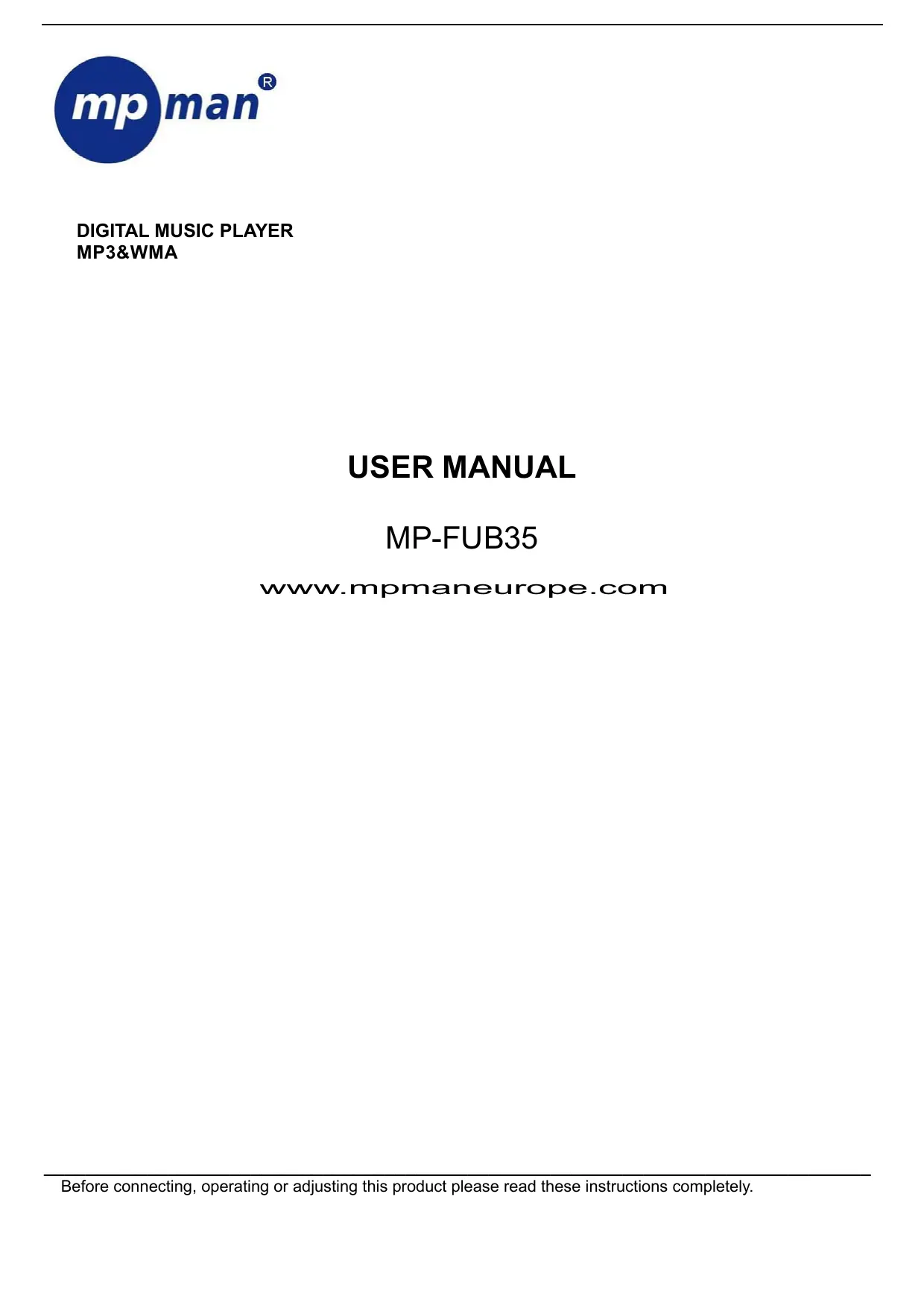

MP3&WMA USER MANUAL MP-FUB35 WWW-mpmaneurope.com Before connecting, operating or adjusting this product please read these instructions completely.

The player characteristics « Supports MP3 and WMA music format. « Supports stereo FM radio « Supports USB function « Supports two lines of lyrics display synchronization « Big display (128*32) LCD display « Voice equalizer « GUI (graphical user interfaces). Inside the box: (1) MP3 player one (2) Stereo earphone one pair (3) Installation disk one (4) User's manual one (5) USB cable one (6) Battery 1.5V/"AAA" one PC needs (1) Pentium 100 MHz or faster (2) Windows 98/2000/ ME/XP (3) USB port (4) 4 X CD- ROM driver or higher (5) 15 MB of free space on hard disk (6) 32 MB system memory

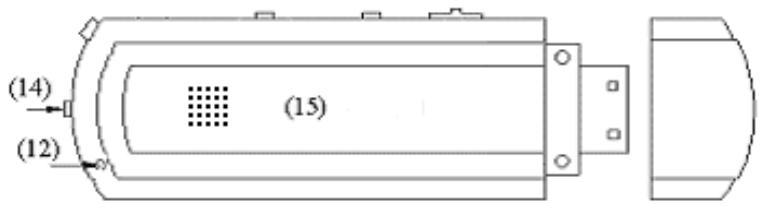

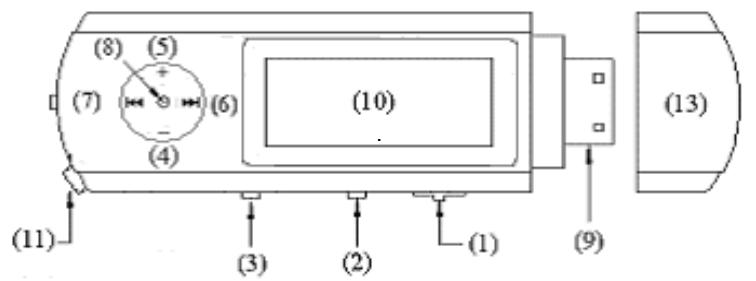

1.1The player appearance interface f& © {o do (0) (a) w Î | as |

(1) “HOLD” = Keyboard lock switch (2) “MENU” = Switch modes, menu selection by pressing on button (3) “REC” = Rec/A-B (4) “VOL-"=Volume decrease/fast decrease (5) “VOL+"= Volume increase/fast increase (6) “»” = NEXT/FWD (7)*«”" = PREV/REV (8) PLAY “> m” — OPEN/PLAY/PAUSE/STOP/POWER OFF (9) = USB interface (10) LCD= Liquid crystal display (11) PHONE “@” = Earphone input jack (12) MIC = Built-in microphone (13) = USB cover (14) = Cord hole (15) = Battery cover

1.3 Push-button definition

Push-button includes four operation methods as short push, long push, push and hold, single push.

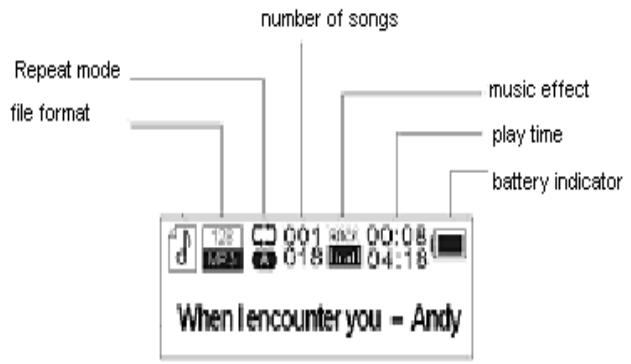

This player adopts big LCD of 128*32 number of songs Repeat mode music effect file format play time battery indicator MPEG When Lencounter you = Andy

2 Operating instructions

2.1 Turning on the MP3 player

Push the “PLAY” button for several seconds. The LCD display will light up.

Press the “MENU” button for several seconds, from any point in the menu, and the player returns automatically back to the main menu. Five options:

Music Æ Record El Replay a FM EE System You can switch between options by sliding the “PLAY” button right “»#»”_orleft “4” .Then push shortly on the “MENU” button to enter the submenu or confirm a function.

Press " MENU " button once to enter the stop submenu. Four options: Local Folder Delete file Delete all Exit

Æ [2 5] Local folder Files can be stored in different folders (maximum 10 folders including root folder). Create new folders in Windows explorer when MP3 is connected. Open “external drive”. Create new folder - Press " MENU " button to open Local folder - Move PLAY button left or right to select the catalog - Press “MENU ” button to confirm

Deletes all files of the current catalog

During playback, press " MENU "button to enter "Play submenu “: Six options: - Repeat - Equalizer -__ Tempo Rate - Replay - Replay times - Replay gap - Exit

Normal All songs are played once Repeat One Repeats the current song Folder Plays all the music of a specific folder Repeat Folder Repeats the music of a specific folder Repeat Al Repeats all the music. Random Plays music at random. Intro First 10 seconds of each song is played.

5 LOD> + The music can be played faster or slower (only with MP3 files) Change the rate by pushing the “PLAY” Button left or right.

- A-B replay When replay mode is selected, the A:-B icon is visible FE Select the start point A (flashing) by sliding “PLAY” button right. Select the end point B(flashing) by sliding “PLAY” button right. The A-B section will be repeated continuously Press “MENU” button to return to normal playback -During replay, the play-rate can be changed with VOL+ or VOL-". - Adding your voice to the A-B section … During playback of the A-B section, slide “PLAY” button to the right. The microphone icon appears and your voice is recorded. Slide “PLAY” button right again to stop the recording. The A-B section + the voice recording will be repeated

2.3.2.5 Replay times

Here you are able to choose how many times (1-10) the A-B section will be repeated.

Choose the time (1-10 sec) between each A-B section.

This MP3 player supports "*. Irc "Lyric files Lyrics can be downloaded from the internet. Make sure that Irc-file has the same name as the corresponding song. For example: If the song name is “Yesterday.mp3 “, the lyric file should be named “Yesterday.lrc” MP3 and LRC file must be stored in the same folder! No Lyric Lyric included Attention: A lyric can not be larger then 500 words.

-Select "Record mode "in the main menu. The unit can store 99 recordings in each folder with a maximum of 10 folders (including root folder) GERS REC10 2004/01/01 - Press “PLAY” button to start recording. - Press “PLAY” button again to pause the recording (Time flashes). - Press “PLAY” again to continue recording. - Press and hold the “PLAY” button to stop recording.

2.4.1 Record submenu

In the Record mode, press “MENU” button once 3 options: - Local folder - REC type - Exit

2.4.1.1 Local folder

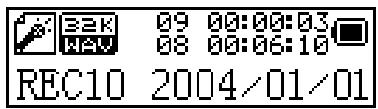

CS FH REC10 2004/01/01 Four options: - “Fine REC”: high quality recording, wav format, good quality. - “Long REC”: lower quality recording, act format, uses less space - “Fine VOR”: wav format -_ “Long VOR": act format When using “VOR recording”, the player enters into the state of “pause recording” if the microphone detects no sound. Recording starts again when sound is detected.

In this mode you can listen to the recordings created in “Record mode” Select in the main menu "Replay mode ".

2.5.1.2 Delete file (Stop submenu)

Deletes all files of the current catalog

2.5.2 Replay submenu

During playback, press “MENU” button to enter the Replay submenu. 4 options: - Repeat - Tempo rate - Replay - Exit Those options are similar to the music play submenu

Choose in main menu "FM mode ". Press “MENU” button to enter É Fire © ®

In "FM mode " press "MENU" button to enter the FM submenu 7 options: - Save - Delete - Delete all - Normal band - Japan band - Fine rec - Long rec - Exit Freq Mode Move PLAY button once left or right to change frequency with 0.1Hz. Move PLAY button left or right and hold for a few seconds. Release the button when the frequency changes. The tuner will search automatically for the next available station. Search Station Move PLAY button left or right to select a (stored) radio stations Auto search The tuner will search for available radio stations and automatically store them.

2.6.1.1 Save (radio station)

When searching a radio station manually, it can be stored With this function. Maximum 20 frequencies can be stored.

2.6.1.2 Delete broadcaster

With this function, stored stations can be removed.

2.6.1.3 Delete all broadcaster

With this function, all stored stations can be removed.

With this function music from a radio station can be recorded. Press “PLAY” button to start recording. Press PLAY button again to stop/save the recording. Exquisite recording which is the wav format and good voice quality

2.6.1.7 Long REC type

With this function music from a radio station can be recorded. Press “PLAY” button to start recording. Press PLAY button again to stop/save the recording. Long recording which is the act format and normal voice quality

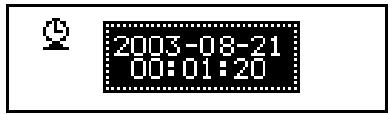

Enter here the correct date and time. Press VOL+ button and the year- number will start flashing. Change the year number by pushing PLAY button left or right Press again VOL+ button and the months will start flashing.….

When date and time are correct, press “MENU” button to confirm.

Adjust the backlight intensity between 0 and 30, by pushing “PLAY” button left or right. Press “MENU” Button to confirm

Change the language by moving “PLAY” button left or right. Press “MENU” button to confirm.

- Off time With this function the device will automatically shut down after a preset time. (0-60sec), when no button is touched and music is not playing. If time is set at 0 seconds, the function is cancelled. - Sleeping mode With this function the device will always shut down after a preset time (0-120 min). If time is set at O, the function is cancelled. When the device is powered off, sleeping mode is set at O.

Change contrast by moving “PLAY” button left or right. Press “MENU” button to confirm.

Gives a percentage of the used memory compared to the total memory size

2.7.8 Firmware version

Info about software version

The unit functions as a standard USB disk with most operating systems. -__ Windows98 (driver needed) -__ Windows 2000 and above (no need to install driver, the driver is automatically recognized by the PC) When connected with PC (battery not needed), the device can be in 3 different modes - “wait” mode EF * û : - “download data” mode

-“ send data” mode =æ-5" Attention!! Removing the device from the PC during data transfer can cause severe damage to the device!

When "HOLD " switch is moved left, the other buttons are inactive and “Hold icon” will light up.

If for any reason your player is blocked, you can simply do a firmware reset by taking out the battery and reinstall it afterwards. FOR MORE INFORMATION DO NOT HESITATE TO VISIT OUR WEBSITE www.mpmaneurope.com 128MB, 256MB, 512MB, 1GB

76MHz- 96MHz / 87MHz- 108MHz 6dB (100MHZz) 128% 32 lattices Seven colors English, French, ltalian, German, Spanish, Dutch, Swedish, Czech 1.5V/AAA Read 1033K Byte/S, Write 995K Byte/S) WAV (32K bps), ACT (8K bps) 20Hz-20KHz < 01% > 4Mbps 34g (Without battery) 88mm x 28mm x 18mm (L x W x D)
