Product type	Single-channel high-frequency receiver for guided tours and conferences
Brand	Sennheiser
Model	HDE 1030
Category	Wireless headsets
Dimensions	206 x 136 x 22.5 mm
Weight	55 g
Power supply	Rechargeable battery packs (BA90)
Power consumption	7 mA
Battery life	Approximately 8 hours
AF bandwidth	50 - 8000 Hz
Max sound pressure	~112 dB at 1 kHz
Harmonic distortion	< 1.5%
Signal-to-noise ratio	>57 dB (CCIR 468)
Reception frequencies	Depending on version: from 36 to 50 MHz
Number of channels	1, 2 or 3 channels depending on model
Channel switching	Selection button (on multichannel models)
Identification markers	Assortment of color markers KEN 1030
Storage and charging	Carrying case EZL 1030 for 20 receivers
Ear tips maintenance	Clean with soapy water, replace via Sennheiser dealer
Accessories	BA90 battery, charging strip, power supply unit, connecting cable
Available versions	HDE 1030-2 D1, D2, 3 UK1, 2 F1, etc.
Intended use	Guided tours, conferences, multilingual systems
Batteries	Rechargeable battery packs (ref. BA90)

Frequently Asked Questions - HDE 1030 SENNHEISER

How to turn on and adjust volume of HDE 1030 receiver?

Insert the power plug (1), then turn on the receiver with button (3) and adjust volume with the same button.

How to change channel on the receiver?

Use button (2) to select the reception channel. This applies only to two- or three-channel receivers.

What to do if I hear no sound?

Check that the device is on. If sound is absent, the batteries may be defective or transmission interrupted. Contact your Sennheiser dealer if the problem persists.

What to do if sound is distorted?

Sound distortion indicates discharged batteries. Replace or recharge them.

How to clean ear tips?

Remove the ear tips from the receiver and clean them with soapy water. Replacement ear tips are available from your Sennheiser dealer.

Can I use multiple receivers at the same time?

Yes, you can simultaneously use up to three receivers on different frequencies or channels for multilingual guided tours. Frequency selection must be done with your Sennheiser dealer.

What is the battery life?

Battery life is approximately 8 hours with a consumption of 7 mA.

How to recharge the batteries?

Use the EZL 1030 carrying case or an L 1030-10 charging strip with an appropriate power supply unit. The BA90 batteries are recharged in these devices.

Where can I buy spare parts?

Contact your Sennheiser dealer. Spare parts such as BA90 batteries, replacement ear tips, and accessories are available.

What are the different frequency models available?

The HDE 1030 is available in 1, 2 or 3-channel versions with frequencies between 36 and 50 MHz. For example, the HDE 1030-2 D1 models operate on 36.64 and 36.72 MHz, and models for France on specific authorized frequencies. Contact your Sennheiser dealer for more details.

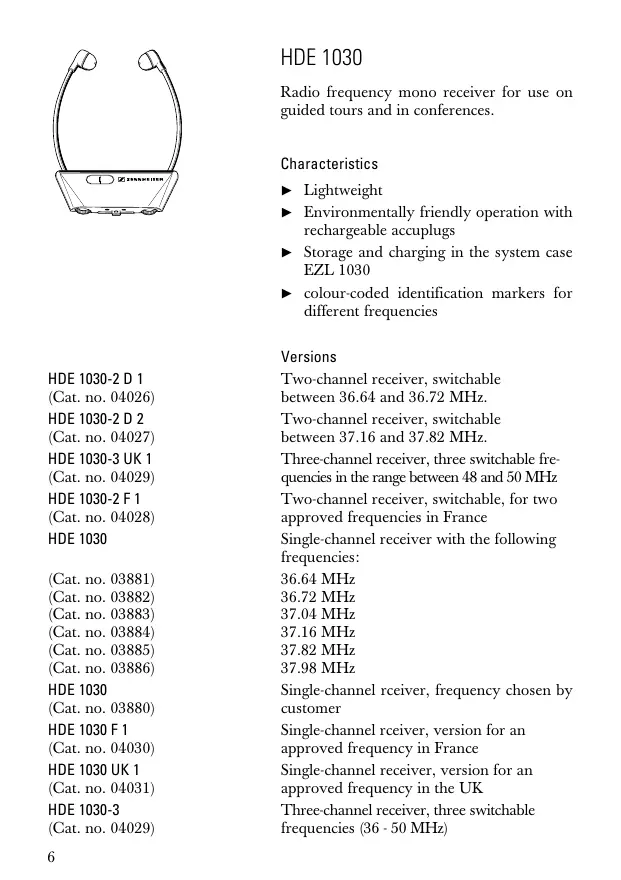

USER MANUAL HDE 1030 SENNHEISER

Radio frequency mono receiver for use on guided tours and in conferences.

Characteristics

Lightweight
Environmentally friendly operation with rechargeable accruplugs
Storage and charging in the system case EZL 1030
colour-coded identification markers for different frequencies

Versions

Two-channel receiver, switchable between 36.64 and 36.72MHz

Two-channel receiver, switchable between 37.16 and 37.82MHz

Three-channel receiver, three switchable frequencies in the range between 48 and 50MHz

Two-channel receiver, switchable, for two approved frequencies in France

Single-channel receiver with the following frequencies:

36.64 MHz

36.72 MHz

37.04 MHz

37.16 MHz

37.82 MHz

37.98 MHz

Single-channel receiver, frequency chosen by customer

Single-channel rceiver, version for an approved frequency in France

Single-channel receiver, version for an approved frequency in the UK

Three-channel receiver, three switchable frequencies (36 - 50 MHz)

Putting the receiver into operation

Insert accuplug ①.
Select receiver channel ②. (Only for two or three-channel receivers.)
Turn the receiver on and adjust the volume ③.

After use

If you are not going to use the HDE 1030 for a period, please switch it off by turning the volume control off until it clicks (3).

Changing the identification markers

To easily distinguish between receivers that have been set to different frequencies a set of colour-coded identification markers KEN 1030 ④ can be used for labelling the different frequencies.

Since the markers are inserted into the front of the receiver, the different frequencies can be clearly recognized even from a distance. This is especially advantageous when it comes to sorting the receivers after an event.

Fault finding

Hissing noise only Transmitter is switched off

Sound is distorted Accuplug is discharged, please replace or recharge

No sound at all Accuplug is defective or transmission is disturbed

Simultaneous operation of several tour guide systems

Since it is possible to switch between up to three frequencies several guided tours can be conducted at the same time. Another way would be to select different preset frequencies for the receivers (see VERSIONS).

Your local Sennheiser dealer (please see attached list) will help you with the selection of frequencies.

BA 90 Accuplug

(Cat.no.03261)

EZL 1030-20L

(Cat.no.03877)

L 1030-10

(Cat.no.04024)

L 92-10 / L 92-20

(Cat. no. 03355 / 03356)

KK 1030

(Cat.no.04125)

NT 92

(Cat.no.03357)

NT 92-UK

(Cat.no.03359)

NT 92-120

(Cat.no.03358)

L 90 / L 90-UK

(Cat.no.03262)

Accessories

As a spare, or for replacing defective accruplugs.

System case for 20 HDE 1030 receivers and one hand-held transmitter SKM 1030-7. (NB: Requires NT 92 / NT 92-UK / NT 92-120.)

Charging unit for recharging 10 HDE 1030 receivers with inserted accruplets. (NB: Requires NT 92 / NT 92-UK / NT 92-120.)

Charging unit for 10 and 20 BA 90 accrulugs, respectively. (NB: Requires NT 92 / NT 92-UK / NT 92-120.)

Connection cable for two charging units L 1030-10, L 92-10 or L 92-20. (Thus, one plug-in mains unit powers two charging units.)

230 V plug-in mains unit with Europlug for charging units EZL 1030-20L, L 1030-10, L 92-10 or L 92-20. Please order separately!

240 V plug-in mains unit with UK 3-pin plug for charging units EZL 1030-20L, L 1030-10, L 92-10 or L 92-20. Please order separately!

120 V plug-in mains unit with USA 2-pin plug for charging units EZL 1030-20L, L 1030-10, L 92-10 or L 92-20. Please order separately!

Charger for one BA 90 accuplug.

Cleaning and replacing the ear pads

The ear pads can be removed from the receiver and cleaned with soapy water or sterilised by using the same solution as is used by mothers to sterilise the teat of a babies bottle. Rinse under clear water, then let dry well.

Replacement ear pads can be obtained directly from your local Sennheiser agent.

Technical data

Receiver frequencies	HDE 1030-2 D 1	36.64 and 36.72 MHz.
	HDE 1030-2 D 2	37.16 and 37.82 MHz.
	HDE 1030-3 UK 1	3 frequencies in the range between 48.00 and 49.99 MHz.
	HDE 1030-2 F 1	2 frequencies approved in France
	HDE 1030	One of the following frequencies: 36.64 MHz, 36.72 MHz, 37.04 MHz, 37.16 MHz, 37.82 MHz, 37.98 MHz
	HDE 1030	Frequency chosen by customer
	HDE 1030 F 1	Frequency approved in France
	HDE 1030 UK 1	Frequency approved in the UK
Nominal deviation		± 8 kHz
AF frequency response		50 - 8000 Hz
Maximum sound pressure level at 1 kHz		approx. 112 dB
THD at nominal deviation and 1 kHz		< 1.5 %
Signal-to-noise ratio at nominal deviation and 500 μV antenna voltage		>57 dB (CCIR 468, peak deviation) >68 dBA (DIN 45 500)
Power supply		BA 90 Accuplug
Current consumption		7 mA
Operating time		approx. 8 hours
Dimensions (in mm) / Weight		206 x 136 x 22,5 / 55 g
Supply schedule		1 Receiver HDE 1030
		1 Accuplug BA 90

Subject to alterations.

HDE 1030-2 D1

(N^ Ref. 04026)

HDE 1030-2 D2

(N^ Ref. 04027)

HDE 1030-3 UK 1

(N^ Ref. 04029)

HDE 1030-2 F1

(N^ Ref. 04028)

HDE 1030

(N^ Ref. 03881)

(N^ Ref. 03882)

(N^ Ref. 03883)

(N^ Ref. 03884)

(N^ Ref. 03885)

(N^ Ref. 03886)

HDE 1030

(N^ Ref. 03880)

HDE 1030 F 1

(N^ Ref. 04030)

HDE 1030 UK 1

(N^ Ref. 04031)

HDE 1030-3

(N^ Ref. 04397)

HDE 1030

(N^ Ref. 03877)

L 1030-10

(N^ Ref. 04024)

L 92-10 / L 92-20

(N^ Ref. 03355 / 03356)

KK 1030

(N^ Ref. 04125)

NT 92

(N^ Ref. 03357)

NT 92-UK

(N^ Ref. 03359)

NT 92-120

(N^ Ref. 03358)

L90

(N^ Ref. 03262)

Accessoires

nominate awijking en1 kHz

<57 dB (CCIR 468, pick)

< 68 dBA (DIN 45 500)

batterijstekker BA 90

7 mA

ca. 8 uu

206× 136× 22,5 / 55g

1 ontvanger HDE 1030

1 batterijstekker
