GRILLE CRUZER 5 CLEAN SHAVE - Shaver BRAUN - Free user manual and instructions

Product Type	Hair trimmer shaver
Brand	BRAUN
Model	GRILLE CRUZER 5 CLEAN SHAVE
Power supply	Rechargeable battery and mains operation via power cord
Battery life	Minimum 40 minutes after full charge
Charging time	At least 8 hours for the first charge; several cycles to reach maximum capacity
Charge indicator light	Yes, integrated into the on/off button (steady green while charging, off when charged)
Special hair comb	Yes, adjustable from 3 to 24 mm (8 positions: 3, 6, 9, 12, 15, 18, 21, 24 mm)
Cutting head	Removable for cleaning (opens to 90°)
Cleaning	Under running water and/or with the provided brush; oil after each use
Oil included	Yes (light machine oil bottle)
Usage	Household only
Safety	Unplug before cleaning with water; do not use if damaged; keep out of reach of children without supervision
Warranty	2 years (contractual warranty + legal warranty for France)
Charging temperature	Optimal between 15 and 35°C; do not expose to more than 50°C
Environmentally friendly	Rechargeable batteries; do not dispose of in household waste; recycle via approved centers
Repairability	Repairs by authorized Braun service centers only to maintain warranty

Frequently Asked Questions - GRILLE CRUZER 5 CLEAN SHAVE BRAUN

How to charge the Braun Grille Cruzer 5 Clean Shave shaver?

Plug the device (turned off) into a power outlet using the power cord. The first charge must last at least 8 hours. The green indicator light in the on/off button stays on while charging and turns off when the battery is full. You can also use the device plugged into the mains even if the battery is empty.

How to adjust the cutting length with the comb?

The special hair comb offers 8 settings from 3 to 24 mm. To adjust the length, slide the cutting length selector on the comb to the desired graduation (3, 6, 9, 12, 15, 18, 21 or 24 mm). Attach the comb to the device (turned off), then turn it on to cut.

How to clean the shaver?

Turn off the device and unplug it. For dry cleaning, use the provided brush to clean the cutting head and trimmers. For wet cleaning, rinse the head and trimmers under running warm water, opening the cutting head to 90° if necessary. Always oil the cutting head after wet cleaning with the provided oil.

Can I use the shaver without the comb?

Yes, you can remove the comb for a close cut. When using the device without the comb, move the cutting head parallel to the skin against the direction of hair growth. For contours, hold the device vertically. Do not force and avoid jerky movements.

What to do if the shaver doesn't charge?

Check that the power cord is properly connected and that the socket works. Try charging at a temperature between 15 and 35°C. If the problem persists, contact an authorized Braun service center. Do not attempt to repair the device yourself.

How to maintain the battery in good condition?

To maintain maximum capacity of the rechargeable batteries, fully discharge the device during use approximately every 6 months, then recharge it to full capacity. Avoid exposing it to temperatures above 50°C.

Is the device waterproof?

The shaver can be cleaned under running water, but always unplug it first and do not immerse it completely. The power cord is not waterproof. Make sure the device is dry before reconnecting it.

What does the green indicator light mean?

The green indicator light integrated in the on/off button shows the charge status: it stays steadily on while charging and turns off when the battery is fully charged. It does not blink.

How to claim the warranty?

The warranty is 2 years from the date of purchase. For any claim, return the device with the warranty certificate to your retailer or to an authorized Braun Service Center. In France, you also benefit from the legal warranty for hidden defects (articles 1641 and following of the Civil Code).

Where can I find spare parts?

Spare parts (cutting head, comb, etc.) are available from authorized Braun service centers. For warranty repairs, use only Braun parts. Contact customer service at 0 800 944 802 or visit http://www.service.braun.com to find the nearest center.

USER MANUAL GRILLE CRUZER 5 CLEAN SHAVE BRAUN

(Audio Supplies Company Ltd.)

A

B

C

D

Deutsch

Our products are designed to meet the highest standards of quality, functionality and design. We hope you entirely enjoy your new Braun product.

Warning

• The appliance is provided with a special cord set (6) with an integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it. Otherwise there is a risk of electric shock.
• Never use the appliance with a damaged cutting system or damaged special cord set.
  The appliance is suitable for cleaning under running tap water. Warning: Detach the appliance from the power supply before cleaning it with water.
• This appliance is not intended for use by children or persons with reduced physical, sensory or mental capabilities, unless they are given supervision by a person responsible for their safety. In general, we recommend that you keep the appliance out of reach of children. Children should be supervised to ensure that they do not play with the appliance.
• When the distance comb is removed, the cutting system should not be pressed into the skin. Risk of injury!
• For household use only.

Oil bottle

Keep out of reach of children. Do not swallow. Do not apply to eyes.

Dispose of properly when empty.

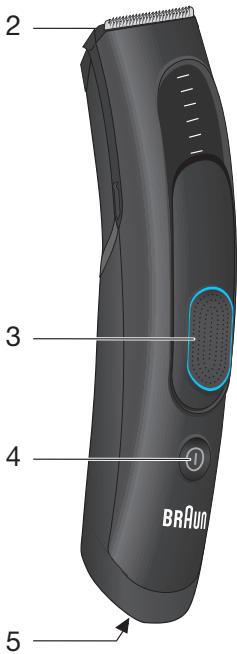

Description

1 Hair clipping comb 3-24 mm
2 Cutting system
3 Length selector
4 On/off switch with charge indicator
5 Cord socket
6 Special cord set

Charging

The best environmental temperature for charging is between 15^ and 35^ . Do not expose the appliance to temperatures higher than 50^ for extended periods of time.

• Using the special cord set (6), connect the appliance to an electrical outlet with the motor switched off.
• When charging for the first time or when the appliance is not used for a few months, leave the appliance to charge continuously for at least 8 hours.
• Once the appliance is completely charged, discharge it (until empty) through normal use. Then recharge to full capacity. Maximum capacity will only be reached after several charging/discharging cycles.
• A full charge provides at least 40 minutes of cordless operating time. This may vary depending on the hair you are trimming.
• If the rechargeable batteries are discharged, you may also use the appliance by connecting to an electrical outlet via the special cord set.

Charge indicator

The charge indicator integrated in the on/off switch (4) shows the charging status of the batteries. During charging the symbol in the on/off switch lights up permanently green. When the battery is fully charged, the charge indicator turns off.

General hair cutting information

• The hair should be clean, well combed, tangle-free and dry.
• If you are not used to clipping hair, begin with a higher setting and then reduce the setting to avoid cutting more hair than desired.
• Use a slow and controlled movement. Do not force the clipper through the hair faster than the clipper can cut it.
• In between, shake or blow off the hair from the clipper. If too much hair is caught in the distance comb, remove it.
• To control your progress during clipping, regularly comb the hair in the style desired.

Hair cutting

Hair cutting with hair clipping comb

• Place the hair clipping comb (1) on the appliance with the appliance turned off.
• Press the length selector (3) and slide the hair comb up to your desired hair length. Possible length settings (mm):

• Hair clipping comb (1) = 3 / 6 / 9 / 12 / 15 / 18 / 21 / 24

• Turn the appliance on by pressing the on/off switch (4) and cut hair to the desired length.

Hair cutting without hair clipping comb

• Remove the clipping comb.
• To start clipping, turn the appliance on by pressing the on/off switch (4).
• Move the cutting system only in a parallel position to the skin (A, cutting hair). Slowly and carefully move the appliance against the direction of hair growth.
• Only when trimming contours the cutting system should be positioned vertically (B, trimming).

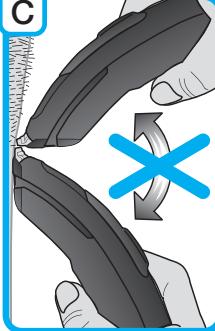

• Make sure you do not tilt the appliance while it is touching the skin (C).
• Avoid jerky movements while cutting.

Cleaning

Regular cleaning ensures better trimming performance.

Cleaning with the brush

• Switch off the appliance. Open the cutting system by pressing with the thumb against the trimmer from the front side. It opens by ca. 45^ .
• Using the brush clean the trimmers and the space behind the trimmer (inside the housing).

Cleaning with water

• Switch off the appliance and rinse the head and the trimmer under warm running water. You can also rinse the opened cutting system.

Keeping your appliance in top shape

To keep the cutting system working properly, oil it with light machine oil after each use, especially when cleaning under running water (D).

Preserving the batteries

In order to maintain the optimum capacity of the rechargeable batteries, the appliance has to be fully discharged (by operating) every 6 months approximately. Then recharge the appliance to full capacity.

Environmental notice

This product contains rechargeable batteries. In the interest of protecting the environment, please do not dispose of the product in the household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country.

Subject to change without notice.

For electric specifications, see printing on the special cord set.

Guarantee

We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion. This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.
