USER MANUAL Rajada II 60cm Becken

Line drawing of a simple bench with a circular frame (no text or symbols)

Exaustor Encastrável Exhausting and Filtering Hood Campana Extractora Encastrable

Standard

BECKEN®

Ref. 02013329

220V-240V\~50Hz

270W Total

EXAUSTOR BECKEN RAJADA II 60CM IX

4747620

N° 1135

MOTOR:2X95W

MAX 2X40W

Instructions' Manual

Dear client,

We thank you for purchasing this product.

This appliance was submitted to several laboratorial tests, which certify its quality.

For the use of the appliance to be simpler, together we send you its detailed instructions. They must ensure a quick and safe use.

Please read carefully the instructions and safety measures described in this manual.

We wish our clients great satisfaction in using their new appliance.

Index

1. Safety Instructions....4

1.1. Energy Supply....5
1.2. Power Cord and Other Cables....5
1.3. Moisture and Water....5
1.4. Cleaning....5
1.5. General Precautions ......6

2. Use and Operation ....7

2.1. Installation....7
2.2. Electrical Connection ....7
2.3. Mounting the Hood on Suspended Furniture ....7
2.4. Mounting the Hood on the Wall....8
2.5. Changing from Exhausting Hood to Filtering Hood....8
2.6. Use and Maintenance ....9
2.7. Drawings....9

3. Aftermarket....13

4. Environment Conservation ....14

1. Safety Instructions

	ATTENTION
	Risk of Electric ShockDo Not Open
Attention: to avoid the risk of electric shock, do not remove the cover. The interior does not contain any parts that may be repaired by the user. Ask for assistance to qualified personnel.

Important Warnings

Before using your appliance, read carefully this instructions' manual and keep it in a safe place, as you may need it for future consultations.

Before you start your appliance, and to ensure a correct use, do not use it if:

• It felt on the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation;

To avoid hazards and deterioration of your appliance by an incorrect use, it is advisable to read the instructions carefully and attentively.

Your appliance must not be used to other ends than the ones foreseen in the instructions manual. Your safety is only guaranteed in a household use and not for commercial use. The incorrect use will not be covered and automatically cancels the right to warranty.

Assistance

Be sure that, in case of malfunction, you deliver your appliance for assistance to a qualified technician.

DO NOT ALLOW CHILDREN TO USE ELECTRIC APPLIANCES WITHOUT SURVEILLANCE. DO NOT ALLOW CHILDREN OR ADULTS WITH REDUCED PHYSICAL, SENSORIAL OR MENTAL CAPACITIES, OR PEOPLE WITHOUT EXPERIENCE/KNOWLEDGE, TO USE ELECTRICAL APPLIANCES WITHOUT SURVEILLANCE.

1.1. Energy Supply

Check if the voltage of the electric power is compatible with the one mentioned on the appliance. If not, please contact your seller or the Customer Service.

1.2. Power Cord and Other Cables

Unplug your appliance whenever you are not using it.

Do not roll nor pull the cable to unplug the appliance. Keep the power cord away from hot surfaces.

Never use this appliance if it has a damaged cord or plug, nor if it is not working correctly.

If the power cord is damaged, do not use your appliance, take it to an authorized technical assistance to be replaced.

1.3. Moisture and Water

Do not use your appliance in moist environments. Do not let your appliance subject to get wet in any way, since it may be dangerous. TO AVOID FIRE OR ELECTRIC HAZARD DO NOT EXPOSE THE APPLIANCE TO WATER NOR MOISTURE. Do not put your appliance under water (for example, to wash it).

1.4. Cleaning

Unplug the appliance before you clean it. Later, clean it with a soft and dry cloth. do not use abrasive cleaning products nor solvents.

1.5. General Precautions

■ Do not check the filters with the hood working.
■ Do not touch the lamps after a prolonged use of the appliance.
■ No flambé food must be cooked underneath the hood.
- The use of an unprotected flame is dangerous for the filters and could cause a fire.
- Watch the fried food constantly in order to avoid the cooking oil to flare up.
■ Before performing any maintenance operation, disconnect the hood from the mains.
This appliance is in compliance with the directions EMC 89/336/EEC revised, on protection against radial interference, 92/31/EEC and 93/68/EEC.

2. Use and Operation

2.1. Installation

• The appliance has been designed as exhausting hood (external exhausting) or filtering hood (internal recirculation).
• The appliance has to be installed at a minimum height of 650mm above electric, gas or mixed cookers.
• Do not connect the discharge pipe to a flue in which warm air circulates, or which is used to remove fumes of the appliances which are powered with a different energy from the electric one.
• Pay attention if an exhausting hood and a burner or a fireplace depending on the air of the room and which are powered with a different energy from the electric one work at the same time, because during the aspiration the hood takes the air away from the room. That air is necessary to the burner or the fireplace for the combustion. So, for a safe operation, provide a proper ventilation of the room.
• For the external exhausting, conform to the laws in force in your country.
• The appliance must be placed in a way that the supply plug is accessible.

2.2. Electrical Connection

• The appliance is built in class II, so no wire has to be connected with the earth terminal.
• Connect the cord to a socket or a double pole switch.

Note: If the lamps do not work, make sure they are well tightened when mounting the hood in the lower part of a hanging cupboard.

2.3. Mounting the Hood on Suspended Furniture

• Drill 4 holes of with a diameter of 6mm at the bottom of the hanging cupboard, as showed in the drawing “Fig. 1”.

• Attach the hood to the cabinet with 4 screws appropriate to that kind of cupboard.

• The appliance is provided with 2 air outlets which are in the upper part and in the other on the back. Both of them can be used according to your requirements.

• In the package there is a connecting ring (C), which is to join the connecting pipe.

2.4. Mounting the Hood on the Wall

• Drill 2 holes on the wall, which correspond to the position (B) of the drawing "Fig. 1".
• Hang the hood to the 2 holes by using the screws and dowels with expanding plug appropriate for that kind of wall (ex.: concrete, plasterboard, etc.).
  ■ Definitely fix the hood using the 2 security holes (Z).

2.5. Changing from Exhausting Hood to Filtering Hood

In order to make this change (possible also after the use of the exhausting system), you may have to purchase a set of active carbon filters. Active carbon filters are necessary to purify the air that will be released in the room. Filters are not washable: they cannot be regenerated and have to be replaced at most every 4 months. The saturation of the activated charcoal depends on the time of use of the hood, on the type of cooking and on the regularity of cleaning the grease filter.

• The filter (C) has to be applied to the aspirating group, which is inside the hood.
• Fit in the centre of the group with it and turn it 90 degrees until you hear the stop click to lock it.
• Remove the grill (G) to carry out this operation.
• Close with the appropriate covers the upper and back air outlets.
• Turn the small lever (L) from position (A) to position (F) - this way the hood is ready for the filtering function.

2.6. Use and Maintenance

It is advisable to let the appliance work for 15 minutes after cooking the food in order to completely remove the fumes.

In the frontal part of the appliance there are an on/off switch for the light and a switch to select the working speed.

The effective functioning of the hood depends on the regularity with which the maintenance operations are carried out, in particular those of the anti-grease filter. The anti-grease filter, which is on the grill, has the function of catching the particles suspended on the air, so it is subject to get frequently clogged, according to the use of the appliance. In any case, at most after two months, it is necessary to clean the filter by doing the following procedure:

• Remove the filter from the grill and wash it with a solution of water and neutral liquid detergent, allowing the dirt to soften.
• Rinse thoroughly with lukewarm water, allow it to dry without twisting and apply it to the grill.

Notes: If the appliance is provided with a metal filter, it can also be washed in the dishwasher, dried and reapplied to the grill.

In case you do not follow the washing instructions of the filter, it could burst into flames.

Clean frequently all the deposits on the fan and on all other surfaces using a cloth moistened with methylated spirits or neutral and not abrasive fluid detersives.

2.7. Drawings

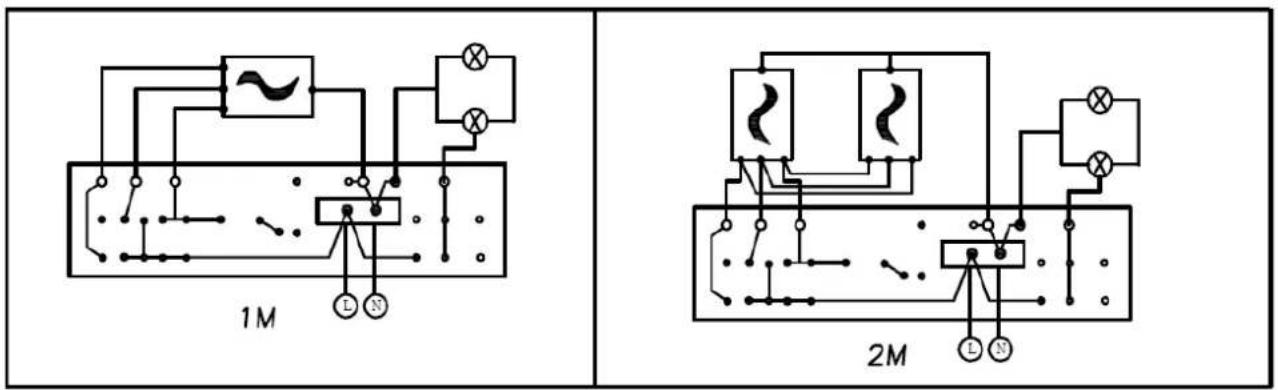

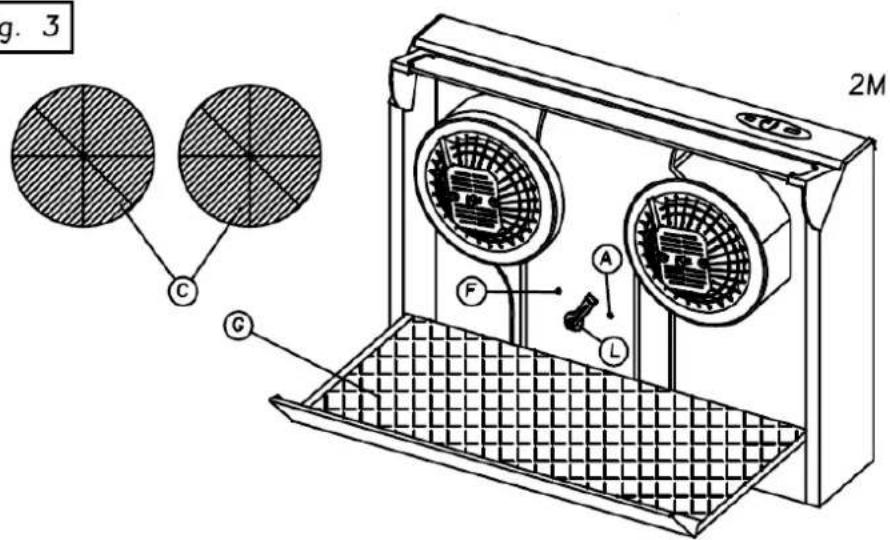

Fig. 1

Fig. 1

Fig. 2

Fig. 3

3. Aftermarket

Becken has designed this appliance in order to guarantee the maximum reliability.

Do not open the appliance – there is a risk of electric shock.

If you are not able to solve the problem, please contact your seller or manufacturer.

WARNING: any attempt of fixing the appliance without contacting the manufacturer will nullify the warranty.

In case the problem persists, take your appliance to an aftermarket section of any Worten, store in order to solve the problem.

Worten Equipamentos para o Lar ensures for a period of 2 years, counting from the date of purchase of this appliance, a warranty against any found manufacturing defect. The warranty supposes a correct use and maintenance of the appliance, namely according to the instructions expressed in this manual. In case otherwise identified, the malfunctions will not be under the warranty.

The repairing of electrical appliances must only be made by qualified technicians, as otherwise there may occur future complications on the appliances.

4. Environment Conservation

Aiming to protect the environment, we try to reduce to a maximum the volume of the packages which are confined to three easy separation materials: cardboard, paper and plastic.

The appliance is made of recyclable material, once disassembled by a specialized company. Follow the local legislation concerning recycling of all materials.
