BCHT2338 - Range hood Becken - Free user manual and instructions

Product Type	Range Hood
Brand	Becken
Model	BCHT2338
Width	60 cm (23.6 in)
Depth	50 cm (19.7 in)
Height	12 cm (4.7 in)
Net Weight	8.5 kg (18.7 lb)
Power Supply	230 V / 50 Hz
Max Suction Power	650 m³/h (230 CFM)
Noise Level	55 dB (A) at max speed
Lighting	2 x 1.5 W LED
Filter Type	Aluminum grease filter (washable)
Control Type	Electronic touch panel
Number of Speeds	3 speeds + boost
Installation Type	Under-cabinet / wall-mounted
Ducting Type	Ducted (optional recirculation with charcoal filter)
Energy Class	A+
Annual Energy Consumption	30 kWh/year
Grease Filter Efficiency	Class B
Airflow Efficiency	Class A
Noise Reduction Class	Class A
Warranty	2 years

Frequently Asked Questions - BCHT2338 Becken

How do I install the Becken BCHT2338 range hood?

Installation should be done by a qualified professional. Ensure the hood is securely mounted under a cabinet or on the wall at least 65 cm above an electric cooktop or 75 cm above a gas cooktop. Connect the ductwork for exhaust or install a charcoal filter for recirculation mode. Refer to the user manual for detailed steps.

How often should I clean the grease filters?

Clean the aluminum grease filters every month or more frequently with heavy use. They can be washed by hand with warm soapy water or in the dishwasher. Allow them to dry completely before reinstalling.

Can this range hood be used without ducting?

Yes, the Becken BCHT2338 can be used in recirculation mode. You need to purchase and install a charcoal filter (usually sold separately) to absorb odors. The air will be filtered and recirculated back into the kitchen.

What is the noise level of this hood at maximum speed?

The maximum noise level is approximately 55 dB(A), which is comparable to a quiet conversation. At lower speeds, it operates even quieter.

What type of lighting does the BCHT2338 have and how to replace it?

It features 2 x 1.5 W LED lights. LEDs are energy-efficient and long-lasting. If replacement is needed, contact Becken support or a qualified technician as the lights may require disassembly of the hood.

How do I reset the filter cleaning reminder?

After cleaning or replacing the filters, press and hold the filter reset button (indicated on the control panel or in the manual) for about 3 seconds until the indicator light turns off.

What are the dimensions of the BCHT2338 range hood?

The hood has a width of 60 cm (23.6 in), depth of 50 cm (19.7 in), and height of 12 cm (4.7 in). Ensure your cabinet space accommodates these dimensions.

Can I control the hood with a remote?

No, the Becken BCHT2338 does not come with a remote control. It is operated via the electronic touch panel on the front of the hood.

What should I do if the hood is not suctioning properly?

First, check if the grease filters are clean and not clogged. Ensure the duct is not blocked and the charcoal filter (if used) is not saturated. Also verify that the hood is installed at the correct height above the cooktop.

Is there a warranty on this product and how to claim it?

Becken offers a 2-year warranty for the BCHT2338 on manufacturing defects. To claim, contact Becken customer support with your proof of purchase and model number. Do not attempt to repair yourself as it may void the warranty.

USER MANUAL BCHT2338 Becken

Campana extractora Exaustor

INSTRUCTIONS MANUAL

MANUAL DE INSTRUÇÕES

Line drawing of a BECKEN air conditioner unit with ventilation grilles and control panel (no text or symbols on the device itself)

Dear client,

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. SAFETY INSTRUCTIONS 4

1.1. Power Supply 5
1.2. Power Cord and Other Cables 5
1.3. Humidity and Water 5
1.4. Cleaning 6
1.5. General Precautions 6

2. OPERATING INSTRUCTIONS 8

2.1. Product Description 8
2.2. Using the Product 10
2.3. Maintenance 10

3. POST-SALE SERVICE 13

4. ENVIRONMENTAL PROTECTION 13

Cooker Hood | Campana extractora | Exaustor

BECKEN

1. SAFETY INSTRUCTIONS

	WARNING
	RISK OF ELECTRIC SHOCKDO NOT OPEN
Warning: to avoid the risk of electric shock, do not remove the cover. The interior does not contain any parts that can be repaired by the user. Ask for assistance from qualified personnel.

Important Warnings

Before using your appliance read this instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance may not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any manual modifications to the product will not be covered and automatically voids the warranty.

[you can trust]

Assistance

In case of malfunction, take your appliance to a qualified technician for assistance.

This appliance can be used by children from the age of 8 and by people with reduced physical, sensorial or mental capabilities and/or lack of experience and knowledge if they have been given instructions on using the appliance safely and if they understand the hazards involved. Children may not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case please consult the Customer Support Service.

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Technical Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

BECKEN

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product use a dry soft cloth only.

1.5. General Precautions

• Please follow the instructions in the user manual which help to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.
• Read all instructions before using the product.
• Maintenance and service operations are only to be carried out by authorized professionals.
• Any damage caused by manual modifications to the product is not covered by the warranty.
• If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided. In certain circumstances, electrical appliances may present hazards.
• Do not check the status of the filters while the cooker hood is operating.
• Do not touch the light bulbs after using the appliance.
• Do not disconnect the appliance with wet hands and without pulling the power cord.
• Flame cooking is prohibited underneath the cooker hood.

[you can trust]

• Avoid free flame, as it damages the filters and can cause a fire hazard.
• Constantly check the food while frying, as the overheated oil may become a fire hazard.
• Disconnect the electrical plug prior to any maintenance.
• Children don't recognize the risks of electrical appliance. Therefore, use or keep the appliance only under supervision of adults and out of the reach from children.
• If the power cord is damaged, it must be replaced by the manufacturer or a qualified service engineer in order to avoid a hazard.
• Keep electrical appliances out of reach of children or infirm persons. Do not let them use the appliances without supervision.
• Indoor use only.
• Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.
• Contact your local government for information regarding the collection systems available.
• If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.
• When the appliance is not in use and before cleaning, unplug the appliance from the outlet.

BECKEN

2. OPERATING INSTRUCTIONS

The appliance has been designed for use in the ducting version (external exhaust) or in the filtering version (interior air circulation).

SAFETY PRECAUTIONS

A) Take care when the cooker hood is operating simultaneously with an open fireplace or burner that depend on the air from the environment and are supplied by other than electrical energy, as the cooker hood removes the air from the environment which a burner or fireplace need for combustion.
B) Provide adequate ventilation in the environment for a safe operation for the cooker hood.
C) Follow the local laws applicable for external air evacuation.
D) The appliance should only be used with the rated voltage and frequency.
E) There is a risk of fire if cleaning is not carried out in accordance with the instruction.

2.1. Product Description

INSTALLATION INSTRUCTIONS

Method one:

• The cooker hoods should be placed at a distance of 65-75 cm from the cooking surface for best effect.
• To install onto the wall drill 4 holes of ∅8 mm on a suitable place according with the centre distance of the hole in the back of the cooker hood.
• Insert the nut into the holes.

[you can trust]

• Insert the screws into the nuts and tighten them.
• Put up the cooker hood onto the fixed screws.

• Fix the hood onto the wall, as shown in the method of image B.
• Put the one-way valve onto the cooker hood.

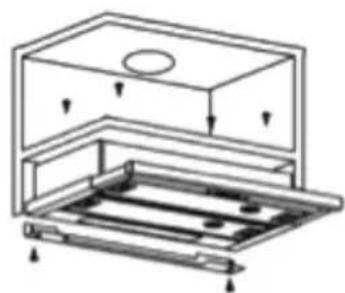

Method two:

• Drill 6 holes of 4 mm in diameter at the bottom of the hanging cupboard.
• Place the one-way valve on the cooker hood, install the cooker hood on the bottom of the cupboard, and then tighten the hood with the 6 screws included.
  • Install the adjusted board on the bottom of the hood in order to close the gap between the back of the hood and the cupboard.

Technical line drawing of a mechanical assembly with no visible text or symbols

Cooker Hood | Campana extractora | Exaustor

BECKEN

2.2. Using the Product

Rocker Switch

• Connect the power plug to the outlet.
• Push the switch ① to “☐”, the lamp will turn on; push to “O”, the lamp will turn off.
• Push the switch ② to “I、II”, the motor will be on “low or high” speeds, push to “O”, the motor will switch off.
• The cooker hood will be working at low or high speed when you pull out the front panel.

2.3. Maintenance

• It is recommended to operate the appliance prior to cooking.
• There should be adequate ventilation in the room when the cooker hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room.

[you can trust]

• It is recommended to leave the appliance in operation for 15 minutes after cooking is terminated, to eliminate cooking vapours and odours.
• Turn the appliance off is it is not being used.
• Do not allow flames under the cooker hood.
• Do not use the appliance especially if the supply cord is damaged.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not immerse the appliance in liquid.
• The exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances that burn gas or other fuels.
• Regulations concerning air emissions must be complied with.
• Details concerning the cleaning method and frequency.
• To prevent a fire hazard, it is recommendable to clean the filter at least every 2 months by carrying out the following instructions:
• Unplug the appliance before cleaning, then remove the filters from the cooker hood and wash them in a solution of water and neutral liquid detergent, leaving them to soak.
• Rinse thoroughly with warm water and leave to dry.
• The filters may also be washed in the dishwasher.
• The aluminium panels may change their colour after several washes.

BECKEN

This is not cause for customer complaint nor replacement of the panels.

Air filter

- Clean the surface of the cooker hood regularly, using a damp cloth with denatured alcohol or a nonabrasive liquid detergent. (Remark: Do not clean the motor and the inside parts).

- Replace the filters approximately every 4 months.

- There is a risk of fire if the cleaning is not carried out in accordance with the instruction.

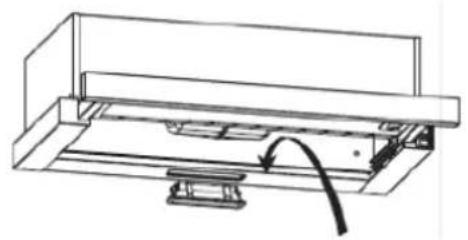

Changing the lights:

Warning: The LED light should be replaced by a competent person! If the LED light is damaged, contact the Customer Support Service for assistance.

Use the screwdriver loosen the ST4*8MM self tapping screw (2pcs) from the lighting panel, take out the lighting fixture. Open the terminal box that connected with the wire, disconnect the wire connector and replace the lamp.

- ILCOS D code for this lamp is: DBS-2/65-H-120/33

- Max wattage: 1×2 W

- Voltage range: AC 110-240V

- Dimensions:

[you can trust]

Technical line drawing of a mechanical assembly with a curved arrow indicating motion (no text or symbols)

3. POST-SALE SERVICE

BECKEN has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Costumer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: Any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

4. ENVIRONMENTAL PROTECTION

In order to protect the environment we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic. The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

Symbol of a trash bin crossed with no visible text or numbers

Estimado cliente,

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of two electrical outlets with circular components and labeled parts (no text or symbols beyond labels)

2.3. Mantenimiento

Technical line drawing of a mechanical assembly with a curved arrow indicating motion (no text or symbols)

3. SERVICIO POSVENTA

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or numbers present)

[you can trust]

Cooker Hood | Campana extractora | Exaustor

ES

27

Caro(a) cliente,

Technical line drawing of a mechanical assembly with no visible text or symbols

Cooker Hood | Campana extractora | Exaustor

BECKEN

2.3. Manutenção

Technical line drawing of a mechanical assembly with a curved arrow indicating motion (no text or symbols)

3. SERVIÇO PÓS-VENDA

Symbol of a trash bin crossed with no visible text or numbers, commonly used to indicate waste or disposal (no text present)

BECKEN

Imported, produced and distributed by:

Worten Equipamentos p/o Lar S.A.
