BCHVS3123N - Range hood Becken - Free user manual and instructions

Product Type	Vertical Range Hood (Cooker Hood)
Brand	Becken
Model	BCHVS3123N
Installation Height	65-75 cm (26-30 inches) above cooking surface
Dimensions (Chimney)	Not specified
Weight	Approximately 15-20 kg (estimated)
Power Supply	AC 220-240V, 50Hz (typical)
Motor Type	High power, low noise centrifugal motor
Motor Speeds	3 speeds (low, mid, high)
Control Type	LED touch buttons with timer
Lighting	2 x 1.5W LED lamps, DC 12V
Filter Type	Aluminum mesh grease filter (non-stick, washable)
Extraction Rate	Not specified
Noise Level	Low noise (exact dB not specified)
Material	High quality materials, streamlined design
Timer Function	Yes, 9-minute countdown auto shut-off
Safety Features	Grounding, overheat protection, child safety warnings
Ducting	Requires external ducting (not for recirculation)
Cleaning	External: dry soft cloth; Filter: removable, washable
Warranty	2 years against manufacturing defects (from Worten)
User Manual	Available in English, Spanish, Portuguese, and more

Frequently Asked Questions - BCHVS3123N Becken

What is the recommended installation height for this range hood?

The cooker hood should be placed at a distance of 65-75 cm (26-30 inches) from the cooking surface for the best performance.

How do I clean the grease filter?

The aluminum mesh filter is removable. Clean it regularly with warm soapy water or in a dishwasher. Ensure the hood is switched off and unplugged before removal.

The motor does not work but the light is on. What could be the issue?

Possible causes include a blocked fan blade, a damaged capacitor, or a jammed motor. Check for blockages and if the problem persists, contact a qualified technician.

How do I change the LED light?

The LED light should be replaced by a competent person. Open the upper glass, remove the aluminum filter, gently pull the LED out from the inside, disconnect the terminal, and install the new lamp in reverse.

What does the timer function do?

Pressing the Timer button activates a 9-minute countdown. The display shows numbers 9-0, then the hood automatically turns off. Press again to cancel.

Can this hood be used in recirculation mode (without ducting)?

No, the manual indicates the hood requires external ducting. Do not connect it to any existing ventilation system used by other appliances.

Why is the hood shaking or vibrating?

Shaking may be caused by a damaged fan blade, loose motor mounting, or insecure installation. Tighten screws and check for blade damage.

What should I do if oil leaks from the hood?

Oil leakage often occurs if the one-way valve or air ventilation entrance is not sealed tightly. Remove the valve and seal it with glue, or seal the U-shaped section connection with soap or paint.

What is the warranty period for this range hood?

Becken (via Worten Equipamentos para o Lar) offers a 2-year warranty against manufacturing defects from the date of purchase. Any unauthorized repair voids the warranty.

How do I adjust the speed of the hood?

Press the Speed button repeatedly to cycle through low (1), medium (2), and high (3) speeds. The LED display shows the current speed level.

USER MANUAL BCHVS3123N Becken

Campana Extractora Vertical Campânula Vertical

INSTRUCTIONS MANUAL

MANUAL DE INSTRUÇÕES

Dear client,

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. SAFETY INSTRUCTIONS 4

1.1. Power Supply 5

1.2. Power Cord and Other Cables 5

1.3. Humidity and Water 5

1.4. Cleaning 6

1.5. General Precautions 6

2. OPERATING INSTRUCTIONS 6

2.1. Product Description 8

2.2. Using the Product 8

2.3. Troubleshooting 13

1. POST-SALE SERVICE 15

2. ENVIRONMENTAL PROTECTION 15

Cooker Hood | Campana extractora | Exaustor

BECKEN

1. SAFETY INSTRUCTIONS

	WARNING
	RISK OF ELECTRIC SHOCKDO NOT OPEN
Warning: to avoid the risk of electric shock, do not remove the cover. The interior does not contain any parts that can be repaired by the user. Ask for assistance from qualified personnel.

Important Warnings

Before using your appliance read this instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
- You notice any evidence of damage;
- Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance may not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any manual modifications to the product will not be covered and automatically voids the warranty.

Assistance

In case of malfunction, take your appliance to a qualified technician for assistance.

This appliance can be used by children from the age of 8 and by people with reduced physical, sensorial or mental capabilities and/or lack of experience and knowledge if they have been given instructions on using the appliance safely and if they understand the hazards involved. Children may not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case please consult the Customer Support Service.

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Technical Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

BECKEN

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product use a dry soft cloth only.

1.5. General Precautions

- Please follow the instructions in the user manual which help to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.

- Read all instructions before using the product.

- Maintenance and service operations are only to be carried out by authorized professionals.

- Any damage caused by manual modifications to the product is not covered by the warranty.

- If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.

2. OPERATING INSTRUCTIONS

Warning

• Keep your children from using the cooker hood.
• Your cooker hood is for domestic use only, not suitable for barbecue, roast shop or other commercial use.

• Any installation work must be carried out by a qualified electrician or competent person.

• The cooker hood and its mesh filter should be cleaned regularly in order to keep it in good working order.

• Before cleaning, always ensure that the cooker hood is switched off.
• Clean the cooker hood according to the instruction manual and keep the cooker hood from the danger of burning.
• Do not use fire for drying your cooker hood.
• If there is any fault with your cooker hood, please call the service department appointed by the agent for servicing.
• Please keep the room ventilated when your cooker hood and gas hob are working.
• Do not exhaust the cooker hood through the same heated flue used for the gas hob or other kitchen appliances.
• Before installation and use, read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on your cooker hood are exactly the same as the voltage (V) and the frequency (Hz) in your home.
• In order to get the most out of your cooker hood, please read the instruction manual before installing & using, and keep it in a safe place.
• Ensure that you obtain the warranty for your cooker hood, please provide the warranty card and purchase receipt, or the warranty will not be offered.

BECKEN

2.1. Product Description

Functions and Features

• The cooker hood is made of high quality materials with streamlined design, according to technical and physical engineering theory, with a luxury and aged aesthetic feel, and different style options perfect for your kitchen.
• Equipped with a high power, low noise electric motor and centrifugal leaf, it produces strong, low noise suction, and a non-stick grease filter which is easy to clean.
• With the isolated low voltage circuit board control, 12vAC input, the lights are more concentrative and use is much safer.
• The grease filter is easy to remove and clean, wipe the motor and other interior parts lightly.
• A special wind tunnel construction and oil collector design has been used, avoiding grease left in the flue.

2.2. Using the Product

Installation

Installation dimensions

Image 1

1. The cooker hood should be placed at a distance of 65-75cm (26-30inch) from the cooking surface for the best effect. See Image 1.
2. After confirming the installation height for the hood, fix the installation hole for the hood, the inner chimney bracket and the safety hole in accordance with the hood size. Make 6pcsφ8 holes on the wall (See Image 2).

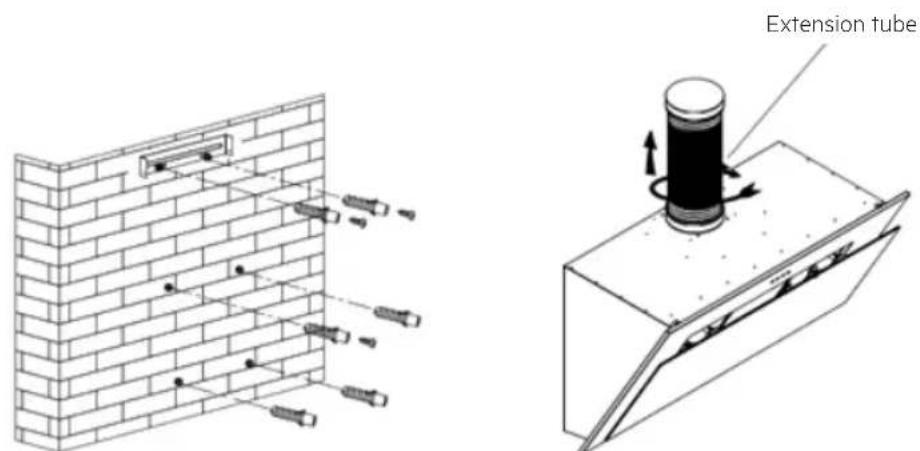

3. Install the exhaust pipe onto the cooker hood, see Image 3.
4. Install the chimney bracket on the chimney, see Image 4.

Image 2 Image 3

Image 4

Cooker Hood | Campana extractora | Exaustor

BECKEN

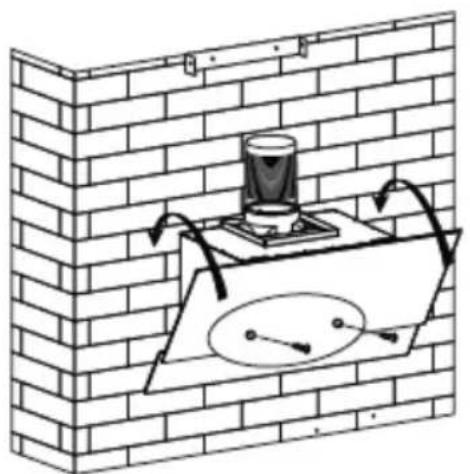

1. Make the hood hang on the wall in the fixed position, adjusting the cooker hood position, and fix it with screws (safety screws), see Image 5.

2. Adjust the height of the inside chimney to the position of the inside chimney bracket and fix it with a screw. See Image 6.

Diagram of a brick wall with a glass container and directional arrows indicating movement or force (no text or symbols)

Diagram of a brick wall with a chimney and ventilation duct, showing upward force arrows (no text or symbols)

Image 5 Image 6

Note: The two safety vents are positioned on the back casing, with a diameter of 6mm.

Note:

• Any installation work must be carried out by a qualified electrician or competent person.
• Do not connect the ducting system of the hood to any existing ventilation system which is being used for any other appliance, such as warmer tube, gas tube, hot wind tube.
• The inclination angle of the ventilation pipe should be no less than 120^irc ; you must direct the pipe horizontally, or, alternatively, the pipe should go up from the initial point and led to an outer wall.

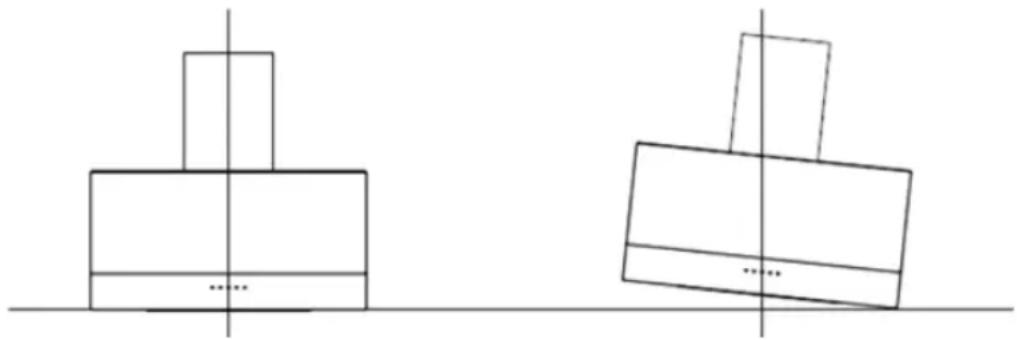

- After the installation, make sure that the cooker hood is level to avoid grease from collecting on one end. See Image 7.

Two abstract geometric shapes with vertical centerlines, no text or symbols present

Right Wrong
Image 7

How to use the control panel

Timer

Lamp

Speed

Power

LED Touch button

1. Press the "Power" button, the button controls the "on" & "off" of the hood.
2. Keep pressing the "Speed" button, the motor runs at low / mid / high / low / mid..., the speed runs circularly; the LED display will indicate 1-2-3-1-2... circularly.
3. Press the "Light" button, the light will turn on, press it again, the light will turn off, keep pressing this button and the lights will turn on/off circularly.
4. When pressing the "Timer" button while the hood is working, the hood will go into a countdown timer mode (countdown time is 9mins), and the LED display will indicate "9-8-7...-1-0". When it reaches "0", the hood will turn off automatically. When pressing the "Timer" button repeatedly, the hood will go into or out of the "Timer" function.

BECKEN

Changing the light:

Warning: The LED light should be replaced by a competent person! If the LED light is damaged, contact the Customer Support Service for assistance.

1. Open the upper glass and remove the aluminium filter, put a hand into the cavity and slightly pull one end of the LED light out.
2. Use another hand to pull the light out from the outside, thentake out the lighting fixture and dismantle the terminal of the light connecting wire.

3. Apply the reverse procedure to install the light back.

4. ILCOS D code for this lamp is: DSS-1.5/65-S-120/33

5. LED modules -rectangle lamp
6. Max wattage: 2×1.5 W
7. Voltage range: DC12V
8. Dimensions:

Technical line drawing of a refrigerator interior with a close-up of its internal components (no text or symbols)

2.3. Troubleshooting

FAULT CAUSE	SOLUTION
The light is on, but the motor does not work	The leaf is blocked Remove the blocking
	The capacitor is damaged	Replace the capacitor
	The motor is jammed and shows damage	Replace the motor
	The internal motor is off or there is a bad smell coming from the motor	Replace the motor
The light does not work, the motor does not work	Beside what is listed above, check the following:
	Light is damaged Replace the lights
	Power cord is loose Connect the wires as per the electric diagram
Oil leakage	The one-way valve and the air ventilation entrance are not sealed tightly	Take down the one-way valve and seal it with glue
	Leakage from the connection between the U-shaped section and the cover	Take the U-shaped section down and seal it with soap or paint

BECKEN

FAULT CAUSE	SOLUTION
The body of the appliance shakes	The leaf is damaged and causes shaking	Replace the leaf
	The motor is not fixed tightly	Lock the motor tightly
	The body is not fixed tightly	Fix the body of the appliance tightly
Insufficient suction	The distance between the body and the gas top is too long	Readjust the distance
	Too much ventilation from open doors or windows	Choose a new place and resemble the appliance
The machine inclines	The fixing screw is not tight enough	Tighten the hanging screw and make it level
	The hanging screw is not tight enough	Tighten the hanging screw and make it level

3. POST-SALE SERVICE

Becken has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Costumer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: Any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

4. ENVIRONMENTAL PROTECTION

In order to protect the environment we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic. The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

Symbol of a trash bin crossed with no visible text or numbers
