QT140LE - Household Fan BROAN - Free user manual and instructions

Product Type	Ceiling-mount ventilation fan
Model	QT140LE
Brand	Broan
Rated Airflow	140 CFM (approximate)
Duct Size	6-inch round (includes 6-to-4-inch reducer)
Electrical Rating	120 VAC, 60 Hz
Lighting	Two 18W max GU24 fluorescent bulbs + one 4W max C7 night light
Maximum Ceiling Pitch	12/12 (45 degrees)
Installation Location	Ceiling only (not wall)
Motor Type	Permanently lubricated
Control Compatibility	Broan models 78V and 78W speed controls
Warranty	3 years limited
Safety	GFCI protected branch circuit required for tub/shower installation
Cleaning	Vacuum grille and interior with dusting brush
Included Accessories	Duct reducer (6" to 4"), spacers for I-joists, mask for construction

Frequently Asked Questions - QT140LE BROAN

Can the Broan QT140LE be installed over a tub or shower?

Yes, when connected to a GFCI-protected branch circuit and installed in the ceiling only.

How do I clean the fan?

Lower or remove the grille and vacuum the interior with a dusting brush attachment. The motor is permanently lubricated and does not require oiling.

What type of bulbs does the QT140LE use?

It uses two 18W max GU24 fluorescent bulbs and one 4W max Type C7 incandescent night light.

What duct size is recommended for optimal performance?

6-inch round metal duct is recommended. An included 6-to-4-inch reducer allows use with 4-inch ductwork.

Does the motor require maintenance?

No, the motor is permanently lubricated and never needs oiling. If the motor bearings become noisy, replace the blower assembly.

How do I install the fan to I-joists?

Use the spacers included between the highest hole of each mounting flange and the I-joist, then screw or nail through the lowest and highest holes.

What is the warranty period for this fan?

The Broan QT140LE comes with a 3-year limited warranty from the date of original purchase.

Can I use a standard dimmer switch with this fan?

No, only use Broan models 78V or 78W speed controls. Other controls may cause a motor humming noise.

How do I remove the light lens for bulb replacement?

Carefully insert a small flat-blade screwdriver between the grille and lens and pry the lens out.

What should I do if the fan makes unusual noise?

If the motor bearings make excessive noise, replace the blower assembly (includes motor and impeller).

USER MANUAL QT140LE BROAN

READ AND SAVE THESE INSTRUCTIONS

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Acceptable for use over a tub or shower when connected to a GFCI (Ground Fault Circuit Interrupter) - protected branch circuit (ceiling installation only).
8. This unit must be grounded.

CAUTION

1. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.

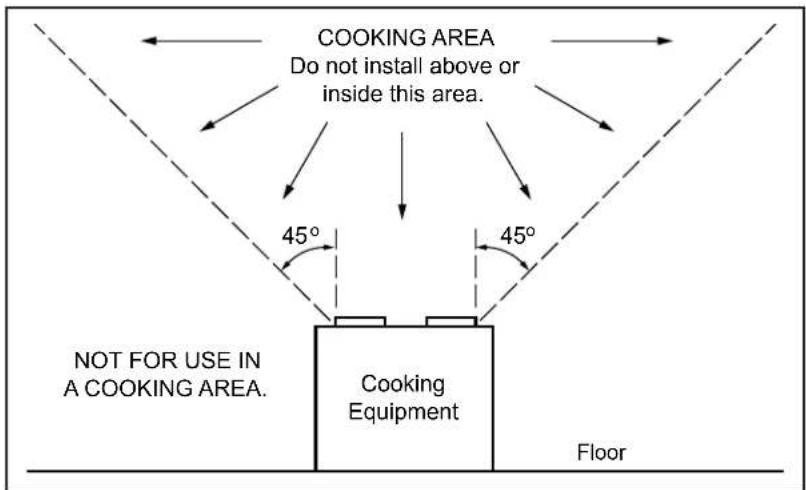

2. This product is designed for installation in ceilings up to a 12/12 pitch (45 degree angle). Duct connector must point up. DO NOT MOUNT THIS PRODUCT IN A WALL.
3. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.
4. Please read specification label on product for further information and requirements.

CLEANING & MAINTENANCE

For quiet and efficient operation, long life, and attractive appearance - lower or remove grille and vacuum interior of unit with the dusting brush attachment.

The motor is permanently lubricated and never needs oiling. If the motor bearings are making excessive or unusual noises, replace the blower assembly (includes motor and impeller).

OPERATION

Use an on/off switch or speed control to operate this ventilator. See "Connect Wiring" for details. Use of speed controls other than the Broan Models 78V and 78W may cause a motor humming noise.

Register your product online at: www.broan.com/register

Technical line drawing of a ceiling fan with ventilation grilles (no text or symbols)

WARRANTY

Limited Warranty

Warranty Period and Exclusions: Broan-NuTone LLC (the "Company") warrants to the original consumer purchaser of its product ("you") that the product (the "Product") will be free from material defects in the Product or its workmanship for a period of three (3) years from the date of original purchase.

The limited warranty period for any replacement parts provided by the Company and for any Products repaired or replaced under this limited warranty shall be the remainder of the original warranty period. This warranty does not cover speed controls, fluorescent lamp starters, tubes, halogen and incandescent bulbs, fuses, filters, ducts, roof caps, wall caps and other accessories for ducting that may be purchased separately and installed with the Product. This warranty also does not cover (a) normal maintenance and service, (b) normal wear and tear, (c) any Products or parts which have been subject to misuse, abuse, abnormal usage, negligence, accident, improper or insufficient maintenance, storage or repair (other than repair by the Company), (d) damage caused by faulty installation, or installation or use contrary to recommendations or instructions, (e) any Product that has been moved from its original point of installation, (f) damage caused by environmental or natural elements, (g) damage in transit, (h) natural wear of finish, (i) Products in commercial or nonresidential use, or (j) damage caused by fire, flood or other act of God. This warranty covers only Products sold to original consumers in the United States by the Company or U.S. distributors authorized by the Company.

This warranty supersedes all prior warranties and is not transferable from the original consumer purchaser.

No Other Warranties: This Limited Warranty contains the Company's sole obligation and your sole remedy for defective products. The foregoing warranties are exclusive and in lieu of any other warranties, express or implied. THE COMPANY DISCLAIMS AND EXCLUDES ALL OTHER EXPRESS WARRANTIES, AND DISCLAIMS AND EXCLUDES ALL WARRANTIES IMPLIED BY LAW, INCLUDING WITHOUT LIMITATION THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. To the extent that applicable law prohibits the exclusion of implied warranties, the duration of any applicable implied warranty is limited to the period specified for the express warranty above. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Any oral or written description of the Product is for the sole purpose of identifying it and shall not be construed as an express warranty.

Whenever possible, each provision of this Limited Warranty shall be interpreted in such manner as to be effective and valid under applicable law, but if any provision is held to be prohibited or invalid, such provision shall be ineffective only to the extent of such prohibition or invalidity, without invalidating the remainder of such provision or the other remaining provisions of the Limited Warranty.

Remedy: During the applicable limited warranty period, the Company will, at its option, provide replacement parts for, or repair or replace, without charge, any Product or part thereof, to the extent the Company finds it to be covered by and in breach of this limited warranty under normal use and service. The Company will ship the repaired or replaced Product or replacement parts to you at no charge. You are responsible for all costs for removal, reinstallation and shipping, insurance or other freight charges incurred in the shipment of the Product or part to the Company. If you must send the Product or part to the Company, as instructed by the Company, you must properly pack the Product or part—the Company is not responsible for damage in transit. The Company reserves the right to utilize reconditioned, refurbished, repaired or remanufactured Products or parts in the warranty repair or replacement process. Such Products and parts will be comparable in function and performance to an original Product or part and warranted for the remainder of the original warranty period.

Exclusion of Damages: THE COMPANY'S OBLIGATION TO PROVIDE REPLACEMENT PARTS. OR REPAIR OR REPLACE, AT THE COMPANY'S OPTION, SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY AND THE COMPANY'S SOLE AND EXCLUSIVE OBLIGATION. THE COMPANY SHALL NOT BE LIABLE FOR INCIDENTAL, INDIRECT, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE PRODUCT, ITS USE OR PERFORMANCE.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.

This warranty covers only replacement or repair of defective Products or parts thereof at the Company's main facility and does not include the cost of field service travel and living expenses.

Any assistance the Company provides to or procures for you outside the terms, limitations or exclusions of this limited warranty will not constitute a waiver of such terms, limitations or exclusions, nor will such assistance extend or revive the warranty.

The Company will not reimburse you for any expenses incurred by you in repairing or replacing any defective Product, except for those incurred with the Company's prior written permission.

How to Obtain Warranty Service: To qualify for warranty service, you must (a) notify the Company at the address or telephone number stated below within seven (7) days of discovering the covered defect, (b) give the model number and part identification and (c) describe the nature of any defect in the Product or part. At the time of requesting warranty service, you must present evidence of the original purchase date. If you cannot provide a copy of the original written limited warranty, then the terms of the Company's most current written limited warranty for your particular product will control. The most current limited written warranties for the Company's products can be found at www.broan.com.

Broan-NuTone LLC 926 West State Street, Hartford, WI 53027

www.broan.com 800-637-1453

Installer: Leave this manual with the homeowner.

TYPICAL INSTALLATIONS

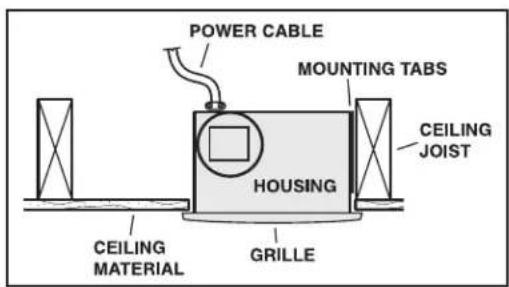

Housing mounted to joists.

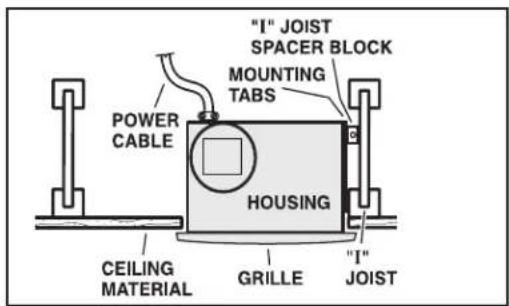

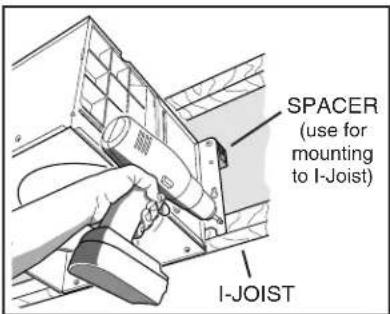

Housing mounted to I-joists. Use I-joist spacer block (provided).

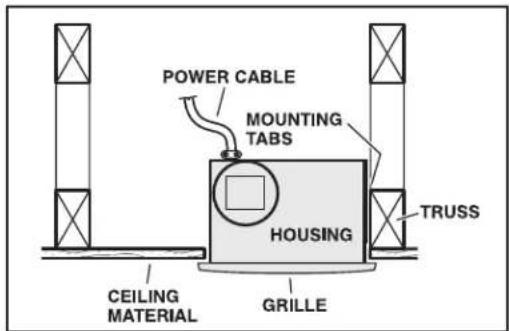

Housing mounted to truss.

PLAN THE INSTALLATION

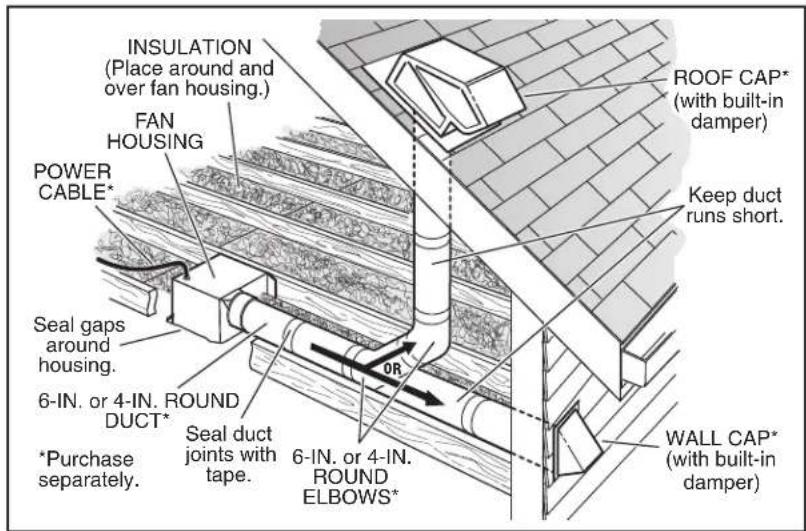

The ducting from this fan to the outside of the building has a strong effect on the air flow, noise and energy use of the fan. Use the shortest, straightest duct routing possible for best performance, and avoid installing the fan with smaller ducts than recommended. Insulation around the ducts can reduce energy loss and inhibit mold growth. Fans installed with existing ducts may not achieve their rated airflow. 6" round metal duct is recommended for best performance.

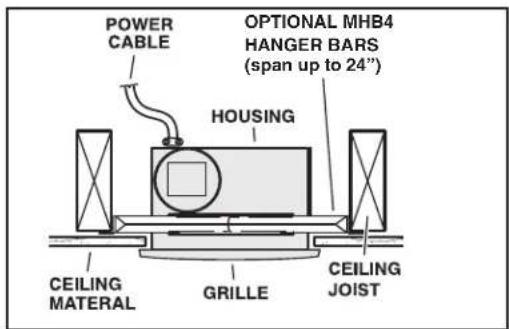

To mount housing anywhere between joists, i-joists or trusses, use optional hanger bar kit MHB4 (sold separately). Follow mounting instructions included with kit.

1. Mount housing to joist.

Hold housing in place so that bottom edge of housing will be flush with finished surface of ceiling. For 1/2" thick ceiling material,

position bottom of each mounting flange flush with the bottom of joist. The housing mounts with four (4) screws or nails. Screw or nail housing to joist through lowest holes in each mounting flange, then through highest holes. NOTE: Mounting to I-JOIST (shown) requires use of SPACERS (included) between the highest hole of each mounting flange and the I-joist.

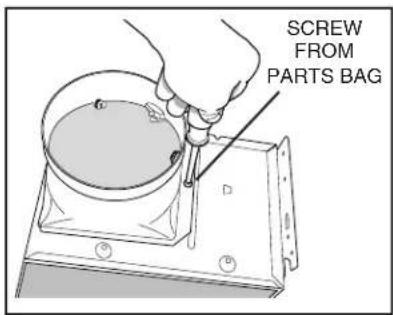

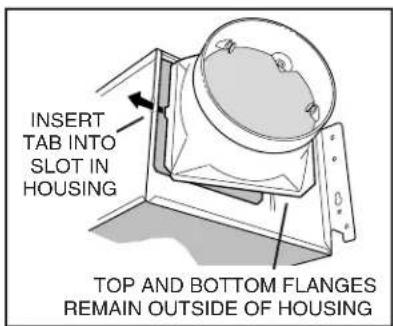

2. Attach damper/duct connector.

If using 4-inch ductwork, install 6" to 4" duct reducer (included) over duct connector.

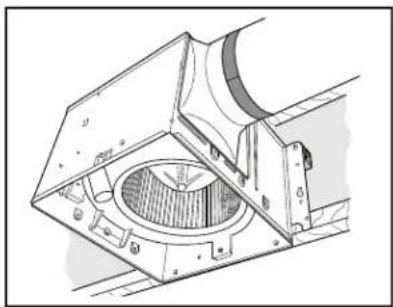

3. Install 6-inch or 4-inch round ductwork.

Connect 6-inch or 4-inch round ductwork to damper / duct connector. Run ductwork to a roof cap or wall cap. Tape all ductwork

connections to make them secure and air tight.

Technical line drawing of a mechanical component with internal structure (no text or symbols)

CONNECT WIRINGINSTALL HOUS


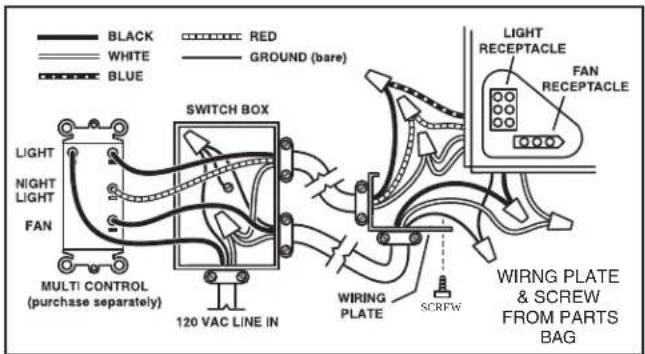

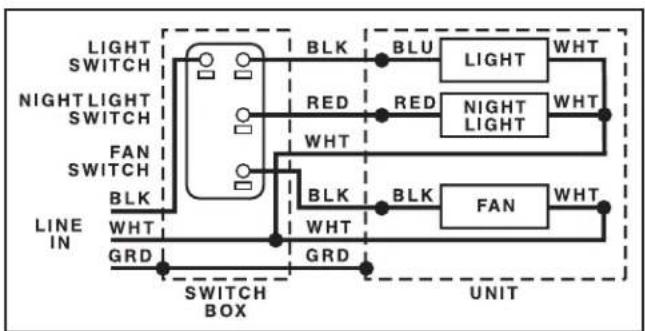

4. Connect electrical wiring.

Run 120 VAC house wiring to installation location. Use proper UL approved connector to secure house wiring to wiring plate. Connect wires as shown in wiring diagrams.

INSTALL MASK & FINISH CEILING

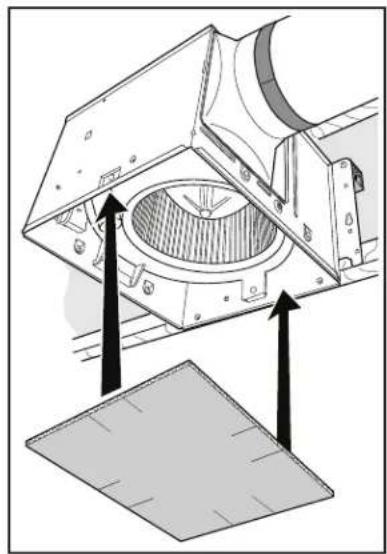

5. Insert mask and finish ceiling.

Tape mask into housing. Mask protects unit during construction. Remove before installing grille.

Install ceiling material. Cut out around housing.

Technical diagram of a mechanical device with internal components and directional arrows indicating assembly or movement (no text or symbols present)

INSTALL GRILLE

Illustration of hands using a tablet to interact with a circular icon containing a checkmark and number 2, no text or symbols present.

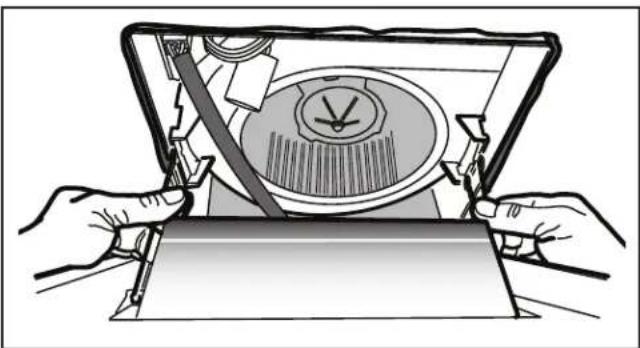

6. Attach grille to housing.

Plug light into receptacle. Squeeze grille springs and insert them into tabs on each side of housing.

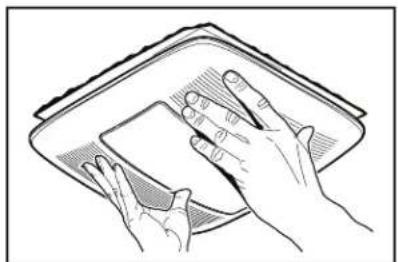

7. Push grille against ceiling.

Line drawing of hands cleaning a rectangular object with a cloth (no text or symbols)

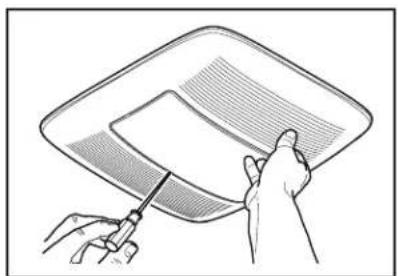

8. Remove light lens.

Carefully insert a small flat-blade screwdriver between grille and lens. Pry lens out.

Illustration of a hand holding a rectangular object with a pen, no text or symbols present

9. Install light bulbs.

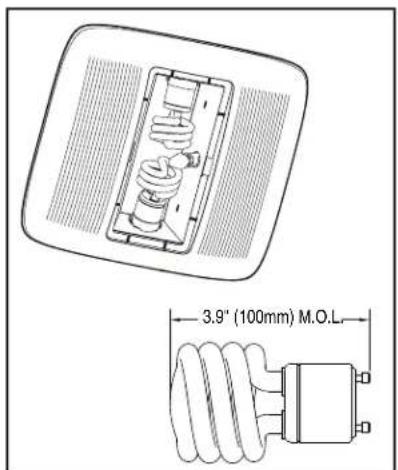

Product includes (2) 18W (max.), type GU24 fluorescent bulbs with M.O.L. (maximum overall length) of 3.9" (100mm).

Product includes a 4W (max.), Type C7 incandescent night light bulb. Insert bulbs into

their sockets. Replace lens.

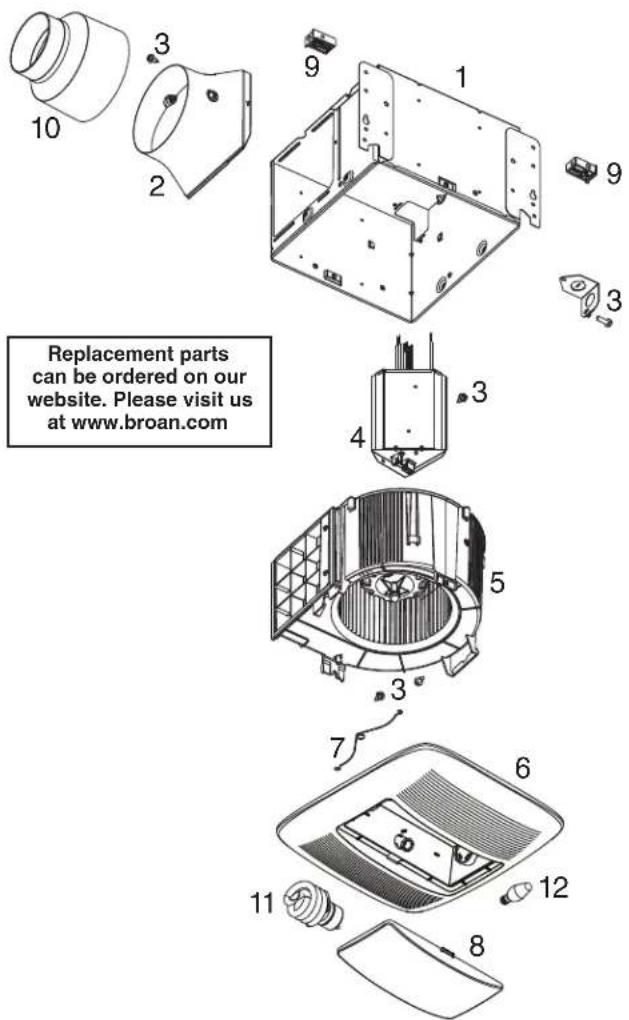

SERVICE PARTS

Key No.	Part No.	Description
1	97020009	Housing
2 97018331	Duct Connector - 6"
3 97018721	Parts Bag(includes wiring plate & all screws)
4	97018448	Wire Panel/Harness Assembly
5	97020010	Blower Assembly
6	97020004	Grille Assembly(includes key nos. 7 & 8)
7	99140208	Grille Spring (2 req'd)
8	99111400	Lens
9	97018014	Spacer (2 supplied)
10	99111513	Duct Reducer - 6" to 4"
11	99271381	Bulb, GU24, 18W Fluorescent (2 req.)
12	99271426	Bulb, 4W, Type C7 Night Light

Order service parts by "Part No." - not by "Key No."

LEA Y CONSERVE ESTAS INSTRUCCIONES

ADVERTENCIA

PARA REDUCIR EL RIESGO DE INCENDIOS, DESCARGAS ELÉCTRICAS O LESIONES PERSONALES, OBSERVE LAS SIGUIENTES PRECAUCIONES:

Technical line drawing of a mechanical component with a circular head and rectangular base (no text or symbols)

Página 5

GARANTÍA

Garantía limitada

Broan-NuTone LLC 926 West State Street, Hartford, WI 53027 www.broan.com 800-637-1453

Technical line drawing of a mechanical component with internal structure (no text or symbols)

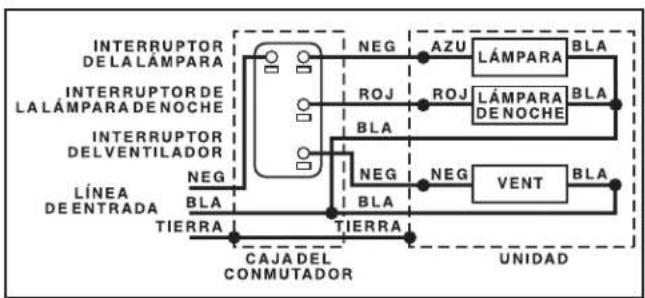

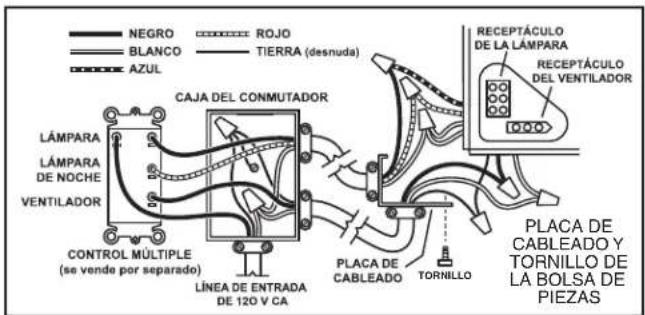

CONEXIÓN ELÉCTRICA

Technical diagram of a mechanical device with internal components and directional arrows indicating assembly or movement (no text or symbols present)

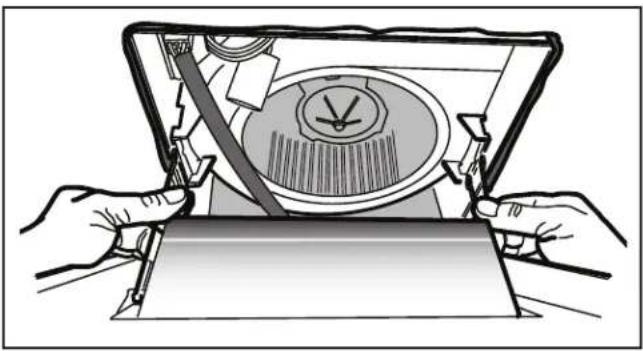

INSTALE LA REJILLA

Illustration of hands holding a tablet with a clock and document, no text or symbols present

Line drawing of two hands cleaning a rectangular object with a textured surface (no text or symbols)

Illustration of hands using a tool to clean or inspect a curved surface (no text or symbols)

PIEZAS DE REPUESTO
