Product Type	Domestic Exhaust Fan
Brand	Broan
Model	682
Dimensions (Overall)	9.5 x 9.5 x 4.5 inches
Weight	2.5 lbs
Voltage	120 V AC, 60 Hz
Airflow Capacity	50 CFM
Sound Level	1.5 Sones
Duct Diameter	4 inches
Mounting Type	Wall or Ceiling
Function	Ventilation and moisture removal
Controls	Wall switch (sold separately)
Housing Material	Galvanized steel
Grille Material	Polymer plastic, white
Energy Consumption	~15 Watts
Motor Type	Permanent split capacitor
Thermal Protection	Yes, auto-reset
Duct Connector	4-inch round duct adapter included
Cleaning Instructions	Vacuum grille and wipe with damp cloth; do not immerse
Safety Warning	Disconnect power before installation or cleaning
Spare Parts	Motor assembly (part 682M), grille (part 682G)
Repairability	Modular design; motor and grille field-replaceable
Certifications	UL listed, HVI certified

Frequently Asked Questions - 682 BROAN

What is the CFM rating of the Broan 682 fan?

The Broan 682 fan delivers 50 CFM, suitable for small bathrooms up to 45 sq. ft.

How loud is the Broan 682?

It operates at 1.5 Sones, which is quiet for a fan of its capacity.

What duct size does the 682 require?

It uses a 4-inch round duct. The fan includes a duct connector.

Can the Broan 682 be installed in a ceiling?

Yes, it is designed for wall or ceiling mounting.

How do I clean the Broan 682 fan?

Vacuum the grille regularly and wipe with a damp cloth. Do not use water inside the housing.

Does the fan come with a switch?

No, a wall switch is sold separately.

What is the voltage requirement?

The fan operates on 120 V AC, 60 Hz.

Is the Broan 682 UL listed?

Yes, it is UL listed and HVI certified for safety and performance.

Can I replace the motor?

Yes, the motor is replaceable. Order part 682M.

What is the warranty on the Broan 682?

Broan offers a 3-year limited warranty against defects in material and workmanship.

USER MANUAL 682 BROAN

READ AND SAVE THESE INSTRUCTIONS

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guidelines and safety standards such as those published by the National Fire Protection Association (NFPA) and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application.
8. Never place a switch where it can be reached from a tub or shower.
9. This unit must be grounded.

CAUTION

1. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
2. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.
3. Please read specification label on product for further information and requirements.

PLAN THE INSTALLATION

Determine where fan will be located and plan to supply fan with proper line voltage and appropriate power cable.

Follow these basic steps when installing this fan:
- Attach mounting bracket to joist or stud.
- Snap fan housing onto bracket.
- Wire fan.
- Attach grille (after ceiling or wall is finished).

INSTALLATION

1. Nail mounting bracket to joist or stud. Use gauge on bracket to locate it for 1/2" or 3/4" drywall. (FIG. 2)
2. Snap fan housing onto bracket. (FIG. 3)

BROAN®

To register this product visit www.broan.com

Simple line drawing of a square block with layered edges (no text or symbols)

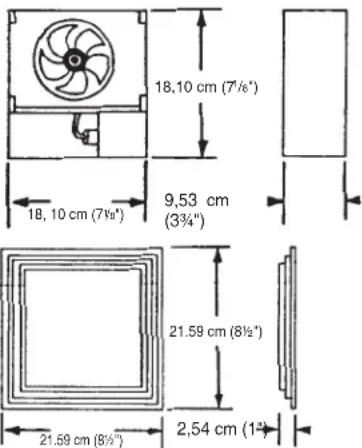

FIG. 1

ROUGH-IN OPENING SIZE IS 7¼" X 7¼" EL TAMAÑO DE ABERTURA ES DE 21,27 CM X 21, 27 CM

FIG. 2

Illustration of hands using a tool on a wooden surface (no text or symbols)

FIG. 3

Simple line drawing of a hand holding a stack of paper sheets over a wooden surface (no text or symbols)

FIG. 4

Hand holding a screwdriver with a rotating arrow indicating motion (no text or symbols)

MODELO 682 VENTILADOR SIN CONDUCTOS PARA BAÑO

LEA Y CONSERVE ESTAS INSTRUCCIONES

ADVERTENCIA

PARA REDUCIR EL RIESGO DE INCENDIO, DESCARGA ELECTRICA O LESIONES PERSONALES, CUMPLA CON LOS SIGUIENTES PUNTOS:

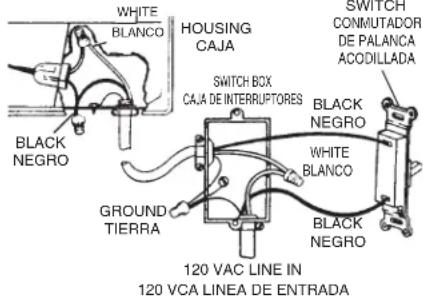

1. Secure power cable to knockout plate with proper connector for type of cable being used. Allow 6" of cable to extend beyond knockout plate. Connect ground wire to green ground screw on knockout plate. (FIG. 5)
2. Make electrical connections. Wire white to white and black to black. (FIG. 6)
3. Carefully tuck wiring inside wiring compartment and reattach knockout plate. (FIG. 7)
4. Attach grille. Squeeze grille springs and insert them into slots in motor plate. Push grille against ceiling or wall. Grille may be papered or painted. (FIG. 8)

USe AND CARE

gRille

Clean grille with mild soap or detergent and dry with a soft cloth. DO NOT USE ABRASIVE CLOTH, STEEL WOOL PADS, OR SCOURING POWDERS.

FilTeR

Charcoal filter is long-lasting. Each filter will last 60 to 90 days when operated continuously, or longer depending on frequency of use. Order replacement charcoal filter from list below.

FAN ASSeMBIY

To clean: Remove grille and filter. Gently vacuum impeller, motor and interior of housing. METAL AND ELECTRICAL PARTS SHOULD NEVER BE IM-MERSED IN WATER.

BRoAN-NUToNe oNe YeAR liMiTed WARRANTY

Broan-NuTone warrants to the original consumer purchaser of its products that such products will be free from defects in materials or workmanship for a period of one year from the date of original purchase. THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

During this one-year period, Broan-NuTone will, at its option, repair or replace, without charge, any product or part which is found to be defective under normal use and service.

THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS AND TUBES. This warranty does not cover (a) normal maintenance and service or (b) any products or parts which have been subject to misuse, negligence, accident, improper maintenance or repair (other than by Broan-Nutone), faulty installation or installation contrary to recommended installation instructions.

The duration of any implied warranty is limited to the one-year period as specified for the express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.

BROAN-NUTONE'S OBLIGATION TO REPAIR OR REPLACE, AT BROAN-NUTONE'S OPTION, SHALL BE THE PURCHASER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. BROAN-NUTONE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE OR PERFORMANCE. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. This warranty supersedes all prior warranties.

To qualify for warranty service, you must (a) notify Broan-NuTone at the address or telephone number below, (b) give the model number and part identification and (c) describe the nature of any defect in the product or part. At the time of requesting warranty service, you must present evidence of the original purchase date.

Broan-NuTone LLC Hartford, Wisconsin www.broan.com 800-558-1711

Fig. 5

Fig. 6

Fig. 7

Fig. 8

Diagram of a fan assembly with a top panel and bottom panel, showing internal components (no text or labels)

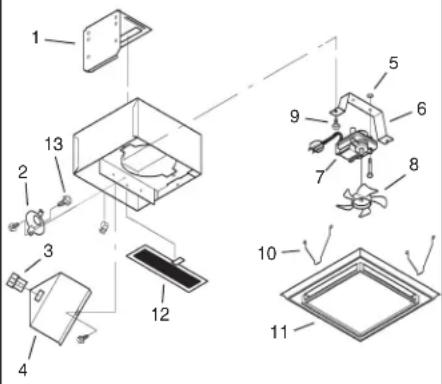

SeRviCe PARTS

Model 682, 682MX

PieZAS de SeRviCio

Modelo 682, 682MX
