VC3622 - Vacuum Cleaner Khind - Free user manual and instructions

Product Type	Canister Vacuum Cleaner
Brand	Khind
Model	VC3622
Power Consumption	1200 W
Dust Capacity	2 L
Filtration System	HEPA filter
Bagless	Yes
Cord Length	5 m
Operating Radius	8 m
Weight	4.5 kg
Dimensions (L x W x H)	30 x 25 x 35 cm
Noise Level	78 dB
Voltage	220-240 V, 50/60 Hz
Suction Power	300 AW
Accessories Included	Crevice tool, brush tool, floor nozzle
Filter Type	Washable HEPA
Dust Indicator	Yes
Overheat Protection	Yes
Warranty	1 year

Frequently Asked Questions - VC3622 Khind

How do I clean the HEPA filter?

Turn off and unplug the vacuum. Remove the dust canister, then take out the HEPA filter. Tap it gently to remove loose dust, or rinse with cold water if washable. Let it dry completely for 24 hours before reinstalling.

Why is my vacuum not picking up dirt properly?

Check if the dust canister is full or the filter is clogged. Also inspect the brush roll for tangled hair or debris. Ensure all hose connections are secure and not blocked.

How often should I replace the HEPA filter?

Replace the HEPA filter every 6 to 12 months, or earlier if you notice reduced suction or a musty odor. Regular cleaning can extend its life.

Can I use the vacuum on hardwood floors?

Yes, the VC3622 is safe for hardwood floors. Use the floor nozzle without the brush to avoid scratches, or use the included brush tool for gentler cleaning.

The vacuum suddenly stopped working. What should I do?

Check if the thermal overload protection has tripped. Unplug the vacuum and let it cool down for 30 minutes. Also inspect the cord, plug, and circuit breaker. If it still doesn't work, contact Khind support.

How do I empty the dust canister?

Press the release button on the dust canister and remove it from the main body. Hold it over a trash bin and press the bottom release to empty. Then close the bottom and reattach.

Is the vacuum noisy?

The VC3622 operates at a noise level of about 78 dB, which is typical for a canister vacuum. Ear protection is not necessary but recommended for prolonged use.

What accessories come with the VC3622?

The vacuum includes a crevice tool for tight spaces, a brush tool for upholstery, and a combination floor nozzle for carpets and hard floors.

How often should I replace the brush roll?

Replace the brush roll every 6 to 12 months, depending on usage. Signs of wear include reduced agitation, noise, or visible damage. Replacement parts are available.

Where can I find spare parts for the VC3622?

Spare parts such as filters, brush rolls, and nozzles are available from Khind authorized service centers or online retailers. Check the manual for part numbers.

USER MANUAL VC3622 Khind

- Wet & Dry Vacuum Cleaner / 干湿两用吸尘机 /

KHIND®

Enjoy hassle-free customer service

1 Scan E-Warranty QR code or go to http://www.khind.com.my/e-warranty.html
2 Fill-up your details, product information & proof of purchase
HOTLINE [phone]

khind.com.my

Please read this manual carefully before operating this product. Keep this manual handy for further reference.

This manual is also available online.

P/N 40-51556-00

Safety Precaution Information

Safety & Warning Information

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children shall not play with the appliance.

2. Read the instruction manual carefully and follow the instruction closely.

3. Make sure the household voltage is the same as that indicated on the rating label of the unit.

4. Always switch off, unplug from the socket after use or before cleaning the appliance or any maintenance task.

5. Do not unplug by pulling and jerking the cord with force.

6. Do not handle the plug or the appliance with wet hands.

7. Use only the attached parts which are supplied by the manufacturer.

8. This appliance is intended for household use only. Do not use the appliance at any outdoor area. Commercial use will void warranty.

9. Do not leave the appliance unattended while it is connected to the main power outlet.

10. Do not reverse the vacuum cleaner which may cause damage to the motor.

11. The hose cannot be overly bent and forced to elongate, otherwise the hose will be deformed or damaged.

12. Do not allow the lid part to penetrate into the water or rinse with water to prevent water from entering the electronic parts. Leakage, proper operation: gently wipe the surface with a rag.

13. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid any hazard.

14. Do not step on or wrap the cord around arms or legs when using the appliance.

15. Do not pull, lift or carry the appliance by its supply cord. In order to avoid damages to the cord, do not pull the cord around sharp corners and edges.

16. Keep appliance away from the ovens and stoves etc.

17. Do not position the appliance above you when cleaning the stairs.

18. Do not use the appliance in a damp room.

19. Do not inhale hot dust ashes or sharp objects.

20. Do not point at anyone when blowing.

21. Do not inhale flammable, toxic liquids, such as gasoline, oil, acids or other volatile substances, to avoid dangerous hazards. Do not immerse the appliance into the water or other liquids.

22. Always check whether the float is normal.

23. Kept the appliance dry to protect against electric shock.

24. Do not use the air outlet directly against people or animals when using this product.

25. Liquid or steam must not be directed towards equipment containing electrical components, such as ovens.

Safety Precaution Information

Cleaning & Maintenance

1. After cleaning the Dust Container, filters and related accessories, check if it leaks. After each use, clean the filter and make sure you use the correct filter for dry and wet vacuum.

2. Check the plug if damaged.

3. Clean the Suction Port to make sure there is no blockage.

4. Handle the vacuum cleaner with care and do not drop or hit any solid object.

5. Keep the vacuum cleaner dry.

6. Clean the filter with cold water if needed, and if necessary, you may also use neutral detergent cleaning, do not use corrosive objects to clean it. Do not put the entire filter into the water.

7. Do not let the vacuum work for a long time, each working time is best within 1 hour, otherwise will reduce the vacuum lifespan.

8. Dust and debris on the filter will weaken the suction. Clean the filter more frequent to maintain best performance.

9. If there is any abnormal vibration or noise or smell, you must stop the operation immediately, and proceed with maintenance.

Filter Cleaning

1. Periodically check the filter to maintain performance.
2. If the suction performs on very tiny dust, the filter may need more frequent cleaning.
3. Wash the filters with cold or warm water without the use of detergent. (Fig 1 & 2)
4. Keep the cleaned parts in a wide area to dry. Advise to dry it for at least 24 hours. Do not put the filter in a dishwasher, washing machine, roller dryer, oven, microwave oven or open flame. (Fig 3)

Parts Identification

1. On ^ = ^ / Off ^ ◎ ^ Switch
2. Top Cover
3. Suction Port
4. Dust Container
5. Dust Container Release Buckles
6. Handle
7. Hose
8. Crevice Nozzle
9. Flat Nozzle
10. Cartridge Filter for Dry Vacuuming
11. Sponge Filter for Wet Vacuuming

8

9

10

●

* Pictures are for illustration purpose only.

Specifications

Model	VC3622
Voltage 220-240V ~ 50/60Hz
Power	600W
Dust Container Capacity 6L
Filtration Type Cartridge Filter
Power Cord Length 5m
Noise Level 82dB
Vacuum Pressure 15kPa
Net Weight 2.7kg
Product Dimension (LxWxH) 290 x 220 x 270mm

* Specifications are subject to change without prior notice.

How to Use

A] Product Installation

CAUTION: Make sure that the power cord plug and socket are de-energized when assembling the vacuum cleaner.

1. Make sure the power cord is disconnected from the socket.
2. Flip up the Dust Container Release Buckles on both sides of the Dust Container lid with both hands at the same time, lift the Top Cover upwards to separate it from the Dust Container.
3. Raise the Top Cover from Dust Container.
4. Take out all accessories from the packing box and Dust Container.
5. Put the hose on the Dust Container that already has the filter assembly, and press it down until the Dust Container Release Buckles on both sides are locked.
6. Align the hose port with the suction port, and then rotate it to the right and insert it.
7. Connect the nozzle you need with the handle of the hose.

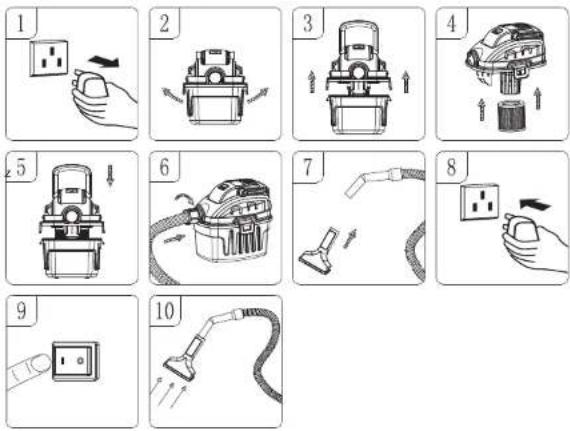

B] Operation of Dry Cleaning

1. Make sure the power cord is disconnected from the power supply socket.
2. Flip up the Dust Container Release Buckles on both sides of the Dust Container lid with both hands at the same time, lift the Top Cover upwards to separate it from the Dust Container.
3. Raise the Top Cover from the Dust Container.
4. Install Cartridge Filter, press Cartridge Filter tightly on the bottom cap basket.
5. Put the Top Cover on the Dust Container that already has the filter installed, and press it down until the Dust Container Release Buckles on both sides are locked.
6. Align the Hose port with the Suction Port, and then rotate it to the right and insert it.
7. Connect the nozzle you need with the handle of the Hose.
8. Connect the power cord to power supply socket.
9. Press the "On" switch and the vacuum is ready for operation. (Fig 9 & 10)

WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION, ENTITLED 'SAFETY PRECAUTION INFORMATION'. DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO; LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASE PAINTS, GASOLINE, ALCOHOL OR AEROSOL SPRAYS. EXPLOSIVE DUSTS INCLUDE BUT ARE NOT LIMITED TO; COAL, MAGNESIUM, GRAIN OR GUN POWDER. TO REDUCE THE RISK OF HEALTH HAZARDS FROM VAPORS OR DUST, DO NOT VACUUM TOXIC MATERIALS.

How to Use How to Use

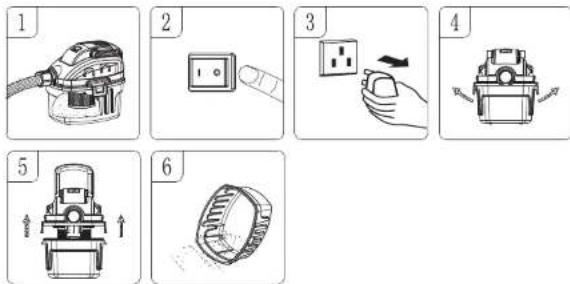

C] Dust Removal

1. The dust inside the Dust Container is full.
2. Turn off the switch.
3. Unplug the power cord from power supply socket.
4. Flip up the Dust Container Release Buckles on both sides of the Dust Container lid with both hands at the same time, lift the Top Cover upwards to separate it from the Dust Container.
5. Raise the Top Cover from the Dust Container.
6. Pour out the garbage in the Dust Container.

How to Use

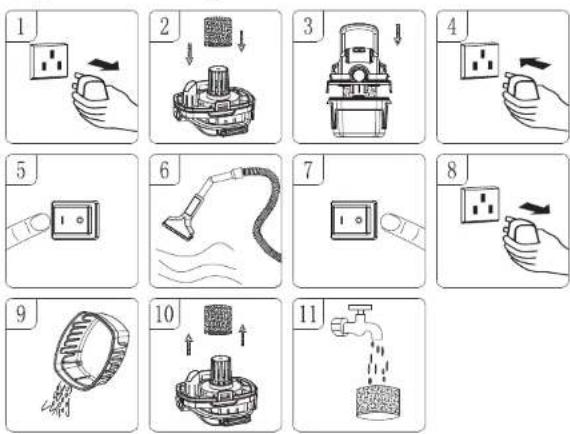

D] Operation of Water Cleaning

1. Make sure the power cord is disconnected from the power supply socket.
2. Cover the whole bottom cap basket with Sponge Filter.
3. Place the Top Cover with Sponge Filter on the Dust Container and press down until the Dust Container Release Buckles on both sides are locked.
4. Insert the power cord to power supply socket.
5. Press the "On" switch to operate the vacuum cleaner.
6. When the water level reaches the maximum capacity, the safety valve will automatically start, then the suction stops.
7. Turn off the power.
8. Disconnect the power cord from the power supply socket.
9. Pour out the water in Dust Container.
10. To ensure the best results of water absorption, please remove the sponge filter and hand-wring dry.
11. Wash the Sponge Filter with normal water, hand-wring dry after washing, then it can be used again.

WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION, ENTITLED 'SAFETY PRECAUTION INFORMATION'. DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO; LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASE PAINTS, GASOLINE, ALCOHOL OR AEROSOL SPRAYS. EXPLOSIVE DUSTS INCLUDE BUT ARE NOT LIMITED TO; COAL, MAGNESIUM, GRAIN OR GUN POWDER. TO REDUCE THE RISK OF HEALTH HAZARDS FROM VAPORS OR DUST, DO NOT VACUUM TOXIC MATERIALS.

How to Use

E] Operation of Blower

WARNING: ALWAYS WEAR SAFETY GOGGLES BEFORE USING BLOWER.

WARNING : KEEP BY STANDERS CLEAR FROM BLOWING DEBRIS.

WARNING: WEAR A DUST MASK IF BLOWING CREATES DUST THAT MIGHT BE INHALED.

1. Make sure that the power cord is disconnected from the power supply socket.
2. Unscrew the Inserted Hose from the suction port by rotating anti-clockwise.
3. Insert the Hose into the air outlet at the back of the Top Cover and tighten it by rotating clockwise.
4. Insert the power cord to power supply socket.
5. Press the "On" switch to operate the vacuum cleaner.
6. Hold the Hose and direct the outlet port at the leaves and so on.

Troubleshooting

Symptom		Corrective ActionPossible Causes
Vacuum cleaner does not operate.	No power supply.	Request professional to check on power supply and socket.
	Faulty power cord. Unplug and check	the power cord. If damaged, have it repaired by a professional.
	Dust Container full. Empty container.
Dust comes out from motor cover.	No filter is installed, the filter is not installed in place or the filter is damaged.	Re-install and check whether the filter is installed in place. Replace the new filter if any damage is found.
Efficiency reduced and motor vibrates abnormally.	There is a blockage in the nozzle or hose, or the Dust Container inlet. Or cartridge filter blocked by fine dust.	Check nozzle, hose and Dust Container inlets for blockage. Take off the filter and clean it. Or install new cartridge filter.
