KCHPS2339N - Range hood Kunft - Free user manual and instructions

Product Type	Range Hood
Brand	Kunft
Model	KCHPS2339N
Installation Type	Wall-mounted
Width	90 cm
Depth	50 cm
Height	60-110 cm adjustable
Weight	15 kg
Power Supply	220-240 V / 50 Hz
Motor Power	200 W
Airflow (Max)	680 m³/h
Number of Speeds	3
Noise Level (Max)	65 dB(A)
Lighting	2 x 1.5 W LED
Filter Type	Aluminum grease filter
Filter Cleaning	Dishwasher safe
Control Type	Electronic touch buttons
Ducting Type	Recirculation or ducted (optional carbon filter)
Duct Diameter	150 mm
Energy Class	A
Replacement Parts	Grease filters, carbon filters, LED bulbs available
Repairability Index	7.5 / 10
Warranty	2 years

Frequently Asked Questions - KCHPS2339N Kunft

How do I install the Kunft KCHPS2339N range hood?

The range hood should be installed by a qualified professional. Ensure the mounting surface is sturdy, and follow the instructions for ducting or recirculation mode. The height above the hob should be between 65-75 cm for gas hobs and 60-70 cm for electric hobs.

How often should I clean the grease filter?

Clean the aluminum grease filter every 2-3 months, or more frequently if you cook heavily. The filter is dishwasher safe. Allow it to dry completely before reinserting.

Can I use the hood in recirculation mode?

Yes, you can use the hood in recirculation mode by installing a carbon filter (sold separately). This mode filters and returns air back into the kitchen.

How do I replace the LED lights?

Turn off power to the hood. Open the glass panel or remove the bulb cover. Pull out the old LED module and insert a compatible replacement. Ensure the power is off before touching any electrical components.

What is the maximum airflow of the KCHPS2339N?

The maximum airflow is 680 m³/h. This is suitable for medium to large kitchens. The hood has three speed settings to adjust airflow as needed.

Why is my range hood noisy?

Noise may be due to a dirty filter, loose duct connections, or an obstruction in the duct. Clean the filter, check ductwork, and ensure the hood is securely mounted. Normal noise level at max speed is 65 dB(A).

How do I reset the filter saturation indicator?

After cleaning or replacing the filters, press and hold the speed button for 3 seconds until the indicator light turns off. Refer to the manual for exact steps.

What are the dimensions of the KCHPS2339N?

The hood is 90 cm wide, 50 cm deep, and adjustable in height from 60 to 110 cm. It weighs approximately 15 kg.

Can I use the hood without a duct?

Yes, you can use it in recirculation mode. You will need to install a carbon filter (not included). This mode is ideal for kitchens without external ducting.

What spare parts are available for this model?

Available spare parts include grease filters, carbon filters, and LED bulbs. Contact Kunft customer service or authorized dealers for purchases.

USER MANUAL KCHPS2339N Kunft

Exterior view of a modern stainless steel kitchen range hood (no signage or text visible)

Simple line drawing of a kitchen chimney (no text or symbols)

chimney cooker hood

kunft.®

chimney cooker hood

KCHPS2339N

EN

Dear client,

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. SAFETY INSTRUCTIONS .... 4

1.1. Power Supply 5
1.2. Power Cord and Other Cables 6
1.3. Humidity and Water 6
1.4. Cleaning 6
1.5. General Precautions ...... 6

1. OPERATING INSTRUCTIONS 8

2.1. Product Description.... 8
2.2. Using the Product .....11
2.3. Maintenance 12
2.4. Troubleshooting 13

1. POST-SALE SERVICE 15

2. ENVIRONMENTAL PROTECTION ..... 15

2

3

kunft®

1. SAFETY INSTRUCTIONS

	WARNING
	Risk of Electric ShockDo Not Open
Warning: to avoid the risk of electric shock, do not remove the cover.The interior does not contain any parts that can be repaired by the user.Ask for assistance from the Customer Support Service.

Important Warnings

Before using your appliance read these instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance may not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope,

chimney cooker hood

KCHPS2339N

EN

any incorrect use, as well as any manual modifications to the product will not be covered and automatically voids the warranty.

Assistance

In case of malfunction, take your appliance to the Customer Support Service for assistance.

This appliance can be used by children from the age of 8 and by people with reduced physical, sensorial or mental capabilities and/or lack of experience and knowledge if they have been given instructions on using the appliance safely and if they understand the hazards involved. Children may not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case, please consult the Customer Support Service.

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Customer Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product, use a dry soft cloth only.

1.5. General Precautions

- Please follow the instructions in the user manual which help to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.

• Read all instructions before using the product.
• Maintenance and service operations are only to be carried out by authorized professionals.
• Any damage caused by manual modifications to the product is not covered by the warranty.
• If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.

2. OPERATING INSTRUCTIONS

• In order to get the most out of your cooker hood, please read the user manual before installing and using, and keep it in a safe place.
• The cooker hood and its mesh filter should be cleaned regularly in order to keep it in good working order.
• Your cooker hood is for domestic use only; it is not suitable for barbecue, roast shop or other commercial use.
• Any installation work must be carried out by a qualified electrician or competent person.
• Do not use fire for drying your cooker hood.
• If there is any fault with your cooker hood, please call the Customer Support Service.
• Please keep the room ventilated when your cooker hood and gas hob are working.
• Before installation and use, read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on your cooker hood are exactly the same as the voltage (V) and the frequency (Hz) in your home.
• Do not check the filters with the hood working.
• Do not touch the lamps after a prolonged use of the appliance.
• No flambé food must be cooked underneath the hood.
• The use of an unprotected flame is dangerous for the filters and could cause a fire.
• Watch the fried food constantly in order to avoid the cooking oil to flare up.
• Before performing any maintenance operation, disconnect the hood from the mains.

2.1. Product Description

• Equipped with a high power, low noise electric motor and centrifugal leaf, it produces a strong, low noise suction, and anon-stick grease filter, which is easy to clean.
• The lights are safer due to the isolated low voltage circuit board control, with 12 vCA input.

• A special wind tunnel construction and oil collector design has been used, instantly absorbing dirt.

• Before installation, please ensure the area is clean to avoid suction of the remaining bits of broken wood and dust.

• The air ventilation tube should not be shared with other appliances such as gas tube, warmer tube and hot wind tube.

• The inclination of the ventilation tube should be ≥120^ , parallel or above the start point and should be connected to the external wall.

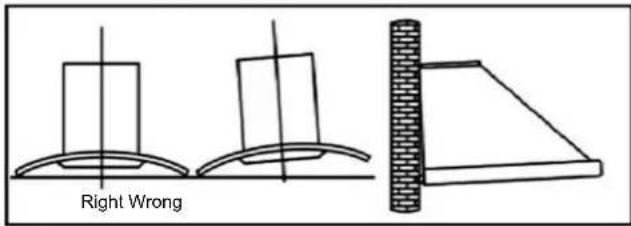

• After the installation, make sure that the extractor is leveled to avoid grease from collecting on one end.

2.1.1. Model without Glass

1) The cooker hood should be placed at a distance of 65-75 cm (26-30 inch) from the cooking surface for the best effect (See Pic 1).
2) Install the hook on a suitable place once the installation height is fixed and keep it levelled. The fixed position of the inside chimney bracket is the place for the chimney (See Pic 2).
3) Fix the outside chimney bracket on the outside chimney and be sure that the height of the inside chimney can be adjusted freely, as well as to adjust the extensible pipe. Afterwards, install the extensible pipe and chimney on the cooker hood (See Pic 3).
4) Put the cooker hood on the hook (See Pic 4).
5) Adjust the height of the inside chimney to the position of the inside chimney bracket and fix it with a screw. After adjusting the position, fix the body with a safety screw (See Pic 5).

Note: The two safety vents are positioned on the back casing, with 6 mm in diameter.

Pic 1

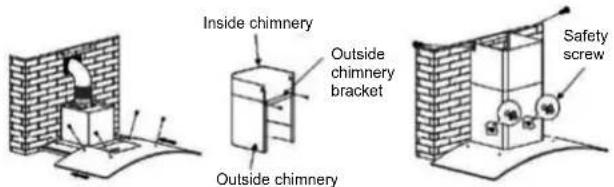

Inside chimney bracket

Extensible tube

Pic 2

Inside chimney

Outside chimney

Outside chimney bracket

Pic 3

kunft®

Illustration of a brick chimney and its hooded coat, no text or symbols present

Pic 4

Pic 5

2.1.2. Model with Glass

1) The cooker hood should be placed at a distance of 65-75 cm (26-30 inch) from the cooking surface for the best effect (See Pic 1).
2) Install the hook on a suitable place once the installation height is fixed and levelled. The fixed position of the inside chimney bracket is the place for the chimney (See Pic 2).
3) Fix the extensible pipe according to the lead direction and then put the cooker hood on the hook (See Pic 3).
4) Put the glass according to the lead direction on the cooker hood and then use the screws to fix the glass. Also, lead the extensible pipe outside the room. Meanwhile, adjust the height of the inside chimney to the position of the inside chimney bracket and fix it with a screw. Ensure that the inside chimney can be flexed freely (See Pic 4).
5) Put the two chimneys together onto the cooker hood body. Meanwhile, adjust the height of the inside chimney into the suitable height and fix the inside chimney to the inside chimney bracket with a screw. Finally, fix the body with the safety screw (See Pic 5).

Note: The two safety vents are positioned on the back casing, with a diameter of 6 mm.
Pic 1

Inside chimney bracket

Hook
Pic 2

Extensible tube

Pic 3

chimney cooker hood

KCHPS2339N

EN

Pic 4 Pic 5

2.2. Using the Product

2.2.1. Speed Adjustment (See Pic 6A):

1. Turn on the power; the buzzer will buzz five times. The sound shows that the appliance is powered.
2. Press the low button and the indicating light 1 will turn on; the buzzer will buzz once and the motor will run at low speed. Press it again and the motor will stop.
3. Press the middle button and the indicating light 2 will turn on; the buzzer will buzz once and the motor will run at mid speed. Press it again and the motor will stop.
4. Press the high button and the indicating light 3 will turn on; the buzzer will buzz once and the motor will run at high speed. Press it again and the motor will stop.
5. Press the light button and the indicating light 4 will turn on, as well as the two lighting lamps. Press it again and the lamps will turn off. With every Press, the buzzer will buzz once.

1. Press the stop button and the motor will stop.
2. Press the low button, the motor will run at low speed.
3. Press the mid button, the motor will run at mid speed.
4. Press the high button, the motor will run at high speed.
5. Press the light button and the two lights will turn on. Press it again and the lights will turn off.

0

O

©

©

#

2.3. Maintenance

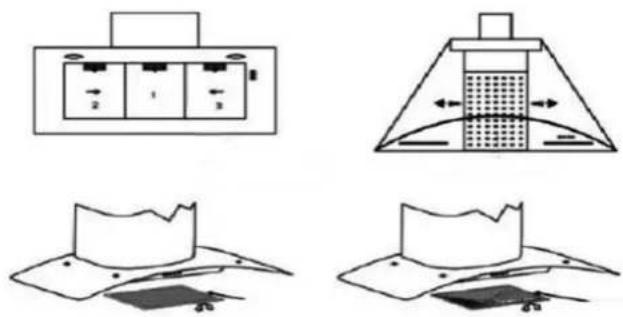

Cleaning of the carbon grease mesh filter:

The mesh filter is made of high-density stainless steel. Please do not use corrosive detergent to clean it. Keeping this filter clean will keep the appliance running correctly. Please follow the guidelines below strictly.

Method 1: Put the mesh into 40-50 cl of clean water, pour on detergent and soak for 2-3 minutes. Wear gloves and clean with a soft brush.

Please do not apply too much pressure, as the mesh is delicate and can be easily damaged.

Method 2: If indicated, it can be put in the dishwasher, set the temperature at around 60 degrees.

Cleaning the cooker hood:

A. To protect the main body from corrosion over a long period of time, the cooker hood should be cleaned with hot water and a non-corrosive detergent every two months.
B. Please do not use abrasive detergents for they will damage the body.
C. Keep the motor and other spare parts free from water, as this will cause damage to the appliance.
D. Before cleaning the appliance, please remember to cut off the power.
E. The carbon filter should not be exposed to heat.
F. Please don't tear open the fixed bar around the carbon filter.
G. If the plug or the cord is damaged, please replace it with a special soft cord.

2.4. Troubleshooting

Problem Cause Solution
Light is on, but the motor does not work	The leaf is blocked Remove the blocking
	The capacitor is damaged Replace the capacitor
	The motor is jammed and appears damaged	Replace the motor
	The internal motor is off or there is a bad smell coming from the motor	Replace the motor
The light does not work, the motor does not work	Beside what is listed above, check the following
	The light is damaged Replace the lights
	The power cord is loose Connect the wires as per the electric diagram
Oil leakage The one-way valve and the air ventilation entrance are not sealed tightly		Take down the one-way valve and seal it with glue
The body of the appliance shakes	The leaf is damaged and causes shaking	Replace the leaf
	The motor is not fixed tightly	Lock the motor tightly
	The body is not fixed tightly	Fix the body of the appliance tightly
Insufficient suction	The distance between the body and the gas top is too long	Readjust the distance
	Too much ventilation from open doors or windows	Choose a new place and reassemble the appliance
The machine inclines	The fixing screw is not tight enough	Tighten the hanging screw and make it level
	The hanging screw is not tight enough	Tighten the hanging screw and make it level

campana extractora

ES

KCHPS2339N

Changing the lights:

Warning: The LED light should be replaced by a competent person! If the LED light is damaged, contact the Customer Support Service for assistance.

1. Find out the junction box, unscrew the screws on the junction box cover, then take down the junction box cover (If there is wire pressing plate which pressed the light wire, the wire pressing plate needs to be dismantled first). See pic 1. The junction box has version a and b, depending on different models.
2. Find out the terminal of the light connecting wire and pull it out. See pic 2.
3. Way 1. Use a tool or the hand to press the spring splinter of both sides of LED light to the inside, until the light is pressed out, see pic 3. Then slightly pull the light connecting wire out, see pic 4. Way 2. Use straight screwdriver to prize up the LED light bottom edge, see pic 5, then slightly pull out the light connecting wire, see pic 4.
4. Apply the reverse procedure to install the light back.
5. ILCOS D code for this lamp is: DBS-2/65-H-120/33
6. LED modules -rectangle lamp
7. Max wattage: 1×2 W
   – Voltage range: AC 110-240V
8. Dimensions:

(a)

(1)

Pic 2

Pic 3

Pic 4

Line drawing of a kitchen air conditioner unit with a chimney and base panel (no text or symbols)

3. POST-SALE SERVICE

KUNFT has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Customer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: Any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

4. ENVIRONMENTAL PROTECTION

In order to protect the environment, we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic. The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

Estimado cliente:

(a)

(1)

Pic 2

Pic 3

Pic 4

Technical line drawing of a kitchen chimney with mounting base and support structure (no text or symbols)

26 27

campana extractora

KCHPS2339N

ES

Technical line drawing of a double-bay air duct system with no visible text or symbols

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

Simple line drawing of a kitchen range hood (no text or symbols)

chimney cooker hood

is perfectly enough

KCHPS2339N

Imported, produced and distributed by:
