Product Type	Range Hood
Brand	Kunft
Model	KCHS4582 IX
Color	Stainless Steel
Width	60 cm
Depth	50 cm
Height (Approx.)	15-20 cm (without chimney)
Weight	11 kg
Power Supply	220-240 V, 50 Hz
Extraction Rate (Max)	700 m³/h
Noise Level (Max)	65 dB
Number of Speeds	3
Lighting	LED (2 x 1.5 W)
Filter Type	Aluminum Grease Filter
Filter Cleaning	Dishwasher Safe
Control Type	Slider Switch
Ducting	150 mm diameter (optional recirculation)
Energy Class	A
Annual Energy Consumption	45 kWh/year
Safety Features	Overheat Protection, Auto Shut-off
Installation Type	Under Cabinet / Wall Mount
Spare Parts	Filters, LED bulbs, switch

Frequently Asked Questions - KCHS4582 IX Kunft

How do I install the Kunft KCHS4582 IX range hood?

Installation should be carried out by a qualified professional. Ensure the hood is mounted at least 65 cm above electric hobs and 75 cm above gas hobs. Use the provided template for drilling holes and secure with screws. Connect the ducting to an external outlet or use the recirculation kit.

How often should I clean the filters?

The aluminum grease filters should be cleaned every 3-4 weeks under normal use. They are dishwasher safe; wash them in a dishwasher at low temperature or hand wash with mild detergent. Ensure they are completely dry before reinstalling.

Can I use the hood in recirculation mode?

Yes, the KCHS4582 IX can be used in recirculation mode with an optional charcoal filter (not included). This mode is ideal if external ducting is not possible.

How do I replace the LED bulbs?

Ensure the hood is disconnected from power. Remove the lamp cover by gently prying it off. Pull out the defective LED bulb and insert a new one of the same type (G4, 1.5W). Reattach the cover.

Why is my range hood making excessive noise?

Excessive noise may be due to loose ducting, a blocked filter, or a faulty fan motor. Check that all connections are tight, clean the filters, and if the noise persists, contact a technician.

What is the recommended extraction speed for different cooking?

Use speed 1 for simmering or low-heat cooking, speed 2 for normal frying or boiling, and speed 3 for high-heat cooking or when strong odors are present. The hood has 3 speeds.

How do I reset the filter alarm?

The filter alarm indicator (if available) lights up after a set operating time. To reset, press and hold the speed button for 5 seconds until the light turns off. Refer to manual for exact procedure.

Can I install the hood without ducting?

Yes, for recirculation mode you must install charcoal filters and use a recirculation kit (sold separately). The hood will then filter and recirculate air back into the room.

What are the dimensions of the Kunft KCHS4582 IX?

The hood measures approximately 60 cm in width, 50 cm in depth, and the main body height is about 15-20 cm without the chimney. The telescopic chimney can be adjusted up to standard ceiling heights.

Is there a warranty for this range hood?

Kunft typically offers a 2-year warranty for manufacturing defects. Keep your purchase receipt and register the product online if possible. For claims, contact the retailer or Kunft support.

USER MANUAL KCHS4582 IX Kunft

Exterior view of a kitchen air conditioner unit (no visible text or symbols)

visor cooker hood

is perfectly enough

KCHS4852 IX

KCHS4852 WH

Dear client,

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. SAFETY INSTRUCTIONS....4

1.1. Power Supply ....5
1.2. Power Cord and Other Cables......6
1.3. Humidity and Water 6
1.4. Cleaning....6
1.5. General Precautions....6

1. OPERATING INSTRUCTIONS....10

2.1. Product Description.... 10
2.2. Using the Product ...... 13
2.3. Maintenance 15

1. POST-SALE SERVICE....17

2. ENVIRONMENTAL PROTECTION ..... 17

kunft®

1. SAFETY INSTRUCTIONS

	WARNING
	Risk of Electric Shock Do Not Open
Warning: to avoid the risk of electric shock, do not remove the cover. The interior does not contain any parts that can be repaired by the user. Ask for assistance by qualified personnel.

Important Warnings

Before using your appliance read this instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance may not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any ma-

visor cooker hood

KCHS4852 IX KCHS4852 WH

EN

nual modifications to the product will not be covered and automatically voids the warranty.

Assistance

In case of malfunction, take your appliance to a qualified technician for assistance.

This appliance can be used by children from the age of 8 and by people with reduced physical, sensorial or mental capabilities and/or lack of experience and knowledge if they have been given instructions on using the appliance safely and if they understand the hazards involved. Children may not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case please consult the Customer Support Service.

kunft.®

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Technical Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product use a dry soft cloth only.

1.5. General Precautions

- Please follow the instructions in the user manual which help to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.

visor cooker hood

KCHS4852 IX KCHS4852 WH

EN

• Read all instructions before using the product.
• Maintenance and service operations are only to be carried out by authorized professionals.
• Any damage caused by manual modifications to the product is not covered by the warranty.
• If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.
• Carefully read the following important information regarding installation safety and maintenance.
• Keep this information booklet accessible for further consultations.
• The appliance has been designed for use in the ducting version (external exhaust) or in the filtering version (internal air circulation) cooker hood.
• Take care when the cooker hood is operating simultaneously with an open fireplace or burner that depends on the environment and are supplied by other than electrical energy, as the cooker hood removes the air from the environment which a burner or fireplace need for combustion.
• Provide adequate ventilation in the environment for a safe operation of the cooker hood.

kunft®

• Regulations concerning the discharge of air must be fulfilled.
• Your cooker hood is for domestic use only; it is not suitable for barbecue, roast shop or other commercial use.
• Any installation work must be carried out by a qualified electrician or competent person.
• Do not use fire for drying your cooker hood.
• If there is any fault with your cooker hood, please call the service department appointed by the agent for servicing.
• Please keep the room well ventilated when your cooker hood and gas hob are working.
• In order to get the most out of your cooker hood, please read the instruction manual before installing and using, and keep it in a safe place.
• Ensure that you obtain our warranty for your cooker hood, please provide the warranty card and purchase receipt, or the warranty will not be offered.
• CAUTION: Accessible parts may become hot when used with cooking appliances.
• Observe the warning in the instruction sheet concerning the operation of the appliance when air is discharged from the room.
• Do not check the filters with the hood working.

visor cooker hood

KCHS4852 IX KCHS4852 WH

EN

• Do not touch the lamps after a prolonged use of the appliance.
• Do not flambé food under the range hood.
• The use of an unprotected flame is dangerous for the filters and could cause a fire.
• Watch the fried food constantly in order to avoid the cooking oil to flare up.
• Before performing any maintenance operation, disconnect the hood from the mains.

kunft.®

2. OPERATING INSTRUCTIONS

2.1. Product Description

• The room should be well-ventilated when the cooker hood is used at the same time as appliances burning gas or other fuels.
• There is risk of fire if the cleaning is not carried out in accordance with the instructions.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• When the range hood is located above a gas appliance, the minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the rang hood that distance must be at least 65 cm.
• If the supply cord or the LED bulb are damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Regarding the cleaning and maintenance of the appliance, please refer to the section and .

2.1.1 Installation Instructions

Method A:

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminium, flexible pipe or non-flammable material with an interior diameter of 120mm).

1. Before installation, turn the unit off and unplug it from the outlet.

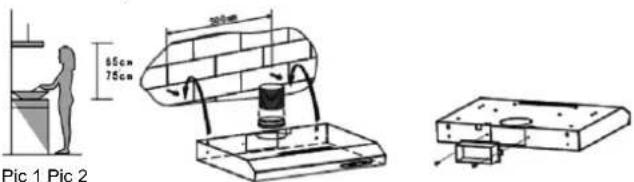

2. The cooker hoods should be placed at a distance of 65-75cm from the cooking surface for best effect. See Pic 1.

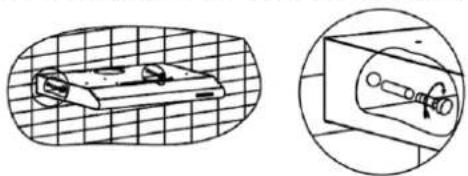

1. To install onto the wall, drill 2 holes of ∅ 8mm on a suitable place according with the centre distance of hole in the back of the cooker hood. See Pic 2

visor cooker hood

KCHS4852 IX KCHS4852 WH

EN

1. Insert the wall plugs into the holes.
2. Insert the ST4*30mm screws into the wall plugs and tight.
3. Put up the cooker hood onto the fixed screws.
4. Then use the attached accessories enclosed to turn the safety screws into the two holes of inside the hood, and then fix the screws to tighten the hood onto the wall. See picture below.

Technical line drawing of a mechanical component with grid background and magnified inset (no text or symbols)

1. Put the expansion pipe on the outlet, then lead it to outdoor, or use the outlet cover to seal the outer outlet and open the inner exhaust valve.

Note: the expansion pipe is not supplied.

Method B:

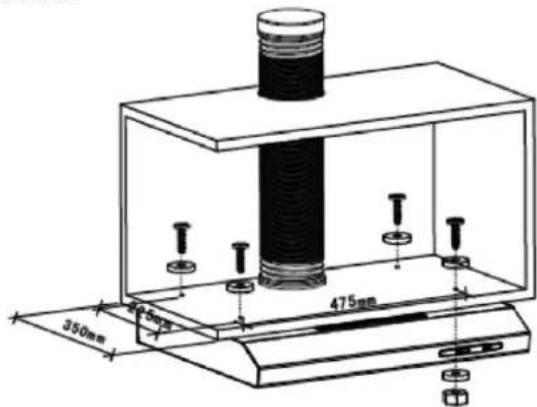

1. Drill 4 holes of ∅ 6mm at the bottom of the hanging cupboard. See pic below.

1. Install the cooker hood on the bottom of the cupboard, tighten the cooker hood with enclosed M4 screws + flat washer.
2. Put the expansion pipe on the outlet, then lead it to outdoor. Note: the expansion is not supplied.

Note: There are 2 methods for ventilation, including 'horizontal ventilation' and 'vertical ventilation'. Please pay attention to the ventilation method when installation.

kunft®

Horizontal ventilation: See Pic A, please use the tool to knock out the outlet cover on the top, then the air can be vented from top.

Vertical ventilation: See Pic B, please use the tool to knock out the outlet cover on the back, then the air can be vented from back.

A

B

2.1.2 Air ventilation setting

Outdoor air ventilation: Turn the adjuster to outdoor position (pic A), install the outlet, turn on the cooker hood, then the air will be vented from the outside outlet.

Indoor air ventilation: Turn the adjuster to indoor position (pic B), install the outlet cover, turn on the cooker hood, then the air can be vented from the inside outlet.

A

C

B

WARNING: Failure to install the screws or fixing the device in accordance with these instructions may result in electrical hazards.

visor cooker hood

KCHS4852 IX

KCHS4852 WH

EN

2.2. Using the Product

2.2.1. Operation

How to use the control panel (See Pic 8):

a. Press the button "Stop", the motor will stop.
b. Press the button "Low", the motor will run at low speed.
c. Press the button "Mid", the motor will run at medium speed.
d. Press the button "High", the motor will run at high speed.
e. Press the button "Light", both lights will switch on. Press the button again; the lights will switch off.

Pic 8

2.2.2. LED Light

Changing the light

Warning: The LED light should be replaced by a competent on! If the LED light is damaged, contact the Customer Support service for assistance.

1. Remove the grease filter.
2. Loosen the 2pcs ST4*8mm self-tapping screw from the lamp plate, take out the lampplate.
3. Disassembly the 3pcs ST3*12mm screws on the terminal box cover and take down the wire cover.
4. Pull out the terminal from the PCB terminal block, disconnect the wire connector and replace the light.
   • ILCOS D code for this lamp is: DBS-2/65-H-120/33
5. Max wattage: 1×2 W
   – Voltage range: AC 110-240V
6. Dimensions:

kunft®

2.2.3. Troubleshooting

Fault Possible Cause Solution
Light on, but motor does not work	Fan switch turned off.	Select a fan switch position.
	Fan switch failed. Contact service center.
	Motor failed. Contact service center.
Light does not work, motor does not work	House fuses blown. Reset / Replace fuses.
	Power cord loose or disconnected.	Refit cord to power outlet.Switch power outlet on.
Oil leakage One way valve and the outlet are not tightly sealed		Take down the one way valve and seal with sealant.
Lights not working Broken / Faulty globes.		Replace globes as per this instruction.
Insufficient suction The distance between the cooker hood and the gas top is too far.		Refit the cooker hood to the correct distance.
The Cooker hood inclines	The fixing screw not tight enough.	Tighten the hanging screw and make it horizontal.

visor cooker hood

KCHS4852 IX KCHS4852 WH

EN

2.3. Maintenance

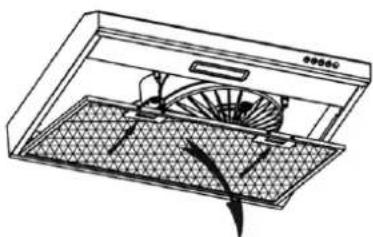

Changing and cleaning the filter:

Remove the filters as shown in the instructions of Picture 10;

- You can clean the filter through the following method:

1. Soak them for about 3 minute in hot water (40-50 degrees) with a grease loosening detergent, and brush it gently with a soft brush. Please, do not apply too much pressure to avoid damaging it.

2. It can be put in the dishwasher with detergent, set the temperature at around 60 degrees.

3. Please do not use abrasive detergents for they will damage the hood;

4. Make sure that the hood is switched off before cleaning it;
5. Clean the filters after approximately 30 hours of use, or at least once a month.

Diagram of a ventilation duct system with fan and vent, showing airflow direction (no text or labels)

INSTALLING GREASE MESH FILTERS

• To install filters for the following four steps.

• Angle the filter into slots at the back of the hood.
• Push the button on handle of the filter.
• Release the handle once the filter fits into a resting position.
• Repeat to install all filters.

kunft®

Table-Information for range hoods

Model identification KCHS4852 IX / WH
SY-6010B-P1-L21-600 SymbolValueUnit
Annual Energy Consumption AEC	hood	42.1	kWh/a
Time increase factor	f	1.7
Fluid Dynamic Efficiency	FDE_hood	8.6
Energy Efficiency Index	EEI_hood	80.3
Maximum air flow - highest setting / at 0 pa		225.2 m	^3/h
Maximum air flow - highest setting at working point in normal use	Q_max	216.5 m	^3/h
Minimum air flow - lowest setting at working point in normal use	Q_min	140.5 m	^3/h
Measured air flow rate at best efficiency point	Q_BEP	132.1 m	^3/h
Measured air pressure at best efficiency point	P_BEP	154	Pa
Measured electric power input at best efficiency point	W_BEP	65.5	W
Nominal power of the lighting system	WL	2	W
Average illumination of the lighting system on the cooking surface	E_middle	50	Lux
Measured power consumption in standby mode	P_s	-	W
Measured power consumption off mode	P_o	0	W
Sound power level	L_WA	70	dB

visor cooker hood

KCHS4852 IX KCHS4852 WH

EN

3. POST-SALE SERVICE

KUNFT has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Costumer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: Any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

4. ENVIRONMENTAL PROTECTION

In order to protect the environment we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic. The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

Estimado cliente:

KCHS4852 IX KCHS4852 WH

ES

KCHS4852 IX KCHS4852 WH

ES

KCHS4852 IX KCHS4852 WH

ES

KCHS4852 IX KCHS4852 WH

ES

KCHS4852 IX KCHS4852 WH

ES

Technical illustration of a mechanical component with cross-sectional view and labeled parts (B and D), no readable text or symbols present.

campana extractora

KCHS4852 IX KCHS4852 WH

ES

2.2.3. Troubleshooting

Diagram of a ceiling fan with airflow direction indicated by arrows (no text or symbols)

KCHS4852 IX KCHS4852 WH

ES

KCHS4852 IX KCHS4852 WH

PT

3. SERVICIO POSVENTA

KCHS4852 IX KCHS4852 WH

PT

ÍNDICE

1. INSTRUÇÕES DE SEGURANÇA ...... 37

KCHS4852 IX KCHS4852 WH

PT

KCHS4852 IX KCHS4852 WH

PT

KCHS4852 IX KCHS4852 WH

PT

KCHS4852 IX KCHS4852 WH

PT

Technical diagram showing two mechanical assembly views labeled A and C, with no visible text or symbols.

Technical illustration of a mechanical component with labeled parts B and D, showing internal features and mounting holes (no text or symbols present)

exaustor

KCHS4852 IX KCHS4852 WH

PT

2.2.3. Troubleshooting

Technical line drawing of a fan or vent system inside a device (no text or symbols)

KCHS4852 IX KCHS4852 WH

PT

Imported, produced and distributed by:
