USER MANUAL POEMIA SAECO
Register your product and get support at
www.philips.com/welcome
Type HD 8323 / HD 8325 / HD8327
ISTRUZIONI PER L'uso OPERATING INSTRUCTIONS BEDIENUNGSANLEITUNG MODE D'EMPLOI INSTRUCCIONES DE USO INSTRUÇões DE USO
GEBRUIKSAANWIJZING
BRUKSANVISNING
BRUKSANVISING
KAYTTOOHJEET
BRUGSANVISNING
O△HΓΕΣ XPHΣHΣ
LEGGERE ATTENTAMENTE QUESTE ISTRUZIONI D'USO PRIMA DI UTILIZZARE LA MACCHINA.
READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THE MACHINE.
The coffee machine is suitable for preparing 1 or 2 cups of espresso coffee and is provided with a swivel steam and hot water wand. The controls on the front side of the machine are labelled with easy-to-read symbols.
The machine has been designed for domestic use and is not suitable for professional, continuous use.
Warning. No liability is held for damage caused by:
Incorrect use not in accordance with the intended purposes;
- Repairs not carried out in authorised service centres;
Tampering with the power cord;
Tampering with any part of the machine;
Use of non-genuine spare parts and accessories;
- Failure to descale the machine and storage at temperatures below 0^ .
In these cases, the warranty is not valid.
1.1 To Simplify Manual Reading
The warning triangle indicates the instructions that are important for user's safety. Please carefully
follow these instructions to avoid serious injury!
References to illustrations, parts of the appliance or controls, etc. are indicated by numbers or letters. Whenever possible, refer to the illustration.
This symbol is used to highlight information that is particularly important to ensure optimal
use of the machine.
The illustrations corresponding to the text can be found on the first pages of the manual. Please refer to these pages while reading the operating instructions.
1.2 How to use these Operating Instructions
Keep these operating instructions in a safe place and make them available to anyone who may use the coffee machine.
For further information or in case of problems, please refer to an authorised service centre.
2 TECHNICAL SPECIFICATIONS
The manufacturer reserves the right to make changes to the technical specifications of the product.
Nominal Voltage - Power Rating - Power Supply See label on the appliance
Housing Material
Plastic
Size(wxhxd) (mm)
210 × 300 × 280
Weight
3.9 kg
Control Panel
Front side
Filter Holder
Pressurized type
Pannarello
Special for cappuccinos
Water Tank
1.25 litres - Removable type
Pump Pressure
15 bar
Safety Devices
Thermal fuse
3 SAFETY REGULATIONS
Never allow water to come into contact with any of the electrical parts of the machine: Danger of short circuit! Overheated steam and hot water may cause scalding! Do not direct the steam or hot water jet towards body parts. Handle the steam/hot water spout with care: Danger of scalding!
Intended Use
The coffee machine is intended for domestic use only. Do not make any technical changes or use the machine for unauthorised purposes since this would create serious hazards! The appliance is not to be used by persons (including children) with reduced physical, mental or sensory abilities or with scarce experience and/or expertise, unless they are supervised by a person responsible for their safety, or they are instructed by this person on how to properly use the machine.
Power Supply
Only connect the coffee machine to a suitable socket. The voltage must correspond to that indicated on the machine's label.
Power Cord
Never use the coffee machine if the power cord is defective or damaged. If damaged, the power cord must be replaced by the manufacturer or an authorised service centre. Do not pass the power cord around corners, over sharp edges or over hot objects and keep it away from oil.
Do not use the power cord to carry or pull the coffee machine.
Do not pull out the plug by the power cord or touch it with wet hands.
Do not let the power cord hang freely from tables or shelves.
For the Safety of Others
Prevent children from playing with the machine.
Children are not aware of the risks related to electric household appliances. Do not leave the machine packaging materials within the reach of children.
Danger of Burns
Never direct jets of overheated steam and/or hot water towards yourself or others. Always use the handles or knobs provided.
Do not disconnect (remove) the pressurized filter holder during coffee brewing. Hot water drips may spill out of the brew unit during the warming phase.
Do not brew coffee when the machine is overheated, namely when both " 品 " and " 品 " lights are on.
Machine Location
Place the coffee machine in a safe place, where there will be no danger of overturning or injury.
Hot water or overheated steam may spill out of the machine:
Danger of scalding!
Do not keep the machine at a temperature below 0^ . Frost may damage the machine.
Do not use the coffee machine outdoors.
In order to prevent its housing from melting or being damaged, do not place the machine on very hot surfaces and close to open flames.
Cleaning
Before cleaning the machine, turn it off by pressing the ON/OFF button, then pull out the plug from the socket. Wait for the machine to cool down.
Never immerse the machine in water!
It is strictly forbidden to tamper with the internal parts of the machine.
Water left in the tank for several days should not be used for food purposes. Wash the tank and fill it with fresh drinking water.
Suitable Location for Operation and Maintenance
To ensure a correct and efficient performance of the coffee machine, we recommend following the instructions below:
- Choose a level surface.
- Choose a location that is sufficiently well-lit, clean and near an easily reachable socket.
- Allow for a minimum distance from the sides of the machine as shown in (Fig.A).
Storing the Machine
If the machine is to remain inactive for a long time, turn it off and unplug it. Store it in a dry place, out of the reach of children. Keep it protected from dust and dirt.
Repairs / Maintenance
In case of failure, problems or a suspected fault resulting from the falling of the machine, immediately remove the plug from the socket. Never attempt to operate a faulty machine. Servicing and repairs may only be carried out by Authorised Service Centres. All liability for damages resulting from work not carried out by professionals is declined.
Fire Safety Precautions
In case of fire, use carbon dioxide (CO_2) extinguishers. Do not use water or dry powder extinguishers.

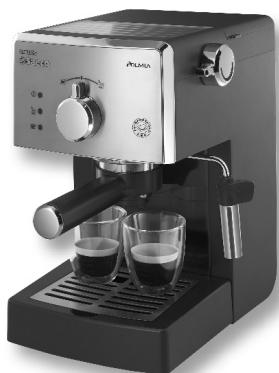

Key to Machine Components (Page 2)
1 Control panel
2 Water tank lid
3 Hot water/steam knob
4 Seat for accessories
5 Water tank
6 Cup holder rest
7 Water recovery tray ^+ grill
8 Brew unit
9 Steam wand (Pannarello)
10 Power cord
11 ON/OFF button
12 Pressurized filter holder
13 Ground coffee measuring scoop
14 Ground coffee filter
(single piece for 1 or 2 coffee(s))
15 Pod filter adapter
16 Coffee pod filter
17 Selection knob
18 "Machine on" light
19 "Steam ready" light
20 Coffee/Water light - "Machine ready"
4 INSTALLATION
For your own and other people safety, follow the "Safety Regulations" indicated in Section 3 carefully.
4.1 Packaging
The original packaging has been designed to protect the machine during shipping. We recommend keeping the packaging material for possible future transport.
4.2 Installation Instructions
Before installing the machine, read the following safety instructions carefully:
- Place the machine in a safe place;
Make sure children cannot play with the machine; - Do not place the machine on hot surfaces or near open flames.
The coffee machine is now ready to be connected to the electrical network.
i Note: It is recommended to wash the components before using them for the first time and/or after they have not been used for a certain period of time.
4.3 Machine Connection
Electric power may be very dangerous! It is therefore necessary to strictly follow the safety regulations. Do not use faulty power cords! Faulty cords and plugs must be replaced immediately in Authorised Service Centres.
The voltage of the appliance has been pre-set by the manufacturer. Check that the voltage matches the indication on the data plate placed at the bottom of the appliance.
- Check that the ON/OFF button (11) is set on "0" before connecting the machine to the electrical network.
- Insert the plug into a wall socket with suitable power voltage.
4.4 Water Tank
- (Fig.1A) - Remove the lid from the water tank (2) by lifting it.
- (Fig.1B) - Remove the water tank (5).
- (Fig.2) - Rinse and fill it with fresh drinking water taking care not to overfill.
Fill the tank only with fresh, non-sparkling, drinking water. Hot water or any other liquid may damage the tank. Do not operate the machine if water is not present: Make sure there is enough water in the tank.
- (Fig.3A) - Insert the water tank making sure that it has been properly repositioned in its former seat and then reposition the lid (2).
After filling the water tank, place it back into the machine. Make sure that the tank is correctly inserted into the machine by pushing it firmly until its limit stop in order to avoid water leaks from the bottom - THE REFERENCE MARK INDICATED IN FIG. 3B SHOULD BE FULLY VISIBLE.
4.5 Circuit Priming
At the beginning, after dispensing steam or when the water tank is empty, the machine's water circuit must be primed.
- Press the ON/OFF button (11) and switch it to the "l" position. The light (18) will turn on to indicate that the machine is on.
- (Fig.4) - Place a container under the steam wand (Pannarello).
- Open the "hot water/steam" knob (3) by turning it counterclockwise.
- (Fig.5) - Set the selection knob (17) to the " " position.
- Wait until a steady jet of water flows out of the steam wand (Pannarello).
- (Fig.5) - Set the selection knob (17) to the " " position.
- Close the "hot water/steam" knob (3) by turning it clockwise. Remove the container.
4.6 Using the Machine for the First Time or after a Period of Inactivity
This simple operation ensures optimum brewing and must be performed:
- At first start-up;
- When the machine remains inactive for a long time (more than 2 weeks).
Dispensed water must be emptied into an adequate drain. It is not suitable for food use. If the container fills up during the cycle, stop dispensing water and empty the container before resuming the operation.
-
(Fig.2) - Rinse the tank and fill it again with fresh drinking water.
-
(Fig.4) - Place a container under the steam wand (Pannarello). Open the knob (3) by turning it counterclockwise.
(Fig.5)- Set the selection knob (17) to the " " position. - Dispense the whole water tank content from the steam/ hot water wand (Pannarello). To end the operation, set the selection knob (17) to the " position and close the knob (3) by turning it clockwise.
(Fig.2) - Fill the tank with fresh drinking water. - (Fig.13-14) - Insert the filter holder into the brew unit (8) from the bottom and turn it from left to right until it locks into place.
- (Fig.15) - Place a suitable container under the filter holder.
- (Fig.16) - Turn the selection knob (17) to the "position and dispense all the water in the tank.
(Fig.17) - Once the tank is empty, stop dispensing and switch the selection knob (17) to the "0" position.
- Fill the tank again and wait until the "machine ready" light (20) turns on.
- (Fig.19) - Remove the filter holder from the unit by turning it from right to left and rinse it with fresh drinking water.
The machine is now ready; please see related sections for operating details on how to brew coffee and dispense steam.
5 COFFEE BREWING
Warning! During the coffee brewing it is forbidden to remove the pressurized filter holder by manually turning it clockwise. Danger of burns.
- During this operation, the "machine ready" light (20) may flash; this is to be considered as a standard and not a faulty operating mode.
- Before using the machine, make sure that the hot water/steam knob (3) is closed and that there is enough water in the tank.
- Press the ON/OFF button (11) and switch it to the "l" position.
- Wait until the "machine ready" light (20) turns on. The machine is now ready for coffee brewing.
i Accessories for coffee brewing are placed in a specially designed seat to make operations easy and immediate.
If the ground coffee measuring scoop and/or the filters are required, lift the cover (2) and take what you need (Fig.35 e Fig.36).
5.1 Using Ground Coffee
- (Fig.7) - Insert the filter (14) in the pressurized filter holder (12); the filter is already inserted when using the machine for the first time.
- (Fig.13) - Insert the filter holder into the brew unit (8) from the bottom.
- (Fig.14) - Turn the filter holder from left to right until it locks into place. Release the pressurized filter holder grip. The handle will slightly turn to the left. This movement guarantees proper filter holder performance.
- (Fig.16)-Preheat the pressurized filter holder by switching the selection knob (17) to the " " position until some water spills out of it. This is to be done only for the first coffee brewing.
Fig.17-When 150 cc of water have flowed out, set the selection knob (17) to the " " position to stop brewing. - (Fig.19) - Remove the filter holder from the machine by turning it from right to left and pour out any water left. As the machine is fitted with the special filter (14), there is no need to change the filter to make one or two coffees.
- (Fig.35) - Remove the measuring scoop from the machine.
- (Fig.8) - Add 1-1.5 measuring scoop(s) for single coffee and 2 measuring scoops for double coffee. Remove any coffee residues from the rim of the filter holder.
- (Fig.13) - Insert the filter holder (12) into the brew unit (8) from the bottom.
- (Fig.14) - Turn the filter holder from left to right until it locks into place.
- (Fig.15) - Take 1 or 2 preheated cups and place them under the pressurized filter holder. Make sure that they are correctly placed under the coffee brewing nozzles.
- (Fig.14) - Switch the selection knob (17) to the "位置.
- When the desired quantity of coffee has been obtained, turn the selection knob (17) to the "0" position to stop coffee brewing. Wait a few seconds after brewing has stopped, then remove the cups of coffee (Fig.18).
- (Fig.19) - Remove the pressurized filter holder and empty out the remaining coffee residues.
Note: If a small quantity of water remains in the filter holder, this has to be considered as absolutely normal and is due to the filter holder features.
i Important Note: The filter (14) should be kept clean to guarantee perfect results. Clean daily after use.
5.2 Using Coffee Pods
- (Fig.9) - Use a coffee spoon to remove the filter for ground coffee (14) from the pressurized filter holder (12).
- (Fig.10) - Insert the coffee pod adapter (15) - with the convex part facing down - into the pressurized filter holder (12).
- (Fig.11) - Then, insert the pod filter (16) into the pressurized filter holder (12).
- (Fig.13) - Insert the pressurized filter holder into the brew unit (8) from the bottom.
- (Fig.14) - Turn the filter holder from left to right until it locks into place. Release the grip from the pressurized filter holder. The handle is automatically slightly turned leftwards.
This movement guarantees proper pressurized filter holder performance.
- (Fig.16)-Preheat the pressurized filter holder by switching the selection knob (17) to the " " position until some water spills out of it. This is to be done only for the first coffee brewing.
- (Fig.17) -When 150 cc of water have flowed out, set the selection knob (17) to the "0" position to stop brewing.
- (Fig.19) - Remove the pressurized filter holder from the machine by turning it from right to left and pour out any water left.
- (Fig.12) - Insert the pod into the filter holder and make sure the paper of the pod does not overhang the filter holder.
- (Fig.13) - Insert the pressurized filter holder into the brew unit (8) from the bottom.
- (Fig.14) - Turn the filter holder from left to right until it locks into place.
Take 1 preheated cup and place it under the filter holder. Check that it is correctly placed under the coffee brewing nozzles. - (Fig.16) - Switch the selection knob (17) to the "位置.
- (Fig.17) - When the desired quantity of coffee has been obtained, turn the selection knob (17) to the " position to stop coffee brewing, and then remove the coffee cup.
- (Fig.19) - Wait a few seconds after brewing, then remove the filter holder and dispose of the used pod.
i Important Note: The filter (16) and the adapter (15) should be kept clean to guarantee perfect results. Clean daily after use.
6 TIPS FOR CHOOSING COFFEE
As a general rule any type of coffee available on the market can be used. However, coffee is a natural product and its flavour changes according to its origin and blend; it is therefore a good idea to try different types of coffee in order to find the most suited to your personal taste.
For optimal results, we recommend using espresso machine blends. As a rule, coffee should always come out of the pressurized filter holder, without dripping.
The coffee brewing speed can be modified by slightly changing the amount of coffee in the filter and/or using a different coffee grind.
Saeco recommends using ESE single-dose coffee pods for a tasty coffee and easier cleaning and preparing.
BEFORE PERFORMING ANY OPERATIONS RELATED TO HOT WATER/STEAM DISPENSING, MAKE SURE THAT THE STEAM WAND (PANNARELLO) IS DIRECTED OVER THE WATER RECOVERY TRAY.
7 HOT WATER
Danger of scalding! Dispensing may be preceded by small jets of hot water. The wand can reach high temperatures: Do not touch it directly with bare hands.
- Press the ON/OFF button (11) and switch it to the "I" position.
- Wait until the "machine ready" light (20) turns on. The machine is now ready.
- (Fig.21) - Place a container or a tea glass under the steam wand (Pannarello).
- (Fig.21) - Open the knob (3) by turning it counterclockwise.
- (Fig.22) - Set the selection knob (17) to the "position.
- (Fig.23)- When the desired quantity of hot water has been dispensed, set the selection knob (17) to the " " position.
(Fig.24) - Close the knob (3) by turning it clockwise. - Remove the hot water container.
8 STEAM/CAPPUCCINO
Danger of scalding! Dispensing may be preceded by small jets of hot water. The wand can reach high temperatures: Do not touch it directly with bare hands.
- Press the ON/OFF button (11) and switch it to the "I" position.
- Wait until the "machine ready" (20) light turns on.
- (Fig.25)-Set the selection knob (17) to the " 念 " position. The light (20) turns off.
- Wait until the light (19) turns on. The machine is now ready for steam dispensing.
- (Fig.26) - Place a container under the steam wand.
- (Fig.26) - Open the knob (3) for a few seconds, so that remaining water flows out of the steam wand (Pannarello). In a short time only steam will come out.
(Fig.27)-Close the knob (3) and remove the container. - Fill 1/3 of the container you wish to use to prepare cappuccino with cold milk.
i Use cold milk to get a better result.
- (Fig.28) - Immerse the steam wand in the milk and open the knob (3) by turning it counter-clockwise. Turn the milk container with slow upward movements so that it warms up evenly.
A maximum dispensing of 60 seconds is recommended.
- Once finished, close the knob (3) by turning it clockwise and remove the cup with frothed milk.
- (Fig.30) - Set the selection knob (17) to the " position. If both " and " lights are on, the temperature of the machine is too high for brewing coffee.
- Prime the circuit as described in Section 4.5 to make the machine ready for use.
Note: The machine is ready when the "machine ready" light is permanently on.
i Important Note: If it is not possible to brew cappuccino as described, prime the circuit as explained in Section 4.5 and then repeat the steps.
The same procedure can be performed to heat other beverages.
After this operation, clean the steam wand with a wet cloth.
9 CLEANING
Maintenance and cleaning can only be carried out when the machine is cold and disconnected from the electrical network.
- Do not immerse the machine in water or place any of its parts in a dishwasher.
- Do not use spirit, solvents and/or aggressive chemical agents.
We recommend cleaning the water tank and refilling it with fresh water daily. - (Fig.31-33) - Every day, after heating milk, remove the external part of the Pannarello and wash it with fresh drinking water.
-
(Fig.31-32-33) - Clean the steam wand weekly. To do this, the following operations have to be performed:
-
Remove the external part of the Pannarello (for standard cleaning);
- Remove the upper part of the Pannarello from the steam wand;
- Wash the upper part of the Pannarello with fresh drinking water;
- Wash the steam wand with a wet cloth and remove any milk residues;
- Reposition the upper part in the steam wand (make sure it is completely inserted).
Reassemble the external part of the Pannarello.
(Fig.34) - Empty and clean the drip tray every day.
Use a soft, dampened cloth to clean the appliance.
(Fig.20) - Perform the following operations to clean the pressurized filter holder:
- (Fig.9) - Remove the filter and wash it thoroughly with hot water.
- Remove the adapter (if fitted) and wash it thoroughly with hot water.
-
Wash the internal part of the pressurized filter holder.
-
Do not dry the machine and/or its components using a microwave and/or standard oven.
- (Fig.35-36) - Clean the seat for accessories with a damp cloth every week to remove any coffee or dust residues.
Note: Do not wash the pressurized filter holder in the dishwasher.
10 DESCALING
Limescale builds up with the use of the appliance; the machine needs descending every 1-2 months and/or whenever a reduction in water flow is noticed. Use the Saeco descending solution only.
In case of conflict, priority must be given to what is indicated in the operation and maintenance manual over the instructions provided on separately sold accessories and materials.
i Use the Saeco descending solution (Fig.B). Its formula has been designed to ensure better machine performance and operation for its whole operating life. If correctly used, it also avoids alterations in the brewed product. Before starting a descending cycle make sure that: THE WATER FILTER (if used) HAS BEEN REMOVED.
Never drink the descending solution or any products dispensed until the cycle has been carried out to the end. Never use vinegar as a descending solution.
1 (Fig.13-14) - Insert the filter holder into the brew unit (8) from the bottom and turn it from left to right until it locks into place.
2 (Fig.1B)-Remove and empty the water tank.
3 (Fig.2) - Pour HALF the content of the Saeco concentrated descaling solution into the water tank, then fill the tank with fresh drinking water up to the MAX level.
4 Switch on the machine by pressing the ON/OFF button (11) and switch it to the "I" position.
(Fig.21) - Fill up (as described in Section 7 of the manual) 2 cups of water (about 150ml each) from the steam / hot water wand and turn off the machine by pressing and switching the ON/OFF button (11) to the "0" position.
5 Let the descending solution sit for about 15-20 minutes with the machine off.
6 Switch on the machine by pressing the ON/OFF button (11). (Fig.21) - Fill up (as described in Section 7 of the manual) two cups of water (about 150ml each) from the steam / hot water wand. Then turn the machine off by means of the ON/OFF button (11) and leave it off for 3 minutes.
7 Repeat the operations described in step 6 until the water tank is completely empty.
8 (Fig.2) - Rinse the tank and fill it completely with fresh drinking water.
9 Place a container under the filter holder.
10 Switch on the machine by pressing the ON/OFF button (11); turn the selection knob (17) to the " position and, by means of the filter holder, dispense the whole content of the tank. Set the selection knob (17) to the " position to stop dispensing.
11 (Fig.2) - Fill the tank again with fresh water.
(Fig.21) - Place a large enough container under the steam wand (Pannarello). Open the water dispensing knob (3) by turning it counter-clockwise.
(Fig.22) - Turn the selection knob (17) to the " position and dispense the whole content of the tank by means of the steam / hot water wand.
12 (Fig.23) - After dispensing water, set the selection knob (17) to the " position to stop dispensing.
(Fig.24) - Close the water dispensing knob (3) by turning it clockwise.
13 Repeat the operations from point (8) once again for a total of 4 tanks.
14 (Fig.19) - Remove the filter holder from the unit by turning it from right to left and rinse it with fresh drinking water.
The descending cycle is now complete.
(Fig.2) - Fill the tank again with fresh water. If necessary, prime the circuit as described in Section 4.5.
The descending solution must be disposed of according to the manufacturer's instructions and/or regulations in force in the country of use.
11 DISPOSAL
- The packing materials can be recycled.
- Appliance: Unplug the appliance and cut the power cord.
- Deliver the appliance and power cord to a service center or public waste disposal facility.
This product complies with eu directive 2002/96/EC.
The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
| Problem | Possible Causes | Solution |
| The machine does not turn on. | The machine is not connected to the electrical network. | Connect the machine to the electrical network. |
| The pump is very noisy. | No water in the tank. | Refill with water (Section 4.4). |
| The coffee is too cold. | The "machine ready" light (20) was off while switching the selection knob (17) to the "●" position. | Wait until the "machine ready" light (20) turns on. |
| The filter holder is not inserted for preheating (Section 5). | Preheat the filter holder. | |
| The cups are cold. | Preheat the cups with hot water. | |
| The milk does not froth. | Not suitable milk: Powdered milk or low-fat milk has been used. | Use only cold, whole milk. |
| It is not possible to prepare a cappuccino. | Dirty Pannarello. | Clean the Pannarello as described in Section 9. |
| No steam left in the boiler. | Prime the circuit (Section 4.5) and repeat the steps described in Section 8. | |
| The coffee is brewed too fast, crema does not form. | There is too little coffee in the filter holder. | Add coffee (Section 5). |
| The grind is too coarse. | Use a different blend (Section 6). | |
| Coffee is old or not suitable. | Use a different blend (Section 6). | |
| Old or not suitable pod. | Change the pod. | |
| One component missing in the filter holder. | Make sure that all components are present and properly installed. | |
| Coffee is not brewed or brewed in drips only. | No water. | Refill with water (Section 4.4). |
| The grind is too fine. | Use a different blend (Section 6). | |
| Coffee pressed in the filter holder. | Shake the ground coffee. | |
| There is too much coffee in the filter holder. | Reduce the quantity of coffee in the filter holder. | |
| Knob (3) is open. | Close knob (3). | |
| The machine has limescale build-up. | Descale the machine (Section 10). | |
| The filter in the filter holder is clogged. | Clean the filter (Section 9). | |
| Not suitable pod. | Change type of pod. | |
| Coffee flows out of the edges. | The filter holder is incorrectly inserted in the brew unit. | Insert the filter holder correctly (Section 5). |
| The upper edge of the filter holder is dirty. | Clean the rim of the filter holder. | |
| The pod is inserted incorrectly. | Insert the pod correctly. Make sure it does not come out of the filter holder. | |
| There is too much coffee in the filter holder. | Reduce the quantity of coffee using the measuring scoop. |
Please contact the customer service for any problems not covered in the above table or when the suggested solutions do not solve the problem.
1 ALLGEMEINES
Dimensions (lxhp) (mm)
210 × 300 × 280
Poids
3,9kg
Bandeau de commande
En façade
Porte-filtre
Pressurisé
Pannarello
Reparacoes/Manutenacao
Afmetingen (I x h x d) (mm)
210 × 300 × 280
Gewicht
3,9 kg
Bedieningspaneel
Op de Voorkant
Filterhouser
Onder druk
Pannarello
Storlek (b× h× d) (mm)
210 × 300 × 280
Vikt
3,9kg
Kontrollpanel
På framdel
Filterhallare
Trycksatt
Pannarello
Specialdel for cappuccino
Vattenbehällare
1,25 liter - Utagbar
Pumptryck
15 bar
H iδi δiδiδiδiδiδiδiδiδiδiδiδiδiδiδiδiδiδiδiδiδiδiδiδiδiδiδiδiδiδiδiδiδiδiδiδiδiδiδiδiδiδiδiδiδiδiδiδiδiδiδi
The manufacturer reserves the right to make changes without prior notice.
