Product Type	DLED Smart TV
Screen Size	32 inches (81.28 cm)
Resolution	HD (1366 x 768 pixels)
Smart TV Platform	Built-in apps (Netflix, YouTube, etc.)
Connectivity	HDMI 1, HDMI 2 (with ARC), USB, LAN, SPDIF, AV IN, CI, Headphone out, Antenna/Cable in, Satellite in
Wireless Connectivity	2.4 GHz Wi-Fi (IEEE 802.11b/g/n)
Tuner	DVB-T/T2/C (terrestrial) and DVB-S/S2 (satellite)
Power Supply	AC 100-240 V ~ 50/60 Hz
Power Consumption	Typical 50 W (standby <0.5 W)
Audio Output	Built-in stereo speakers, SPDIF digital output
USB Playback	Photo, music, video via USB 2.0
File Formats Supported	JPEG, BMP, PNG; MP3; H.264, MPEG4, MPEG2, MPEG1
Timeshift / PVR	Timeshift and USB recording (PVR) supported
Remote Control	Included with direct access buttons for Netflix, YouTube, etc.
Wall Mount Compatibility	VESA standard (200 x 100 mm recommended, not specified)
Base Installation	Double support base attached with screws (included)
Safety Features	Auto standby, child lock (password: 1234 default), anti-tip warnings
Energy Saving	Networked standby option, LED indicator customizable
Accessories	Remote control, batteries, base stand, screws, user manual

Frequently Asked Questions - NVR-9002-32RD2S-SM NEVIR

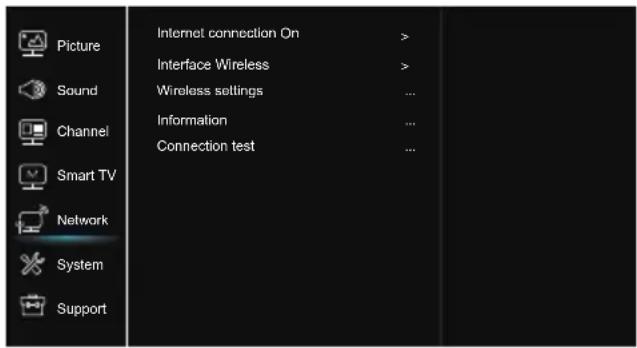

How do I connect my Nevir NVR-9002-32RD2S-SM to Wi-Fi?

Go to Network in the settings menu, set Internet connection to On, choose Wireless as interface, then select Wireless settings to scan and connect to your network.

How can I use the Timeshift feature?

Connect a USB drive (≥1GB, speed >5MB/s) to the TV. Go to Channel > Timeshift and set to On. During live TV, press the OK button to pause, fast-forward, or rewind. Press ■ to stop.

What file formats are supported for USB playback?

The TV supports JPEG, BMP, PNG for pictures, MP3 for music, and H.264, MPEG4, MPEG2, MPEG1 for video. Not all coded variants are guaranteed.

How do I perform a factory reset?

Go to System > Restore Factory Default and enter the password (default 1234). This will erase all personalized settings.

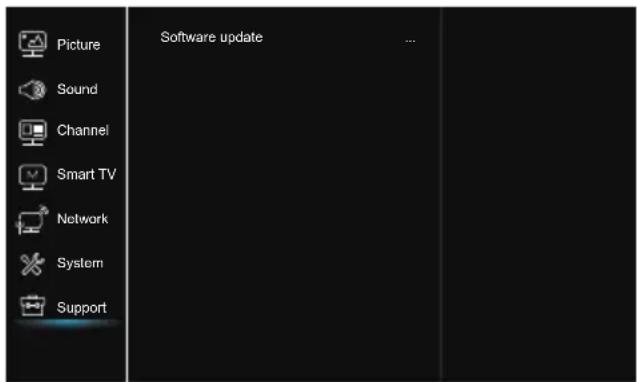

How can I update the TV software?

In Support > Software update, choose By USB (download update file to USB), By network (requires internet), or By channel (over-the-air if available).

Why is there no picture but sound is normal?

Adjust Brightness and Contrast in the Picture menu. If that fails, it may be a broadcasting failure or signal issue. Try another channel.

How do I enable subtitles on digital channels?

Go to Channel > Subtitle and set it to On. Then select your preferred Digital subtitle language and optionally a second language. You can also choose Hearing impaired subtype.

How do I set the sleep timer?

Press the SLEEP button on the remote repeatedly to cycle through timer options (e.g., 15, 30, 60, 120 minutes). Alternatively, go to System > Timer > Sleep timer.

What should I do if the remote control stops working?

First, check the batteries and replace if needed. Ensure batteries are inserted with correct polarity. If still not working, unplug the TV for a minute and try again. If the problem persists, the remote may need replacement.

How do I connect external devices like a DVD player?

Use the HDMI ports for best quality. Alternatively, use the AV IN (composite video/audio) for older devices. Press the SOURCE button on the remote to select the corresponding input.

USER MANUAL NVR-9002-32RD2S-SM NEVIR

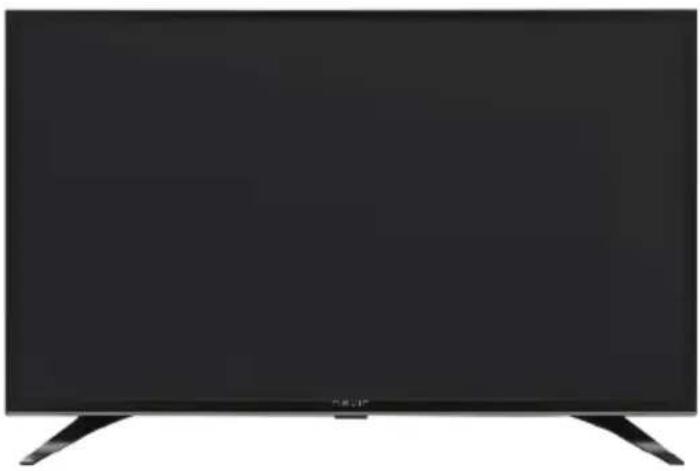

Front view of a black flat-screen television displaying a blank screen (no visible text or symbols)

MANUAL DE INSTRUÇÕES

POR FAVOR, LEIA ESTE MANUAL DE OPERAÇÃO EM SUA TOTALIDADE ANTES DE USAR ESSA UNIDADE E MANTENHA-A PARA REFERÊNCIA FUTURA

Pure electrical circuit symbol icons arranged in a square frame (no text or labels)

1. Botón AIV

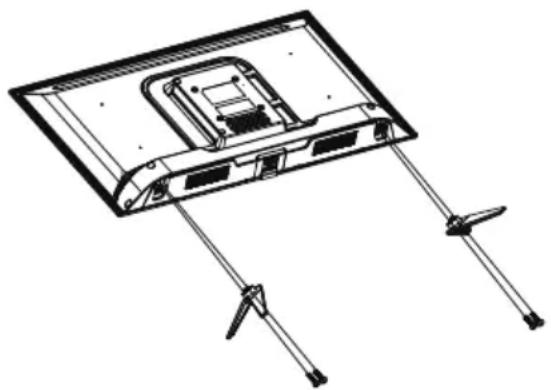

Technical line drawing of a device with two vertical supports and internal components (no text or symbols)

Front view of a black flat-screen television displaying a blank screen (no visible text or symbols)

INSTRUCTION MANUAL

PLEASE READ THIS OPERATING MANUAL COMPLETELY BEFORE OPERATING THIS UNIT AND RETAIN IT FOR FUTURE REFERENCE.

IMPORTANT SAFETY INSTRUCTIONS

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

WARNING

1. To reduce the risk of electric shock, do not remove cover (or back) as there are no user-serviceable parts inside. Refer servicing to qualified personnel.
2. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance.
3. Do not install this equipment in a confined or building-in space such as a book case or similar unit, and remain a well ventilation conditions at open site. The ventilation should not be impeded by covering the ventilation openings with items such as newspaper, table-cloths, curtains etc.
4. Please refer the information on exterior bottom enclosure for electrical and safety information before installing or operating the apparatus.
5. The mains plug/appliance couple is used as disconnect device, the disconnect device shall remain readily operable.
6. To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that objects filled with liquids, such as vases, shall not be placed on apparatus.
7. The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like.
8. Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:
9. Using cabinets or stands recommended by manufacturer of the television set.
10. Only using furniture that can safely support the television set.
11. Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and television set to a suitable support.
12. Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.

13. Educating children about the dangers of climbing on furniture to reach the television set or its controls. If your existing television set is being retained and located, the same considerations are above should be applied.

14. No naked flame sources, such as lighted candles, should be placed on the apparatus.

15. Keep a minimum distance of 5 cm around all edges of the display for sufficient ventilation.

Notes for battery disposal

The batteries used with this product contain chemicals that are harmful to the environment. To preserve our environment, dispose of used batteries according to your local laws or regulations. Do not dispose of batteries with normal household waste. For more information, please contact the local authority or your retailer where you purchased the product. All trademarks are the property of their respective owners and all rights are acknowledged.

This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.

To prevent the spread of fire, keep candles or other open flames away from this product at all times.

The European Directive on Waste Electrical and Electronic Equipment (WEEE) required that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the material they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product remind you of your obligations that when you dispose of the appliance, it must be separately collected.

Besides that, waste batteries and/or accumulator must be removed prior to delivery of WEEE, thought the separated collection channels provided for this purpose (distributors and/or facilities from Local Authorities)

Chapter 1: Introduction

Precautions....3

Product....3

Power and Plug....3

Power Cord and Signal Cable....3

Use Environment....3

Cleaning....3

Hanging the TV Set on the Wall....3

Buttons on the TV....4

Sockets....5

Remote Control Functions 6

Chapter 2: General Operation

Switching on 7

Switching off....7

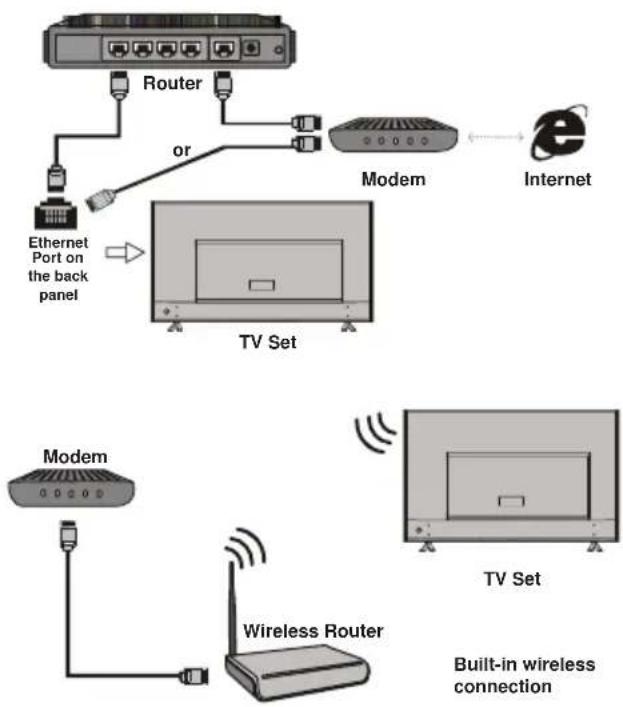

Network Connection....8

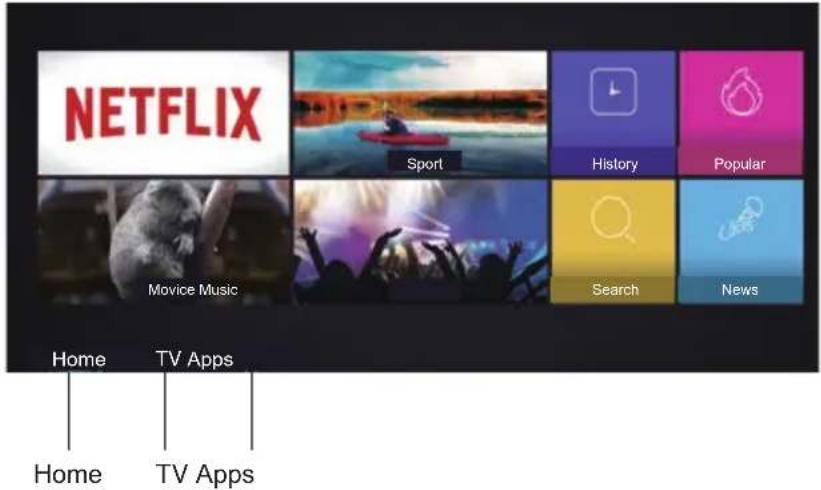

Using Homepage 9

Chapter 3: Menu Operation

Menu Function....10

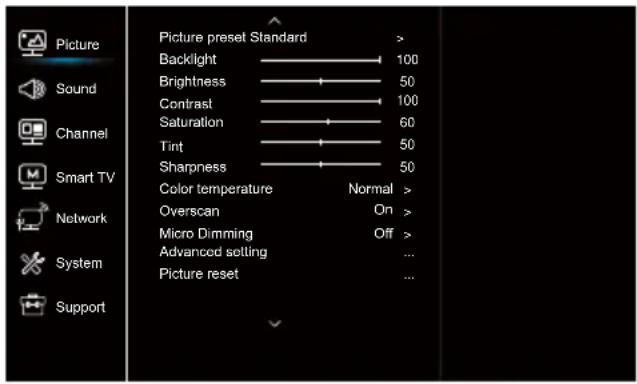

Picture....10

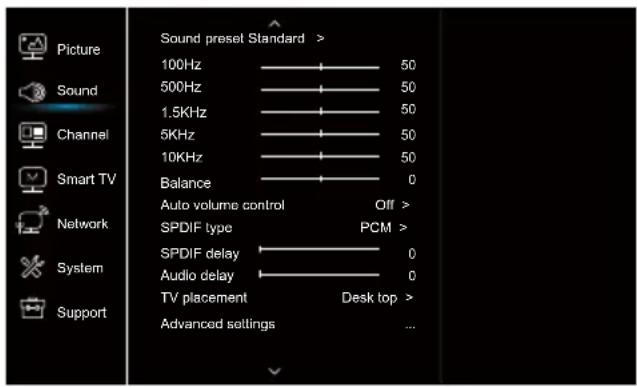

Sound....10

Channel....11

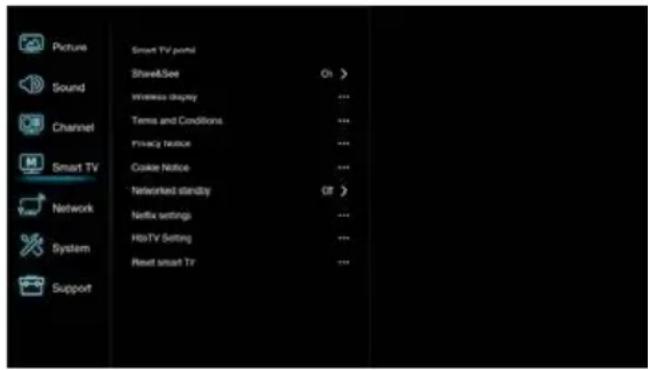

Smart TV....12

Network....12

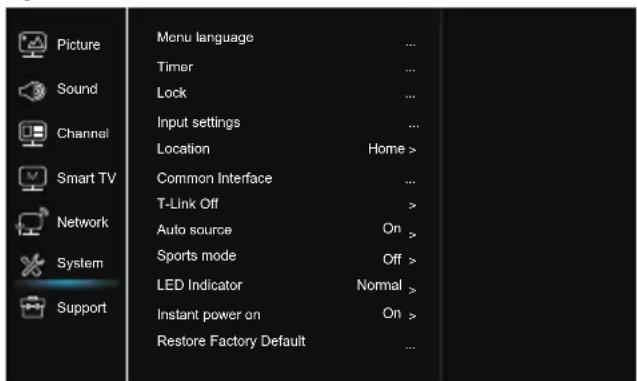

System 12

Support....13

USB Function 13

Frequently Asked Questions:....14

Chapter 4: Other Information

Troubleshooting 15

Base Installation....15

Precautions

Read all of the instructions before operating the set. Keep these instructions well for future use.

Product

• Do not block or cover the ventilation openings on the back cover.
• Do not push objects of any kind into this unit through the cabinet slots as they could touch the current carrying parts or short-circuit parts, resulting in fire, electric shock, or damage to the unit.
• Do not attempt to open the cabinet as this may cause damage. There are no parts inside you can service by yourself. Refer all servicing to qualified personnel.
• Do not touch the screen surface with fingers as this may scratch or mar the TV screen.
• Do not impact the TV screen with hard pressure as this may damage the TV screen severely.

Power and Plug

• Unplug the set under the following conditions:
• If the set will not be used for a long period of time.
• If the power cord or the power outlet/plug is damaged.
• Follow the instructions to install and adjust the product. Adjust those controls that are covered in this operating instructions as improper adjustment of other controls may result in damage. If this happens, unplug the set and refer to the service personnel.
• If the set is subject to impact or has been dropped to have the cabinet damaged.

Power Cord and Signal Cable

• Do not allow anything to rest on or roll over the power cord and the signal cable.
• Protect the power cord and the signal cable from being trampled.
• Do not overload the power cord or the power outlet.
• Do not expose the power cord and the signal cable to moisture.

Use Environment

• Do not place the set on an unstable cart, stand, or table.
• Place the set on a place that allows good ventilation.
• Do not use the set near damp, and cold areas. Protect the set from overheating.
• Keep the set away from direct sunlight.
• Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
• Do not use the set near dust place.

Cleaning

• Dust the set by wiping the screen and the cabinet with a soft, clean cloth or some special liquid cleaner.
• Do not apply excessive force to the screen when cleaning.
• Do not use water or other chemical cleaner to clean the screen as this may damage the surface of the TV screen.

Hanging the TV Set on the Wall

Warning: This operation requires two people.

To ensure a safe installation, observe the following safety notes:

• Check that the wall can support the weight of the TV set and wall mount assembly.
• Follow the mounting instructions provided with the wall mount.
• The TV set must be installed on a vertical wall.
• Make sure to use only screws suitable for the material of the wall.
• Make sure that the TV set cables are placed so that there is not danger of tripping over them.

All other safety instructions about our TV sets are also applicable here.

Important Information

If a television is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the television.
• Only using furniture that can safely support the television.
• Ensuring the television is not overhanging the edge of the supporting furniture.
• Not placing the television on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television to a suitable support.
• Not standing the television on cloth or other materials placed between the television and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the television or its controls. If your existing television set is being retained and relocated, the same considerations as above should be applied.

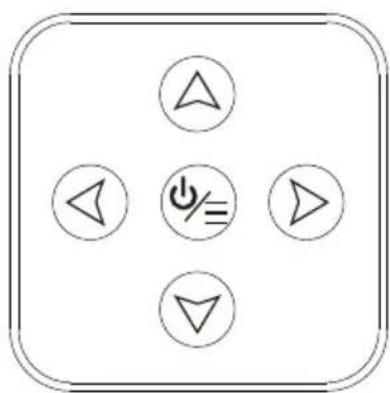

Buttons on the TV

Take a certain model for an example:

Pure electrical circuit symbol icons arranged in a grid (no text or labels)

1. Abuton

Scans up/down through the channel list. In the menu system, they act like the up/down direction buttons on the remote and adjust menu controls.

2.

Increases/decreases the volume. In the menu system, they act like the right/left direction buttons on the remote and adjust menu controls.

3. button

In standby mode, press it to turn on the TV. In power on mode, press it to show the NAV menu.

Note: The location and names of the function buttons and power button on the TV may vary according to TV model.

Sockets

Note: The location and names of the sockets on the TV may vary according to TV model, and some sockets may not available for some models.

LAN

LAN socket

Lan plug for connecting to external modem or network access equipment.

SPDIF

SPDIF socket (output)

The SPDIF socket can be used to connect a compatible digital audio receiver.

SATELLITE IN

SATELLITE IN socket (input)

This socket can be used to connect the satellite receiver pot.

ANTENNA/CABLE IN

ANTENNA/CABLE IN SOCKET (input)

Lets you connect a coaxial cable to receive the signal from your antenna, cable, or cable box.

HEADPHONE OUT

HEADPHONE OUT socket (output)

Allow you to connect headphones to listen to the sound coming from the TV. Note: Excessive sound pressure from headphones can cause hearing loss.

HDMI socket (input)

HDMI 1 HDMI 2

The HDMI (High-Definition Multimedia Interface) socket can be used to connect a PC with a compatible video card installed, certain DVD players or a high-definition compatible digital satellite decoder. This socket provides an uncompressed digital connection that carries both video and audio data by way of an integrated mini-plug cable.

• ARC (Audio Return Channel) function is only supported on certain HDMI 2 (ARC) port for some models.
• Number of HDMI ports may vary.

USB →

USB sockets (input)

These sockets can be used to connect an USB device. Note: The number of USB sockets on the TV may vary according to TV model.

COMMON INTERFACE(CI)

COMMON INTERFACE(CI) socket

This CI socket can be used to put the CI card in to accept the Scrambled Programs.

AV IN

AV IN socket (input)

The AV IN sockets can be used to connect a range of equipment, including video recorders, camcorders, decoders, satellite receivers, DVD players, or games consoles. The VIDEO IN socket provides composite video connection.

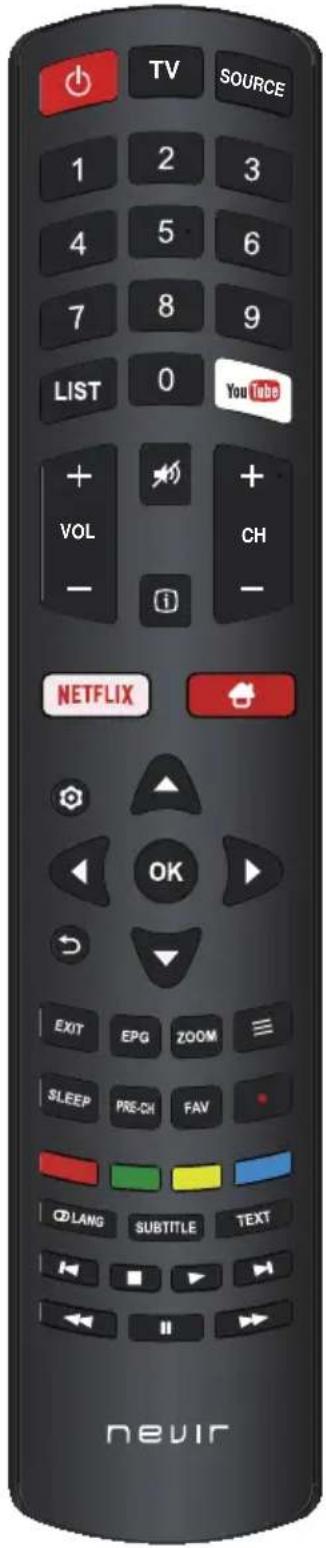

Remote Control Functions

Most of your television's functions are available on the menu that appear on the screen. The remote control supplied with your set can be used to navigate through the menus and to configure all the general settings.

Note: The location and names of the buttons on the remote control may vary according to TV model, and not all buttons available on all models.

Standby / quit standby.

TV To access TV mode.

SOURCE To select connected devices.

Alphanumeric buttons To enter channel numbers; to enter a letter, a digit or a symbol in some functions.

LIST Displays the Channel List.

YouTube Enter the YouTube application.

VOL +/- To control the volume.

To switch the sound off and back on.

① To display programme information, if available.

CH+/- To change channels.

NETFLIX Goes to NETFLIX main page.

To access the Smart TV homepage.

To display the Settings menu.

▲/▼ To navigate through the menus; to select menu options.

◀/▶ To navigate through the menus; to select menu options and change values.

OK To confirm an entry or selection.

To return to the previous menu.

EXIT To exit the menu, homepage or Teletext, etc.

EPG Enter the EPG menu.

ZOOM To select the screen mode.

≡ To display the Option menu.

SLEEP To select the sleep timer options.

PRE-CH To return to the previous channel in TV mode.

FAV To bring up your favourite channel list.

● Recording button. (Not available for some models.)

Colour To select tasks or Teletext pages; to be used for HbbTV, Program Edit and buttons EPG function.

① LANG To select a sound type available for selected analogue TV programme; to select an audio language available for selected digital TV programme.

SUBTITLE To select a subtitle language available for selected digital TV programme.

TEXT To toggle Teletext on or off, and switch Teletext.

To select the previous picture, music or video.

To stop playback.

▶ To start playback.

To select the next picture, music or video.

To start fast reverse.

II To pause playback.

▶▶ To start fast forward.

Switching on

Follow the instructions on this page on how to switch on your TV set and the remote control before going on to following pages describing how to use the channel set-up procedure.

1. Insert two batteries in the remote control.

Precautions on using batteries:

• Only use the battery types specified.
• Make sure you use the correct polarity.
• Do not mix new and used batteries.
• Do not use rechargeable batteries.

- Do not expose batteries to excessive heat such as sunshine, fire or the like, throw them in a fire, recharge them or try to open them, as this could cause them to leak or explode.

- Remove the batteries from the remote control if you are not using it for a long period of time.

1. Connect the power cable FIRST to the television, THEN to a mains socket.

(Note: If the power cable is connected to the television, please only connect the power cable to the mains socket.)

Your TV set should only be connected to an AC supply. It must not be connected to a DC supply. If the plug is detached from the cable, do not, under any circumstances, connect it to a mains socket, as there is a risk of electric shock.

1. Connect an outside aerial to the ANTENNA IN socket at the back of the TV set.
2. When powered on, the TV will be turned on directly or be in standby.

Note: For some models, switch the TV on by pressing the power button.

If the power indicator lights up, the TV set is in standby mode. Press the Ⓧ button on the remote control or on the TV set to turn on the TV.

Switching off

• To put the TV set into standby mode, press the ⏻ button on the remote control or on the TV, the TV set remains powered up, but with low energy consumption.
• To switch off the TV set, unplug the mains socket from the mains outlet.

Note: For some models, press the power button to switch off the TV set.

Network Connection

To access the Internet, you must subscribe to high speed broadband Internet service with your Internet service provider (ISP).

Your TV can be connected to your home network in two ways:

• Wired, using the RJ45 (LAN) connector on the back panel.
• Wireless, using the internal wireless and your home wireless network.

Note: Instructions below are just the usual ways to connect your TV to the wired or wireless network. The connection method may be different depending on your actual network configuration. If you have any questions about your home network, please refer to your ISP.

Connecting to a wired network

To connect to a wired network:

1. Ensure you have:

• An Ethernet cable long enough to reach your TV
• A router or modem with an available Ethernet port
• A high-speed Internet connection
• An Ethernet (LAN) port on the back of the TV

1. Connect your Ethernet cable to the router and to the Ethernet port on the back of the TV.

2. Use the Network menu to configure the TV.

Connecting to a wireless network

To connect to a wired network:

1. Ensure you have:

• A router broadcasting a high-speed wireless signal
• A high-speed Internet connection

1. Use the Network menu to configure the TV.

Initial Setup

The first time you switch the TV set on, the Initial Setup appears, which guides you through the initial setup process. Follow the on-screen instructions to finish the initial setup process such as selecting the language, scanning channels and more. During each step, either make a choice or skip the step. If you skip a step, you can perform the setup later from the settings menu.

Using Homepage

Note: This manual is for common use. Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. And for some models, certain options are not available.

You can select all the features from homepage.

1. Press 📋 display homepage.
2. Press ▲/▼/◄/► to select icons from the screen list.
3. Press OK to enter each option.
4. To exit the menu, press ↗

WARNING:

• Configure the network settings before using Smart TV.
• Slow responses and/or interruptions may occur, depending on your network conditions.
• If you experience a problem using an application, please contact the content provider.
• According to circumstances of the contents provider, an application's updates or the application itself may be discontinued.
• Depending on your country's regulations, some applications may have limited service or not be supported.

Homepage-Home

Home: Select the Movie, Music Search functions and so on.

Homepage-TV

Smart: Displays the TV menu.

Homepage-Apps

Many useful and entertaining apps for using. After entering the Apps Store, you will see the recommendations. Press ▲/▼/◄/► to select, press OK to enter.

Browser

Press enter the homepage, and find the APPS. Press to chose the Browser and press OK to enter Brower application. This function will allows you to browse the web pages you like.

Notes:

If current page is not fully opened then please allow progress to complete the loading. Some pages & websites may not be compatible with due to unsupportedplug-in. We recommend a good high speed internet connection for better accessing of websites, watchingVideos & more. - Some web pages & websites may not be compatible with browser.

For Ex. Login to popular web sites, credit card payments, etc

Menu Function

This section explores the system settings menu of your TV. Each menu is outlined and detailed to help you get the most from your TV. Please note that some function might be unavailable in certain input source. To access the menu system:

1. Press ☑ on remote control to display the main menu.
2. Press ▲/▼ to select Picture, Sound, Channel, Smart TV, Network, System or Support, then press OK or ▶ to enter the submenu.
3. In the submenu, press ▲/▼ to select options, press OK or ▶ to set functions or change values, press OK to open the corresponding submenu or activate a setting.
4. To return the previous menu, press ➤To close the menu, press EXIT.


1. Press 📍 to display the main menu.
2. Press ▲/▼ to select Picture, then press OK or ▶ to enter the submenu.

Picture preset

Adjusts the picture setting that best suits your viewing environment.

Backlight

Adjusts the backlight levels of the picture.

Brightness

Adjusts the brightness of the picture.

Contrast

Adjusts the difference between the light and dark areas of the picture.

Saturation

Adjusts the richness of color.

Tint

Adjusts the balance between the red and green levels.

Sharpness

Adjusts the crispness of the edges in the picture.

Color Temperature

Adjusts the color temperature of the picture.

Overscan

Selects On or Off to turn on/off this option.

Micro Dimming

Selects On or Off to turn on/off micro dimming.

Advanced Settings

Selects more picture advanced settings.

Picture reset

Restores the current picture settings to default.

Hotel mode

Find the Picture preset, chose Contrast, input by remote 6405, then enter the Hotel mode menu.

Sound

1. Press to display the main menu.
2. Press ▲/▼ to select Sound, then press OK or ▶ to enter the submenu.

Sound preset

Selects a preset audio option optimized for different sounding conditions.

Note: When Sound preset is set to different mode, five Sound options (100 Hz, 500 Hz, 1.5 KHz, 5 KHz, and 10 KHz) will be adjusted, which enable you to adjust the frequency levels desired. You can also set the options to your desired levels.

Balance

Adjusts the amount of audio sent to the left and right speakers.

Auto volume control

Selects On to reduce the annoying blasts in volume during commercial breaks and also amplifies softer sounds in program material. Eliminates the need to constantly adjust the volume.

SPDIF type

This option is used to control the type of audio stream sent to the Digital Audio Output (SPDIF) socket.

SPDIF delay

This option is used to synchronize the sound with the picture. If the sound is slower/quicker than the action of the picture, you can press ◀/▶ to adjust the numerical value.

Audio delay

if the sound output does not match the picture, press ◀/▶ to adjust the delay time to synchronize the sound with the picture.

TV placement

Selects Desk top or Wall mount mode.

Advanced Settings

Selects more sound advanced settings.

Channel

	Picture	Channel scan	...
		Channel list
	Sound	EPG
	Channel	Channel organizer	...
		Channel diagnostics
	Smart TV	Timeshift On
		Subtitle
	Network	Teletext	...
	System	PVR
	Support

1. Press to display the main menu.

2. Press ▲/▼ to select Channel, then press OK or ▶ to enter the submenu.

Note: This function is only available in TV mode.

Channel scan

Allows you to scan for all available analog and digital channels.

Channel List

Shows all the searched channel in a list.

EPG

Press OK/▶ to enter the Program Guide menu.

Channel organiser

This option allows you to organise channels.

Channel diagnostics (on digital TV channels)

Press OK/▶ to display some signal information on current digital channel, such as signal strength, Frequency, etc.

Timeshift

Note: This Option is only available when Timeshift is set to On: In TV mode, press Ⓧ, select Settings> Channel> Time Shift, press OK to enter and use ▲/▼ to set Timeshift to On or Off.

Allows you to pause, fast forward and rewind live TV, so you don't have to miss any part of your favourite programs.

Before you use the function, connect a USB drive to the TV first. For the first time, you should complete the disk setup for the USB drive.

Press 📍 on the remote control and select Timeshift, then press OK to turn On. Follow on-screen instructions to do the disk setup if you use timeshift for the first time. After the disk setup is done, timeshift will start, and the timeshift menu displays on the screen. For later use, press and select Timeshift. Press OK to display the time shiftmenu and operate according to the on-screen prompt. Press OK to display the virtual keyboard.

Highlight ■ and press OK to stop the timeshift and exit. When the timeshift menu disappears and only the timing of the time shift remains on the screen, you can press OK to call out the timeshift menu.

Notes:

Before you plug the USB drive to TV, make sure you have backed up the data on the drive to avoid unforeseen malfunction and data loss. We recommend that you use a USB drive with at least 1GB free space and a disk speed faster than 5.0MB/sec. The bigger the USB drive free space for timeshift, the bigger the recording length.

Subtitle

press OK/▶ to enter, press ▲/▼o turn On or Off the subtitles. When Subtitle is set to On, you can enable subtitle languages on digital TV channels.

- Digital subtitle language:

Press ▲/▼ to select Digital subtitle language. Press OK/▶ to enter, press ▲/▼ to select a subtitle language as your preferred language.

Digital subtitle language 2nd:

Press ▲/▼ to select Digital subtitle language 2nd.

Press OK/▶ to enter, press ▲/▼ to select a secondary subtitle language. Press ≈to return to previous menu.

Subtitle type:

Press OK/▶ to enter, press ▲/▼ to select a subtitle type. You can select Hearing impaired to display the hearing impaired subtitle with your selected language.

Teletext

Press OK/▶ to display its submenu.

Decoding page language: select a proper type of language in which Teletext will display.

Digital teletext language: for digital TV channels, your TV could zap to a service with multiple initial Teletext pages in different languages. This function allows you to select an available language as primary language which relates to different initial Teletext page.

PVR

Press OK/▶ to open PVR.

Smart TV

1. Press 📋 to display the main menu.
2. Press ▲/▼ to select Smart TV, then press OK or ▶ to enter the submenu.

Smart TV portal

Allows you to enjoy Internet Applications (Apps), specially adapted Internet websites for your TV. You can control the Apps with the TV remote control.

Share&See

With Share&See, you can enjoy recorded video, picture, music saved on your PC.

Wireless display

Displays your smartphone contents on the TV. Note: This function may be unavailable for some models.

Terms and Conditions

Press OK or ▶ to read the Terms and Conditions.

Privacy Notice

Press OK or ▶ to read the Privacy Notice.

Cookie Notice

Press OK or ▶ to read the Cookie Notice.

Networked standby

Press OK or ▶ to select off or on.

Netflix settings

In Netflix Setting menu, Netflix Deactivation can deactivate your device form Netflix.

HbbTV Setting

HbbTV (Hybrid broadcast broadband TV) is a service offered by certain broadcasters and available only on some digital TV channels. HbbTV delivers interactive television over broadband Internet. These interactive features are added to and enrich the normal digital programmes, and include services such as digital teletext, electronic programme guide, games, voting, specific information related to the current programme, interactive advertising, information magazines, catchup TV, etc.

To use HbbTV please ensure your TV is connected to Internet and HbbTV is switched on.

Reset smart TV

Reset the settings of smart TV.

Network

1. Press to display the main menu.
2. Press ▲/▼ to select Network, then press OK or ▶ to enter the submenu.

Internet connection

Press OK or ▶ to select On, then you can adjust the options below.

Interface

Press OK or ▶ to select Ethernet or Wireless.

Ethernet

Connects your ethernet cable to the router and to the Ethernet port on the back of the TV.

Wireless settings

Wireless setting, using the internal wireless and your home wireless network.

IP setting

Sets Address type to Auto, it will acquire and enter the needed IP address automatically.

Information

Press OK/▶ to display the information on current connection.

Connection test

Press OK/▶ to test the internect connection.

System

1. Press 📄 to display the main menu.

2. Press ▲/▼ to select System, then press OK or ▶ to enter the submenu.

Language

Press OK/▶ to display the language list and use ▲/▼ to select a language.

Timer

Press OK or ▶ to enter the submenu.

- Time zone

Selects the local time zone.

- Clock

Select on to turn on the Auto synchronization, the TV will get the time automatically from DTV signals, and the Time item cannot be adjusted. If you select off, you should set the options manually.

- Sleep timer

Sets a period of time after which the TV set goes into standby mode.

Auto standby

When Auto Standby is set to your desired time, TV and device will be in standby mode at the same time.

Note: Without any operation in TV interface when the Auto standby mode is on ,the set will be entering standby mode automatically.

Lock

This menu can control the special function for TV. The factory default code is 1234. And the super password is 0423. If you forget your code, enter it to override any existing codes.

Input Settings

User can select the device name of the input source here, easy to identify the source.

Location

Selects Home or Shop with demo on your viewing environment.

Common Interface

Press OK or ▶ to enter the Common Interface.

T-Link

Use this function to turn on the ARC function and search for CEC devices connected to the HDMI sockets in your TV.

Auto source

Press OK or ▶ to select On or Off.

Note: This function is only available in HDMI Source.

Sports mode

Press OK or ▶ to select On or Off.

LED Indicator

Press OK or ▶ to select Flashing, Normal or Off.

Instant power on

Press OK or ▶ to select On or Off.

Press OK or ▶ to enter password.

Support

1. Press to display the main menu.

2. Press ▲/▼ to select Support, then press OK or ▶ to enter the submenu.

Software update

You can update software by USB, network or channel.

- By USB

Enables you to install the latest version of the software from your USB ports.

- By network

Enables you to download and install the latest software version from the Internet. Make sure to set up a wired or wireless network connection first. Press OK/▶ to enter. Follow the on-screen instructions to continue.

- By channel

Enables you to update a new software on the air.

USB Function

You can enjoy viewing pictures from your USB storage device.

Note: Some options may unavailable in some models. In USB state, if USB device didn't connected, the USB interface will be not displayed.

How to enter USB mode

1. Connect the USB storage device into the USB Input terminal.
2. Press USB button to enter USB mode.
3. Select your USB device to enter.

All

To browse picture or video or music if available.

1. Press OK or ▶ to enter, then press ▲/▼ to select the folder, press OK to enter.
2. Press ▲/▼ to select your desired file, then press OK to play.


To browse pictures if available.

1. Press OK or ▶ to enter, then press ▲/▼/◄/► to select the folder, press OK to enter.
2. Press ▲/▼/◄/► to select your desired file, then press OK to play.

Video

To watch video if available.

1. Press OK or ▶ to enter, then press ▲/▼/◄/► to select the folder, press OK to enter.

2. Press ▲/▼/◄/► to select your desired file, then press OK to play.

Music

To playback music if available.

1. Press OK or ▶ to enter, then press ▲/▼ to select the folder, press OK to enter.
2. Press ▲/▼ to select your desired file, then press OK to play.
3. Some non-standard mobile storage device may not be recognized. Please change to use the standard device.
4. This system supports the following file formats: Picture format: JPEG, BMP, PNG etc.. Video format: H.264, MPEG4, MPEG2, MPEG1, etc.. Audio format: MP3 etc..

Note: For coding files, there are many kinds nonstandard coding method, so this system can not be guaranteed to support the file formats using any coding method.

Frequently Asked Questions:

1. Under the following conditions, this system cannot decode the file and the file cannot be play normally:
2. The parameters of file, such as the pixel of picture, code rate of audio and video file, sampling rate of audio file, exceed the limit of the system;
3. The format of file is not matched or the file is harmed.
4. Hot plug: Do not disconnection when the system is reading or transmitting data, avoid damaging the system or the device.
5. Pay attention to the power supply of the device when you are using a mobile hard disk or a digital camera. If the power supply is not sufficient or not stable, you may encounter problems during operating or can not operate at all. In this case, please restart the device, or unplug the device and plug it again, and ensure that its power supply is normal.
6. The system supports standard USB1.1 and USB2.0 devices, such as standard U-disks, MP3 players, mobile hard disks, etc..
7. For obtaining better audio and video quality, suggests to use the external device which accords with USB2.0 standard.
8. When playing the video with high compression ratio, these phenomenons, such as picture standstill and menu long time response, are normal.
9. For some USB device with power supply, such as large size hard disk, MP4, etc., suggests using it with power to avoid electric power shortage.

Radio Information

• 2.4G Wi-Fi transmitter frequency range: 2412 -2472MHz
• 2.4G Wi-Fi transmitter power: 16dBm (+/- 4dB)
• DVB-T/T2/C tuner frequency range: 45 - 858MHz
• DVB-S/S2 tuner frequency range: 950 - 2150MHz

Troubleshooting

Most problems you encounter with your TV can be corrected by consulting the following troubleshooting list.

No picture, no sound

1. Check if the fuse or circuit breaker is working.
2. Plug another electrical device into the outlet to make sure it is working or turned on.
3. Power plug is in a bad contact with the outlet.
4. Check the signal source.

No color

1. Change the color system.
2. Adjust the saturation.
3. Try another channel. Black-white program may be received.

Remote control does not work

1. Change the batteries.
2. Batteries are not installed correctly.
3. Main power is not connected.

No picture, normal sound

1. Adjust the brightness and contrast.
2. Broadcasting failure may happen.

Normal picture, no sound

1. Press the Vol+ button to increase volume.
2. Volume is set to mute, press the mute button to restore sound.
3. Change the sound system.
4. Broadcasting failure may happen.

Unorderly ripples on the picture

It is usually caused by local interference, such as cars, daylight lamps and hair driers. Adjust the antenna to minimize the interference.

Snowy dots and interference

If the antenna is located in the fringe area of a television signal where the signal is weak, the picture may be marred by dots. When the signal is extremely weak, it may be necessary to install a special antenna to improve the reception.

1. Adjust the position and orientation of the indoor/outdoor antenna.
2. Check the connection of antenna.
3. Fine tune the channel.
4. Try another channel. Broadcasting failure may happen.

Black spots or horizontal streaks appear, or the picture flutters or drifts. This is usually caused by interference from car ignition system, neon lamps, electric drills, or other electrical appliance.

Ghost

Ghosts are caused by the television signal following two paths. One is the direct path, the other is reflected from tall buildings, hills, or other objects. Changing the direction or position of the antenna may improve the reception.

Radio frequency interference

This interference produces moving ripples or diagonal streaks, and in some case, loss of contrast in the picture. Find out and remove the radio interference source.

Base Installation

Technical line drawing of a device with two vertical supports and internal components (no text or symbols)

To fix the double support base on the unit by screws, the installation is completed.

* To bring you better visual experience, please remove all labels, if any, from TV front panel and screen before use.
* Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and specifications may be changed without notice.

nevir®

TELEVISOR DLED 32"(81,28 cm) HD SMART

NVR-9002-32RD2S-SM

Front view of a black flat-screen television displaying a blank screen (no visible text or symbols)

MANUAL DE INSTRUÇÕES

POR FAVOR, LEIA ESTE MANUAL DE OPERAÇÃO EM SUA TOTALIDADE ANTES DE USAR ESSA UNIDADE E MANTENHA-A PARA REFERÊNCIA FUTURA

INSTRUÇÕES DE SEGURANÇA IMPORTANTES

Pure electrical circuit symbol icons arranged in a grid (no text or labels)

1. Abotão
