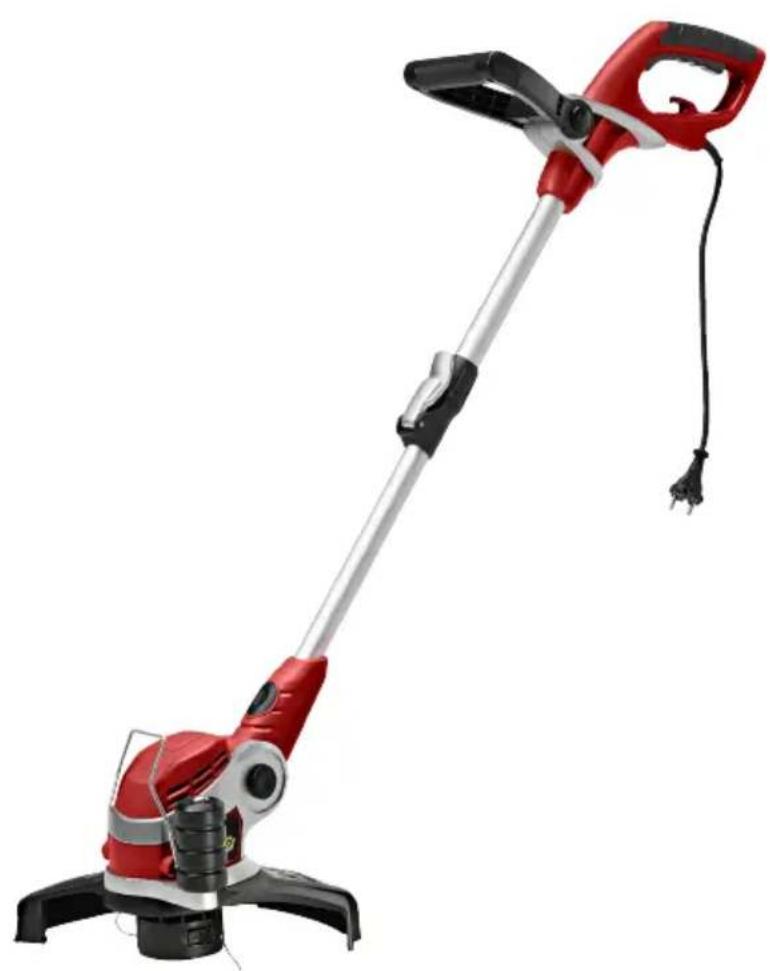

USER MANUAL 721-439 Meec Tools

Red and silver cleaning tool with a black handle and metal rod, isolated on white background (no text or symbols)

SE Bruksanvisning för grästrimmer
NO Bruksanvisning for gresstrimmer
PL Instrukcja obsługi podkaszarki
EN Operating instructions for lawn trimmer

SE - Bruksanvisning i original

EN - Operating instructions (Translation of the original instructions)

Jula reserves the right to make changes. In the event of problems, please contact our service department.

www.jula.com

Tillverkare/ Produsent / Produenci/ Manufacturer

Jula AB, Box 363, 532 24 SKARA

Importör/ Importør/ Importer/ Importer

Care for the environment!

Must not be discarded with household waste! This product contains electrical or electronic components that should be recycled. Leave the product for recycling at the designated station e.g. the local authority's recycling station.

SVENSKA....6

SÄKERHETSANVISNINGAR....6

Symboler 12

TEKNISKA DATA....13

BESKRIVNING 14

MONTERING....15

HANDHAVANDE 16

SAFETY INSTRUCTIONS 50

Symbols 56

TECHNICAL DATA 57

DESCRIPTION 58

ASSEMBLY 59

USE....60

Intended use 60

Before use. 60

Adjustments....60

Trimming 62

Edge trimming 62

MAINTENANCE 63

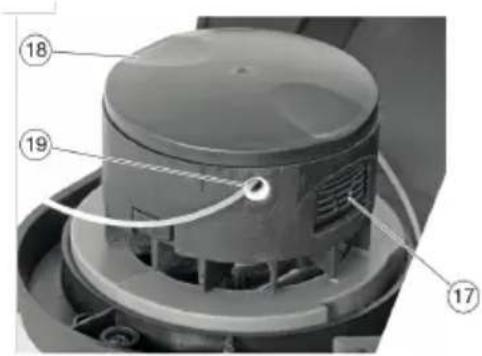

Replacing the line spool....64

TROUBLESHOOTING 64

SÄKERHETSANVISNINGAR

Close-up of a handheld electric shaver with cable and connector (no text or symbols visible)

3D rendered mechanical device with attached base and wheels, no visible text or symbols

Montera trådspole

Close-up of a handheld electric shaver with labeled parts (no text or symbols on the device itself)

3D rendered mechanical device with a stand and potted plant, no visible text or symbols

Montere trådspole

Close-up of a handheld electric shaver with attached cable and connector (no text or symbols visible)

Illustration of a robotic arm with a potted plant nearby (no text or symbols)

Read the operating instructions carefully before use.

Save them for future reference.

- Follow all the safety instructions. Failure to follow the instructions can result in risk of serious personal injury.

- These instructions should be enclosed with the lawn trimmer if it is sold or passed on.

- The lawn trimmer must only be used for its intended purpose and in accordance with these instructions. All other use is considered to be unsuitable. Never modify the lawn trimmer in any way and do not use parts that are not approved by the manufacturer. This can result in material damage.

- The lawn trimmer is only intended for private use.

- The lawn trimmer is not intended to be used by persons (children or adults) with any form of functional disorders, or by persons who do not have sufficient experience or knowledge on how to use it, unless they have received instructions concerning the use of the appliance by someone who is responsible for their safety.

- Keep children under supervision to make sure they do not play with the lawn trimmer.

- Do not use the lawn trimmer if it is not working properly. Recycle a defective lawn trimmer in accordance with local regulations.

- Do not use the lawn trimmer in explosive environments, such as in the vicinity of flammable liquids, gases or dust.

- Make sure that the lawn trimmer cannot be started accidentally.

- Basic safety precautions should always be taken to reduce the risk of fire, electric shock and personal injury when using power tools. Read and respect the advice included in the safety instructions as well.

- Keep the work area clean and tidy. A cluttered workplace can easily lead to accidents and injuries.

- Take into consideration the place where the work is to be carried out. Do not use power tools in damp or wet areas. Make sure the work area is well lit. Do not expose power tools to rain or moisture. Do not use power tools near flammable liquids or gases.

- Keep visitors away from the work area. All visitors and onlookers, especially children and frail persons, must be kept at a safe distance from the work area. Do not allow persons in the vicinity to touch the tool or extension cord.

- Store the tool in a safe place. When tools are not in use they should be stored in a dry place, at a safe height or locked up, and out of the reach of children and unauthorised persons.

- Do not force the tool. The right tool does the job better and more safety at the intended rate.

- Wear suitable clothing. Do not wear loose-fitting clothing or jewellery. They can get caught in moving parts. Rubber gloves and non-slip shoes are recommended when working outdoors. Wear a hair net on long hair.

- Use safety accessories. Safety glasses and ear protection should always be worn.

- Be careful with the power cord. Never pull the power cord to disconnect the tool from the power point. Keep the power cord away from heat, oil and sharp edges.

- Take care of the tool. Keep tools clean for better and safer work, and follow the instructions when changing accessories. Check extension cords at regular intervals, and replace them if they are damaged.

- Keep tools clean, dry and free from oil and grease.

- Switch off tools when they are not in use. Switch off the power supply and unplug the plug from the power point before service, replacing accessories, and when the tool is not in use.

- Avoid accidental starting. Always check that the power switch is in the OFF position before connecting the tool to the power supply. Do not carry a power tool with your finger on the power switch when the power cord is plugged in.

- Use extension cords intended for outdoor use. Only use extension cords intended for outdoor use and which are marked as such.

- Pay attention to what you are doing. Plan the work. Use your common sense. Be careful. Never use power tools if you are tired or under the influence of drugs, alcohol or medication.

- Check that none of the parts are damaged before using the tool.

- Check that moving parts are correctly adjusted and secure, that none of the fasteners are defective, and that no other circumstances can affect the functionality of the tool. Guards, power switches and other damaged parts must only be repaired or replaced by an authorised service centre. Defective power switches must not be replaced by unauthorised service centres. Do not use a tool if it cannot be properly switched on and off with the power switch.

• Protection from electric shock. Avoid contact with earthed objects such as water pipes, radiators, cookers and fridges.
• Only use approved parts. Only use identical spare parts when servicing. Allow an authorised service centre to fit spare parts.
• Note that harmful/toxic dust can develop when trimming grass etc. (e.g. fertiliser, pesticide).
• The use of incorrect accessories, or accessories other than those that have been recommended, can result in personal injury.
• This power tool has been manufactured in compliance with the relevant safety standards. The power tool must only be repaired by experts. Otherwise there is a risk of fatal injury.
• Voltage – check that the power supply matches the rated power supply for the tool. The voltage for this machine is given on the rating plate.

Risks as a result of vibration

WARNING: Vibrations can cause personal injury.

• Stop working immediately and seek medical attention if you experience numbness, itching, tingling or pain, or if your skin changes colour.

• Vibration levels during actual use can deviate from the declared value, depending on how the lawn trimmer is used. The following factors can influence the level of vibrations.

• Incorrect use
  – Unsuitable accessories.
  – Working with unsuitable materials.
  – Inadequate maintenance.

- The following measures will reduce the risk of personal injury.

• Use the lawn trimmer according to the instructions.
  – Avoid working at low temperatures.
• Keep your body and especially your hands warm.
• Take regular pauses and move your hands to stimulate circulation.

Electrical safety

• Always takes basic safety precautions when using power tools.
- The plug must be plugged into a correctly installed earthed power point.

• The lawn trimmer must be connected to the mains supply with a residual current device with a maximum tripping current of 30 mA.
• Check that the mains voltage corresponds to the rated voltage on the type plate.
• Do not touch the plug or power cord with wet hands or other wet parts of your body. Do not pull the power cord to unplug the plug.
• Keep the power cord away from heat, oil, sharp edges and moving parts. Avoid bending, clenching, dragging or driving over the power cord.
• Do not carry or pull the lawn trimmer by the power cord.
  • Always check the power cord and plug before they are used.
• Unplug the power cord immediately if it is damaged when working. Do not use the lawn trimmer if the power cord or plug are damaged.
• Unplug the power cord when the lawn trimmer is not in use.
• Check that the power switch is in the OFF position before plugging the power cord into the power point.
• Switch off the lawn trimmer and unplug the power cord before cleaning and transport.

Special safety instructions

• Keep the handles clean, dry and free from oil and grease.
• Use suitable safety equipment.
• Keep the power cord away from the work area. The power cord should always be behind you.
• Always maintain a firm footing and good balance. Avoid unbalanced and awkward positions when working.
• Hold the lawn trimmer firmly with both hands.
• Check that there are no people, animals or other obstacles in the work area. Remove any objects that can fasten in, or be thrown out, by the lawn trimmer.
• Carefully inspect the area where the lawn trimmer is to be used, and remove any objects that can damage the lawn trimmer.
• Keep at a safe distance from moving parts when the lawn trimmer is in use.
• Keep people and animals at a distance of at least 15 metres when working, otherwise there is a risk of personal injury as a result of hurled objects
• Only use the lawn trimmer in daylight, or in good artificial lighting.

• Do not work above the level of your hips. Do not lean forwards, or backwards.

• Do not wear loose-fitting clothing, ties, scarves, etc., as these can get caught in moving parts. Always wear heavy-duty shoes and long trousers when using the lawn trimmer.

• Be careful to avoid slipping or falling, especially when walking backwards.
• Risk of personal injury. When new line has been fed out, hold the trimmer in a normal working position before starting it.
• Always keep the ventilation openings clean and free from blockages.
• Never poke any objects into the ventilation openings in the lawn trimmer.
• Never fit metal blades on the lawn trimmer.
• If the power cord is damaged it must be replaced by qualified service personnel to ensure safe to use.
• Do not remove or cover symbols and markings on the lawn trimmer.

Additional safety instructions for the lawn trimmer

• Be very careful when handling the guard, it has a very sharp edge on one side to cut the nylon line.
• Never hold the trimmer head higher than foot height, and never point it at people or animals when in use.
• If the trimmer starts vibrating abnormally. Switch off immediately and have it checked by an authorised service technician.
• WARNING: The trimmer head continues to rotate for several seconds after it is switched off.
• Always remove branches and stones etc. from the area where the trimmer is going to be used.
  • Always trim across slopes, never up/down.
• Never run when using the trimmer.
• Never walk over gravel paths or roads with the tool in use.
• Never fit a metal trimmer line.
• Do not overreach – always maintain a firm footing and good balance.
• Do not use the lawn trimmer if the power cord is damaged or worn.
• Wear heavy-duty shoes or boots to protect your feet.
• Wear long trousers to protect your legs.

• Check before using the tool that there are no branches, stones, metal wires or other obstacles in the area to be trimmed.

• Always use the tool in an upright position, with the trimmer line close to the ground. Never start the tool when it is not in an upright position.

• Move your body slowly when using the tool. Note that newly cut grass is damp and slippery.
• Do not work on steep slopes. Trim across slopes, not up or down.
• Never touch the trimmer line when the tool is in use.
• Do not put down the tool before the trimmer line has completely stopped.
• Only use a suitable type of trimmer line. Never use trimmer line made of metal or fishing line.
• Make sure not to touch the trimmer line blade.
• Make sure to keep the power cord at a safe distance from the trimmer line. Always pay attention to where the power cord is.
• Keep your hands and feet away from the trimmer head, especially when starting the motor.
• Never use the machine with a damaged guard, or when the guard is not in place.
• Make sure the ventilation openings are always free from debris.
• Check how the controls are used and that the equipment is used properly.
• Only use machine in daylight, or in good artificial lighting.
• Check before use that the power cord and extension cord do not show any sign of damage or wear. Unplug the power cord from the power supply if is damaged during use.

SYMBOLS

	Read the instructions before use.
	Warning:
	Wear safety glasses or eye protection when using this tool.
	Wear ear protection.
	Unplug from the power supply before cleaning and service.
	Make sure there are no persons in the vicinity that could be injured from flying objects.
	Do not expose the machine to rain or moisture.
	Keep other people and animals at least 15 metres away.
	Make sure there are no other persons in the vicinity.

TECHNICAL DATA

Speed	11000/min
Weight 2.8 kg
Voltage 230 V
Output 550 W
Cord length 35 cm
Cutting width 270 mm
Line diameter 1.5 mm
Line length 2 x 4 m
Sound power level LwA* 96 dB (A) K= 3 dB (A)
Sound power level LwA* 85 dB (A) K= 3 dB (A)
Vibration** <4.5 m/s2 (K= 1.5 m/s2)

*)The given values are measured actual noise levels, which are not necessarily safe to work in. Even if there is a link between the specified noise level and experienced noise level, it is not possible on this basis to draw any reliable conclusions concerning the need for safety measures. Several other factors affect exposure to noise in each individual case, for example the acoustics in the work premises and any other sources of noise, such as other machines or processes in the premises and the exposure time. Limiting values at workplaces can also vary from country to country. It is incumbent on the user to assess any risks.

** ) Declared total vibration values are measured in accordance with a standard test method, and can be used for comparisons between tools. The value may also be used for a preliminary assessment of exposure. Vibration levels during actual use can deviate from the declared value, depending on how the lawn trimmer is used. Take appropriate measures to reduce exposure to vibration. Suitable precautions for users must be based on the actual conditions, taking into account all parts of the operating cycle, such as the time when the tool is switched off and the idling time, in addition to the time when the power switch is pressed.

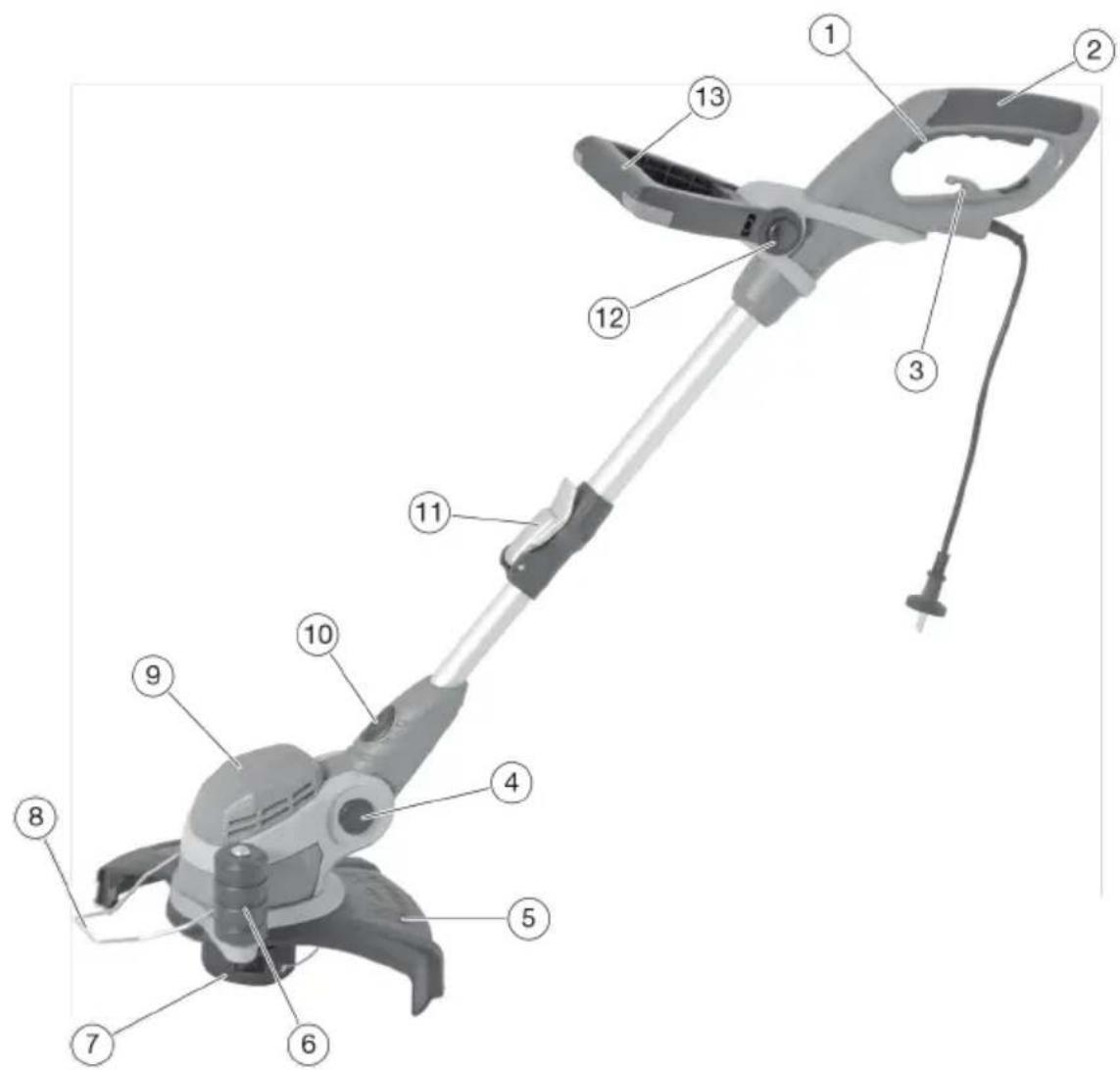

DESCRIPTION

1. Power switch
2. Back handle

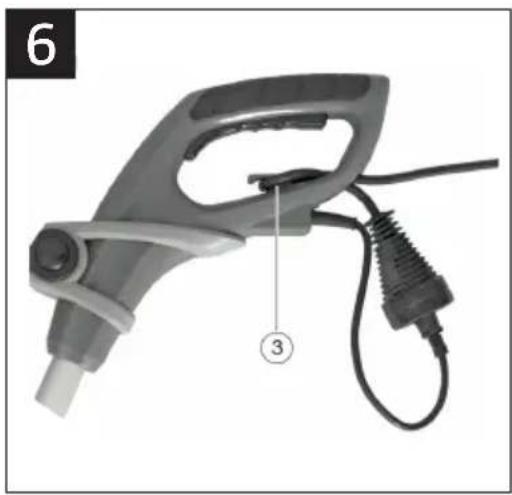

3. Strain reliever for extension cord
4. Lock button for angle of trimmer head
5. Guard
6. Guide roller
7. Line spool

8. Spacer

9. Trimmer head

10. Lock button for rotation of trimmer head
11. Locking lever to adjust the length of the handle
12. Lock for front handle
13. Front handle

ASSEMBLY

WARNING: Risk of personal injury. Underneath the guard there is a blade that cuts the trimmer line. Remove the transport protection after assembly.

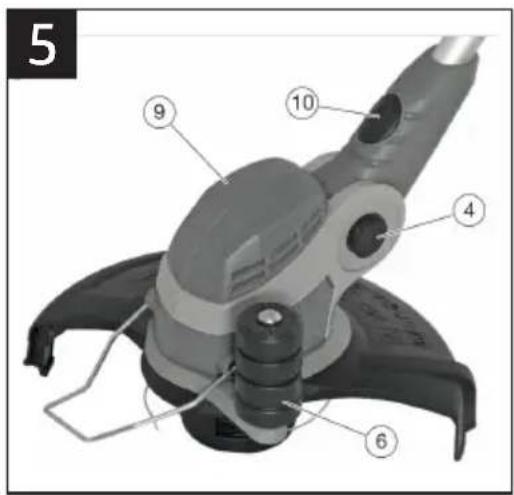

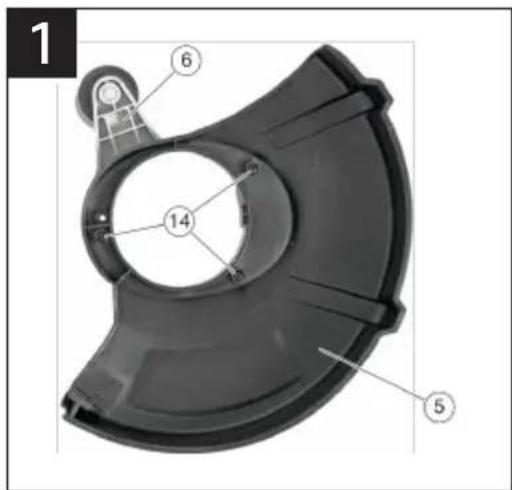

Fit the guide roller

1. Fit (6) on the guard (5) and secure with the screws (14) (diagram 1).

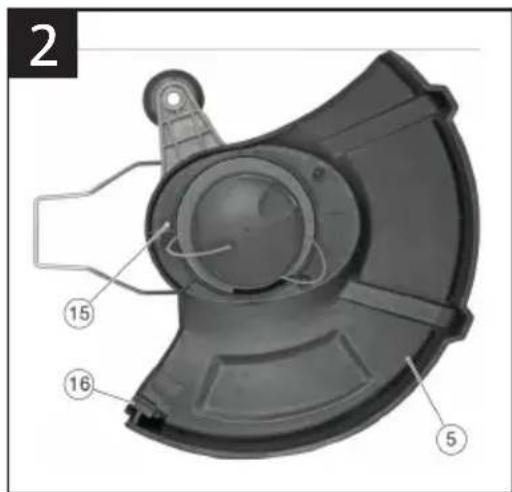

Fitting the guard

1. Put the guard (5) on the trimmer head from underneath and lock by turning 90° (diagram 2).
2. Fix the guard with one screw (15).
3. Remove the transport protection from the line cutter blade (16).

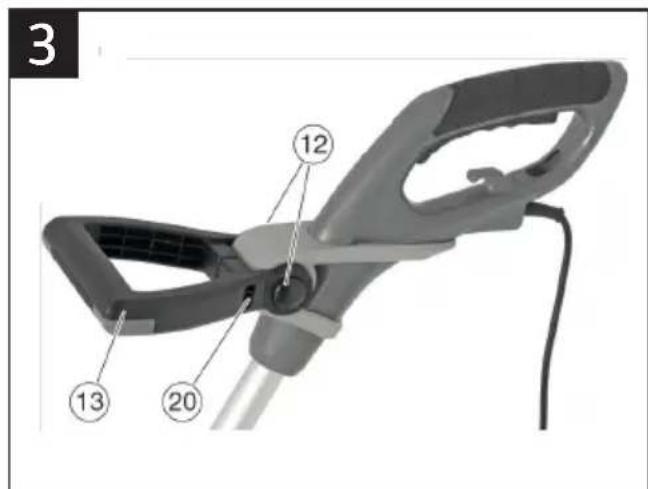

Fitting the front handle

1. Press in and hold the lock buttons (12) (diagram 3).
2. Fit the front handle (13) as shown in the diagram.
3. Release the lock buttons (12).
4. Tighten the screw (20).

USE

INTENDED USE

The lawn trimmer is intended to be used to trim grass and thin weeds alongside trees, walls, and posts etc. and on edges difficult to get at with a lawn mower. The lawn trimmer is not intended for trimming thick weeds, bushes and trees etc.

BEFORE USE

WARNING:

• Do not use the trimmer if it is damaged or not working properly, or if the power cord or plug are damaged. Damaged parts must be repaired or replaced before the trimmer is used.
• Carefully inspect the area where the lawn trimmer is to be used, and remove any objects that can be thrown up by the trimmer.
• Check visually before use that the power cord and plug are intact and undamaged. If the power cord is damaged it must be replaced by qualified service personnel.

Check

• Check for any visible damage to the tool, power cord and accessories.
• Check that all parts and accessories are fitted correctly.

Correct working posture

- Hold the trimmer

– with your left hand on the front handle
— with your right hand on the back handle, approximately at hip level
- comfortably balanced.

ADJUSTMENTS

Angle of the front handle

1. Press in and hold the lock buttons (12) (diagram 3).
2. Angle the front handle (13) to the required position.
3. Release the lock buttons (12).

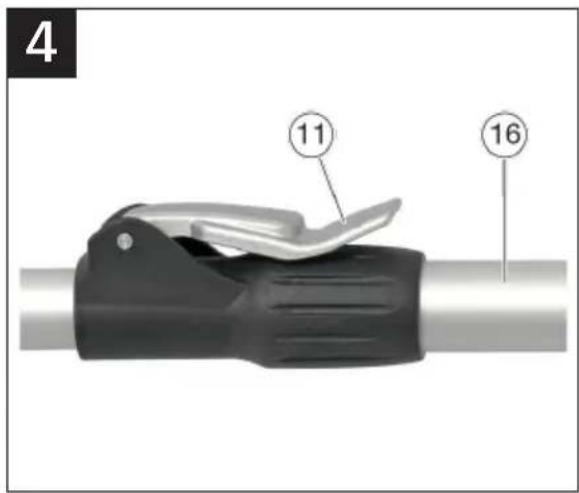

Handle length

1. Release the locking lever (11) by folding it up (diagram 4).
2. Adjust the tube (16) to the required length.
3. Tighten the locking lever (11) by folding it down.

Angle of the trimmer head

1. Press in and hold the lock button (4).
2. Angle the trimmer head (9) to the required position (diagram 5).

— The trimmer head can be angled in three fixed positions.
- Turn the trimmer head (9) 90^ for edge trimming.

1. Release the lock button (4).

Close-up of a handheld electric shaver with labeled parts (no text or symbols on the device itself)

Connecting an extension cord

1. Connect the trimmer's power cord to the extension cord.
2. Run the extension cord through the strain reliever (3) (diagram 6).

TRIMMING

NOTE:

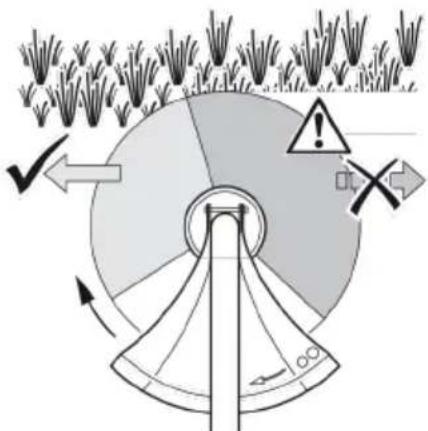

- Trim only with the left part of the trimmer head (pale grey in diagram),

- Hold the trimmer over the grass when mowing it from left to right, to avoid throwing up grass.

— On the right part (dark grey in diagram) the trimmer lines move towards you. This results in the risk of throw and objects being thrown towards you by the line – risk of personal injury.

- Trim tall grass from the top and down in several steps, otherwise there is a risk of the blades fastening round the line spool.

- Only use the tips of the lines. This reduces the consumption of the line and reduces the risk of grass fastening round the line spool.

- Avoid working too close to walls, posts and fences etc. Contact with solid objects wears the line very quickly.

— The line can damage trees and bushes.

1. Plug the trimmer into a power point.
2. Press the power switch (1) to start the trimmer.
3. Move the trimmer from right to left.
4. Tap the trimmer spool on the ground to feed forward the trimmer line when necessary.
5. Release the power switch (1) to stop the trimmer.
6. Unplug the plug from the power point.

EDGE TRIMMING

WARNING:

• Be extra careful when working with the trimmer head vertical.
• Keep at a safe distance from the trimmer line when the trimmer is in use.

NOTE:

- Avoid contact with solid surfaces, this wears the line very quickly.

- The guide roller (6) makes it easier to steer when trimming edges. It should not be used for trimming bushes and does not affect the height of the trimming.

• Make sure the angle of the trimmer head is 90^ .

1. Fold down the spacer to maintain the right distance during the trimming.

2. Press the power switch (1) to start the trimmer.

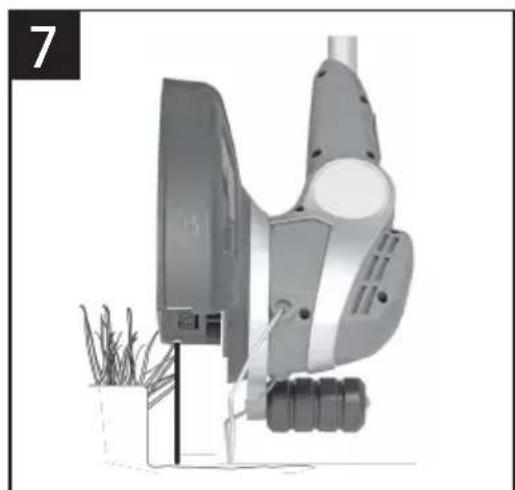

3. Move the trimmer as shown in the diagram along the edge of the lawn (diagram 7).

3D rendering of a robotic arm with a stand and potted plant, no visible text or symbols

1. Release the power switch (1) to stop the trimmer.

MAINTENANCE

WARNING: Switch off the lawn trimmer, unplug the power cord and wait until all moving parts have completely stopped before cleaning and/or maintenance.

• Clean the trimmer immediately after using it. Dried grass cuttings go hard and are difficult to remove.
• Wipe the trimmer with a damp cloth.
  • Store the trimmer in a dry, well-ventilated place.
  • If possible, transport the trimmer in its original pack.

REPLACING THE LINE SPOOL

WARNING: When new line has been fed out, hold the trimmer in a normal working position before starting it.

Remove the line spool

1. Press in the locking mechanism (17).
2. Remove the cover (18).
3. Remove the line spool.

Fitting the line spool

1. Push the lines through the openings (19) in the spool retainer.
2. Press the line spool into the retainer. Pull out the lines through the openings.
3. Replace the cover (18) and lock in place.

TROUBLESHOOTING

WARNING: Repairs must only be carried out by qualified service personnel.

Problem Cause Action
The motor does not work • No power supply.• The power cord is damaged.	Check the power cord, plug, power point and fuse.
The line does not feed out. No line left. Replace the line spool.
	The line spool is blocked. Clear the blockage

CE

EC DECLARATION OF CONFORMITY

EG FÖRSÄKRAN OM ÖVERENSSTÄMMELSE

EF SAMSVARSERKLÆRING

DEKLARACJA ZGODNOŚCI WE

Jula AB, Box 363, SE-532 24 SKARA, SWEDEN

certify that the design and manufacturing of this product

Machinery Directive 2006/42/EC

EN 60335-1:2012, EN 60335-2-91:2003

EN 786:1996+A2, EN 62233:2008

Electromagnetic Compatibility Directive 2014/30/EU

EN 55014-1:2006+A1+A2, EN 55014-2:1997+A1+A2

EN 61000-3-2:2014, EN 61000-3-3:2013

Outdoor Noise Directive 2000/14/EC, amended by 2005/88/EC

RoHS Directive 2011/65/EU

EN 62321:2009

Measured sound power level on an equipment representative for this type: Uppmätt ljudeffektnivá på en utrustning som är representativ för denna typ: Målt lydeffektnivá for utstyr som er representativt for vedkommende type: zmierzony poziom mocy akustycznej urządzenia reprezentatywnego dla danego typu:	Guaranteed sound power level: Garanterad ljudeffektnivá: Garantert lydeffektnivá: Gwarantowana moc akustyczna:	Conformity assessment procedure according to 2000/14/EC: Förfarande för bedömning av överensstämmelse enligt 2000/14/EC: Framgangsmåter for samsvarsvurdering iht. 2000/14/EC: Procedura oceny zgodności na podstawie dyrektywy 2000/14/WE:
95 dB(A) 96 dB(A)		Annex VI / Bilaga VI Vedlegg VI / Załącznik VI

Intertek Testing & Certification Ltd.

Davy Avenue, Knowhill, Milton Keyes, MK5 8NL, UK

NB0359

This product was CE marked in year -15

Name and address of the person authorised

to compile the technical file:
