USER MANUAL 721-053 Meec Tools

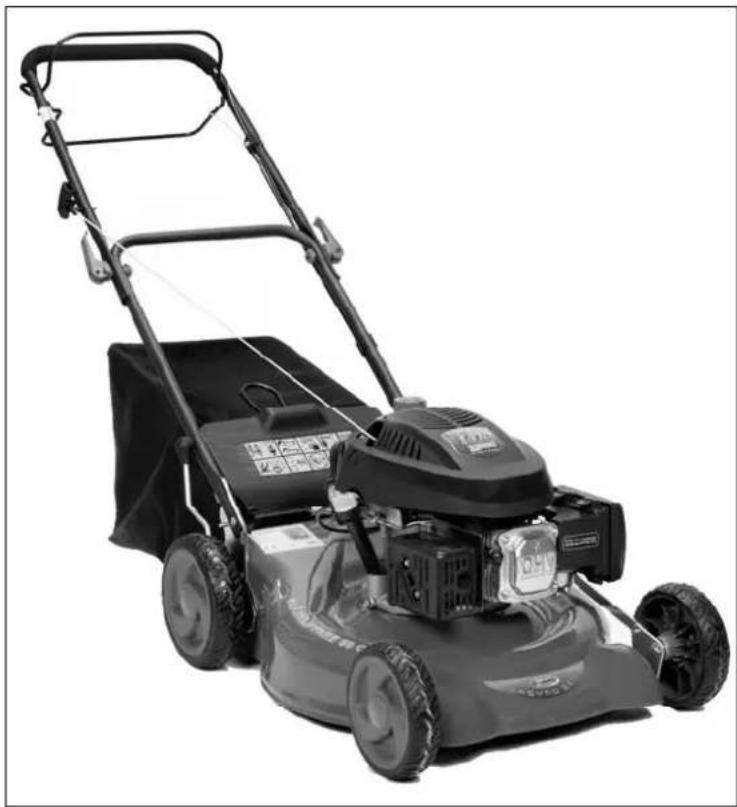

Operating Instructions for Lawn Mower with Grass Catcher

721-053

Black-and-white photo of a lawn mower with visible blades and control panel (no text or symbols)

SV Bruksanvisning i original

NO Bruksanvisning i original

EN Operating instructions in original

SVENSKA 4

SÄKERHETSFÖRESKRIFTER 4

VARNINGSSYMBOLER....5

Tekniska data 6

BESKRIVNING 6

MONTERING 7

HANDHAVANDE 7

Olja....7

Bensin 8

Start 8

Stopp....8

UNDERHÄLL 8

Kniv 9

Oljebyte 9

Luftfilter 9

Förvaring....9

NORSK 10

SIKKERHETSANVISNINGER....10

ADVARSELSYMBOLER 11

Tekniske data 12

BESKRIVNING 12

MONTERING 13

BRUK....13

Oije....13

Bensin 14

Start 14

Stopp....14

VEDLIKEHOLD 14

Kniv 15

Oljeskift 15

Luftfilter 15

Oppbevaring 15

POLSKI 16

PRZEPISY BEZPIECZEŃSTWA.... 16

SAFETY INSTRUCTIONS....23

WARNING SYMBOLS 24

Technical data 25

DESCRIPTION 25

ASSEMBLY 26

OPERATION 26

Oil 26
Petrol 27
Starting....27
Stopping 27

MAINTENANCE 27

Blade 28
Changing the oil 28
Air filter 28
Storage 28

SÄKERHETSFÖRESKRIFTER

Black-and-white photo of a lawn mower with three wheels and handle (no text or symbols visible)

Technical line drawing of a mechanical component with an arrow pointing to a circular opening (no text or symbols)

Close-up of a mechanical component with no visible text or symbols

Luftfilter

Hurtiginnstillingshåndtak

Drivstoffpåfylling

Luftfilter

Tennplugg

Lyddemper

Oljefilter

Høydejustering

Gressoppsamler.

Starthåndtak

Illustration of a lawn mower with three wheels and handle (no text or symbols)

Diagram of a mechanical component with an arrow pointing to a circular opening (no text or symbols present)

Close-up of a mechanical component with no visible text or symbols

Luftfilter

1. Papirfilter
2. Skumgummifilter
3. Deksel

Oppbevaring

Black-and-white photo of a lawn mower with three wheels and handle (no text or symbols visible)

Uruchamianie

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Close-up of a mechanical component with no visible text or symbols

Filtr powietrza

Read the Operating Instructions carefully before use!

• Read these Operating Instructions carefully before using the machine.
• The machine must only be used by adults of sound judgement.
• Do not immerse the machine in liquid.
• The machine must not be used in areas where flammable liquids are stored or where flammable fumes/gases can occur.
• Store the machine in a dry place when not in use.
• Read through the instructions carefully. Familiarise yourself with all the controls and the right way to use the machine.
• This machine is only intended for mowing lawns. All other use, e.g. for cutting bushes, hedges, climbing plants, is prohibited in view of the risk of personal injury.
• Never allow children or persons not familiar with these instructions to use the lawn mower. Local regulations may impose restrictions on the age of users.
  • Never mow if there are other persons, especially children, or animals, in the vicinity.
• Remember that the operator is responsible for accidents that happen to other people or their property.
• Never use the machine if you are under the influence of drugs, alcohol or medication. Nor when you are tired or ill.
• Wear heavy-duty shoes and long trousers when mowing. Do not use the machine if you are barefoot or wearing sandals.
  • Always wear ear protection.
  • Carefully check the area to be mowed and remove all stones, twigs, steel wire and other objects.
• Replace defective muffler.
• Check that the blades and attachments are not worn or damaged before using the machine. Replace worn or damaged parts in complete sets to ensure that the balance is not affected.

WARNING! Petrol is highly flammable.

• Store the fuel in special containers intended for this purpose.
• Only refill with petrol outdoors, and do not smoke while filling.
• Fill up with fuel before starting the engine. Never remove the filler cap or fill up with petrol while the engine is running or hot.
• If you spill any petrol, do not start the engine before moving the lawn mower away from the area where you have spilled it and avoid all activities that can create sparks until the petrol fumes have evaporated.
• Remember to screw on the cap for the petrol tank and the storage container after refilling.

• Do not run the engine in confined spaces where harmful carbon dioxide gas can accumulate.
- Only mow in daylight or in well-lit conditions.
- Avoid cutting wet grass.
- Make sure that you have a stable footing on slopes.
- Walk, do not run.
- Mow across slopes, never up or down with a lawn mower on wheels.
• Always be very careful when changing direction on a slope.
• Always be very careful when reversing or pulling the lawn mower towards you.
- Stop the engine if the lawn mower has to be tilted when moving it to ungrassed surfaces, or when moving the lawn mower to and from the area to be mowed.
- Never use the lawn mower with defective guards or without safety devices, e.g. when deflectors and/or grass collectors are not in place.
- Do not change the engine control settings, or race the engine.
• Start the engine carefully according to the instructions. Keep your feet away from the blades.
- Do not tilt the mower when starting the engine, unless this is necessary to start it. If so, do not tilt the lawn mower more than necessary, and only tilt the end furthest away from the operator.
- Keep your hands and feet away from the rotating blade and other rotating parts. Never poke your hands into the grass ejector opening on the lawn mower.
• If the machine has a grass ejector, keep it free from twigs and rubbish etc.
- Never lift or carry the lawn mower when the engine is running.

• Reduce the throttle when stopping the engine. If the engine is equipped with a fuel cock, turn it off when you have finished mowing.

• Stop the engine and release the spark plug lead:

• When leaving the lawn mower.

• When removing twigs and rubbish, or when the ejector is blocked.
• When checking, cleaning or servicing the machine.
• After hitting a foreign object and checking for damage or making repairs before starting the lawn mower again.
• When checking the machine after it has started to vibrate abnormally (check immediately).

• Before filling up with more petrol.

• Check that all nuts and screws are tight so that the machine is in safe working condition.

• Never store the machine with petrol in the tank in a building where the fumes can come into contact with naked flames or sparks.
• Allow the engine to cool before putting the machine in a storeroom.
  • To reduce the risk of fire: clean grass, leaves and excess oil off the engine, muffler and petrol tank.
• Replace worn or damaged parts to ensure safe operation.
  • If the petrol tank needs emptying, this must be done outdoors.
• Store the machine out of the reach of children.
  • To protect the environment we recommend that you pay special attention to the following:
  • Always use green petrol.
  • Always use a funnel and/or petrol can with overflow protection to avoid spilling petrol when refilling.
• Do not overfill the petrol tank.
  • Do not overfill with engine and/or transmission oil (see instructions for correct amount).
  • Collect all the oil when changing the oil. Do not spill. Take the oil to a recycling facility.
  • Do not throw replaced oil filters into the rubbish bin. Take them to a recycling facility.
• Replace the muffler if it is defective. Always use original spare parts for repairs.
  • Always have the carburettor adjusted by a skilled technician when necessary.
• Clean the air filter according to the instructions.
• When the machine is to be scrapped, take it to a recycling facility.

WARNING SYMBOLS

The warning symbols on the machine are explained below.

Symbol	Meaning
	General warning. Danger of personal injury or damage to property.Read the Operating Instructions before using the machine.
	Warning for ejected objects.Use protective equipment, eye protection.
	Keep other people and animals away from the mowing area. Take extra care on slopes. Look ahead and behind.
	The blade continues to rotate for a while after the machine has been stopped. Warning: Risk of personal injury. Keep all parts of the body away from the rotating blade.
	Always remove the lead from the spark plug before carrying out repairs or maintenance.
	Do not use mower without entire grass catcher or deflector in place. Danger! Keep hands and feet away.

TECHNICAL DATA

Output power 2.6 kW

Speed

3000

rpm

Cutting width 500 mm

Height adjustments 7 x

Grass catcher volume 50 l

Sound pressure level, LpA 85 dB(A), K=0 dB

Measured Sound power level, LwA 94 dB(A), K=0 dB

Guaranteed Sound power level, LwA 96 dB(A), K=0 dB

Vibration level 5,1m/s2, K=1,5 m/s2

Always wear ear protection!

The declared vibration value, which has been measured by a standardised test method, can be used to compare different tools with each other and for a preliminary assessment of exposure.

WARNING! The actual vibration level when using power tools may differ from the specified maximum value, depending on how the tool is used. It is therefore necessary to determine which safety precautions are required to protect the user, based on an estimate of exposure in actual operating conditions (taking into account all stages of the work cycle, e.g. the time when the tool is switched off and when it is idling, in addition to the start-up time).

DESCRIPTION

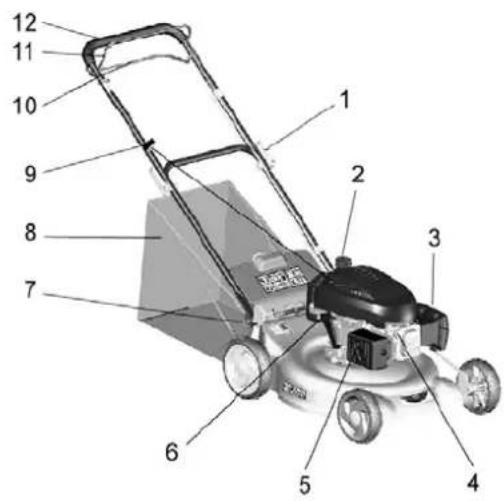

1. Quick-release handle
2. Filler cap
3. Air filter
4. Spark plug
5. Muffler
6. Oil filter
7. Height adjuster
8. Grass catcher
9. Starter handle
10. Drive lever (only machines with drive)
11. Brake lever
12. Handle

The lawn mower is not intended for professional use, only for mowing lawns in private gardens.

ASSEMBLY

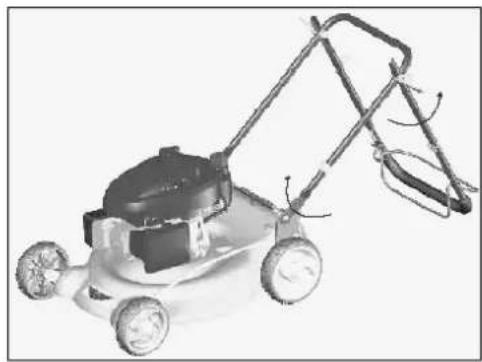

1. Lift up the handle until the lower handle locks in working position.
2. Remove the transport packaging and lift the upper handle to a convenient working position and lock with the knob.

Black-and-white photo of a lawn mower with three wheels and handle (no text or symbols visible)

1. Remove the packaging material from the controls.
2. Fill up with oil and petrol.

OPERATION

Oil

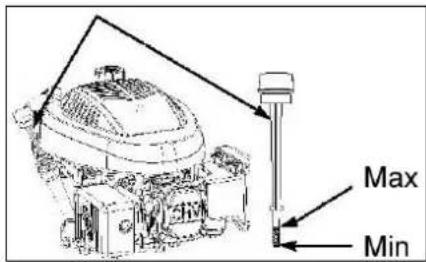

Check the oil level before starting the engine. Top up if necessary.

Use SAE 30 oil for 4-stroke engines.

Always check the oil level before starting the machine. The oil level must be between the Max and Min levels shown in the figure below.

Petrol

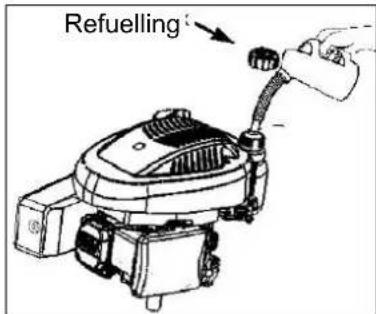

Warning: Petrol is flammable and its fumes are toxic if inhaled. See the safety instructions. Use 95-octane petrol, or green petrol. Do not mix the petrol with oil. Never store petrol for more than one month, either in a container or in the machine.

Starting

1. Check the oil level and that there is enough petrol.

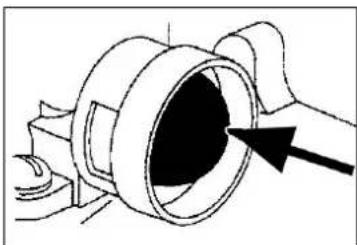

2. If the engine is cold and is fitted with a primer as shown below, press the primer 3 times.
3. When starting the engine after the petrol has run out, press the primer 3 times.
4. Do not press the primer if the engine is hot.

Technical line drawing of a mechanical component with an arrow pointing to a circular opening (no text or symbols)

1. Pull in the handle on the top of handlebar to release the brake.
2. Grip the starter handle firmly. Pull slightly so that the starter engages.
3. Pull out the handle with a quick, firm action so that the engine starts. Note: Do not pull all the way to the end position, the starter cord can come loose.

Stopping

The engine stops when the handle on the handlebar is released. Warning: The blades continue to rotate for a while after the handle has been released. Highly dangerous.

MAINTENANCE

The machine should be cold and the spark plug lead removed from the spark plug before carrying out maintenance. Clean grass and dirt off the lawn mower. Wipe the covers with a damp cloth.

Before using the machine, check:

• That all screws and nuts are tight.
- That the blade attachment is properly tightened.
• That the blade is not damaged.
• That the blade is sharp.
• That the blade is not unbalanced.

- If the blade is damaged or unbalanced, it must be replaced.

Blade

The edges on the blade do not need to be razor sharp, but when they are very blunt the blade should be replaced. Only use original spare parts

Changing the oil

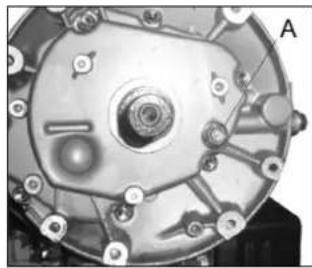

Change the oil once a year, or after 25 working hours. The oil is drained off via the oil drain plug (A) (figure below) and is filled via the hole for the dipstick.

Close-up of a mechanical component with no visible text or symbols

Air filter

Clean the air filter once a year, or after 25 working hours.

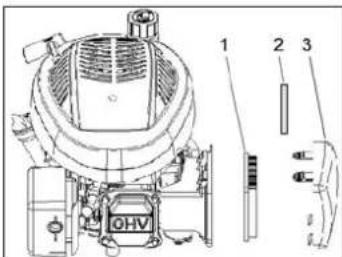

1. Paper filter
2. Foam rubber filter
3. Cover

Storage

• Store the machine in a cool, dry place.
• Drain off the petrol and run the engine until there is no petrol left in the carburettor before storing the machine.
• Change the oil before putting the machine away for storage.

Jula reserves the right to make changes. In the event of problems, please contact our service www.jula.com

Värna om miljön!

EC DECLARATION OF CONFORMITY

EG FÖRSÄKRAN OM ÖVERENSSTÄMMELSE

EF SAMSVARSERKLÆRING

DEKLARACJA ZGODNOŚCI WE

Jula AB, Box 363, SE-532 24 SKARA, SWEDEN

LAWN MOVER / GRÄSKLIPPARE

GRESSKLIPPER / KOSIARKA

S510V

2,6kW, 139cc

Item number / Artikelnummer / Artikkelnummer / Numer artykułu

721-053

conforms to the following directives and standards / överensstämmer med följande direktiv och standarder: er i samsvar med fölgende direktiver og standarder / są zgodne z następującymi dyrektywami i normami:

Machinery Directive 2006/42/EC

EN 836:1997+A4

Electromagnetic Compatibility 2004/108/EC

EN ISO 14982:2009

Outdoor Noise Directive 2000/14/EC, amended by 2005/88/EC

This product was CE marked in year -07

Name and address of the person authorised to compile the technical file:

Jonas Backstad Box 363, SE-532 37 Skara, Sweden

Skara

2013-01-09

Stefan Rundberg

PRODUCT MANAGER
