Product Type	Lawn Mower
Brand	Meec Tools
Model	721-258
Working Width	460 mm
Drive Type	Automatic
Cutting Height Range	25-75 mm
Cutting Height Adjustment	Central
Number of Gears	1
Grass Catcher Volume	55 L
Max Blade Speed	2800 rpm
Sound Power Level (LwA)	96 dB(A)
Engine Oil Capacity	0.6 L
Blade Screw Torque	37 Nm
Fuel Type	Petrol
Assembly Required	Yes
Grass Catcher Included	Yes
Handle Type	Foldable
Safety Features	Engine Control Lever, Deflector
Recommended Use	Lawn mowing only

Frequently Asked Questions - 721-258 Meec Tools

What type of oil should I use and how much?

Use engine oil (SAE 30 or equivalent). Fill with 0.6 L before first use and check regularly.

How do I start the lawn mower?

Press the fuel pump bulb 4 times, set throttle to START, press the engine control lever, and pull the starter cord slowly until it catches, then pull quickly.

How do I adjust the cutting height?

Stop the engine and disconnect the spark plug. Use the central adjustment lever to set height between 25-75 mm.

How do I assemble the grass catcher?

Insert the metal frame into the grass catcher, then attach the catcher to the mower by lifting the deflector and hooking it on.

What safety precautions should I take?

Always wear heavy-duty shoes and long trousers. Keep children and pets away. Never operate without the deflector or grass catcher. Stop the engine before any adjustments.

How often should I sharpen the blade?

Sharpen the blade every 25 working hours. Check balance after sharpening by inserting a screwdriver through the center hole; the blade should hang horizontally.

How do I maintain the lawn mower?

Regularly check oil level, clean grass from underside of deck, lubricate wheel axles with grease, and tighten all screws. Disconnect spark plug before maintenance.

What type of fuel should I use?

Use petrol. Store in approved containers. Refuel outdoors with the engine off and cooled down.

How do I store the mower?

Never store with fuel in the tank near heat sources. Allow engine to cool. Clean the engine and muffler area. Store in a dry place.

What should I do if the mower hits an object?

Immediately stop the engine. Check for damage. If blade is blocked or damaged, have it repaired by an authorised service centre.

USER MANUAL 721-258 Meec Tools

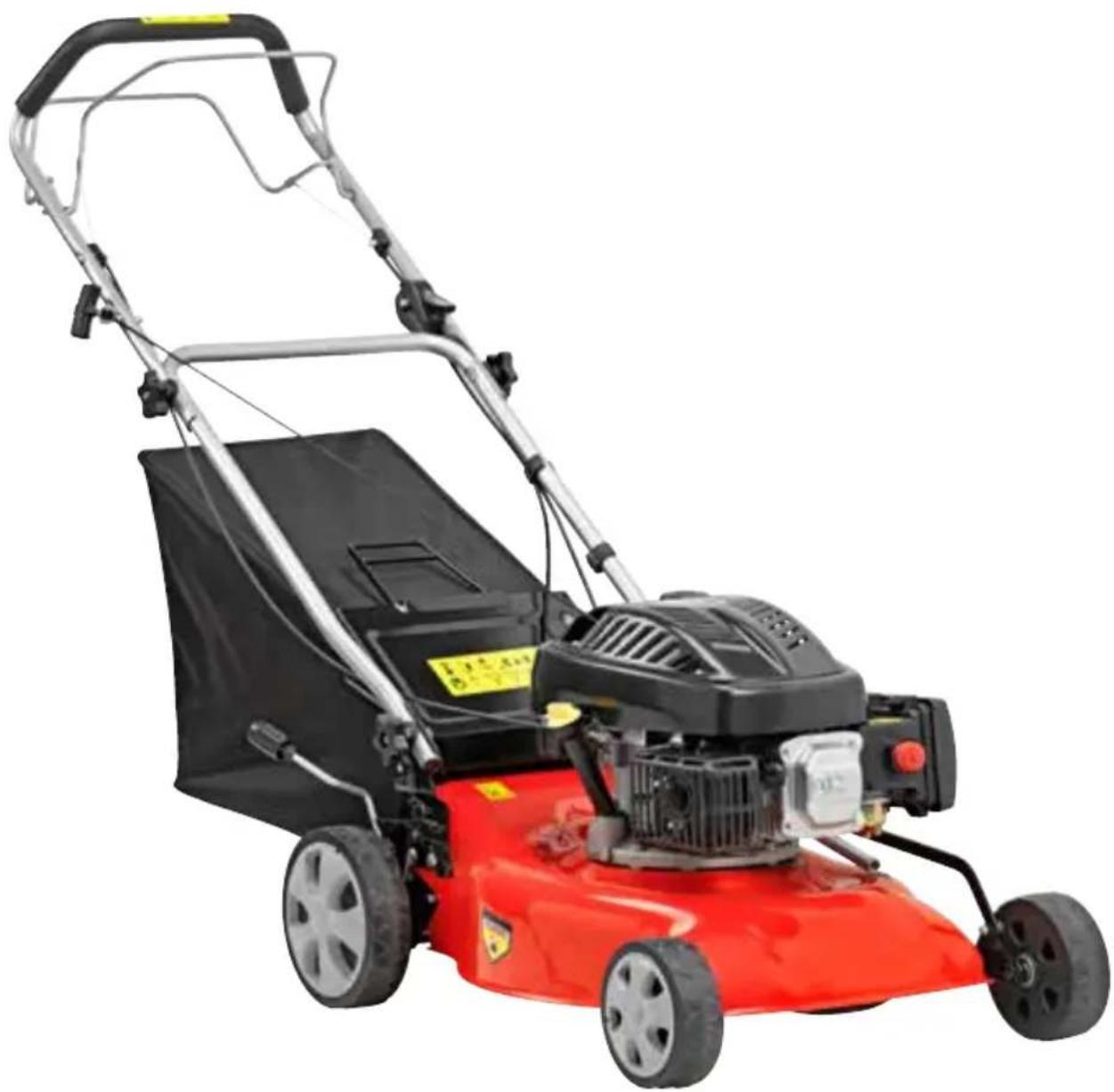

Red and black lawn mower with visible blades and mounting bracket (no text or symbols)

SE Bruksanvisning för gräsklippare
NO Bruksanvisning for gressklipper
PL Instrukcja obsługi kosiarka
EN Operating Instructions for Lawn Mower

SE - Bruksanvisning i original

NO - Bruksanvisning i original

EN - Operating instructions in original © Jula AB

SVENSKA....5

SÄKERHETSANVISNINGAR....5

ALLMÄNT....5

ANVÄNDNING....5

SYMBOLER 7

UNDERHÅLL OCH FÖRVARING. 8

TEKNISKA DATA 8

BESKRIVNING 9

MONTERING 9

MONTERING AV GRÄSUPPSAMLARE 9

MONTERING AV HANDTAG 10

INSTÄLLNING AV KLIPPHÖJD 10

SÄKERHETSANVISNINGAR....11

HANDHAVANDE 11

START AV MOTOR 12

FÖR SJÄLVGÅENDE GRÄSKLIPPARE 13

DRIVNING 13

UNDERHÅLL 14

NORSK 16

SIKKERHETSANVISNINGER 16

GENERELT 16

BRUK....16

SYMBOLER 18

VEDLIKEHOLD OG OPPBEVARING 19

TEKNISKE DATA 19

BESKRIVELSE....20

MONTERING 20

MONTERING AV GRESSOPPSAMLER 20

MONTERING AV HÅNDTAK 21

INNSTILLING AV KLIPPEH∅YDE 21

SIKKERHETSANVISNINGER....22

BRUK....22

SAFETY INSTRUCTIONS 38

GENERAL 38

USE....38

SYMBOLS 40

MAINTENANCE AND STORAGE 41

TECHNICAL DATA 41

DESCRIPTION 42

ASSEMBLY 42

FITTING THE GRASS CATCHER 42

FITTING THE HANDLE 43

ADJUSTING THE CUTTING HEIGHT....43

SAFETY INSTRUCTIONS....44

OPERATION....44

STARTING THE ENGINE 45

FOR AUTOMATIC LAWN MOWER....46

DRIVE 46

MAINTENANCE 47

Line drawing of a hand pouring liquid into a mechanical device (no text or symbols)

Bränsle

SYMBOLER

Three technical line drawings of household items: a grid box, a bag, and a mobile cart with a plug (no text or symbols)

MONTERING AV HANDTAG

Technical line drawing of a mechanical assembly with exploded view and component details (no text or symbols)

INSTÄLLNING AV KLIPPHÖJD

Line drawing of a lawn mower with visible wheels and handle (no text or symbols)

SÄKERHETSANVISNINGAR

HANDHAVANDE

Illustration of five different mechanical or industrial components, including a tool holder, gear shift, cutting cutter, and cutting blade (no text or symbols present)

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Värna om miljön!

Simple line drawing of a hand holding a fuel nozzle (no text or symbols)

Drivstoff

SYMBOLER

VEDLIKEHOLD OG OPPBEVARING

Three technical line drawings of mechanical components labeled A, B, and C, showing different views and internal structures (no text or symbols beyond labels)

MONTERING AV HÅNDTAK

Technical line drawing of a mechanical assembly with exploded view and component detail (no text or labels)

INNSTILLING AV KLIPPEH∅YDE

Line drawing of a lawn mower with visible blades and wheels (no text or symbols)

SIKKERHETSANVISNINGER

BRUK

Olje

Line drawing of a mechanical device with a hand holding a glass and connecting tubing (no text or symbols)

Line drawing of a lawn mower with visible blades and wheels (no text or symbols)

DRIFT

Illustration of five different mechanical components or tools, including a flat tool, gear mechanism, fan blade, and cutting tool (no text or symbols present)

Symbol of a trash bin with no text or labels, crossed by diagonal lines and a solid black rectangle below (no readable text or symbols)

Verne om miljøet!

Line drawing of a hand holding a pump nozzle (no text or symbols)

Paliwo

SYMBOLE

Three technical line drawings of household items: a grid box, a bag, and a mobile cart with a plug (no text or symbols)

MONTAŻ UCHWYTU

Technical line drawing of a mechanical assembly with exploded view and component details (no text or symbols)

REGULACJA WYSOKOŚCI KOSZENIA

Line drawing of a lawn mower with visible blades and wheels (no text or symbols)

ZASADY BEZPIECZEŃSTWA

OBSŁUGA

Olej

Line drawing of a mechanical device with a hand holding a tool, no text or symbols present

Line drawing of a lawn mower with visible blades and wheels (no text or symbols)

NAPED

Illustration of five different mechanical or industrial components, including a tool, valve, gear mechanism, and cutting tool (no text or symbols present)

Symbol of a trash bin with no text or labels

Dbaj o środowisko!

Read the instructions carefully before use.

Save these instructions for future reference.

GENERAL

• This machine is only intended for mowing lawns. Only use the machine in accordance with these instructions. All other use involves a risk of serious personal injury and/or material damage.
• Never allow children, persons with functional disorders or persons who are unfamiliar with the machine and these instructions, to use it.
• The user is responsible for any accidents or risks to other persons or property. Keep other people, especially children, and pets at a safe distance from the work area.
• Carefully inspect the area where the machine is to be used and remove any stones, wires, bones or other foreign objects. Ejected objects can cause serious personal injury.

USE

• Regularly check that all screw connections are properly tightened.
  • Always check that the grass catcher, side ejector outlet or mulcher unit, is fitted.
• Always check that the blade and blade screw are properly tightened. Check that the blade is sharp at regular intervals, and sharpen when necessary. Check the balance of the blade after sharpening. Replace the blade if it is damaged.
  • Always wear heavy-duty shoes and long trousers when using the machine.
• Never start the engine indoors or in an enclosed area. Exhaust fumes from the engine contain carbon monoxide, an odourless and highly dangerous gas – risk of serious personal injury and/or death.
• Only use the machine in daylight, or in good artificial lighting.
• Do not use the machine when it is raining, or in wet grass.
• Be very careful when changing direction, and when on slopes. Mow across slopes, never up or down.
• Do not leave the machine unattended when the engine is running. Never tilt, lift or carry the machine when the engine is running.
• Never lift or tilt the machine when starting the engine. Never put your hands or feet under the deck or in the ejector opening when the engine is running.
• The rated engine speed is set at the factory and must not be changed.
  • Disengage the drive before starting.
• Never lift or carry the machine when the engine is running.
• Switch off the engine and disconnect the spark plug lead from the spark plug in the following situations.

— Before doing any work under the deck or in the ejector opening.

– Before inspection, maintenance and/or repairs.

• Before tilting, lifting or carrying the machine.
  – Before leaving the machine unattended.
• Before adjusting the cutting height.
  — Before removing the grass collector.
• Switch off the engine immediately if you hit something. Check that the machine is not damaged before starting it again. Contact an authorised service centre to have it repaired if necessary.

WARNING: The blade continues to rotate for a few seconds after the engine is switched off.

• Switch off the machine immediately in the event of abnormal noise or vibrations. Have the machine checked and repaired before using it again.
• Always check that all the screw connections are tightened and that the safety devices are properly fitted.

WARNING: Petrol is highly flammable and can in certain circumstances be explosive – risk of burn injuries when refuelling.

• Only store petrol in approved containers.
• Use a funnel or the equivalent when handling fuel. Work outdoors, at a safe distance from any sources of heat. Do not smoke. Do not use mobile phone.
• Always fill up with fuel and engine oil before using for the first time. Never remove the fuel cap or add fuel while the engine is running. Allow the engine to cool before filling with fuel.
• Be careful not to spill fuel when filling. Wipe up any spilled fuel immediately. Move the machine away from any fuel spill before starting.
• Replace and firmly tighten the fuel cap after filling. Replace and tighten the cap on the petrol container.

Air filter

Line drawing of a hand pouring liquid into a mechanical device (no text or symbols)

Fuel

SYMBOLS

IMPORTANT: Read these instructions carefully before assembly and use.

SYMBOL EXPLANATION
	IMPORTANT: Read these instructions before use.
	IMPORTANT: Keep onlookers, especially children, at a safe distance from the work area.
	IMPORTANT: Keep your hands and feet away from moving parts – risk of serious personal injury and/or death.
	IMPORTANT: Only use the machine outdoors and in well-ventilated areas.
	IMPORTANT: Hot surfaces – risk of burn injuries.
	IMPORTANT: Switch off the engine, release the spark plug lead from the spark plug, and wait until all moving parts have completely stopped before maintenance or any other work on the machine.
	IMPORTANT: Never refuel when the engine running.

MAINTENANCE AND STORAGE

WARNING: Switch off the engine, release the spark plug lead from the spark plug, and wait until all moving parts have completely stopped before cleaning, maintenance and/or repairs.

• Regularly check that all screw connections are properly tightened.
• Never store the machine with fuel in the tank in areas with sources of heat, such as hot water heaters, heaters and driers etc. Allow the engine to cool before putting the machine away.
• Clean the engine and the area around the muffler and the fuel tank. Remove any residual grass and grease.
• Regularly check the deflector and grass catcher for wear or damage.
• Wear safety gloves when handling blades. Only use correctly balanced blades.

TECHNICAL DATA

Max. working width (mm) 460
Drive	Automatic
Cutting height (mm) 25–75 mm
Gears	1
Adjusting the cutting height Central
Grass catcher volume 551
Max. blade speed (rpm) 2800
Sound power level, LwA 96
Sound pressure level, LpA
Max. vibration

Always wear ear protection.

The declared vibration value, which has been measured by a standardised test method, can be used to compare different tools with each other and for a preliminary assessment of exposure.

WARNING: The actual vibration level when using power tools may differ from the specified total value, depending on how the tool is used. It is therefore necessary to determine which safety precautions are required to protect the user, based on an estimate of exposure in actual operating conditions (taking into account all stages of the work cycle, e.g. the time when the tool is switched off and when it is idling, in addition to the start-up time).

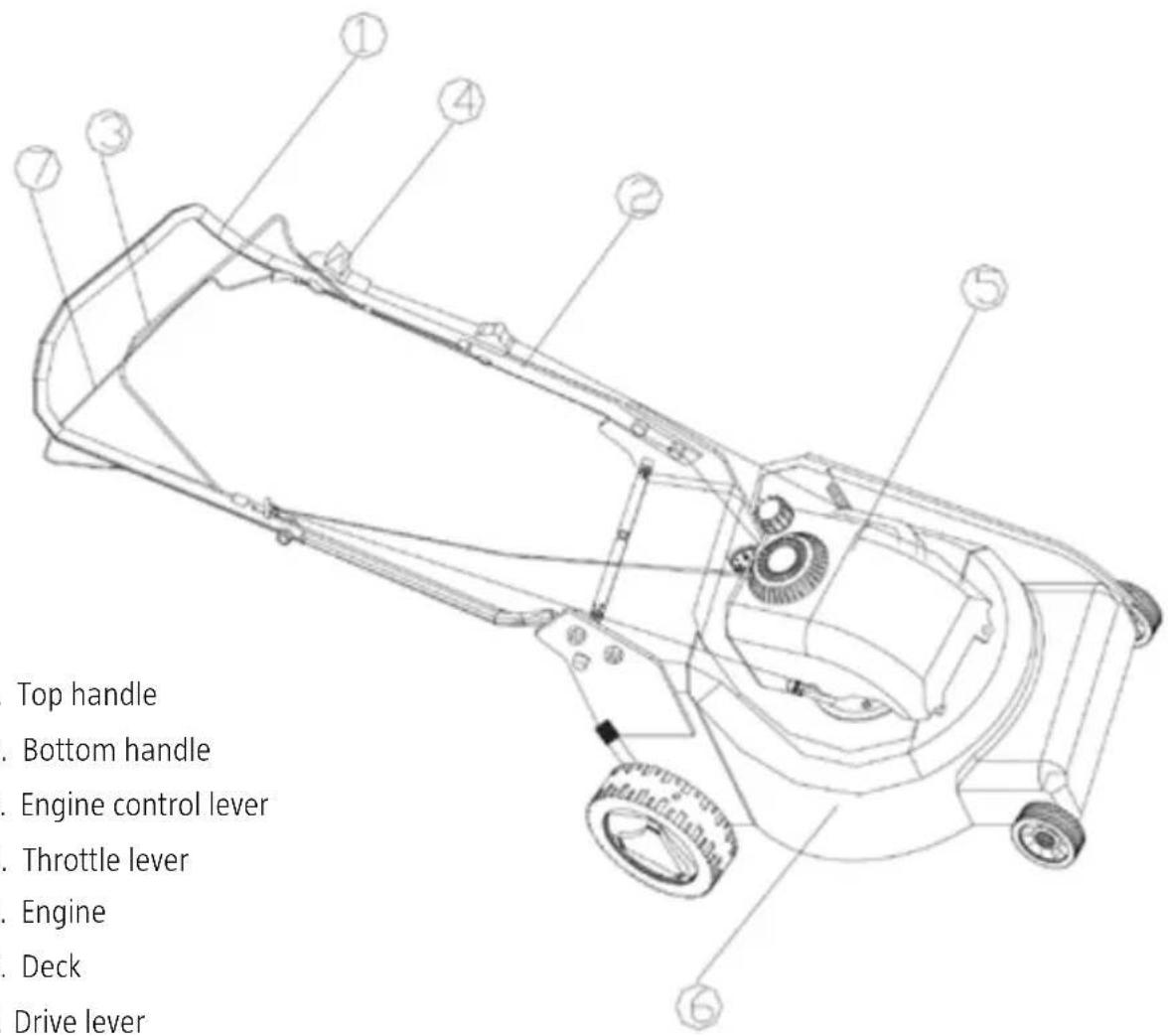

DESCRIPTION

ASSEMBLY

FITTING THE GRASS CATCHER

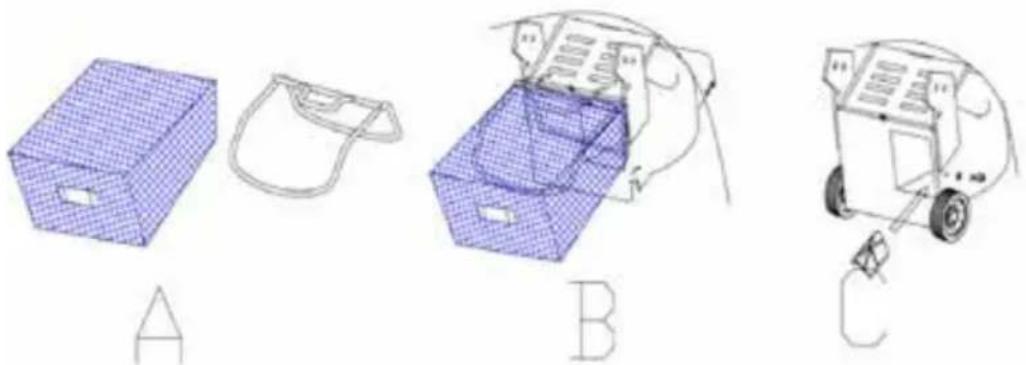

1. Insert the metal frame in the grass catcher (fig. A).
2. Fasten the grass catcher on the metal frame (fig. A).
3. Pull up the deflector and put on the grass catcher (fig. B).

Three technical line drawings of mechanical components labeled A, B, and C, showing different views and internal structures (no text or symbols beyond labels)

FITTING THE HANDLE

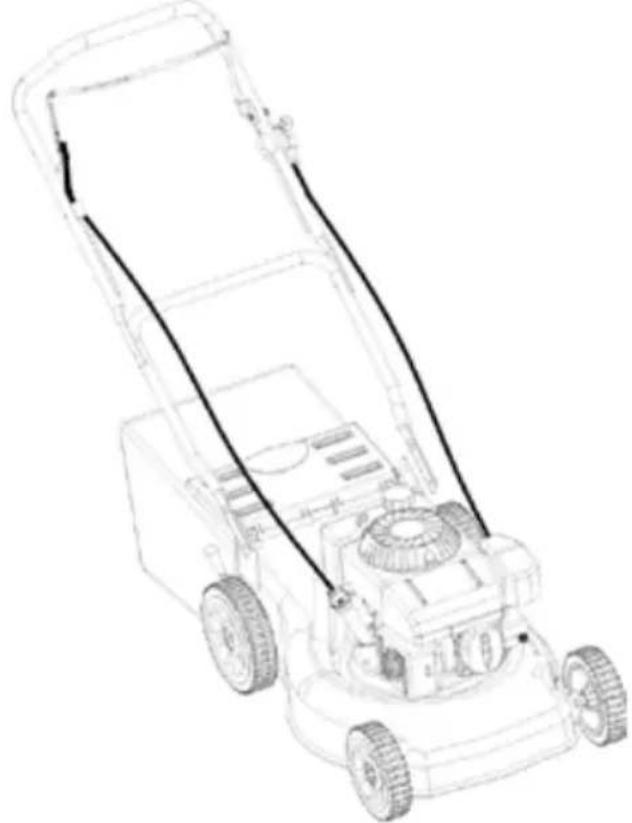

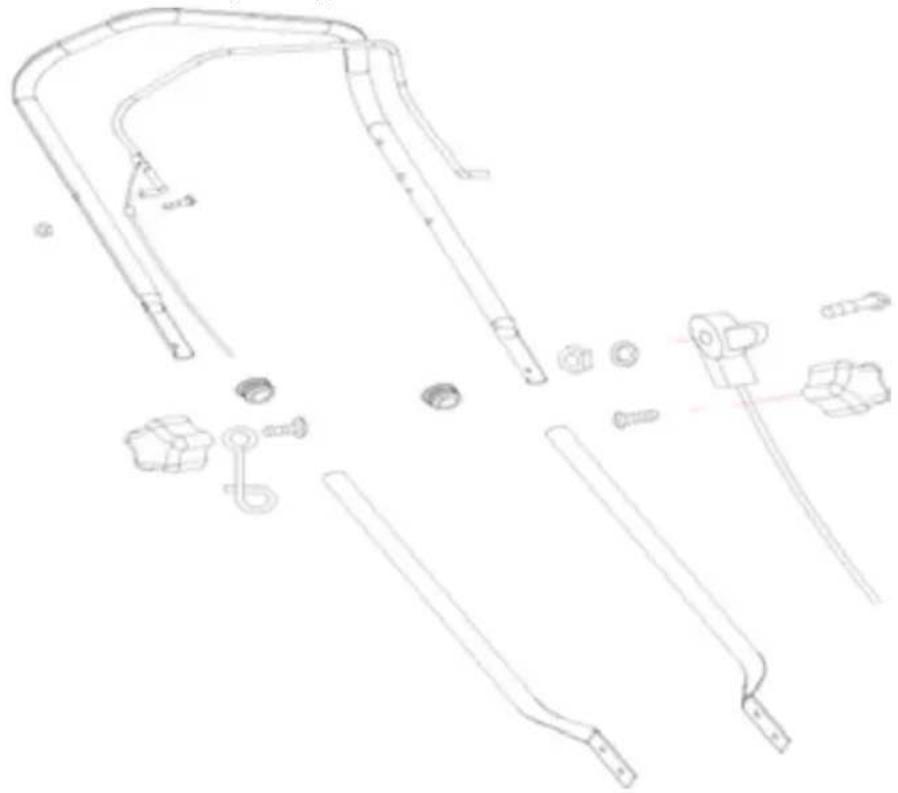

1. Fold out the handle and screw the parts together with the two screws and plastic nuts.

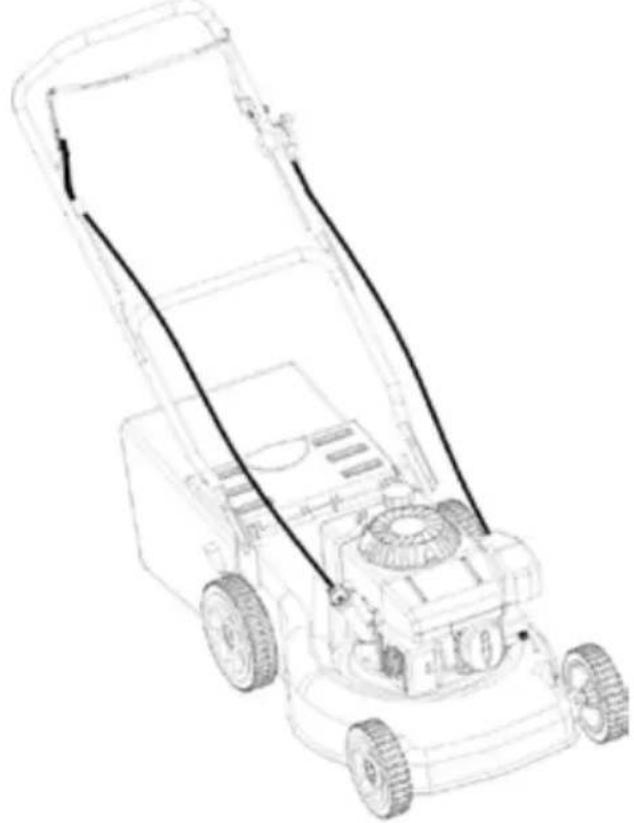

2. Hang the starter cord handle on the right-hand side of the handle and fasten the starter cord with the plastic sleeve.
3. Pull the starter cord through the guide.

Technical line drawing of a mechanical assembly with exploded view and component detail (no text or labels)

ADJUSTING THE CUTTING HEIGHT

Line drawing of a lawn mower with visible wheels and handle (no text or symbols)

SAFETY INSTRUCTIONS

• Do not use the machine without the deflector or grass catcher.
• Switch off the engine, release the spark plug lead from the spark plug, and wait until all moving parts have completely stopped before adjusting the cutting height.
• Never put your hands or feet under the deck or in the ejector opening when the engine is running (fig. E).
• Carefully inspect the area where the machine is to be used and remove any stones, wires, bones or other foreign objects (fig. F).
• Keep other people, especially children, and pets at a safe distance from the work area.

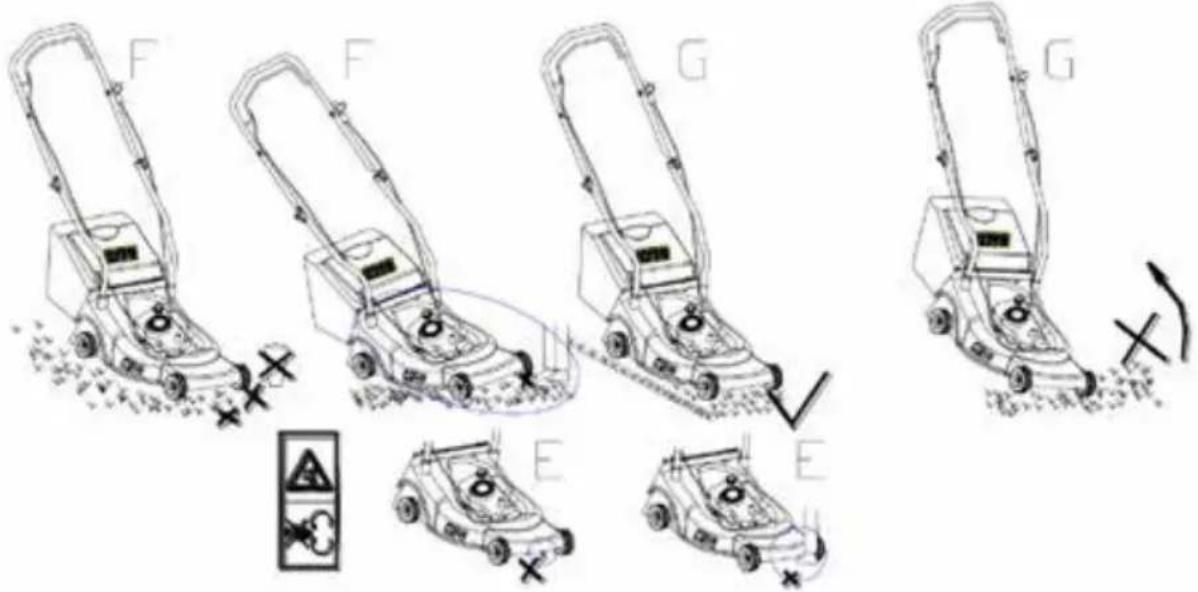

• Never lift or tilt the machine when starting the engine (fig. G).

OPERATION

Oil

Line drawing of a mechanical device with a hand holding a tool, no text or symbols present

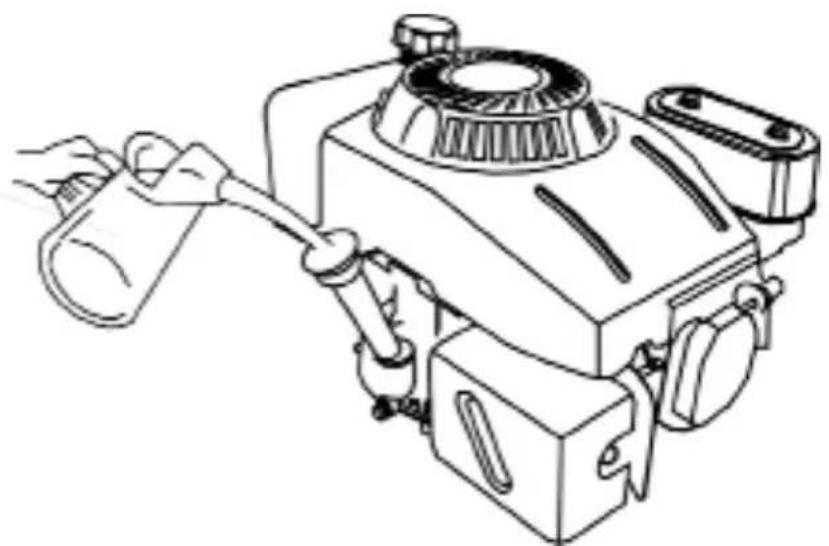

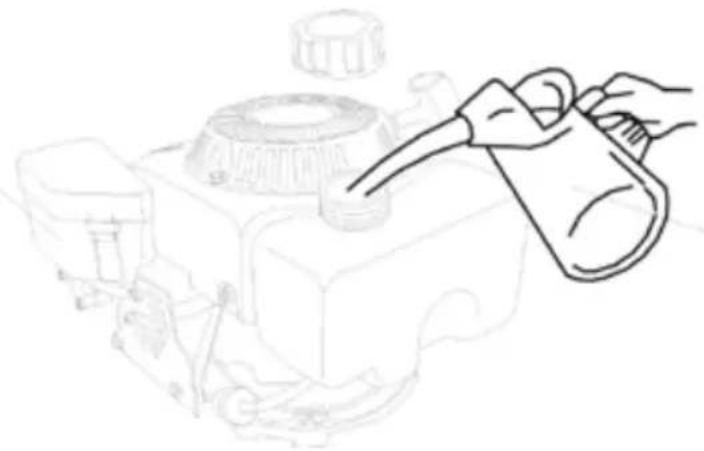

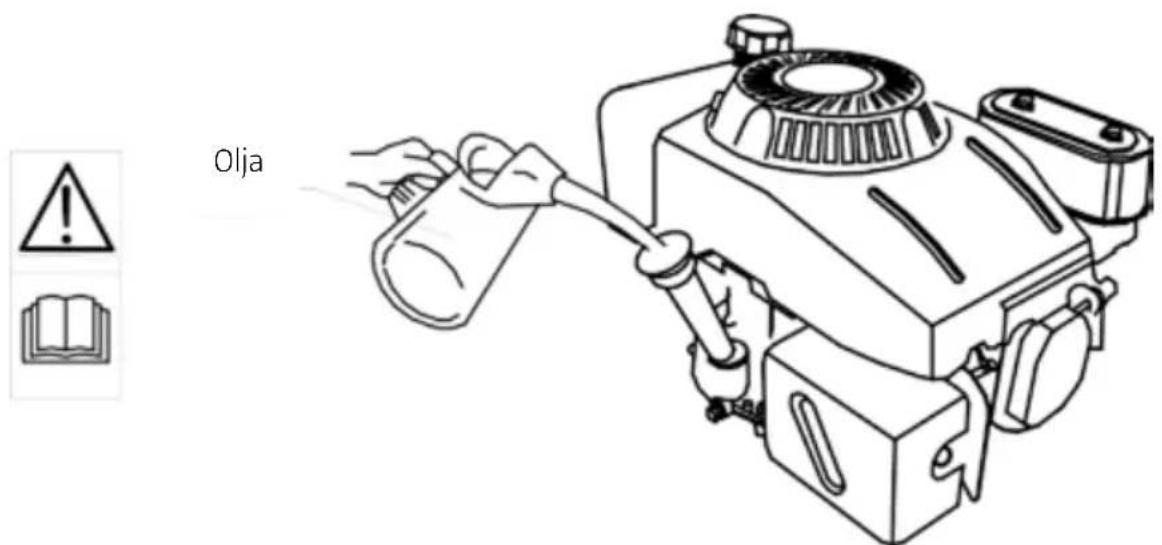

The engine is supplied without oil. Fill up with engine oil (0.6 l) before using for the first time.

STARTING THE ENGINE

1. Press the fuel pump bulb 4 times.
2. Put the throttle control lever in the START position.

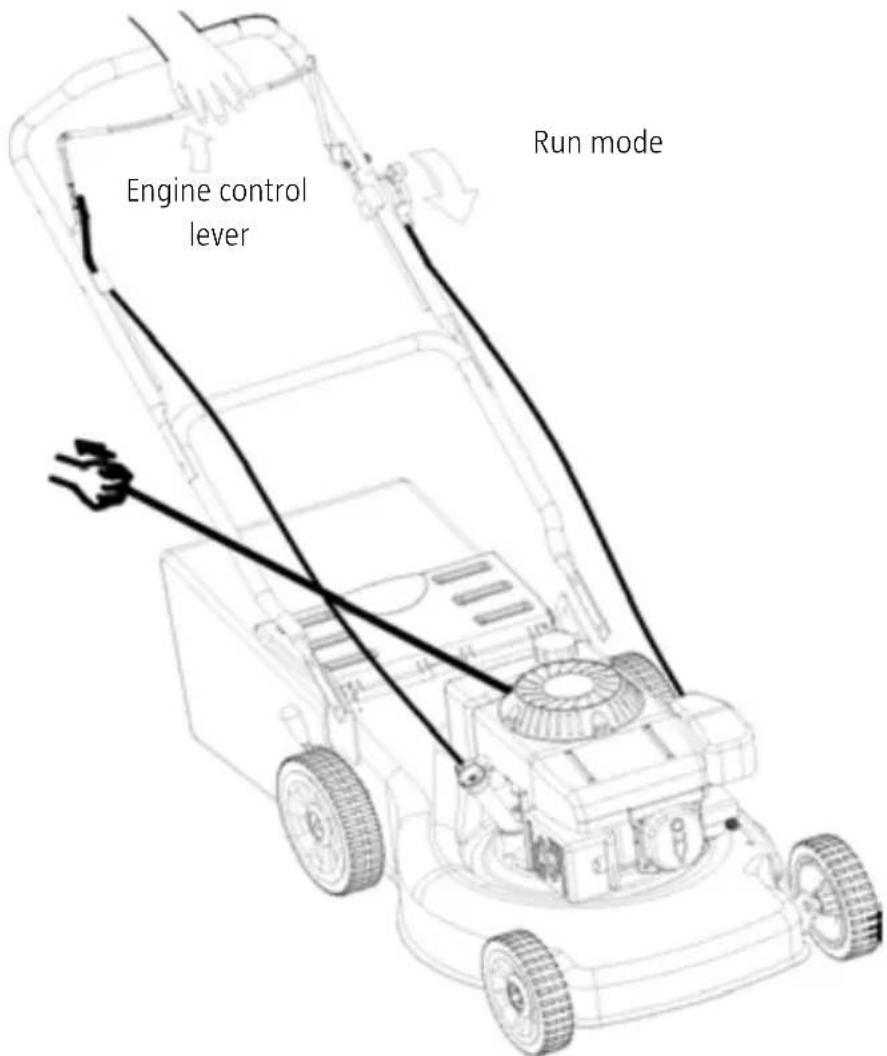

3. Press the engine control lever against the handle. To start the engine, pull the starter cord slowly until it catches and then pull quickly.
4. Put the throttle control lever in the RUN position.

The blade starts rotating when the engine starts. Keep the engine control lever (3) pressed against the handle while working. The engine stops when the engine control lever is released.

FOR AUTOMATIC LAWN MOWER

Drive lever in drive mode

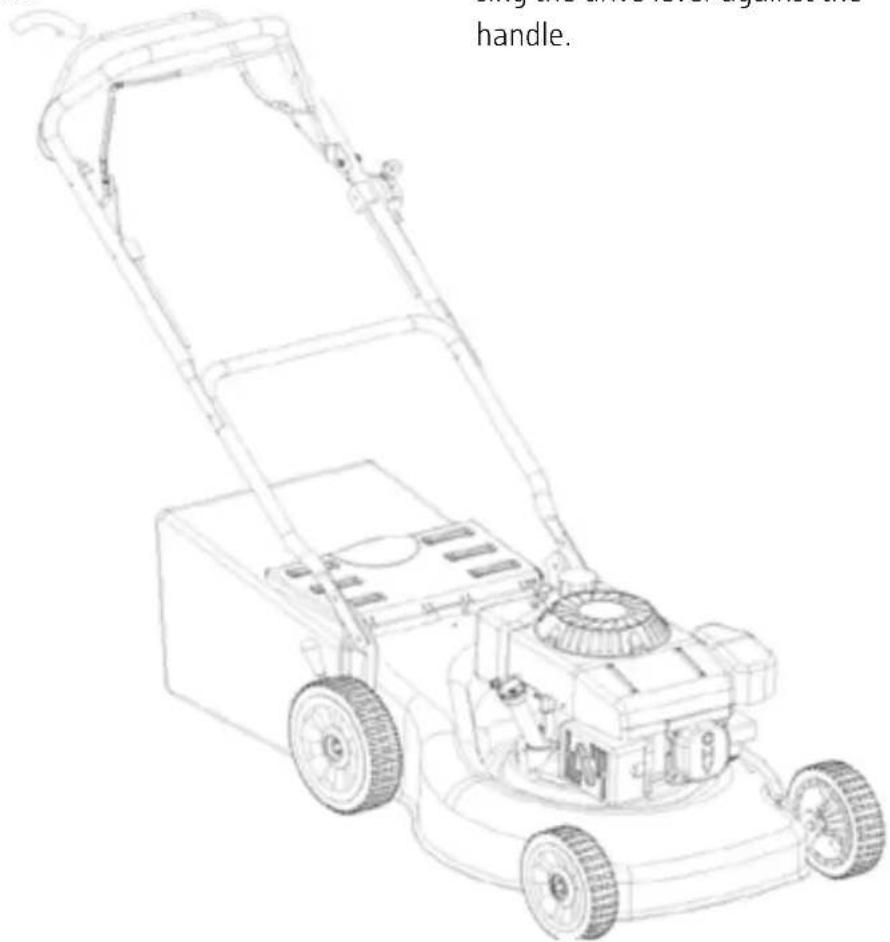

Start the wheel drive by pressing the drive lever against the handle.

DRIVE

• Check the drive system regularly.
• Clean och lubricate the wheel axles and bearings regularly with grease.

MAINTENANCE

WARNING: Switch off the engine, release the spark plug lead from the spark plug, and wait until all moving parts have completely stopped before cleaning, maintenance and/or repairs.

Switch off the engine, release the spark plug lead from the spark plug, and wait until all moving parts have completely stopped before cleaning, maintenance and/or repairs.

• Check the oil level regularly and top up or change the oil if necessary.
• Remove grass from underneath the deck regularly.
• Lubricate the wheel axles and bearings regularly with grease.

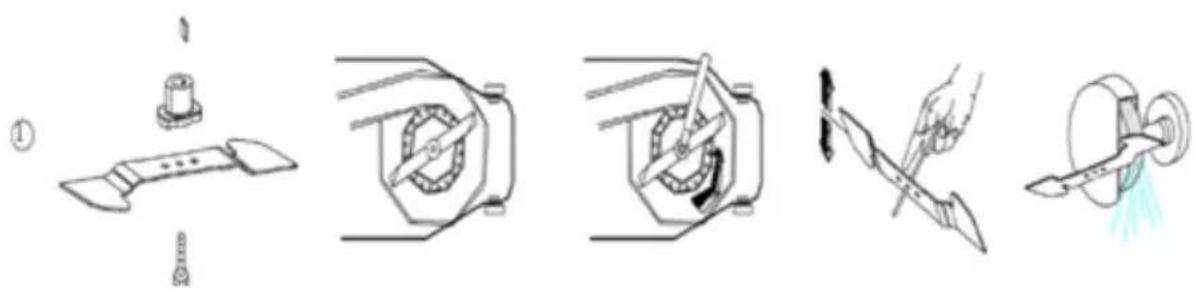

  • Regularly check that the blade is sharp and correctly balanced.
• Regularly check that all screw connections are properly tightened. Damaged or defective screw connections can cause serious personal injury and/or material damage.
• If you run against a hard object, stop and check that the blade is not blocked or damaged. Repairs should be carried out by qualified personnel or an authorised service centre.

The blade should be sharpened at intervals of about 25 working hours. Check the balance of the blade by inserting a screwdriver with a round stem through the hole in the middle of the blade. The blade should hang horizontally without moving.

If the blade is unbalanced, file off some of the metal on the side of the blade that drops down.

NOTE: Only use blades recommended by the manufacturer.

Remove the blade by undoing the blade screw. Check the blade bracket and replace worn or damaged parts.

Make sure to fit the blade with the edge pointing forwards in the direction of rotation of the engine. Tighten the blade screw to 37 Nm with a torque wrench.

Illustration of five different mechanical components or tools, including a flat tool, gear shift, fan blade, and cutting tool (no text or symbols present)

IMPORTANT: Only use original spare parts. The use of other parts can lead to serious personal injury or material damage.

Jula reserves the right to make changes. In the event of problems, please contact our service department. www.jula.com

Care for the environment!

Must not be discarded with household waste!

This product contains electrical or electronic components that should be recycled.

Leave the product for recycling at the designated station e.g. the local authority's recycling station.

EC DECLARATION OF CONFORMITY

EG FÖRSÄKRAN OM ÖVERENSSTÄMMELSE

EF SAMSVARSERKLÆRING

DEKLARACJA ZGODNOŚCI WE

Jula AB, Box 363, SE-532 24 SKARA, SWEDEN

certify that the design and manufacturing of this product

Machinery Directive 2006/42/EC

ISO 8437:1989+A1

Electromagnetic Compatibility Directive 2004/108/EC

EN 55012:2007+A1, EN 61000-6-1:2007

Outdoor Noise Directive 2000/14/EC, amended by 2005/88/EC

Measured sound power level on an equipment representative for this type: Uppmätt ljudeffektnivá på en utrustning som är representativ för denna typ: Målt lydeffektnivá for utstyr som er representativt for vedkommende type: zmierzony poziom mocy akustycznej urządzenia reprezentatywnego dla danego typu:	Guaranteed sound power level: Garanterad ljudeffektnivá: Garantert lydeffektnivá: Gwarantowana moc akustyczna:	Conformity assessment procedure according to 2000/14/EC: Förfarande för bedömning av överensstämmelse enligt 2000/14/EC: Framgangsmáter for samsvarsvurdering iht. 2000/14/EC: Procedura oceny zgodności na podstawie dyrektywy 2000/14/WE:
108 dB(A) 110 dB(A)		Annex V / Bilaga V Vedlegg V / Załącznik V

This product was CE marked in year -13

Name and address of the person

Jonas Backstad

authorised to compile the technical file:

Box 363, SE-532 37 Skara, Sweden

Skara 2013-08-23

Stefan Rundberg

PRODUCT MANAGER
