MG2001SB - Meat Grinder GORENJE - Free user manual and instructions

Product Type	Electric Meat Grinder
Brand	Gorenje
Model	MG2001SB
Maximum Operating Time	10 minutes (continuous)
Noise Level	< 85 dB(A)
Safety System	Non-resettable, current-sensitive glass fuse
Motor Unit	Included
On/Off and Reverse Button	Yes
Release Button	Yes (for cutter housing removal)
Cutter Housing	Included
Feeding Tray	Included
Sausage Horn	Included
Grinding Discs	2 discs (fine and medium)
Separator and Cutters	Included
Pusher	Included
Screw Ring	Included
Material (Cutter and Discs)	Metal (hand wash only, not dishwasher safe)
Material (Housing)	Plastic
Usage	Household only, not for professional use
Environmental Compliance	WEEE Directive 2012/19/EU

Frequently Asked Questions - MG2001SB GORENJE

What is the maximum operating time?

The maximum continuous operating time is 10 minutes. After that, allow the appliance to cool down.

Can I grind frozen meat?

No, never use frozen meat. Always cut the meat into strips (10 cm long, 2 cm thick) and remove bones and sinews.

How should I clean the metal parts?

Do not clean metal parts in the dishwasher as detergents will cause darkening. Instead, hand wash them with mild soap and dry immediately. Lightly brush with fat or oil to prevent rust.

What should I do if the appliance stops suddenly?

Unplug the appliance and let it cool for 60 minutes. Plug it back, turn it off, then press the circuit breaker button at the bottom to reset.

Can I use accessories from other brands?

No, only use Gorenje recommended accessories or parts. Using non-approved parts will void the guarantee.

How do I make sausages?

First mince the meat. Soak the sausage skin in lukewarm water for 10 minutes, then slide it onto the sausage horn. Push the minced meat through gently, and wet the skin if it gets stuck.

Is this grinder suitable for professional use?

No, this appliance is designed for household use only and should not be used professionally.

How do I disassemble the grinder?

Press the release button and turn the cutter housing to the right. Remove the pusher and feeding tray, then unscrew the screw ring to access the grinding disc, cutter unit, and worm shaft.

What safety features does the grinder have?

It has a non-resettable glass fuse that cuts power in case of motor failure to prevent overheating. Also, a thermostat system automatically shuts off if overheating occurs.

Can children use this appliance?

Children aged 8 years and above can use it under supervision, but they must be instructed on safe use and understand the hazards. Children should not clean or maintain it unless supervised.

USER MANUAL MG2001SB GORENJE

Black and white photo of a Gorenje meat maker with a side blade and control panel (no visible text or symbols)

MG 2001 SB

Navodila za uporabo	SI
Upute za uporabu	BIH HR
Uputstvo za upotrebu	BIH SRB MNE
Instruction manual	GB
Instrukcja obsługi	PL
Instrucțiuni de utilizare	RO
Návod na obsluhu	SK
Használati útmutató	H
Инструкции за употреба	BG
Інструкція з експлуатації	UA
Руководство по эксплуатации	RU
Návod k obsluze	CZ
Упатства за употреба	MK
Gebrauchsanleitung	DE

SI Navodila za uporabo.... 3

Line drawing of a projector with a slide and lens, showing an arrow indicating motion (no text or symbols)

Line drawing of a megaphone device with a triangular top and control panel (no text or symbols)

Line drawing of a hand holding a small object with a magnifying glass, next to an open device (no text or symbols)

Line drawing of a hand operating a device with a knob (no text or symbols)

Line drawing of a hand operating a device with a knob and scroll (no text or symbols)

Line drawing of a mechanical device with an arrow indicating motion (no text or symbols)

Line drawing of a sewing machine with a downward arrow indicating compression (no text or symbols)

Priprava klobas - napotki in opozorila

Najprej vedno zmeljite meso.

Line drawing of a mechanical device with multiple circular components and a scroll, showing motion direction (no text or symbols)

Line drawing of a hand operating a small electronic device (no text or symbols visible)

Line drawing of a sewing machine with a downward arrow indicating compression (no text or symbols)

Blank white image with no visible content, text, or symbols

Priprava klobas - napotki in opozorila

Najprej vedno zmeljite meso.

Line drawing of a manual cutting machine with a lever and handle (no text or symbols)

Rezalec zelenjave

Diagram of a sewing machine tool with a gear and screw, showing mechanical assembly (no text or labels)

Line drawing of a sewing machine with a handle and spout (no text or symbols)

Rezalica za povrće

Line drawing of a mechanical device with a lever and base, no text or symbols present

Okolina

Simbol na proizvodu ili na njegovoj ambalaži označuje, da se s tim proizvodom ne smije postupiti kao s otpadom iz domaćinstva. Umjesto toga treba biti uručen prikladnim sabirnim točkama za recikliranje elektroničkih i električkih aparata. Ispravnim odvoženjem ovog proizvoda spriječit ćete potencijalne negativne posljedice na okoliš i zdravlje ljudi, koje bi inače mogli ugroziti neodgovarajućim rukovanjem otpada ovog proizvoda. Za detaljnije informacije o recikliranju ovog proizvoda molimo Vas da kontaktirate Vaš lokalni gradski ured, uslugu za odvoženje otpada iz domaćinstva ili trgovinu u kojoj ste kupili proizvod.

Garancija i servis

Za informacije ili u slučaju problema obratite se Centru Gorenja za pomoć korisnicima u vašoj državi (telefonski broj naći ćete u međunarodnom garancijskom listu). Ako u vašoj državi nema takvog centra, obratite se lokalnom trgovcu Gorenja, ili odjelu Gorenja za male kućanske aparate.

Nije za profesionalnu uporabu!

GORENJE VAM ŽELI PUNO ZADOVOLJSTVA U RADU S VAŠIM APARATOM!

1. Jedinica motora
2. Dugme za uključivanje / Povratak
3. Dugme za otvaranje
4. Kućište rezača
5. Podložak
6. Cev za klobasice
7. Plošča za mletje
8. Separator
9. Rezalica

Važno

Pre upotrebe pažljivo pročitajte ovo uputstvo i sačuvajte ga za buduće potrebe.

• Jačina buke: Lc < 85 dB (A)
- Deca mlada od 8 godina moraju se udaljiti, osim ako su pod stalnim nadzorom.
- Ovaj uređaj mogu koristiti deca koja su napunila najmanje 8 godina i osobe sa smanjenim fizickim, culnim ili mentalnim sposobnostima, kao i osobe koje nemaju dovoljno iskustva i znanja ukoliko su pod nadzorom ili su dobili uputstva koja se odnose na upotrebu ovog uređaja na bezbedan nacin i razumeju povezane opasnosti.

Line drawing of a kitchen tool with gears and a handle, showing internal components (no text or symbols)

Zaščita okoline

Simbol na proizvodu ili na njegovoj ambalaži označava, da se sa tim proizvodom ne sme postupati kao sa otpadom iz domaćinstva. Umesto toga, proizvod treba predati odgovarajućim sabirnim centrima za reciklažu elektronskih I električnih aparata. Ispravnim odvoženjem ovog proizvoda sprečićete potencijalne negativne posledice na životnu sredine I zdravlje ljudi, koji bi inače mogli biti ugroženi neodgovarajućim rukovanjem otpadom ovog proizvoda. Za dobijanje detaljnih informacija o tretmanu, odbacivanju I ponovnom korišćenju ovog proizvoda, stupite u kontakt sa prikladnim lokalnim ustanovama, službom za sakupljanje kućnog otpada ili sa prodavnicom u kojoj ste kupili ovaj proizvod.

Garancija i servis

Za informacije ili u slučaju problema obratite se Centru Gorenja za pomoć korisnicima u vašoj državi (telefonski broj naći ćete u međunarodnom garantnom listu). Ako u vašoj državi nema takvog centra, obratite se lokalnom prodavcu Gorenja, ili odelu Gorenja za male kućanske aparate.

Nije za komercialnu upotrebu!

GORENJE VAM ŽELI MNOGO ZADOVOLJSTVA U RADU S VAŠIM APARATOM! Pridržavamo pravo do promen

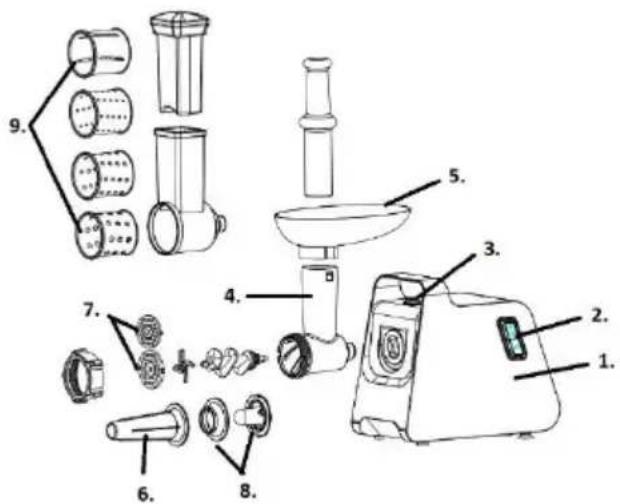

1. Motor unit
2. On-OFF button / Reverse
3. Release button
4. Cutter housing
5. Feeding tray
6. Sausage horn
7. Grinding disc
8. Separator
9. Cutters

Important

Read these instructions for use carefully before using the appliance and save them for future reference.

• Noise level: Lc <85 dB(A)
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not play with the appliance. - Cleaning and maintenance shall not be made by children unless they are older than 8 and supervised.

- Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.

- In order to avoid a hazardous situation, this appliance must never be connected to a timer switch.

- Do not use the appliance if the mains cord, the plug or other parts are damaged.

- If the mains cord is damaged, it must be replaced by Gorenje, a service centre authorized by Gorenje or similarly qualified persons in order to avoid a hazard.

• Keep the appliance out of the reach of children.
• Never let the appliance run unattended.
• Never exceed the maximum operating time of 10 minutes at all applications.
  • Always switch the appliance off by pressing the on/off button.
• Switch the appliance off and unplug it before detaching any accessory.
• Never immerse the motor unit in water or any other liquid, nor rinse it under the tap.
• Never use your fingers or an object (e.g. a spatula) to push ingredients into the cutter housing while the appliance is running. Only the pusher is to be used for this purpose.
• Be very careful when handling the cutter unit, especially when removing it from the worm shaft and during cleaning. The cutting edges are very sharp!
• Never use any accessories or parts from other manufacturers or that have not been specifically advised by Gorenje, d.d.. Your guarantee will become invalid if such accessories or parts have been used.
• Thoroughly clean the parts that will come into contact with food before you use the appliance for the first time.
• Do not clean the metal parts in the dishwasher, as dishwasher detergents will cause these parts to darken or oxidize. See the Cleaning section for instructions on how to clean the various parts.
• This appliance is meant for household use only.
• Never connect this appliance to an external timer switch or remote control system in order to avoid a hazardous situation.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

Safety system

This appliance is equipped with a non-resettable, current-sensitive glass fuse that cuts off the power supply in case of motor failure to prevent overheating of the appliance. This system will automatically cut off the power supply to the appliance in case of overheating. If your appliance suddenly stops running:

1. Pull the mains plug out of the socket.

2. Let the appliance cool down for 60 minutes

3. Put the mains plug in the socket.
4. Press the switch button to turn off the appliance.
5. Press the circuit breaker button at the bottom of the appliance to turn on the appliance.

Please contact you dealer of an authorized service center if the thermostat system is activated too often.

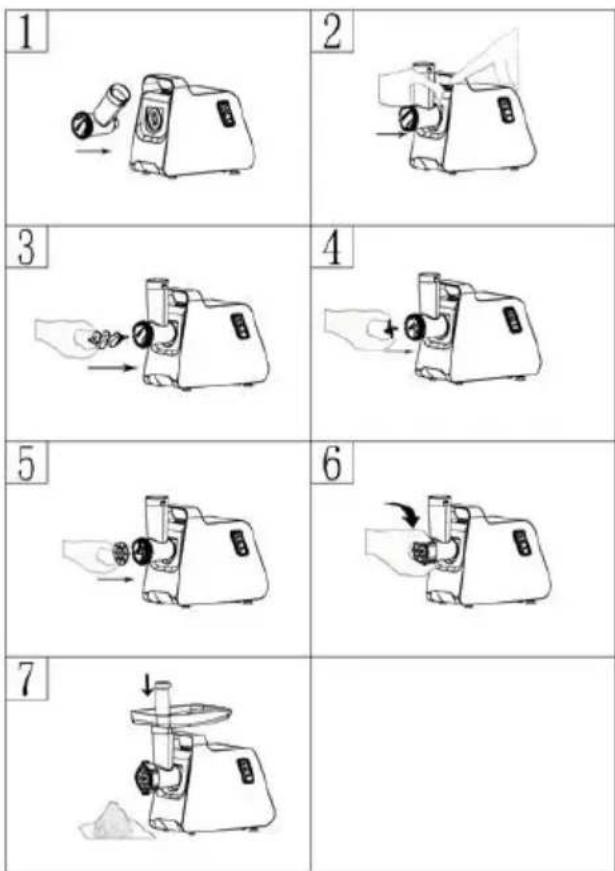

Mincing meat - tips and warnings

• Make sure the cutting edges of the cutter unit are pointing outwards.
• Make sure the notch of the grinding disc fits onto the projection of the cutter housing.

• Never use frozen meat!

- Do not overload the appliance during use by pushing too much meat into the cutter housing.

- Cut the meat into 10cm-long, 2cm-thick strips.

- Remove bones, gristles and sinews as much as possible.

- Put the prepared meat on the feeding tray.

- Press the on/off button to switch the appliance on.

- Use the pusher to gently push the meat into the cutter housing.

- For steak tartare, mince the meat with the medium grinding disc twice.

Making sausages - tips and warnings

Always mince the meat first.

• Let the sausage skin soak in lukewarm water for 10 minutes. Then slide the wet skin onto the sausage horn. Do not block the air outlet grooves of the horn.
• Put the minced meat of the feeding tray. Press ON/ OFF button to switch the appliance on.
• If the skin gets stuck on the sausage horn, wet it with some later.

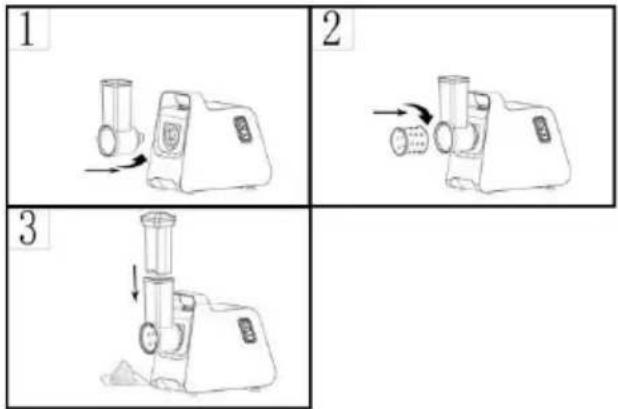

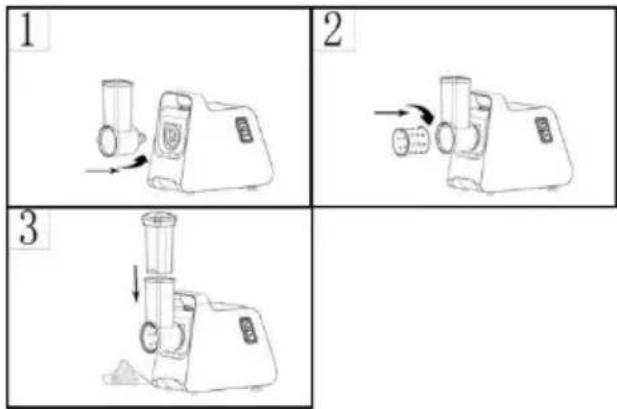

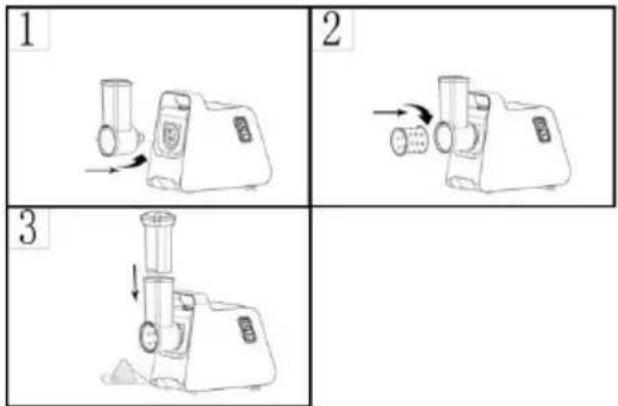

Slicer for vegetables

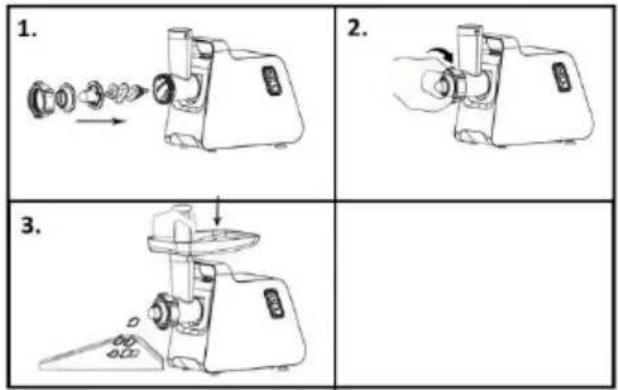

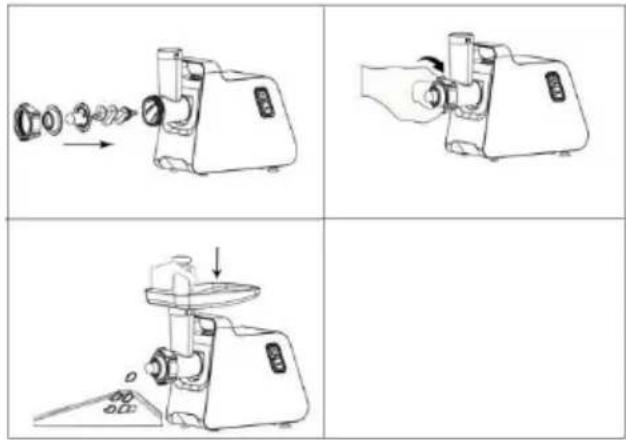

Cleaning - tips and warnings

• Remove any meat left in the cutter housing by passing pieces of bread through it.
• Always switch off and unplug the appliance before removing accessories or cleaning the motor unit.
• Remove the pusher and the feeding tray.
• Unscrew the screw ring and remove the grinding disc, the cutter unit and the worm shaft.
• Remove the cutter housing by pressing the release button and by turning the cutter housing to the right (see the Disassembly section,
• The cutter unit and grinding discs should be lightly brushed with fat or oil to prevent rusting.
• Do not clean the metal parts in the dishwasher, as dishwasher detergents will cause these parts to darken or oxidize.

Diagram of a kitchen tool with a bell and gears, showing internal components (no text or labels)

Environment

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Guarantee & service

If you need information or if you have a problem, please contact the Gorenje Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Gorenje dealer or contact the Service department of Gorenje domestic appliances.

For personal use only!

GORENJE WISHES YOU A LOT OF PLEASURE WHEN USING YOUR APPLIANCE

We reserve the right to any modifications!

INSTRUKCJA OBSŁUGI

PL

Technical line drawing of a manual kitchen tool with gear and fan components (no text or symbols)

Środowisko

Technical line drawing of a kitchen tool with mechanical components and directional arrows (no text or symbols)

Mediul înconjurător

1. Jednotka motora
2. Tlačidlo zapnutia ON / OFF / Spätný chod
3. Uvolňovacie tlačidlo
4. Telo mlynčeka
5. Podávacia miska
6. Nástavec na klobásy,
7. Disky na mletie,
8. Oddel'ovač
9. Rezačky

Dôležité

Technical line drawing of a manual kitchen tool with gear and motor components (no text or symbols)

Životné prostredie

Simple line drawing of a portable device with a cylindrical component and a rectangular base, no text or symbols present.

Line drawing of a manual pump device with a hand operating the shaft (no text or symbols)

Line drawing of a manual blender with a downward arrow indicating compression (no text or symbols)

Technical line drawing of a manual kitchen tool with two views (no text or symbols)

Környezetvédelem

Technical line drawing of a manual kitchen tool with directional arrows indicating motion (no text or symbols)

Околна среда

Simple line drawing of a device with a tool and arrow, no text or symbols present

Technical line drawing of a manual kitchen tool with gear and fan components (no text or symbols)

Line drawing of a portable device with a cylindrical tube and a lighter case, no text or symbols present

Line drawing of a hand holding a small cylindrical object with an arrow indicating motion (no text or symbols)

Line drawing of a manual blender with a downward arrow indicating compression (no text or symbols)

Technical line drawing of a manual kitchen tool with gears and buttons, shown from two different angles (no text or labels)

Gorenje Domestic Appliances.

Kráječ zeleniny

Technical line drawing of a kitchen tool with gear and motor components (no text or symbols)

Line drawing of a mechanical device with a lever and base, no text or symbols present

Резалка за зеленчук

Line drawing of a kitchen tool with gears and a handle, showing mechanical components without any text or symbols.

Line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Line drawing of a sewing machine tool (no text or symbols)

Gemüsezerkleinerer

Line drawing of a portable device with a cylindrical tube and a rectangular base, connected by an arrow (no text or symbols)

Line drawing of a device with a cylindrical component and an arrow indicating motion (no text or symbols)

Line drawing of a manual blender with a downward arrow indicating compression (no text or symbols)

Reinigung

Line drawing of a kitchen tool with gears and a handle, showing internal components (no text or symbols)

Line drawing of a vintage camera with an arrow indicating left motion (no text or symbols)

UMWELTSCHUTZ
