Product Type	Satellite meter
Brand	Megasat
Model	Satmeter HD 1 Smart
Category	Measurement
Dimensions (meter)	140 x 69 x 26 mm
Weight (meter)	100 g
Power Supply	Via set-top box (DC 12-20 V, max 10 W), power bank (USB), or optional adapter (DC 18 V, min 1.2 A)
Display	LED indicators for signal level (12 steps), quality, selected satellite, transponder, status (13V, 18V, 22K, Lock, Short, Bluetooth)
Bluetooth	Version 4.0, for connection to smartphone/tablet
App	BT Satmeter (iOS and Android)
Satellites Pre-programmed	8 satellites, first 3 labeled: Astra1 (19.2°E), Hotbird (13.0°E), Astra2 (28.2°E)
Transponders per Satellite	8 transponders, editable via app
DiSEqC Support	DiSEqC 1.0, 1.1, 1.2, USALS
Unicable Support	EN 50494 (SCD) and EN 50607 (SCD2)
Signal Measurement	Signal strength and quality (LED), lock indication (LED and beep), CNR, dBμV, BER, MER via app
Spectrum Analyzer	Via app, low-band and high-band, zoomable
Constellation Diagram	Via app
Compass and Alignment	Integrated in app, uses smartphone sensors
Powerbank (included)	Lithium Polymer 10,000 mAh, 2 USB outputs (5V/1A and 5V/2.1A), LED flashlight
Powerbank Dimensions	140 x 22 x 62 mm
Powerbank Weight	278 g
Safety Instructions	Avoid liquids, shock, moisture; use only included power source; disconnect when not in use
Cleaning	Wipe with dry cloth; do not use liquids
Spare Parts / Reparability	No specific spare parts listed; contact manufacturer for repairs

Frequently Asked Questions - Satmeter HD 1 Smart MEGASAT

How do I turn on the Satmeter HD 1 Smart?

Use the power switch on the device. Ensure the meter is connected to power via the receiver, power bank, or optional adapter.

How do I connect the meter to the app?

Download the BT Satmeter app from iOS/Android store. Turn on the meter and enable Bluetooth on your mobile device. The connection should happen automatically. If not, confirm pairing on your phone.

What satellites are pre-programmed?

The first three satellites are Astra1 (19.2°E), Hotbird (13.0°E), and Astra2 (28.2°E). A total of 8 satellites can be stored and edited via the app.

How do I align a satellite dish without the app?

Connect the meter to LNB and receiver. Select the desired satellite using SAT +/-. Move the dish slowly while watching the 'LOCK' LED. When it lights up, fine-tune for maximum signal strength on the LED bar.

How do I use the alignment function in the app?

Go to 'Alignment' and select your satellite and location. Turn and tilt your smartphone until the two satellite icons align. The app shows azimuth and elevation angles to help you position the dish.

What does the 'SHORT' LED indicate?

The 'SHORT' LED lights red when a short circuit is detected. Check all connections and cables immediately to avoid damage.

How do I configure DiSEqC or Unicable settings?

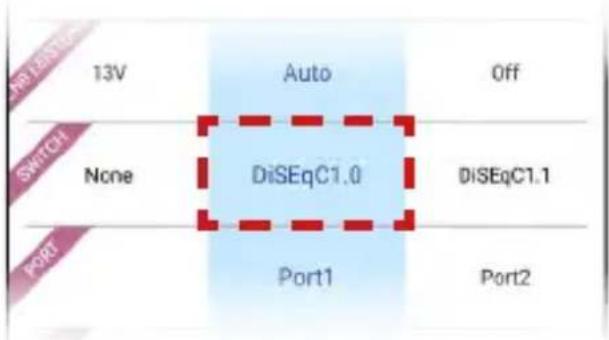

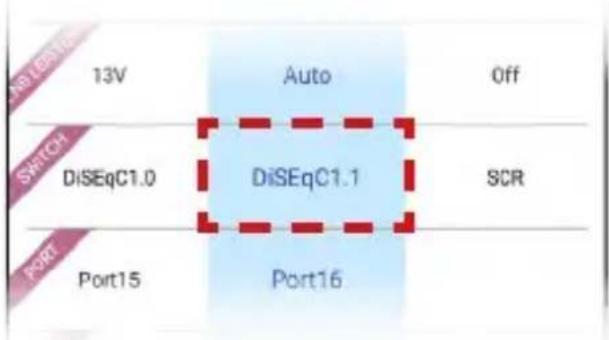

In the app, go to 'LNB settings'. Under 'Switch', select DiSEqC 1.0, 1.1, SCR (Unicable EN 50494), or SCD2 (Unicable EN 50607). Set the port, band, or position as needed.

Can I use the power bank to power the meter?

Yes. Connect the included Micro-USB cable from the power bank to the meter's USB port. Use the 2.1A output on the power bank for stable operation.

Why does the meter restart repeatedly?

This may be due to insufficient power. Try connecting the meter to a receiver or power adapter instead of the power bank. Also, connect the LNB after the meter has started to reduce inrush load.

How do I reset the app to factory settings?

In the app, go to 'Settings' and select 'Default settings'. Confirm the reset. Note that all custom satellite and transponder data will be lost.

USER MANUAL Satmeter HD 1 Smart MEGASAT

Close-up of a metallic threaded connector with a blue 'RECEIVER' label (no other text or symbols visible)

Illustration of a satellite dish antenna inside a red circle (no text or symbols)

Illustration of a satellite dish antenna against a solid orange circular background (no text or symbols)

Spektrum Low-Band

Hinweis:

z. B. Megasat Monoblock LNB = Astra1 (Port 1) / Hotbird (Port 2)

Hand holding a smartphone displaying a web interface with blue circular arrows indicating rotation (no text or symbols on the device)

Close-up of a red, glowing object with a bright circular spot, possibly a lens or aperture (no text or symbols visible)

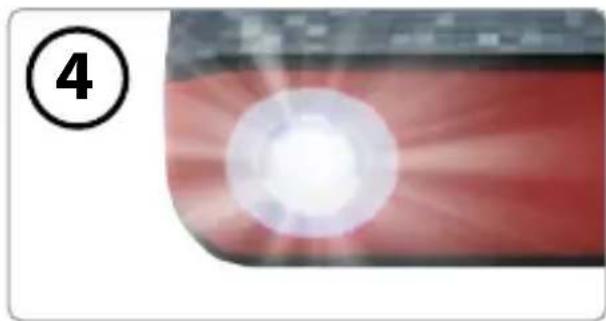

LED Taschenlampe

Version: 1.1 (August 2020)

1.1 Safety instructions....03
1.2 General features....03
1.3 Delivery....03

1. Description and key assignment....04

2. Instructions for measuring without a mobile device..07

3. Instructions for measuring with a mobile device

4.1 Download the App....08
4.2 Main menu....09
4.3 Satellit....11
4.4 Spectrum....12
4.5 Angel....14
4.6 Constellation....15

4.7 LNB settings....16

4.7.1 Unicable settings (EN 50494)....17
4.7.2 Unicable settings (EN 50607)....17

4.7.3 DiSEqC 1.0 settings....18
4.7.4 DiSEqC 1.1 settings....18

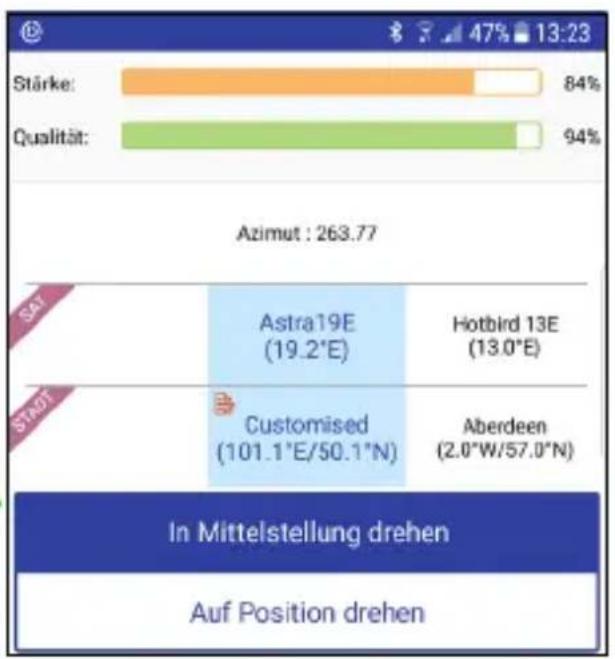

4.7.5 USALS settings....19

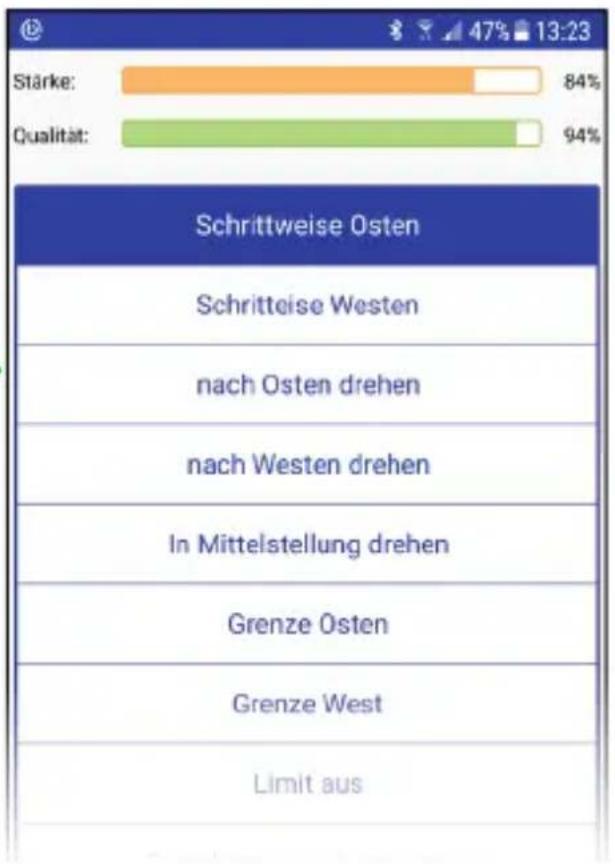

4.7.6 DiSEqC 1.2 settings....19

4.8 Alignment....20
4.9 Compass....21
4.10 Scope....22
4.11 Settings....23

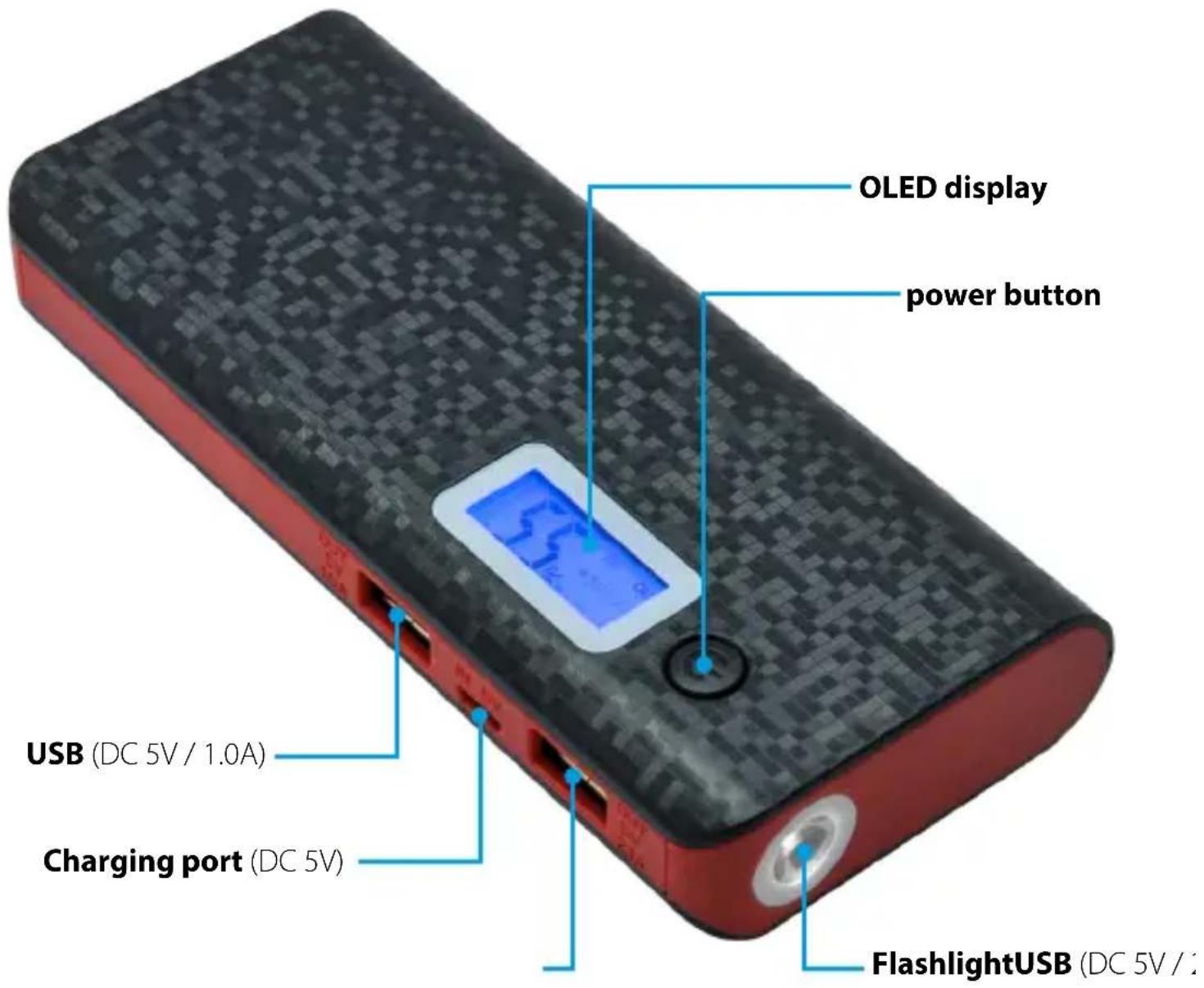

5. Powerbank

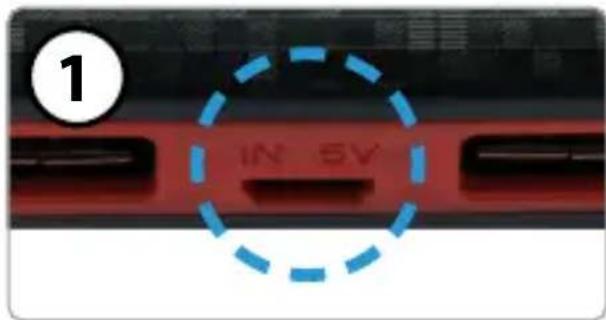

5.1 Connections and designations....24
5.2 Operation of the power bank 25

1. Specifications....26
2. Troubleshooting ......27
3. Informations......28

1.1 Safety instructions

• Never spill liquids of any kind on the device. Liquid increases the risk of electric shock and damage to the product.
• The device is not shockproof. Make sure that it can not fall down from great heights.
• Do not immerse the device in the water. Avoid moisture and store the product in a dry place.
• Turn off the device when not in use.
• Pay attention to the specified power supply. Use only the included power bank to power the device.

1.2 General features

• Easy measurement of DVB-S / S2 signals through an LED display with signal level and quality.
• Selection of up to 8 satellites and 8 transponders per satellite (freely editable).
• Power supply via set-top box or external USB device (eg power bank)
• 13 volts, 18 volts, 22 kHz switching as well as the found satellite are indicated by LEDs (found signal is also played acoustically).
• Integrated Bluetooth® module for connection to a smartphone / tablet.
• App for iOS and Android with additional features:
• spectrum and constellation diagram
• Angle calculation to align the mirror
• Satellite and transponder editing via the app
• Integrated compass function with motion sensor that automatically represents the current angle on the display. Turn and tilt the smartphone to determine the correct position.
  • DiSEqC 1.0, 1.1, 1.2, USALS, Unicable (EN 50494 and EN 50607).

1.3 Delivery

• Satmeter HD 1 Smart
• Strap
• Micro USB cable

• F-connection cable (20 cm)
- Powerbank
- User manual

2. Description and key assignment

2. Description and key assignment

1. Receiver

Close-up of a metallic threaded connector with a blue 'RECEIVER' label on the side (no other text or symbols visible)

Connection to a set-top box (DC 12-20 V / max. 10 W) or an external power supply with DC 18 V, min. 1.2 A (optionally available).

2. LNB

Connection to the LNB

3. Transponder

Shows the currently selected transponder of the satellite. There are 8 different pre-programmed transponders for each satellite. The selected transponder (1-8) is marked with a red LED. The preprogrammed Transponder can be viewed via the app and adjust as necessary.

4. Satelliten

Shows the currently selected satellite. There are 8 pre-programmed satellites. The selected satellite (1-8) is marked with a green LED. The pre-programmed satellites can be viewed via the app and adjust as necessary. The first three of the most used satellites are labeled with the orbit position.

19,2° O (for Astra1)
13,0° O (for Hotbird)
28,2° O (for Astra 2)

5. Level / Qualität

Displays the signal quality and strength in 12 steps. These are displayed with green LEDs.

2. Description and key assignment

6. TP (+/-)

Press the TP +/- buttons to switch between the transponders of the currently selected satellite.

7. SAT (+/-)

Press the SAT +/- buttons to switch between satellites.

Note:

Press the (TP -) and (SAT -) buttons simultaneously to turn the beep on or off.

8. Status indicators

POWER Status display for the operation of the device. (green = device is switched on and ready for operation)

13V 13 volt supply voltage for the LNB (red = 13 V power supply from the device to the LNB)

18V 18 volt supply voltage for the LNB (red = 18 V power supply from the device to the LNB)

22K 22 KHz status indicator (red = Active 22 KHz switching to LNB „Highband“)

LOCK Status display satellite search (green = device has found the selected satellite)

SHORT Short circuit status display (red = suspected short circuit, please check connections, cables and connections)

B.T Bluetooth status display (blue = active Bluetooth connection to the device)

9. Power switch

Turns the unit on or off.

10. USB port

To connect an external power source such Powerbank (4.8 - 6.0 Volt / max 10 Watt)

Note: If the meter restarts after switching on again and again, the supply voltage is insufficient for the LNB. In this case, use the receiver or a power adapter for power.

3. Instructions for measuring without a mobile device

1. Connect „LNB“ on the measuring device to the connection of the LNB of the satellite system.
2. Connect „Receiver“ on the measuring device to the coaxial cable leading to your satellite set-top box and then switch it on. Alternatively, a suitable power supply or other external power source (such as power bank) can be used via the USB port.
3. Turn on the meter at the power switch. All LEDs light up briefly and then display the currently set parameters. Note: If the meter restarts again and again, check the connection for a short circuit or the power consumption of the LNB is too high. If the power consumption is too high, connect the LNB after the meter has started to reduce the starting load. Alternatively, connect the meter to a receiver or power supply as the power source.
4. Use the SAT +/- buttons to select the desired satellite (eg Astra1 19.2° East).
5. If necessary, you can change the transponder. Usually you start with TP1.
6. Adjust the elevation required for your area and turn the system slowly, step by step, until the „LOCK“ LED lights up. Now use the TP +/- button to check further transponders of the satellite, if they are also displayed with the indication „LOCK“ to exclude a reflection or a wrong satellite.
7. When you have found the right satellite, you will do the fine tuning. Carefully move the dish left, right, up, down until you reach the highest value on the 12-digit LED display. Tighten the fixing screws of the dish evenly.
8. If necessary, you can use the app on the mobile device to get more information and make settings.
9. Turn off the device and power sources and remove the meter.
10. Connect your coaxial cable to the LNB and turn on your set-top box again. The set satellite should now be received with your TV.

Note:

If you use satellite systems or LNBs with special reception types (eg Unicable, DiSEqC circuits, ...), first you must set this via the app. By default, the satellites „Astra 1“ with DiSEqC 1.0 port 1 and „Hotbird“ with port 2 are occupied.

4. Instructions for measuring with a mobile device

4.1 Download the App

To connect the HD 1 Smart with a smartphone or tablet, you need the app BT Satmeter. You can download it for free from the AppStore or GooglePlay Store.

Illustration of a satellite dish antenna inside a red circle (no text or symbols)

Illustration of a satellite dish antenna on a stand, set against an orange circular background (no text or symbols)

1. Please allow the app to use Bluetooth during operation so that the data can be transferred between the app and the mobile device.
2. Allow the app to find your local location so that the app can calculate the azimuth angle and elevation of the antenna.
3. Before you use the app, you have to turn on the HD 1 Smart meter. Only then can a Bluetooth connection be set up and data exchanged between the devices.
4. The instructions for the operation of the app was created on the basis of the Android version. A slight deviation to the operation of the iOS app may be possible.

Important note:

If the mobile device enters standby mode, it may cause disconnections and errors. You may need to restart the app or the meter. It is usually sufficient to change a satellite or transponder to synchronize the devices again.

4. Instructions for measuring with a mobile device

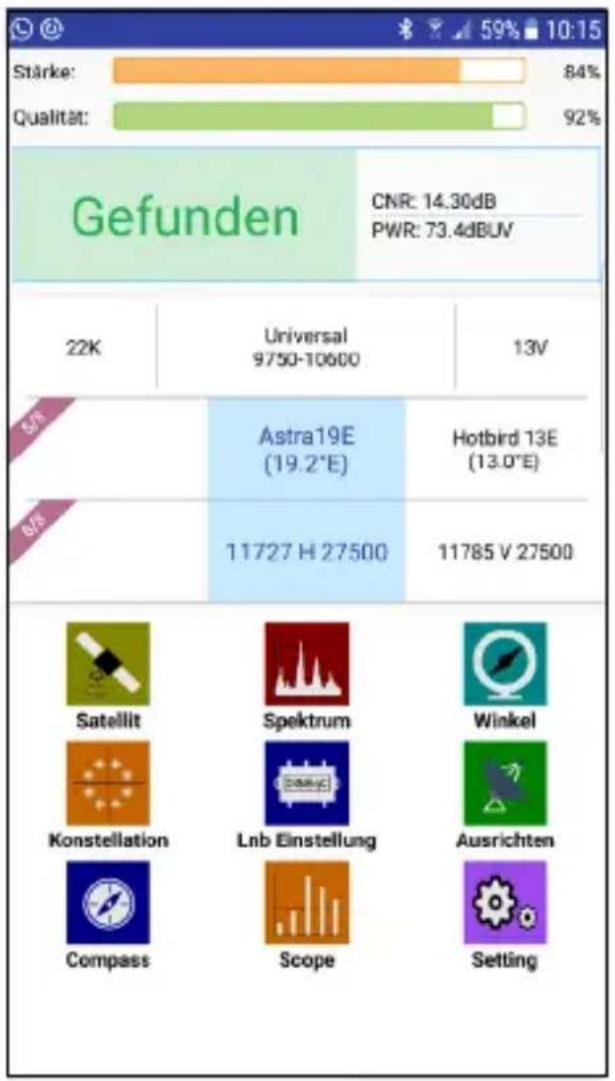

4.2 Main menu

Quality: Shows the signal quality in percent.

Strength: Shows the signal Strength in percent.

Lock: Indicates whether the selected satellite was found or not.

CNR: Shows the CNR value of the signal.

PWR: Shows the level of the signal in dBμV.

22K: Shows the current 22k status.

Universal 9750-10600: Shows the LNB type of the current satellite.

18V: Shows the current supply voltage. The values are 13V, 18V and off.

Astra 19 E: Shows the currently selected satellite. Swipe left or right to switch between satellites.

11953 H27500: Shows the currently selected transponder. Swipe left or right to switch between the transponders.

Satellit: Submenu to customize the satellites and transponders.

Spectrum: Opens the live spectrum for error analysis.

Angel: Calculation and display of azimuth and elevation of the antenna, according to your local position.

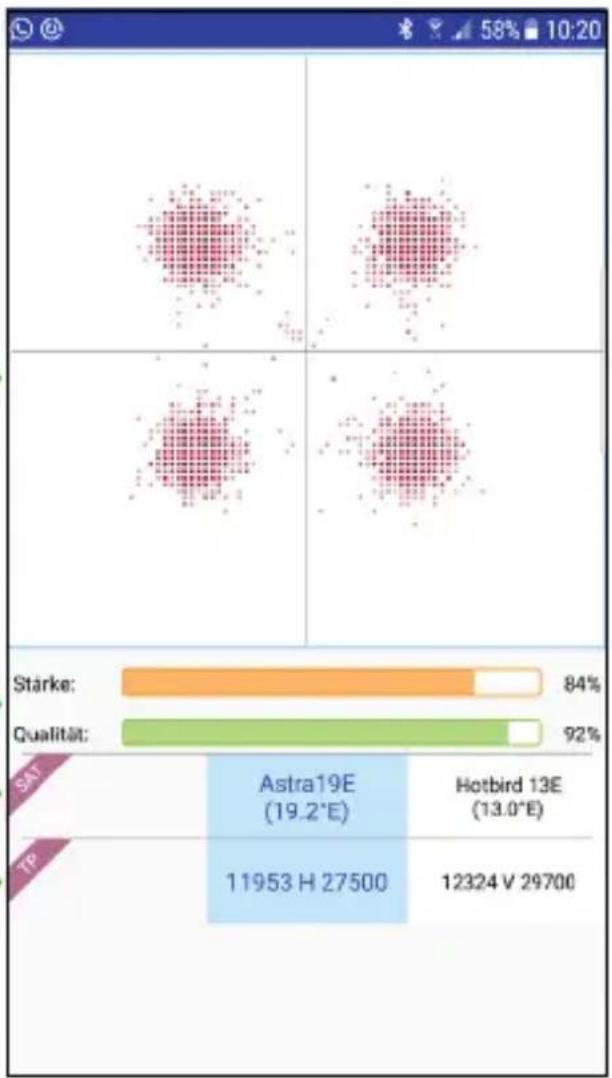

Constellation: Opens the live constellation diagram.

LNB setting: Submenu for editing the LNB parameters for satellite and antenna.

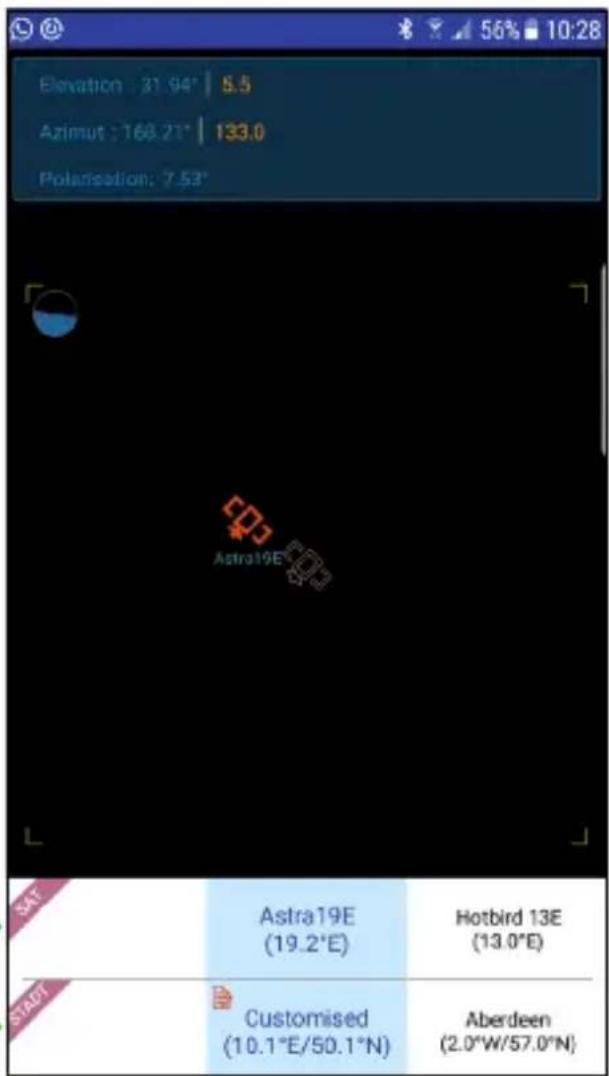

Alignment: View of azimuth / elevation of the antenna by turning the mobile device.

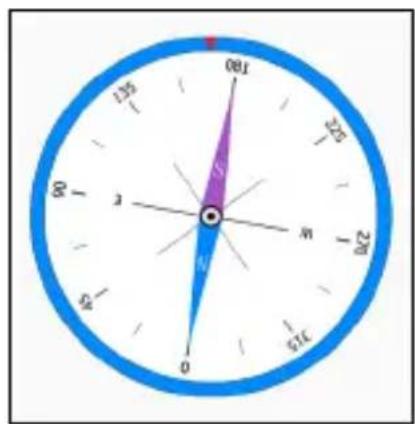

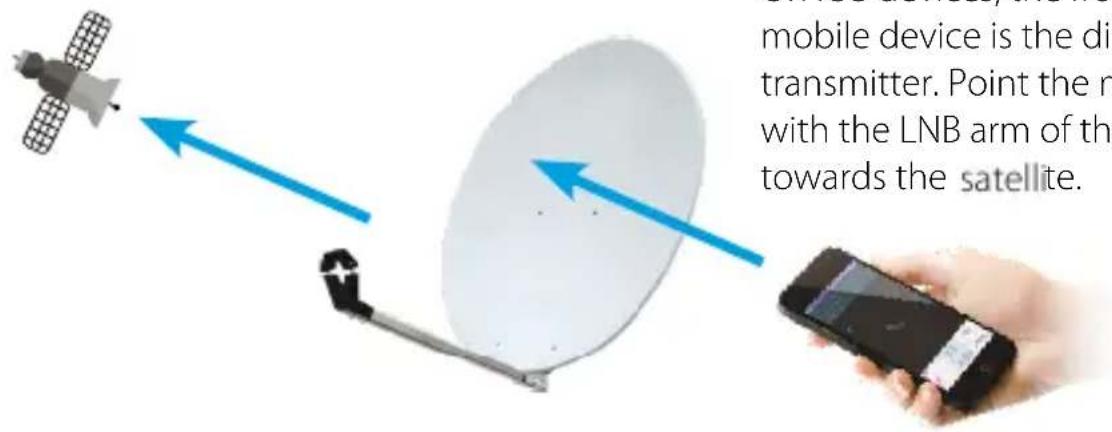

Compass: Opens the compass function for coarse alignment.

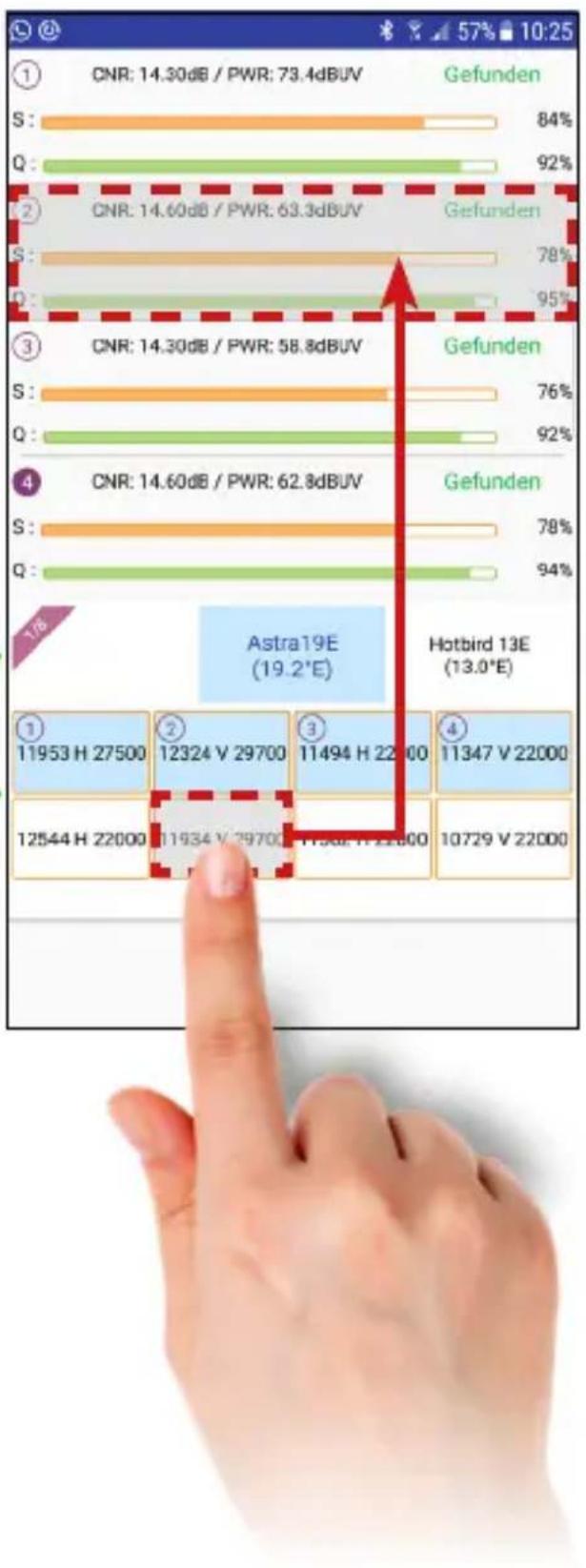

Scope: Simultaneously displays signal information from 4 transponders on one screen.

Setting: Submenu for further system settings.

4. Instructions for measuring with a mobile device

Turn on the meter and start the app. If Bluetooth is enabled on the mobile device, both devices connect automatically. On some mobile devices, you must first confirm the Bluetooth connection with the meter.

The further procedure can be found in the instructions on page 7.

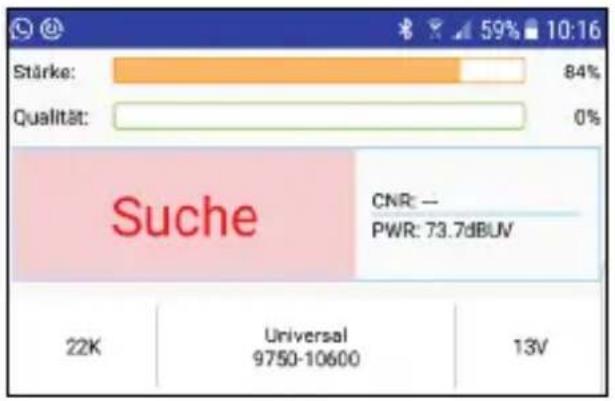

While aligning the antenna, the „Search“ indicator appears. The signal strength dictates how close you are to a satellite.

Once you are on the selected satellite, "Lock" is displayed and the signal quality indicator turns off.

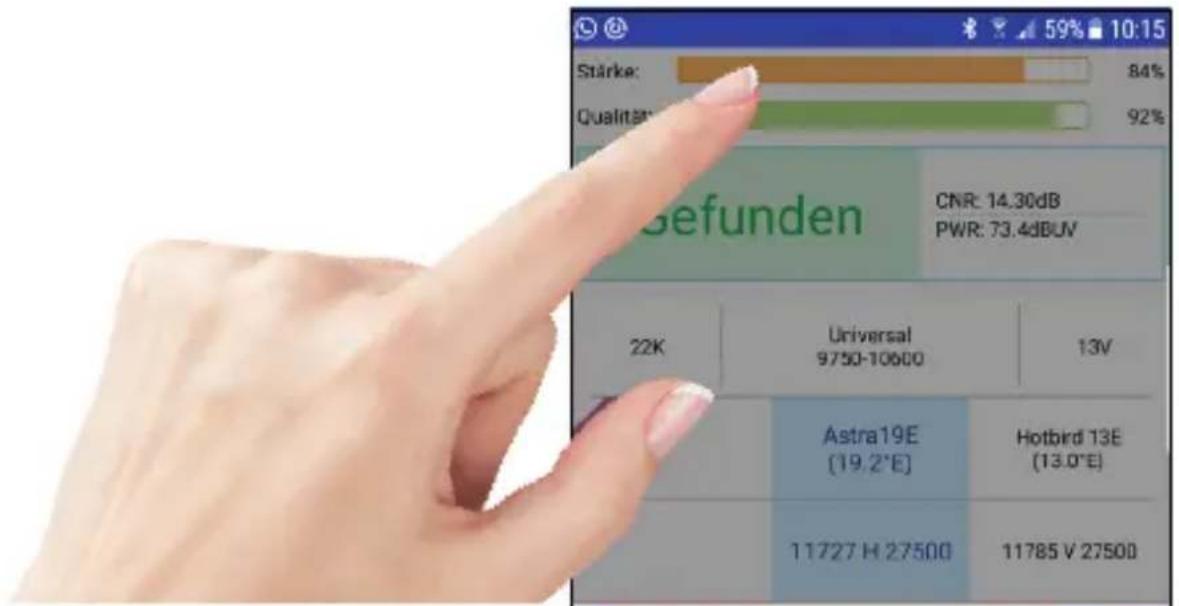

Touch the signal quality and strength field to enlarge it.

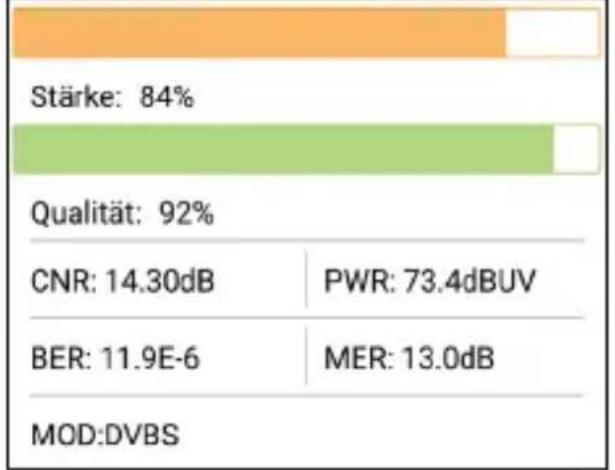

Furthermore, the values CNR, dBμV, BER and MER as well as the modulation type DVB-S or DVB-S2 are displayed.

4. Instructions for measuring with a mobile device

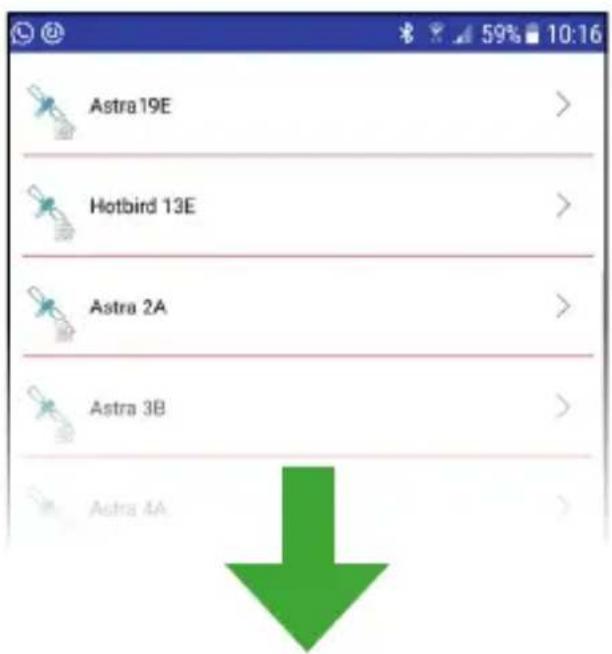

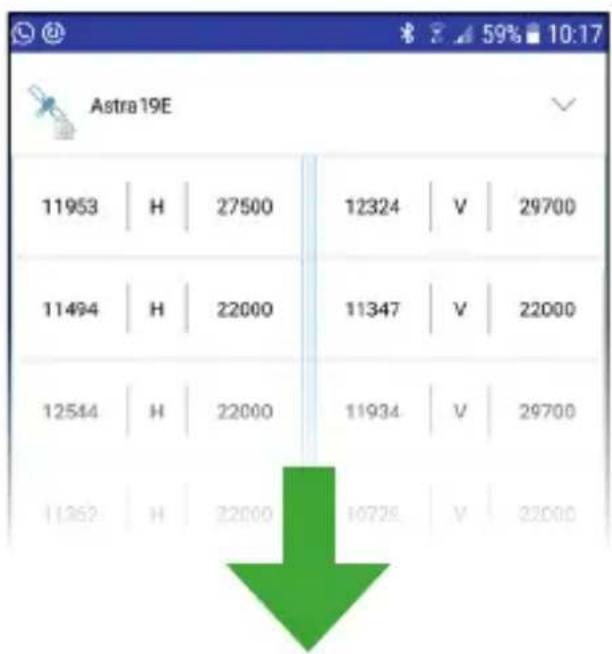

4.3 Satellite

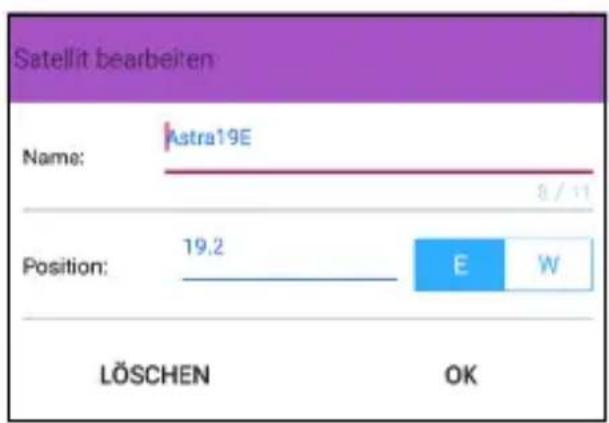

Press the icon in front of the satellite name to change the name and the number of degrees of the satellite.

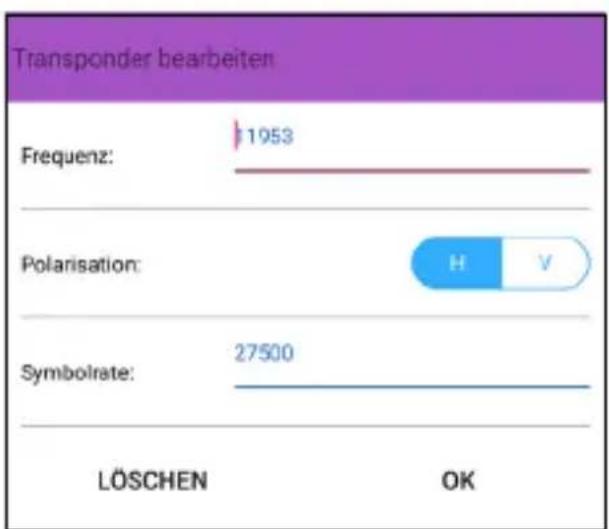

Press on the satellite name to change the preset transponder.

Note:

The modified data is automatically transferred and stored by pressing the back button on your mobile device. Note that the distance between the devices must not be too large. A Bluetooth transmission between two devices is usually only up to max. 10 meters possible.

4. Instructions for measuring with a mobile device

4.4 Spectrum

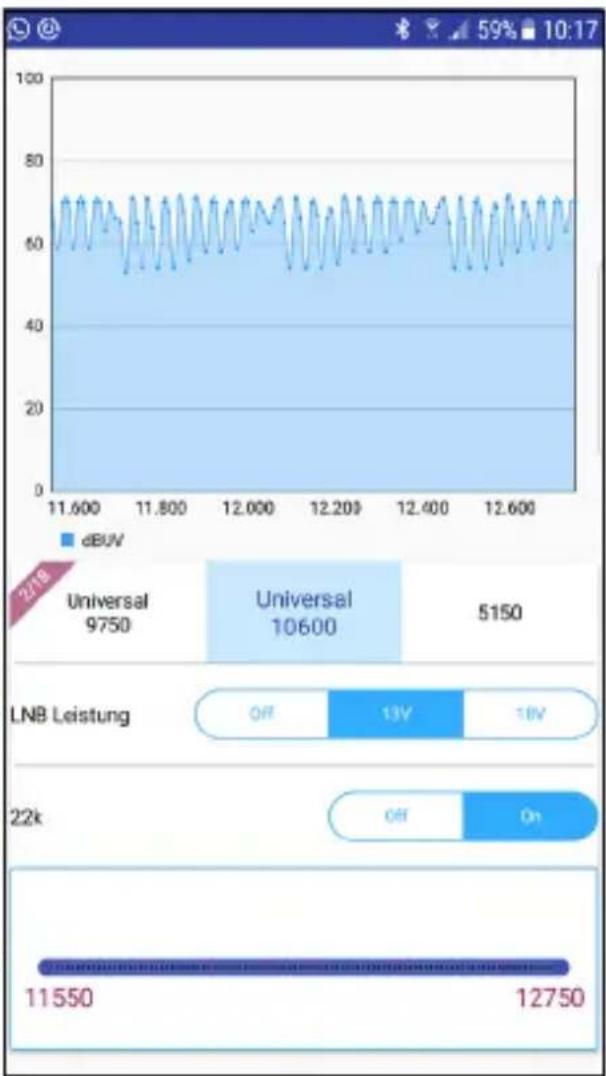

This submenu displays the spectrum of the current live signal on the mobile device.

Swipe left or right to change the LNB values.

You can set the LNB supply manually. The values are Off, 13V and 18V.

You can set the 22k status manually. The values are Off and On.

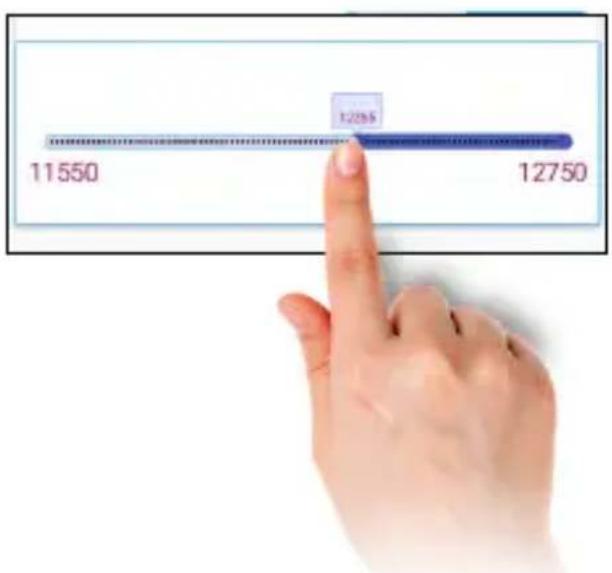

You can also set the beginning and the end of the frequency for the spectrum range. Press and hold and drag the slider until the desired frequency is limited.

Note:

The LNB value „Universal 10600“ is for measuring the high band, „Universal 9750“ for the low band. The values of the LNB power and the 22K circuit are adjusted automatically when changing.

4. Instructions for measuring with a mobile device

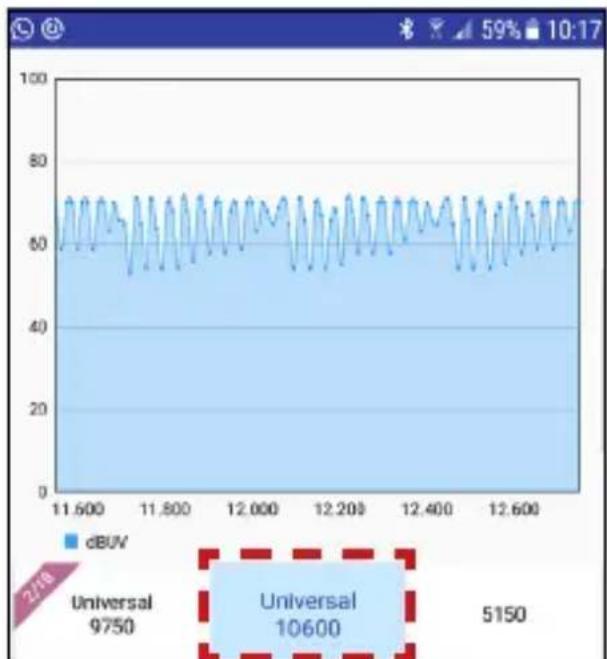

Spectrum High-Band

To display the frequencies of the high band in the spectrum, select „Universal 10600“ in the selection box.

(Frequency range: 10.6 - 12.75 GHz)

Zoom Spectrum

You can magnify the spectrum display by zooming in on the display with the two-finger gesture.

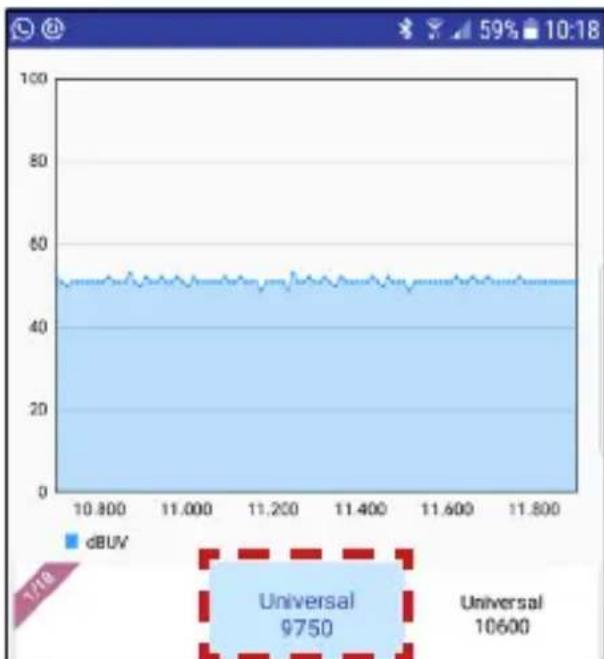

Spectrum Low-Band

To display the frequencies of the low band in the spectrum, select „Universal 9750“ in the selection box.

(Frequency range: 9.75 - 11.70 GHz)

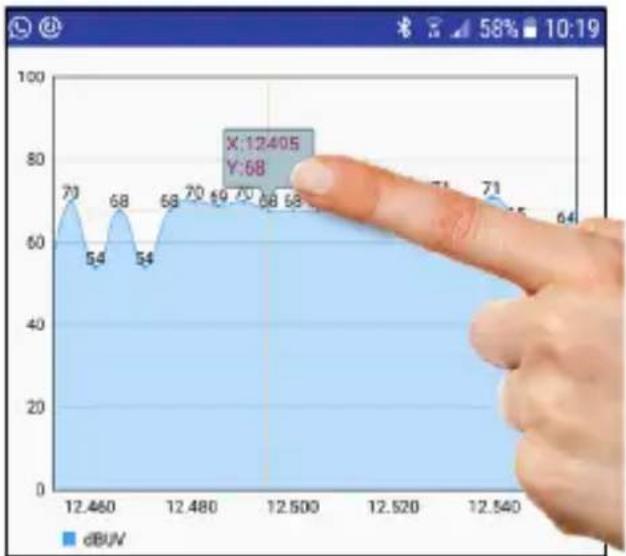

Analyze individual frequencies

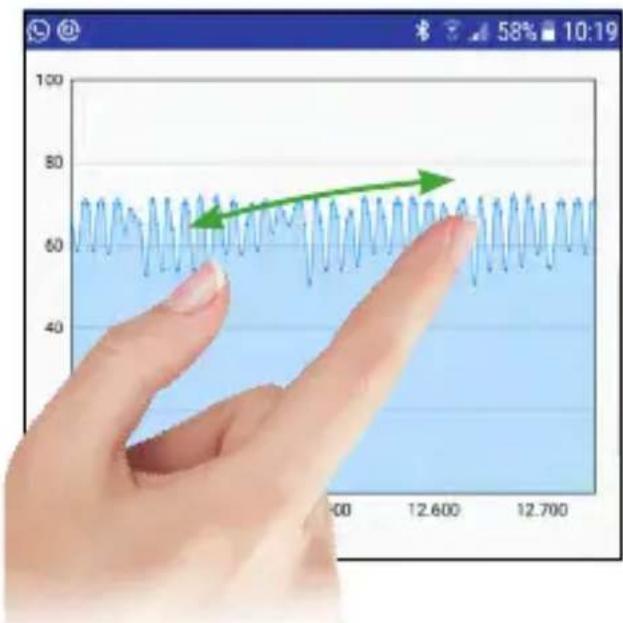

Tap and hold a finger on the spectrum to see a single frequency. Swipe left or right for other frequencies.

4. Instructions for measuring with a mobile device

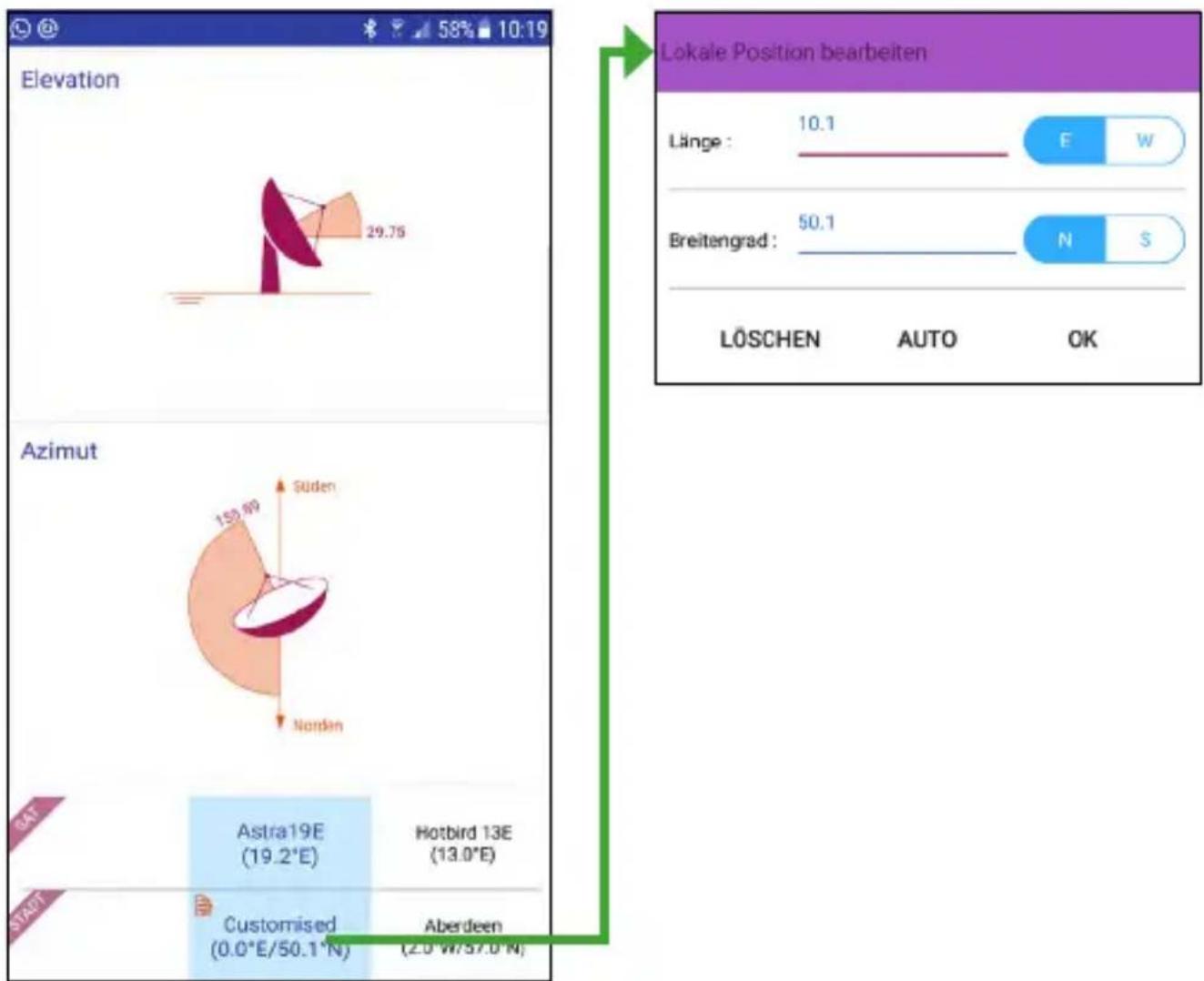

4.5 Angle

This submenu shows the correctazimuth and elevation of the antenna for the selected satellite.

Select a city near you to get the local longitude and latitude. These values are preset.

Select „Customize“ to enter the values manually.

Press AUTO to get the data automatically. This information is retrieved based on the local data of the mobile device.

4. Instructions for measuring with a mobile device

4.6 Constellation

In this submenu, the constellation diagram is displayed as shown.

Shows the representation of the signal to a digital modulation scheme (such as QAM, QPSK or PSK.

Shows you the current signal quality or strength of the current satellite/transponder. Swipe left or right to switch satellites.

Swipe left or right to switch the transponder.

4. Instructions for measuring with a mobile device

4.7 LNB settings

In this submenu you can set the reference parameters for the LNB settings. Swipe left or right to toggle between the values of each item.

The default values are set to Universal LNBs and only need to be adjusted in special cases. In general, you only need to adjust your DiSEqC circuit.

SAT: Change the satellite

TP: Changes the respective transponder

LNB Typ: Depending on the LNB type, you must set the appropriate frequency here. In general, use „Universal 9750-10600“. If you want to calibrate the system with Unicable, read the description „Unicable settings“ on the next pages.

22K: Enable or disable the 22K circuit here.

LNB power: Select the desired LNB voltage (13V, Auto or Off).

Switch: Select "NONE" if the satellite system is operated without DiSEqC switch. If you

SAT	Astra19E (19.2°E)	Hotbird 13E (13.0°E)
TP	11953 H 27500	12324 V 29700
LWB TYP	Universal 9750-10600	5150-5750
2K	Auto
NB LAST/UN 13V	Auto	Off
SWITCH	None	DiSEqC1.0
PORT	--	--
BAND	--	--
POSITION	FIXED	USALS

want to calibrate the system with DiSEqC circuit or Unicable LNBs, read the description „DiSEqC“ or „Unicable“ on the following pages.

Port: If you use DiSEqC, you can set the appropriate port here.

Band: Here you can set the respective frequency band if you want to set up a Unicable system. Please read the description „Unicable Settings“ on the following pages.

Position: Select „FIXED“ if you want to set a fixed antenna. If you would like to measure the system with DiSEqC 1.2 or USALS, please read the respective description on the following pages.

4. Instructions for measuring with a mobile device

4.7.1 Unicable settings (EN 50494)

Under the „Switch“ option, select SCD if you are operating the system with a Unicable system or LNB (EN 50494).

Then, under the Band option, select the band you want to measure. If the correct frequencies are not listed, you can manually enter the frequency by tapping on the respective band.

Unicable (SCD) can be manage max. 8 frequency bands (set-top boxes). For measurements on special unicabledockets, an additional receiver in the Unicable network may be necessary.

4.7.2 Unicable settings (EN 50607)

Under the „Switch“ option, select SCD2 if you are operating the system with a Unicable system or LNB (EN 50607).

Then, under the Band option, select the band you want to measure. If the correct frequencies are not listed, you can manually enter the frequency by tapping on the respective band.

Unicable (SCD2) can be manage max. 32 frequency bands (set-top boxes). For measurements on special unicabledockets, an additional receiver in the Unicable network may be necessary.

4. Instructions for measuring with a mobile device

4.7.3 DiSEqC 1.0 settings

Under the „Switch“ menu item, select DiSEqC 1.0 if the system is operated with a DiSEqC switch.

With the DiSEqC 1.0 version max. 4 satellites can be managed.

Note:

For Monoblock LNBs, make sure to match the occupancy specified by the manufacturer and set this for both satellites.

z. B. Megasat Monoblock LNB = Astra1 (Port 1) / Hotbird (Port 2)

4.7.4 DiSEqC 1.1 settings

Under the „Switch“ menu item, select DiSEqC 1.1 if the system is operated with a DiSEqC switch.

With the DiSEqC 1.1 version max. 16 satellites can be managed.

4. Instructions for measuring with a mobile device

4.7.5 USALS settings

Select „USALS“ under the „Position“ option if you are operating the system with a USALS motor.

Please refer to the manual of the USALS motor for how to make the settings for it.

4.7.6 DiSEqC 1.2 settings

Under the „Position“ option, select DiSEqC 1.2 when operating the system with a DiSEqC 1.2 motor.

Please refer to the manual of the DiSEqC 1.2 motor for how to make the settings for it.

4. Instructions for measuring with a mobile device

4.8 Alignment

In this submenu you can turn the mobile device (eg smartphone) to find the right angle to the selected satellite.

1. First select a satellite and your location (see bottom of the screen).

2. The satellite symbol in the middle shows the selected satellite, the second symbol with the satellite name shows the current position.

3. Turn and tilt the mobile device until the two satellite icons are on top of each other.

4. The now held direction and the angle of the mobile device shows you how to roughly align the antenna.

Swipe left or right to select another satellite.

Swipe left or right to select another city (alternatively you can enter the data manually).

Tip:

Hold the mobile device against the back of the dish and adjust it until both icons are aligned. You can then carry out a fine adjustment via the satellite search.

4. Instructions for measuring with a mobile device

Alignment with iOS devices

Alignment with Android devices

On iOS devices, the front of the mobile device is the directional transmitter. Point the mobile device with the LNB arm of the mirror towards the satellite.

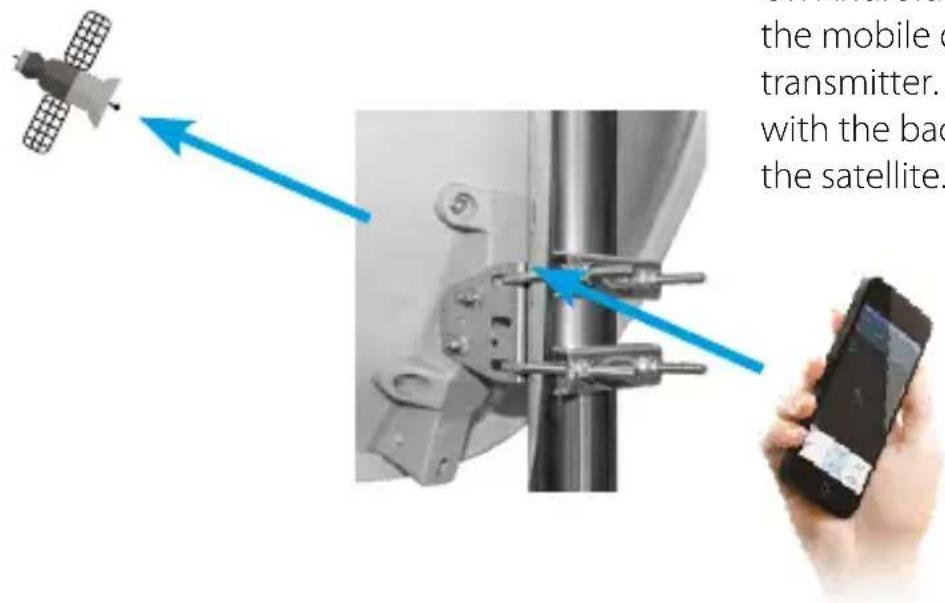

On Android devices, the back of the mobile device is the directional transmitter. Point the mobile device with the back of the mirror towards the satellite.

4.9 Compass

In this submenu you will find the compass. This function helps you to determine the cardinal directions.

The satellite antennas usually have to be aligned to the south. Thus, you can specify in advance the rough direction for mounting the dish.

4. Instructions for measuring with a mobile device

4.10 Scope

This feature shows you the live signal information for four transponders on a screen of the selected satellite.

Note:

The Scope function is very useful for determining the antenna assignment of Quattro LNB cables.

Swipe left or right to select another satellite.

Touch and hold a transponder and pull it to the correct position to change the transponder.

4. Instructions for measuring with a mobile device

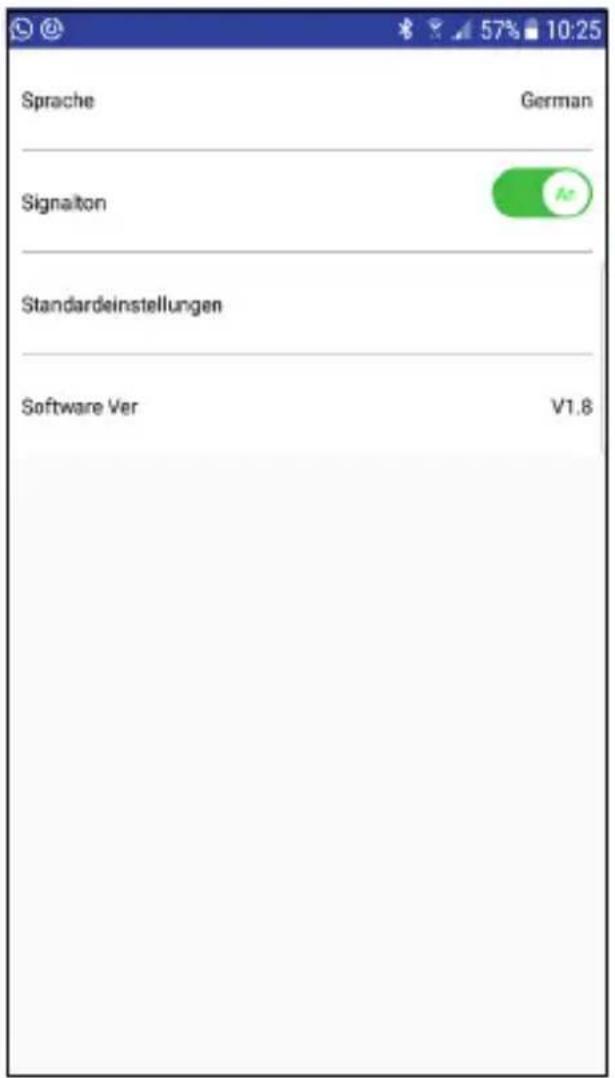

4.11 Settings

In this submenu you can make settings of the app.

Language

Adjust the language of the app. (German or English)

Beep

Activate or deactivate the beep of the app (eg acoustic beep when the satellite is found)

Note:

You can also enable or disable the beep on the home screen in the app. To do this, press the speaker symbol on the "Lock" field.

Default settings

Reset the app to the factory settings.

Important: All data you have made will be lost!

Software version

Shows the current software version of the app.

5. Powerbank

5.1 Connections and designations

Note:

USB (DC 5V / 2.1 A) = For the power supply of the meter HD 1 Smart or other devices with higher power consumption.
USB (DC 5V / 1.0 A) = For charging other devices such as smartphone.

5. Powerbank

5.2 Operation of the powerbank

Close-up of a red, circular object with a bright center and radiating lines, labeled with circled number 4 (no text or symbols on the object itself)

Charge the powerbank

Connect the included Micro-USB cable to the powerbank and a power source (eg notebook, USB power adapter, ...). The charging process takes about 3 hours.

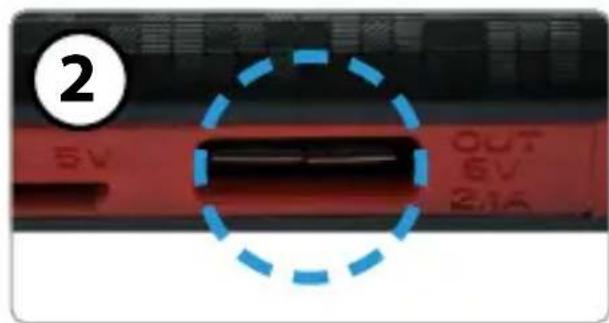

Connect to the HD 1 Smart

Connect the included Micro-USB cable to the Powerbank and the HD 1 Smart.

Note: Be sure to use the correct USB port (DC 5V / 2.1A).

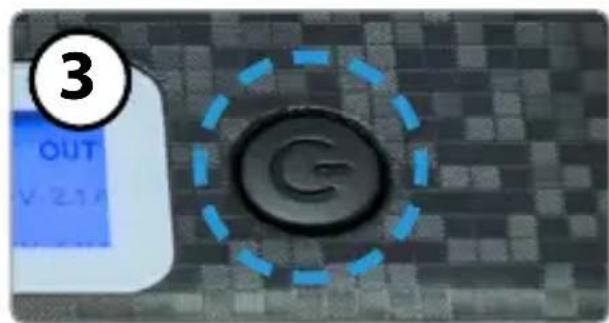

Turn on powerbank

Press and hold the power button until the blue LEDs above the solar panel light up. The power bank is now ready for use and can supply power to connected USB devices.

LED flashlight

When switched on, press the power button twice in succession to switch on the LED. Press 1x briefly on the power button to turn off the LED again.

6. Specifications

Hardware (HD 1 Smart)
LED displays 13V, 18V, 22kHz, Lock	Bluetooth®, satellite selection, transponder selection, power, signal strength and quality
Mechanical selection buttons Signal strength / quality
Pre-programmed satellites 8
Pre-programmed transponder 8 (per satellite)
Integrated Bluetooth® module Version 4.0
Acoustic beep at found satellite
Micro USB port for power supply (eg power bank)
Power supply via set-top box, power bank or optional power supply (DC 18 V, min. 1.2 A)
Mechanical power switch yes
Dimensions 140 x 69 x 26 mm
Weight 100 g

Software (App for iOS and Android)
DiSEqC 1.0, 1.1, 1.2, USALS yes
Unicable support EN 50494 und EN 50607
Analyzers	Constellation diagram / Spectrum
Compass function	yes
Angle calculation	Rotation and tilt angle of the antenna
Displays	dBμV, CNR, BER, MER, signal strength and quality
Editing	Satellite and transponder list

Powerbank
Battery	Lithium Polymer battery (10.000 mAh)
USB ports	2x USB output (DC 5 V, 1.0 A and DC 5 V, 2.1 A)
Micro USB port 1x Micro USB input	(DC 5 V, 1.5 A)
Flashlight	LED
Display OLED display with capacity indicator
Power button	yes
Dimensions 140 x 22 x 62 mm
Weight 278g

7. Troubleshooting

Type Failure Solution
Angle calculation An incorrect angle is displayed.		Wrong custom location. Location sharing on „Auto" is not enabled.
Bluetooth connection The Bluetooth connection is aborted.		Deactivate standby mode, update app, switch device off / on.
LNB setting No reception possible. Check LNB setting according to the connected LNB (Unicable, DiSEqC circuit, ...)
Software version Different displays and functions.		Check the device software and the version of the app. If necessary, update both to always be up-to-date.
User manual Different displays and functions.		Download the current user manual from our home-page.
Powerbank Device starts constantly new.		Check the charge status of the battery. Only LNBs with a current consumption up to max. 200mAh can be powered by the power bank. If necessary, use the receiver or a power adapter for the power supply.
		LED flashlight does not work as described.
Meter Device starts constantly new.		Only connect the LNB after starting the meter to reduce the switch-on load. If necessary, use the receiver or a power adapter for the power supply.

8. Informations

Conformity information

Hereby, Megasat Werke GmbH declares that the following equipment is in compliance with the essential requirements and other relevant provisions of Directive 2014/30/EU and 2014/35/EU and Radio Equipment Directive 2014/53/EU:

Megasat Satmeter HD 1 Smart (incl. Powerbank) (Art.-No. 2600019)

The Declaration of Conformity for this product is located at the company: Megasat Werke GmbH, Industriestraße 4a, D-97618 Niederlauer

The declaration of conformity can be downloaded from our homepage: www.megasat.tv/downloads

Battery Regulation

Batteries do not belong in household waste. As a consumer, you are legally obliged to return used batteries and rechargeable batteries. You can return your old batteries and rechargeable batteries to the public collection points in your community or wherever batteries and rechargeable batteries of that type are sold. You can return free of charge your batteries in the shipment. If you want to make use of the last-mentioned option, please send your old batteries and rechargeable batteries to our address with sufficient franking.

These signs can be found on harmful batteries and rechargeable batteries:

Pb = battery / battery contains lead

Cd = battery / battery contains cadmium

Hg = battery / rechargeable battery contains mercury

Note:

Due to continuous development of our products, points described in this manual may differ. On our homepage www.megasat.tv you will always find the current version of the manual and software updates.

Version: 1.1 (August 2020)

Technical changes, misprints and errors reserved.
