DBL 2447 - Iron VOX - Free user manual and instructions

Product Type	Steam Iron
Brand	VOX
Model	DBL 2447
Power Supply	220-240V, 50/60Hz, 2000W (typical)
Water Tank Capacity	Approx. 300 ml (MAX level)
Soleplate Material	Stainless steel with steam vents
Steam Output	Adjustable via steam dial; continuous and shot steam
Shot Steam Function	Yes, powerful burst for tough creases
Vertical Steam	Yes, for curtains and hanging garments
Spray Function	Yes, dense or vaporized mist
Dry Ironing	Yes, with steam selector set to 0
Anti-Drip System	Automatic, prevents water leakage at low temperatures
Automatic Shut-Off	After 8 min upright or 30 sec horizontal
Self-Cleaning Function	Yes, removes impurities; use every 10-15 days
Resin Filter	Permanent, softens water and prevents scale
Temperature Control	Adjustable thermostat with LCD display and pilot light
Dimensions (approx.)	30 x 15 x 15 cm (L x W x H)
Weight (approx.)	1.5 kg
Cord Length	Approx. 2 m
Safety Features	Automatic shut-off, anti-drip, thermal protection
Cleaning	Wipe with damp cloth; use self-cleaning function regularly
Accessories	Measuring cup for filling water
Recommended Water	Distilled water; do not use chemical additives

Frequently Asked Questions - DBL 2447 VOX

How do I fill the water tank?

Unplug the iron. Open the filler door (3), tilt the iron slightly, and pour water slowly using the provided measure until the MAX level (about 300 ml). Do not overfill. Close the door.

Why is water dripping from the soleplate?

This may happen if the selected temperature is too low for steam. The anti-drip system activates to prevent dripping, but if the temperature is too low, water may leak. Ensure the thermostat is set high enough (above the minimum steam temperature).

How does the automatic shut-off work?

The iron turns off automatically if left upright for about 8 minutes or horizontal for about 30 seconds. A light indicates shut-off. Moving the iron resets it and returns to normal operation.

Can I use tap water?

Distilled water is recommended to prevent scale buildup. The internal resin filter softens water, but tap water may still cause deposits. Do not use chemical additives or decalcifiers.

How do I clean the iron?

Unplug and let it cool. Wipe the soleplate with a damp cloth and mild detergent. Use the self-cleaning function every 10-15 days: fill tank to MAX, set temperature to max, wait for pilot light off, unplug, hold iron over sink, press self-cleaning button until water and impurities flush out.

What does the shot steam button do?

Pressing the shot steam button (10) releases a powerful burst of steam to penetrate fabrics and remove tough creases. It can also be used for vertical steaming on hanging items. Use only at high temperatures.

Can I iron delicate fabrics?

Yes, the anti-drip system allows safe ironing of delicate fabrics at low temperatures. Always start with the lowest temperature for synthetic fabrics and increase as needed. Test on a hidden area.

What should I do if the iron is not heating up?

Check that the iron is plugged in, the thermostat is set to a temperature, and the automatic shut-off has not engaged. If the malfunction indicator lights, unplug and have the iron serviced by qualified personnel.

How do I store the iron?

Unplug, empty the water tank by turning the iron upside down and shaking gently. Let it cool completely. Loop the cord loosely around the base and store upright in a dry place.

What is the self-cleaning function?

The self-cleaning function removes scale and impurities from the steam chamber. Fill tank to MAX, set thermostat to max, wait until pilot light off, unplug, hold iron horizontally over sink, and press and hold the self-cleaning button (12) until boiling water and debris flush out.

USER MANUAL DBL 2447 VOX

Line drawing of a steam iron with handle and spout (no text or symbols)

IMPORTANT SAFETY INSTRUCTIONS

When using your flatiron, basic safety precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING

1. Use iron only for its intended use.
2. To protect against a risk of electric shock, do not immerse the iron in water or other liquids.
3. The iron should always be turned to 'Off' before plugging or unplugging from outlet. Never yank cord to disconnect from outlet; instead, grasp plug and pull to disconnect.
4. Do not allow cord to touch hot surfaces. Let iron cool completely before putting away. Loop cord loosely around iron when storing.
5. Always disconnect iron from electrical outlet when filling with water or emptying and when not in use.
6. Do not operate iron with a damaged cord or if the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron take it to a qualified serviceman for examination and repair. Incorrect reassembly can cause a risk of electric shock when the iron is used.
7. The device can be used by children over the age of 8 as well as people with reduced physical, sensory and mental capabilities or people with a lack of experience and knowledge if supervised or have been explained by responsible persons how to safely use the device and if they understand all potential hazards associated with handling this device. Children must not play with this device. Children must not clean or maintain this device without supervision.
8. Burns can occur from touching hot metal parts, hot water, or steam. Use caution when you turn a steam iron upside down – there may be hot water in the reservoir.
9. If the malfunction indicator goes on, the flatiron is not operating normally. Disconnect from the power supply and have the flatiron serviced by qualified service personnel

SPECIAL INSTRUCTIONS

1. To avoid a circuit overload, do not operate another high wattage appliance on the same circuit.
2. If an extension cord is absolutely necessary, a 10-ampere cord should be used. Cords rated for less amperage may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.

SAVE THESE INSTRUCTIONS

More specifically:

DO NOT let children or untrained persons use the appliance without supervision.
NEVER immerse the iron, cable or plug in any liquid.
DO NOT leave the hot iron touching fabrics or very inflammable surfaces.
DO NOT leave the appliance unnecessarily plugged in. Disconnect the plug from the mains when the appliance is not being used.
NEVER touch the appliance with wet or damp hands.
DO NOT use the power cord or the appliance in order to pull the plug out of the socket.
DO NOT leave the appliance exposed to the weather (rain, sun, etc.).
DO NOT leave the iron without supervision when it is connected to the power supply.
DO NOT fill the reservoir with water before removing the plug from the socket.

PLEASE NOTE!

Do not use chemical additive, scented substances or decalcifiers. Failure to comply with the above-mentioned regulations leads to the loss of guarantee.

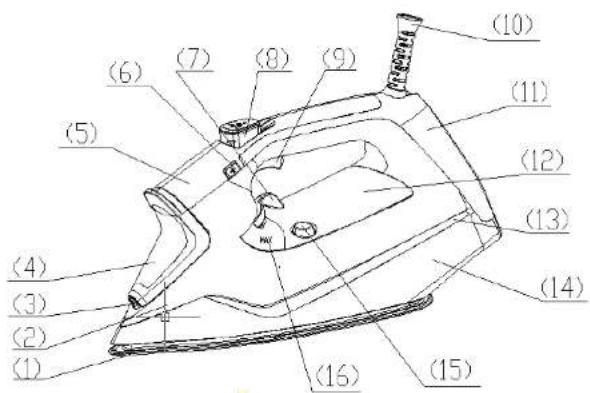

DESCRIPTION OF DEVICE

(1). Plate with steam vents
(3). Spray nozzle
(5). Liquid crystal display
(7). Steam dial
(9). Shot steam button
(11).Back cover
(13). Decorative strip
(15). Self-cleaning button

(2). Body
(4). Filler door
(6). Add and subtract button
(8). Spray button
(10). Cord bushing
(12). Transparent water tank
(14). Isolating plate
(16). Maximum filling level

A special resin filter inside the water reservoir softens the water and prevents scale build-up in the plate. The resin filter is permanent and does not need replacing.

Note:

Distilled water use recommended.

Do not use chemical additives, scented substances or decalcifiers. Failure to comply with the above-mentioned regulations leads to the loss of guarantee.

ANTI-DRIP SYSTEM

With the anti-drip system, you can perfectly iron even the most delicate fabrics. Always iron these fabrics at low temperatures. The plate may cool down to the point where no more steam comes out, but rather drops of boiling water that can leave marks or stains. In these cases, the Anti-drip system automatically activates to prevent vaporization, so that you can iron the most delicate fabrics without risk of spoiling or staining them.

AUTOMATIC SHUT OFF

The automatic shut off device trips after the iron has been left for approx. eight minutes in the upright position or unused for approx. Thirty seconds in the horizontal position. The light comes on to indicate that shut off has tripped. As soon as you move the iron, the device turns off and the iron starts working again.

GENERAL INSTRUCTIONS

When using the iron for the first time, you may notice a slight emission of smoke and hear some sounds made by the expanding plastics. This is quite normal and it stops after a short time. We also recommend passing the iron over an ordinary cloth before using it for the first time.

PREPARATIONS

Soft the laundry to be ironed according to the international symbols on the garment label, or if this is missing, according to the type of fabric.

GARMENTLABEL	FABRICTYPE	THERMOSTATREGULATION
	synthetic	•low temperature
	silk - wool	••medium temperature
	Cotton - linen	• • •high temperature
	Fabric not to be ironed

Start ironing the garments requiring a low temperature.

This reduces the waiting times (the iron takes less time to heat up than to cool down) and eliminates the risk of scorching the fabric.

STEAM IRONING

Filling the reservoir

• Check that the plug is disconnected from the socket.
• Move the steam selector (4) to "0" [Fig. 1].
• Open the lid (3).
• Raise the tip of the iron to help the water enter the opening without overflowing.
• Slowly pour the water into the reservoir using the special measure (9) and taking care not to go over the maximum level (about 300ml) indicated by "MAX" on the reservoir [Fig. 2].
• Close the lid (3).

Selecting the temperature

• Put the iron in a vertical position.
• Put the plug in the socket.
• Adjust the thermostat knob (11) according to the international symbol on the garment label [Fig. 3]. The plate temperature pilot light (6) indicates that the iron is heating up. Wait until the plate temperature pilot light goes off before ironing.

Warning: during ironing, the plate temperature pilot light (6) comes on at intervals, indicating that the selected temperature is maintained. If you lower the thermostat temperature after ironing at a high temperature, do not start ironing until the plate temperature control light comes on again.

Selecting the steam

The quantity of steam is regulated by the steam selector (4).

- Move the steam selector to a position between minimum and maximum depending on the quantity of steam required and the temperature selected [Fig. 1].

Warning: the iron gives off steam continuously only if you hold the iron horizontally. You can stop the continuous steam by placing the iron in a vertical position or by moving the steam selector to "0". As indicated on the thermostat knob (11) and in the initial table, you can only use steam at the highest temperatures. If the selected temperature is too low, water may drip onto the plate.

Selecting Shot-steam and steam when ironing vertically

Press the shot-steam button (10) to generate a powerful burst of steam that can penetrate the fabrics and smooth the most difficult and tough creases. Wait for a few seconds before pressing again [Fig. 4].

By pressing the shot-steam button at intervals you can also iron vertically (curtains, hung garments, etc.) [Fig. 5].

Warning: the shot-steam function can only be used at high temperatures. Stop the emission when the plate temperature pilot light (6) comes on, than start ironing again only after the light has gone off.

DRY IRONING

To iron without steam, follow the instructions in section "steam ironing", leaving the steam selector (4) on position "0".

Spray Function

Make sure that there is water in the reservoir. Press the spray button (5) slowly (for a dense spray) or quickly (for a vaporized spray) [Fig. 6].

Warning: for delicate fabrics, we recommend moistening the fabric beforehand using the spray function (5), or putting a damp cloth between the iron and the fabric. To avoid staining, do not use the spray on silk or synthetic fabrics.

CLEANING

Please note: before cleaning the iron in any way, make sure that the appliance plug is not connected to the socket.

Any deposits, starch residue or size left on the plate can be removed using a damp cloth or an unabrasive liquid detergent.

Avoid scratching the plate with steel wool or metallic objects.

The plastic parts can be cleaned with a damp cloth then wiped over with a dry cloth.

SELF-CLEANING

The self-cleaning feature cleans inside the plate, removing impurities. We recommend using it every 10-15 days. Directions:

-Fill the reservoir up to the maximum level indicated and set the steam selector (3) to "0"

-Set the thermostat knob (11) to the maximum temperature and wait for the pilot light (13) to turn off.

-Pull the plug out of the socket and hold the iron horizontally over the sink.

-Hold the cleanout button (12) setting until all the boiling water, steam, impurities come out [Fig. 7].

-When the soleplate has cooled down, you can clean it with a damp cloth.

HOW TO PUT IT AWAY

• Disconnect the plug of the iron from the socket.
• Empty the reservoir by turning the iron upside down and gently shaking it.
• Leave the iron to cool down completely.
• Roll up the power cord. [Fig. 8].
• Always put the iron away in a vertical position.

ADVICE FOR GOOD IRONING

We recommend using the lowest temperatures with fabrics that have unusual finishes (sequins, embroidery, flush, etc.).

If the fabric is mixed (e.g. 40% cotton 60% synthetics), set the thermostat to the temperature of the fiber requiring the lower temperature.

If you don't know the composition of the fabric, determine the suitable temperature by testing on a hidden corner of the garment. Start with a low temperature and increase it gradually until it reaches the ideal temperature.

Never iron areas with traces of perspiration or other marks: the heat of the plate fixes the stains on the fabric, making them irremovable.

The size is more effective if you use a dry iron at a moderate temperature: excess heat scorches it with the risk of forming a yellow mark.

To avoid marking silk, woolen or synthetic garments shiny, iron them inside out.

To avoid marking velvet garments shiny, iron in one direction (following the fibre) and do not press down on the iron.

The heavier the washing machine is loaded, the more garments come out creased.

This also happens when the spin drying revolutions are very high.

Many fabrics are easier to iron if they are not completely dry.

For example, silk should always be ironed damp.
