IDEAL IPG20 - Cooker Eldom - Free user manual and instructions

Product Type	Freestanding Gas Cooker
Brand	Eldom
Model	IDEAL IPG20
Energy Source	Gas (Natural Gas or LPG convertible)
Number of Gas Burners	4
Burner Configuration	1 Rapid, 2 Semi-rapid, 1 Auxiliary
Oven Type	Gas Oven with Thermostat
Oven Capacity	60 Liters
Oven Thermostat Range	150°C – 250°C
Safety Flame Failure Device	Yes (on all burners and oven)
Ignition Type	Automatic electronic ignition (mains powered)
Dimensions (H x W x D)	850 x 600 x 600 mm
Weight	45 kg
Color	Stainless Steel
Control	Knobs for hob and oven
Oven Interior Cleaning	Enameled interior, easy clean
Included Accessories	Oven grid, drip tray, gas nozzle set
Energy Efficiency Class (Oven)	A
Electrical Supply	230 V / 50 Hz (for ignition and oven light)
Gas Connection	G 1/2" thread

Frequently Asked Questions - IDEAL IPG20 Eldom

How do I install the Eldom IDEAL IPG20 gas cooker?

Installation must be carried out by a qualified gas engineer. Ensure the cooker is placed on a stable surface with ventilation according to the manual. Connect to gas supply using the provided nozzle and test for leaks with soapy water.

How do I light the gas burners on the hob?

Turn the knob to the ignition position (symbol) and press while turning to the desired flame level. The electronic ignition will spark. If not lighting, check gas supply and spark plug.

What should I do if a burner does not light?

First, check that the gas supply is open. Clean the burner cap and holes with a pin. Ensure the ignition spark plug is clean and dry. If still not lighting, contact technical support.

How do I clean the oven interior?

After the oven has cooled, remove racks and drip tray. Wipe enamel surfaces with a damp cloth and mild detergent. Avoid abrasive cleaners. For stubborn residue, use a non-abrasive oven cleaner.

Can I convert the cooker from natural gas to LPG?

Yes, the cooker is convertible. Use the provided LPG nozzle set and follow the conversion steps in the manual. Adjust the bypass screw for minimum flame setting. Conversion should be done by a professional.

What safety features does the IDEAL IPG20 have?

The cooker includes flame failure devices that cut off gas if the flame goes out, both on hob burners and the oven. Always supervise cooking and keep flammable materials away.

What are the dimensions of the cooker?

The dimensions are 850 mm height, 600 mm width, and 600 mm depth. Allow 50 mm clearance on sides and back for ventilation. The cooker weighs approximately 45 kg.

How do I use the oven thermostat?

Turn the oven knob to the desired temperature (150°C to 250°C). The oven will light automatically. The thermostat maintains the temperature. Preheating is recommended before baking.

What is the energy efficiency class of the oven?

The oven is rated class A, which is energy efficient. Use proper cookware and avoid opening the door frequently to save energy.

Where can I find replacement parts for my Eldom cooker?

Authorized service centers and online retailers stock parts like burner caps, spark plugs, and knobs. Use original parts only. Refer to the manual for part numbers and contact information.

USER MANUAL IDEAL IPG20 Eldom

White portable electrical stove with two black circular lamps and a 'ideal' label (no additional text or symbols visible)

OBSŁUGA

1. Please acquaint precisely with whole of this instruction before the blender for the first time,
2. Before operating the appliance, read the user manual thoroughly
3. Plug in the connecting cable to a grounded electrical outlet
4. Ensure that a limited number of receivers are connected to one current circuit
5. If an extension cord is used, it should be grounded and placed in a safe manner
6. The appliance is intended for household use only
7. Use only in rooms with good ventilation
8. Keep an eye on the operating appliance, especially when there are children nearby. Before leaving - the room with the appliance, switch it off.
9. If the appliance is not working, unplug it
10. Before unplugging, set the thermostat (1) in the position "OFF"
11. Do not use in open air. The cooker can be used under the roof where it is protected against rain and wind
12. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
13. Make sure that children do not play with the equipment,
14. Never place products directly on the heating plate (2). It poses the risk of serious burning and damage of the appliance
15. Do not use the appliance near curtains, blinds or other inflammable material

16. Do not place the appliance in a corner of a room or directly next to the wall. The space of at least 5 cm from the sides of the appliance should be provided

17. To ensure free and safe access to the appliance, place it at a proper height

18. The cooker can be only positioned on a level, stable and high-temperature resistant surface. No items of inflammable material can be placed above the appliance
19. do not touch the housing and the heating plate of the operating appliance (risk of serious burning), and when the appliance is no longer used, wait until it cools down completely
20. do not move the appliance during its operation, do not place the power supply cable over the cooker, do not use for heating rooms, do not use the cooker without dishes with products
21. place dishes with products on the heating plate in acentral position
22. use only metal and ovenproof dishes with flat and stable bottoms
23. if the power cable is damaged, it must be replaced in the Manufacturer's Service in order to avoid hazard
24. repairs of the equipment can only be performed by an authorized servicing point. Any modernizations or the use of non-original spare parts or elements of the appliance is prohibited and may cause a serious hazard to the user
25. The company Eldom Sp. z o. o. shall bear no responsibility for any possible damages resulting from the improper usage of the appliance

ENVIRONMENT PROTECTION

• the device is made of materials that can be reused or recycled
• it should be handed to the special collection point, that deals with collection and recycling of electronic and electric devices,
  • only intended for household use,
• it cannot be used for commercial purposes
• the warranty loses validity in case of inappropriate use,

WARRANTY

CLEANING AND MAINTENANCE

Before cleaning, unplug the appliance and wait until it cools down completely.

- Do not immerse the appliance in water or wash it in a dish-washer machine.

- All surfaces can be cleaned only by wiping them with a soft, damp cloth with the addition of gentle cleaning agents.

- Do not use abrasive agents.

This symbol warns against the high temperature of the surface of the appliance.

ideal

INSTRUCTION MANUAL

ELECTRIC COOKER IPG20

EN

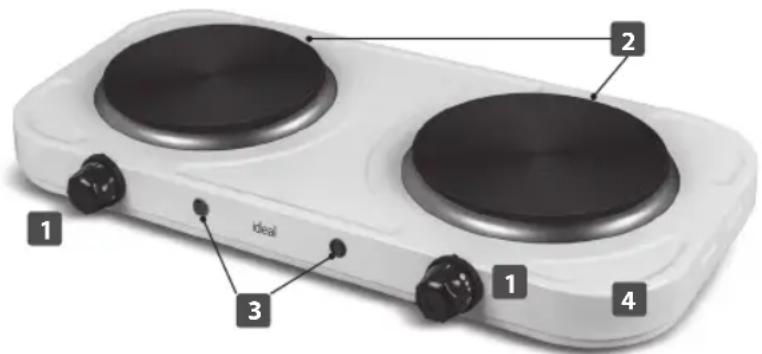

GENERAL DESCRIPTION

1. Thermostats
2. Heating plates
3. Controllights
4. Housing

TECHNICAL DATA

• power: 2000W
• supply voltage: 230V \~ 50Hz

USING THE APPLIANCE

Before operating and plugging in the appliance, set the thermostat (1) in the position "OFF" (the appliance switched off).

Position the appliance on a level, dry, stable and high-temperature resistant surface. The housing (4) heats up considerably when operated. Thus, the space of at least 5 cm from the sides of the device should be provided.

To ensure free and safe access to the appliance, place it at a proper height.

• plug in the appliance
• place a dish with products on the heating plate (2)
• switch on the appliance selecting the working temperature of the thermostat (1)
  Thermostat enables smooth adjustment of the temperature.

Settings 1-3 correspond to the lower temperature proper for heating meals.

Settings 4 - 5 - high temperature intended for cooking. Operation of the appliance is signalled by the control light (3).

When the appliance is no longer used, set the thermostat (1) in the position "OFF" and unplug the appliance.

During the first activation of the appliance, a specific smell can be emitted from the heating elements and the insulation. It is a normal occurrence.

In order to ensure safety and high efficiency of the operation, use only dishes with flat bottoms and of a proper diameter which guarantee stability and good contact of the dish with the heating plate
