HC120T - Cooker Eldom - Free user manual and instructions

Product Type	Electric heater
Model	HC120T
Brand	Eldom
Power Rating	2000 W
Fan Power	17 W
Mains Voltage	230 V ~ 50 Hz
Number of Power Levels	4 (including off)
Thermostat Control	Yes, adjustable
Air Blowing Function	Yes, with indicator lamp
Cold Air Blowing	Possible (switch on, power level 0)
Installation	Vertical, on flat stable heat-resistant surface
Feet Included	Yes, attach with screws
Cleaning Method	Wipe housing with moistened cloth; do not immerse
Safety Features	Do not use near water, flammable materials; keep away from children
Protection Class	Do not use outdoors or in high humidity
Intended Use	Domestic use only
Certification	CE (implied)

Frequently Asked Questions - HC120T Eldom

What is the power consumption of the Eldom HC120T heater?

The heater has a power rating of 2000 W and the fan consumes 17 W.

How do I operate the heater?

Connect to a suitable socket, use the power level switch (2) to choose power, and adjust thermostat (3) for temperature. For maximum heat, set thermostat to MAX and switch to position 3. Turn on air blowing switch (1) for enhanced heating.

Can I use the heater for cold air only?

Yes, set the air blowing switch (1) to on and the power level switch (2) to 0 for cold air circulation.

What should I do if I smell a strange odor during first use?

A specific smell from heating and insulation elements is normal during first usage. It will dissipate.

How do I clean the heater?

Disconnect from power, wipe the housing with a moistened cloth. Do not use strong cleansers or immerse in water.

Can I use the heater in the bathroom?

No, do not use near showers, baths, washbasins, or swimming pools due to safety risks.

Is it safe to leave the heater unattended?

No, the appliance must not be left switched on unsupervised.

What if the power cable is damaged?

The cable must be replaced by an authorized service center to avoid hazard. Contact Eldom service.

Can I use the heater to dry clothes?

No, do not use the heater to dry clothes or cover the outlets. Keep the power cable away from hot air outlets.

How should I dispose of the heater?

The appliance contains recyclable materials. Hand it over to a collection point for recycling electrical and electronic equipment.

USER MANUAL HC120T Eldom

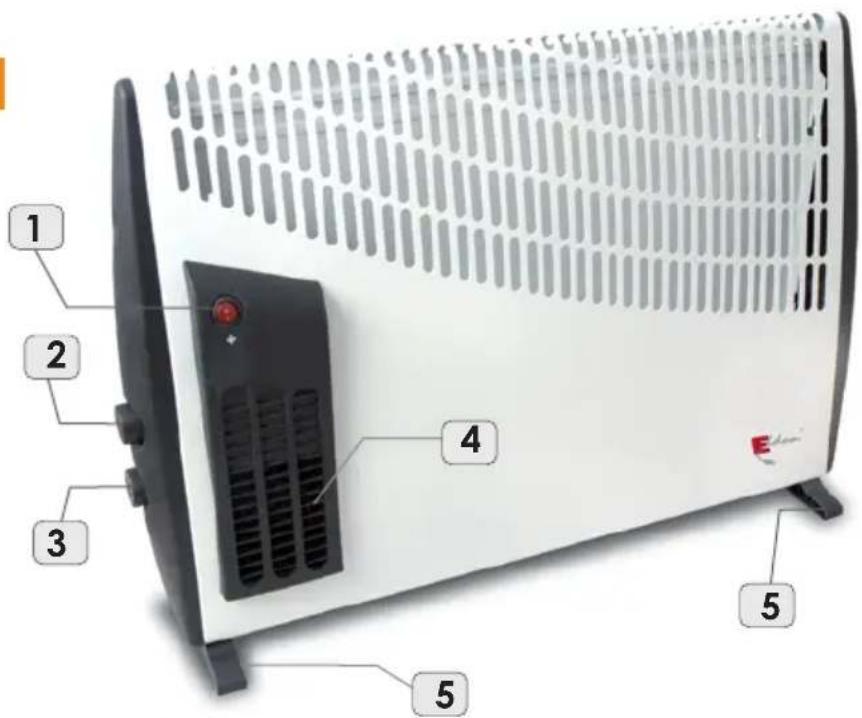

1. Air blowing switch
2. Power level switch
3. Thermostat
4. Air blowing opening
5. Feet

TECHNICAL DATA

• power: 2000W
• fan's power: 17W
• mains voltage: 230V \~50Hz

HOW TO USE THE APPLIANCE

• after unpacking the appliance make sure that it has not been damaged during transport. In case of any doubts do not use it until you contact the service centre
• fix the feet (5) using the screws attached
• put the appliance onto a flat, stable and high temperature resistant ground
• connect the appliance to a socket with parameters compliant with those given in the operating manual
• choose the appliance power by using the switch (2)
• the appliance starts working after choosing the temperature by turning the thermostat handwheel (3). In order to set the highest temperature the thermostat should be in the "MAX" position and the switch (2) should be in the position "3"
• the heater works more effectively after turning the air blowing switch on (1). The fan's work is signaled by the control lamp in the switch (1)
• It is possible to have cold air blown. In order to do that after switching the air blowing on the switch (2) must be in the position "0"

During the first usage of the heater specific smell can be given from heating and insulation elements. It is a normal phenomenon.

CLEANING AND PRESERVATION

• Before cleaning remove the power cable from the socket
• The appliance cannot be submersed in water
• Do not use any cleansing agents which are strong and damage the surface
• Wipe the housing with a moistened cloth

SAFETY INSTRUCTIONS

- Before using the appliance for the first time please read carefully this operating manual

- The appliance should be connected to sockets compliant with current parameters given on the housing

- The appliance works only in the vertical setting

- The appliance must always be disconnected before cleaning and preservation as well as in case of malfunction and after using

- The appliance should be disconnected by pulling on the plug, not on the power cable

- Never use the appliance near showers, baths, washbasins, swimming pools, etc

- Do not use the appliance near flammable materials such as furniture, bedclothes, paper, clothes, curtains, fitted carpets, etc

- Do not use the appliance in rooms with high risk of gas explosion and where flammable solvents, varnishes or adhesives are used

- Do not use the appliance outdoors

- Do not touch the appliance with wet hands or feet

- The appliance must not be submersed in water or sprayed with water

- The appliance must be carried only with the aid of the carry handles (1)

- Do not let children or animals have access to the appliance.

While operating the heater surface temperature can be quite high

- Do not use the appliance to dry clothes

- Do not cover the outlets

- Do not keep the power cable over the heater where hot air outlets are located

- The appliance should not be used by people (including children) with limited physical, sensor and intellectual abilities unless supervised by a person responsible for their safety

- The appliance must not be left switched on unsupervised

- Before putting the appliance away wait until it cools down

- The power cable and the whole appliance should be regularly checked for damages; the appliance cannot be switched on if any damages have been found

- In event of power cable defects it must be replaced in the service centre to avoid risk; list of services is attached and on www.eldom.eu

- The appliance can be repaired only by authorized services.

Any modernization or using other than original replaceable parts or elements is forbidden and dangerous for the user

ENVIRONMENTAL PROTECTION

- the appliance is made of materials which can be recycled,

- it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment

WARRANTY

- this appliance is designed for domestic use only,

- it cannot be used for professional purposes or for other than the intended use,

- improper use will nullify the guarantee. Warranty details in the appendix
