Product type	Cooker
Brand	Eldom
Model	HL10
Dimensions (H x W x D)	850 x 500 x 600 mm
Weight	45 kg
Power supply	230 V, 50 Hz
Power consumption	10 kW
Number of cooking zones	4
Hob type	Electric
Oven capacity	60 L
Oven type	Electric fan oven
Energy class	A
Safety features	Child safety lock, overheating protection
Cleaning	Easy-clean enamel interior
Warranty	2 years
Spare parts availability	Authorized service centers

Frequently Asked Questions - HL10 Eldom

How do I install the cooker?

Ensure proper electrical connection by a qualified electrician. Use the provided plug or hardwire according to local regulations. Place on a level, stable surface with adequate ventilation.

How do I clean the hob?

Wait for the hob to cool completely. Wipe with a damp cloth and mild detergent. Avoid abrasive cleaners or scouring pads that may scratch the surface.

The oven is not heating. What should I do?

Check the power supply and ensure the cooker is plugged in. Verify that the timer and temperature settings are correctly adjusted. If the problem persists, contact an authorized service technician.

Can I use aluminum foil in the oven?

Yes, you can use aluminum foil to cover dishes, but avoid contact with heating elements. Do not line the oven bottom with foil, as it can affect heat distribution.

How do I activate the child safety lock?

Press and hold the child lock button for 3 seconds until the indicator light turns on. To deactivate, press and hold again for 3 seconds.

The oven door is hard to close. How can I fix it?

Check if the hinges are aligned or if there is any obstruction. Gently adjust the door if misaligned. If the issue continues, consult the user manual or contact support.

What should I do if the cooker sparks?

Immediately disconnect the power supply at the main circuit breaker. Do not use the cooker. Contact a qualified electrician to inspect and repair the appliance.

How do I replace the oven light bulb?

Disconnect the cooker from the power supply. Remove the glass cover by turning it counterclockwise. Replace the bulb with a new one of the same type (specified in the manual) and reassemble.

The timer beeps but the oven does not stop. What is wrong?

The timer may be set incorrectly. Turn the timer knob to the manual mode (often indicated by a symbol). If the problem persists, refer to the user manual for specific instructions.

Where can I find spare parts for the Eldom HL10?

Spare parts are available through Eldom authorized dealers or online parts stores. Provide the model number HL10 for accurate ordering. Always use genuine parts.

USER MANUAL HL10 Eldom

White Eldom electric heater with dual control knobs and ventilation grilles (no visible text or symbols)

Eldom sp. z o.o.

White portable air conditioner fan with ventilation grille and labeled buttons (4 and 6), no visible text or symbols beyond labels

UŻYTKOWANIE URZĄDZENIA

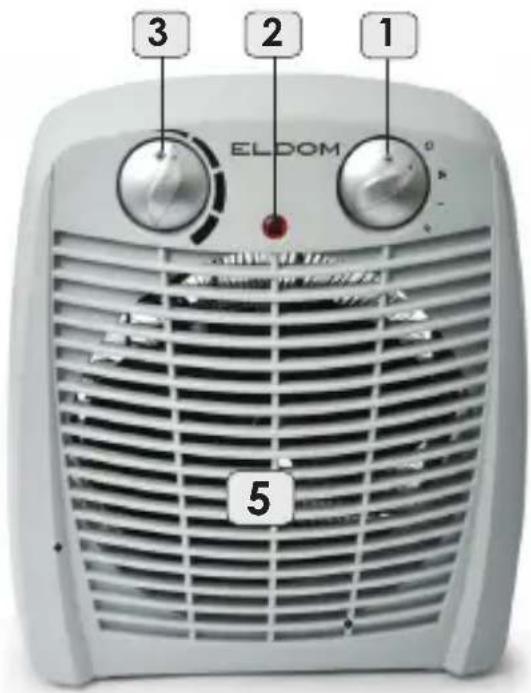

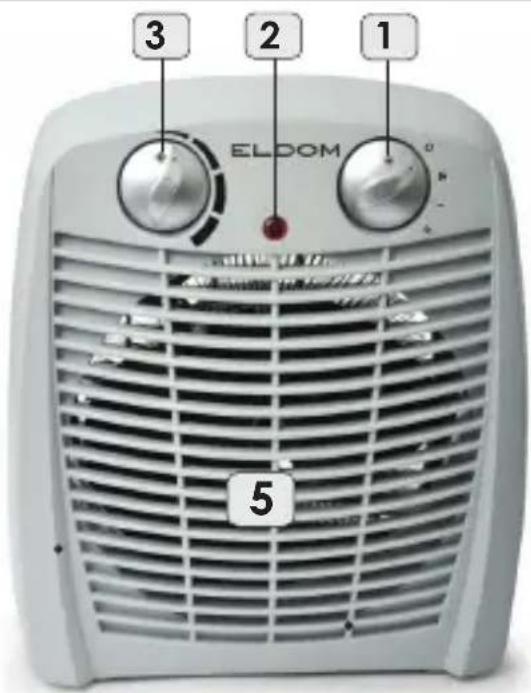

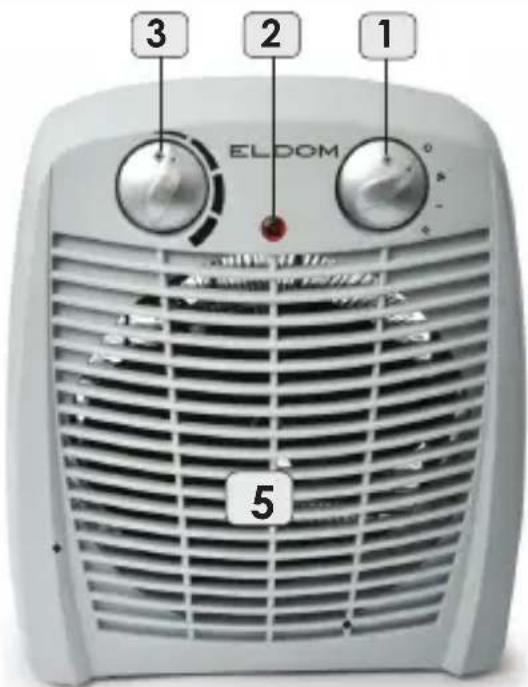

1. ON/OFF switch (operation mode)
2. Indicator light
3. Thermostat

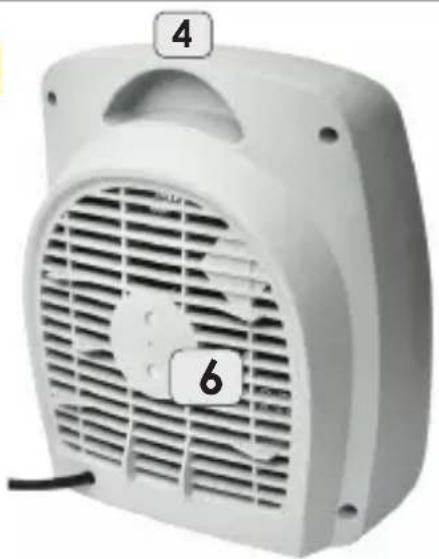

4. Carrying handle
5. Air blowing opening
6. Air inlet

White portable air conditioner fan with ventilation grille and labeled buttons (4 and 6), no visible text or symbols beyond labels

TECHNICAL DATA

• power: 2000W
• supply voltage: 230V \~ 50Hz

HOW TO USE THE APPLIANCE

• After unpacking the appliance, make sure it has not been damaged during transport. In case of any doubts, do not use the appliance until consulting a service centre. Put the appliance onto a flat, stable and high temperature resistant ground.
• Turn the switch (1) to position "O" (appliance turned off).
• Connect the appliance to a power source with parameters in accordance with the Instructions for Use.
• choose operation mode by turning the knob (1):

- cool air

- hot air

- very hot air

The appliance starts working after choosing the temperature by turning the thermostat handwheel (3).

- The appliance work is signaled by control lamps (2)

When used for the first time, the heating elements and insulation can emit characteristic smell. It is a normal phenomenon.

Do not cover outlets when the appliance is in operation.

CLEANING AND PRESERVATION

• Before cleaning remove the power cable from the socket
• The appliance cannot be submersed in water
• Do not use any cleansing agents which are strong and damage the surface
• Wipe the housing with a moistened cloth

SAFETY INSTRUCTIONS

- before first use familiarise with the whole instruction manual

- the device should be plugged in the socket with the working parameters described on the shell

- the device works only in vertical setting

- the device should be unplugged before cleaning and maintenance and in case of improper working or after using the device

- the device should be unplugged by pulling the plug not the cable

- do not use close to shower, bath, washbasin, pool, etc.

- do not use close to combustible materials such as furniture, bedding, paper, clothes, curtains, carpets, etc.

- do not operate in with high risk of gas explosion or when flammable solvents, lacquers or adhesives are used

- do not use outdoors

- do not touch with wet or moistened hands or feet

- do not immerse in water or sprinkle

- move only using the handle (4)

- do not let children or animals to have access to the device. While operating the device the surface temperature may be high.

- do not use for drying clothes

- do not cover outlets while operating the device

- do not direct the cord over the heater and outlets

- the device should not be used by people (including children) with limited physical, sensory and mental abilities unless they are under supervision of a person responsible for their safety

-do not leave working device without supervision

- let heater cool down before putting it to a hide

- check regularly whether the device or the cord have any damages. Do not operate if any damages are noticed.

- do not use if the cord is damaged, when the device fell over or was otherwise damaged. Any mending of the device should be let to authorised service providers. List of service providers can be found in the annex or on website www.eldom.eu

- Any mending of the device should be held by authorised service providers. Any modernisations or using spare parts or other elements other than original is forbidden and dangerous.

- Eldom sp.z o.o. shall not be responsible for any damages occurring as a result of improper usage

ENVIRONMENTAL PROTECTION

- the device is made of materials which can be reused or recycled

- the device should be handled to a special point which deals with collecting and recycling of electric and electronic equipment

GUARANTEE

• the device is designed to be used in households
• not for professional use
• the guarantee expires when device is used improperly
• the heating part is not subject to guarantee

Detailed warranty description in the annex.
