HL11 - Cooker Eldom - Free user manual and instructions

Product Type	Portable Fan Heater
Brand	Eldom
Model	HL11
Power Consumption	2000W
Supply Voltage	230V ~ 50Hz
Operation Modes	Cool air, hot air, very hot air
Thermostat	Yes, adjustable
Safety Features	Tip-over switch, overheat protection
Carrying Handle	Yes
Air Inlet/Outlet	Front outlet, rear/side inlet
Housing Material	Plastic, heat-resistant
Cleaning	Wipe with damp cloth; do not immerse
Intended Use	Household only
Warranty	Standard household warranty; heating element not covered
Repair	Authorized service only; no user serviceable parts

Frequently Asked Questions - HL11 Eldom

Why does the heater emit a smell when first used?

During initial use, the heating elements and insulation may emit a characteristic smell. This is normal and will dissipate after a short period.

Can I use the heater in a bathroom?

No, do not use the heater near showers, baths, washbasins, or pools to avoid electric shock. It is not designed for damp environments.

How do I clean the heater?

Unplug the heater and let it cool. Wipe the housing with a damp cloth. Do not use abrasive cleaners or immerse the appliance in water.

What should I do if the heater tips over?

The heater has a safety tip-over switch that cuts power if it falls. Simply upright the heater and it will resume operation once switched on.

Can I use an extension cord with this heater?

It is recommended to plug the heater directly into a wall socket. If an extension cord is necessary, use a heavy-duty cord rated for at least 2000W.

Is the heater safe to leave unattended?

No, do not leave the heater unattended while operating. Always turn it off and unplug when leaving the room or sleeping.

What are the different heat settings?

The heater has three modes: cool air (fan only), hot air (low heat), and very hot air (high heat). Select using the knob.

How do I adjust the thermostat?

Turn the thermostat knob (marked with numbers or symbols) to set the desired temperature. The heater will cycle on/off to maintain it.

What should I do if the heater stops working?

Check if the tip-over switch has tripped, if the thermostat is set too low, or if the power cord is damaged. If problems persist, contact an authorized service center.

Can children use this heater?

Children aged 8 and above can use it only under supervision. Children under 8 should be kept away from the appliance and its cord.

USER MANUAL HL11 Eldom

White and orange portable heater with mesh grille and orange handle (no visible text or symbols)

WSKAZÓWKI BEZPIECZEŃSTWA

White portable electric heater with orange handle and mesh grille, labeled with number 5 (no text or symbols on device body)

Close-up of a white cable with a numbered label '6' on it, against a dark background (no other text or symbols)

OPIS OGÓLNY

• before first use familiarise with the whole instruction manual
• the device should be plugged in the socket with the working parameters described on the shell
• the device works only in vertical setting
• the device should be unplugged before cleaning and maintenance and in case of improper working or after using the device
• the device should be unplugged by pulling the plug not the cable
• do not use close to shower, bath, washbasin, pool, etc.
• do not use close to combustible materials such as furniture, bedding, paper, clothes, curtains, carpets, etc.
• do not operate in with high risk of gas explosion or when flammable solvents, lacquers or adhesives are used
• do not use outdoors
• do not touch with wet or moistened hands or feet
• do not immerse in water or sprinkle
• move only using the handle (3)
• do not let children or animals to have access to the device. While operating the device the surface temperature may be high.
• do not use for drying clothes
• do not cover outlets while operating the device

SAFETY INSTRUCTIONS

• do not direct the cord over the heater and outlets
• The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks.
  Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
• do not leave working device without supervision
• let heater cool down before putting it to a hide
• check regularly whether the device or the cord have any damages. Do not operate if any damages are noticed.
• do not use if the cord is damaged, when the device fell over or was otherwise damaged. Any mending of the device should be let to authorised service providers. List of service providers can be found in the annex or on website www.eldom.eu

SAFETY INSTRUCTIONS

- Any mending of the device should be held by authorised service providers. Any modernisations or using spare parts or other elements other than original is forbidden and dangerous.

- Eldom sp.z o.o. shall not be responsible for any damages occurring as a result of improper usage

ENVIRONMENTAL PROTECTION

- the device is made of materials which can be reused or recycled

- the device should be handled to a special point which deals with collecting and recycling of electric and electronic equipment

GUARANTEE

• the device is designed to be used in households
• not for professional use
• the guarantee expires when device is used improperly
• the heating part is not subject to guarantee

Detailed warranty description in the annex.

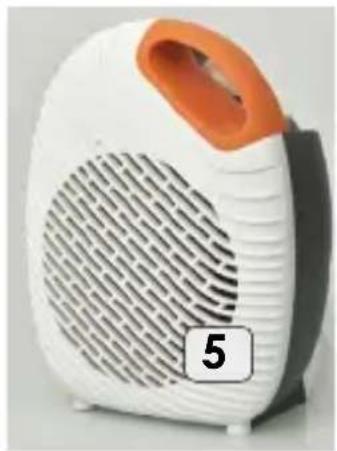

White and orange portable heater with mesh grille and handle, labeled with number 5 (no text or symbols on device body)

Close-up of a white cable with a numbered label '6' on it, against a dark background (no other text or symbols)

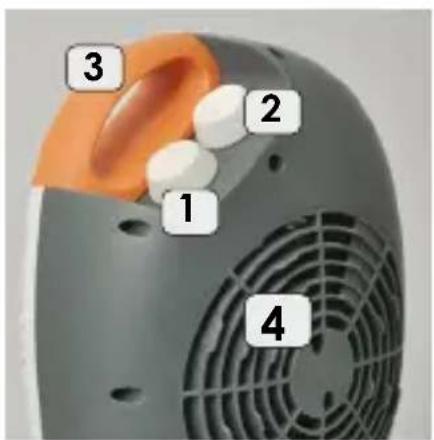

GENERAL DESCRIPTION

1. ON/OFF switch (operation mode)
2. Thermostat
3. Carrying handle
4. Air inlet
5. Air blowing opening
6. Safety tip-over switch

TECHNICAL DATA

• power: 2000W
• supply voltage: 230V \~ 50Hz

HOW TO USE THE APPLIANCE

• After unpacking the appliance, make sure it has not been damaged during transport. In case of any doubts, do not use the appliance until consulting a service centre. Put the appliance onto a flat, stable and high temperature resistant ground.
• Turn the switch (1) to position "O" (appliance turned off).
• Connect the appliance to a power source with parameters in accordance with the Instructions for Use.
• choose operation mode by turning the knob (1):

• cool air
• hot air
• very hot air

The appliance starts working after choosing the temperature by turning the thermostat handwheel (2).

When used for the first time, the heating elements and insulation can emit characteristic smell. It is a normal phenomenon.

Do not cover outlets when the appliance is in operation.

In the base of the appliance there is a switch which cuts off power supply in case of overturning.

CLEANING AND PRESERVATION

• Before cleaning remove the power cable from the socket
• The appliance cannot be submersed in water
• Do not use any cleansing agents which are strong and damage the surface
• Wipe the housing with a moistened cloth

BEZPEČNOSTNÍ DOPORUČENÍ

White portable electric heater with orange handle and mesh grille, labeled with number 5 (no text or symbols on device body)

Close-up of a white cable with a black circular mark labeled '6' on it, against a dark background (no other text or symbols)

POPIS HLAVNÍCH ČÁSTÍ

White portable electric heater with orange handle and patterned grille, labeled with number 5 (no text or symbols on device body)

Close-up of a white cable with a numbered label '6' on it, against a dark background (no other text or symbols)

White portable heater with orange handle and patterned grille, labeled with number 5 (no text or symbols on device body)

Close-up of a white cable with a black circular mark labeled '6' on its side (no other text or symbols visible)

ОБЩЕЕ ОПИСАНИЕ
