VCP 8331 PRO - Vacuum Cleaner GRUNDIG - Free user manual and instructions

Product Type	Cordless Stick Vacuum Cleaner
Model	VCP 8331 PRO
Brand	Grundig
Power Consumption	450 W
Input Voltage	100-240 V~, 50-60 Hz, 0.5 A
Output Voltage (Adapter)	32 V, 0.45 A
Charging Time	4-6 hours
Runtime (Handheld, Min Speed)	Up to 60 min
Runtime (Handheld, Mid Speed)	Up to 30 min
Runtime (Handheld, Max Speed)	Up to 10 min
Runtime (With Tube & Brush, Min Speed)	Up to 40 min
Runtime (With Tube & Brush, Mid Speed)	Up to 25 min
Runtime (With Tube & Brush, Max Speed)	Up to 8 min
Filtration System	Pre-filter, Mesh filter, EPA E12 filter
Dust Container Capacity	Not specified (estimate 0.5 L)
Accessories Included	Electric turbo brush, crevice tool, combination tool, mini turbo pet brush, mop attachment (VCP 8331 PRO), mopping cloths (2 pcs), charging dock, adapter, screws & dowels
Mop Attachment	Water tank for hard floor mopping (VCP 8331 PRO only)
Weight	Not specified (estimate 2.5 kg)
Safety Features	Filter presence detection, automatic shutdown when placed on dock, battery protection
LED Screen	Displays battery level, speed mode, filter/blockage warnings
Maintenance	Empty dust container after each use; shake clean filters (do not wash); clean roller brush regularly
Battery Type	Rechargeable Li-ion (built-in, replaceable by qualified person)
Wall Mountable	Yes (charging dock included)

Frequently Asked Questions - VCP 8331 PRO GRUNDIG

How long does it take to fully charge the battery?

Charging time is approximately 4 to 6 hours. The appliance should not be used while charging.

What is the maximum runtime on a full charge?

On minimum speed in handheld mode (without motorized brush), runtime is up to 60 minutes. With the tube and electric turbo brush, maximum runtime at low speed is up to 40 minutes.

Can I use the vacuum cleaner while it is charging?

No, the appliance automatically stops operating when placed on the charging dock and should not be used during charging.

How do I clean the filters?

Do not wash the filters. To clean, remove the dust container, then remove the pre-filter and mesh filter and shake them to remove dust. The EPA E12 filter can also be shaken clean. Replace filters if performance decreases.

What should I do if the LED screen shows a blockage warning?

Check the tube, suction opening, and brush roller for any foreign objects blocking airflow. Remove the obstruction and restart the appliance.

Can I use the mop attachment on carpets?

No, the mop attachment is designed for hard floors only. Do not use it on carpets or rugs.

How do I fold the tube for storage?

Press the round button on the left side of the tube fold mechanism to collapse the tube, making it easier to reach under furniture and store compactly.

What accessories are included?

The package includes an electric turbo brush, crevice tool, combination tool, mini turbo pet brush, mop attachment (VCP 8331 PRO only), mopping cloths, charging dock, and wall mounting hardware.

Is it safe to vacuum liquids?

No, do not vacuum water or other fluids. This appliance is for dry vacuuming only.

How should I store the vacuum for long periods?

Keep the battery at about half charge. Recharge at least every three months. Store in a cool, dry place away from children and metal objects that could short-circuit the battery.

USER MANUAL VCP 8331 PRO GRUNDIG

Cordless Stick Vacuum Cleaner

User Manual

Two abstract geometric patterns: a woven bamboo design and a rectangular circuit board with circular cutouts (no text or symbols)

VCP 8331 PRO - VCP 8330

Diagram of a device with screw and screw holes, connected to a power outlet (no text or symbols)

Technical line drawing of a mechanical component with arrows indicating assembly or disassembly (no text or symbols)

Diagram of a vacuum cleaner with directional arrows indicating motion (no text or symbols)

Diagram of a medical or laboratory device with two components and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical device with an upward arrow indicating motion or assembly (no text or symbols present)

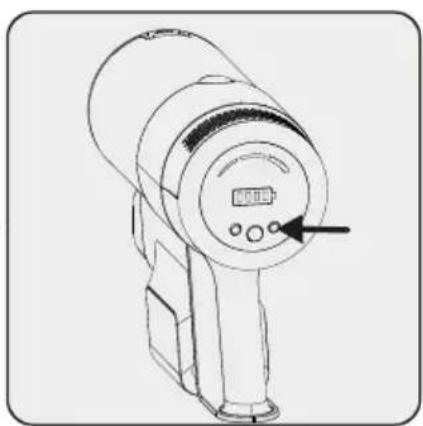

Line drawing of a handheld electronic device with a central display and control buttons (no text or symbols)

Line drawing of a handheld electronic device with a digital display and control buttons (no text or symbols)

Line drawing of a handheld device with a circular dial and control buttons, no text or symbols present.

Technical line drawing of a vacuum cleaner with control panel and warning symbol (no text or labels)

Technical diagram of a mechanical assembly with an inset magnified view showing a circular component (no text or symbols present)

Diagram showing a mechanical assembly with an arrow indicating a process or transformation (no text or symbols present)

Diagram showing a mechanical assembly with an arrow indicating a process or transformation (no text or symbols present)

Diagram showing a device being processed from a base to a top, with an arrow indicating the process (no text or symbols present)

Technical line drawing of a mechanical assembly with a cup and housing (no text or symbols)

Diagram of a mechanical assembly with a textured base and internal components, no visible text or symbols

Technical line drawing of a mechanical assembly with two views (top and side), no visible text or symbols

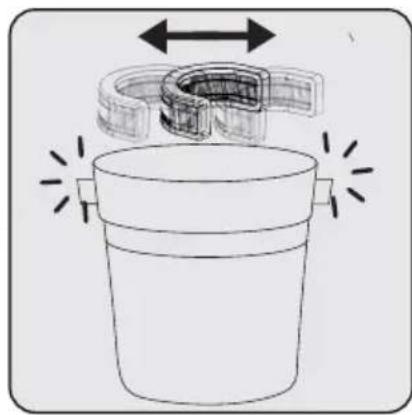

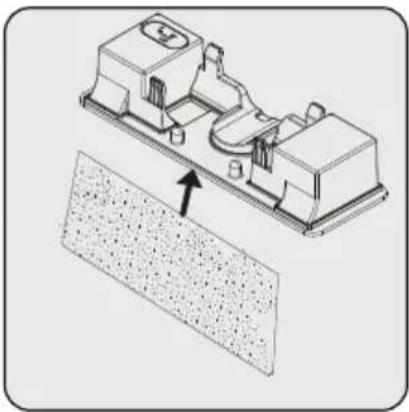

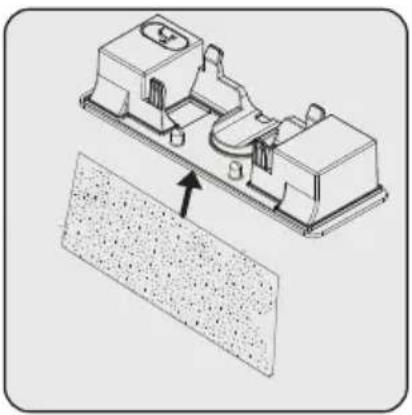

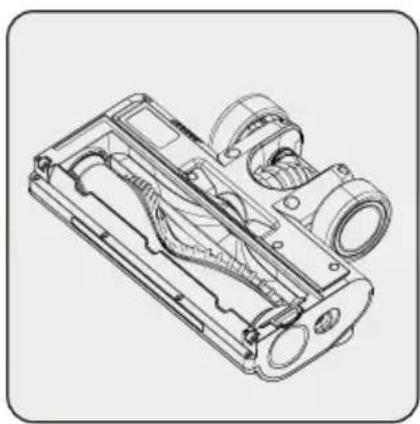

Wischmopp-Aufsatz:

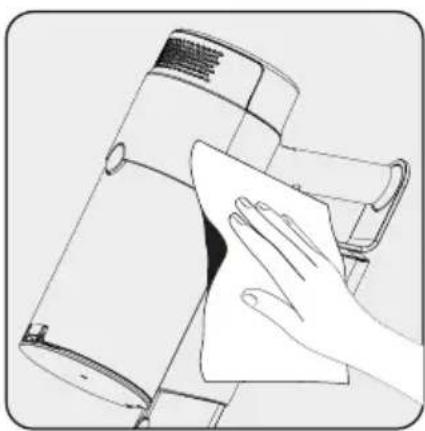

Illustration of a hand cleaning a cylindrical device with a cloth (no text or symbols visible)

Line drawing of a mechanical device with a lever and granular base (no text or symbols)

Technical line drawing of a cylindrical device with internal components and an upward arrow indicating motion (no text or symbols)

Technical illustration of a mechanical component with an upward arrow indicating motion (no text or symbols present)

Diagram of a mechanical device with internal components and directional arrows, no text or symbols present

Diagram showing a mechanical component being lifted by an arrow, with no visible text or symbols.

Technical line drawing of a cylindrical device with internal components and a downward arrow indicating a process (no text or symbols present)

Technical line drawing of a cylindrical device with a directional arrow indicating motion (no text or symbols)

Diagram of a container with a U-shaped tube and directional arrows indicating flow or movement (no text or symbols)

Technical line drawing of a mechanical device with a magnified inset showing a circular component (no text or symbols)

Technical line drawing of a mechanical device housing with internal components (no text or symbols)

Technical line drawing of a mechanical device housing with internal components (no text or symbols)

Please read this guide first!

Dear Customer,

Thank you for choosing a Grundig product. We would like you to achieve the optimal efficiency from this high quality product which has been manufactured with state of art technology. Please make sure you read and understand this guide and supplementary documentation fully before use and keep it as a reference. Include this guide with the unit if you hand it over to someone else. Observe all warnings and information herein and follow the instructions.

Symbols and their meanings

These symbols are used throughout this guide:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

Electric shock protection rating

1 Important safety and environmental instructions

This section contains safety instructions to prevent hazards that can result in injury or property damage.

Any warranty is void if these instructions are not followed.

1.1 General safety

• This appliance complies with international safety standards.
- This device can be used by children over 8 years of age, people with physical, sensory or mental challenges or people with lack of experience or knowledge; as long as control is ensured or information is provided regarding the hazards. Children must not play with the appliance. Cleaning and user maintenance shall not be carried out by unattended children.
- Do not use the appliance if the power cord or the appliance is damaged. Contact authorized service.

• Your mains power supply shall match the information shown on the rating plate label of the appliance.
• Do not use the appliance with an extension cord.
• To prevent damage to the power cord, prevent it from being pinched, crimped or rubbed against sharp edges.
• Do not touch the plug of the appliance with damp or wet hands while the appliance is plugged in.
• Do not pull on the cord while unplugging the appliance.
• Do not vacuum flammable materials and ensure that the cigarette ashes are cooled down before vacuuming them.
• Do not vacuum water and other fluids.
• Protect the appliance against precipitation, humidity and heat sources.

1 Important safety and environmental instructions

• Do not use the appliance in or near explosive or flammable environments and substances.
• Unplug the appliance before cleaning and maintenance.
• Do not immerse the appliance or its power cord in water for cleaning.
• Do not disassemble the appliance.
• Use only original parts or parts recommended by the manufacturer.
• To prevent blockage of the filter or damage to the motor, do not vacuum cement, plaster or fragments of compressed paper.
• Use the appliance with the adapter delivered with the appliance only.
• Do not use the appliance without filters, it may get damaged.
• If you keep the packaging materials, keep them out of the reach of children.

- This appliance is not intended to be used by persons, including children, with physical, sensory and mental disabilities or those who have not adequate experience and knowledge regarding its use, unless they are under the supervision of a person responsible for their safety or they are informed about the operation of the appliance.

• Children shall be supervised to prevent them from playing with the appliance.

- Unplug the adaptor and remove the battery pack before any cleaning or maintenance procedure.

- To avoid any risk of hazard, a damaged adaptor shall be replaced by the manufacturer, the authorized representative of the manufacturer or a similarly qualified technician.

- Keep your fingers, hair and loose clothes away from moving parts or clearances while vacuuming.

1 Important safety and environmental instructions

• Batteries shall be removed from the appliance before discarding the appliance.
• Disconnect the appliance from power supply before removing the battery.
• Please discard used batteries in accordance with local laws and regulations.
• The batteries included in this appliance may only be replaced with qualified persons.
  • Appliance is not intended to be operated for commercial purposes. This appliance is not designed for commercial use, it is intended for home use and in applications as follows:
• In the staff kitchens of the stores, offices and other working environments
• In farm houses;
• By customers in hotels, motels or other accommodation facilities
• In the staff kitchens of the stores, offices and other working environments
• In farm houses;
• By customers in hotels, motels or other accommodation facilities

- In hostels or similar environments.

- WARNING: Use the HCX1501-3200450E removable supply unit delivered with the appliance to charge to the battery.

- This appliance shall not be operated by children and people with limited physical, sensory and cognitive skills or people with lack of experience and knowledge unless they are under supervision or they are provided with the relevant instructions.

• Children shall be supervised to prevent them from playing with the appliance.

- Do not place the handset on the table; We recommend that you attach the wall-mounted charging base after cleaning.

- WARNING: Use the HCX1501-3200450E removable supply unit delivered with the appliance to charge to the battery. - This appliance shall not be operated by children and people with limited physical, sensory and cognitive skills or people with lack of experience and knowledge unless they are under supervision or they are provided with the relevant instructions. - Children shall be supervised to prevent them from playing with the appliance. - Do not place the handset on the table; We recommend that you attach the wall-mounted charging base after cleaning.

1 Important safety and environmental instructions

1.2 Compliance with the WEEE Directive and disposal of the waste product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Packaging information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

1.4 Information on Waste Batteries

This symbol on rechargeable batteries/batteries or on the packaging indicates that the rechargeable battery/battery may not be disposed of with regular house hold rubbish. For certain rechargeable batteries/batteries, this symbol may be supplemented by a chemical symbol. Symbols for mercury (Hg) or lead (Pb) are provided if the rechargeable batteries/batteries contain more than 0,0005 % mercury or more than 0,004 % lead.

Rechargeable batteries/batteries, including those which do not contain heavy metal, may not be disposed of with household waste. Always dispose of used batteries in accordance with local environmental regulations. Make enquiries about the applicable disposal regulations where you live.

1.5 What to do for energy saving

• When using your appliance, adjust the speed settings according to the surface, in order to save energy.
• Normally, lower speeds are used when cleaning hard surfaces, curtains and sofas, while high speeds are used in for cleaning carpets.

1.6 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

2 Overview

2.1 Controls and components

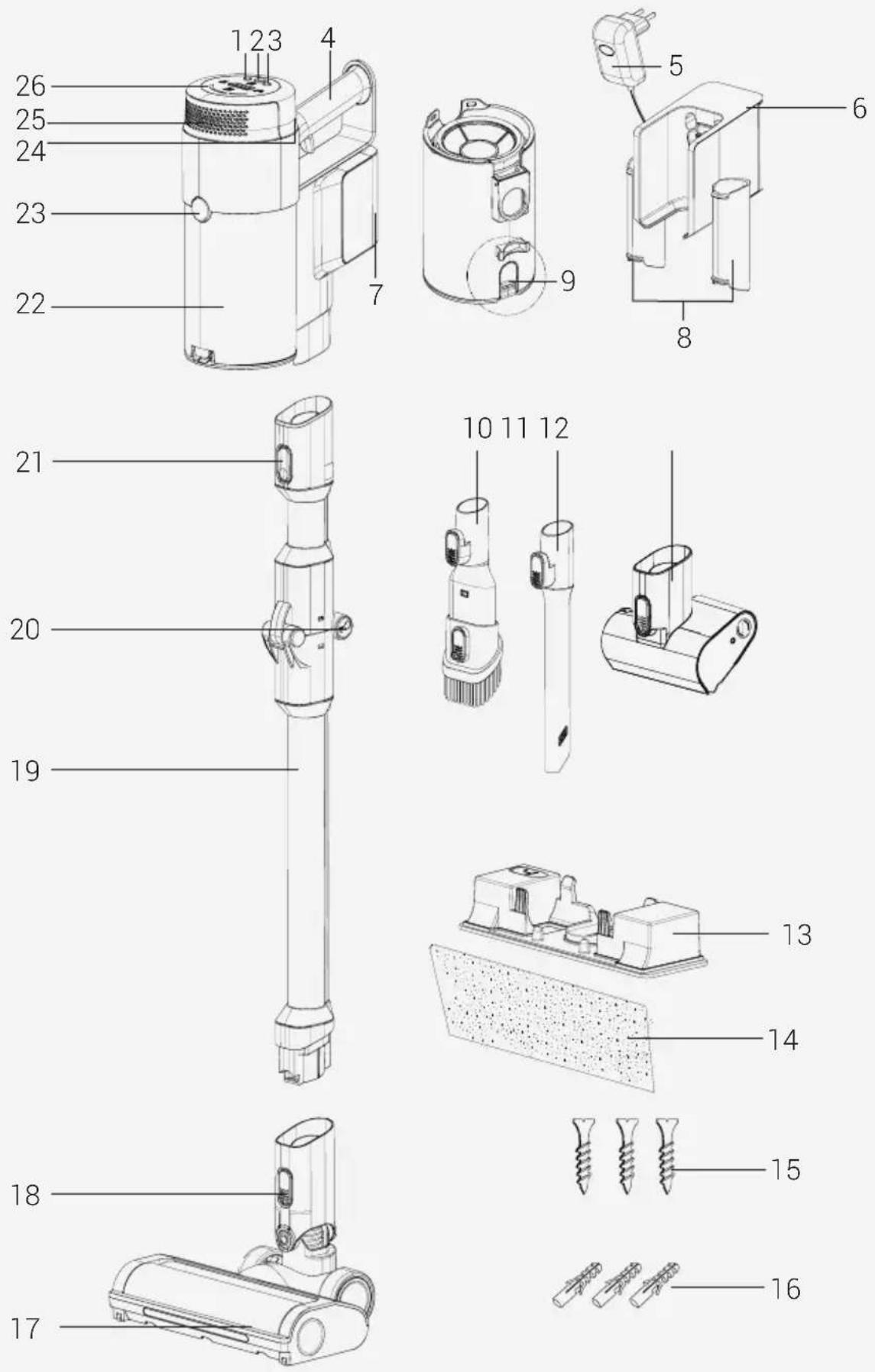

1. Speed level adjustment button
2. On/off button
3. Speed level adjustment button
4. Handle
5. Adaptor
6. Charging dock
7. Battery pack release button
8. Accessory attachment compartments
9. Dust container empty button
10. Combination tool
11. Crevice
    12.Pet brush
    13.Mop attachment; Water Tank (VCP 8331 PRO)
    14.Mopping cloth (x2 pcs) (VCP 8331 PRO)
    15.Screw (3 pcs)
12. Dowel (3 pcs)
13. Electrical turbo brush
14. Electrical turbo brush release button
    19.Foldable tube
15. Tube fold button
16. Tube release button
17. Dust container
18. Dust container release button
19. Hepa filter cover release button
    25.Hepa filter cover

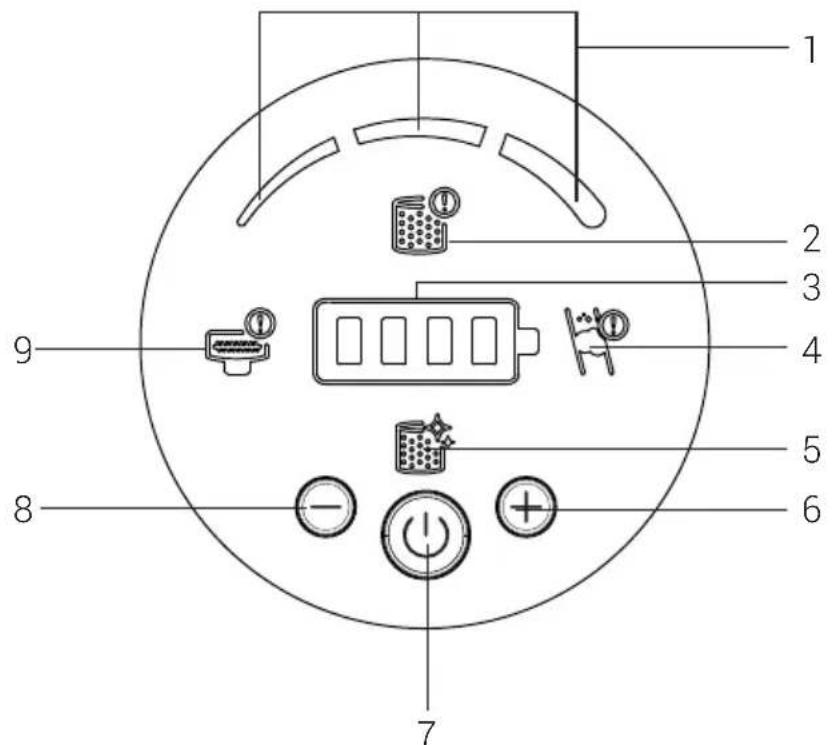

    26.LED screen

2.2 Technical data

	450 W
Input 100 - 240 V~ 50-60 Hz 0,5 A
Output 32 V	== 0.45 A
Charging time 4-6 hours
Runtime at max. power 10 mins
Runtime at mid power 30 mins
Runtime at min. power 60 mins

The rights to make technical and design changes are reserved.

The values provided with the appliance or its accompanying documents are laboratory readings in accordance with the respective standards. These values may differ depending on the use and ambient conditions.

External Power Supply Parameter

Manufacturer: Guangdong Huachuangxing Power Supply Co.,Ltd
Model ID: HCX1501-3200450E
Input Voltage: 100-240V~
Input Frequency: 50-60Hz
Input Current: 0.5A
Output Voltage 32.0V
Output Current 0.45A
Output Power: 14.4W
Average active efficiency: 85.5%
Efficiency at low load (10%):	83.33%
Power consumption under no load:	0.041W

Usage Type Speed Level Usage Time
Use with tube and brush	Minimum speed Up to 40 min
	Medium speed Up to 25 min
	Maximum speed	Up to 8 min
Handheld (With non-motorized accessories)	Minimum speed Up to 60 min
	Medium speed Up to 30 min
	Maximum speed	Up to 10 min

3 Installation

3.1 Intended use

This appliance is intended for household use and it is not suitable for industrial use.

3.2 Installation of the charging dock

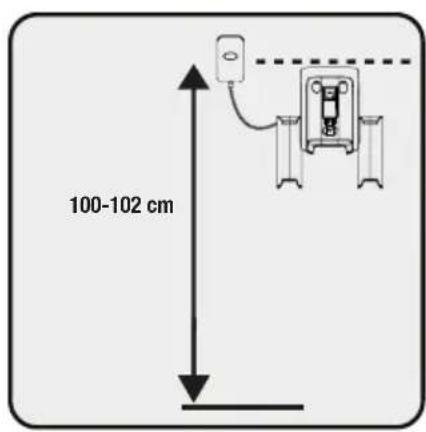

Position the charging dock at a height of minimum 100-102 cm from the ground.

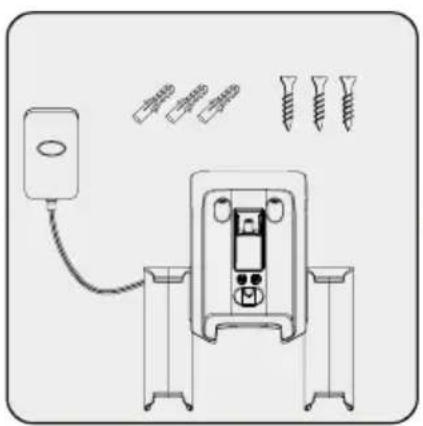

Diagram of a device with screw and screw holes, connected to a power outlet (no text or labels)

1- Fix four dowels on the wall
2- Place four screws into their locations on the charging dock and mount on the dowels on the wall.

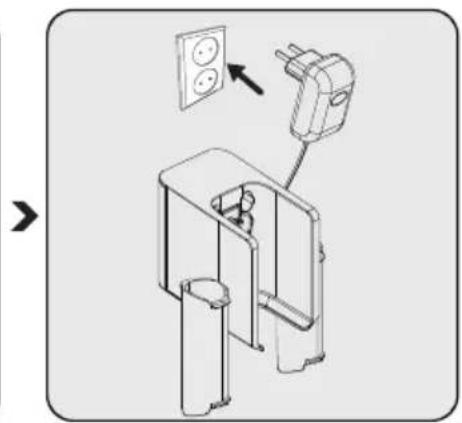

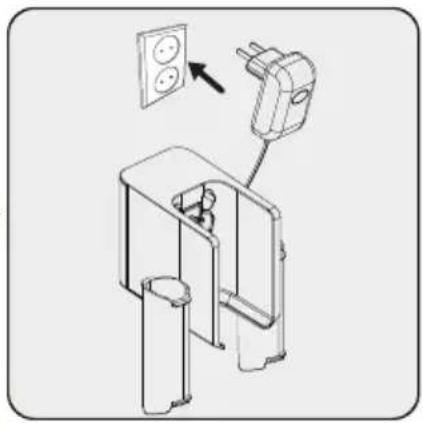

Diagram of a wall-mounted electrical socket with an attached power plug, showing internal components and mounting bracket (no text or symbols)

Plug the charging adaptor to the socket.

3.3 Installation of the body and the brush

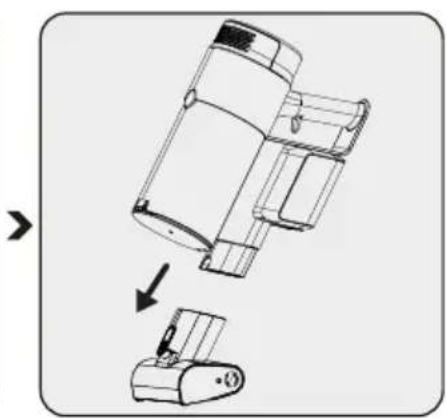

Technical line drawing of a mechanical component with arrows indicating assembly or disassembly (no text or symbols)

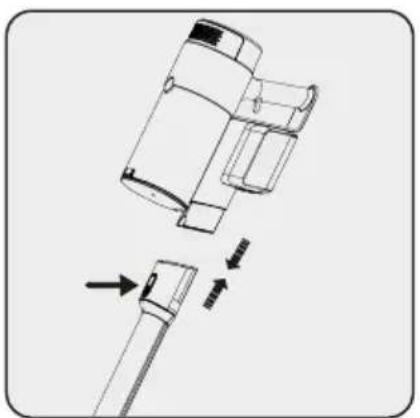

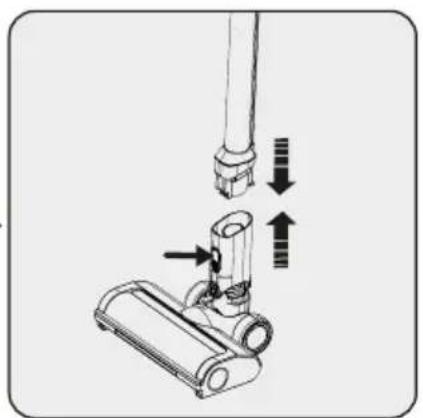

Push the tube in the direction of arrow towards the body by pushing on the tube release button.

Diagram of a vacuum cleaner with directional arrows indicating motion (no text or symbols)

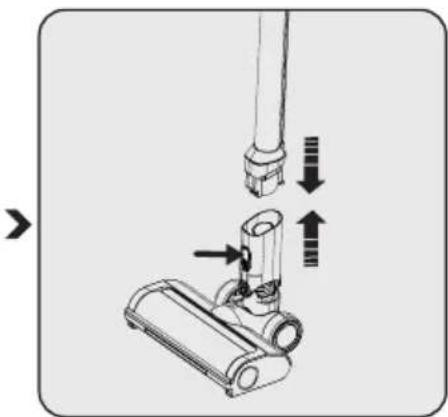

Press the electric turbo brush release button on the electric turbo brush and push it in the direction of arrow towards the tube.

Mechanical device with lever and adjustment mechanism, no visible text or symbols

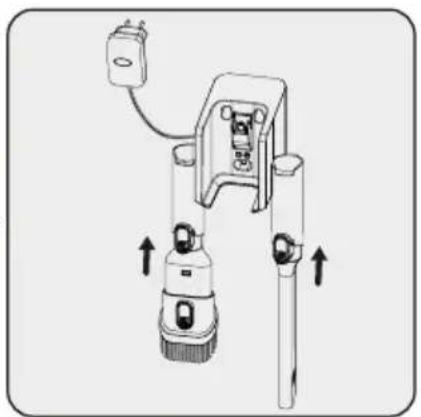

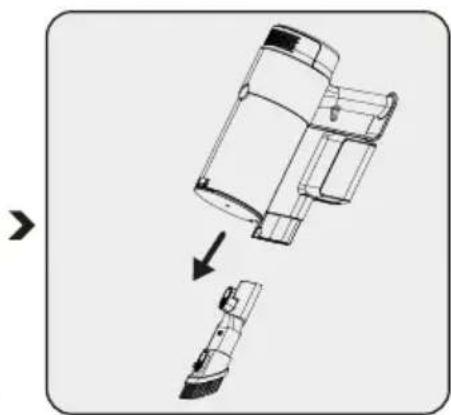

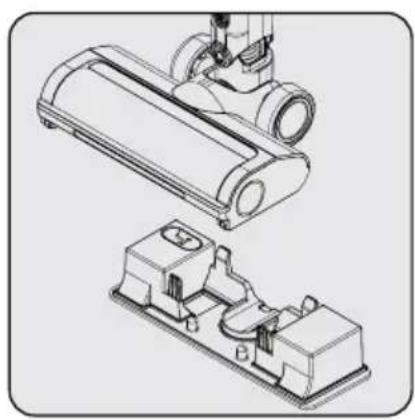

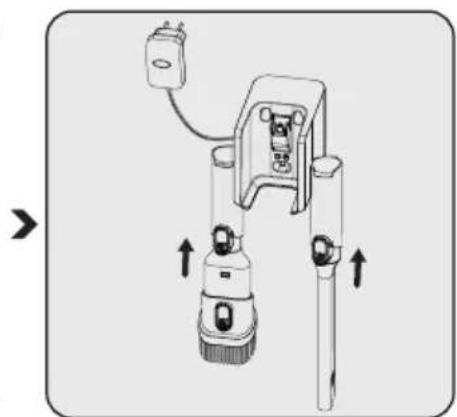

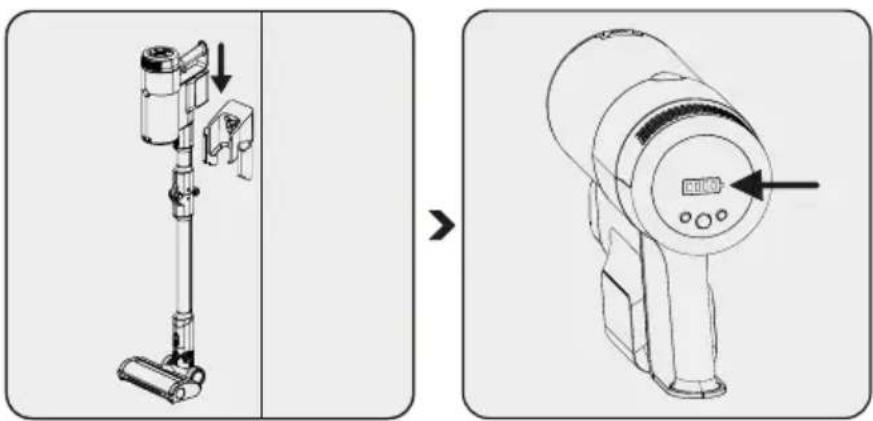

Attach crevice attachment and combination tool to the charging dock.

4 Operation

4.1 Charging the appliance

WARNING: If you want to use the device for the first time or after a long time, charge the batteries completely before using.

Place the appliance on the charging dock.

When you place appli- ance to the charging dock, it starts to charge and the battery charge levels shall be displayed on the screen. When all the battery levels are full and stable, the charging process will be complet- ed.

It takes up to 4 to 6 hours to charge the appliance completely. The appliance shall not be operated while charging.

If the appliance is placed on the charging dock while it is being operated, it shall be stopped automatically.

4 Operation

4.2 Usage

Technical line drawing of a mechanical device with an upward arrow indicating motion or assembly (no text or symbols present)

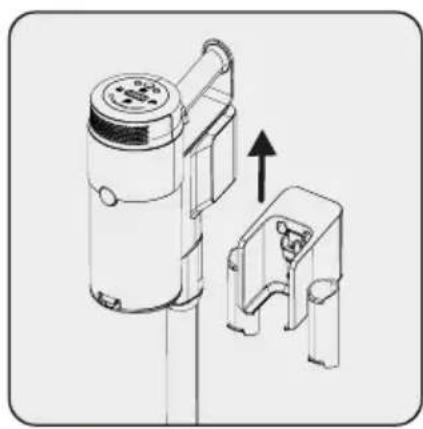

1- Pull the appliance from the charging dock upward.

Line drawing of a handheld electronic device with a central display and control buttons (no text or symbols)

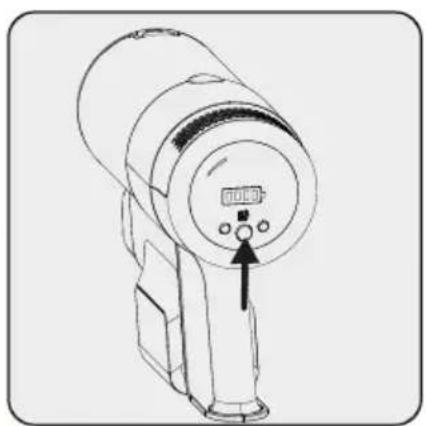

Press the on/off button to operate the appliance. The appliance starts operating with the minimum power when the on/off button is pressed.

Line drawing of a handheld electronic device with a digital display and control buttons (no text or symbols)

To adjust the speed level, push the button. On the screen, which suction mode is being used will be shown as min, mid and high. By pressing the - and + buttons, the speed level can be adjusted.

The appliance may be placed for charging before the complete discharging of the battery. The appliance may be kept continuously as charging on the charging dock until the next operation.

Line drawing of a handheld device with a circular dial and control buttons, no text or symbols present

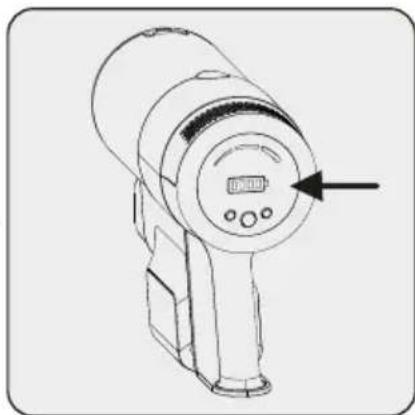

Pay attention to the battery levels during operation. Battery levels should be tracked during usage when it is empty, the appliance stops operating automatically.

4 Operation

Technical line drawing of a vacuum cleaner with no visible text or symbols

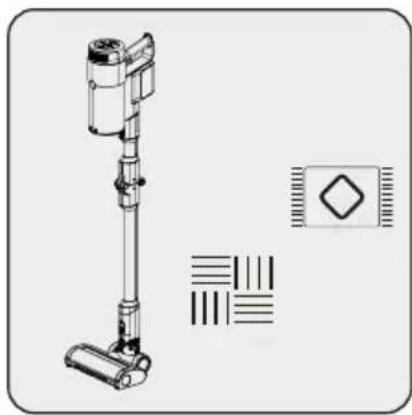

This appliance is suitable for use on carpets and hard floors.

Technical diagram of a mechanical assembly with an inset magnified view showing a circular detail (no text or symbols)

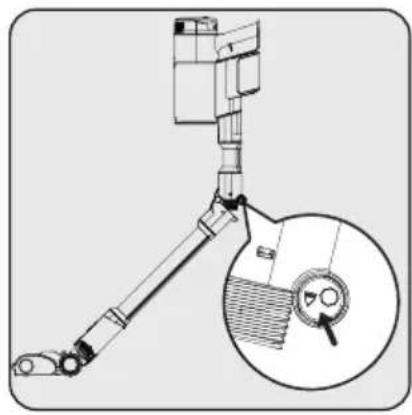

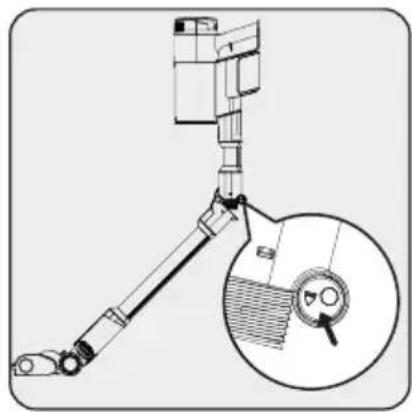

You can fold the tube for easy access to areas such as armchairs and under tables. You can fold the tube by pressing the round button mechanism on the left side that allows the tube to be folded.

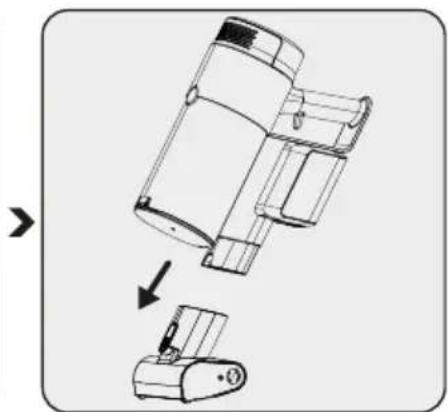

4.3 Accessories

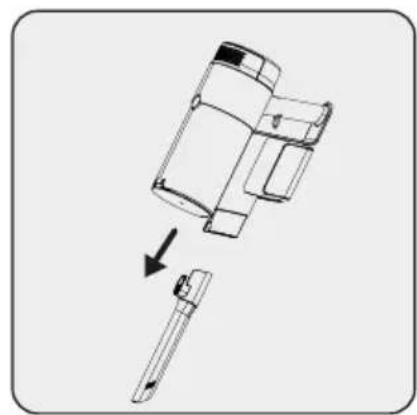

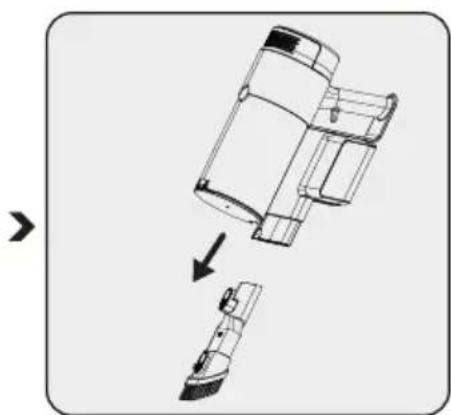

Diagram showing a mechanical assembly with an arrow indicating a process or transformation (no text or symbols present)

Diagram showing a mechanical assembly with an arrow indicating a process or transformation (no text or symbols present)

Diagram showing a mechanical assembly with an arrow indicating a process or transformation (no text or symbols present)

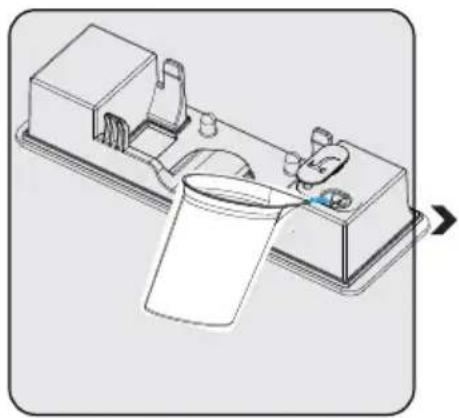

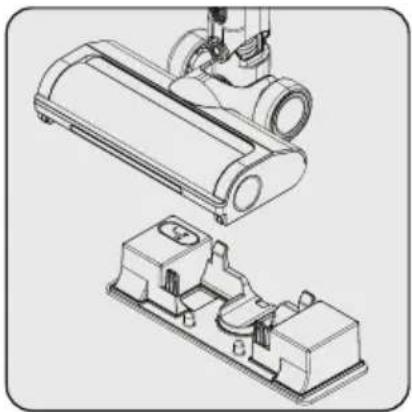

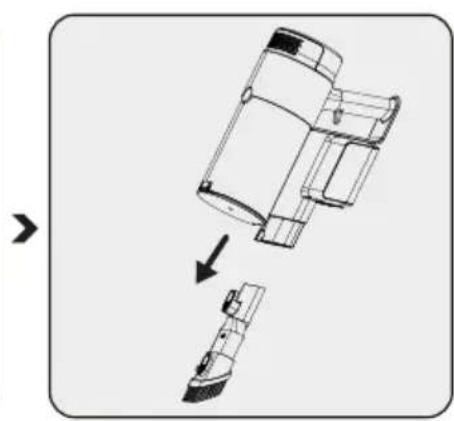

Crevice: Suitable for vacuuming the rear of the furnitures, hard to reach areas and narrow areas.

Combination tool:

Suitable for vacuuming curtains, sofas, waxed furniture and delicate and fragile objects.

Mini turbo pet brush:

Suitable for vacuuming floorings, stair steps, car interiors, sofas and seat, etc. It is also used for vacuuming pet hair on such surfaces.

4 Operation

(VCP 8331 PRO)

Technical line drawing of a mechanical assembly with a bucket and housing (no text or symbols)

Technical illustration of a mechanical assembly with a textured base and directional arrow (no text or symbols)

Technical line drawing of a mechanical assembly with two views (top and side), no visible text or symbols

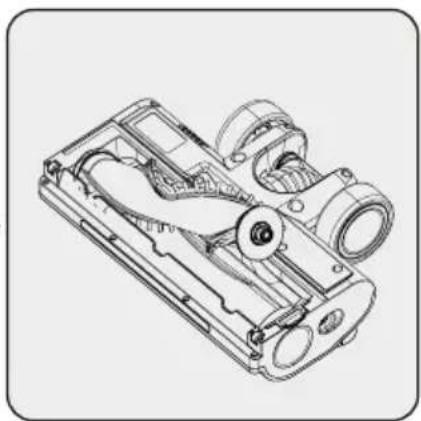

Mop Attachment: Suitable for mopping hard floors. Mop Apparatus, fill the water tank with clean water.

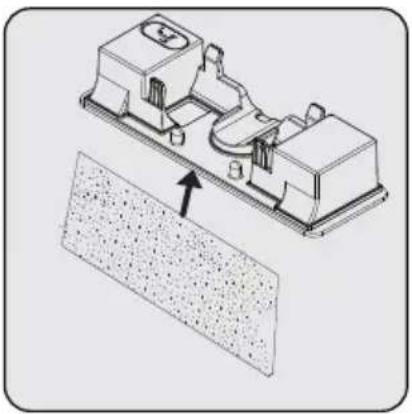

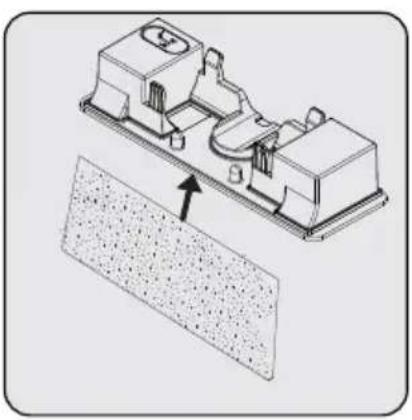

Velcro mop cloth; Secure the mop attachment to the bottom surface.

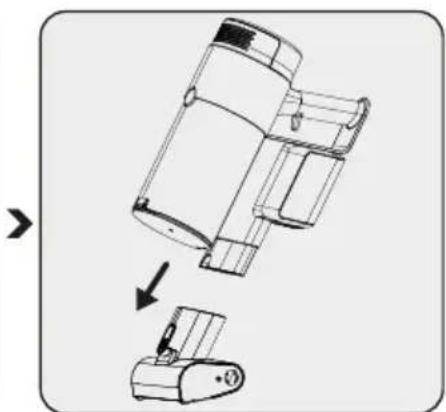

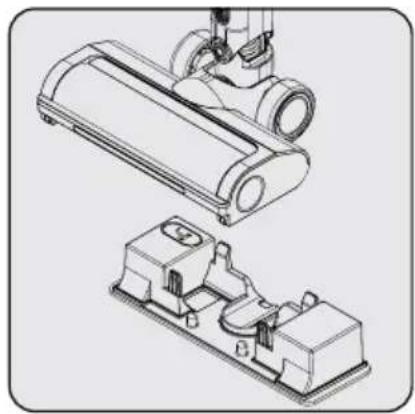

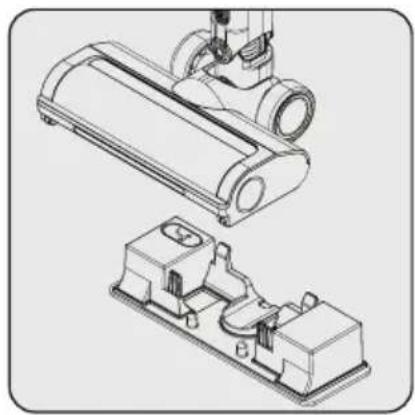

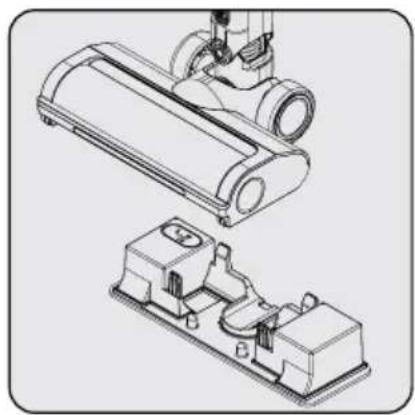

Attach mop attachment to the bottom of electrical turbo brush.

	WARNING: Do not use the mop attachment on a carpet.
	WARNING: Mop Apparatus Into the water tank; Do not use bleach or excessively foaming liquid detergent.
	WARNING: Remove the mop attachment after usage is completed.
	WARNING: Remove the mop attachment immediately after the mopping operation is completed to prevent damage to your wooden floors.
	WARNING: After the mopping process is completed, empty the water remaining in the mop apparatus water tank and dry the tank.
	Mopping cloths can be washed in washing machine.
	WARNING: Do not lift or tilt the nozzle, as water may spray out of the water tank.
	WARNING: The mop attachment is attached to the product. While mopping, do not mop or absorb water, coffee or tea deposits. These debris may get into the product and damage your device.

4 Operation

4.4 LED screen indicators

1. Those icons will show the suction mode which is being used.
2. If the prefilter or EPA12 filter did not put into the device, this icon will warn the user and the product will not turn on if the prefilter or EPA12 filter is absent to protect the machine. Make sure the filters are installed.
3. Remain battery level status with iconic show
4. Indicates that there is air blockage. Please check the tube inside, the suction mouth of product body to find the foreign material that blocks the machine.
5. Indicates that the filter needs to be cleaned.
6. Speed boost button
7. On/Off button
8. Speed power reduction
9. Indicates that there is a blockage on the rollers and needs to be cleaned.

5 Cleaning and maintenance

Turn off and unplug the appliance before cleaning.

WARNING: Never use gasoline, solvent, abrasive cleaners, metal objects or hard brushes to clean the appliance.

WARNING: Deformation may occur on the filters within time as a result of usage. It shall be replaced with a new one to prevent loss of performance. Contact with the customer services to buy a new one.

5.1 Cleaning the Dust container and Filters

WARNING: Do not wash the filters.

We recommend you to clean the dust container after each operation.

Illustration of a hand cleaning a cylindrical device with a cloth (no text or symbols visible)

Wipe the surface of the body with a wet cloth.

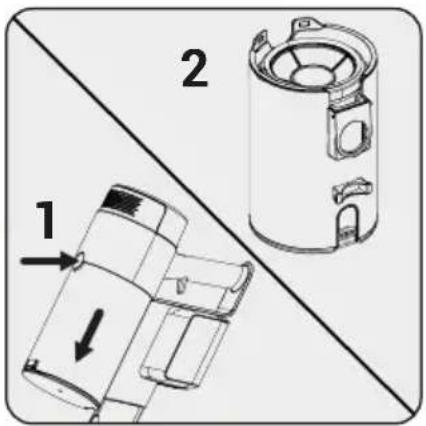

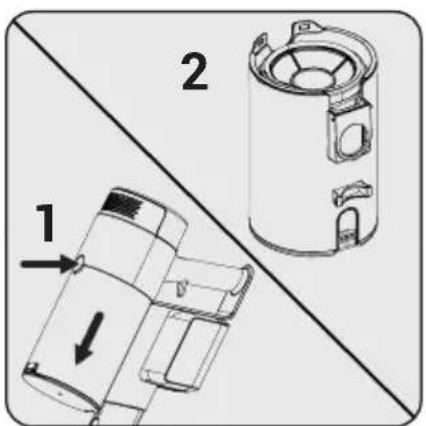

Press the dustbin release button and pull dustbin part.

Diagram of a mechanical device emitting granular material from a bowl (no text or symbols)

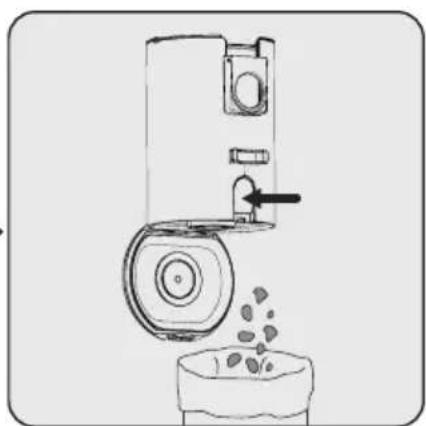

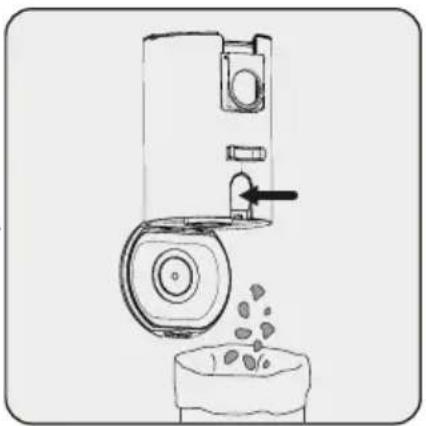

Press the dustbin cover release button and empty the dustbin.

5 Cleaning and maintenance

Cross-sectional diagram of a cylindrical device with internal components and an upward arrow indicating motion (no text or symbols)

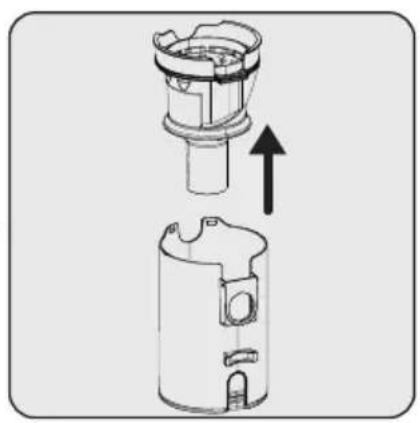

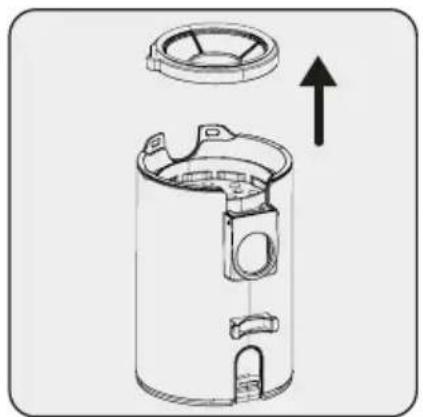

For a detailed cleaning of filters, remove the pre-filter part upward.

Technical illustration of a mechanical device with an upward arrow indicating motion (no text or symbols present)

Pull the mesh filter part upward.

Diagram of a mechanical device with internal components and directional arrows, no text or symbols present

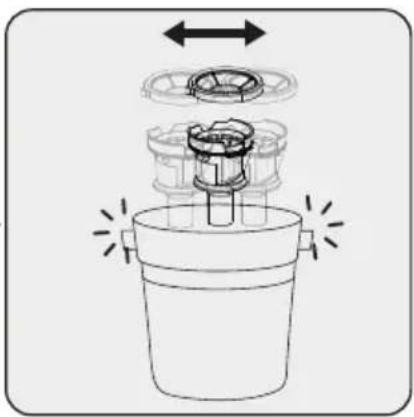

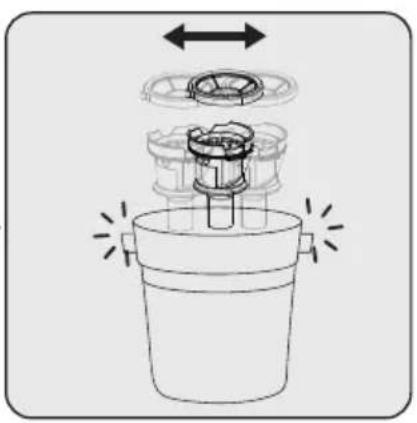

Clean the mesh filter and pre-filter by shaking in order to clean the dust.

Diagram showing a mechanical component being lifted by an arrow, with no visible text or symbols.

Insert the mesh filter into dustbin.

Technical line drawing of a cylindrical device with internal components and a downward arrow indicating a process (no text or symbols)

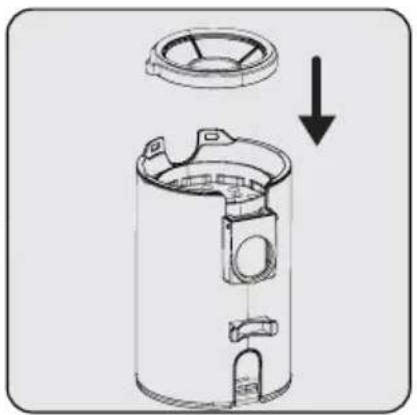

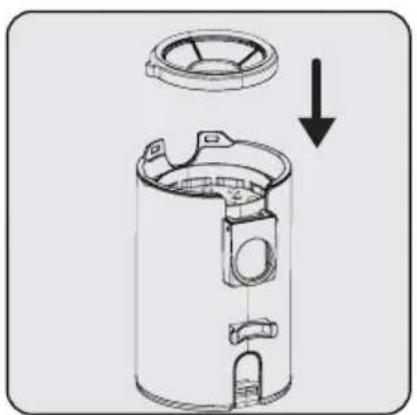

Insert the pre-filter on mesh filter.

Technical line drawing of a cylindrical device with an arrow indicating motion or force direction (no text or symbols)

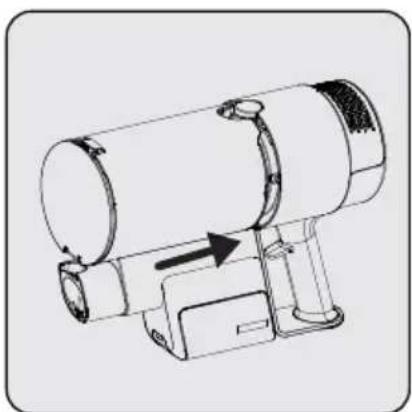

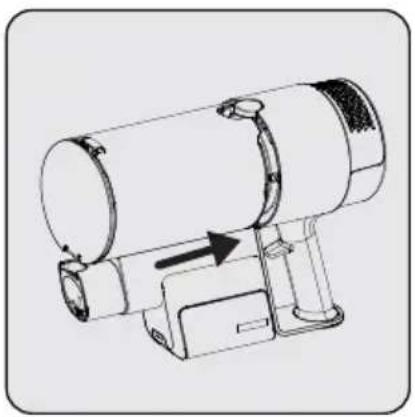

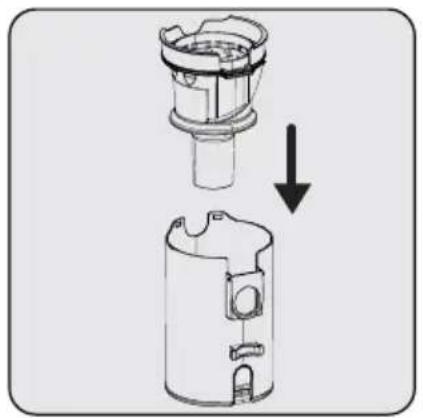

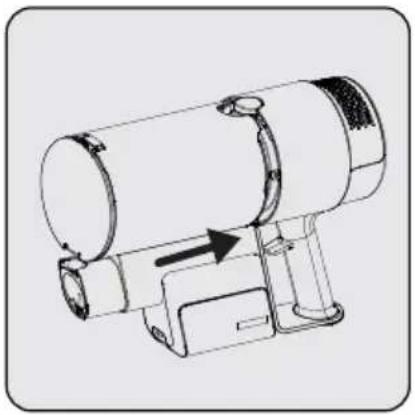

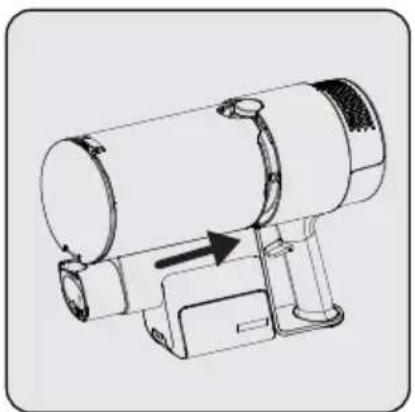

First, place the dustbin on the product body so that its back side fits into the body, and then place it in the button area.

5 Cleaning and maintenance

Diagram of a container with a U-shaped tube and directional arrows indicating flow or movement (no text or symbols)

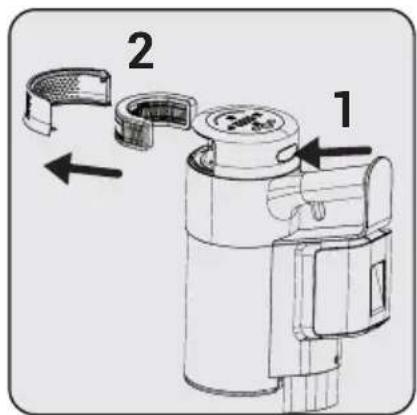

In order to clean EPA E12 Filter, press the button (1) and remove the filter part.

Clean the EPA E12 filter by shaking in order to clean the dust.

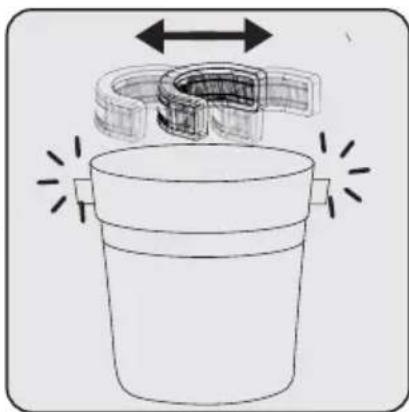

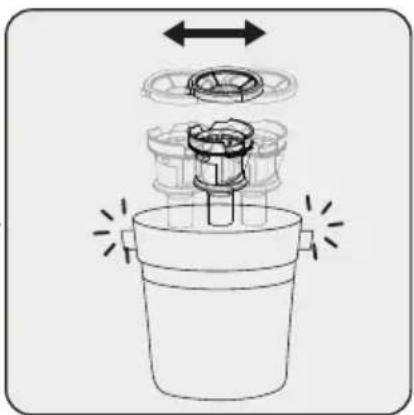

5.2 Cleaning of the brush

WARNING: Do not wash the turbo brush and the main roller.

Technical line drawing of a mechanical device with a magnified inset showing circular components (no text or symbols)

Technical line drawing of a mechanical device housing with internal components (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

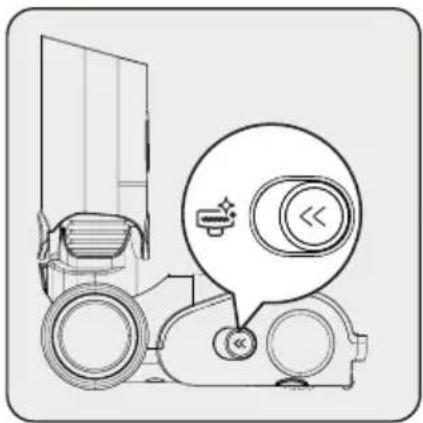

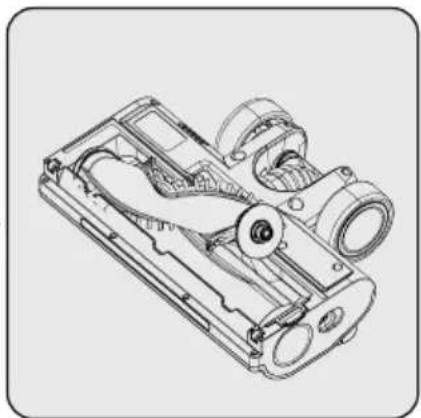

Push the roller release button to the left side.

Remove the dust on it by tapping it lightly to a hard surface or remove the dust with a brush. If any hair, etc. is tangled, remove it by cutting it off.

Fix the roller back to its place by pushing.

5 Cleaning and maintenance

5.3 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
• Unplug the appliance.
• Ensure that the appliance is kept out of reach of children.
• Store the battery on a non-conducting material, and do not allow the battery to contact metal directly. This shall damage the battery.
• If you shall not be using the product for a long period of time, please at least keep it at half charged condition. Do not charge or discharge completely. The product should be recharged at least once every three months.

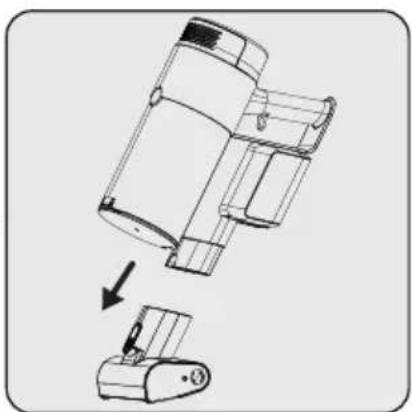

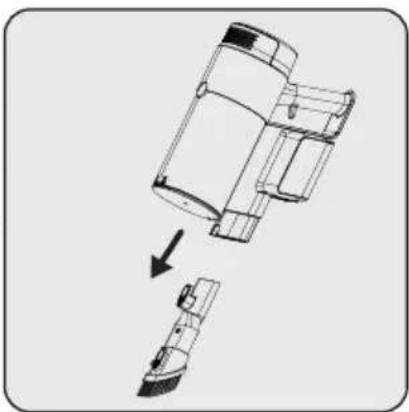

5.4 Transport and shipping

• During transport and shipping, carry the appliance with its original packaging. The packaging of the appliance will protect the appliance against physical damage.
• Do not put heavy objects on the appliance or its packaging. Otherwise the appliance may be damaged.
• If the appliance is dropped, the appliance may not operate or permanent damage may occur.

Diagram of a device with screw and screw holes, connected to a power outlet (no text or symbols)

Diagram of a wall-mounted electrical socket with an attached plug, showing internal components and wiring (no text or symbols)

Diagram of a mechanical component with arrows indicating assembly or disassembly (no text or symbols present)

Diagram of a vacuum cleaner with directional arrows indicating motion (no text or symbols)

Diagram of a medical or laboratory device with two vertical supports and a central connector, showing directional arrows (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating upward motion (no text or symbols)

Line drawing of a handheld device with a circular dial and control buttons (no text or symbols)

Line drawing of a handheld device with a digital display and control buttons (no text or symbols)

Line drawing of a handheld device with a circular dial and control buttons, no text or symbols present.

Technical line drawing of a vacuum cleaner with control panel and warning symbol (no text or labels)

Mechanical assembly diagram showing a lever mechanism with an inset magnified view of a circular component (no text or symbols)

Diagram showing a mechanical assembly with an arrow indicating a process or transformation (no text or symbols present)

Diagram showing a mechanical assembly with an arrow indicating a process or transformation (no text or symbols present)

Technical illustration of a mechanical device with an arrow indicating assembly or disassembly (no text or symbols present)

Dar ağızlı uç:

Technical line drawing of a mechanical assembly with a bucket and housing (no text or symbols)

Technical illustration of a mechanical assembly with a textured base and an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with two views: top shows cylindrical components, bottom shows base blocks (no text or symbols)

Illustration of a hand cleaning a device with a cloth (no text or symbols visible)

Diagram of a mechanical device emitting granular material from a bowl (no text or symbols)

Technical line drawing of a cylindrical device with internal components and an upward arrow indicating motion (no text or symbols)

Technical illustration of a mechanical component with an upward arrow indicating motion (no text or symbols present)

Diagram of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Diagram showing a mechanical component being lifted by an arrow, with no visible text or symbols.

Technical line drawing of a cylindrical device with internal components and a downward arrow indicating a process (no text or symbols)

Technical line drawing of a mechanical device with an arrow indicating motion or force (no text or symbols present)

Diagram of a device with screw and screw holes, connected to a power outlet (no text or symbols)

pū- Pričvrstite četiri tipla na zid
cm2- Postavite četiri vijka na njihova mjesta na stanicu za punjenje i monitrajte tiple na zid.

Diagram of a mechanical component with arrows indicating assembly or disassembly (no text or symbols present)

Diagram of a vacuum cleaner with directional arrows indicating motion (no text or symbols)

Diagram of a vacuum cleaner with directional arrows indicating motion (no text or symbols)

Diagram of a medical or laboratory device with directional arrows indicating movement or force (no text or symbols present)

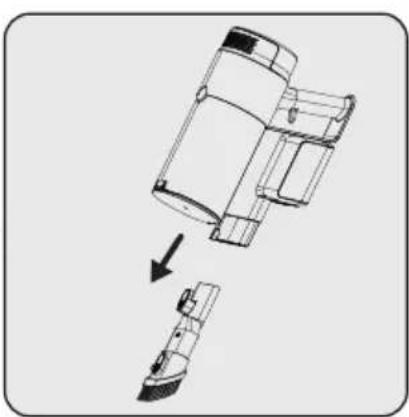

Pričvrstite cjevasti nastavak i kombinirani alat na stanicu za punjenje.

4 Rukovanje

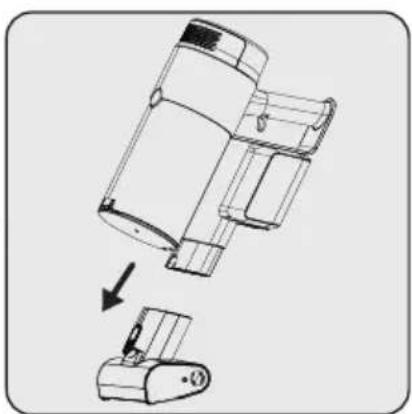

Uređaj postavite na stani- cu za punjenje.

Line drawing of a handheld device with a circular dial and control buttons, no text or symbols present

Technical line drawing of a vacuum cleaner with mounting base and vertical shaft, alongside a schematic symbol (no text or labels)

Ovaj uređaj prikladan je za uporabu na tepisima i drvenim podnim oblogama.

Technical diagram of a mechanical assembly with an inset magnified detail showing a circular component (no text or symbols)

Diagram showing a mechanical assembly with a cylindrical component being inserted into a rod (no text or symbols present)

Diagram showing a mechanical assembly with an arrow indicating a process or transformation (no text or symbols present)

Diagram showing a mechanical assembly with an arrow indicating a step, no text or symbols present

Cjevasti nastavak:

Technical line drawing of a mechanical assembly with a bucket and housing (no text or symbols)

Technical line drawing of a mechanical assembly with a textured base and an arrow indicating direction (no text or symbols)

Technical line drawing of two mechanical components, one cylindrical and one base with labeled parts (no text or symbols present)

Nastavak za brisanje:

Prikladan za brisanje tvrdih brisanje na dno spremni- podova. Napunite sprem-ka za vodu. nik za vodu pitkom vodom.

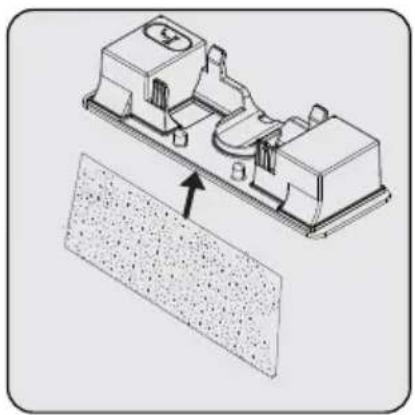

Pričvrstite nastavak za brisanje na dno električne turbo četke.

UPOZORENJE: Ne koristite nastavak za brisanje na tepihu.

UPOZORENJE: Uređaj za brisanje u spremnik za vodu; Nemojte koristiti izbjeljivač ili tekući deterdžent koji previše pjeni..

Illustration of a hand cleaning a device with a cloth (no text or symbols visible)

Diagram of a mechanical device emitting granular material from a bowl (no text or symbols)

Technical line drawing of a cylindrical device with internal components and an upward arrow indicating motion (no text or symbols)

Za detaljno čišćenje filtara, uklonite dio predfiltra povlačenjem prema gore.

Technical illustration of a mechanical component with an upward arrow indicating motion (no text or symbols present)

Povucite dio mrežastog filtra prema gore.

Diagram of a mechanical device with internal components and directional arrows, no text or symbols present

Očistite mrežasti filtar i predfilter tako da ih protresete i s njih stresete prašinu.

Diagram showing a mechanical component being lifted by an arrow, with no visible text or symbols.

Technical line drawing of a cylindrical device with internal components and a downward arrow indicating a process (no text or symbols)

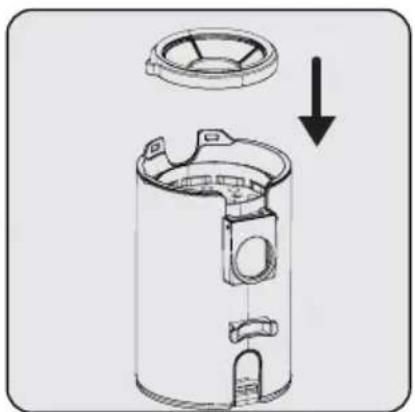

Umetnite predfilter u mrežasti filter.

Technical line drawing of a cylindrical mechanical device with a base and mounting bracket, showing internal components and an arrow indicating motion (no text or symbols)

Diagram of a container with a curved pipe and two arrows indicating direction (no text or symbols)

Za čišćenje filtra EPA E12, pritisnite gumb (1) i uklo-nite dio s filtrom.

Očistite filtar EPA E12 tako da ih protresete i s njih stresete prašinu.

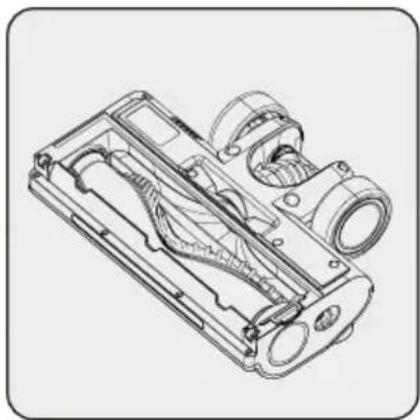

5.2 Čišćenje četke

Technical line drawing of a mechanical device with a magnified inset showing circular components (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

Pritisnite gumb za d janje okrugle četke na lije- voj strani.

odvaklonite prašinu s nje laganim lupkanjem o tvrdu površinu ili prašinu uklonite četkom. Ako su se za-petljale dlake, odrežite ih.

Guranjem ponovno pričvrstite okruglu četku na njeno mjesto.

Diagram of a device with screw and screw holes, connected to a power outlet (no text or symbols)

Diagram of a wall-mounted electrical socket with an attached power plug, showing internal components and mounting bracket (no text or symbols)

Diagram of a mechanical device with an exploded view showing internal components and directional arrows (no text or symbols)

Diagram of a vacuum cleaner with directional arrows indicating motion (no text or symbols)

Mechanical device with lever and adjustment mechanism, no visible text or symbols

Technical line drawing of a mechanical device with an arrow indicating upward motion (no text or symbols)

Line drawing of a handheld electronic device with a central display and control buttons (no text or symbols)

Line drawing of a handheld device with a digital display and control buttons (no text or symbols)

Line drawing of a handheld device with a circular dial and control buttons, no text or symbols present.

Technical line drawing of a vacuum cleaner with control panel and warning symbol (no text or labels)

Technical diagram of a mechanical device with an inset magnified view showing internal components (no text or symbols)

Diagram showing a mechanical assembly with an arrow indicating a process or transformation (no text or symbols present)

Diagram showing a mechanical assembly with an arrow indicating transformation or assembly (no text or symbols present)

Diagram showing a mechanical assembly with an arrow indicating a process or transformation (no text or symbols present)

Isometric illustration of a mechanical device with a bucket and tool, no text or symbols present

Technical illustration of a mechanical assembly with a textured surface and an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with two views (top and side), no visible text or symbols

Illustration of a hand cleaning a portable device with a cloth (no text or symbols visible)

Diagram of a mechanical device emitting granular material from a bowl (no text or symbols)

Technical line drawing of a cylindrical device with internal components and an upward arrow indicating motion (no text or symbols)

Technical illustration of a mechanical component with an upward arrow indicating motion (no text or symbols present)

Trekk nettingfilterdelen oppover.

Diagram of a mechanical device with arrows indicating motion or assembly, no text or symbols present

Diagram showing a mechanical component being lifted by an arrow, with no visible text or symbols.

Sett nettingfilteret inn i søppelkassen.

Technical line drawing of a cylindrical device with internal components and a downward arrow indicating a process (no text or symbols present)

Technical line drawing of a cylindrical device with a directional arrow indicating motion (no text or symbols)

Diagram of a container with a U-shaped tube and directional arrows indicating flow or movement (no text or symbols)

Technical line drawing of a mechanical device with a magnified inset showing circular components (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

Diagram of a device with screw and screw holes, connected to a power outlet (no text or symbols)

Diagram of a mechanical component with arrows indicating assembly or disassembly (no text or symbols)

Diagram of a vacuum cleaner with directional arrows indicating motion (no text or symbols)

Diagram of a medical or laboratory device with directional arrows indicating movement or force (no text or symbols present)

Technical line drawing of a mechanical device with an upward arrow indicating motion or assembly (no text or symbols present)

Line drawing of a handheld device with a circular dial and control buttons (no text or symbols)

Line drawing of a handheld electronic device with a digital display and control buttons (no text or symbols)

Line drawing of a handheld device with a circular dial and control buttons, no text or symbols present.

Technical line drawing of a vacuum cleaner with control panel and warning symbol (no text or labels)

Technical diagram of a mechanical device with an inset magnified view showing internal components (no text or symbols)

Diagram showing a mechanical assembly with an arrow indicating a process or transformation (no text or symbols present)

Diagram showing a mechanical assembly with an arrow indicating a process or transformation (no text or symbols present)

Diagram showing a mechanical assembly with an arrow indicating a process or transformation (no text or symbols present)

Technical line drawing of a mechanical assembly with a bucket and housing (no text or symbols)

Technical illustration of a mechanical assembly with a textured base and internal components (no text or symbols)

Technical line drawing of a mechanical assembly with two views: top shows cylindrical components, bottom shows base housing (no text or symbols)

Illustration of a hand cleaning a portable device with a cloth (no text or symbols visible)

Line drawing of a mechanical device with a bowl and granular material, no text or symbols present

Technical line drawing of a cylindrical device with internal components and an upward arrow indicating motion (no text or symbols)

Technical illustration of a mechanical component with an upward arrow indicating motion (no text or symbols present)

Diagram of a mechanical device with internal components and directional arrows, no text or symbols present

Diagram showing a mechanical component being lifted by an arrow, with no visible text or symbols.

Technical line drawing of a cylindrical device with internal components and a downward arrow indicating a process (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a container with a curved internal structure and directional arrows indicating flow or movement (no text or symbols)

Technical line drawing of a mechanical device with a magnified inset showing circular components (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)
