Product Type	Blender
Model	CASO Power Blender B 2000
Item Number	03621
Power Consumption	2000 W
Mains Data	220–240 V, 50–60 Hz
External Dimensions (W x H x D)	180 mm x 460 mm x 220 mm
Net Weight	4.35 kg
Blender Jug Capacity	1.5 L (estimated, based on typical blender jug size)
Speed Levels	10 (via control knob)
Preset Programs	Pulse, Shake, Smoothie
Pulse Function	Short bursts at top speed for chopping
Shake Function	Progressive speed increase for crushing ice or making milk shakes
Smoothie Function	Pulsing speed for thick or runny smoothies
Maximum Continuous Operation	10 minutes (automatic shut-off; 30 min cooldown)
Safety Features	Overheat protection; safety switch prevents operation without lid and jug correctly placed; auto standby after 1 min inactivity
Blade Material	Stainless steel (presumed from typical blender design)
Blade Unit	Detachable, sharp, handle with care
Blender Lid	Locking lid with sealing cap and integrated measuring cup
Pusher Included	Yes, for pushing ingredients safely
Cleaning Method	Motor unit wiped with damp cloth; jug cleaned with warm soapy water or on Smoothie program with soapy water; accessories hand washable; blade unit sharp, caution required
Dishwasher Safe	No (motor unit not immersible; jug and accessories not specified as dishwasher safe, manual advises hand cleaning)
Intended Use	Household: smoothies, milk shakes, soups, sauces, baby food, crushing ice, chopping frozen and hard food (add liquid)
Warranty	24 months (Germany, Austria, Netherlands; other countries contact support)
Spare Parts Availability	Original replacement parts required; contact customer service

Frequently Asked Questions - Power Blender B 2000 CASO

How do I properly assemble the blender before use?

Place the blender jug on the motor unit with the handle facing front left or front right. Fit the lid onto the jug aligning the ▼ arrows, then press the catch fasteners down until they click. Insert the sealing cap into the lid opening turning it until tight. Ensure the jug is locked onto the motor unit; the safety switch prevents operation if not assembled correctly.

What ingredients can I process with the Power Blender B 2000?

You can make smoothies and milk shakes, chop fresh fruit, berries, and vegetables (add liquid), blitz cooked food for soups, sauces, and baby food, crush ice, chop frozen food and hard food such as nuts, and mix drinks and cocktails.

How do I use the preset functions (Pulse, Shake, Smoothie)?

Set the control knob to 'program'. Then press the desired button: PULSE runs at top speed while pressed; SHAKE increases speed in quick steps and stops automatically; SMOOTHIE pulses rapidly and stops automatically. You can stop any function by pressing the button again. Turn the knob to 'Off' after use.

Why does my blender stop automatically after a short time?

The blender has an overheat protection feature. It will shut off after 10 minutes of continuous use. Let it cool down for about 30 minutes before using again. Also, the device enters standby after 1 minute of inactivity.

Can I add ingredients while the blender is running?

Yes, but first turn the control knob to 'Off' to stop the blades. Remove the sealing cap from the lid and add ingredients through the filling opening. Never use fingers or tools to push ingredients down; use the supplied pusher.

Is the blender dishwasher safe?

No. The motor unit must never be immersed in water or placed in a dishwasher. For the jug and accessories: clean them by running a cycle with warm water and a few drops of washing-up liquid on the SMOOTHIE setting for 30 seconds, then rinse and dry. Alternatively, hand wash with mild detergent. The blades are sharp, handle with care.

What should I do if the blender won't start?

Check that the lid is correctly locked onto the jug and the jug is properly seated on the motor unit. The safety switch prevents operation if not properly assembled. Also, ensure the control knob is set to a speed or 'program' and the power cord is plugged into a working outlet.

Can I blend hot liquids?

No. The appliance is not suitable for chopping hot or liquid ingredients above 100 °C. Allow hot food to cool before blending to avoid burns and damage.

How do I clean the blade unit safely?

The blades are very sharp. Clean them by running the blender with warm soapy water on the SMOOTHIE setting. For thorough cleaning, carefully remove the blade unit after unplugging and rinse under running water using a brush. Never touch the blades directly. Dry all parts before storing.

Where can I find spare parts or get support?

Contact CASO customer service. For repairs, only authorized service departments by the manufacturer should carry out repairs. Defective components must be replaced with original parts. Visit www.caso-design.de for more information.

USER MANUAL Power Blender B 2000 CASO

Original-Bedienungsanleitung | Instruction Manual | Gebruiksaanwijzing Bruksanvisning | Manual del usuario | Istruzione d'uso Instruções de funcionamento | Kullanım Kılavuzu הכלהה וְרָׁה בִיּוֹתָה לַלְעֹן 통ليمات التشفيل

Standmixer Power Blender B 2000

Blender Power Blender B 2000

Staande mixer Power Blender B 2000

Matberedare Power Blender B 2000

Batidora de Vaso Power Blender B 2000

Miscelatore a colonna Power Blender B 2000

Black COSO 300 blender with water level gauge and control knob (no visible text or symbols on body)

DE	Weitere Sprachen dieser Bedienungsanleitung fi nden Sie unter www.caso-design.de oder wenn Sie den QR-Code scannen.
EN	To see these operating instructions in more languages, visit www.caso-design.de or scan the QR code.
NL	Je vindt deze gebruiksaanwijzing met vertaling in verschillende talen op de volgende link op de website www.caso-design.de. U kunt ook de QR-code scannen om toegang te krijgen tot de vertalingen.
SV	Det fi nns tillgång till fl era språk i denna bruksanvisning på www.caso-design.de eller om du scannar QR-koden.
ES	Este manual de instrucciones está disponible en otros idiomas en www.caso-design.de o escaneando el código QR.
IT	Ulteriori lingue di queste istruzioni per l’uso sono disponibili al seguente link www.caso-design.de o scansionando il codice QR.
PT	Pode encontrar este manual de instruções noutras línguas em www.caso-design.de ou através da leitura do código QR.
TR	Bu kılavuzun diğer dillere çevirileri için şu bağlantıya bakınız: www.caso-design.de. Bu amaçla, geçerli QR kodunu da tarayabilirsiniz.
HE	www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.dewww.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.
AR	و إذا مكن العثور على المزيد من لغات هذا الديل على الموقع الالکتروي www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.ممت بمسح رمز الاستجابة السريعة.

Technische Daten / Technical Data / Technische gegevens / Tekniska data / Datos técnicos / Dati tecnici / Especificações técnicas / Teknik bilgiler /

Gerät / Device / Aparaat / Apparat / Aparato / Apparecchio / Aparelho / Cihaz /الJEHAZ/الJEHAT	Standmixer / Blender / Staande mixer / Matberedare / Batidora de Vaso / Miscelatore a colonna / Liquidificador / Stand mikser / خلاط الحامل
Name / Name / Name / Benämning / Denominación / Nome / Nome / Adı /الاس /الاس	CASO Power Blender B 2000
Artikel-Nr. / Item No. / Artikelnr. / Artikel-nr. / N° de art / N. Articolo / N.° de artigo / Ürün no. / رقمر البند	03621
Anschlussdaten / Mains data / Aansluitgegevens / Anslutningsdata / Conexión / Dati connessione / Dados de ligação / Bağlantı Bilgileri / يانات الاتصال / مزز	220 - 240 V; 50 - 60 Hz
Leistungsaufnahme / Power consumption / Vermogens / Effektbehov / Consumo de potencia / Potenza assorbita / Potência / Mikrodalga nominal çıkışı /القوة / مزز	2000 W
Außenabmessungen (B/H/T) / External measurements (W x H x D) / Afmetingen (BxHxD) / Yttermätt (B/H/D) / Dimensiones exteriores (An/H/P) / Misure esterne (L/H/P) / Medidas (C x A x P) / Dis Gövdenin Boyutu (Y/G/D) / (ملا/اللا/اللا) ب Minority / (العربية/العربية/العربية)	180 mm x 460 mm x 220 mm
Nettogewicht / Net weight / Nettogewicht / Netto-vikt / Peso net / Peso netto / Peso / Net agirlık / (الوزن الصافي)	4,35 kg

The following warning notices are used in the Operating Manual concerned here.

DANGER

A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries.

Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

WARNING

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries.

Observe the instructions in this warning notice in order to avoid the personal injuries.

ATTENTION

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

Observe the instructions in this warning notice in order to avoid the personal injuries.

PLEASE NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

Intended use

This device is only intended for use in households in enclosed spaces for

• Make smoothies and milk shakes.
• Chop fresh ingredients such as fruit, berries, vegetables, etc. (add liquid).
• Blitz cooked food, e.g. for soups, sauces and baby food.
• Mix drinks and cocktails of all kinds.
• Crush ice.
• Chop frozen food.
• Chop hard food such as nuts.

This appliance is intended to be used in household and similar applications, such as:

• in kitchens, for employees in shops, offices and other commercial areas,
• in farms,
• by customers in hotels, motels and other similar residential environments,
• in bed and breakfast establishments.

Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

WARNING

Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

▶ Use the device exclusively for its intended use.
▶ Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.

General Safety information

PLEASE NOTE

Please observe the following general safety notices with regard to the safe handling of the device.

Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
Children must not use this appliance. Keep the appliance and its power supply unit away from children.
The device may be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge of their use if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
▶ Cleaning and user maintenance shall not be made by children.
▶ Children are not allowed to play with the device.
The device and its connecting cable must be kept away from children who are less than 8 years old.
▶ Only customer service departments authorized by the manufacturer may carry out repairs on the device, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. Improperly performed repairs can cause considerable dangers for the user.
▶ Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
Use the appliance only as described in the user's guide to avoid possible injury from misuse.
▶ Operate the appliance only in dry indoor areas.
▶ Do not operate the appliance unattended.

PLEASE NOTE

▶ Do not use the appliance:
- if the appliance itself or parts are damaged,
- if the power cord or plug is damaged,
- if the appliance has been dropped.
▶ Always unwind the power cord completely before use. When doing so, ensure the power cord is not damaged by sharp edges or hot objects.
Do not make any modifications to the appliance or the power cord. Only have repairs carried out by a specialist workshop, as appliances that have not been repaired properly endanger the user. Please also observe the enclosed warranty conditions.
▶ Only use the appliance with original accessories.
The device is protected against overheating. It will stop automatically after 10 minutes of continuous use. Wait for around 30 minutes before using the device again.
▶ Do not overload the device and do not let it operate un-loaded.
▶ Be sure the parts are properly assembled to original base and in place.

Sources of danger / Danger of injury

WARNING

Careless use of the appliance may result in injury. Note the following warnings to avoid injury.

▶ Never use your finger os tools to push ingredients deeper into the device while the device is running. Always use the pusher for this purpose.
▶ Disconnect the device from mains power if it is unsupervised; before assembling it; when changing over accessories and when disassembling or cleaning it.
The blade is sharp. Be careful when handling or cleaning the device. Be careful when emptying the blender jug.
▶ CAUTION: Switch off the appliance before removing the blender jug from the motor unit.
▶ Stop processing of food immediately if rotating accessories no longer turn or only turn with diffi culty and unplug the device.
The appliance is not suitable for chopping hot or liquid ingredients at more than 100 °C.

Dangers due to electrical power

DANGER

Mortal danger due to electrical power! Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power:

If the power cord of this appliance is damaged, it must be replaced by the manufacturer or its customer service or a similarly qualified person in order to avoid hazards.
Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.
▶ Do not touch the appliance or the mains plug with wet hands.
Do not immerse the appliance in water or other liquids, and do not put it in the dishwasher.

Transport inspection

WARNING

Do not allow children to play with packaging materials due to risk of suffocation.

PLEASE NOTE

Examine the shipment to ensure the unit and manual are included and inspect the unit for any visible damage.
Immediately notify the carrier and/or the supplier about an incomplete shipment or any damage as a result of inadequate packaging or mishandling.

Setup location requirements

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• Place the device on a firm and even work surface.
• Choose the setup location in such a way that children cannot reach any hot surfaces on the device.
• The device is not intended to be installed in a wall or a built-in cupboard.
• Do not use the device outdoors.
• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician.
• The electrical outlet must be protected by a 16A safety cut-out switch, separately from other electricity consumers,
• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm ^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
• Make sure that the power cable is undamaged and has not been installed under the oven or over hot or sharp surfaces.
• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician. The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

NL Veiligheid

,הכלה.הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

2.2 Bedienelemente

Table of contents - Operation

1 General 59

1.1 Information on this manual....60

1.2 Limitation of liability....60

1.3 Copyright protection....60

1.4 Delivery scope 60

1.5 Unpacking 60

2 Design and Function....61

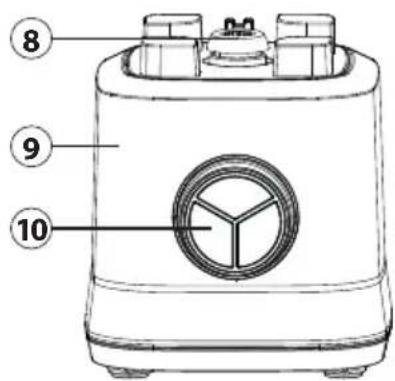

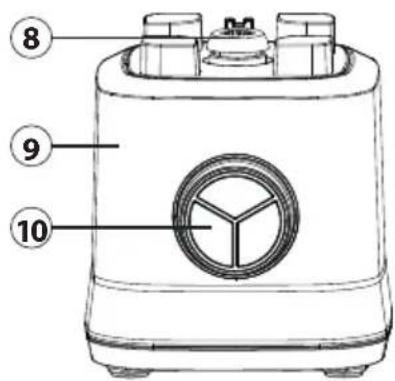

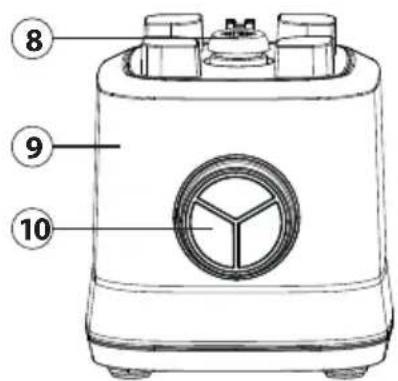

2.1 Overview....61

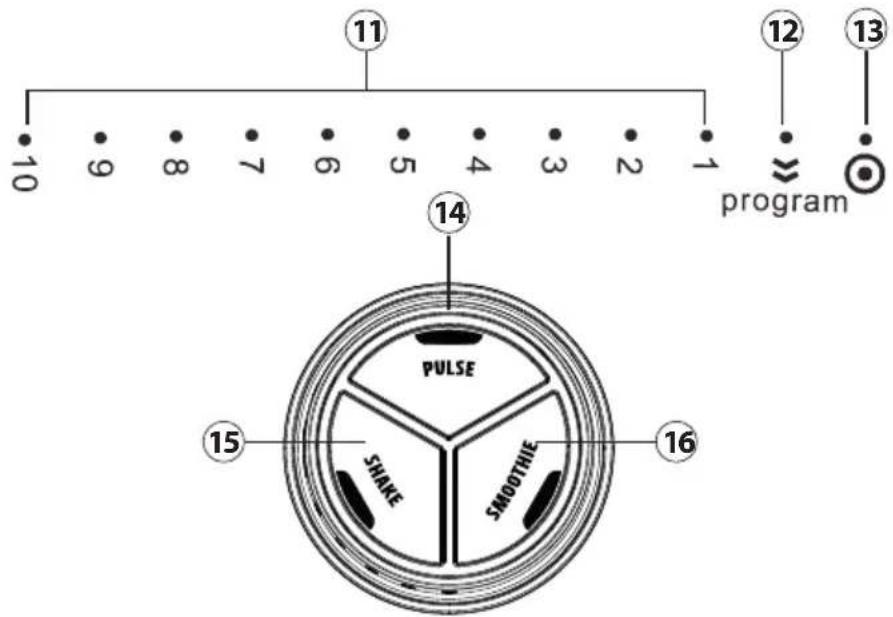

2.2 Control Panel 62

2.3 Rating plate....62

3 Operation and Handling 62

3.1 Before first use 62

3.2 Tips for using the device....62

3.3 Operation 63

3.4 Function buttons....63

3.4.1 PULSE function....63

3.4.2 SHAKE function 64

3.4.3 SMOOTHIE function....64

3.5 Recipes....64

3.5.1 Basic recipe for milk shakes 64

3.5.2 Basic recipe for smoothies 65

4 Cleaning and Maintenance 65

4.1 Safety information....65

4.2 Cleaning....65

5 Troubleshooting 66

5.1 Safety notices 66

5.2 Troubleshooting table 66

6 Disposal of the Old Device 67

6.1 Disposal of the packaging....67

7 Guarantee....67

1General

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions. Your appliance will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

1.1 Information on this manual

These operating instructions are a component of the Blender Power Blender B 2000 (referred to hereafter as the Device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

• Commissioning, - Operation,
• Troubleshooting and/or • Cleaning
  Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

1.2 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration. No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:

• Non-observance of the manual
• Uses for non-intended purposes
- Improper repairs
- Technical alterations, modifications of the device
- Use of unauthorized spare parts

Modifi cations of the device are not recommended and are not covered by the guaran- tee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

1.3 Copyright protection

This document is copyright protected. CASO GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes.

1.4 Deliveryscope

As a rule, the articles are delivered with the following components:

• CASO Power Blender B 2000 • Blender jug with lid
- Lid seal with integrated measuring cup - Blade unit
- Pusher - Operation Manual

1.5 Unpacking

Carefully remove the packaging material and unit from the carton.

PLEASE NOTE

If possible, keep the original packaging for the duration of the guarantee period in the event a return is necessary.

2 Design and Function

This chapter provides you with important information of the design and function of the device.

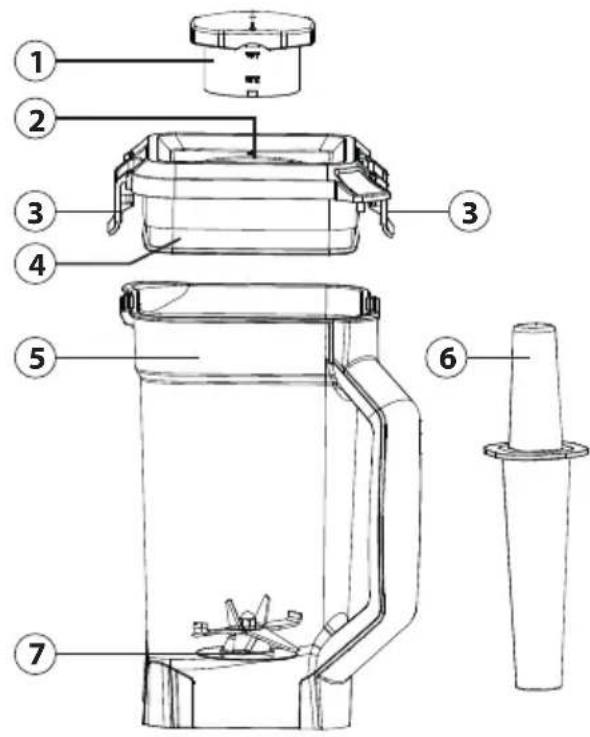

2.1Overview

① Sealing cap with integrated measuring cup
② Filling opening
③ Catch fasteners for the blender lid
④ Blender lid
⑤ Blender jug
⑥ Pusher
⑦ Blade unit

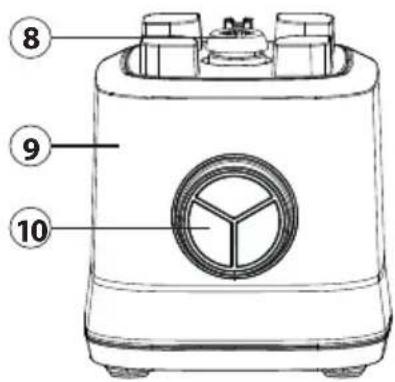

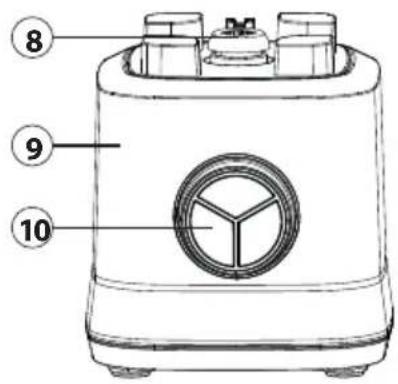

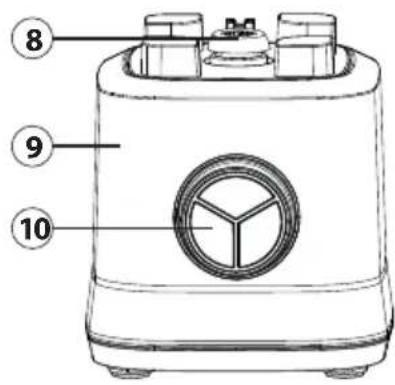

⑧ Attachment outlet
⑨ Motor unit
10 Operating panel

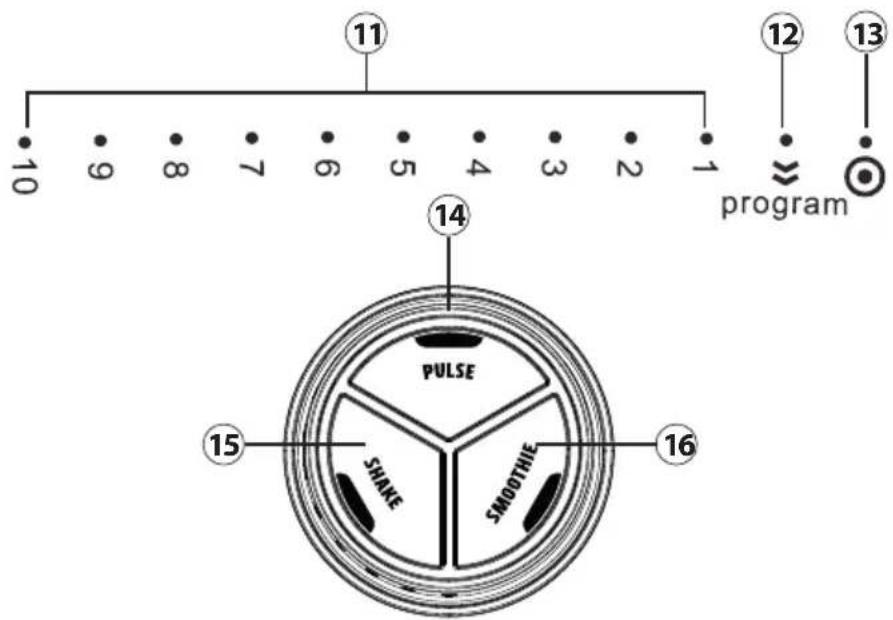

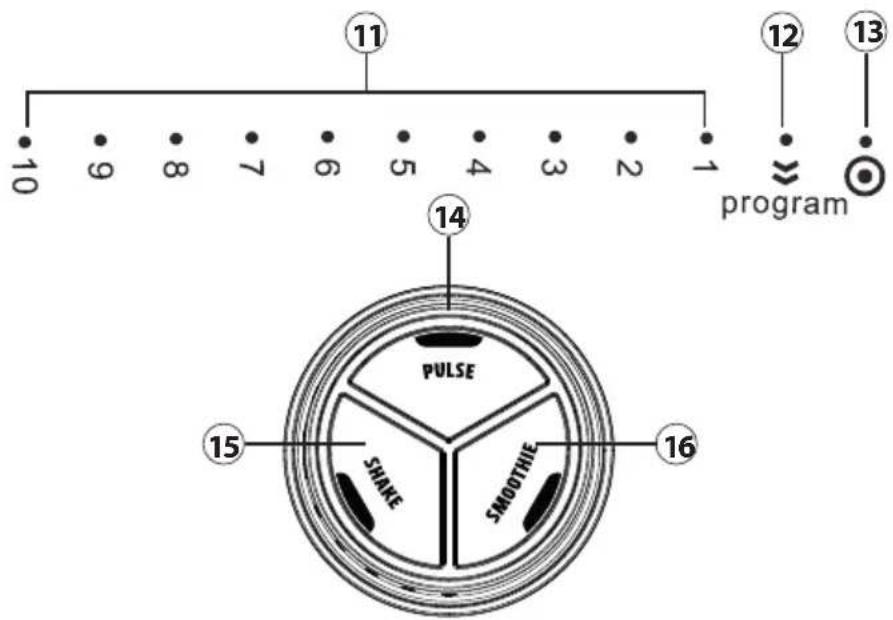

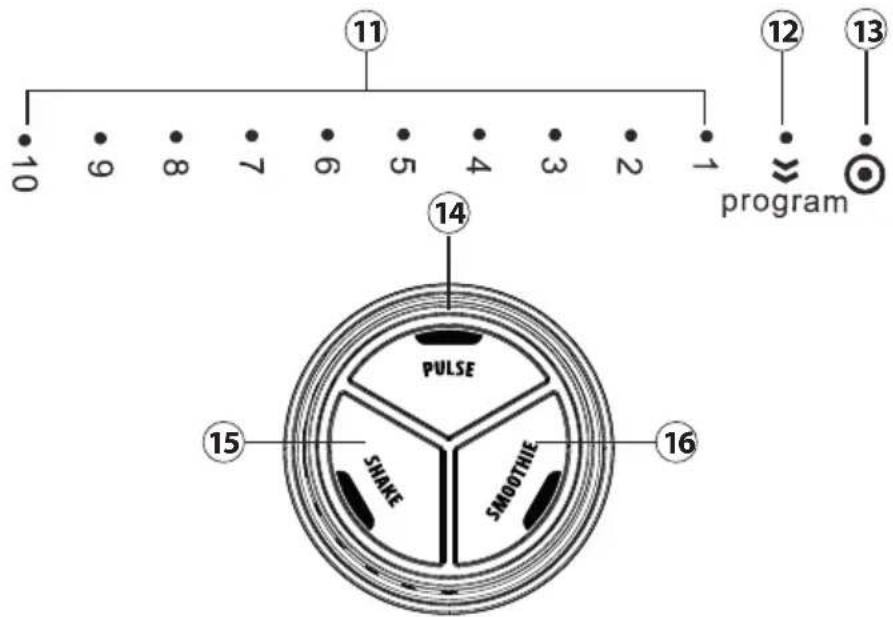

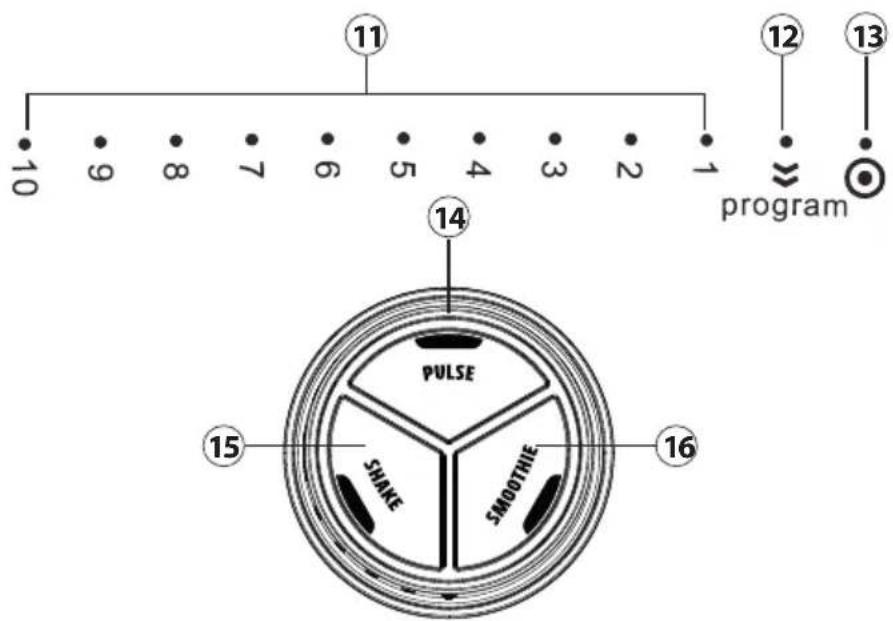

2.2 Control Panel

Control knob markings:

⑪14Speed 1-10
⑫15 Position to select the function buttons
⑬ "Off" position

Function buttons:

○ PULSE function
○ SHAKE function
16 SMOOTHIE function

2.3 Ratingplate

The rating plate with the connection and performance data can be founded beneath the device.

3 Operation and Handling

This chapter provides you with important information and notes on the operation and basic settings of the appliance.

3.1 Before first use

Clean the device as described in the "Cleaning and maintenance" section.

3.2 Tips for using the device

• Remove stalks, pips and, where applicable, peel from the fruit or vegetables.
• Roughly chop the food items before you process them.
• The higher the speed setting and the longer the blender runs, the more intensively the food will be mixed and the finer the result.

3.3Operation

WARNING

Do not leave the device unsupervised when it is in operation, so that you can intervene quickly in the event of dangers.
▶ Never use your fingers to push ingredients further down into the blender jug. Use the pusher supplied with the device for this.

PLEASE NOTE

The device is protected against overheating. It will stop automatically after 10 minutes of continuous use. Wait for around 30 minutes before using the device again.
An integrated safety switch ensures that the device cannot be operated unless the lid has been correctly placed on the jug and locked and the jug has been correctly placed on the motor unit.
The device will automatically switch to standby mode if it is not used for more than approx. 1 minute.

1. Place the motor unit on a stable surface.
2. Roughly chop the desired food items and place them in the blender jug. Pay attention to the "Max." mark.
3. Place the blender lid on the jug. The arrows “▼” on the lid and the jug handle should point to each other.
4. Fastener the blender lid onto the jug, making sure that it sits tightly by pressing the catch fasteners down until you hear them click into place.
5. Place the sealing cap into the blender lid opening (→ on the sealing cap should point to the symbol on the lid) and turn the cap until it sits tightly (→ on the sealing cap points to the symbol on the lid).
6. Place the assembled blender jug on the motor unit (handle facing front left or front right).
7. Plug the power socket into mains power.
8. Turn the control knob to the desired speed level (1-10) or set the knob to "program" and use the desired function button.
9. To end the process, turn the knob back to the "Off" position.

PLEASE NOTE

▶ Turn the control knob to the "Off" position if you want to add more ingredients to the blender jug during operation. Remove the sealing cap from the blender lid and use the opening in the lid to add the desired ingredients to the jug.
It usually only takes a few seconds to chop food items. We recommend chopping food items at intervals.

3.4Functionbuttons

3.4.1 PULSEfunction

This function is used for short bursts of mixing, blitzing or chopping food at top speed. It is great for preparing shakes, sorbets, baby food or mixing cooked vegetables for soups, sauces, dips, etc.

1. Follow the instructions in the "Operating the device" section to prepare the device for use.
2. Set the control knob to "program".
3. Press the "PULSE" button.
4. The device will run at top speed for as long as you press the button. Release the button to stop the chopping process.
5. Turn the control knob back to the "Off" position when you have finished.

WARNING

Avoid the risk of burns: Please check the temperature of the food before you continue preparing it or give it to your baby. This can easily be done on the back of your hand.

3.4.2SHAKEfunction

This function can be used, for example, to quickly crush ice or make milk shakes. The function increases the blender's speed in quick successive steps to blitz food items in a very short space of time.

1. Follow the instructions in the "Operating the device" section to prepare the device for use.
2. Set the control knob to "program".
3. Press the "SHAKE" button.
4. The device will increase the mixing speed in a very short space of time, decreasing it in between.
5. The device will automatically stop. Alternatively, you can stop it by pressing the "SHAKE" button again.
6. Turn the control knob back to the "Off" position when you have finished.

3.4.3SMOOTHIEfunction

This function quickly increases the mixing speed, stops and then quickly increases the speed again. It is great for making fruit and vegetable smoothies. Depending on your personal taste, you can make thick or runny smoothies.

1. Follow the instructions in the "Operating the device" section to prepare the device for use.
2. Set the control knob to "program".
3. Press the "SMOOTHIE" button.
4. The device will increase the chopping speed in a very short space of time in a pulsing mode.
5. It will automatically stop. Alternatively, you can stop the device by pressing the "SMOOTHIE" button again.
6. Turn the control knob back to the "Off" position when you have finished.

3.5Recipes

3.5.1 Basic recipe for milk shakes

Ingredients:

• 600 ml milk
• 600 g vanilla ice cream
  • 1 large cup of crushed ice

Tips for enhancing the recipe:

• Substitute a different flavour for the vanilla ice cream
• Add approx. 300 g fruit or fruit puree during the mixing process
• Add approx. 300 ml maple or chocolate syrup.
• Add a liquid flavouring (e.g. caramel, vanilla, chocolate, etc.) to your personal taste
• Add spices (e.g. cinnamon) to your personal taste.

3.5.2 Basic recipe for smoothies

Ingredients:

• 400 ml liquid
• 800 g fruit or vegetables

Tips for enhancing the recipe:

• Use liquids such as juices, milk, buttermilk or yoghurt.
• Use fresh or frozen fruit
• Combine different fruits or fruits and vegetables.
• Add a liquid fl avouring (e.g. caramel, vanilla, chocolate, etc.) to your personal taste
• Add spices (e.g. cinnamon) to your personal taste.

4 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

4.1 Safetyinformation

ATTENTION

Please observe the safety instructions, before cleaning your device:

▶ Unplug the device when not in use and before any cleaning.
Clean the appliance immediately after each use. Extended waiting unnecessarily complicates cleaning and can make it impossible in extreme cases. Excessive accumulations of dirt can even damage the device under certain circumstances.
If dampness penetrates into the device, this can damage the electronic components.
Do not use any aggressive or abrasive cleaning agents or solvents.
Do not scrape off stubborn dirt with hard items.
Do not immerse the motor unit in water or other liquids, and do not put it in the dishwasher.
The blades are very sharp, handle the blender jug and blades with care when cleaning.
Dry all parts before reusing or storing them. Store the parts, as well as sharp knives, out of the reach of children.

4.2Cleaning

Motor unit

Wipe the outside of the motor unit with a soft, damp cloth after every use.

Accessories

• Half fill the blender jug with warm water, add a few drops of washing-up liquid and let the device run for 30 seconds on the SMOOTHIE setting. Rinse the jug thoroughly with lukewarm water and then dry it thoroughly.
• Alternatively, you can clean the accessories under running water using a small amount of washing-up liquid.

5Troubleshooting

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

5.1 Safetynotices

ATTENTION

Repairs of electrical appliances must be carried out by qualified person who are trained by the manufacturer.
Repairs performed by untrained persons may result in considerable hazards for the user and damage the machine.

5.2 Troubleshootingtable

If an error occurs, then an error code will appear on the control panel display. It describes the reason for the error.

If you cannot solve the problem by carrying out the steps described above, our Customer Service will help you free of charge.
Clean the device before you send it to customer service.

6 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.

PLEASE NOTE

Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
▶ Ensure that your old device is stored safely away from children until it is taken away.

6.1 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to "Green Dot" recycling collection points for disposal.

7 Guarantee

We provide a 24-month guarantee for defects caused by production or material faults, beginning on the date of purchase. Our guarantee is valid for Germany, Austria and the Netherlands. For all other countries, please contact us.

Your legal guarantee claims as per Art. 437 ff . German Civil Code (BGB) will remain unaff ected by this. You may exercise your statutory guarantee rights free of charge. The guarantee does not cover damage caused by improper handling or use of the product or defects which have only a minor impact on the product's functionality or value. In addition to this, the guarantee also excludes parts which are subject to wear and tear; transport damages insofar as we are not responsible for them and damages caused by repairs which were not carried out by us.

This product has been constructed for non-commercial use (domestic use) and its performance is designed to meet the corresponding needs. The guarantee only covers commercial use insofar as it is comparable to domestic use. The product is not intended for any other type of commercial use.

In the case of legitimate complaints we may either repair the defective product or replace it with a defect-free product at our discretion. Obvious defects must be notified to us within 14 days of the product's delivery. Any further claims are excluded.

When making a guarantee claim please contact us before you return the product (always with the purchase receipt!). Our contact details ("Guarantor") are provided at the beginning of this instruction manual.

2.2 Bedieningselementen

2.2 Operativa element

2.2 Elementos operativos

2.2 Painel de controle

DE	Weitere Sprachen dieser Bedienungsanleitung finden Sie unter www.caso-design.de oder wenn Sie den QR-Code scannen.
EN	To see these operating instructions in more languages, visit www.caso-design.de or scan the QR code.
NL	Je vindt deze gebruiksaanwijzing met vertaling in verschillende talen op de volgende link op de website www.caso-design.de. U kunt ook de QR-code scannen om toegang te krijgen tot de vertalingen.
SV	Det finns tillgång till flera språk i denna bruksanvisning på www.caso-design.de eller om du scannar QR-koden.
ES	Este manual de instrucciones está disponible en otros idiomas en www.caso-design.de o escaneando el código QR.
IT	Ulteriori lingue di queste istruzioni per l’uso sono disponibili al seguente link www.caso-design.de o scansionando il codice QR.
PT	Pode encontrar este manual de instruções noutras línguas em www.caso-design.de ou através da leitura do código QR.
TR	Bu kılavuzun diğer dillere çevirileri için şu bağlantıya bakınız: www.caso-design.de. Bu amaçla, geçerli QR kodunu da tarayabilirsiniz.
HE	www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.dewww.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.de www.caso-design.
AR	وIDE مسمح رمز الاستجابة السريعة يمكن العثور على المزيد من لغات هذا LDLيل على الموقع الال kidnapping

CASO GmbH
