Product Type	Electric Oven with Hot Plates (Hobs)
Model	ETH 3701G
Brand	ECG
Oven Capacity	37 L
Dimensions (W x H x D)	520 x 450 x 360 mm
Weight	12.1 kg
Rated Voltage	220–240 V~, 50/60 Hz
Maximum Power Consumption	2500 W
Large Hob Power (180 mm)	1500 W
Small Hob Power (145 mm)	1000 W
Oven Power	1300 W
Temperature Range	40–230 °C
Oven Functions	Upper heat, Lower heat, Both, Both + Fan, Lower + Fan, Rotisserie
Special Functions	Yoghurt preparation, Steam cleaning, Defrost
Hob Power Levels	3 (Low, Medium, High)
Door Type	Glass door with safety glass
Accessories Included	Grill grate, Square baking sheet, Rotisserie set
Cleaning	Easy-clean interior coating; steam cleaning function
Safety Features	Overheat protection, automatic shut-off? (not specified), child lock? (not specified)
Noise Level	40 dB(A)

Frequently Asked Questions - ETH 3701G ECG

Can I use both hobs and the oven at the same time?

No, the maximum power input is 2500 W. You can use both hobs simultaneously without the oven, or the small hob together with the oven. The large hob and oven cannot be used together.

How do I use the yoghurt preparation function?

Set the thermostat to the yoghurt symbol and the function switch to lower heating element. Preheat for at least 10 minutes. Boil milk, cool to 43-45°C, add 1-3% yogurt starter, stir, place in preheated oven for 5 hours. Then refrigerate for 1 day.

What should I do if smoke comes out during first use?

This is normal. The protective coating on heating elements burns off. Wipe hobs and heating elements with a damp cloth before first use. Ensure good ventilation. Smoke will disappear after a few uses.

How do I clean the oven interior?

Use the steam cleaning function: place 2 glasses of water in a baking dish on the bottom rack, set thermostat to steam cleaning position and function to lower heat for 30 minutes. Then wipe with a cloth. For regular cleaning, use a damp towel and mild detergent. Avoid abrasive cleaners.

Can I use metal utensils or aluminum foil in the oven?

Do not use baking bags, plastic, cardboard, or paper. Metal utensils are generally safe, but avoid contact with heating elements. The manual does not specify aluminum foil; use caution to avoid blocking vents.

How do I replace the oven light bulb?

Unplug the oven and let it cool. Remove the glass cover by turning it (use plastic gloves if needed). Unscrew the old bulb and replace with one of the same type. Reattach the glass cover.

What is the maximum load for the oven?

The oven capacity is 37 litres. Do not overload. Ensure air circulation. The manual does not specify a maximum weight, but common sense applies.

Why does the oven not heat up?

Check that the oven function switch is set to a heating mode (e.g., both heating elements). Ensure the thermostat is turned to a temperature above 0°C. Verify the appliance is plugged in and the circuit breaker is on. If still not working, contact service.

Can I use the hot plates without cookware?

No. Always place a flat-bottomed pot or pan on the hot plate. Operating without cookware can cause deformation and damage.

How do I reduce energy consumption?

Avoid opening the oven door frequently. Do not preheat unless necessary. Thaw frozen food before cooking. Turn off the oven a few minutes early to use residual heat. Keep flammable materials away.

USER MANUAL ETH 3701G ECG

Exterior view of a modern ECG toaster with two front monitors and a grating (no visible text or symbols)

ETH 3701G

ELECTRIC STOVE WITH HOT PLATES INSTRUCTION MANUAL

MINI ŠTEDNJAK UPUTE ZA UPORABU

ELEKTRISKÄ PLİTS SILDRINŞKIEM ROKASGRÄMATA

ELEKTRINĖ KROSNELĖ SU KAITLENTĖMIS INSTRUKCIJŲ VADOVAS

FÖZÖLAPOS ELEKTROMOS SÜTÖ HASZNÁLATI ÚTMUTATÓ

PIEKARNIK ELEKTRYCZNY Z PŁYTAMI GRZEWCZYMI INSTRUKCJA OBSŁUGI

CUPTOR ELECTRIC CU PLITE ELECTRICE INSTRUCTIUNI DE UTILIZARE

ELEKTRICKÁ RÚRA S PLATŇAMI NÁVOD NA OBSLUHU

ELEKTRIČNA PEČICA S KUHALNIMA PLOŠČAMA NAVODILA

MINI ŠPORET UPUTSTVO ZA UPOTREBU

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not liable for damages caused during shipping, by incorrect use, voltage fluctuation or the modification or adjustment of any part of the appliance.

To protect against a risk of fire or electric shock, basic precautions shall be taken while using electrical appliances, including the following:

1. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is properly grounded. The outlet must be installed in accordance with applicable electrical codes according to EN.
2. Do not operate the oven if the door is damaged, it does not function correctly or the power cord is damaged. Unplug the cord from outlet before repairing. If you remove the covers when the power supply is plugged in you can expose the service technician to an injury by electric shock! All repairs or adjustments including cord replacements must be carried out by a professional service centre! Do not remove the protective covers from the appliance; there is a risk of electric shock!
3. Protect the appliance from direct contact with water or other liquids to prevent possible electric shock. Do not immerse cord or plug in water!

4. This electric oven is intended for domestic use only. Do not operate the oven outdoors or in a moist environment and do not touch the cord or appliance with wet hands. Risk of electric shock. Do not touch hot surfaces. Prevent the risk of injury or burning. Do not use the oven for other purposes (e.g. heating rooms, drying animals, textile etc.).

5. Use accessories only advised by the manufacturer, otherwise you risk losing the warranty. Use oven mitts when inserting/removing objects from the oven.

6. Pay special attention when using the oven near children. Ensure that children and pets are kept at a safe distance from the appliance during operation. Carefully remove all packaging and security before using the appliance.
7. Do not leave the electric oven running unattended.
8. Leave at least 10 cm of free space on each side of the oven to ensure proper air circulation. Do not place any objects on the oven.
9. This appliance is equipped with a door containing safety glass. This glass is more resilient and resistant to breaking than ordinary glass. Avoid scratching the oven door or chipping the edges off.
10. We recommend not leaving the plugged in oven unattended. Wait before the oven cools and unplug the power cord before performing maintenance work, inserting or removing accessories. Do not remove the power cord from the outlet by yanking the cord. Unplug the power cord from the outlet by grasping the plug.
11. Use the oven in its working position only, where there is no risk of it overturning, and sufficiently far from flammable objects (e.g. curtains, drapes, wood etc.).
12. Pay very close attention when handling roasting pans, grills, containing very hot oil or other hot liquids.
13. Do not use the oven near a source of heat, for example, stove hotplates. Protect the appliance against direct sunlight.
14. Do not allow the power cord to touch hot surfaces or run the cord over sharp edges. Place the power plug of the appliance directly into a separate socket. Do not use splitters or extension leads.
15. Prevent fires inside the oven by observing the following:

a) Do not overheat food. Make sure no objects touch the inside walls of the oven.

b) Do not insert material such as cartons, plastic, paper etc. into the oven. Use material which is suitable for use in ovens.

c) Do not cover the oven from the inside or outside. Risk of fire or the oven overheating. The temperature of the doors, the outer surface or accessible surfaces may be higher when the appliance is in operation. The appliance may become hot during use. Care should be taken to avoid touching the heating elements inside the oven.
d) After use, wipe the door, door seal and the oven interior with a cloth moistened with a detergent solution and wipe dry. This removes any dirt, grease and any food residue.

If the cooked food inside the oven begins to smoke or ignites, keep the oven door closed, turn the oven off and unplug the power cord from the outlet.

1. The appliance is not intended for operating via a time switch or remote control.
2. Do not use the oven if it does not contain any food or liquids. You could damage the oven. Do not block or obstruct the ventilation openings of the oven.
3. Use the electric oven only in accordance with the instructions given in this manual. This electric oven is intended for domestic use only. The manufacturer is not liable for any damage caused by the improper use of this appliance.
4. You cannot use charcoal or similar fuels in this appliance.

5. This appliance is intended for household use and similar areas, such as:

6. kitchen corners in shops, offices and other workplaces,

7. in agriculture.
8. by guests in hotels, motels and other residential establishments;

9. in Bed and Breakfast accommodations.

10. This appliance may be used by children over 8 years of age and persons with limited physical and mental abilities and persons without experience and knowledge of the appliance, provided that supervision and/or instruction is provided with regard to the use of the appliance in a safe manner so that the hazards associated with its use are understood. Children must not play with this appliance.

Children cannot clean or otherwise maintain the appliance without supervision.

Hot surface!

Marked surfaces become hot during use

Do not immerse in water!

NOTICE: The appliance is designed for a maximum power input of 2500 W. It is not possible to use both hobs and the oven at the same time. Always use only the SMALL hob and the oven or both hobs at the same time without switching on the oven.

Danger for children: Children may not play with the packaging material. Do not let children play with the plastic bags. Risk of suffocation.

WARNING: Do not use steam cleaners for cleaning. The product must be disconnected from the mains before cleaning the appliance. Next, let the appliance cool down. After cleaning, check that the power supply plug is properly dried, including other parts of the product, before reconnecting to the mains.

NOTICE: The baking pan is not intended for long-term contact with food.

BEFORE FIRST USE

• Read all the instructions in this manual.
• Carefully unpack the appliance and remove all packing material and advertising stickers. Also check the interior and remove any packaging material.
• Make sure the oven is switched off and the hob is also switched off.
• There is a protective coating on the hotplates and heating elements from the factory that burns when the appliance is heated. This can cause smoke and odours when using the appliance, but these will disappear after a few uses. This is not a defect.
• You can minimise the formation of smoke by wiping the hobs and heating elements with a slightly damp cloth before first use. Do not use cleaning agents! Then dry them thoroughly.

• Only switch on the appliance when it is completely dry.
  • Always ensure sufficient ventilation.

• Turn on both hotplates without any cookware. Turn the rotary pushbuttons ☐ and ● to position 3. Switch off after 5-10 minutes.

• Then turn on the oven, also without dishes or any food. Turn the control knob to 230^ C. Set the oven function to

Warning: The surfaces between hot plates for white ovens can darken during use!

Warning: The appliance must be connected to a separate outlet with a circuit breaker rated at loads corresponding to the power consumption of the appliance.

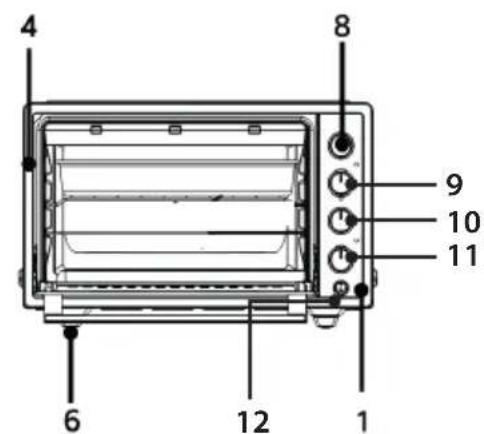

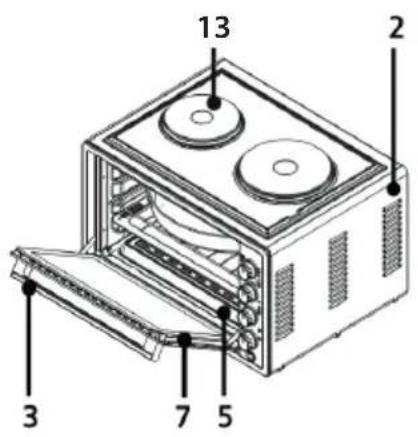

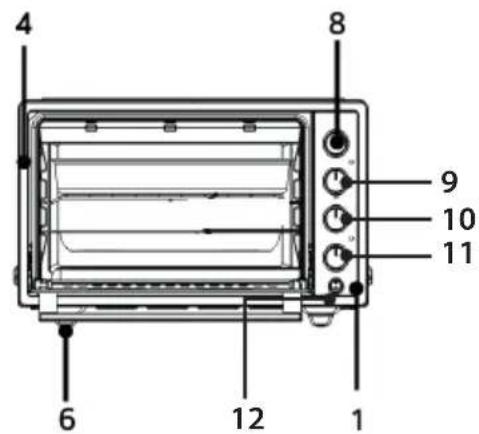

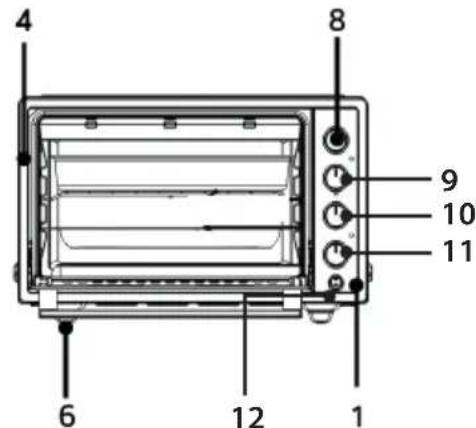

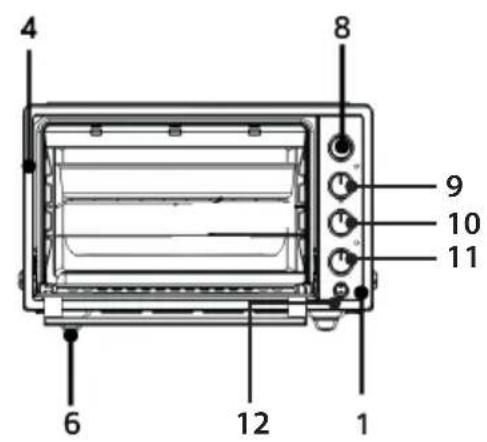

DESCRIPTION

Two 3D-rendered electronic components with no visible text or symbols

1. Control panel
2. Outer oven cabinet
3. Handle
4. Inner oven cabinet
5. Heating elements

6. Feet

7. Glass oven door

8. Regulation of the larger hob
9. Regulation of the smaller hob
10. Oven temperature control/ thermostat

11. Oven functions switch

12. Switching on the rotisserie

13. Hobs

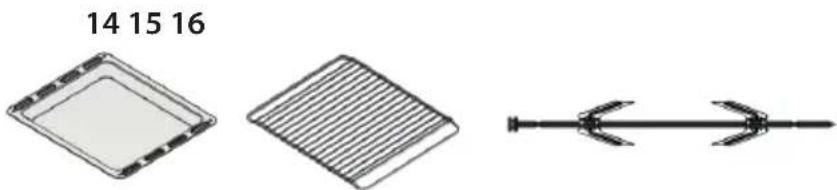

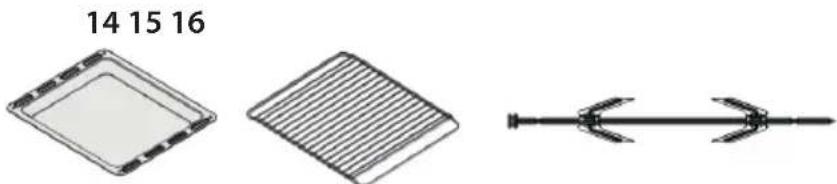

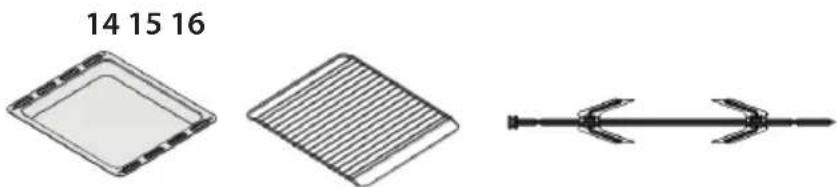

14. Square sheet
15. Grill grate
16. Rotating rotisserie

Appliance and control elements functions

Selection of the function of the appliance.

Use the hob control knobs (on the top of the oven) to set the desired hob power or the Oven Function Switch (on the control panel, marked as PR) to select the desired oven use mode. The oven can only ever be used in parallel with the SMALL hob. Or you can use both hobs without turning on the oven.

The symbols of the switches have the following meaning:

Control of the hotplates
Regulation of the smaller hob Smaller plate
	●	Off
	1 Low	power
	2 Medium power
	3 High performance
Regulation of the larger hob Larger plate
	●	Off
	1 Low	power
	2 Medium power
	3 High performance
Oven control
Thermostat	[SWKZ]	Temperature settings	Oven
	●	Off (0 °C)
	[ABA2]	Yoghurt preparation function
	[OT24]	Steam cleaning
Oven functions switch	●	Off	Oven
		Lower heating unit
	[D032]	Upper heating element
	[7CSH]	Both heating elements
	[08CH]	Both heating elements + fan
		Lower heating element + fan

Hot plates control

• Turn the knob to adjust the smaller and/or larger plate to the desired power level.
• It is possible to set the power level from 1 to 3. The indicator lights up.
• When you have finished cooking, turn the knobs to the ● to turn the hob off.

Oven control

• Use the thermostat control to select the desired temperature for baking in the oven. The thermostat does not control the hot plates' temperature, only the temperature of the oven. The temperature setting range is 40-230 °C.
• Use the switch to set the desired oven function. When the oven is switched on, the indicator lights up.

OPERATING INSTRUCTIONS

Warning:

• We do not recommend the use of baking bags in the oven.
• Never use plastic utensils, cardboard, paper and similar materials in the oven!
• Be very cautious while removing pans, grills or any hot dishes from the oven. Always use oven mitts.
• You can control the hob and oven separately or in combination.
• You can use both hobs at the same time.
• You can control the smaller hob and the oven at the same time.

Note: Only use both hobs at the same time, or the small hob and the oven. Never use the large hob and the oven or both the hob and the oven at the same time!

Cooking on hot plates

• Do not touch the hot plates after use! The hot plates are hot!
• Use flat bottom containers. The diameter of the bottom should not be less than the diameter of the hot plate.
• Do not turn on hot plates without cookware. This could lead to deformation.
• Place the cooking pot on the hot plate.
• Use the Large or small hob control to switch on and control the desired hob.
• When cooking is complete, turn the hob off using the control.
• Unplug the power cord from the outlet after you are finished cooking.

Yoghurt preparation function

1. Turn the thermostat to 🎨 and the oven function switch to the lower heating element position (____). Let the oven preheat for at least 10 minutes.
2. Meanwhile, bring the milk to the boil and let it cool to 43-45 °C. Add the yeast at about 1-3 % and stir slowly until the milk is warm.
3. Put the milk with the yeast in the preheated oven.
4. After 5 hours, remove the yoghurt and leave at room temperature for about 15-20 minutes. Then place the yogurt in the refrigerator for 1 day.
5. After 1 day, the yoghurt is ready to eat.

Defrosting food

Remove the food to be defrosted from its packaging and place it on the grill grate. Place a square baking tray under the grill to allow the water to drip off, so the defrosted food doesn't get soggy. Never consume dripping liquid, it is potentially harmful to health (e.g. from raw meat).

The settings for the defrost function are shown in the cooking table below.

During defrosting, we recommend setting the function of both heating elements + fan ( ) As the defrosting process will vary depending on the food and its weight, be sure to check the food regularly during the defrosting process.

FOOD PREPARATION TABLE

Cooking times may vary depending on the mains voltage, quality of the cooked ingredients, quantity and temperature. It is possible that the food you cook according to these values will not suit your taste. Through repeated testing and experimentation, you will achieve a process that works for you.

Dish Temperature (°C) Time (minutes) Positions
Biscuits 170-180 25-30 1.
Cakes 170-190 40-50 1.
Cakes 180-200 40-50 1.
Buns	170-180 20-30 1.
Cupcake 170-180 35-40 1.
Baked pasta 180-190 25-30 1.
Fish 220-MAX 30-40 1.
Lamb 220-MAX 90-120 1.
Beef 220-MAX 90-120 1.
Turkey 220-MAX 45-55 1.
Chicken 220-MAX 75-100 1.
Defrosting	60-120 55-60 2.

Let the oven preheat for 10 minutes before baking.

CLEANING AND MAINTENANCE

• Always unplug the appliance from power and let it cool before cleaning!
• The oven has a special coating that is easy to clean. If necessary, use a damp towel to clean the oven walls.
- Do not use a scouring pad, scraper or abrasive powders and aggressive cleaners that could damage the interior surface of the oven.
- Wash all the accessories in soapy water.
• Wipe the oven door with a damp towel and dry with a paper or fabric cloth.
• Make sure water does not get into the air vents.
- Allow all parts and accessories cool prior to plugging the oven into the outlet.

Steam cleaning

This function allows you to thoroughly clean dried-on dirt from the inside of the oven without using harmful chemicals.

1. Remove all accessories from the oven.
2. Place 2 glasses of water in a square baking dish and slide the baking dish into the bottom rack of the oven.
3. Set the thermostat to the steam cleaning position (☐). Set the oven function switch to the position for the lower heating element (☐).
4. After 30 minutes, turn off the oven, open the door and wipe the inside of the oven with a cloth.

Replacing the bulb

WARNING: To prevent electric shock, make sure the appliance is unplugged (appliance plug is unplugged) and all controls are in the "Off" position before changing the bulb.

Line drawing of a hand adjusting a mechanical component (no text or symbols)

• Wait until the appliance has cooled completely.
- Remove the glass protective cover by turning it as shown.
• If you have trouble turning, using plastic gloves may help.
- Then unscrew the bulb and screw in a new one with the same parameters. Put the glass cover back on.
• You can now use the oven again.

HOW TO REDUCE ELECTRICITY CONSUMPTION

Please read the recommendations below to ensure that you use the appliance you have purchased in an energy efficient manner.

• Opening the oven door frequently during baking causes cold air to enter the oven, causing energy loss. Therefore, only open the door when absolutely necessary.
• Try not to prepare more than one meal in the oven. Take care to ensure the appropriate temperature and cooking time.

• Do not preheat the oven unless necessary. If preheating is necessary, do not extend the duration of preheating beyond what is necessary.

• Thaw frozen foods before preparing them in the oven.

• Do not keep flammable materials around the oven.
• If you turn off the electric oven without opening the oven door, the food will continue to cook at the current temperature for a few minutes, which can save energy.

TECHNICAL DATA

Capacity: 37 l

Dimensions: 520 × 450 × 360 mm (W × H × D)

Weight: 12.1 kg

Nominal voltage: 220–240 V\~ 50/60 Hz

Noise level: 40 dB (A)

Large 180mm hotplate power consumption: 1500 W

Small 145mm hotplate power consumption: 1000 W

Oven input power: 1300 W

Maximum power consumption: 2500 W

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF THE PRODUCT AT THE END OF LIFE

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product. Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directives on electromagnetic compatibility and electrical safety.

The operating instructions are available at www.ecg-electro.eu

Changes of text and technical parameters reserved.

08/05

SICHERHEITSHINWEISE

Heiße Oberfläche!

Two 3D-rendered geometric shapes: a square with dashed border and a grid-like structure (no text or symbols)

Line drawing of a hand adjusting a mechanical component (no text or symbols)

Horký povrch!

Do not immerse in water! – Neponořovat do vody!

Two 3D geometric shapes: a square with dashed border and a grid-like structure (no text or symbols)

Line drawing of a hand adjusting a mechanical component (no text or symbols)

Pealispind on kuum!

Line drawing of a hand holding a small object over a metal bracket (no text or symbols)

Vruća površina!

Line drawing of a hand holding a small object on a metal rod (no text or symbols)

• Pričekajte da se aparat potpuno ohladi.
• Skinite staklenu zaštitu okretanjem na prikazani način.
• Ako imate problema s okretanjem, korištenje plastičnih rukavica može pomoći.
  • Zatim okrenite žarulju kako biste je izvadili i zavijte novu s istim parametrima. Zamijenite stakleni poklopac.
  • Sada možete ponovno koristiti pećnicu.

KAKO SMANJITI POTROŠNJU ELEKTRIČNE ENERGIJE

Karsta virsma!

Two 3D-rendered electronic components with no visible text or symbols

Hand holding a small circular object with a ruler, no visible text or symbols

Karštas paviršius!

Line drawing of a hand adjusting a mechanical component (no text or symbols)

Forró felület!

Line drawing of a hand adjusting a mechanical component (no text or symbols)

Line drawing of a hand adjusting a mechanical component (no text or symbols)

Line drawing of a hand adjusting a mechanical component (no text or symbols)

Horúci povrch!

Do not immerse in water! – Neponárat do vody!

Line drawing of a hand adjusting a mechanical component (no text or symbols)

Vroča površina!

Tako označene površine postanejo z uporabo vroče

Do not immerse in water! – Ne potapljajte v vodo!

Two technical diagrams showing a square component with dashed border and a grid-like structure, labeled 14, 15, 16 (no text or symbols on the components themselves)

Line drawing of a hand adjusting a mechanical component (no text or symbols)

BEZBEDNOSNA UPUTSTVA

Vruća površina!

Three technical diagrams showing a square component, a striped plate, and a tool-like bracket (no text or symbols)

1. Upravljačka ploča
2. Spoljni kućište pećnice
3. Ručka
4. Unutrašnji orman pećnice
5. Elementi grejanja
6. Stopala

7. Staklena vrata rerne

8. Uredjaj za veći tanjir

9. Uređenje manjih tanjira
10. Kontrola temperature pećnice/termostat
11. Prekidač za izbor režima rada rerne

12. Uključite rotacioni ugao/iglu

13. Ploée

14. Kvadratni list
15. Rešetka za roštilj
16. Rotirajuća rotirajuća rotacija/igla

Line drawing of a hand holding a small object on a piece of wood or metal (no text or symbols)

Καυτή επιφάνεια!

14 15 16

Line drawing of a hand adjusting a mechanical component (no text or symbols)

Гаряча поверхня!

14 15 16

Line drawing of a hand adjusting a mechanical component (no text or symbols)

250 69 Klíčany, Czech Rep. e-post: [e-mail]

Hrvatski

K+B Progres, a.s.

U Expertu 91 tel.: [phone]

250 69 Klíčany, Czech Rep. e-mail: [e-mail]

Bosanski

K+B Progres, a.s.

U Expertu 91 tel.: [phone]

250 69 Klíčany, Czech Rep. e-mail: [e-mail]

Latviešu valoda

K+B Progres, a.s.

U Expertu 91 tel.: [phone]

250 69 Klíčany, Czech Rep. e-pasts: [e-mail]

Lietuvių kalba

K+B Progres, a.s.

U Expertu 91 tel.: [phone]

250 69 Klíčany, Czech Rep. el. paštas: [e-mail]

Magyar

K+B Progres, a.s.

U Expertu 91 tel.: [phone]

250 69 Klíčany, Czech Rep. e-mail: [e-mail]

Polski

K+B Progres, a.s.

U Expertu 91 tel.: [phone]

250 69 Kličany, Czech Rep. e-mail: [e-mail]

Română

K+B Progres, a.s.

U Expertu 91 tel.: [phone]

250 69 Klíčany, Czech Rep. e-mail: [e-mail]

Slovenčina
