USER MANUAL ETH 3501B ECG

Black ECG toaster oven with open lid and control knobs (no visible text or symbols)

ETH 3501B

ETH 3502W

ELECTRIC STOVE WITH HOT PLATES

INSTRUCTION MANUAL

MINIBACKOFEN MIT KOCHPLATTEN

BEDIENUNGSANLEITUNG

ELEKTRICKÁ MINITROUBA S PLOTNAMI

NÁVOD K OBSLUZE

KEEDUPLAATIDEGA ELEKTRIAHI

KASUTUSJUHEND

MINI ŠTEDNJAK

UPUTE ZA UPORABU

ELEKTRISKÄ PLİTS SILDRINKIEM

ROKASGRÄMATA

ELEKTRINÉ KROSNELÉ SU KAITLENTÉMIS

INSTRUKCIJŲ VADOVAS

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not liable for damages caused during shipping, by incorrect use, voltage fluctuation or the modification or adjustment of any part of the appliance.

To protect against a risk of fire or electric shock, basic precautions shall be taken while using electrical appliances, including the following:

1. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is properly grounded. The outlet must be installed in accordance with applicable electrical codes according to EN.
2. Do not operate the oven if the door is damaged, it does not function correctly or the power cord is damaged. Unplug the cord from outlet before repairing. If you remove the covers when the power supply is plugged in you can expose the service technician to an injury by electric shock! All repairs or adjustments including cord replacements must be carried out by a professional service centre! Do not remove the protective covers from the appliance; there is a risk of electric shock!
3. Protect the appliance from direct contact with water or other liquids to prevent possible electric shock. Do not immerse cord or plug in water!

4. This electric oven is intended for domestic use only. Do not operate the oven outdoors or in a moist environment and do not touch the cord or appliance with wet hands. Risk of electric shock. Do not touch hot surfaces. Prevent the risk of injury or burning. Do not use the oven for other purposes (e.g. heating rooms, drying animals, textile etc.).

5. Use accessories only advised by the manufacturer, otherwise you risk losing the warranty. Use oven mitts when inserting/removing objects from the oven.

6. Pay special attention when using the oven near children. Ensure that children and pets are kept at a safe distance from the appliance during operation. Carefully remove all packaging and security before using the appliance.
7. Do not leave the electric oven running unattended.
8. Leave at least 10 cm of free space on each side of the oven to ensure proper air circulation. Do not place any objects on the oven.
9. This appliance is equipped with a door containing safety glass. This glass is more resilient and resistant to breaking than ordinary glass. Avoid scratching the oven door or chipping the edges off.
10. We recommend not leaving the plugged in oven unattended. Wait before the oven cools and unplug the power cord before performing maintenance work, inserting or removing accessories. Do not remove the power cord from the outlet by yanking the cord. Unplug the power cord from the outlet by grasping the plug.
11. Use the oven in its working position only, where there is no risk of it overturning, and sufficiently far from flammable objects (e.g. curtains, drapes, wood etc.).
12. Pay very close attention when handling roasting pans, grills, containing very hot oil or other hot liquids.
13. Do not use the oven near a source of heat, for example, stove hotplates. Protect the appliance against direct sunlight.
14. Do not allow the power cord to touch hot surfaces or run the cord over sharp edges. Place the power plug of the appliance directly into a separate socket. Do not use splitters or extension leads.
15. Prevent fires inside the oven by observing the following:

a) Do not overheat food. Make sure no objects touch the inside walls of the oven.

b) Do not insert material such as cartons, plastic, paper etc. into the oven. Use material which is suitable for use in ovens.

c) Do not cover the oven from the inside or outside. Risk of fire or the oven overheating. The temperature of the doors, the outer surface or accessible surfaces may be higher when the appliance is in operation. The appliance may become hot during use. Care should be taken to avoid touching the heating elements inside the oven.
d) After use, wipe the door, door seal and the oven interior with a cloth moistened with a detergent solution and wipe dry. This removes any dirt, grease and any food residue.

If the cooked food inside the oven begins to smoke or ignites, keep the oven door closed, turn the oven off and unplug the power cord from the outlet.

1. The appliance is not intended for operating via a time switch or remote control.
2. Do not use the oven if it does not contain any food or liquids. You could damage the oven. Do not block or obstruct the ventilation openings of the oven.
3. Use the electric oven only in accordance with the instructions given in this manual. This electric oven is intended for domestic use only. The manufacturer is not liable for any damage caused by the improper use of this appliance.
4. You cannot use charcoal or similar fuels in this appliance.

5. This appliance is intended for household use and similar areas, such as:

6. kitchen corners in shops, offices and other workplaces,

7. in agriculture.
8. by guests in hotels, motels and other residential establishments;

9. in Bed and Breakfast accommodations.

10. This appliance may be used by children over 8 years of age and persons with limited physical and mental abilities and persons without experience and knowledge of the appliance, provided that supervision and/or instruction is provided with regard to the use of the appliance in a safe manner so that the hazards associated with its use are understood. Children must not play with this appliance.

Children cannot clean or otherwise maintain the appliance without supervision.

Hot surface!

Marked surfaces become hot during use

Do not immerse in water!

NOTICE: The appliance is designed for a maximum power input of 2918 W. It is not possible to use both hot plates and oven simultaneously. Always use only one OR the other hot plate and the oven at a time, or both plates without switching on the oven.

Danger for children: Children may not play with the packaging material. Do not let children play with the plastic bags. Risk of suffocation.

WARNING: Do not use steam cleaners for cleaning. The product must be disconnected from the mains before cleaning the appliance. Next, let the appliance cool down. After cleaning, check that the power supply plug is properly dried, including other parts of the product, before reconnecting to the mains.

NOTICE: The baking pan is not intended for long-term contact with food.

BEFORE FIRST USE

• Read all the instructions in this manual.
• Carefully unpack the appliance and remove all packing material and advertising stickers. Also check the interior and remove any packaging material.
• Make sure the oven is switched off and the hob is also switched off.
• There is a protective coating on the hotplates and heating elements from the factory that burns when the appliance is heated. This can cause smoke and odours when using the appliance, but these will disappear after a few uses. This is not a defect.
• You can minimise the formation of smoke by wiping the hobs and heating elements with a slightly damp cloth before first use. Do not use cleaning agents! Then dry them thoroughly.

• Only switch on the appliance when it is completely dry.
  • Always ensure sufficient ventilation.

• Turn on both hotplates without any cookware. Turn the ○● and ●○ dials to position 3. Switch off after 5-10 minutes.

• Then turn on the oven, also without dishes or any food. Turn the g^ control to 250^ . Set the oven function to ☐

Warning: The surfaces between hot plates for white ovens can darken during use!

Warning: The appliance must be connected to a separate outlet with a circuit breaker rated at loads corresponding to the power consumption of the appliance.

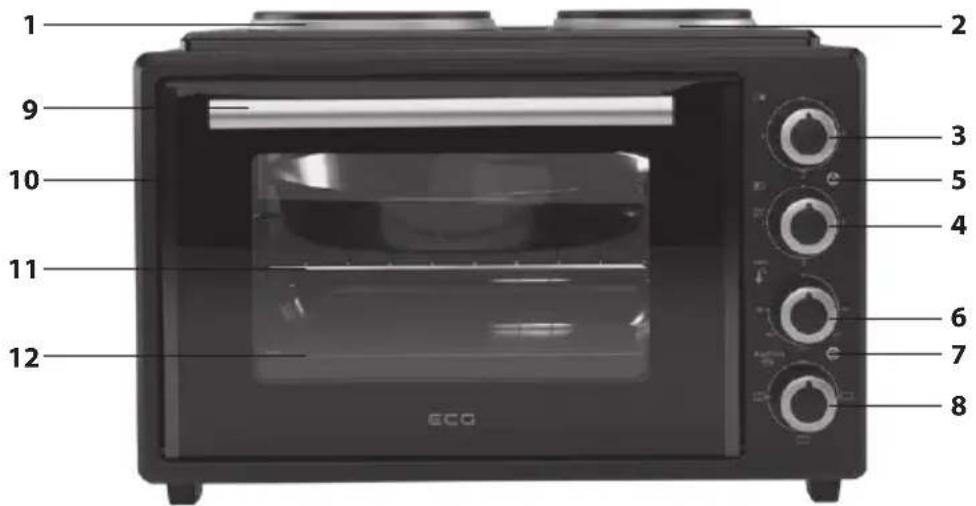

DESCRIPTION

1. Larger hotplate
2. Smaller hotplate

3. Regulation of the smaller hotplate

4. Regulation of the larger hotplate

5. Hotplate operation indicator
6. Oven thermostat

7. Oven operation indicator

8. Oven functions switch

9. Oven door handle
10. Oven door
11. Grill grate
12. Baking tray

Appliance and control elements functions

Selection of the function of the appliance.

Use the hob control dials ③ and ④ to set the desired hob power or use the Oven Functions Switch ⑧ to select the desired oven usage mode. The oven can only be used with one hob at a time. Or you can use both hobs without turning on the oven.

The symbols of the switches have the following meaning:

Control of the hotplates
Smaller hotplate control (3)			Smaller hotplate
	●	Off
	1 Low	power
	2 Medium power
	3 High power
Large hotplate control (4)			Larger hotplate
	[1660]	Off
	[70XW]Low	power
	[YT22]Medium power
	[220]High	power (oven off)
Oven control
Thermostat (6)	[282V]	Temperature settings	Oven
	[WWWC]	Off (0 °C)
Oven function switch (8)	[2C70]		Oven
	[10047]	Off
		Upper heating element
	[10050]	Lower heating element
		Both heating elements

Hot plates control

• Turn the knob to adjust the smaller and/or larger hotplate to the desired power level.
• It is possible to set the power level from 1 to 3. The indicator lights up.
• As soon as you finish cooking, turn the knobs to the ● position to turn off the hotplates.

Oven control

• Use the ⑥ knob to select the desired temperature for baking in the oven. The thermostat does not control the hot plates' temperature, only the temperature of the oven.
  • Use the switch ⑧ to set the desired oven function. When the oven is switched on, the indicator lights up.

OPERATING INSTRUCTIONS

Warning:

• We do not recommend the use of baking bags in the oven.
- Never use plastic utensils, cardboard, paper and similar materials in the oven!
- Be very cautious while removing pans, grills or any hot dishes from the oven. Always use oven mitts.
- You can control the hob and oven separately or in combination.
- You can use both hobs at the same time.
- You can control the smaller hob and the oven at the same time.
- You can use the large hob (maximum power level 2 / 1000 W) and the oven at the same time. However, switching the large hob to stage 3 automatically switches the oven off.

Note: Notwithstanding this option, we do not recommend using all functions at once to avoid overloading the home's power supply and fuses.

Cooking on hot plates

• Do not touch the hot plates after use! The hot plates are hot!
• Use flat bottom containers. The diameter of the bottom should not be less than the diameter of the hot plate.

• Do not turn on hot plates without cookware. This could lead to deformation.

• Place the cooking pot on the hot plate.

• Use the smaller ③ or larger ④ hot plate control to turn on and set the required hot plate.

• When you finish cooking, turn off the hot plate using control knobs ③ or ④.
• Unplug the power cord from the outlet after you are finished cooking.

CLEANING AND MAINTENANCE

• Always unplug the appliance from power and let it cool before cleaning!
• The oven has a special coating that is easy to clean. If necessary, use a damp towel to clean the oven walls.
- Do not use a scouring pad, scraper or abrasive powders and aggressive cleaners that could damage the interior surface of the oven.
- Wash all the accessories in soapy water.
- Wipe the oven door with a damp towel and dry with a paper or fabric cloth.
- Make sure water does not get into the air vents.
- Allow all parts and accessories cool prior to plugging the oven into the outlet.

HOW TO REDUCE ELECTRICITY CONSUMPTION

Please read the recommendations below to ensure that you use the appliance you have purchased in an energy efficient manner.

• Opening the oven door frequently during baking causes cold air to enter the oven, causing energy loss. Therefore, only open the door when absolutely necessary.
• Try not to prepare more than one meal in the oven. Take care to ensure the appropriate temperature and cooking time.
• Do not preheat the oven unless necessary. If preheating is necessary, do not extend the duration of preheating beyond what is necessary.
• Thaw frozen foods before preparing them in the oven.
• Do not keep flammable materials around the oven.
• If you turn off the electric oven without opening the oven door, the food will continue to cook at the current temperature for a few minutes, which can save energy.

TECHNICAL DATA

Capacity: 35 l

Dimensions: 505 × 416 × 330.5 mm (W × H × D)

Weight: 10.8 kg

Nominal voltage: 220–240 V\~ 50–60 Hz

Noise level: 45.5 dB (A)

Large 180mm hotplate power consumption: 1500 W

Small 145mm hotplate power consumption: 1000 W

Oven input power: 1400 W

Maximum power consumption: 2918 W

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF THE PRODUCT AT THE END OF LIFE

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product. Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directives on electromagnetic compatibility and electrical safety.

The operating instructions are available at www.ecg-electro.eu Changes of text and technical parameters reserved.

08/05
